Model Whirlpool LTE5243DQ8 WASHER/DRYER LAUNDRY SYSTEM – Common Parts & Diagrams
10 - TUB AND BASKET PARTS
11 - WATER SYSTEM PARTS

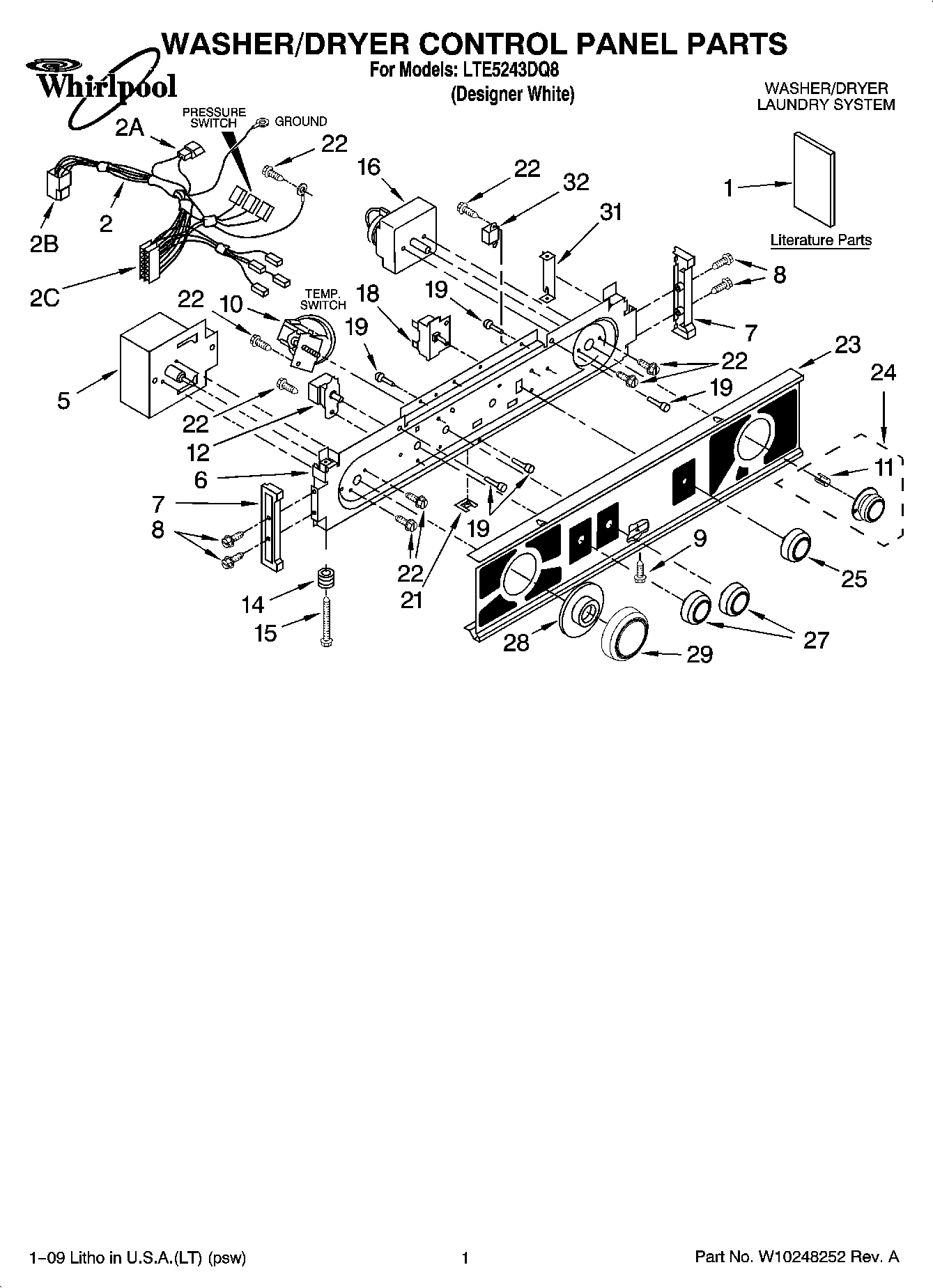

01 - WASHER/DRYER CONTROL PANEL PARTS

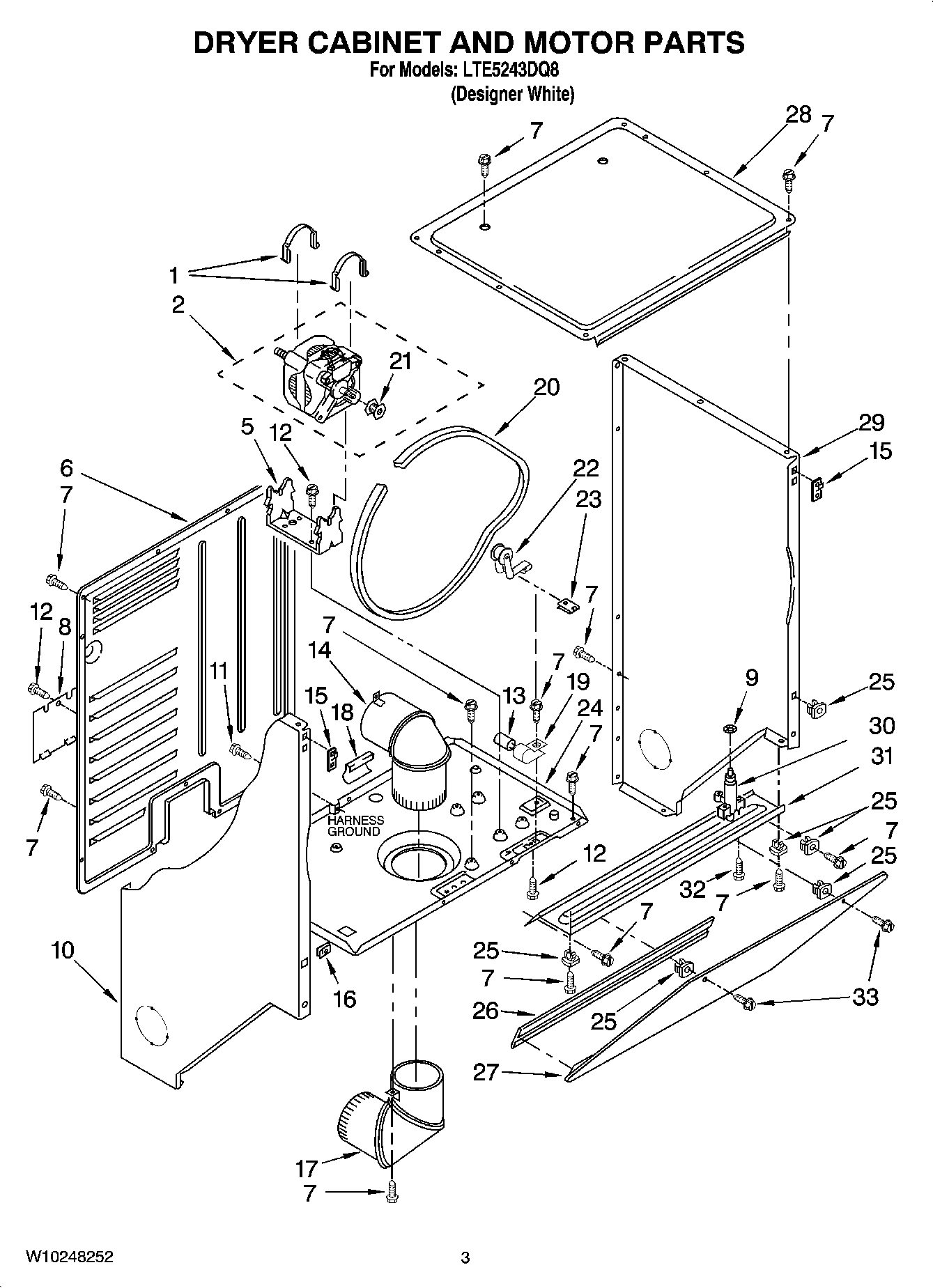

03 - DRYER CABINET AND MOTOR PARTS

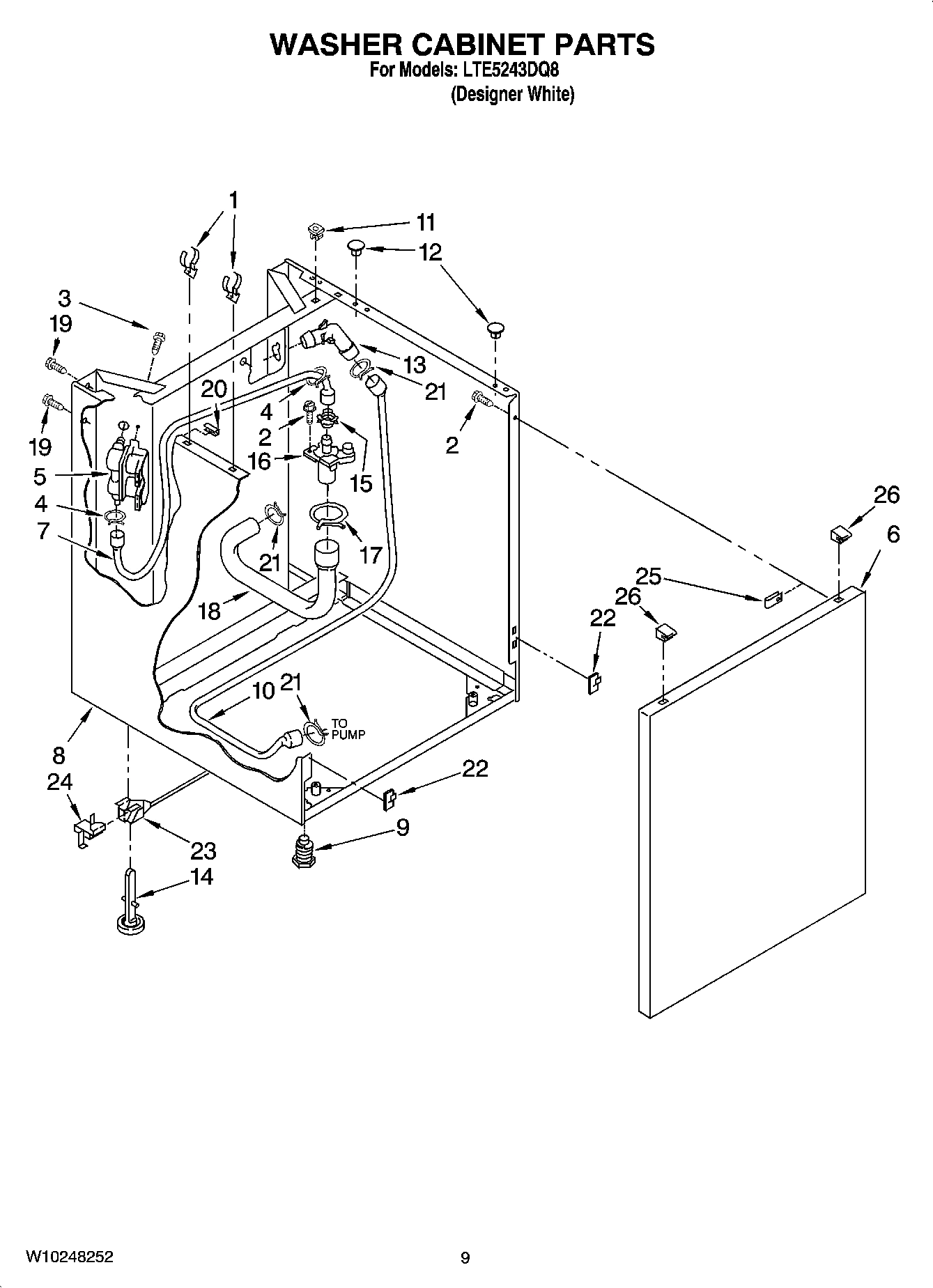

07 - WASHER CABINET PARTS

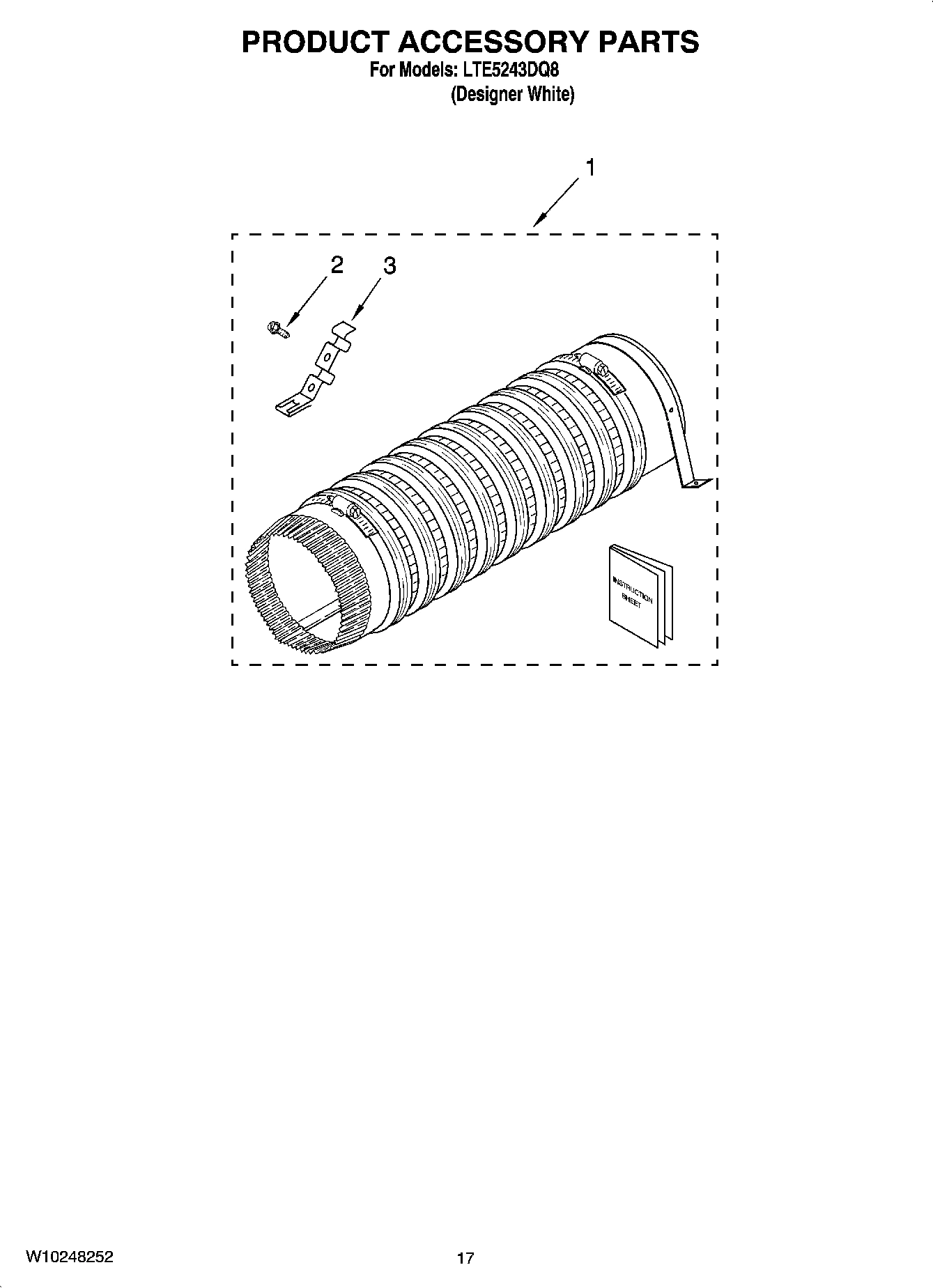

14 - PRODUCT ACCESSORY PARTS

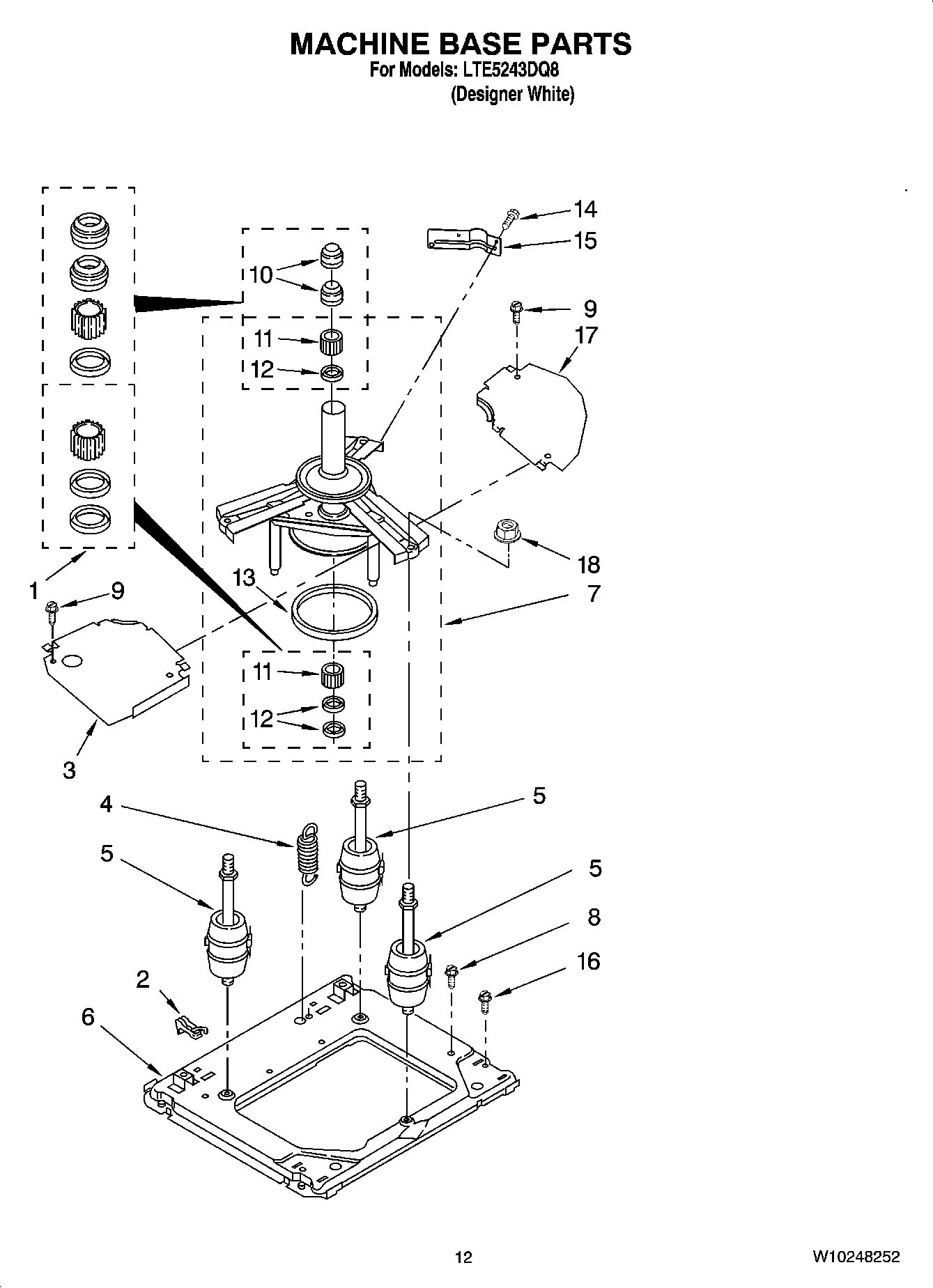

09 - MACHINE BASE PARTS

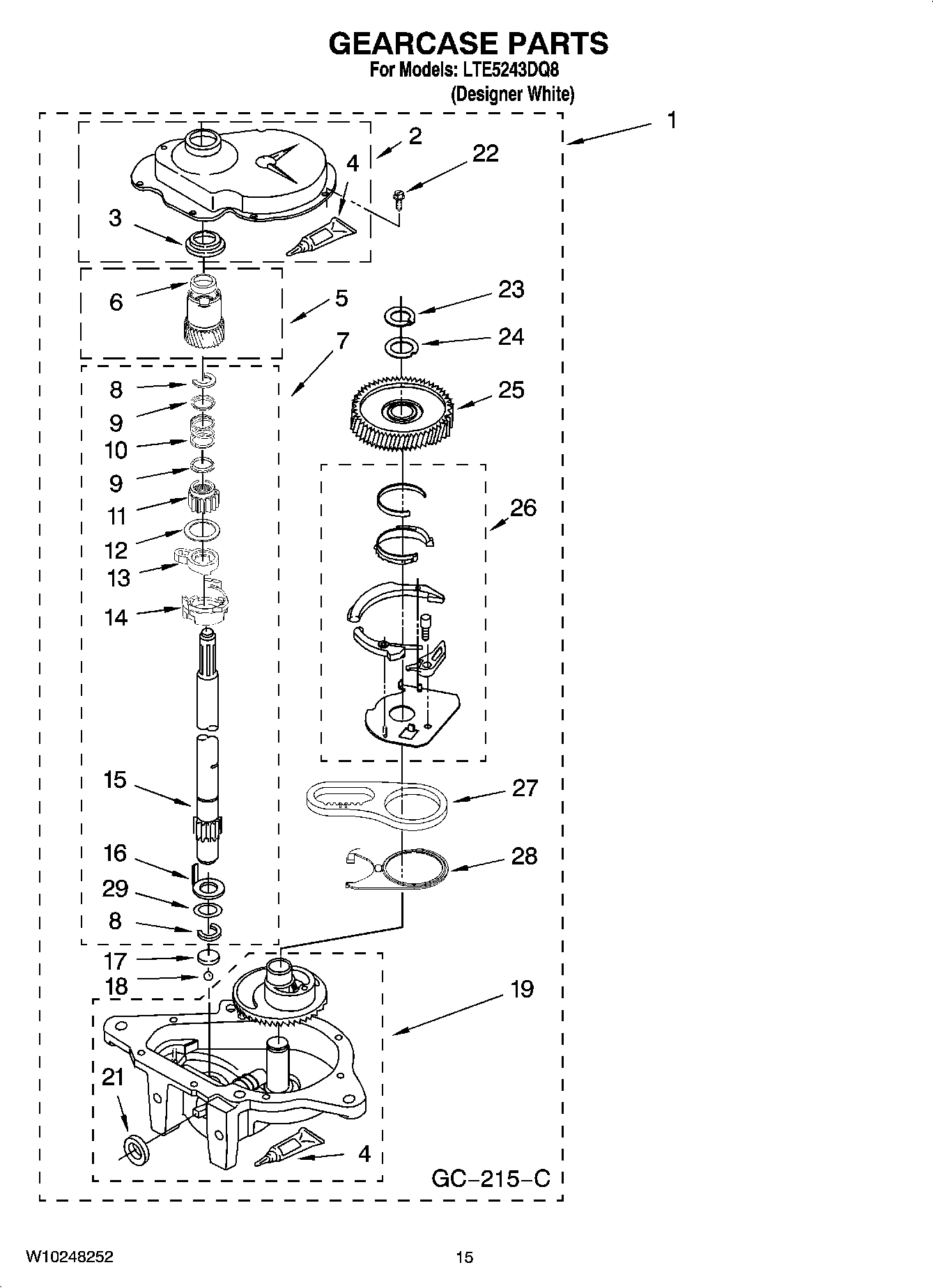

12 - GEARCASE PARTS
13 - BRAKE AND DRIVE TUBE PARTS
02 - DRYER FRONT PANEL AND DOOR PARTS

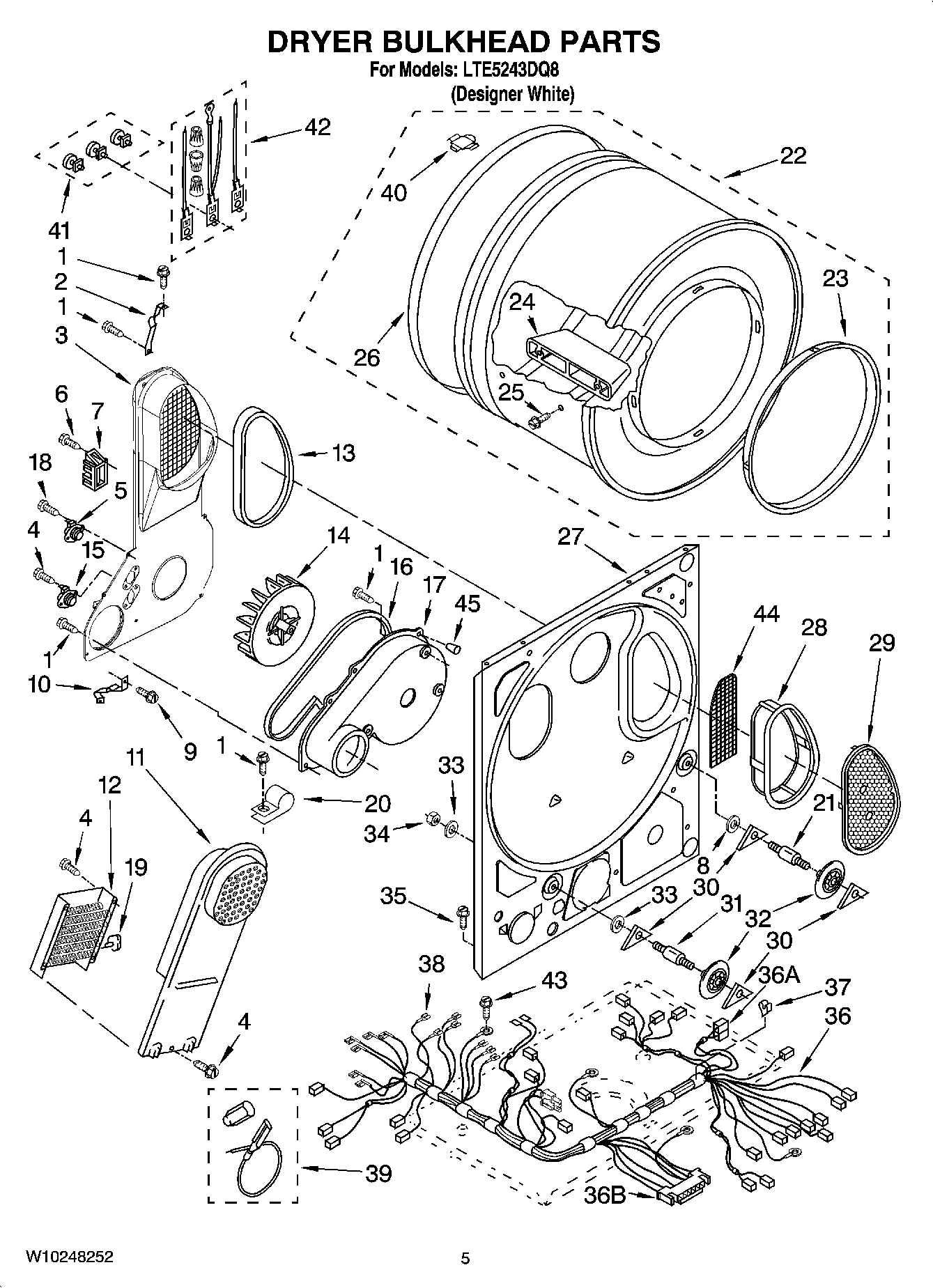

04 - DRYER BULKHEAD PARTS

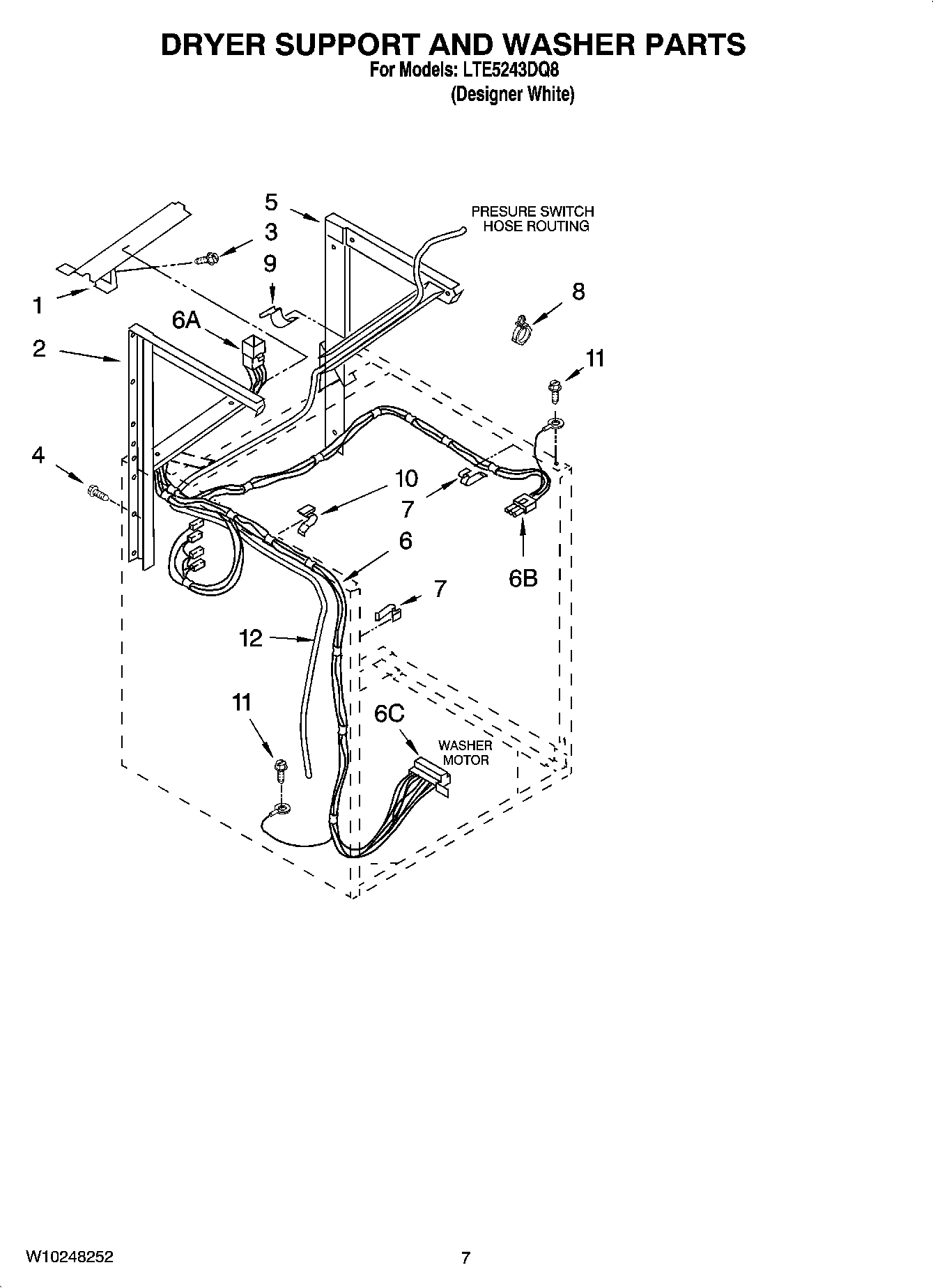

05 - DRYER SUPPORT AND WASHER PARTS

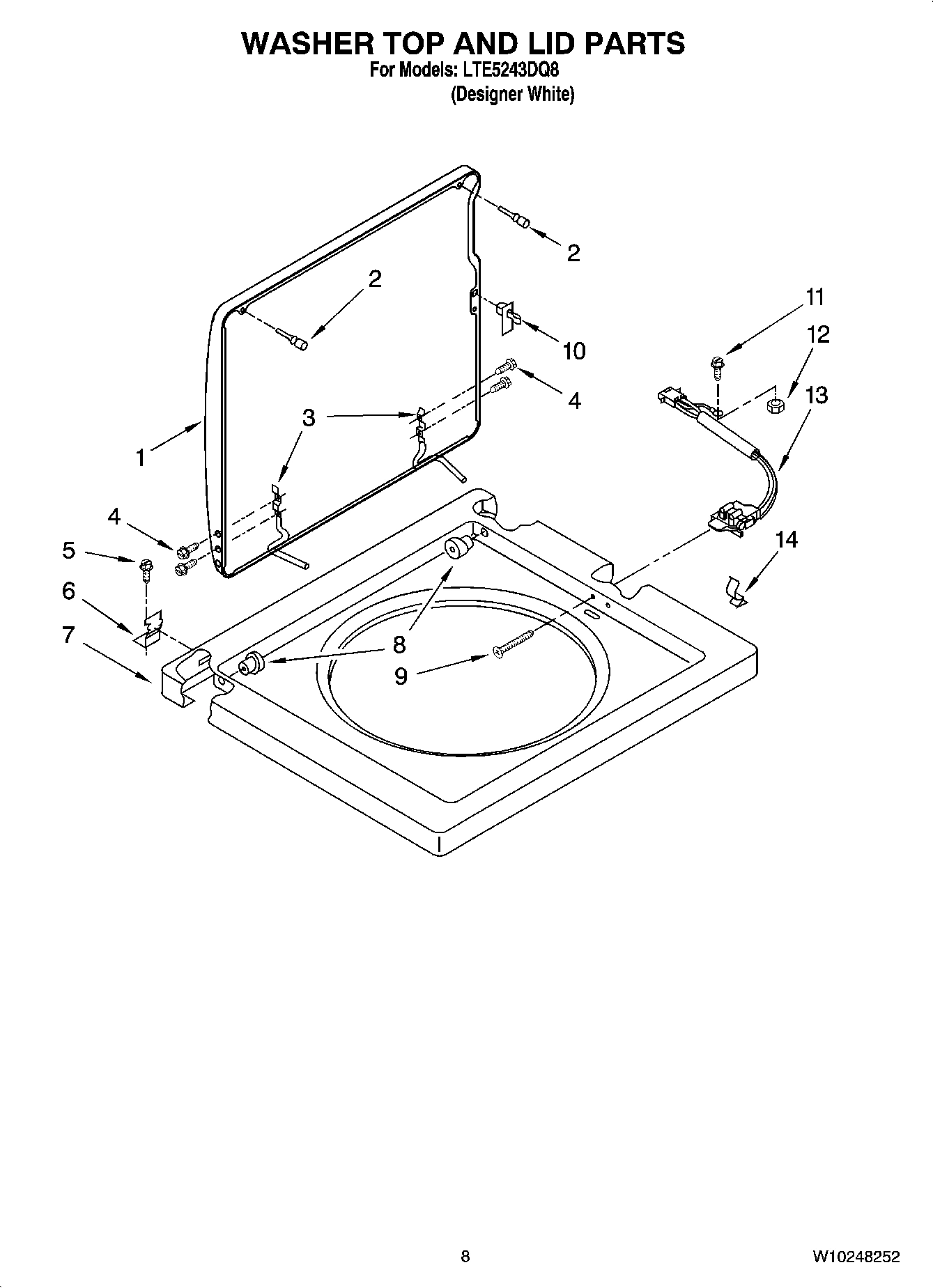

06 - WASHER TOP AND LID PARTS

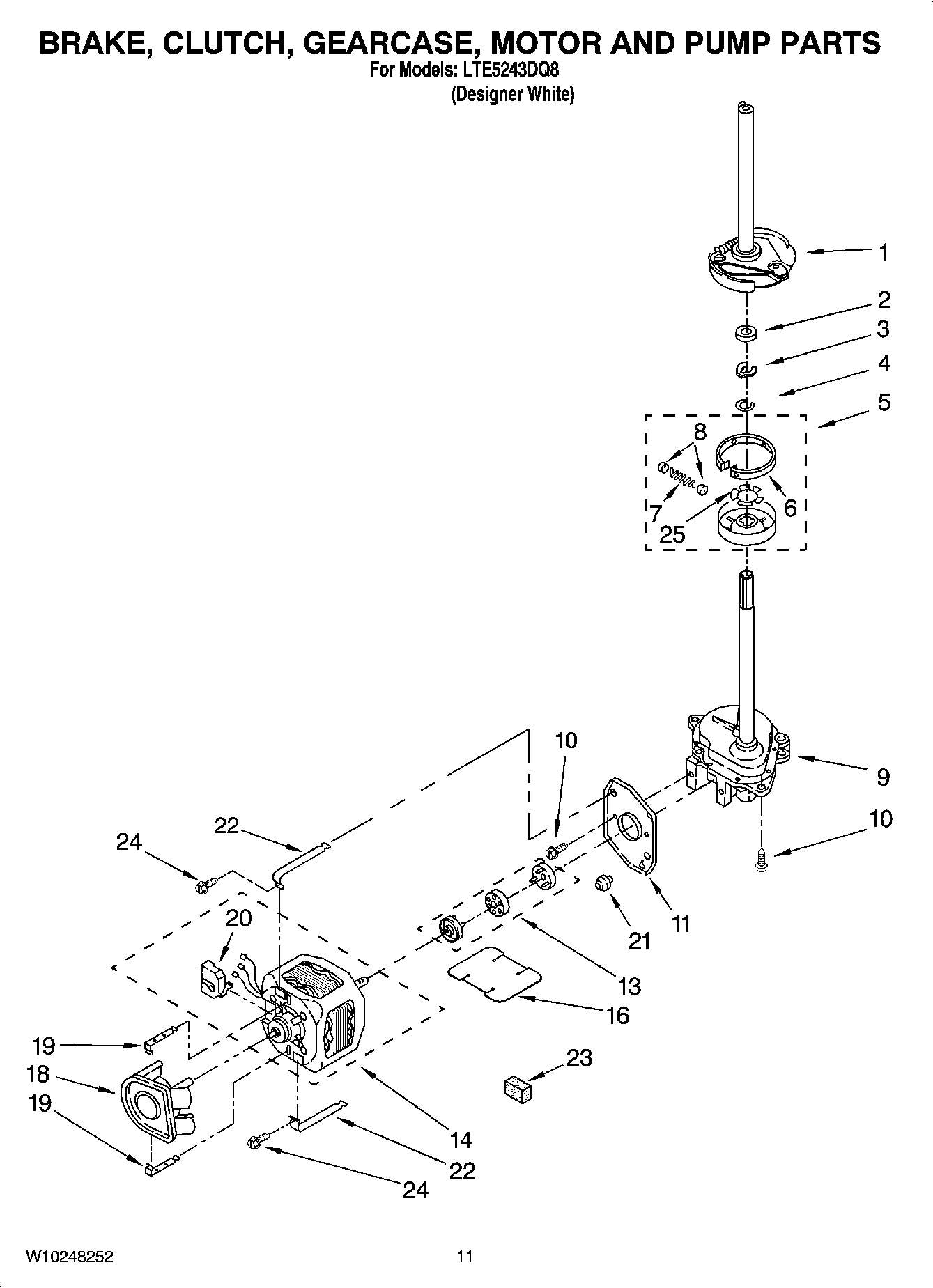

08 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

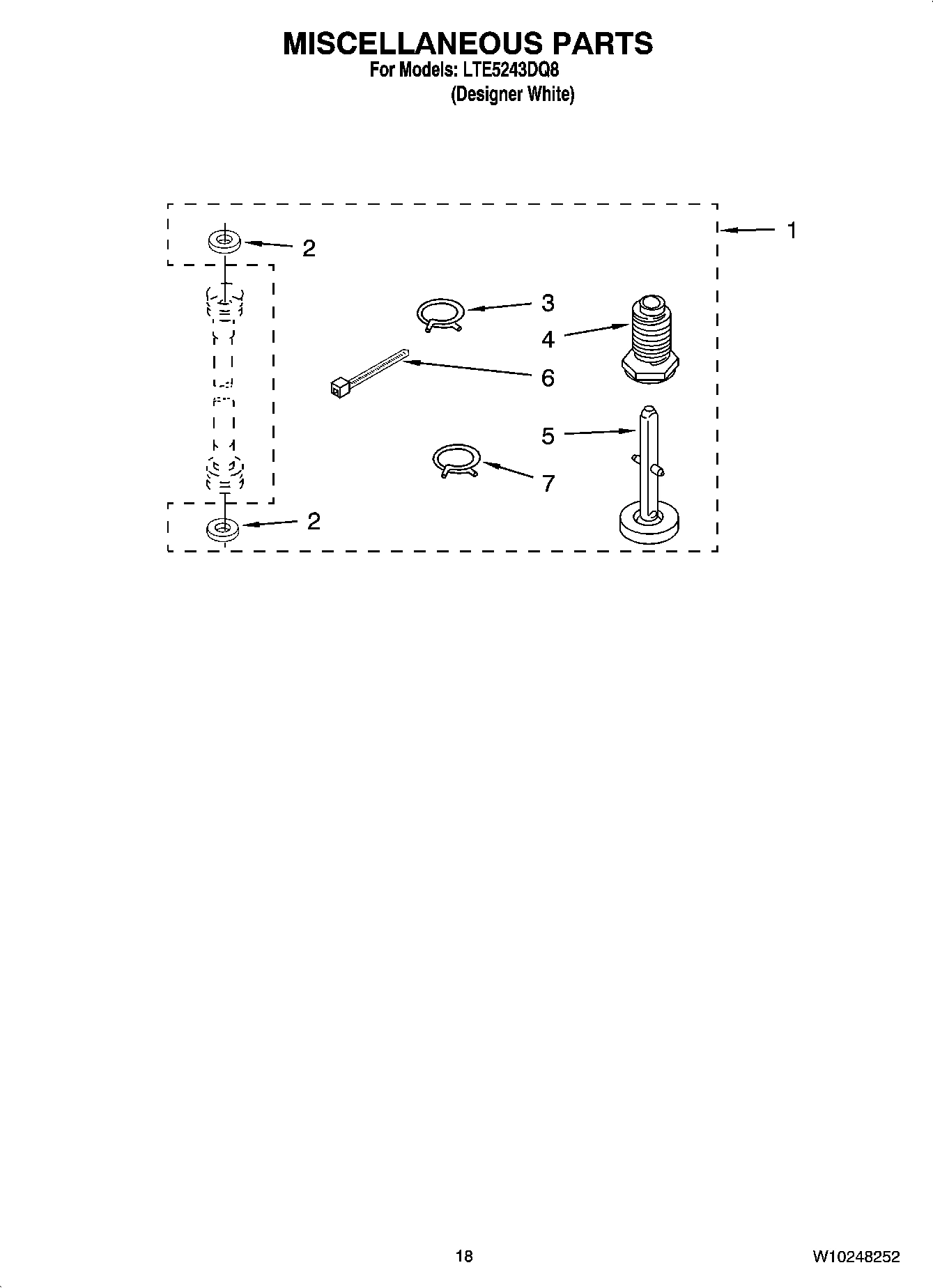

15 - MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool LTE5243DQ8 WASHER/DRYER LAUNDRY SYSTEM
2
Harness, Console Wiring (Automatic) (Includes WPL 8577368 Contact Us For Availability
2C
Disconnect Block (Connects With Automatic Tim WPL 3948614 Contact Us For Availability
7
End Cap, Console (L.H. & R.H.) WPL 692993 Contact Us For Availability
8
Basket WPL 3351985 Contact Us For Availability
8
Cover, Terminal Block WPL 3394228 Contact Us For Availability
23
Panel, Control WPL 3977194 Contact Us For Availability
44
WPL 348378 WPL 348378 Contact Us For Availability
× ![]()
