Model Whirlpool LSV8245AN0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

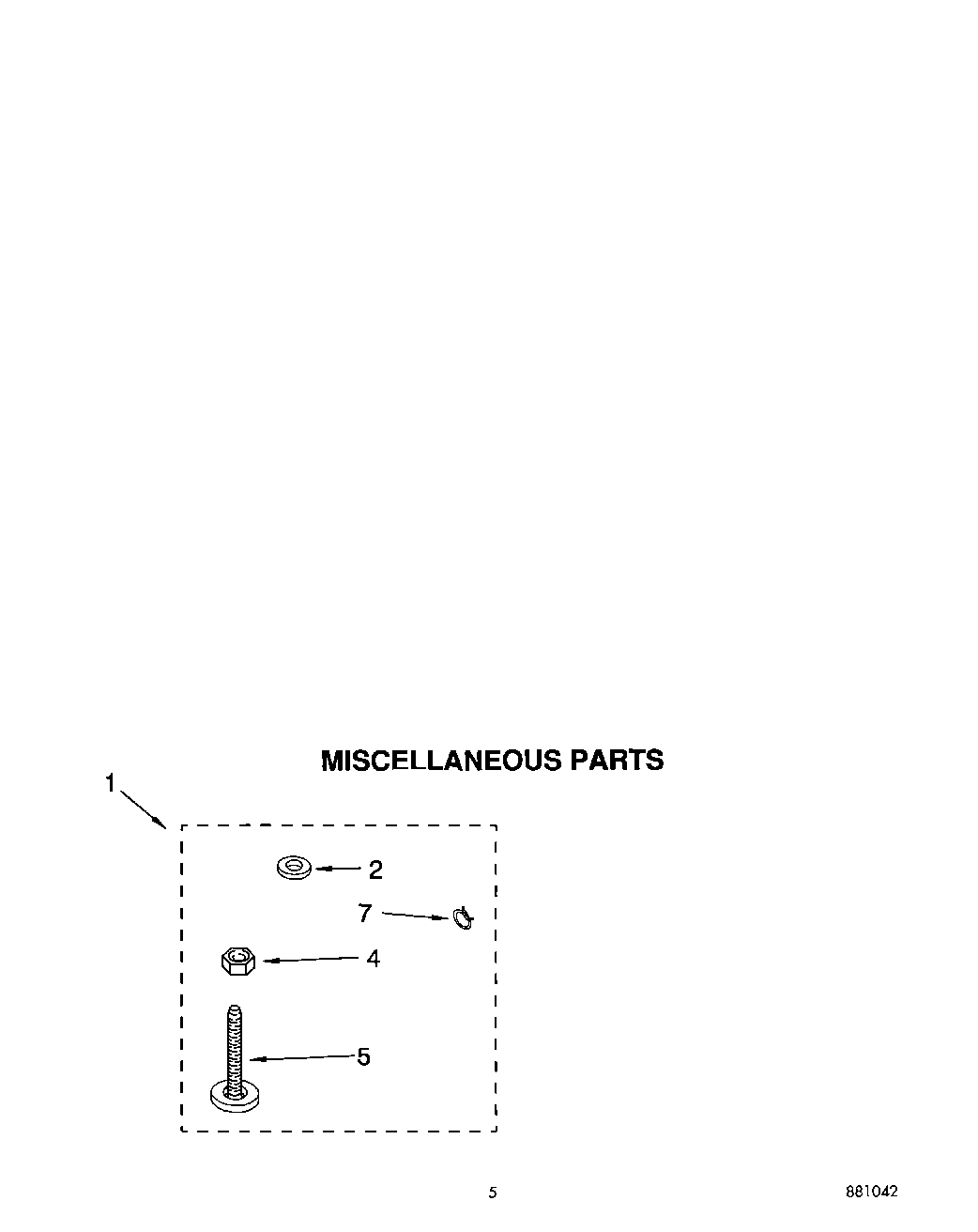

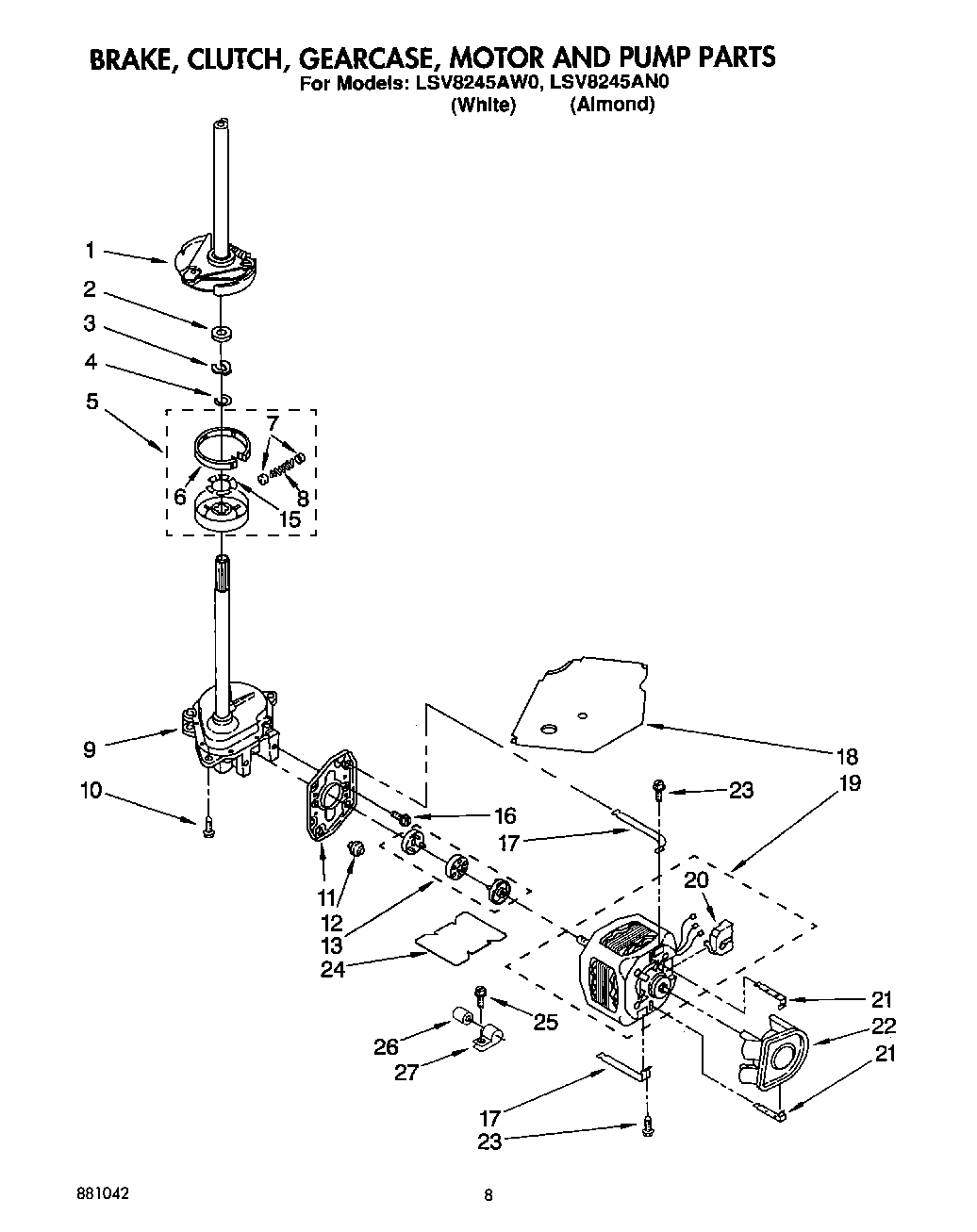

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

Stand-Pipe Kit WPL 89121 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use and Care WPL LIT3357461 Contact Us For Availability

Energy Guide WPL LIT3358666 Contact Us For Availability

Sheet, Installation Instructions WPL LIT3358964 Contact Us For Availability

Label, Wiring Diagram WPL LIT3359514 Contact Us For Availability

Manual, (Washer) Do-I WPL LIT4313896 Contact Us For Availability

WPL LIT881042 WPL LIT881042 Contact Us For Availability

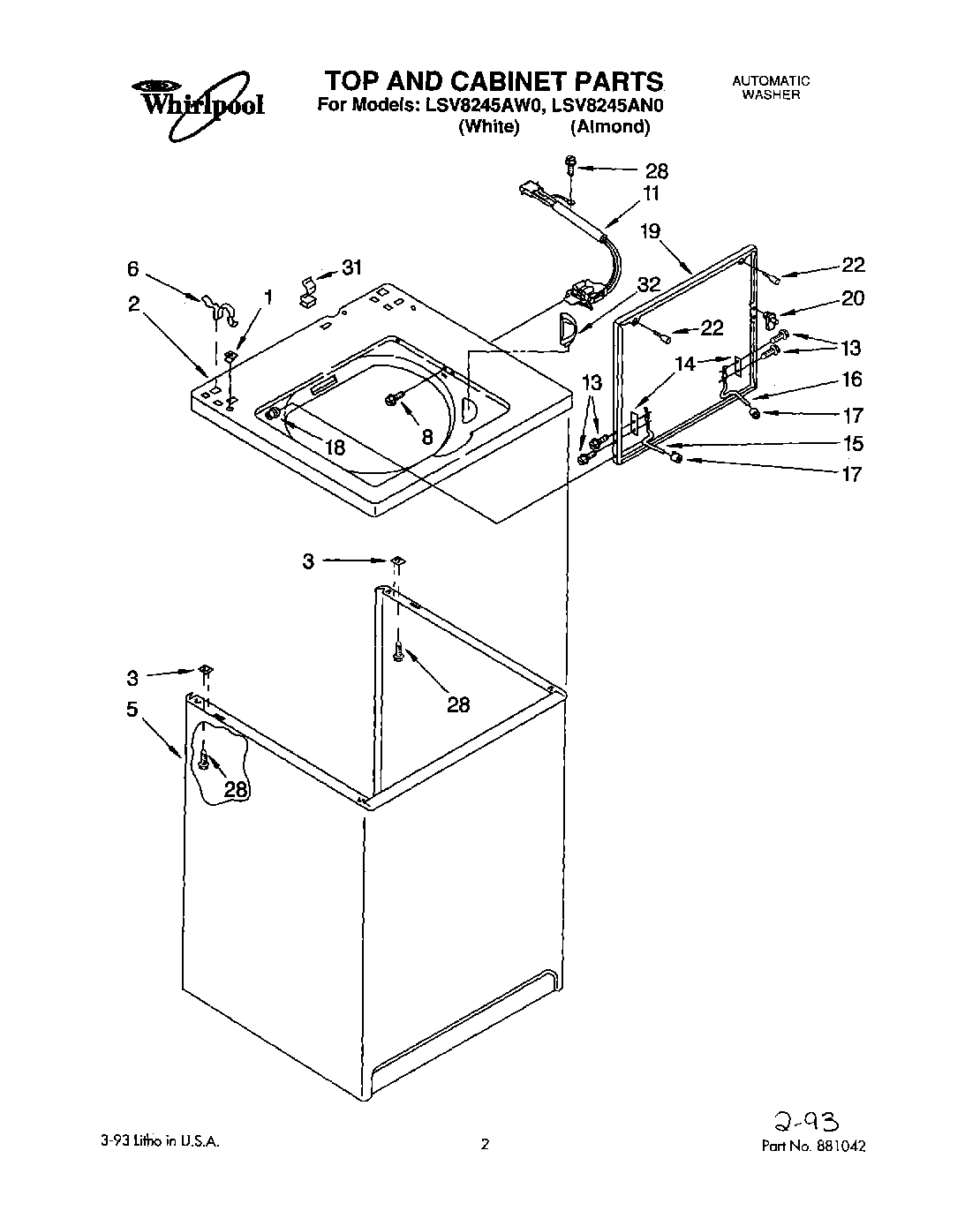

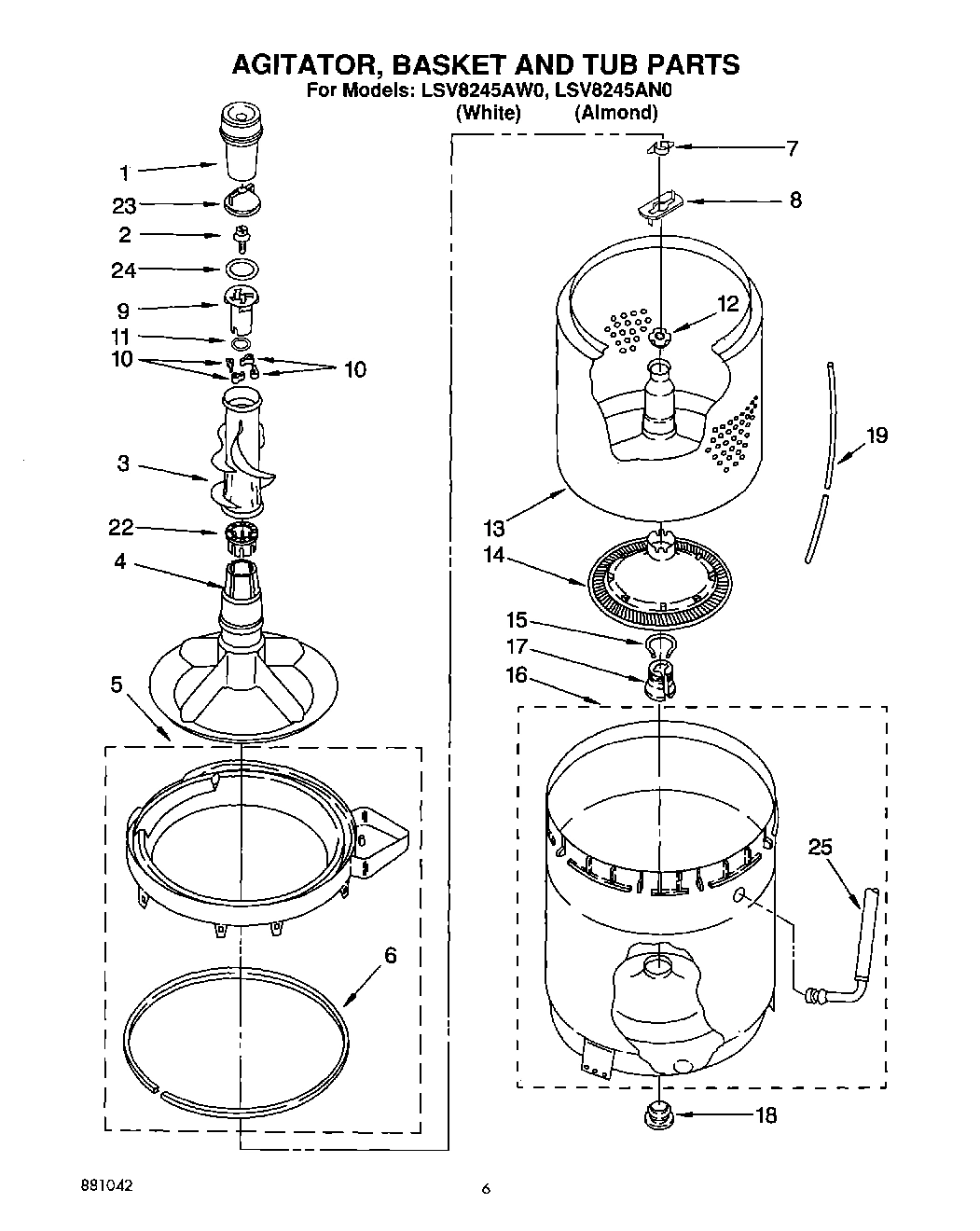

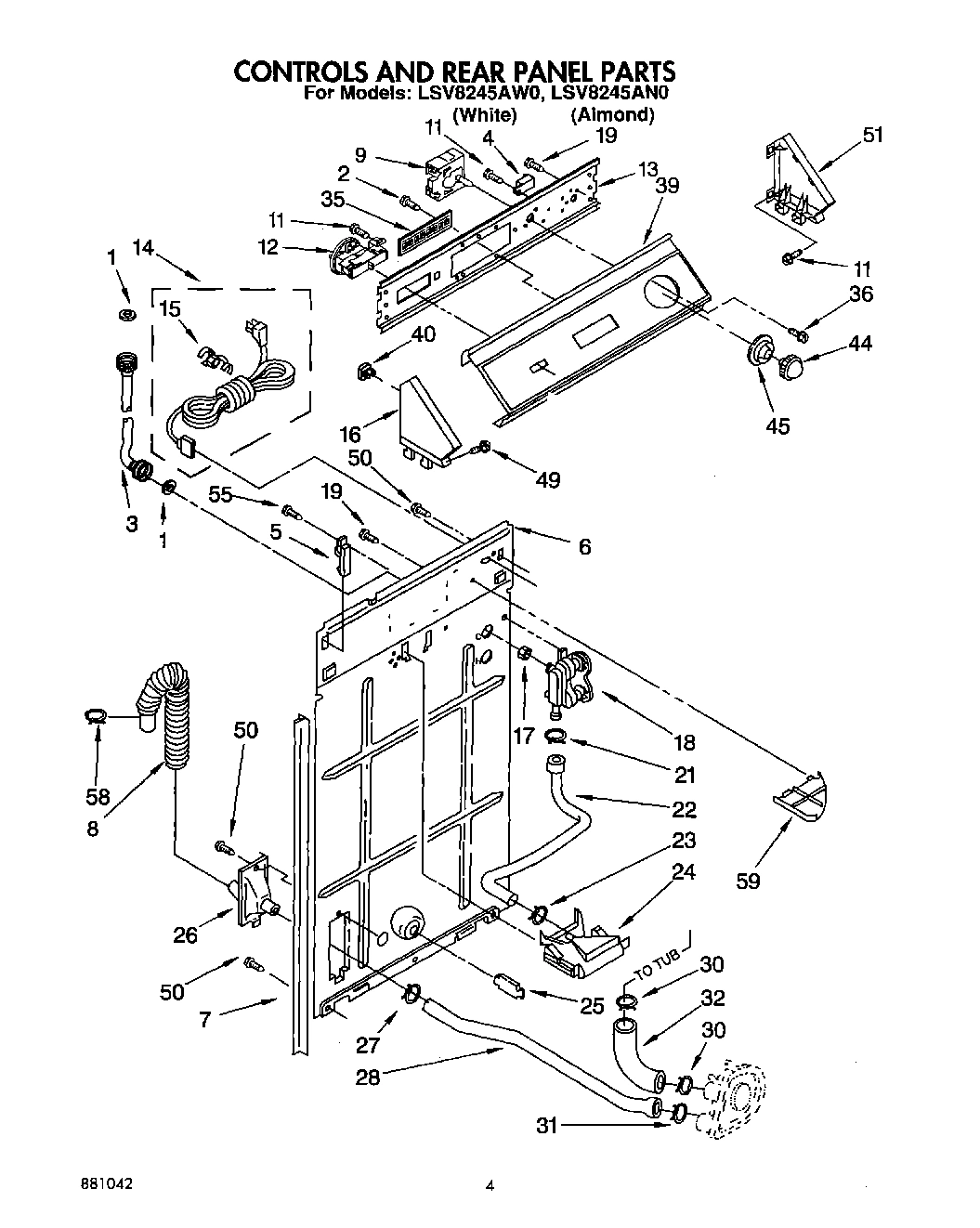

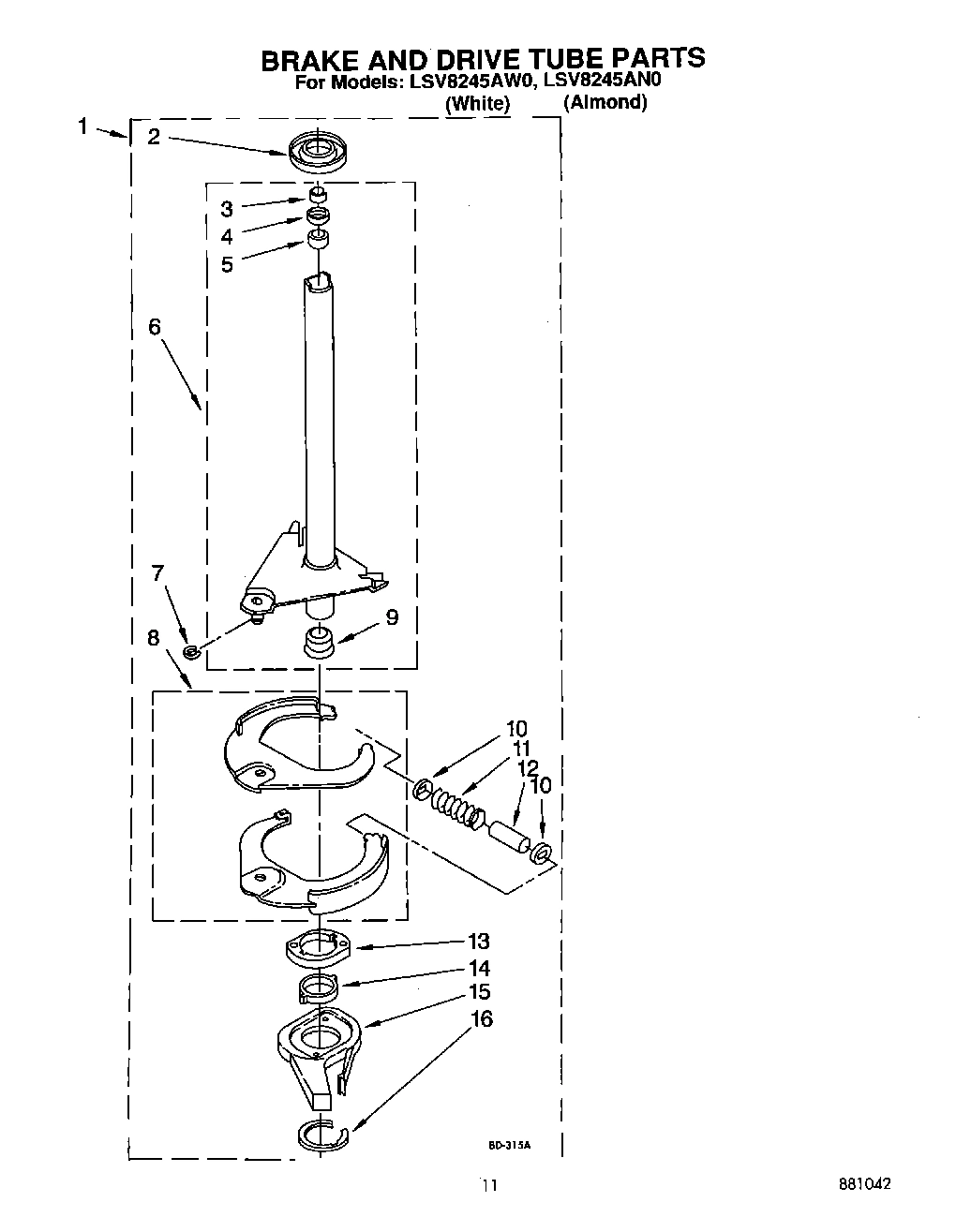

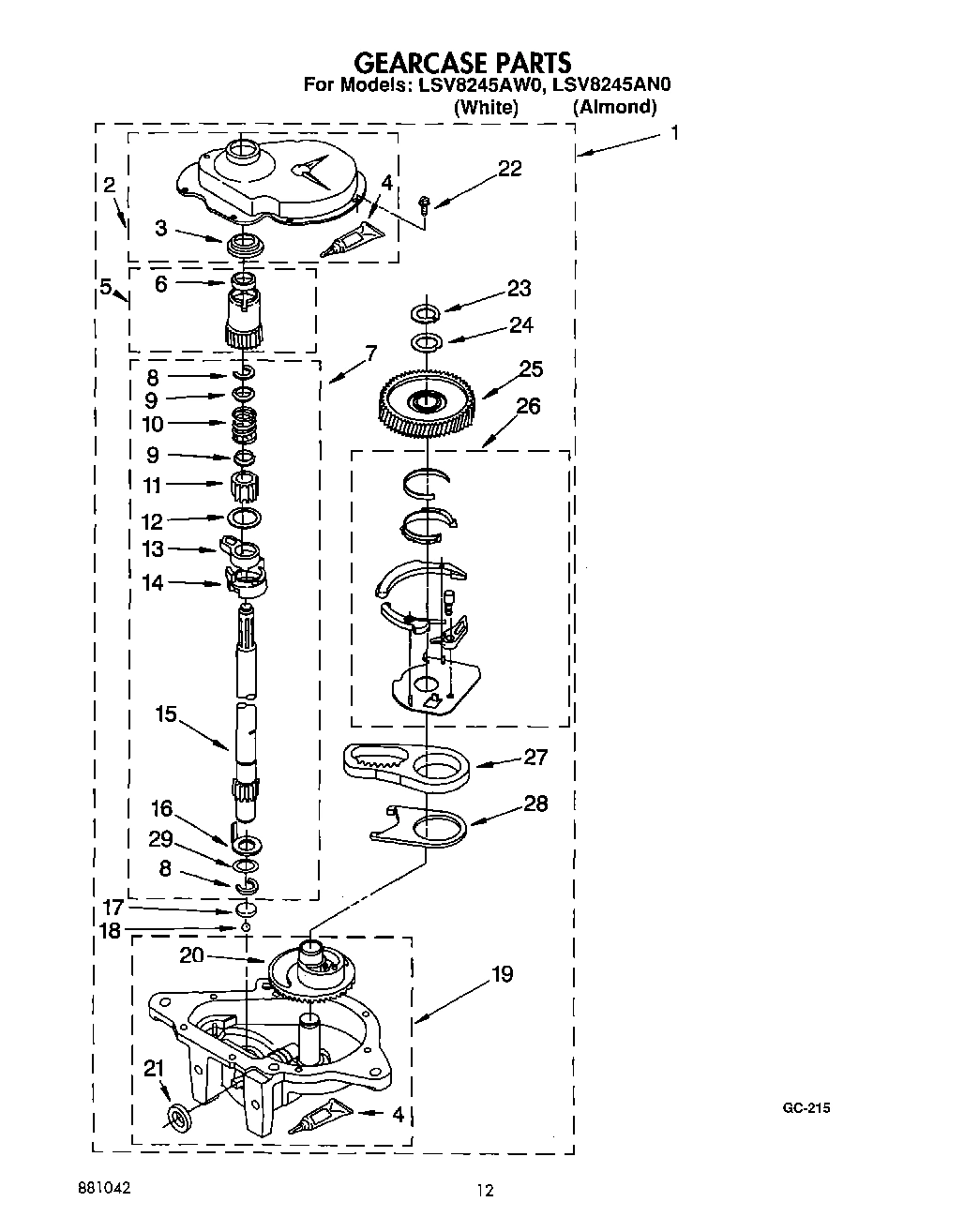

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3359460 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Clip, Harness WPL 62749 Contact Us For Availability

2

Top (White) WPL 3358200 Contact Us For Availability

2

Top (Almond) WPL 3358201 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $85.90

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

4

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $76.64

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Almond) WPL 63425 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

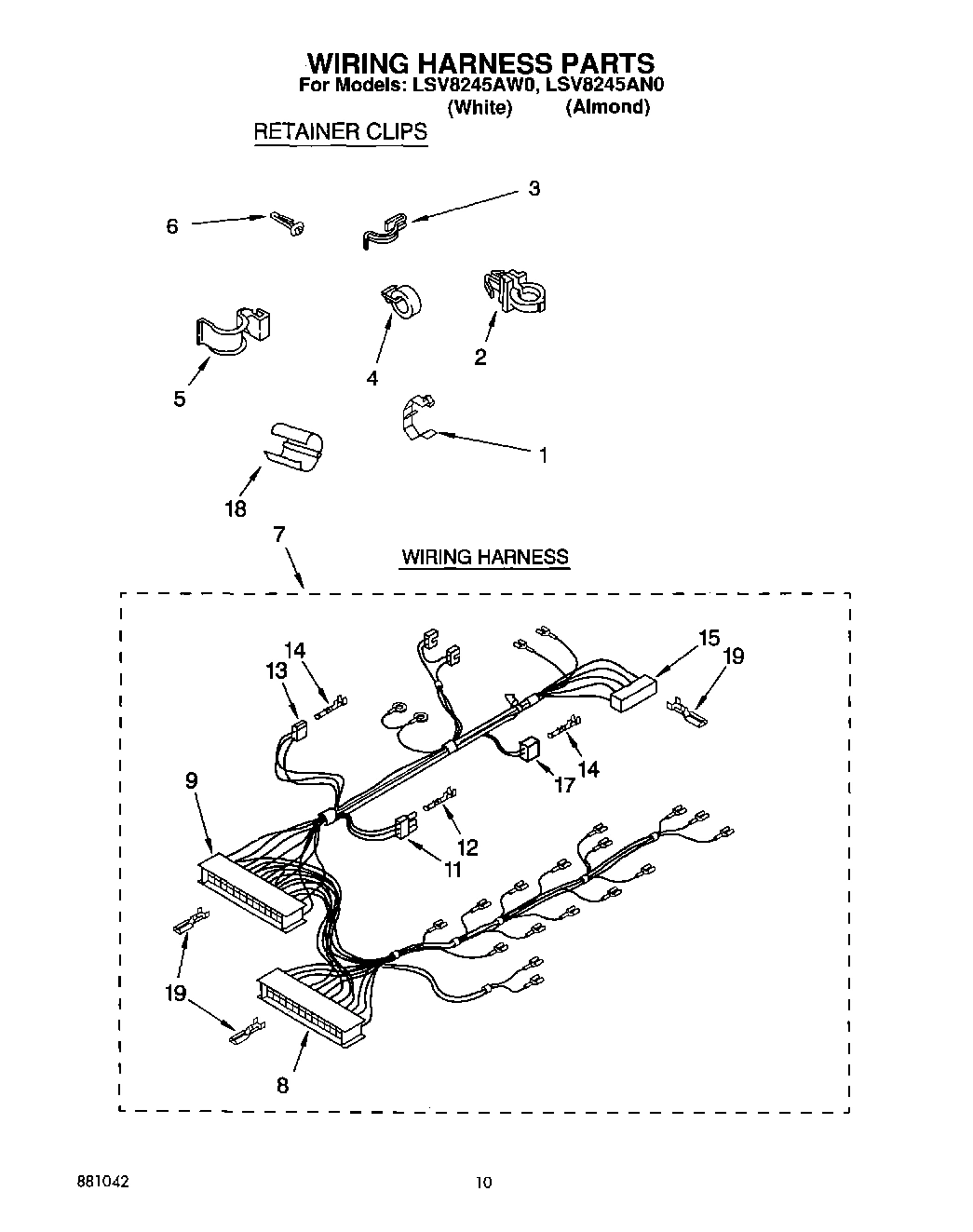

Wiring Harness WPL 3359851 Contact Us For Availability

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

8

Block, Disconnect WPL 352090 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

10

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

10

Spring, Agitator WPL 62676 Contact Us For Availability

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $23.68

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Seal, Agitator WPL 357574 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

353424 Whirlpool Connector Backorder WPL 353424 $10.76

W10389328 Whirlpool Basket Backorder WPL W10389328 $190.38

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $9.92

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

Lock, Filter WPL 62942 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

3361596 Whirlpool Outer Tub Primary Backorder WPL 3361596 $180.24

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Connector WPL 3348075 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Protector, Harness WPL 63523 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Terminal WPL 3371761 Contact Us For Availability

Lid (White) WPL 3351659 Contact Us For Availability

Lid (Almond) WPL 3351660 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

20

Gear, Main Drive WPL 3360263 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

23

Ring, Retaining WPL 95082 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Hose, Bleach WPL 3358198 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

27

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70
