Model Whirlpool LSR8444LT0 AUTOMATIC WASHER – Common Parts & Diagrams
08 - GEARCASE
09 - WATER SYSTEM

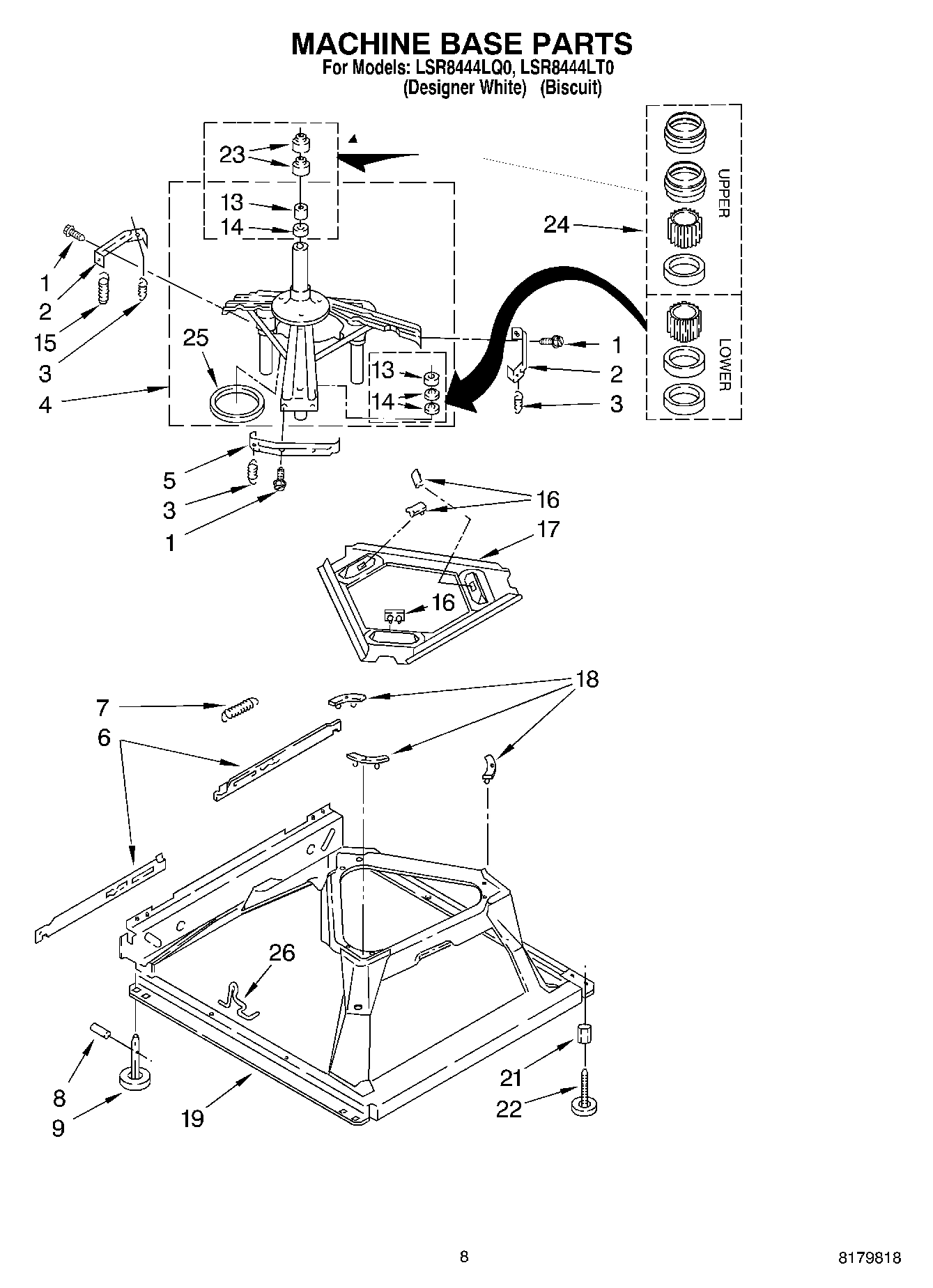

05 - MACHINE BASE

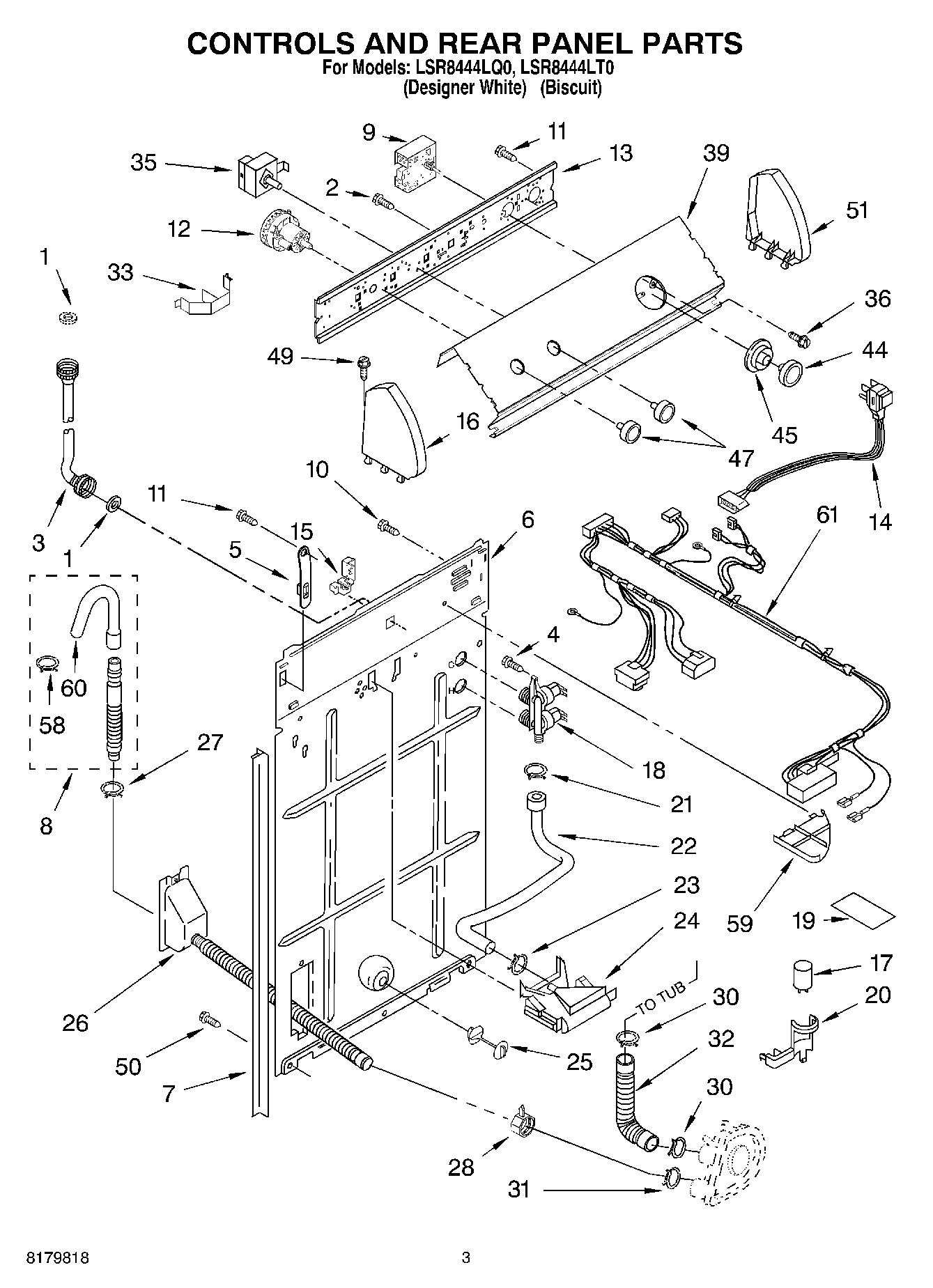

02 - CONTROLS AND REAR PANEL

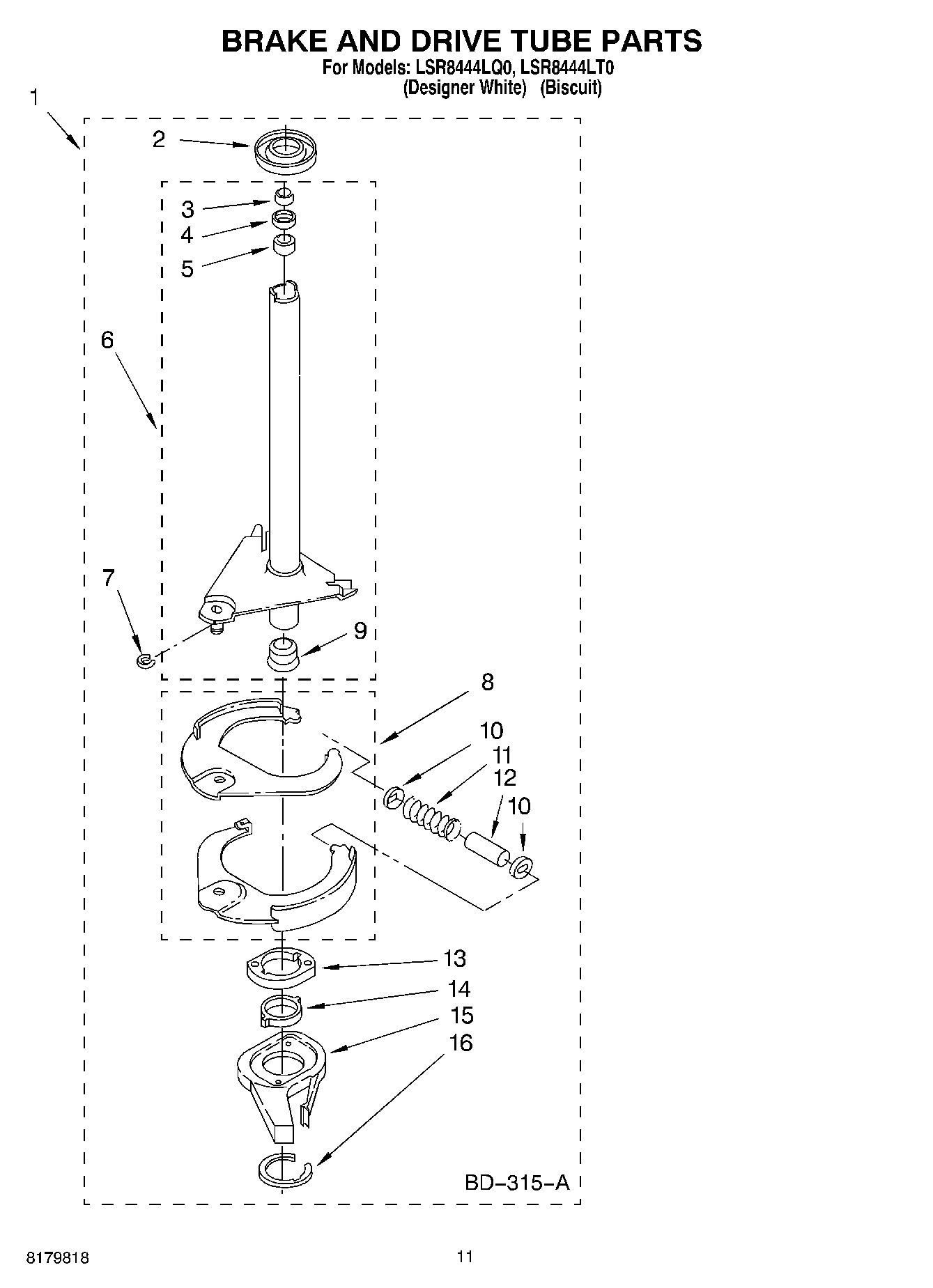

07 - BRAKE AND DRIVE TUBE

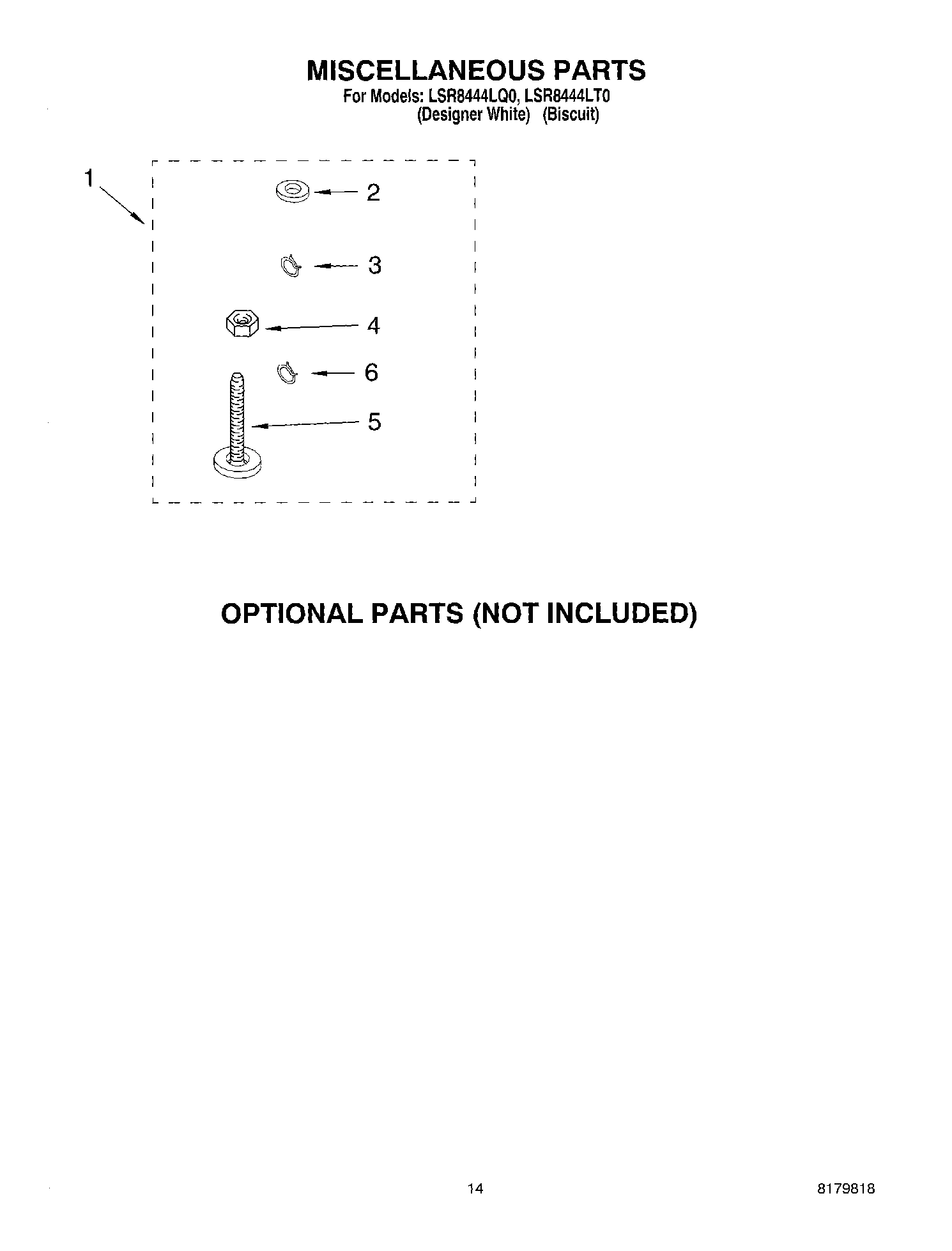

10 - MISCELLANEOUS, OPTIONAL

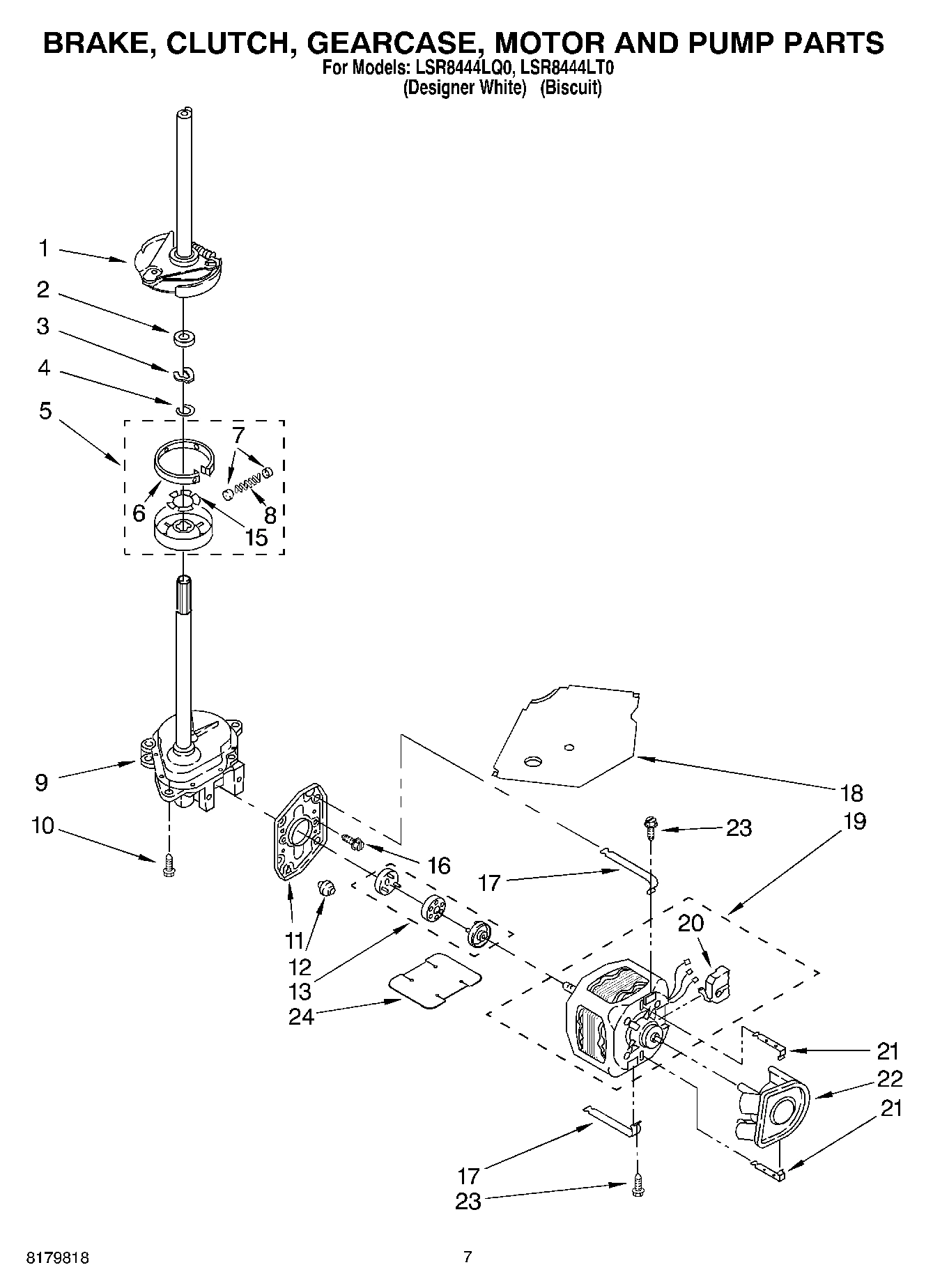

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP
06 - WIRING HARNESS

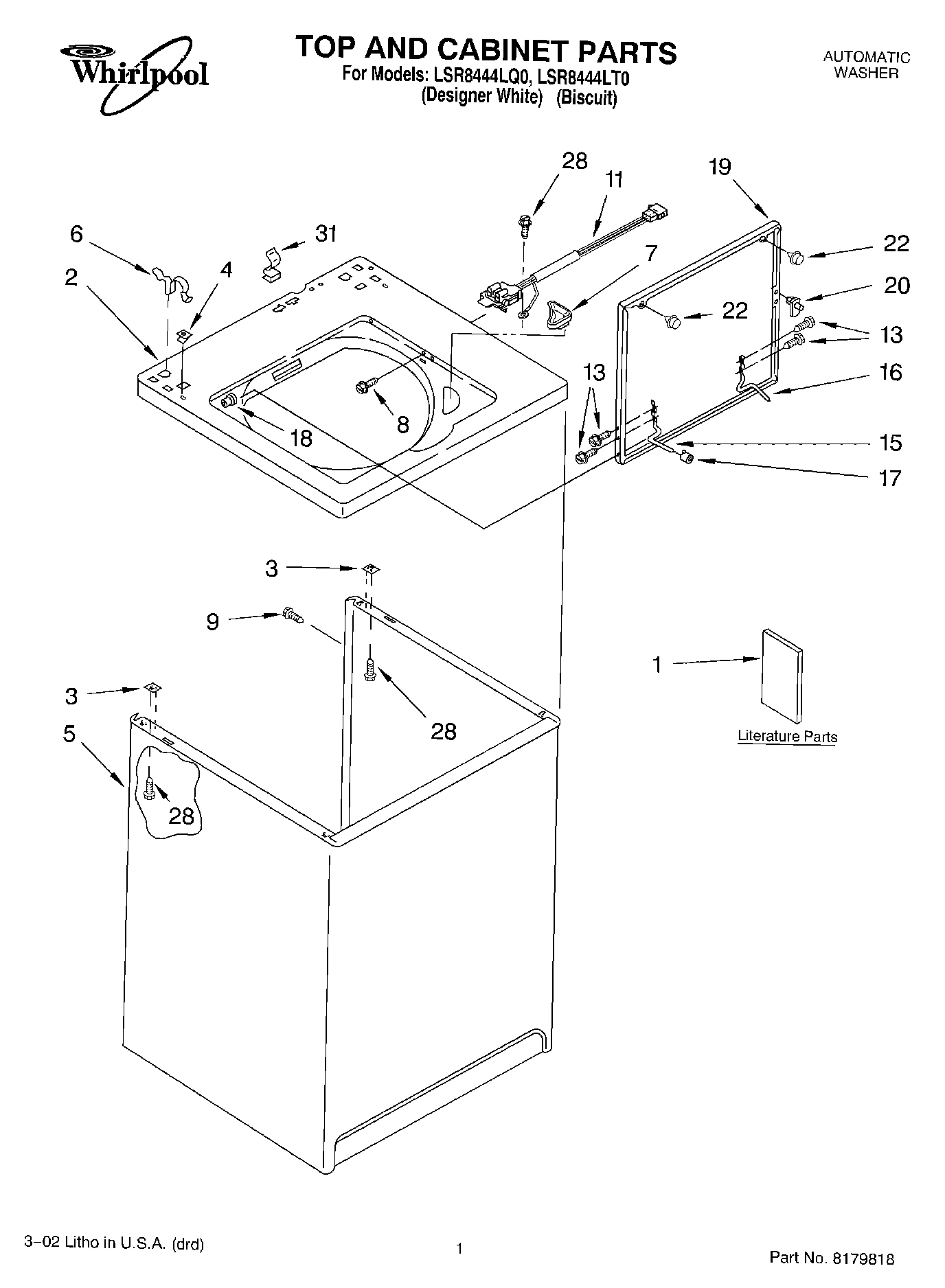

01 - TOP AND CABINET, LITERATURE

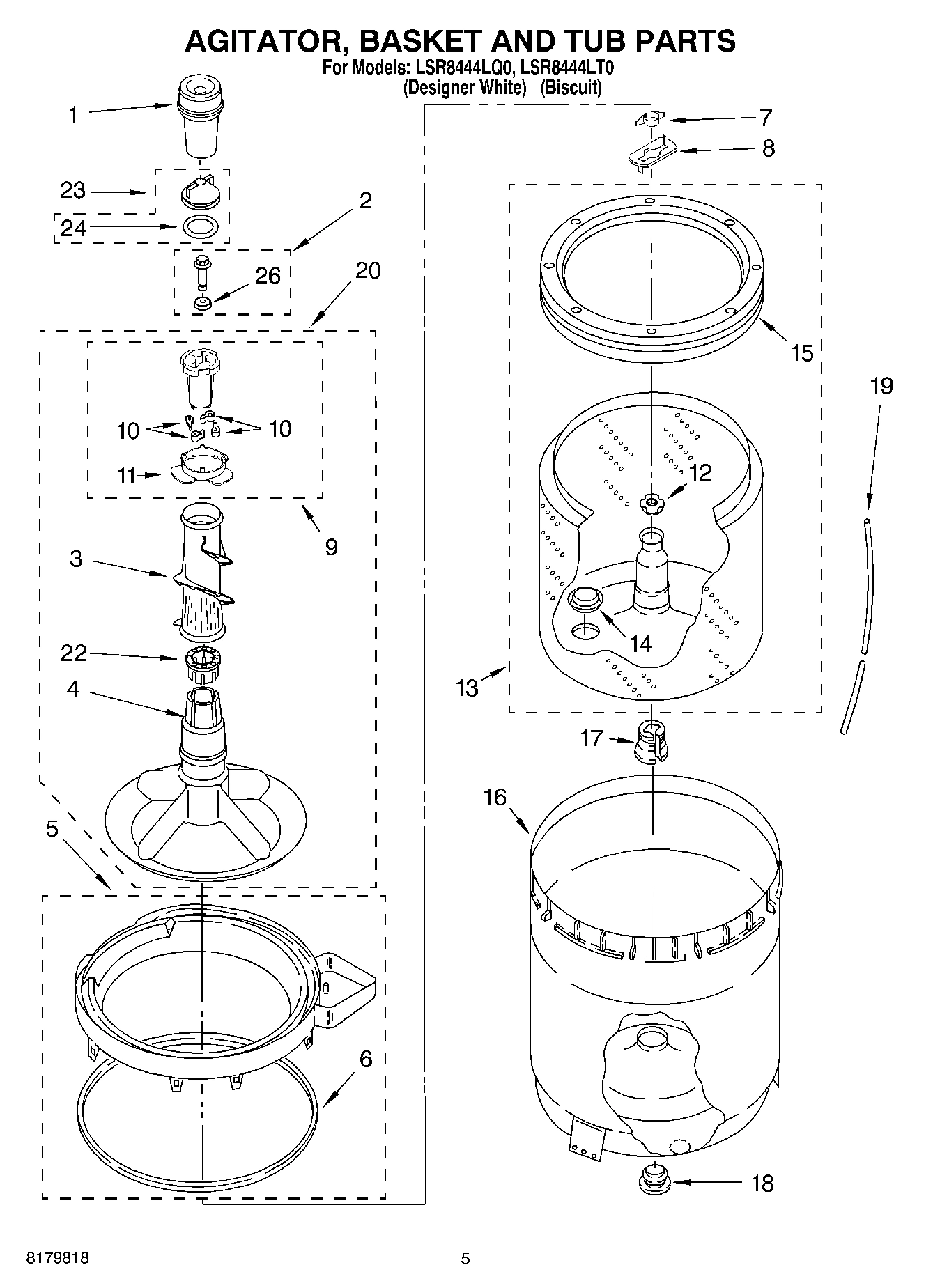

03 - AGITATOR, BASKET AND TUB
Common parts from model Whirlpool LSR8444LT0 AUTOMATIC WASHER
Manual, (Washer) WPL LIT4313896 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
1
LITERATURE PARTS WPL ARI158714A Contact Us For Availability
1
Installation Instructions (French) WPL LIT3951578 Contact Us For Availability
1
Installation Instructions (English) WPL LIT3952817 Contact Us For Availability
1
Use & Care Guide (French) WPL LIT3954821 Contact Us For Availability
1
Use & Care Guide (English) WPL LIT3955155 Contact Us For Availability
1
Use & Care Guide (Energy Guide) WPL LIT3955554 Contact Us For Availability
1
Use & Care Guide (Wiring Diagram) WPL LIT3955770 Contact Us For Availability
2
Clip, Harness WPL 388498 Contact Us For Availability
2
Top (White) WPL 8271378 Contact Us For Availability
2
Top (Biscuit) WPL 8271380 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (Biscuit) WPL 3954357 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
6
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
6
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
6
Shipping Kit WPL 3348675 Contact Us For Availability
6
Drain Protector WPL 367031 Contact Us For Availability
6
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
6
Clip, Harness WPL 3390496 Contact Us For Availability
8
Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability
9
Timer, Control (60 Hz.) (Motor Not A Service WPL 3951603 Contact Us For Availability
11
Plug, Terminal (3-Way) (Power Cord) (Use Term WPL 353424 Contact Us For Availability
13
Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability
14
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
15
Clip, Anti-Rattle WPL 3355454 Contact Us For Availability
15
Protector WPL 63523 Contact Us For Availability
16
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
18
Clip, Harness WPL 3352944 Contact Us For Availability
19
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
19
Lid (White) WPL 3954489 Contact Us For Availability
19
Lid (Biscuit) WPL 3954491 Contact Us For Availability
20
Switch, Main Drive Motor WPL 3952056 Contact Us For Availability
20
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
22
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
23
Connector, Etc WPL 3349494 Contact Us For Availability
24
Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability
25
E.T.C. Control WPL 3407125 Contact Us For Availability
27
Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability
28
Clamp, Hose WPL 3976395 No Longer Available
28
Block, Connector (Cold Valve) (Use Term. 6932 WPL 3354925 Contact Us For Availability
29
WPL 3354926 WPL 3354926 Contact Us For Availability
30
WPL 3948615 WPL 3948615 Contact Us For Availability
35
Switch, Water Temperature WPL 661614 Contact Us For Availability
× ![]()
