Model Whirlpool LSR6244AW0 AUTOMATIC WASHER – Common Parts & Diagrams
04 - AGITATOR, BASKET AND TUB
05 - WATER SYSTEM

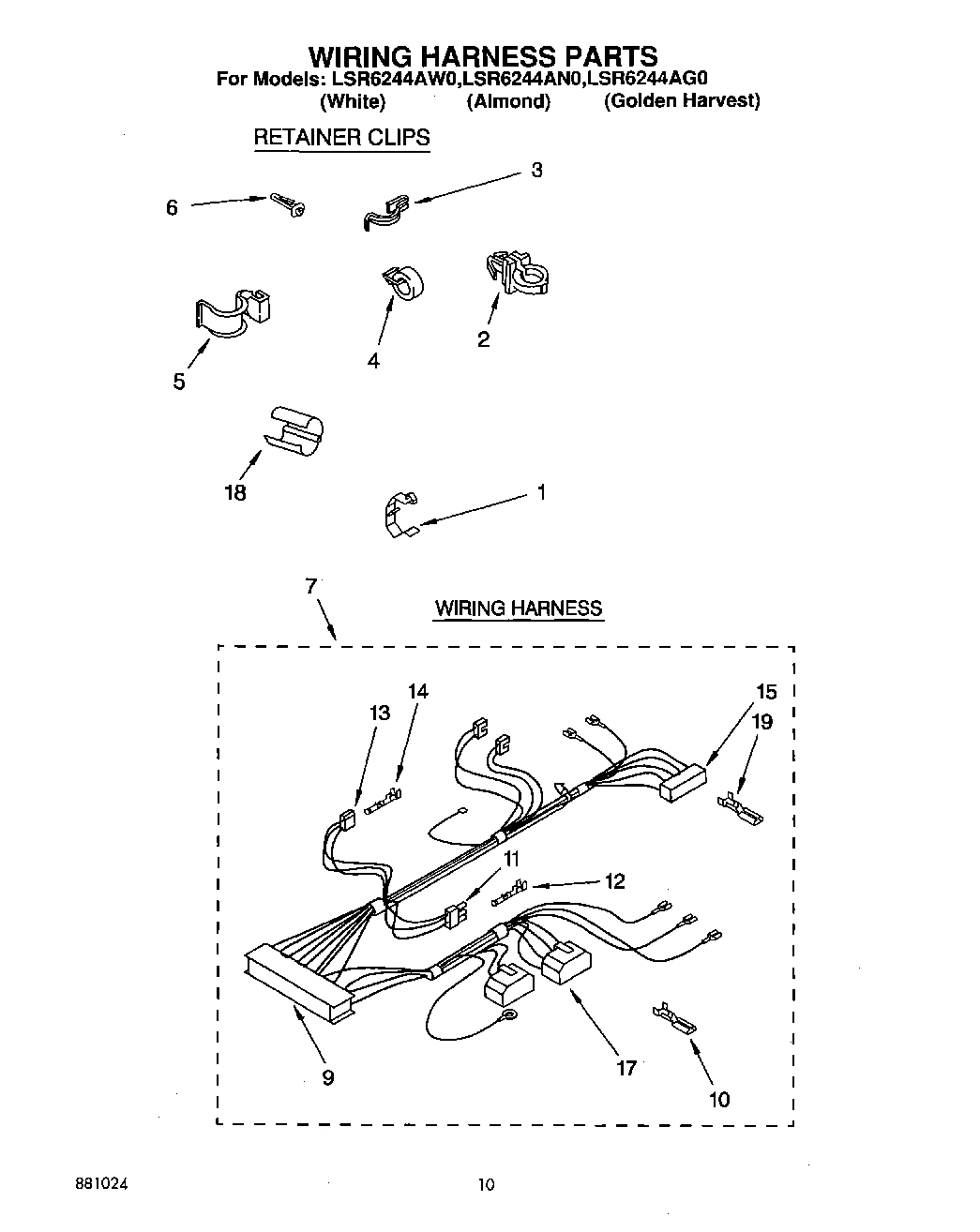

08 - WIRING HARNESS

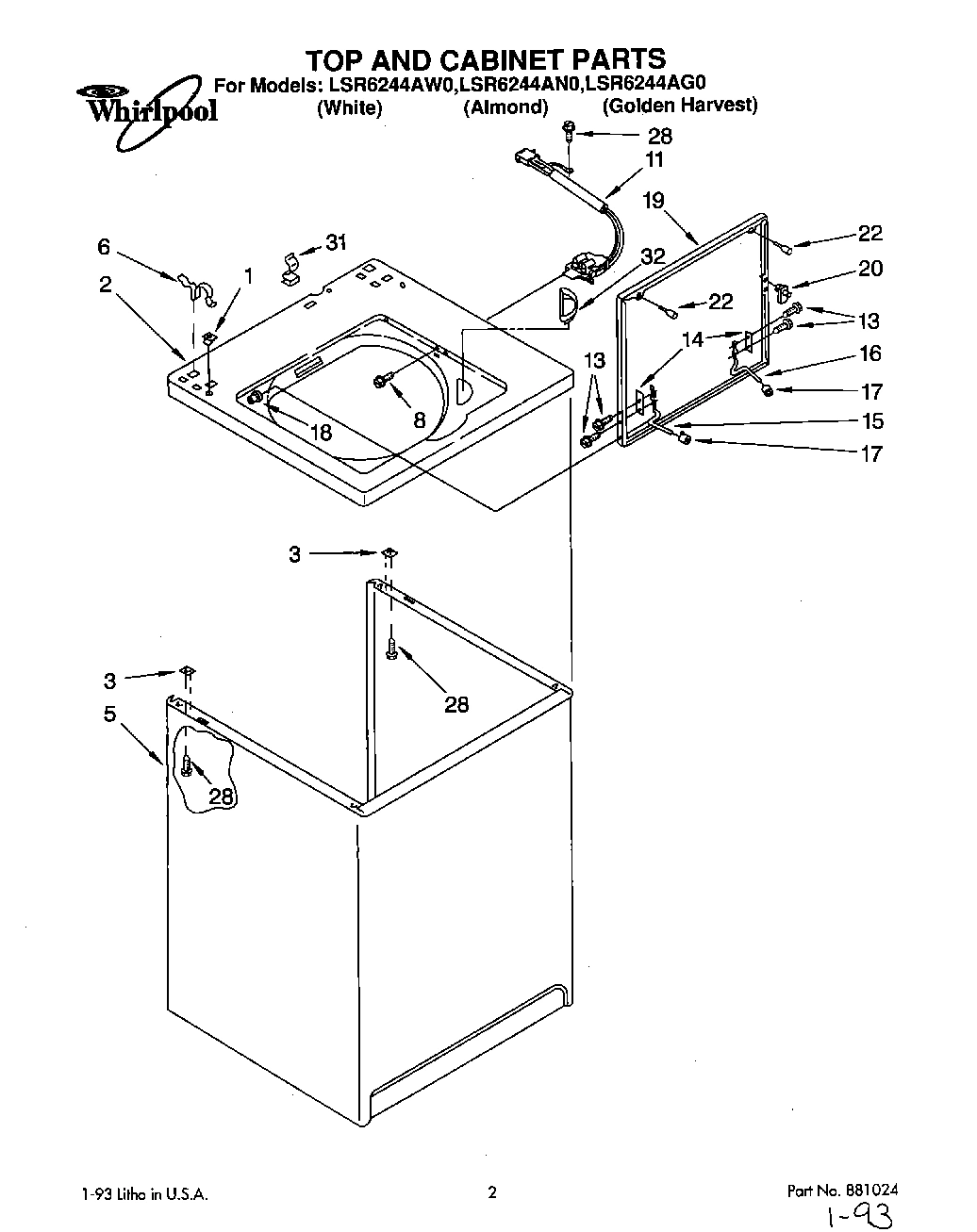

01 - TOP AND CABINET, LIT/OPTIONAL

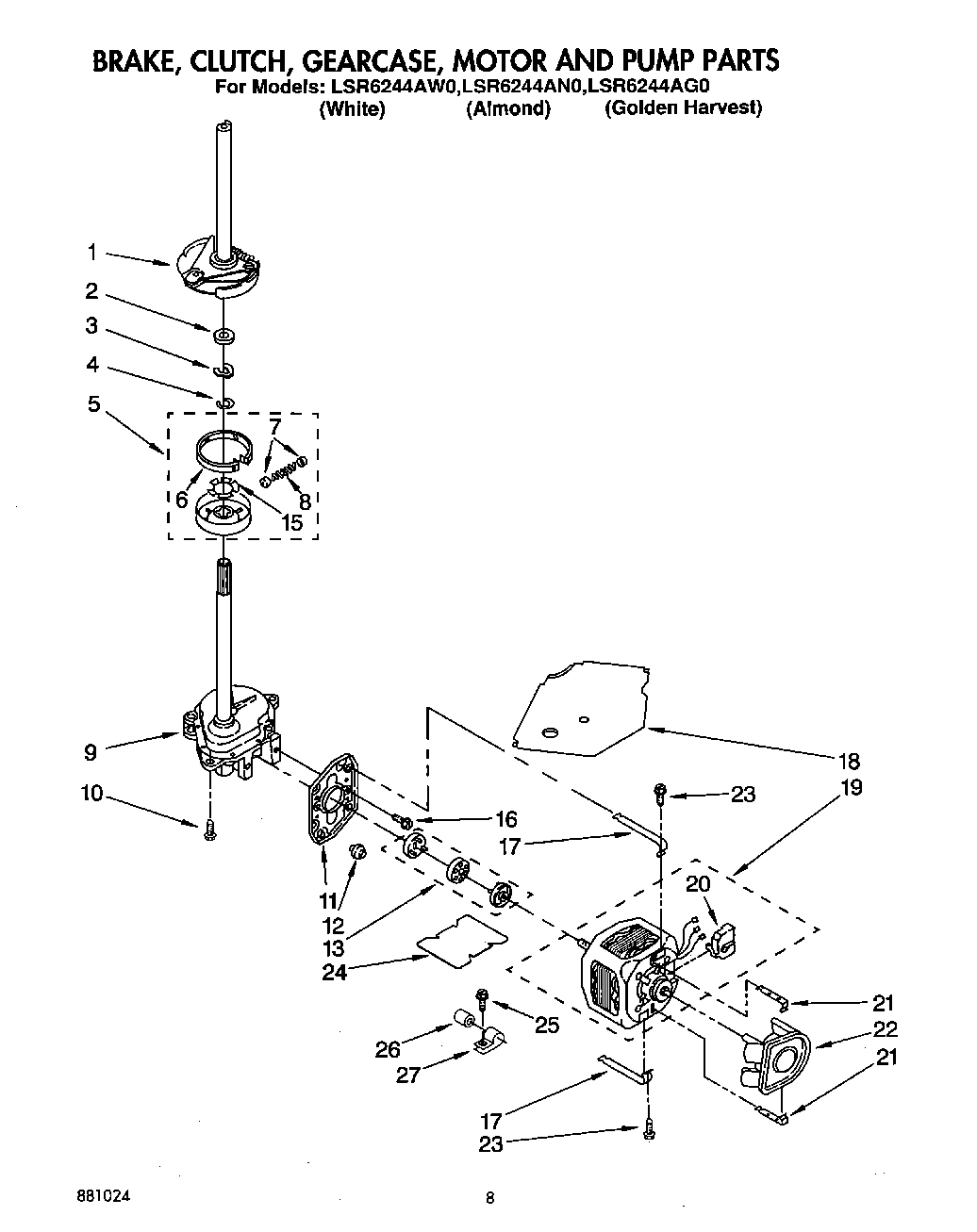

06 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

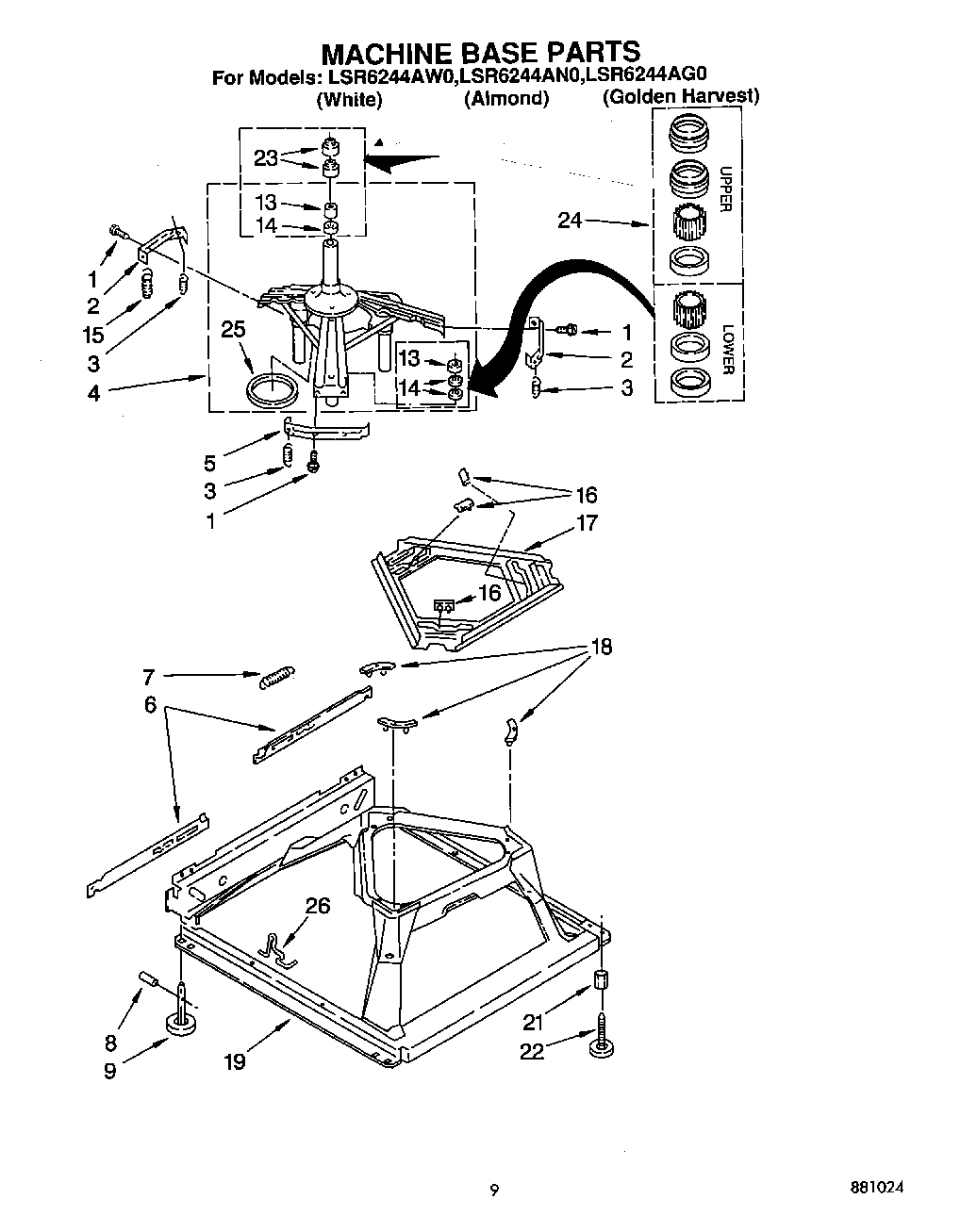

07 - MACHINE BASE

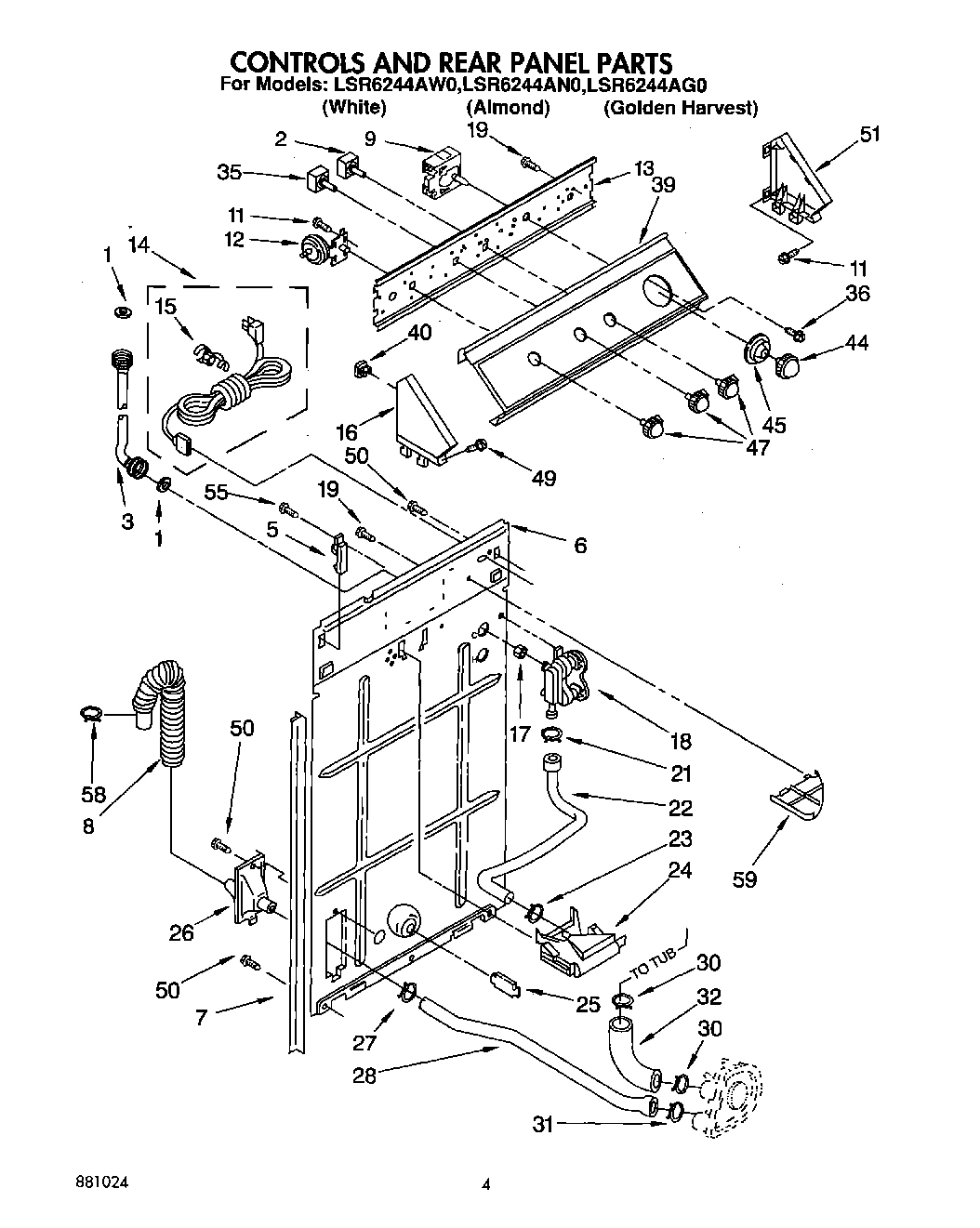

02 - CONTROLS AND REAR PANEL

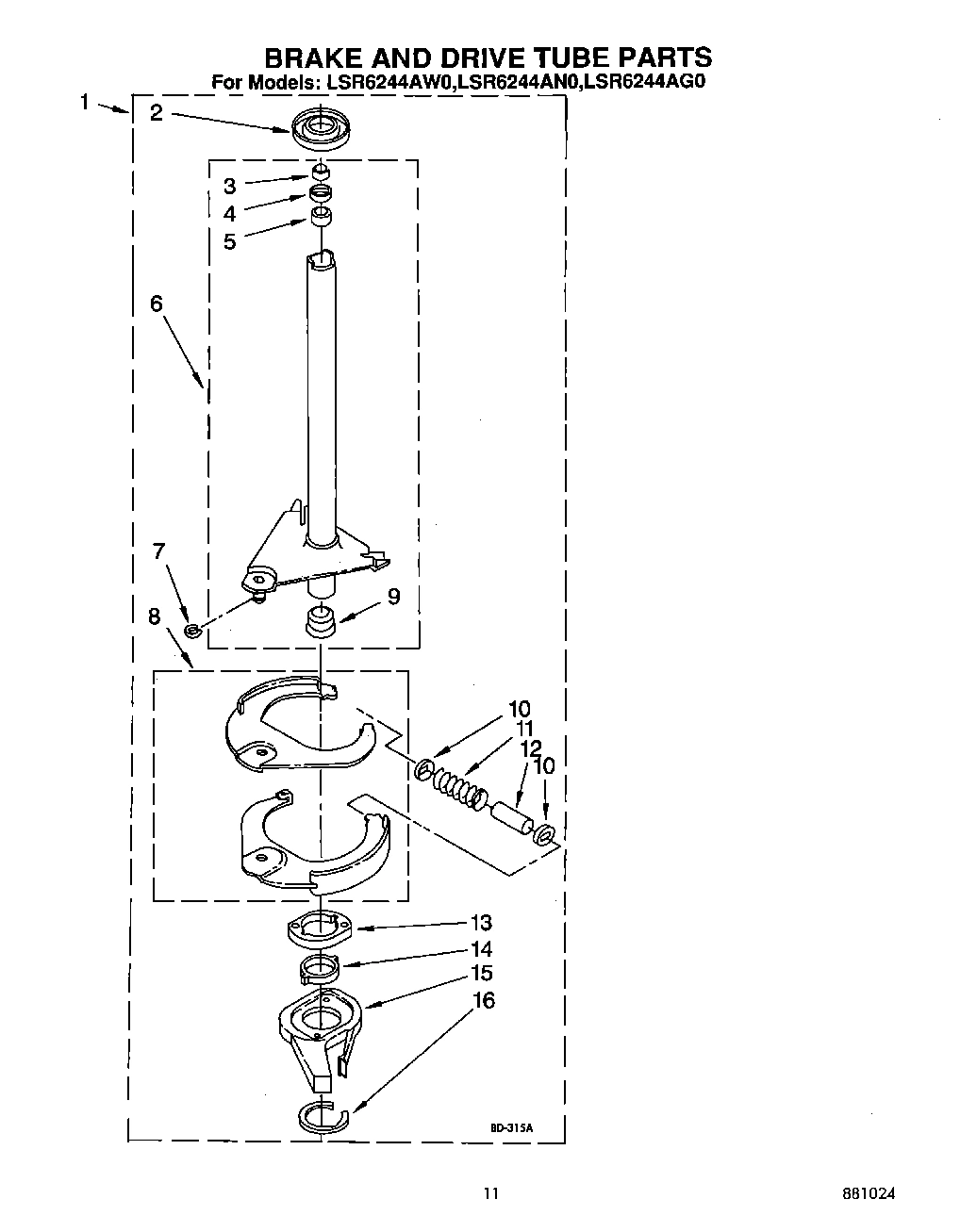

09 - BRAKE AND DRIVE TUBE

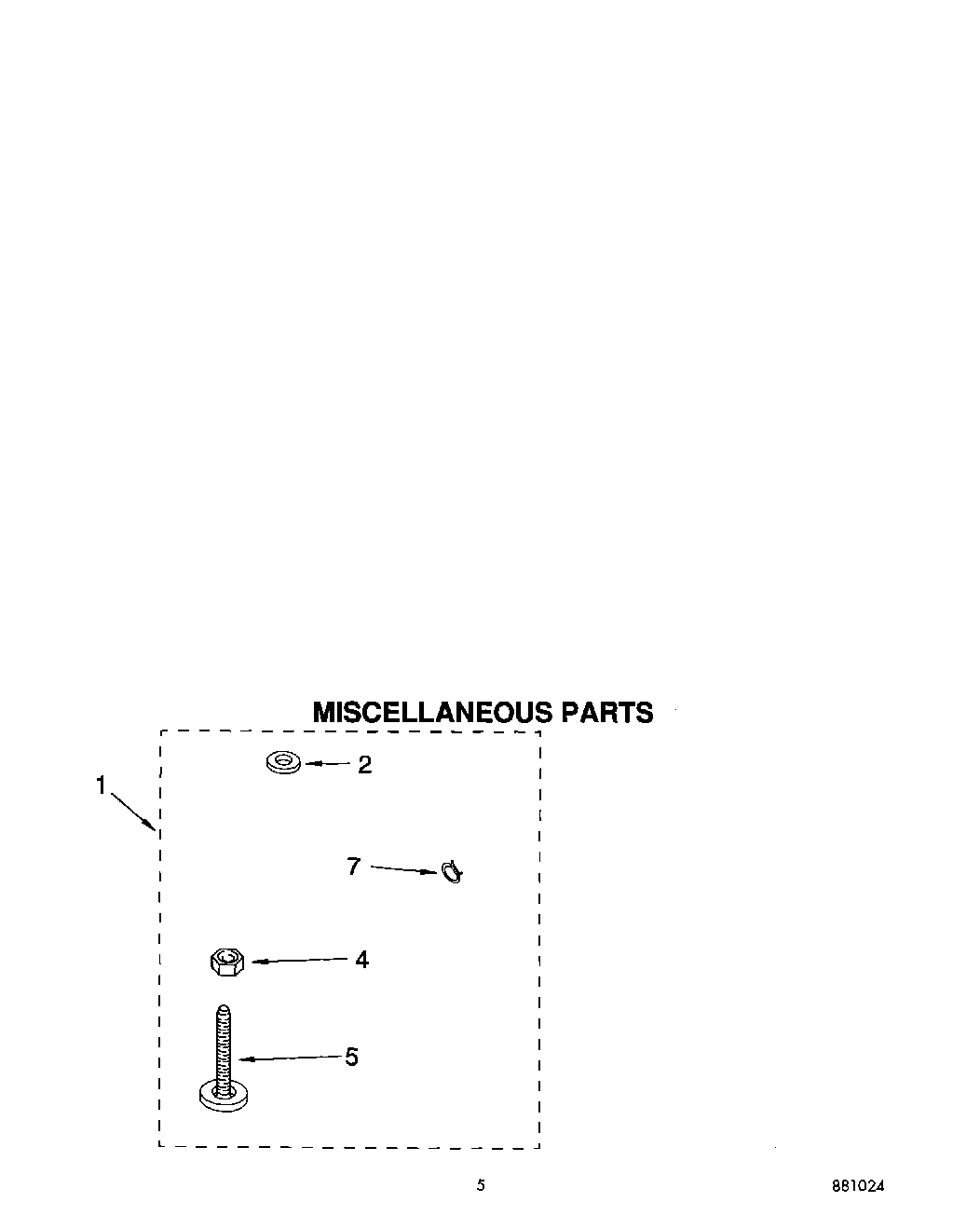

03 - MISCELLANEOUS

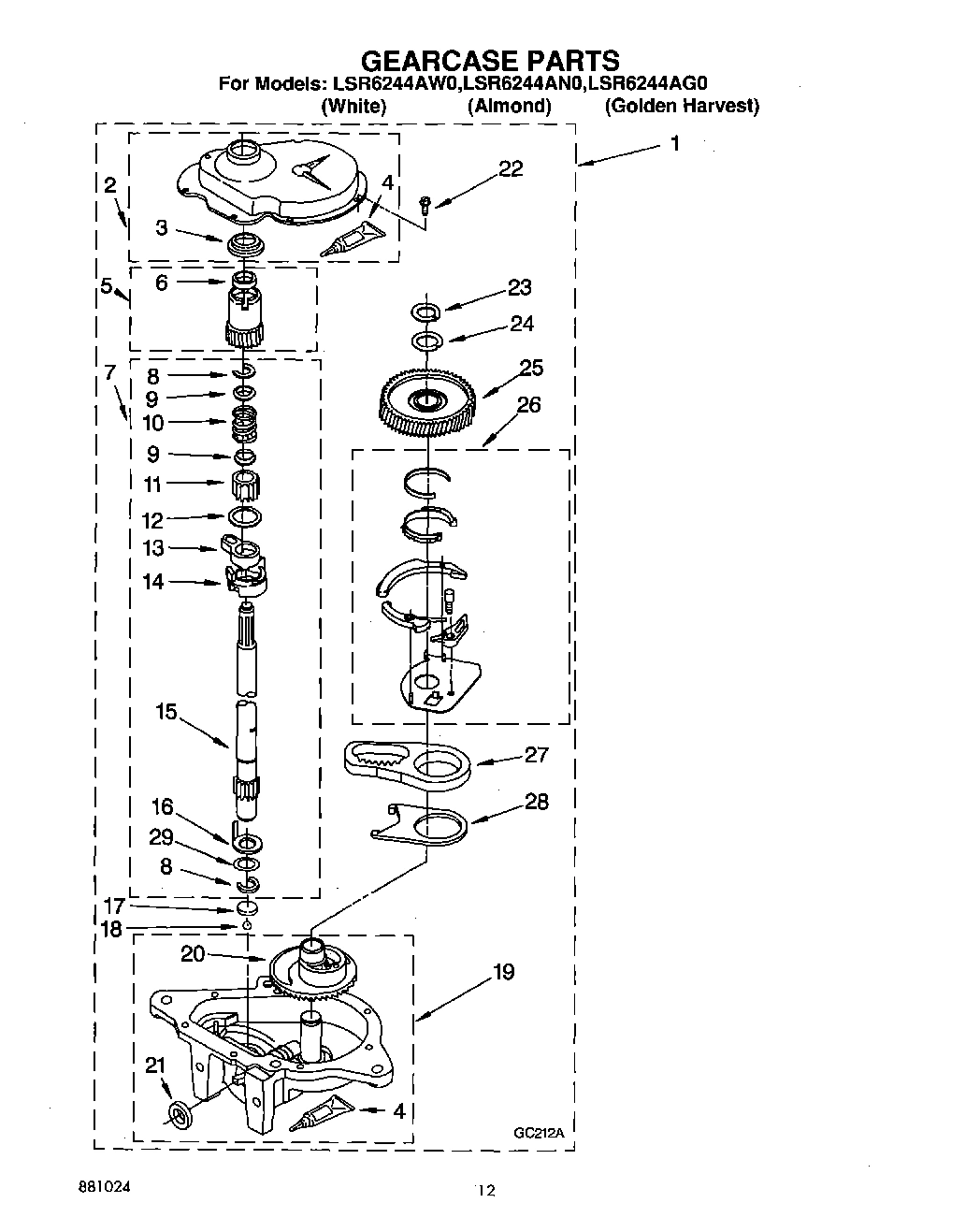

10 - GEARCASE
Common parts from model Whirlpool LSR6244AW0 AUTOMATIC WASHER
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
Siphon Break Kit WPL 285320 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Harvest Gold) WPL 72110 Contact Us For Availability
OIL WPL 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Dispenser WPL 63580 Contact Us For Availability
1
Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 3359460 Contact Us For Availability
2
Top (Almond) WPL 3358201 Contact Us For Availability
2
Top (Golden Harvest) WPL 3358202 Contact Us For Availability
2
Switch, Cycle Modifier WPL 3354281 Contact Us For Availability
3
(Alt.) WPL 387057 Contact Us For Availability
4
Support & Brake, Tub WPL 389350 Contact Us For Availability
5
Hinge, Console (2) WPL 387402 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (White) WPL 63424 Contact Us For Availability
5
Cabinet (Almond) WPL 63425 Contact Us For Availability
5
Cabinet (Golden Harvest) WPL 63428 Contact Us For Availability
5
Spacer, Drive Tube WPL 356937 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
9
Retainer, Spring (2) WPL 62677 Contact Us For Availability
9
Timer, Control (60 Hz.) (Motor Not A Service WPL 3358746 Contact Us For Availability
10
Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability
10
Spring, Agitator WPL 62676 Contact Us For Availability
11
Seal, Agitator WPL 357574 Contact Us For Availability
11
Spring, Brake WPL 387806 Contact Us For Availability
12
Switch, Water Level WPL 3356466 Contact Us For Availability
12
Washer, Agitator Gear WPL 62619 Contact Us For Availability
13
Plug, Terminal (3-Way) (Power Cord) WPL 353424 Contact Us For Availability
14
Cord, Power WPL 62734 Contact Us For Availability
15
Lock, Filter WPL 62942 Contact Us For Availability
15
Clip, Anti-Rattle WPL 3355454 Contact Us For Availability
15
Strain Relief, Power Cord WPL 63848 Contact Us For Availability
15
Shaft, Agitator WPL 389231 Contact Us For Availability
16
Cap, End (L.H.) (White/Chrome) WPL 3358531 Contact Us For Availability
16
Cap, End (L.H.) (Almond/Chrome) WPL 3358532 Contact Us For Availability
16
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
19
Lid (White) WPL 3354570 Contact Us For Availability
19
Lid (Almond) WPL 3354571 Contact Us For Availability
19
Lid (Golden Harvest) WPL 3354574 Contact Us For Availability
19
Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3359886 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability
20
Switch, Main Drive Motor WPL 62850 Contact Us For Availability
20
Gear, Main Drive WPL 62528 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
23
Ring, Retaining WPL 95082 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability
24
Washer Kit, Thrust WPL 285292 Contact Us For Availability
27
Clamp, Capacitor WPL 357030 Contact Us For Availability
35
Switch, Water Temperature WPL 661535 Contact Us For Availability
39
Panel, Console (For White Model) WPL 3359248 Contact Us For Availability
39
Panel, Console (For Almond Model) WPL 3359249 Contact Us For Availability
40
Nut, Push-In (2) WPL 689559 Contact Us For Availability
51
Cap, End (R.H.) (White/Chrome) WPL 3358516 Contact Us For Availability
51
Cap, End (R.H.) (Almond/Chrome) WPL 3358517 Contact Us For Availability
59
WPL 3348424 WPL 3348424 Contact Us For Availability
× ![]()
