Model Whirlpool LSQ9200PQ4 AUTOMATIC WASHER – Common Parts &amp; Diagrams

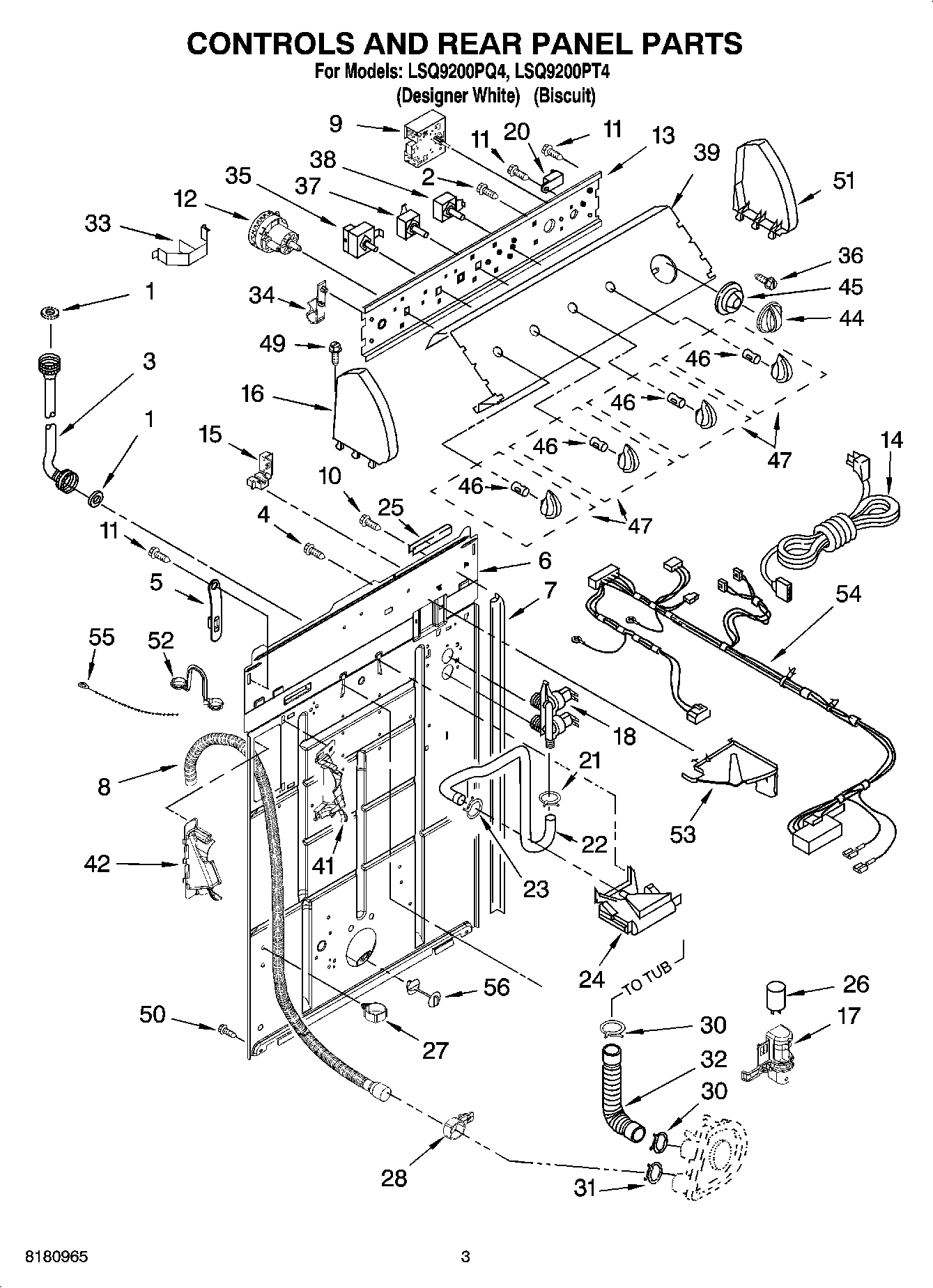

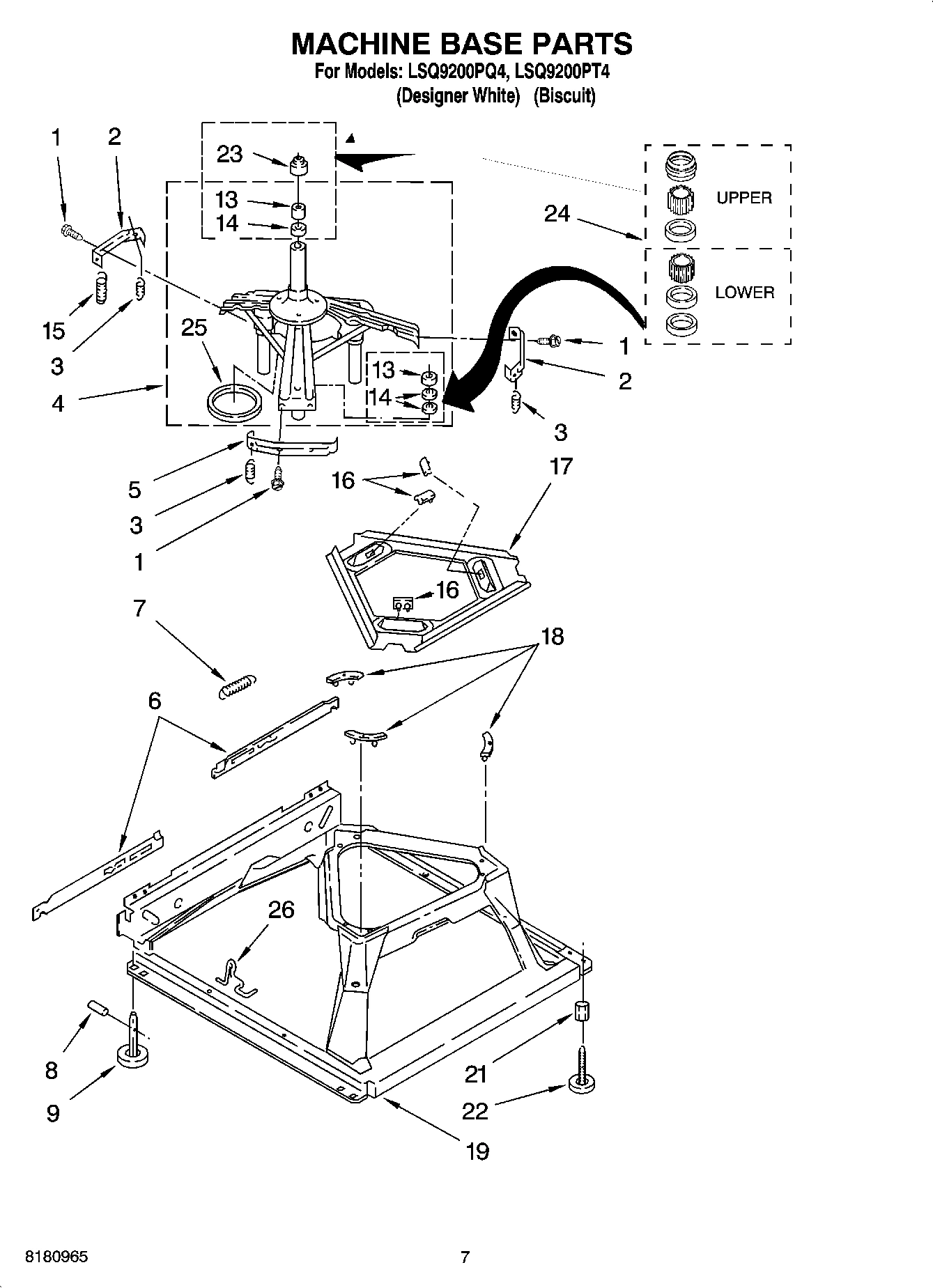

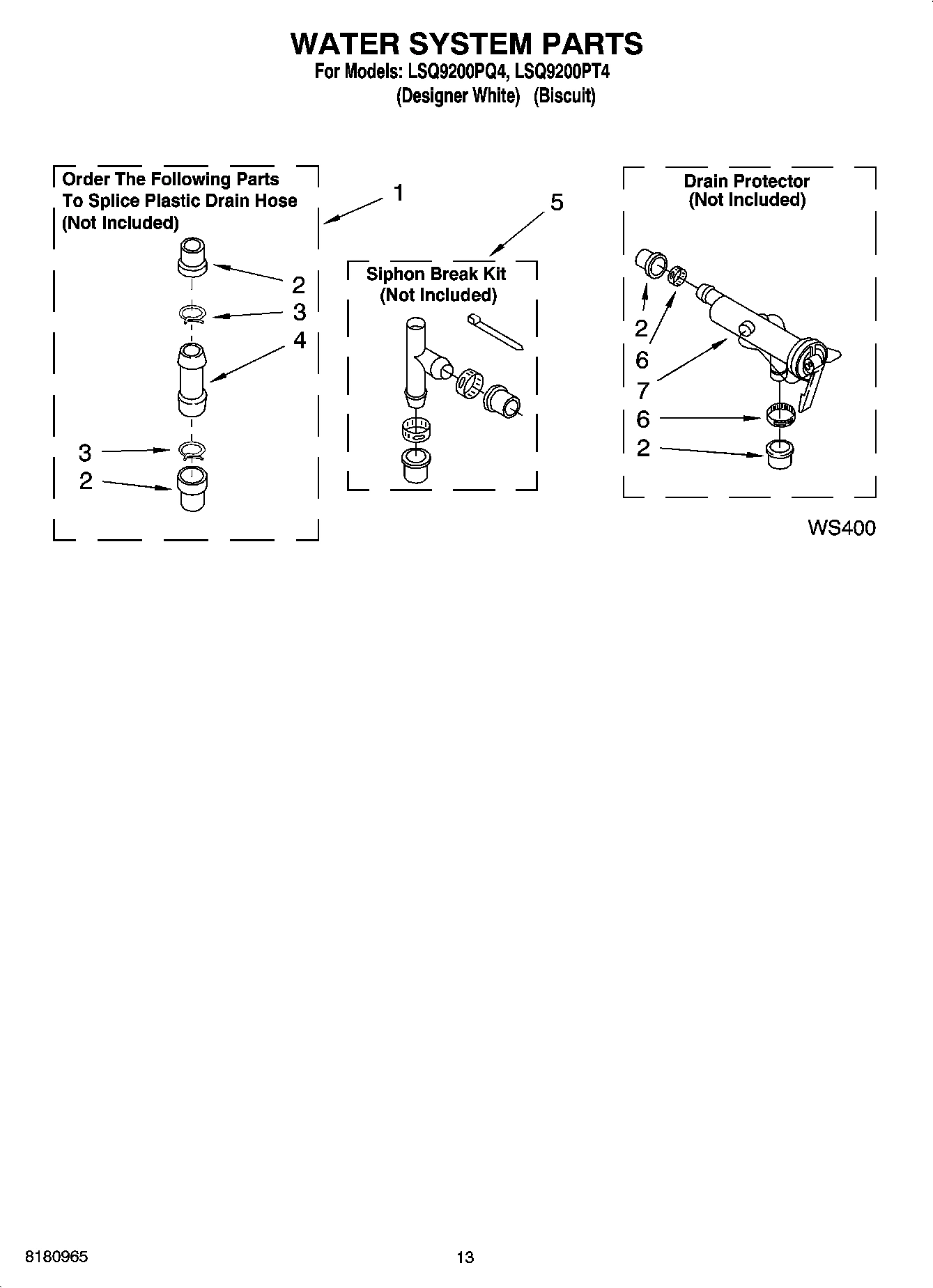

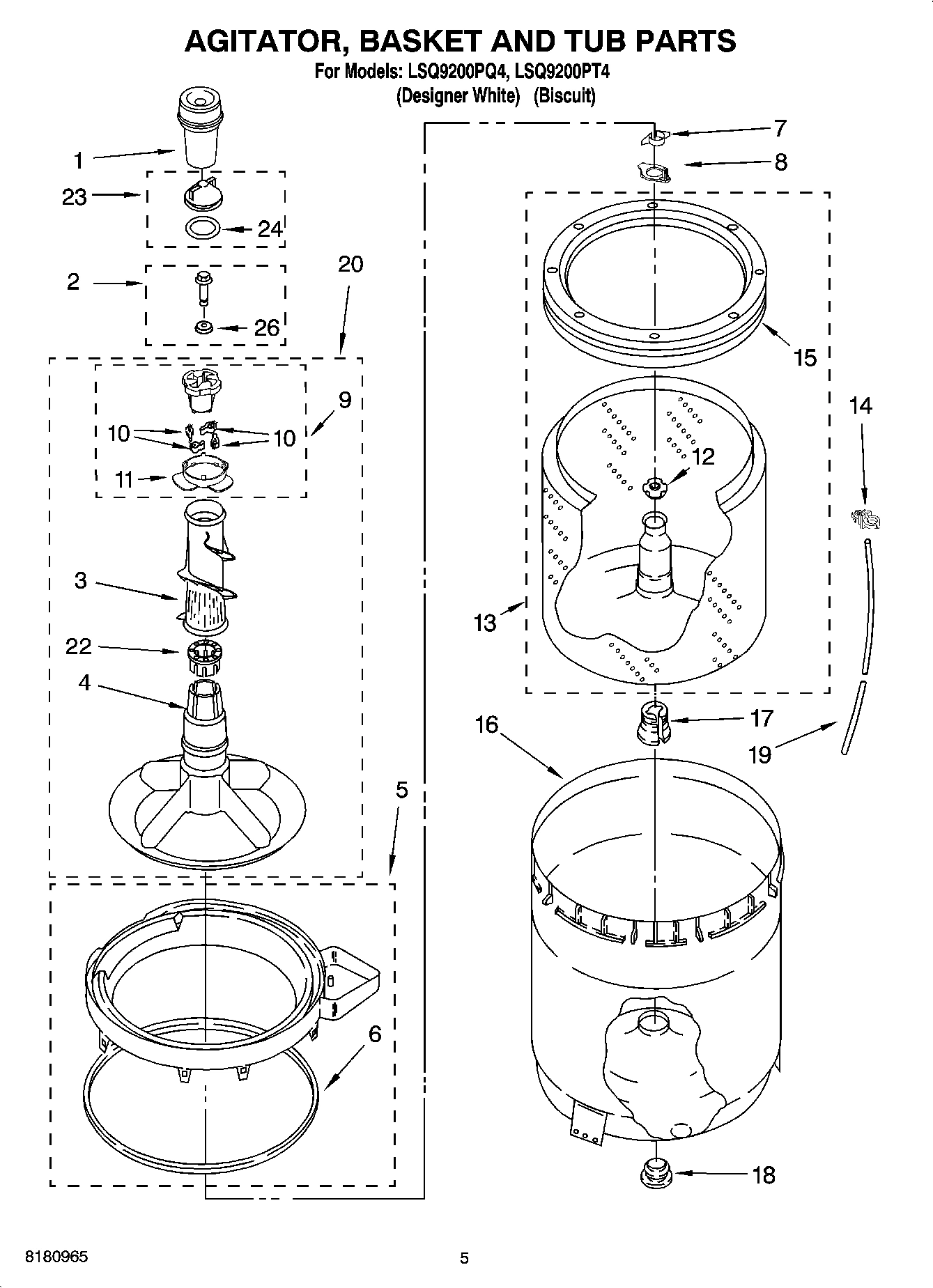

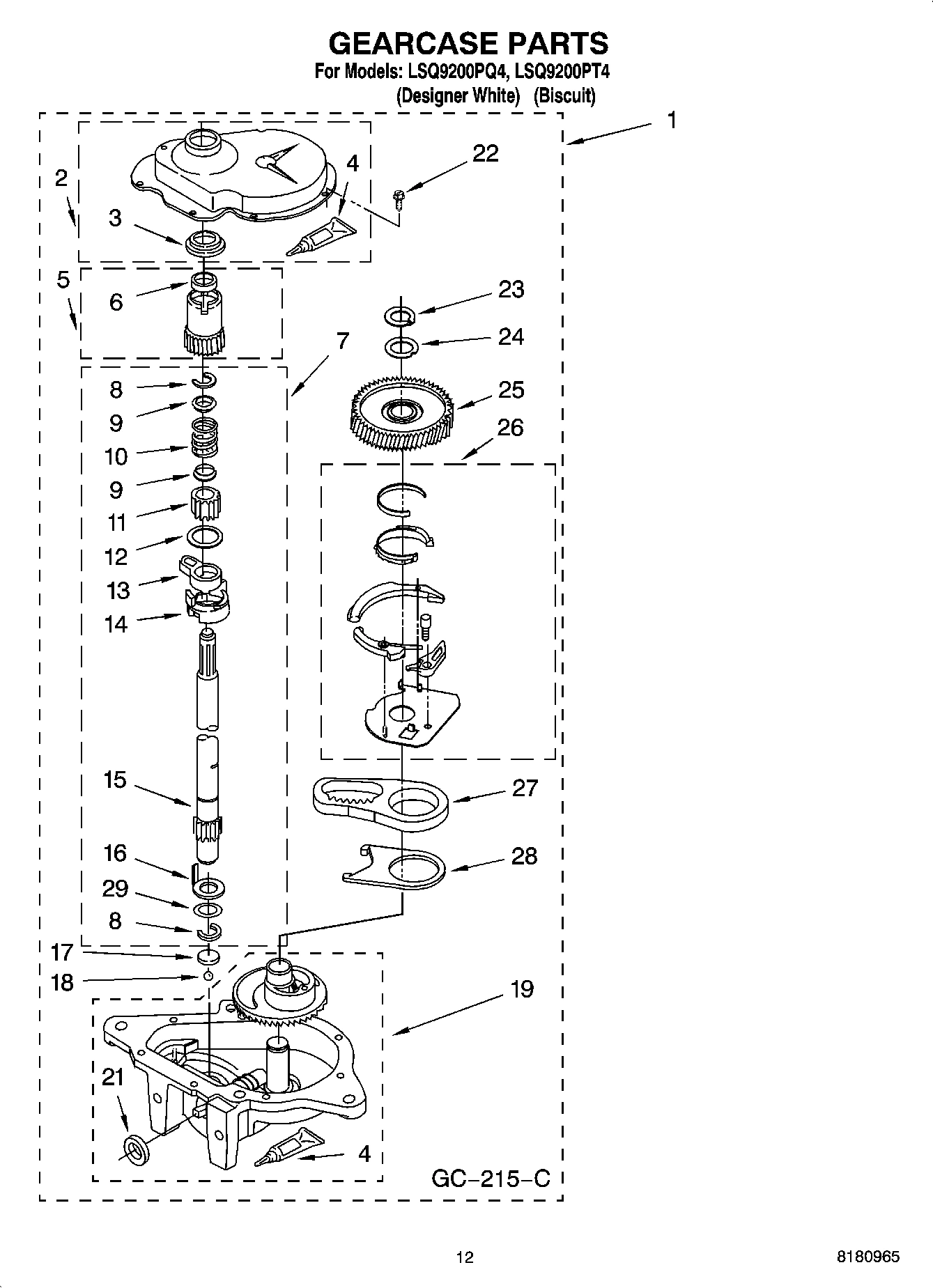

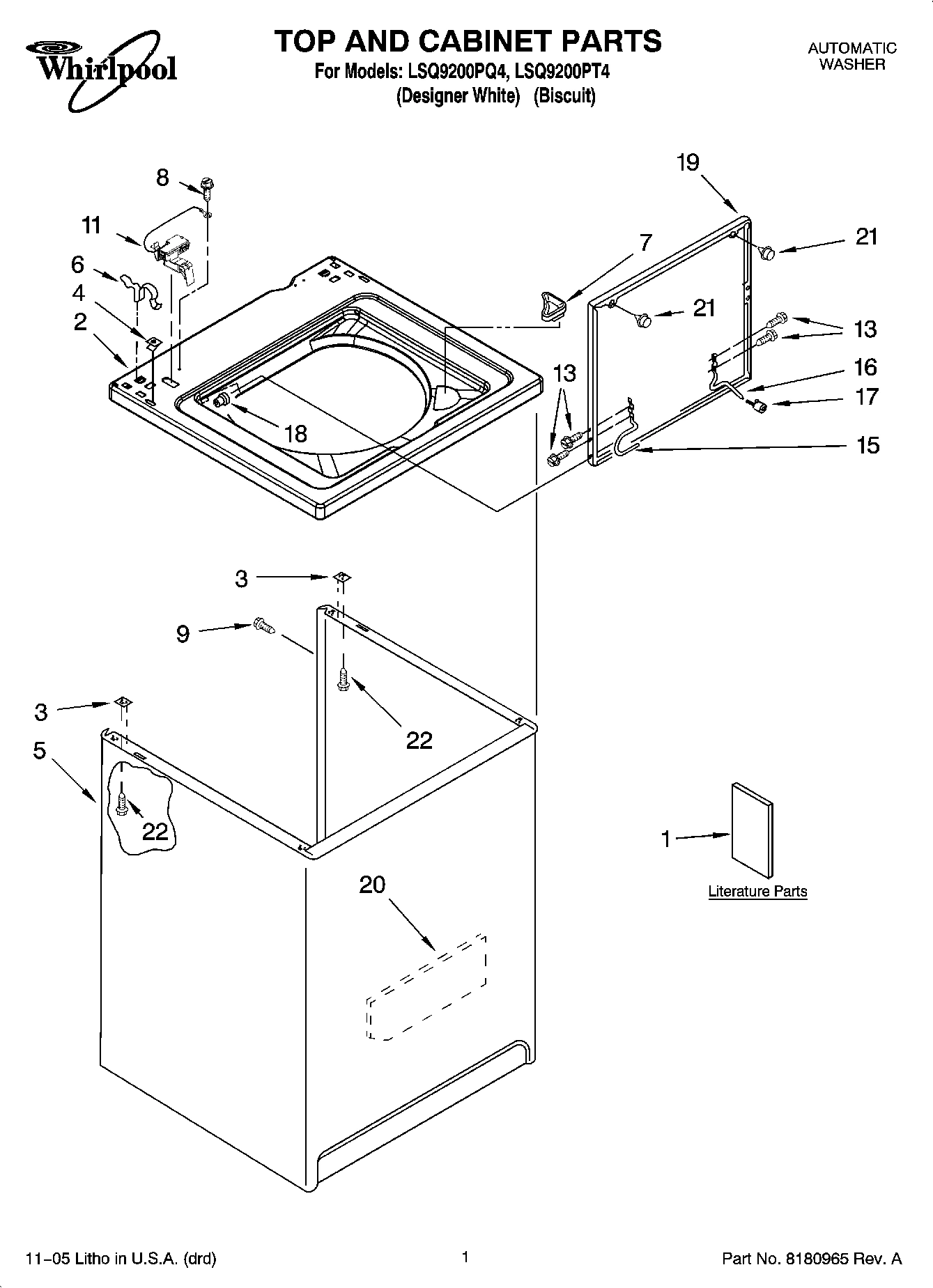

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $33.38

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $11.31

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Manual, Washer Do-It-Yourself WPL 4313896 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Feature Sheet WPL 3955907 Contact Us For Availability

1

Energy Guide WPL 3957474 Contact Us For Availability

1

Installation Instructions WPL 3958075 Contact Us For Availability

1

Wiring Diagram WPL 8557303 Contact Us For Availability

1

Use & Care Guide WPL 8578232 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI157867A Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

2

Top (White) WPL 8318064 Contact Us For Availability

2

Top (Biscuit) WPL 8318066 Contact Us For Availability

3

WP3348752 Whirlpool Agitator Mover In Stock WPL WP3348752 $90.19

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $78.41

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

6

285438 Whirlpool Brake Shoe In Stock WPL 285438 $79.60

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $4.70

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.84

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.70

8

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.35

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $12.19

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8557301 Whirlpool Timer In Stock WPL WP8557301 $190.27

9

Spring, Brake WPL 387806 Contact Us For Availability

10

353424 Whirlpool Connector Backorder WPL 353424 $10.76

10

Spring, Agitate WPL 62676 Contact Us For Availability

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $30.56

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $10.45

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $30.74

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $10.28

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.46

W11095997 Whirlpool Seal In Stock WPL W11095997 $11.58

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $4.70

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.78

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI157871A Contact Us For Availability

15

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $12.08

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

15

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $3.11

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $133.48

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Clip, Capacitor WPL 8318046 Contact Us For Availability

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.64

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WPW10193857 Whirlpool Lid Assembly Backorder WPL WPW10193857 $188.00

Base Assembly (Includes Items 6, 7, 8, 9, 16, WPL 3946512 Contact Us For Availability

Lid (Biscuit) WPL 8542384 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

20

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $3.46

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.70

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.78

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $45.77

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.04

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

28

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $10.76

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

42

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $39.93

44

Knob, Timer (White) WPL 8544943 Contact Us For Availability

44

Knob, Timer (Biscuit) WPL 8544944 Contact Us For Availability

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $27.18

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.97

47

WPL 8544935 WPL 8544935 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

53

WPL 8539874 WPL 8539874 Contact Us For Availability

56

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96
