Model Whirlpool LSN7233BW1 AUTOMATIC WASHER – Common Parts & Diagrams

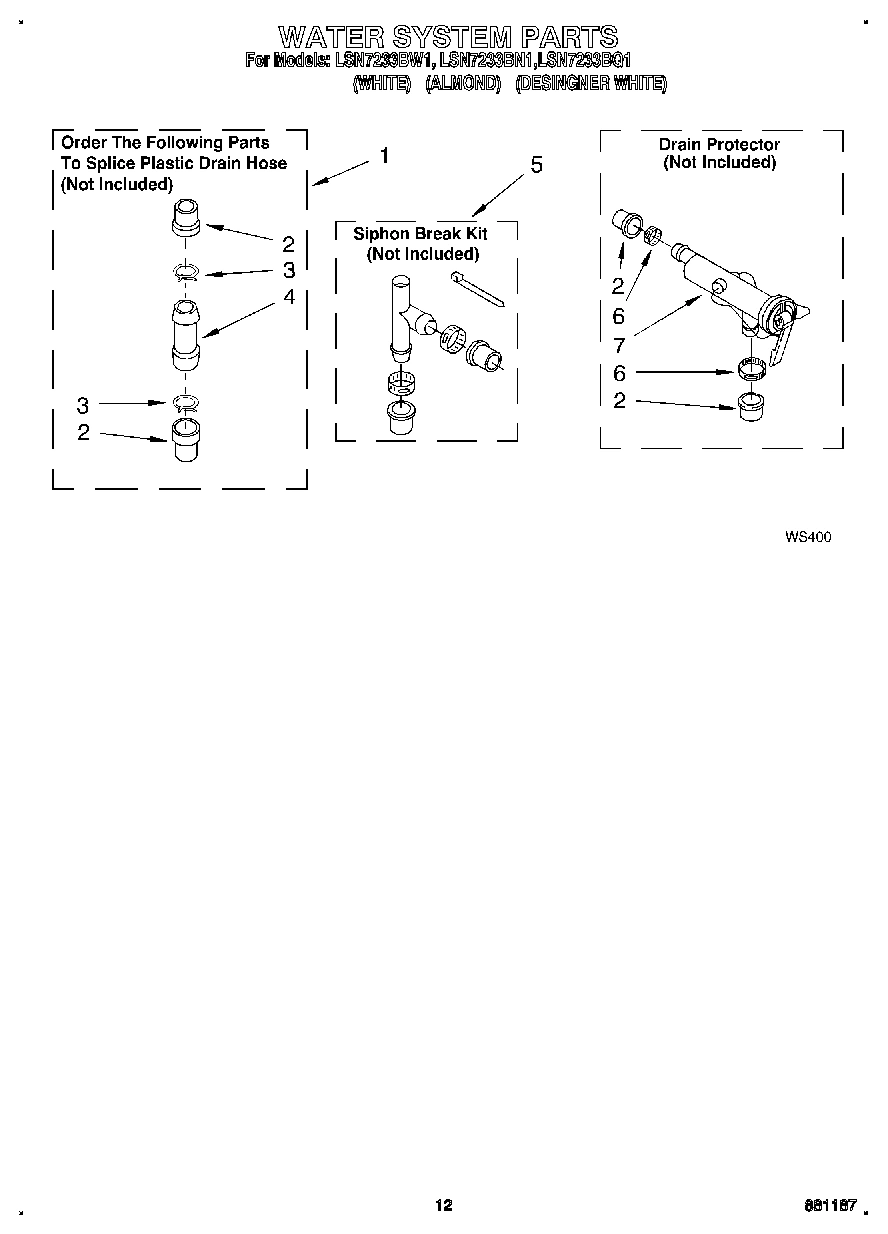

10 - WATER SYSTEM

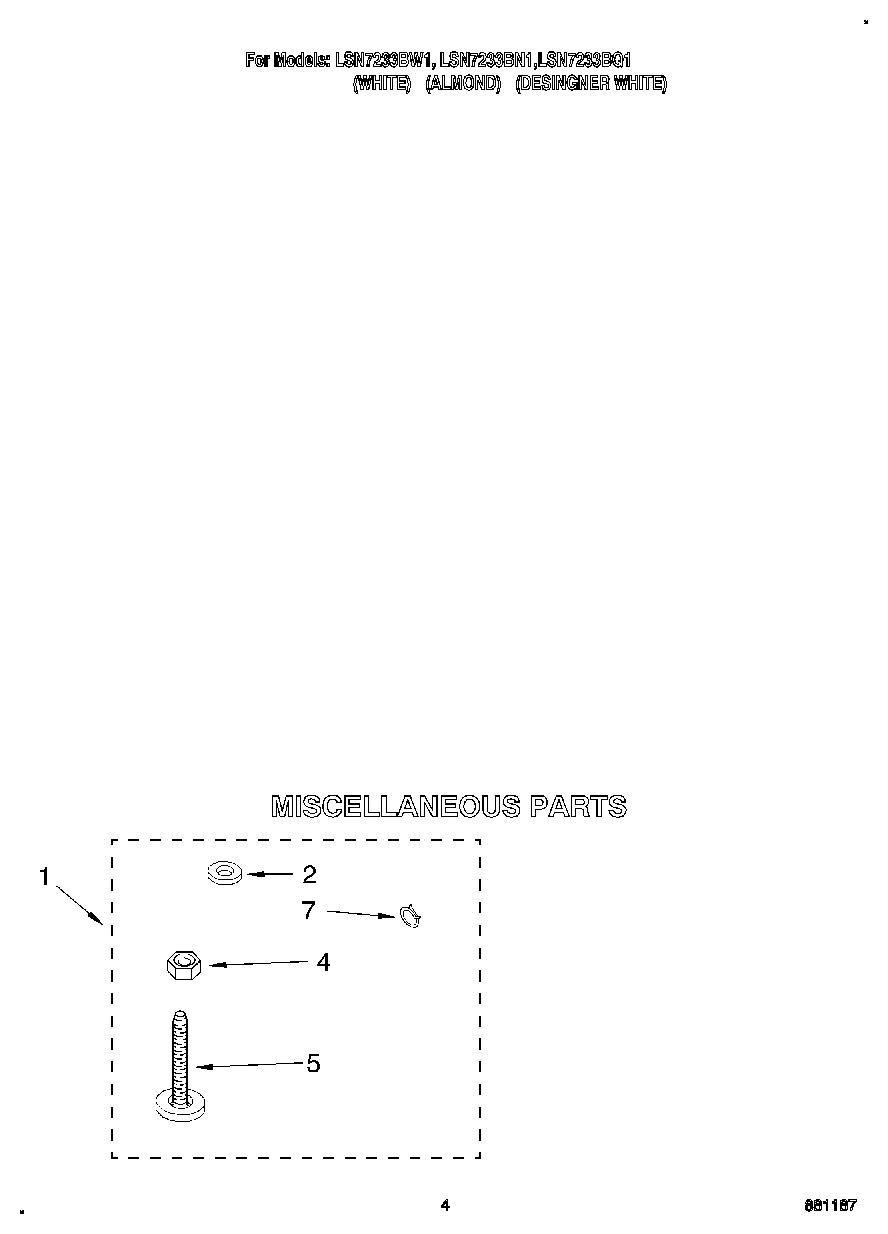

03 - MISCELLANEOUS

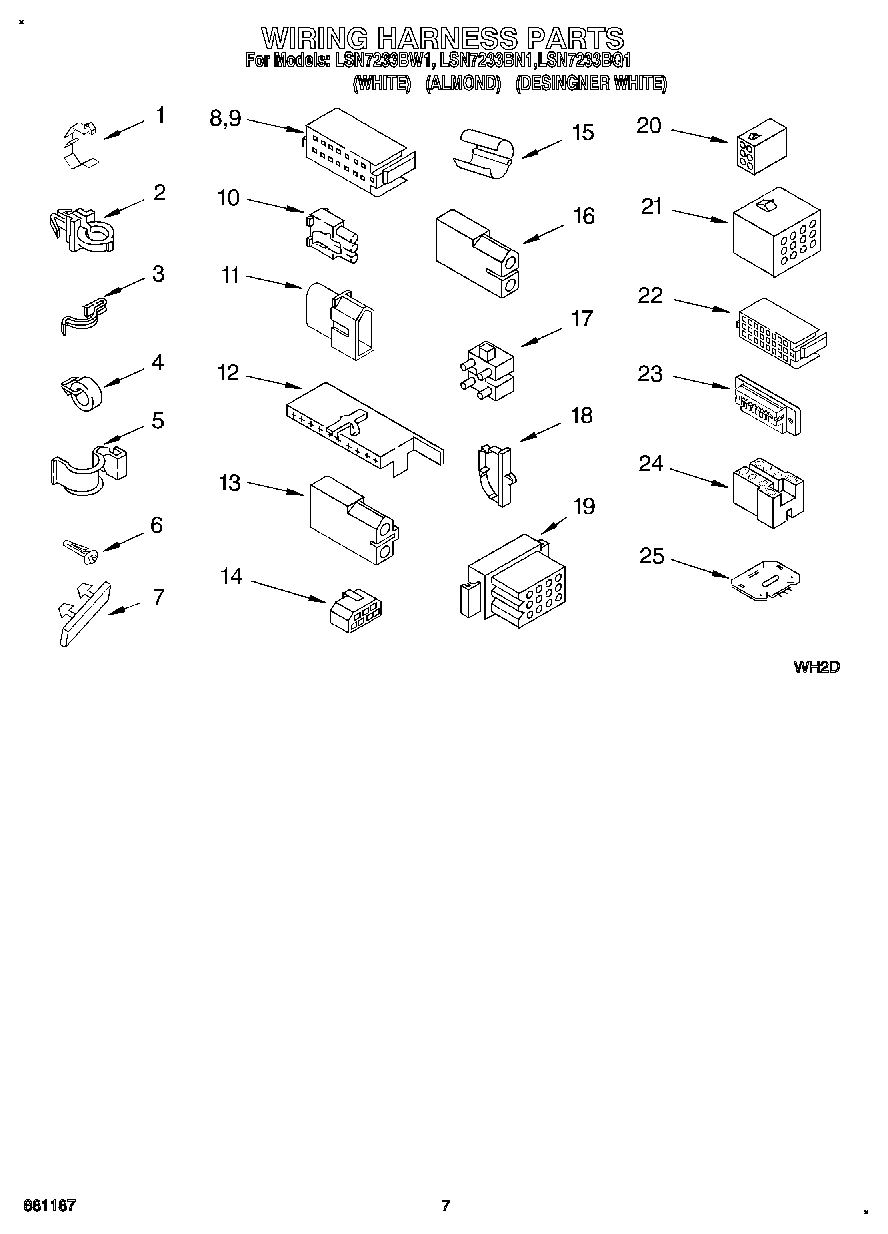

05 - WIRING HARNESS

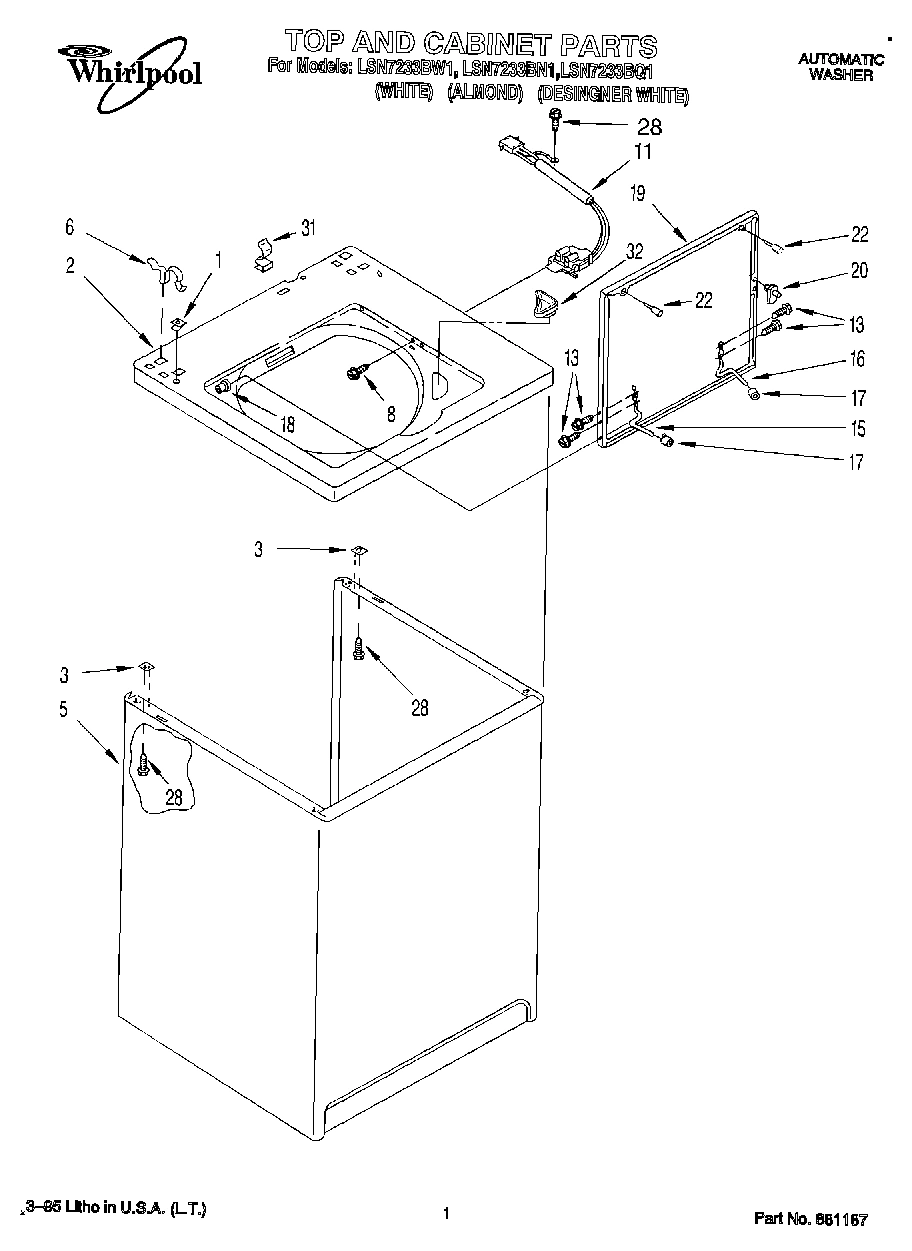

01 - TOP AND CABINET, LIT/OPTIONAL

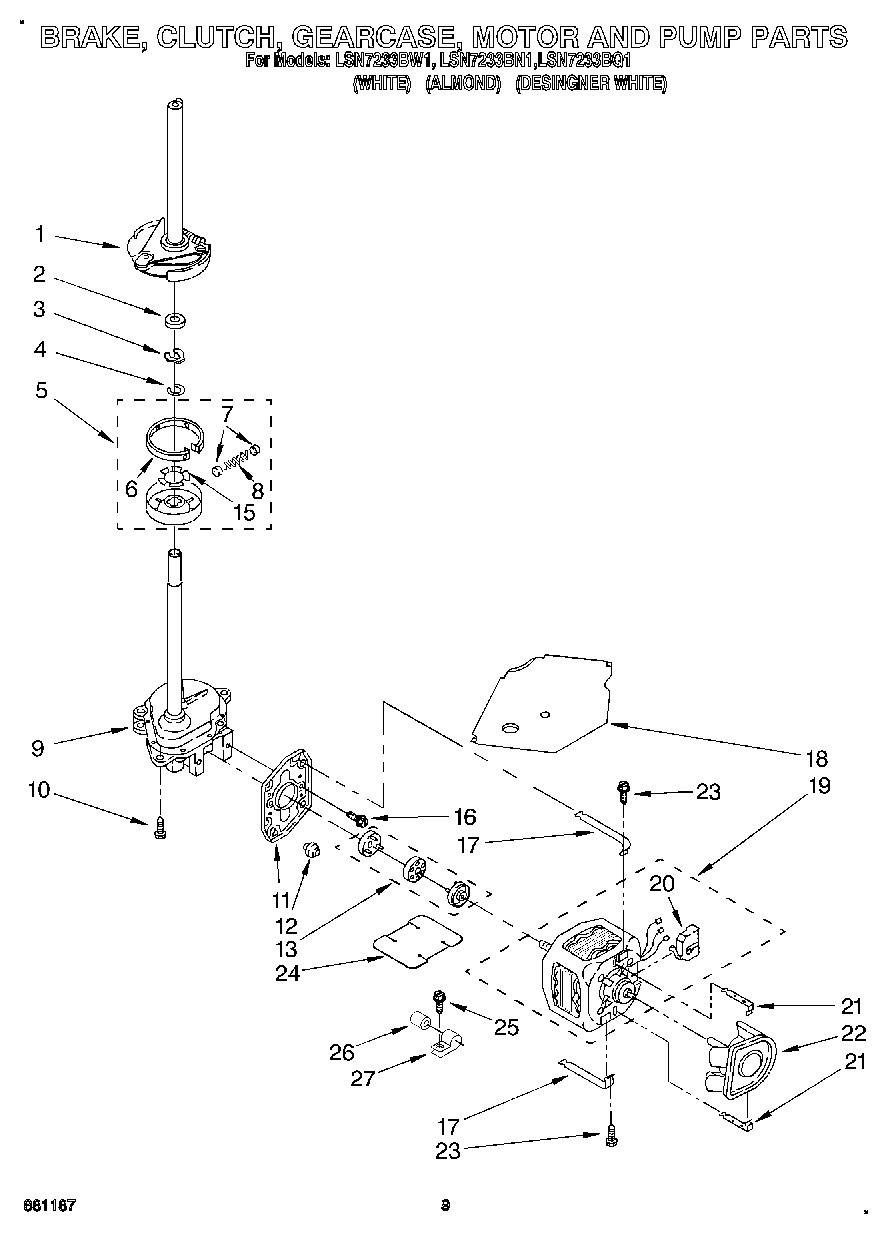

07 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

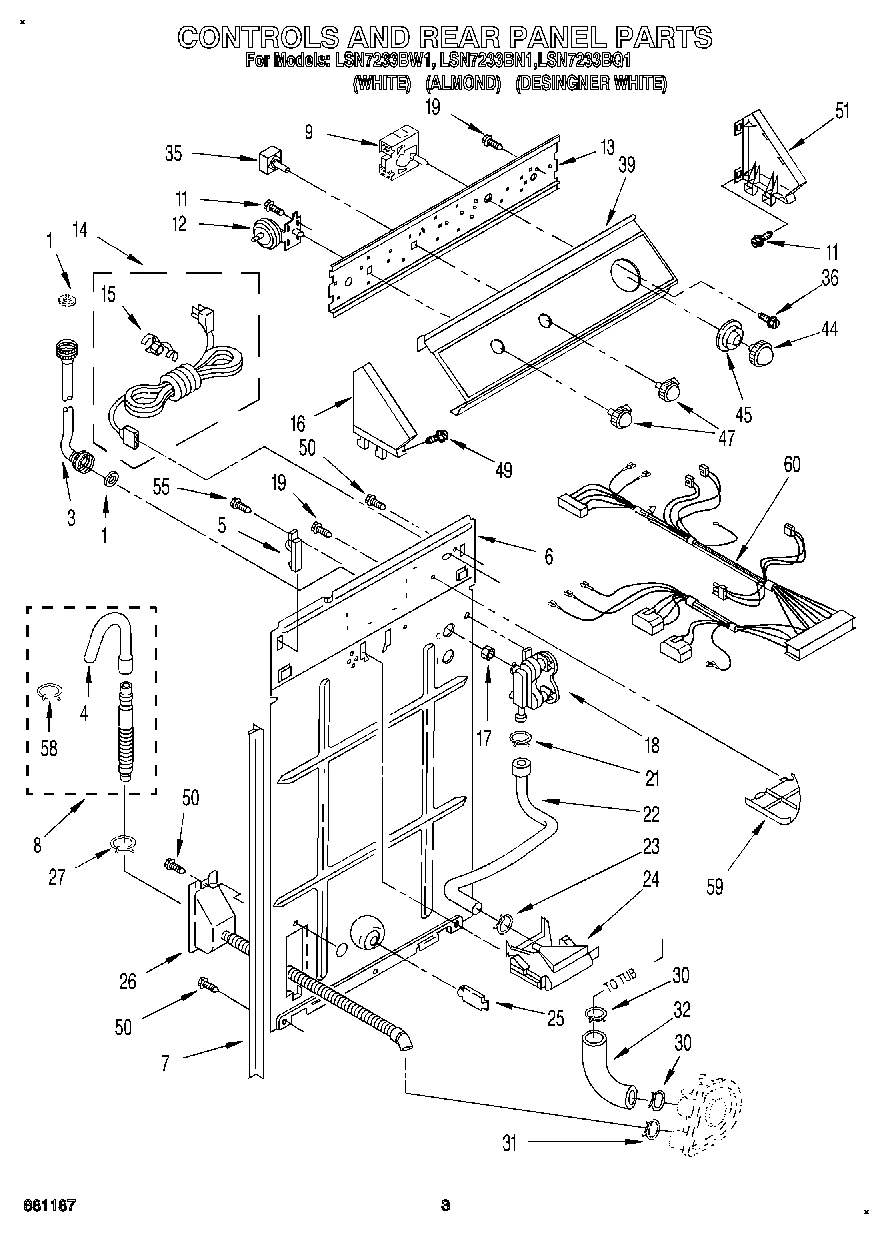

02 - CONTROLS AND REAR PANEL

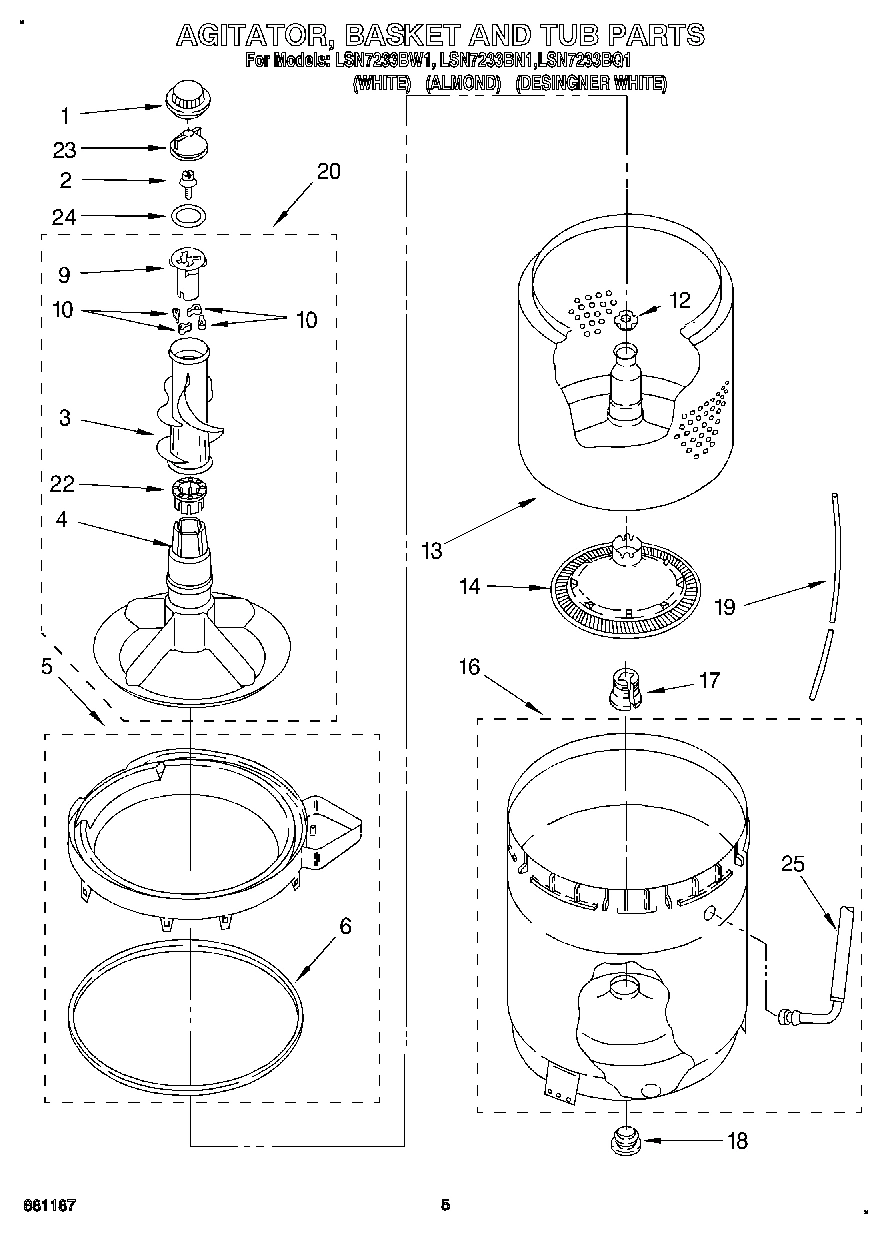

04 - AGITATOR, BASKET AND TUB

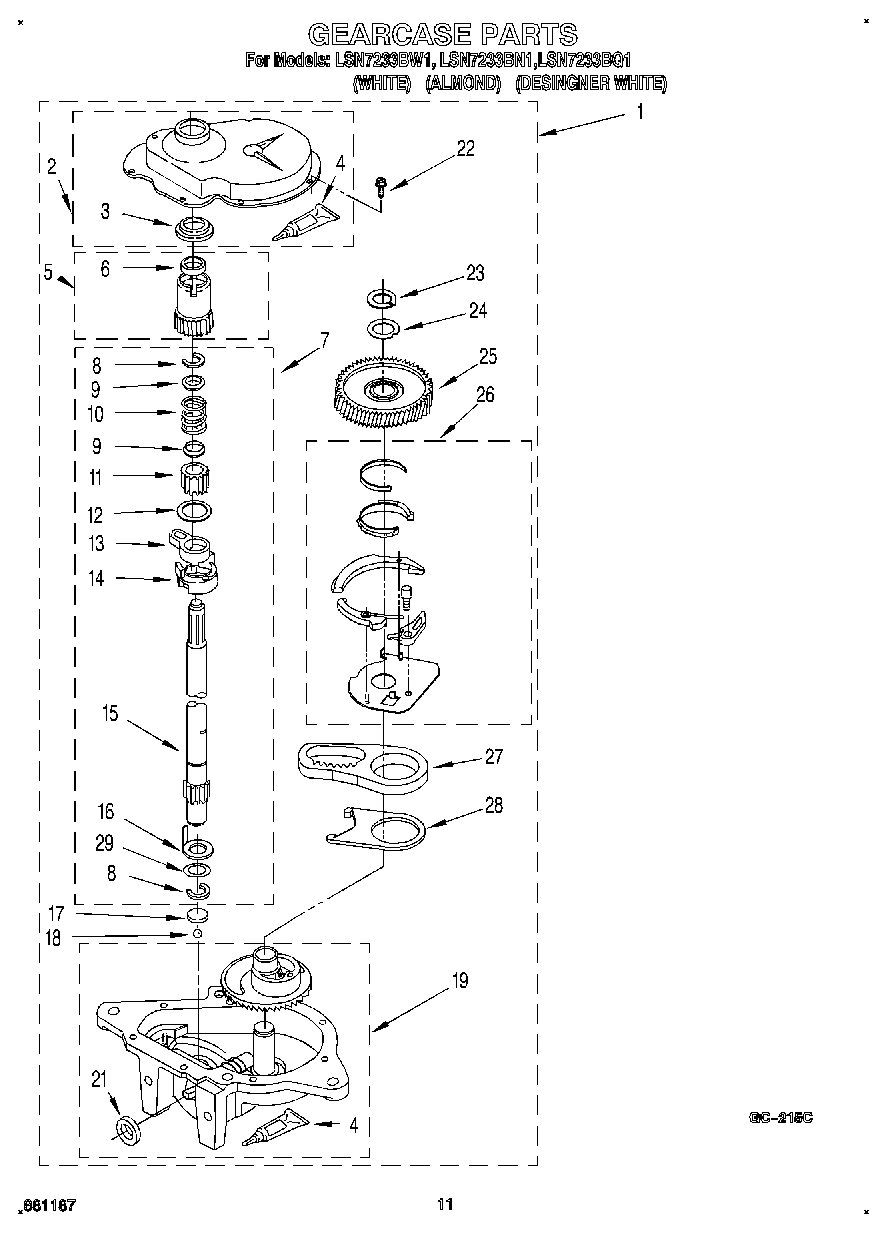

09 - GEARCASE

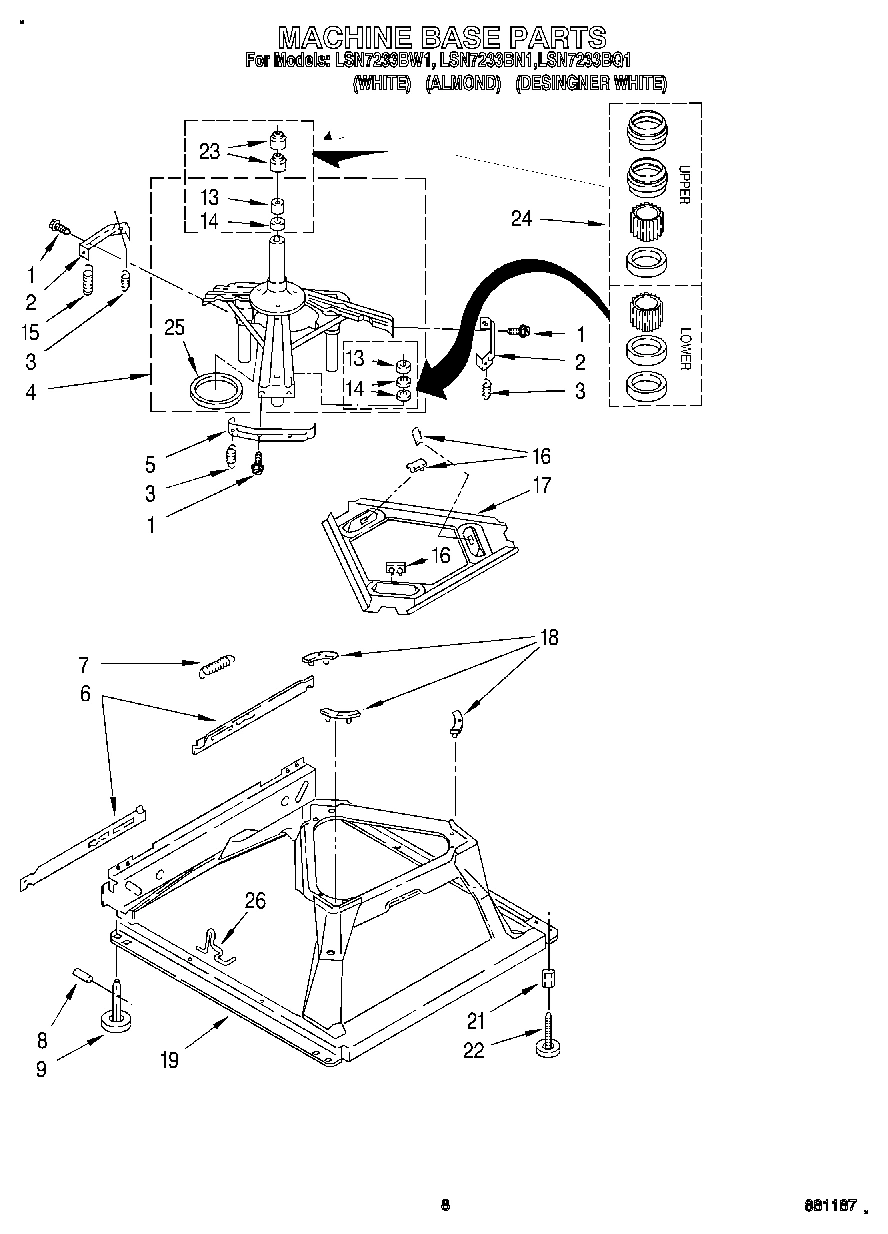

06 - MACHINE BASE

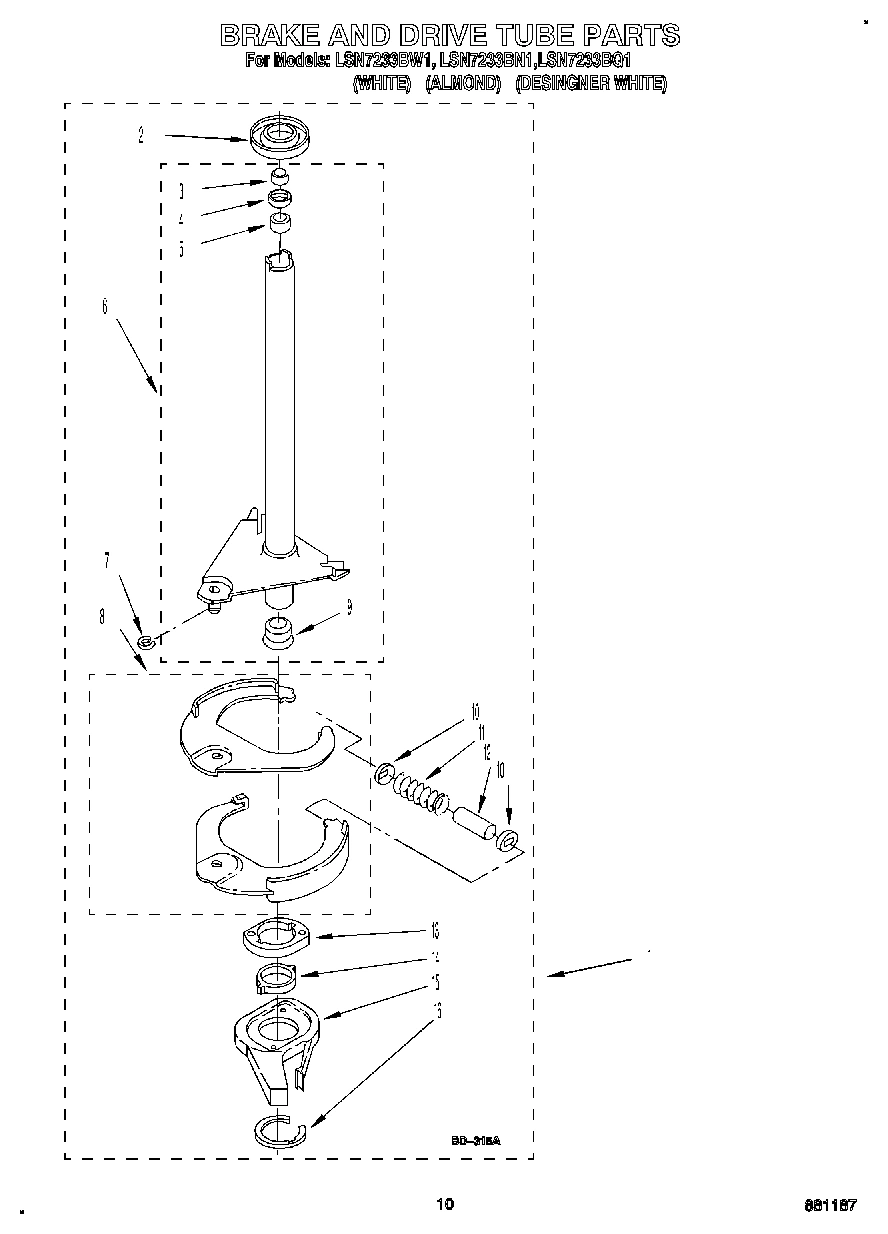

08 - BRAKE AND DRIVE TUBE
Common parts from model Whirlpool LSN7233BW1 AUTOMATIC WASHER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Harvest Gold) WPL 72110 Contact Us For Availability
OIL WPL 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Drain Protector WPL 367031 Contact Us For Availability
Stand-Pipe Kit WPL 89121 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Guide, Use and Care WPL LIT3357460 Contact Us For Availability
Sheet, Insta WPL LIT3360057 Contact Us For Availability
WPL LIT3361377 WPL LIT3361377 Contact Us For Availability
WPL LIT3946992 WPL LIT3946992 Contact Us For Availability
WPL LIT4313896 WPL LIT4313896 Contact Us For Availability
1
Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
2
Cover, Gearcase WPL 285202 Contact Us For Availability
2
Top (For White & Desinger White Models) WPL 3358200 Contact Us For Availability
2
Top (For Almond Model) WPL 3358201 Contact Us For Availability
4
Support & Brake, Tub WPL 3362087 Contact Us For Availability
5
Siphon Break Kit (Not Included) WPL 285320 Contact Us For Availability
5
Hinge, Console (2) WPL 387402 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (For White & Designer White Models) WPL 63424 Contact Us For Availability
5
Cabinet (For Almond Model) WPL 63425 Contact Us For Availability
5
Spacer, Drive Tube WPL 356937 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
9
Retainer, Spring WPL 62677 Contact Us For Availability
10
Spring, Agitator WPL 62676 Contact Us For Availability
11
Plug, Terminal (3-Way) (Power Cord) (Use Term WPL 353424 Contact Us For Availability
11
Spring, Brake WPL 387806 Contact Us For Availability
12
Washer, Agitator Gear WPL 62619 Contact Us For Availability
14
Cord, Power WPL 3360514 Contact Us For Availability
15
Clip, Anti-Rattle WPL 3355454 Contact Us For Availability
15
Strain Relief, Power Cord WPL 63848 Contact Us For Availability
16
Cap, End (L.H.) (White/Chrome) WPL 3358531 Contact Us For Availability
16
Cap, End (L.H.) (Almond/Chrome) WPL 3358532 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
16
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
19
Lid (For White & Designer White Models) WPL 3361392 Contact Us For Availability
19
Lid (For Almond Model) WPL 3361393 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
19
Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability
20
Switch, Main Drive Motor WPL 62850 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
23
Ring, Retaining WPL 3362552 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
25
Hose, Bleach WPL 3358198 Contact Us For Availability
27
Clamp, Capacitor WPL 357030 Contact Us For Availability
35
(Alt.) WPL 334711 Contact Us For Availability
35
(Alt.) WPL 334835 Contact Us For Availability
35
Switch, Water Temperature WPL 661538 Contact Us For Availability
39
Panel, Console (For White Model) WPL 3361507 Contact Us For Availability
39
Panel, Console (For Almond Model) WPL 3361508 Contact Us For Availability
39
Panel, Console (For Designer White Model) WPL 3361510 Contact Us For Availability
45
Dial, Timer (For Designe WPL 3946261 Contact Us For Availability
51
WPL 3358516 WPL 3358516 Contact Us For Availability
51
WPL 3358517 WPL 3358517 Contact Us For Availability
59
WPL 3348424 WPL 3348424 Contact Us For Availability
60
WPL 3359831 WPL 3359831 Contact Us For Availability
× ![]()
