Model Whirlpool LLT7144BN0 AUTOMATIC WASHER – Common Parts & Diagrams

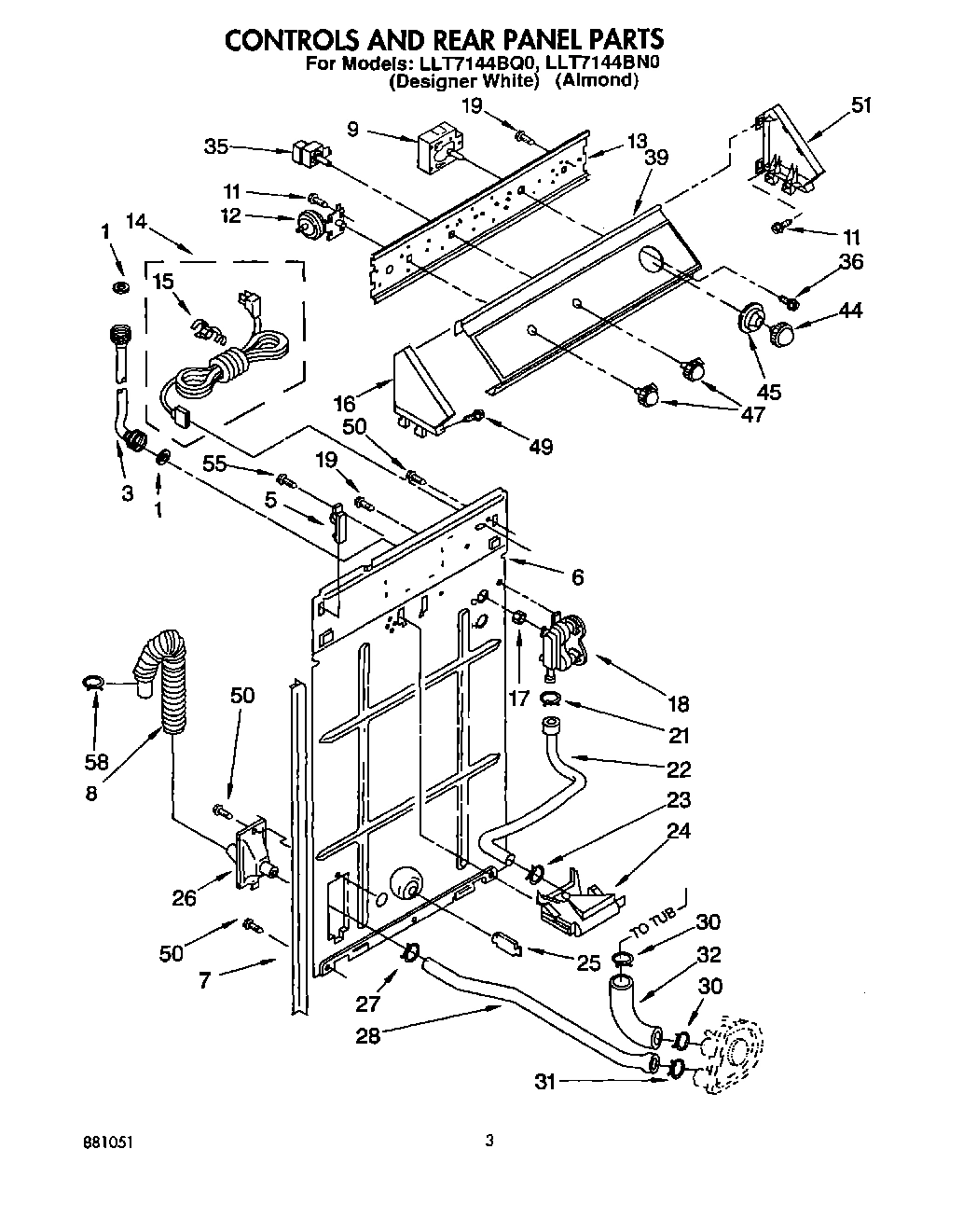

02 - CONTROLS AND REAR PANEL

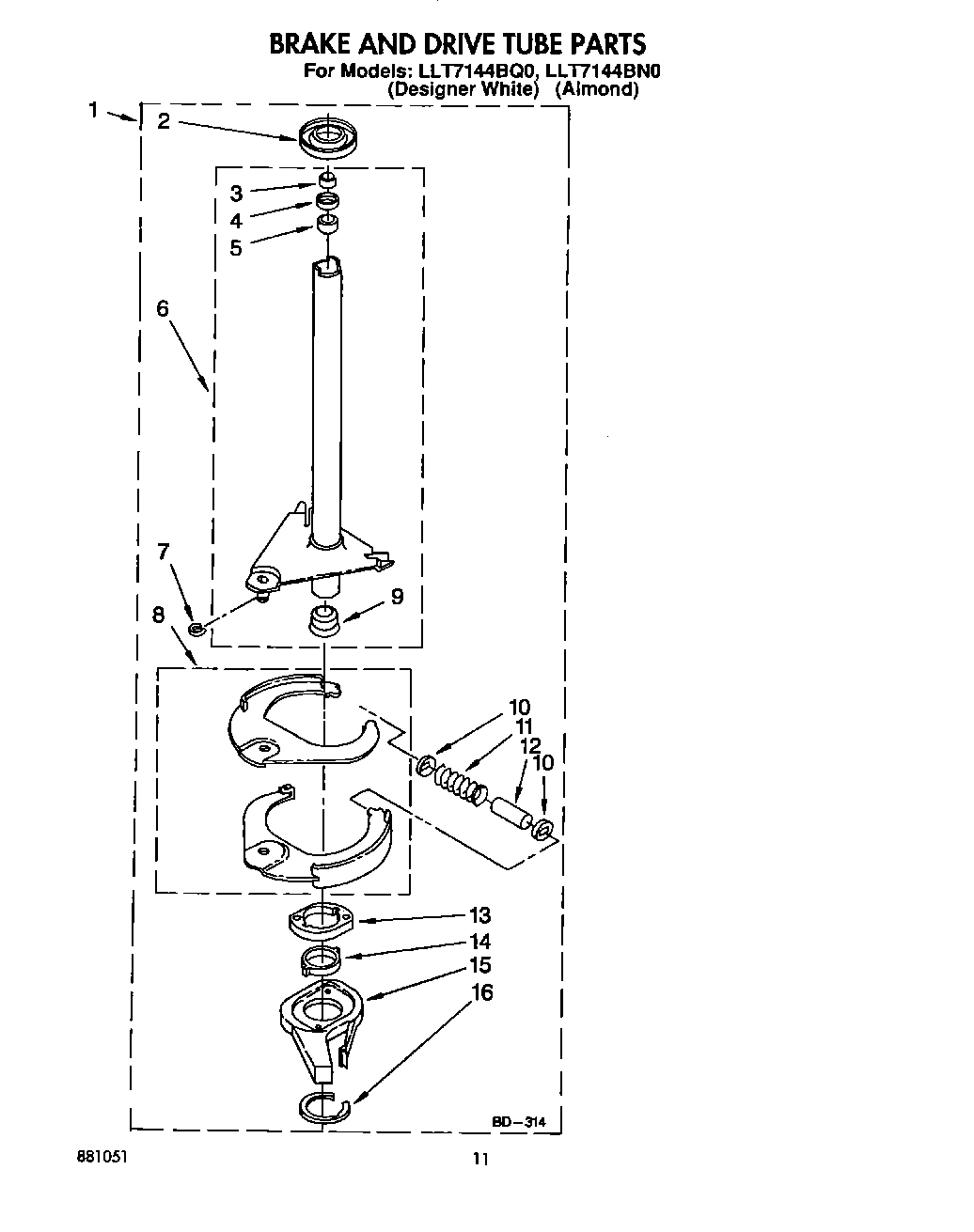

09 - BRAKE AND DRIVE TUBE
04 - MISCELLANEOUS
07 - WIRING HARNESS
05 - BRAKE, CLUTCH, GEARCASE, MOTOR & PUMP
06 - MACHINE BASE
01 - TOP AND CABINET, LIT/OPTIONAL
03 - AGITATOR, BASKET AND TUB
08 - WATER SYSTEM
10 - GEARCASE
Common parts from model Whirlpool LLT7144BN0 AUTOMATIC WASHER
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Fabric Dispenser WPL 63580 Contact Us For Availability
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
Siphon Break Kit WPL 285320 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Harvest Gold) WPL 72110 Contact Us For Availability
OIL WPL 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
Shipping Kit WPL 3348675 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
Stand-Pipe Kit WPL 89121 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Guide, Use and Care WPL LIT3357468 Contact Us For Availability
Sheet, Installation Instructions WPL LIT3360057 Contact Us For Availability
L WPL LIT3361187 Contact Us For Availability
WPL LIT3361368 WPL LIT3361368 Contact Us For Availability
WPL LIT4313896 WPL LIT4313896 Contact Us For Availability
1
Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
2
Top (For Designer White Model) WPL 3358213 Contact Us For Availability
2
Top (For Almond Model) WPL 3358214 Contact Us For Availability
2
Sleeve Kit, (Contains 2 Sleeves) WPL 285321 Contact Us For Availability
4
Support & Brake, Tub WPL 389350 Contact Us For Availability
5
Hinge, Console (2) WPL 387402 Contact Us For Availability
5
Tub Ring & Gasket WPL 3360611 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (For Designer White Model) WPL 63424 Contact Us For Availability
5
Cabinet (For Almond Model) WPL 63425 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability
7
Drain Protector (Not Included) WPL 367031 Contact Us For Availability
8
Balance Ring WPL 387868 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
9
Retainer, Spring (2) WPL 62677 Contact Us For Availability
10
Spring, Agitator WPL 62676 Contact Us For Availability
11
Seal, Agitator WPL 357574 Contact Us For Availability
12
Switch, Water Level WPL 3356466 Contact Us For Availability
12
Washer, Agitator Gear WPL 62619 Contact Us For Availability
13
Plug, Terminal (3-Way) (Power Cord) WPL 353424 Contact Us For Availability
13
Basket WPL 387713 Contact Us For Availability
15
Lock, Filter WPL 62942 Contact Us For Availability
16
Tub WPL 63125 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
19
Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3359886 Contact Us For Availability
19
Lid (For Almond Model) WPL 3361396 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability
20
Switch, Main Drive Motor WPL 62850 Contact Us For Availability
20
Gear, Main Drive WPL 3360263 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
23
Ring, Retaining WPL 95082 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability
24
Washer Kit, Thrust WPL 285292 Contact Us For Availability
27
Clamp, Capacitor WPL 357030 Contact Us For Availability
× ![]()
