Model Whirlpool LE8107L2 WASHER – Common Parts & Diagrams

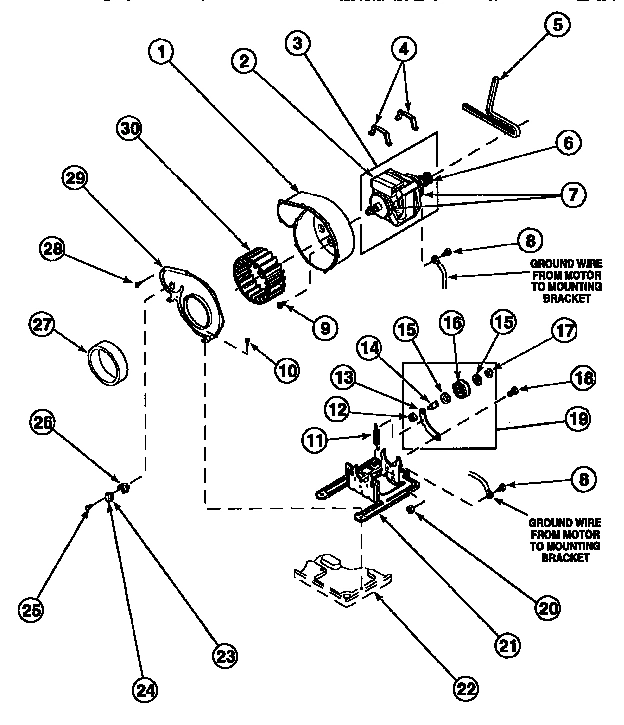

15 - MOTOR, EXHAUST FAN AND BELT

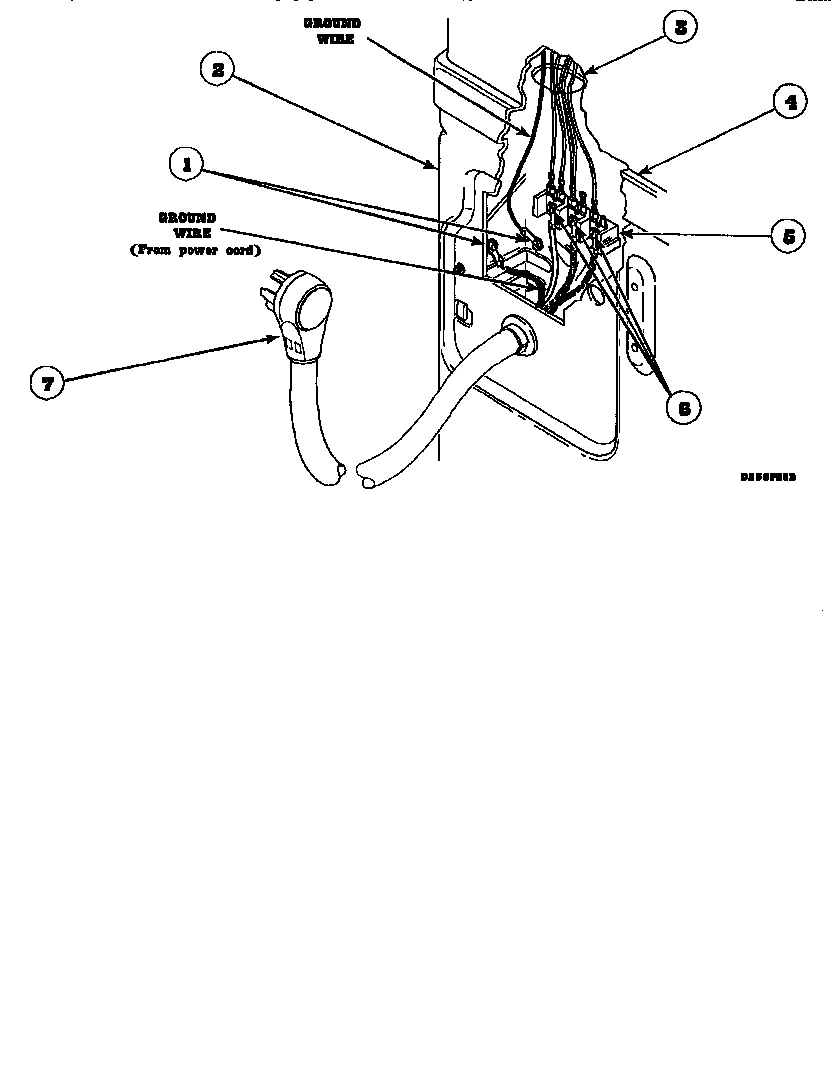

17 - POWER CORDS

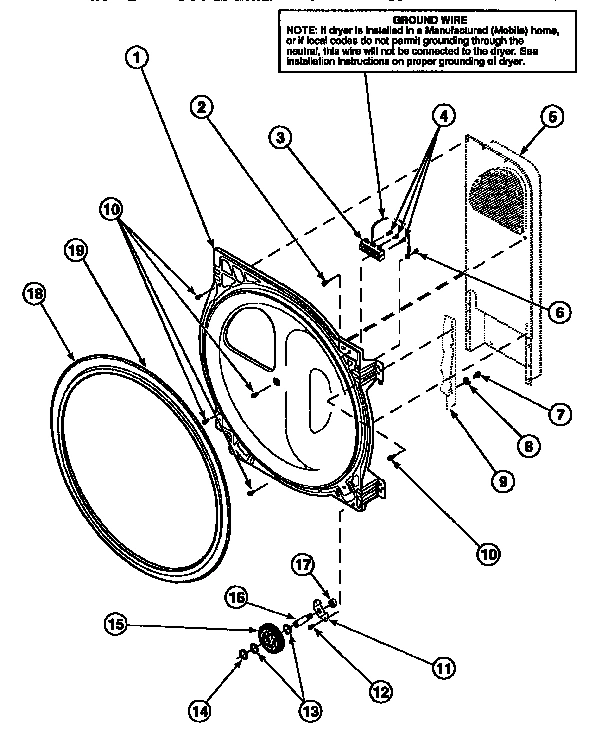

19 - REAR BLKHD/SEAL/CYLINDER ROLLER/TERM BLK

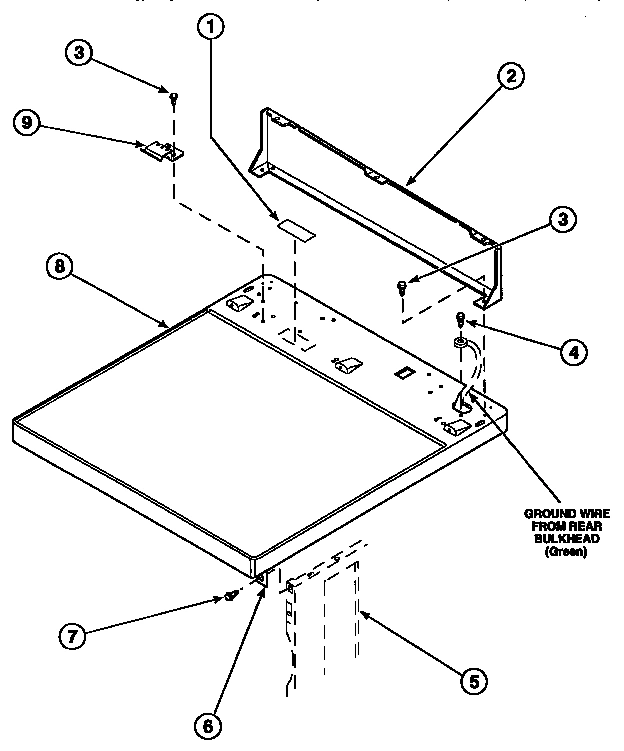

01 - CABINET TOP AND CONTROL HOOD REAR PANEL

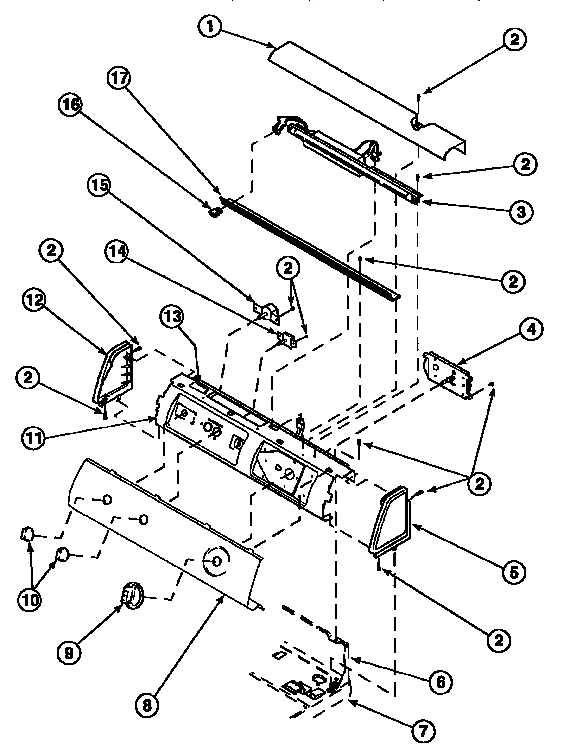

08 - GRAPHIC PANEL, CONTROL HOOD AND CONTROLS

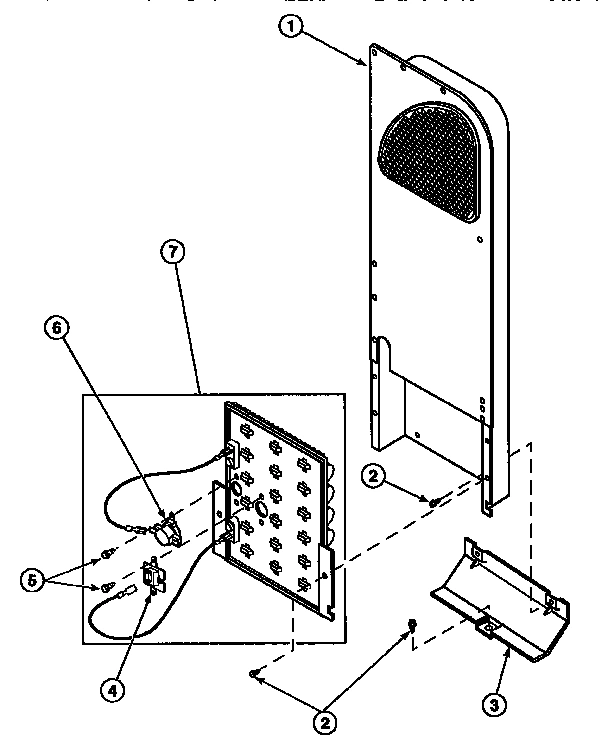

10 - HEATER BOX ASSY ORIGINALLY ON ELEC DRYER

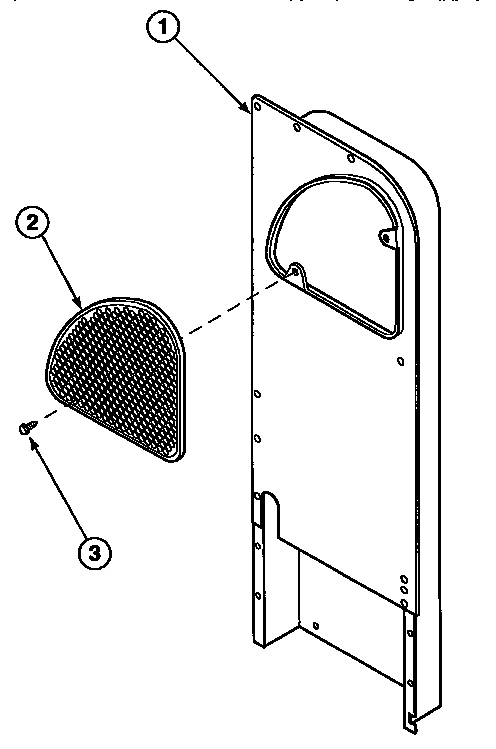

12 - HEATER BOX ASSY REPLACEMENT

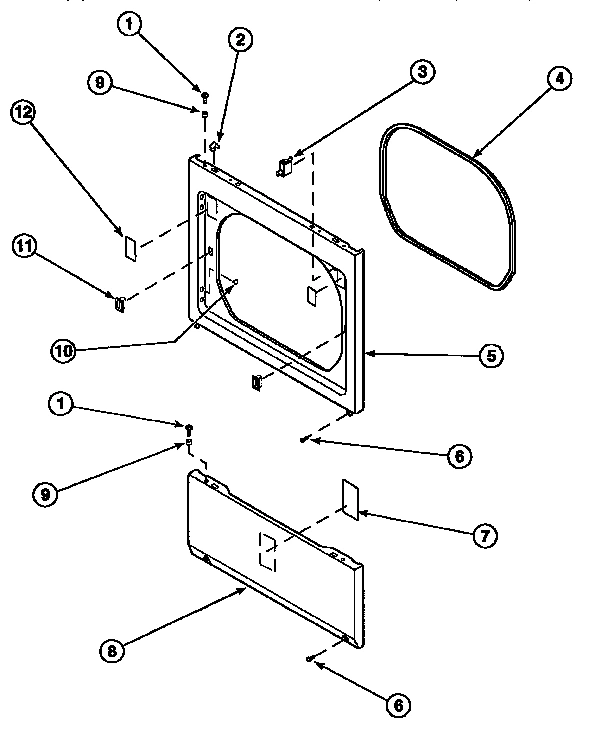

14 - LOWER ACCESS PANEL, FRONT PANEL AND SEAL

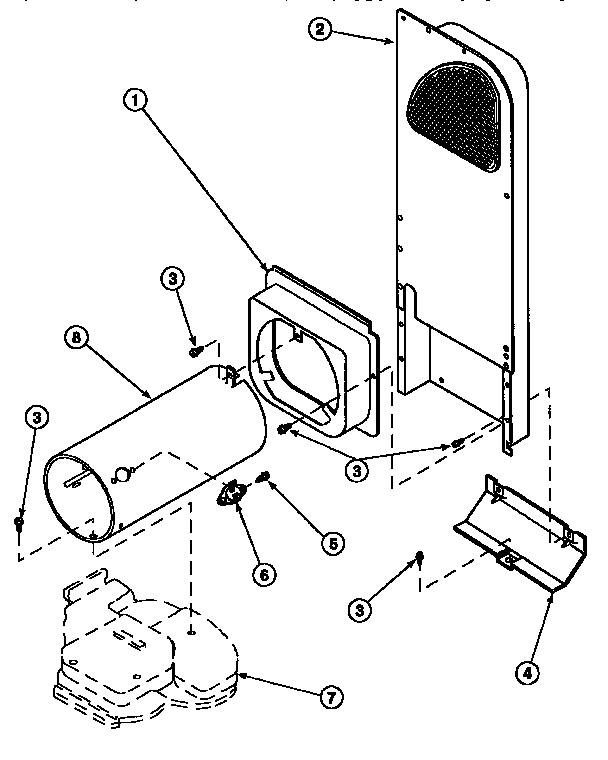

11 - HEATER BOX ASSY ORIGINALLY ON GAS DRYER

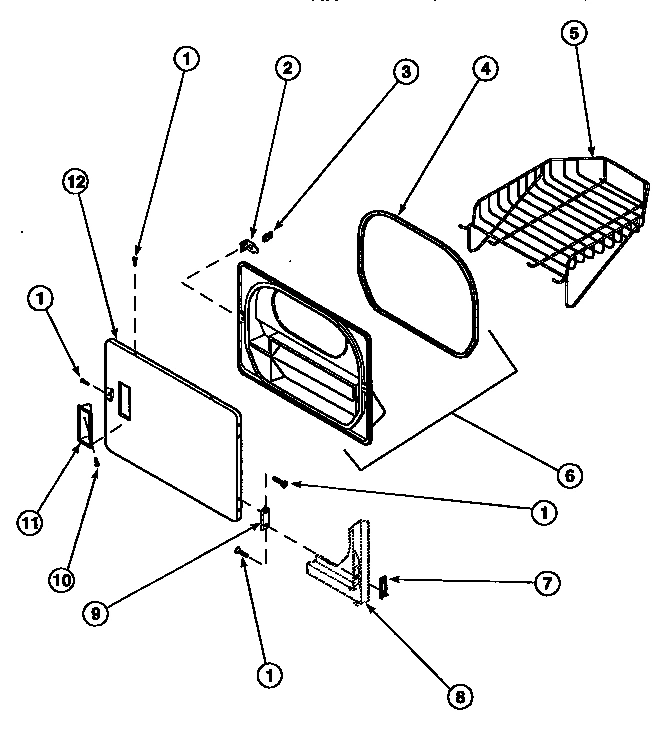

13 - LOADING DOOR WITH DRYING RACK

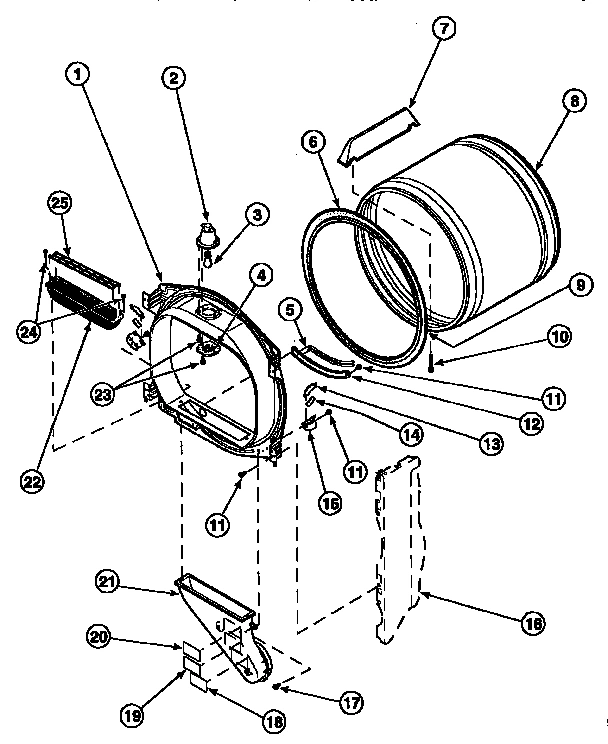

03 - FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

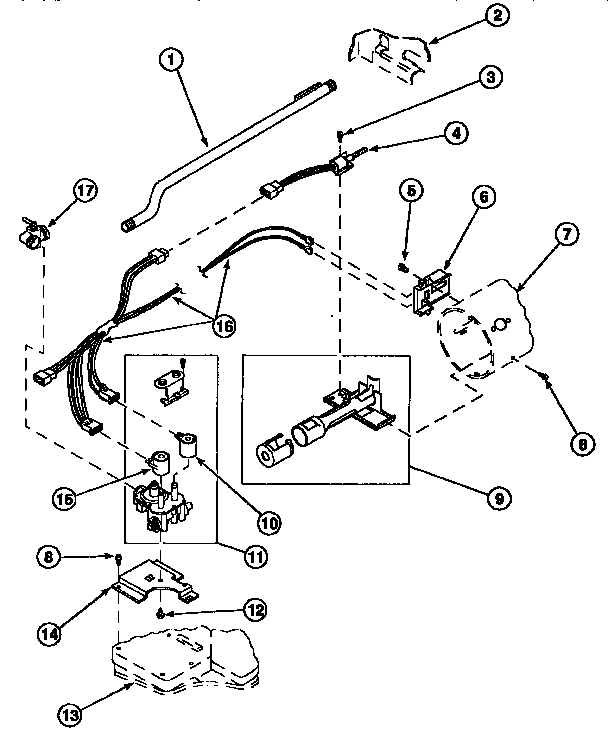

04 - GAS VALVE, IGNITER & GAS CONVERSION KITS

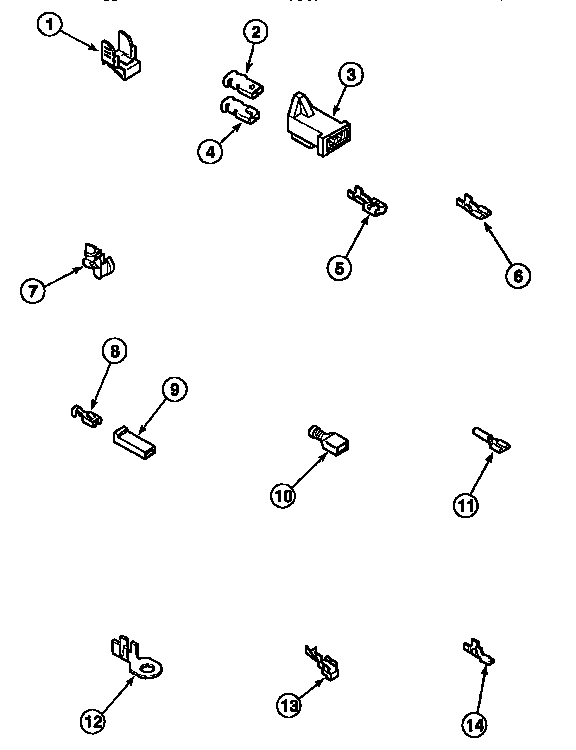

21 - TERMINALS

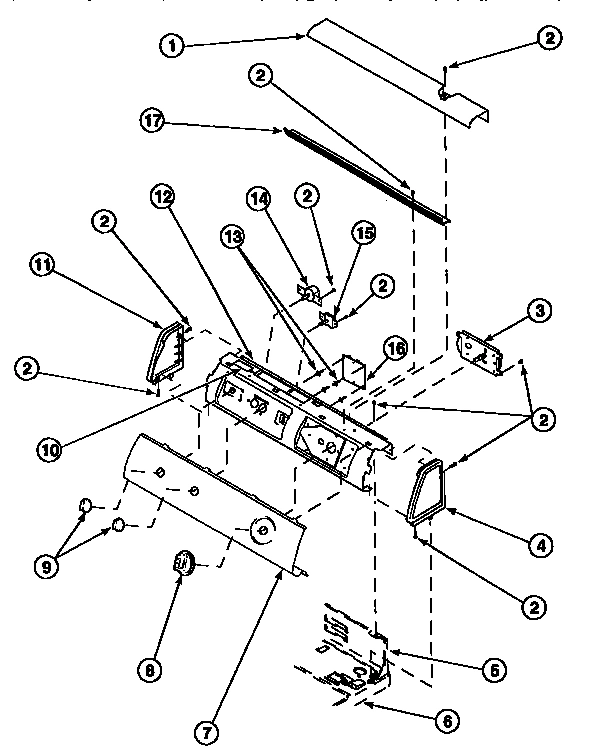

07 - GRAPHIC PANEL, CONTROL HOOD AND CONTROLS

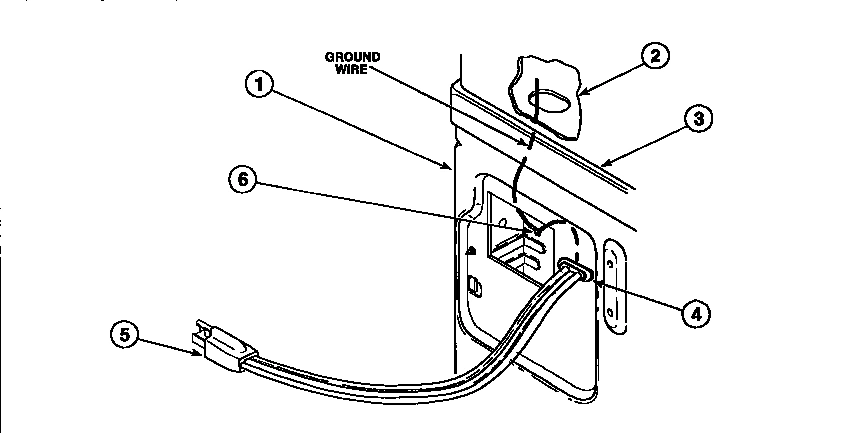

18 - POWER CORDS

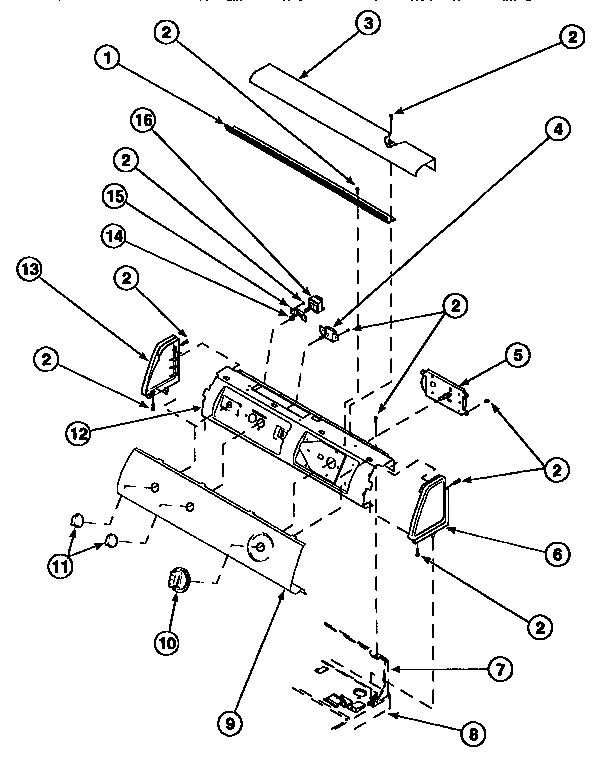

05 - GRAPHIC PANEL, CONTROL HOOD AND CONTROLS

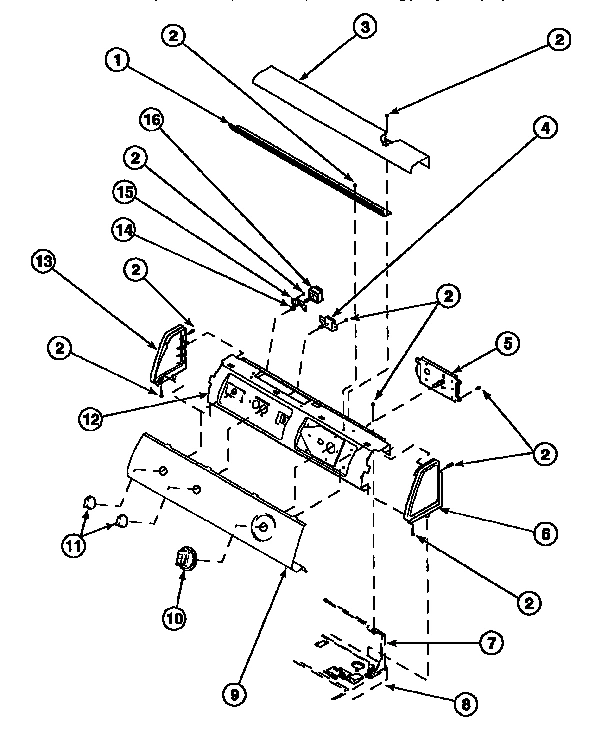

06 - GRAPHIC PANEL, CONTROL HOOD AND CONTROLS

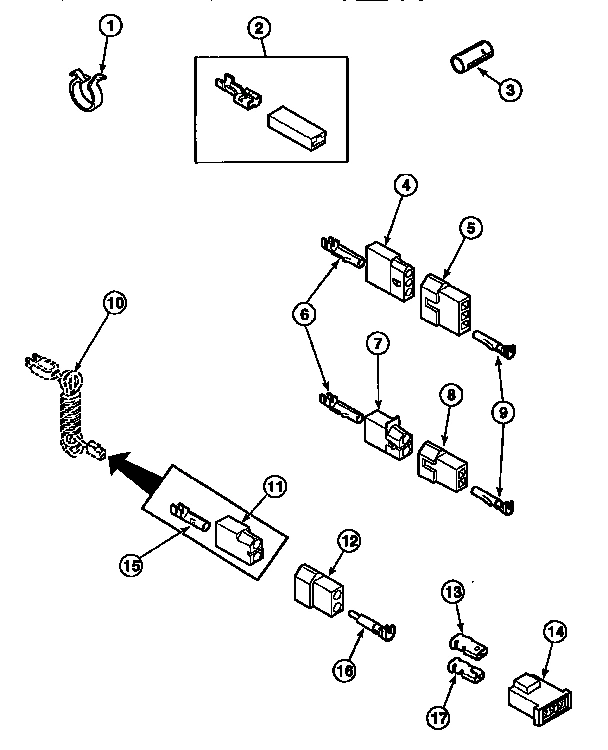

20 - TERMINALS

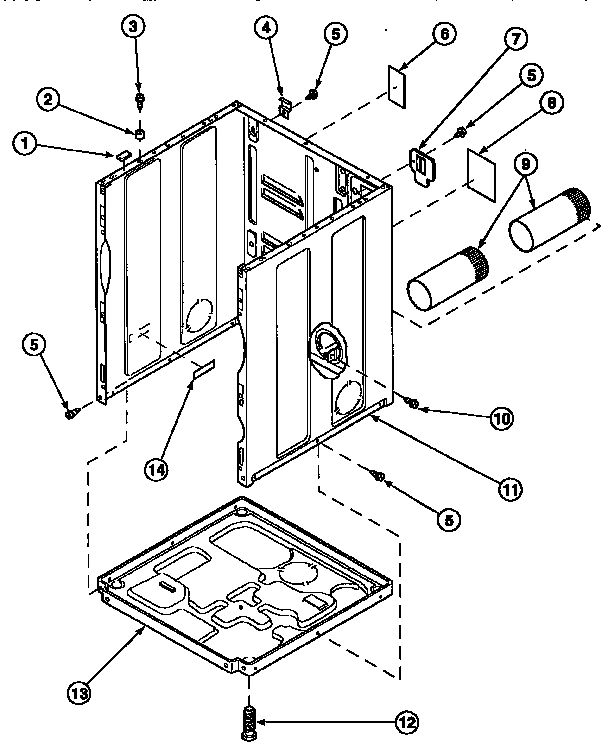

02 - CABINET, EXHAUST DUCT AND BASE

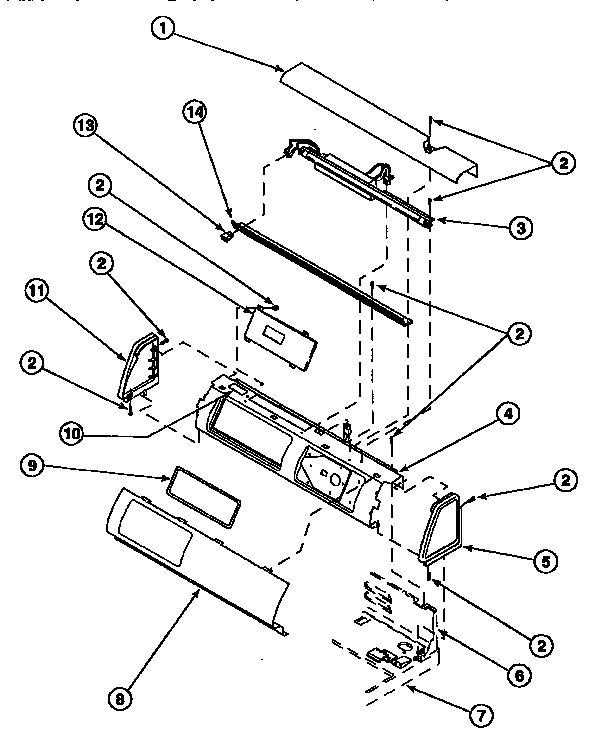

09 - GRAPHIC PANEL, CONTROL HOOD AND CONTROLS

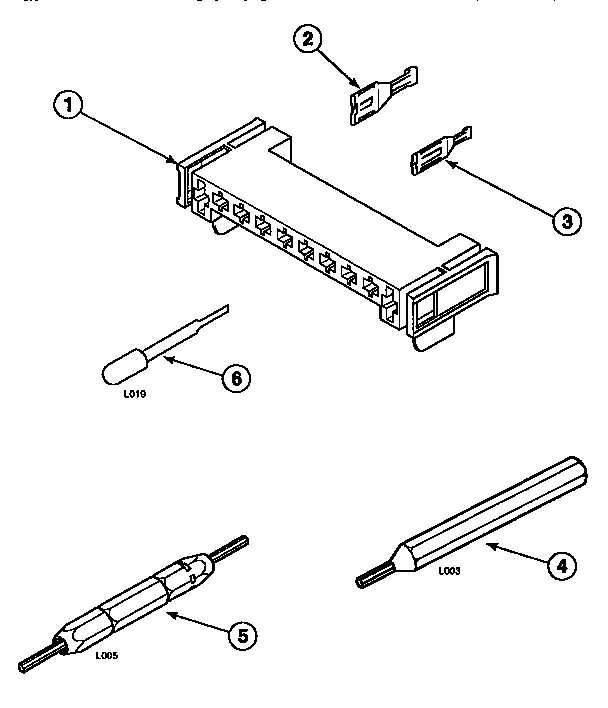

16 - Page 21
Common parts from model Whirlpool LE8107L2 WASHER
1
REAR BULKHEAD WPL 502617 Contact Us For Availability
1
ASSY, BULKHEAD WPL Y501154 Contact Us For Availability
1
COVER, TOP WPL 500303 Contact Us For Availability
1
PANEL WPL 500091P Contact Us For Availability
1
GROUND CLIP WPL Y00161 Contact Us For Availability
1
DIFFUSER W/OUT HOLE WPL 500305 Contact Us For Availability
1
CLIP,WIRE WPL 61510 Contact Us For Availability
1
PAD, BUMPER WPL Y56128 Contact Us For Availability
1
HOUSING, 10 POSITION WPL 500338 Contact Us For Availability
2
SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability
2
HEATER BOX ASSEMBLY WPL 500179P Contact Us For Availability
2
COVER,OUTLET-HEAT DUCT WPL 500820 Contact Us For Availability
2
LOCATER, PANEL WPL 56079 Contact Us For Availability
2
BRACKE, DOOR STRIKE WPL 500223 Contact Us For Availability
2
CYLINDER LIGHT HOUSING WPL 500153 Contact Us For Availability
2
TERMINAL,SPADE-1/4 FEM WPL Y00237 Contact Us For Availability
2
TERMINAL,FEMALE 1/4 WPL 00255 Contact Us For Availability
3
TERMINAL BLOCK WPL 61923P Contact Us For Availability
3
STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability
3
INSULATOR SLEEVE WPL Y21365 Contact Us For Availability
3
TERMINAL,FEMALE-MOLEX- WPL Y00188 Contact Us For Availability
4
HINGE, TOP WPL 500003 Contact Us For Availability
4
SHIELD,HEAT DUCT WPL 60952 Contact Us For Availability
4
SEAL,FRONT PANEL WPL 500034 Contact Us For Availability
4
SEAL,DOOR WPL 500200 Contact Us For Availability
4
TOOL,EXTRACTOR-HT-2038 WPL 128P4 Contact Us For Availability
5
END CAP(RIGHT) WPL 34817 Contact Us For Availability
5
RACK, DRYING WPL 501295P Contact Us For Availability
5
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
5
SPADE TERMINAL(12 GAUGE) WPL Y00121 Contact Us For Availability
5
SPADE TERMINAL(22 GAUGE) WPL Y00245 Contact Us For Availability
5
TIMER WPL 501881 Contact Us For Availability
5
TOOL,EXTRACTOR HT2066A WPL 190P4 Contact Us For Availability
6
PANEL,BACK(HOME HOOD) WPL 500343 Contact Us For Availability
6
BRACKET, L-TOP WPL 500084 Contact Us For Availability
6
ASSY,LINER & SEAL WPL 500199 Contact Us For Availability
6
TERMINAL,3/16 SPADE WPL Y00209 Contact Us For Availability
6
TERMINAL EXTRACTOR TOOL WPL 283P4 Contact Us For Availability
7
TOP WPL 500085P Contact Us For Availability
7
HEATER ASSEMBLY 208V WPL 61928 Contact Us For Availability
7
CLIP,DOOR HINGE MOUNT WPL 500236 Contact Us For Availability
7
BAFFLE,CYLINDER-WHT-SHORT WPL 500022 Contact Us For Availability
7
PANEL, GRAPHICS WPL 503127 Contact Us For Availability
7
PANEL, ACCESS COVER WPL 500114 Contact Us For Availability
8
WASHER,13/64IDX1/2ODX. WPL 51474 Contact Us For Availability
8
ASSY,CYLINDER WPL 500095P Contact Us For Availability
8
TERMINAL,SPADE-1/4 FEM WPL 00122 Contact Us For Availability
8
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
8
STICKER WPL 501289 Contact Us For Availability
9
ADHESIVE,3M-1300-5 OZ. WPL 22506P Contact Us For Availability
9
CLIP, HOLD DOWN WPL 501241 Contact Us For Availability
9
HINGE,DOOR WPL 500041 Contact Us For Availability
9
CONNECTOR WPL 90789 Contact Us For Availability
9
GRAPHIC PANEL WPL 502206 Contact Us For Availability
9
GRAPHIC PANEL WPL 502630 Contact Us For Availability
9
EXHAUST DUCT WPL 500064 Contact Us For Availability
10
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
10
KNOB, TIMER WPL 502220 Contact Us For Availability
10
SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability
11
CABINET WPL 500001P Contact Us For Availability
11
END CAP(LEFT) WPL 34818 Contact Us For Availability
11
DOOR PULL WPL 500042 Contact Us For Availability
11
TERMINAL,1/4 SPADE PRE WPL Y00214 Contact Us For Availability
11
TERMINAL,1/4 SPADE PRE WPL Y00215 Contact Us For Availability
12
LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability
12
BRACKET,CONTROL SUPPORT-MECH WPL 500300 Contact Us For Availability
12
STICKER WPL 500281 Contact Us For Availability
12
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
12
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
13
BASE, DRYER WPL 500070 Contact Us For Availability
14
PAD, FELT-COIN WPL 500121 Contact Us For Availability
14
MALE TAB TERMINAL(12 GAUGE) WPL Y00139 Contact Us For Availability
14
STICKER WPL 61294 Contact Us For Availability
15
TERMINAL,PIN-1/8 FEMAL WPL 00130 Contact Us For Availability
17
NUT, 3/8-16 SERRATED WPL 56156 Contact Us For Availability
18
SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability
18
STICKER WPL 56259 Contact Us For Availability
19
STICKER WPL 500049 Contact Us For Availability
21
MOUNT, MOTOR WPL 500822 Contact Us For Availability
21
DUCT, HEAT WPL 502231 Contact Us For Availability
22
FILTER, LINT KIT WPL 502140P Contact Us For Availability
24
THERMOSTAT, CYCLING WPL 503551 Contact Us For Availability
24
THERMOSTAT WPL Y61372 Contact Us For Availability
24
SCREW, 8B-16X5/8 TAP WPL 500226 Contact Us For Availability
25
COVER, LINT FILTER WPL 502092 Contact Us For Availability
27
SEAL,BLOWER HSG WPL 500313 Contact Us For Availability
28
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
29
COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability
NI
HARNESS, WIRE WPL 501885 Contact Us For Availability
NI
KIT,FLEX VENT-DISPLAY WPL 521P3 Contact Us For Availability
× ![]()
