Model Whirlpool LBR5432JT0 AUTOMATIC WASHER – Common Parts & Diagrams

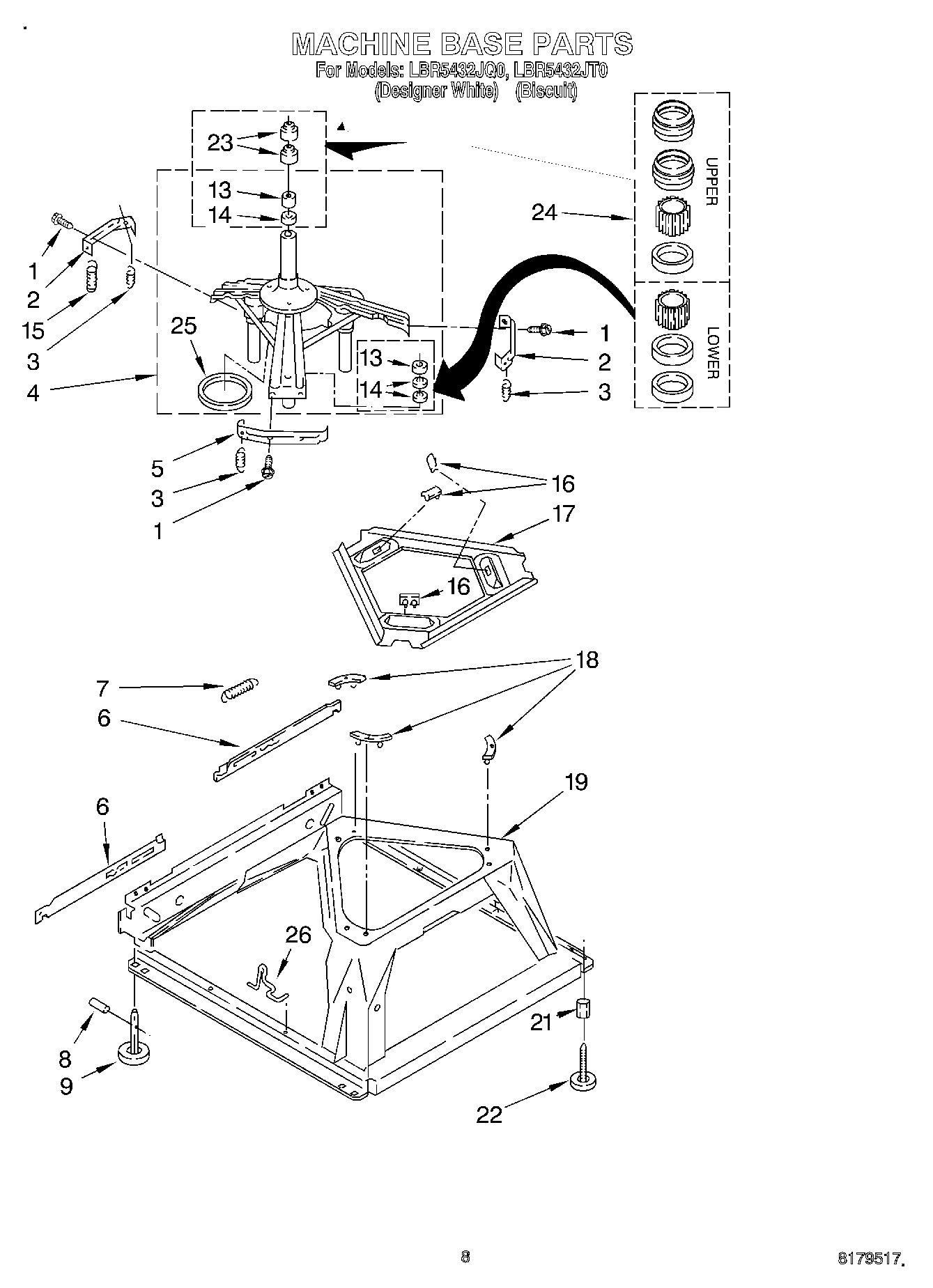

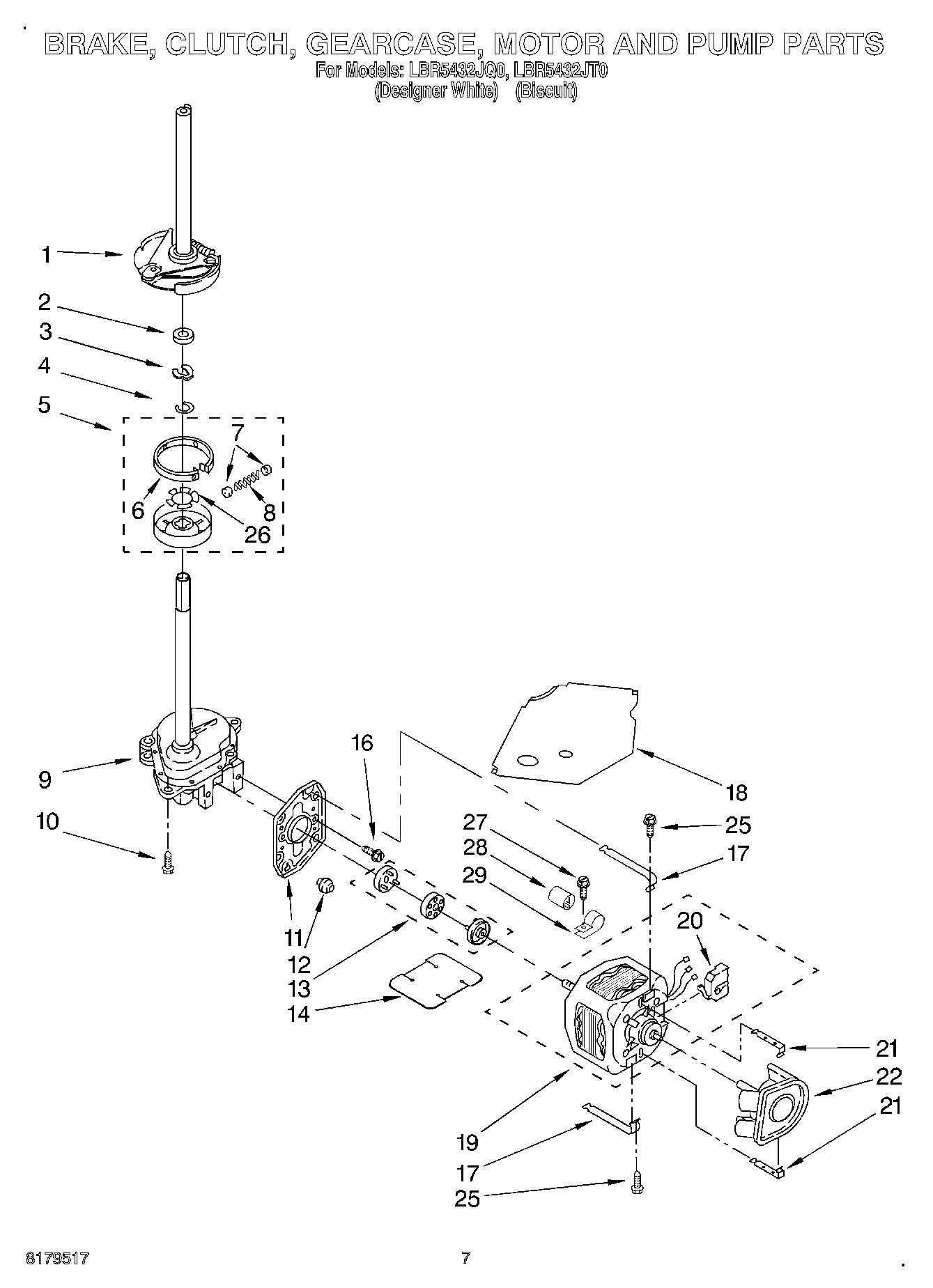

Common parts from model Whirlpool LBR5432JT0 AUTOMATIC WASHER
1
Clip, Harness WPL 3349557 Contact Us For Availability
1
LITERATURE PARTS WPL ARI156664A Contact Us For Availability
1
Literature Parts (Use & Care Guide (French)) WPL LIT3951073 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT3951578 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT3952817 Contact Us For Availability
1
Literature Parts (Use & Care Guide) (English) WPL LIT3953954 Contact Us For Availability
1
Literature Parts (Use & Care Guide) (Energy G WPL LIT3954516 Contact Us For Availability
1
Literature Parts (Use & Care Guide) (Wiring D WPL LIT3954706 Contact Us For Availability
1

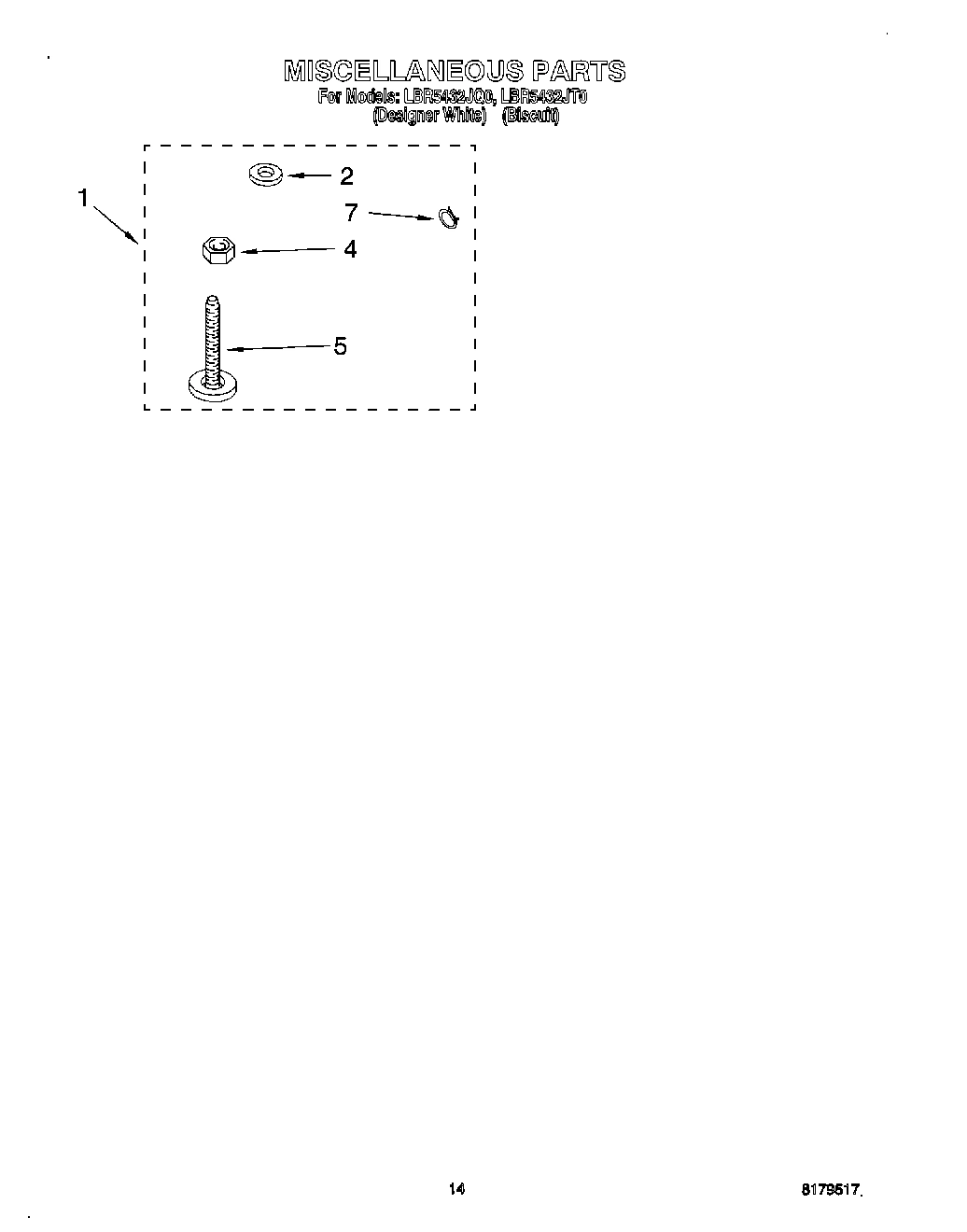

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability
2

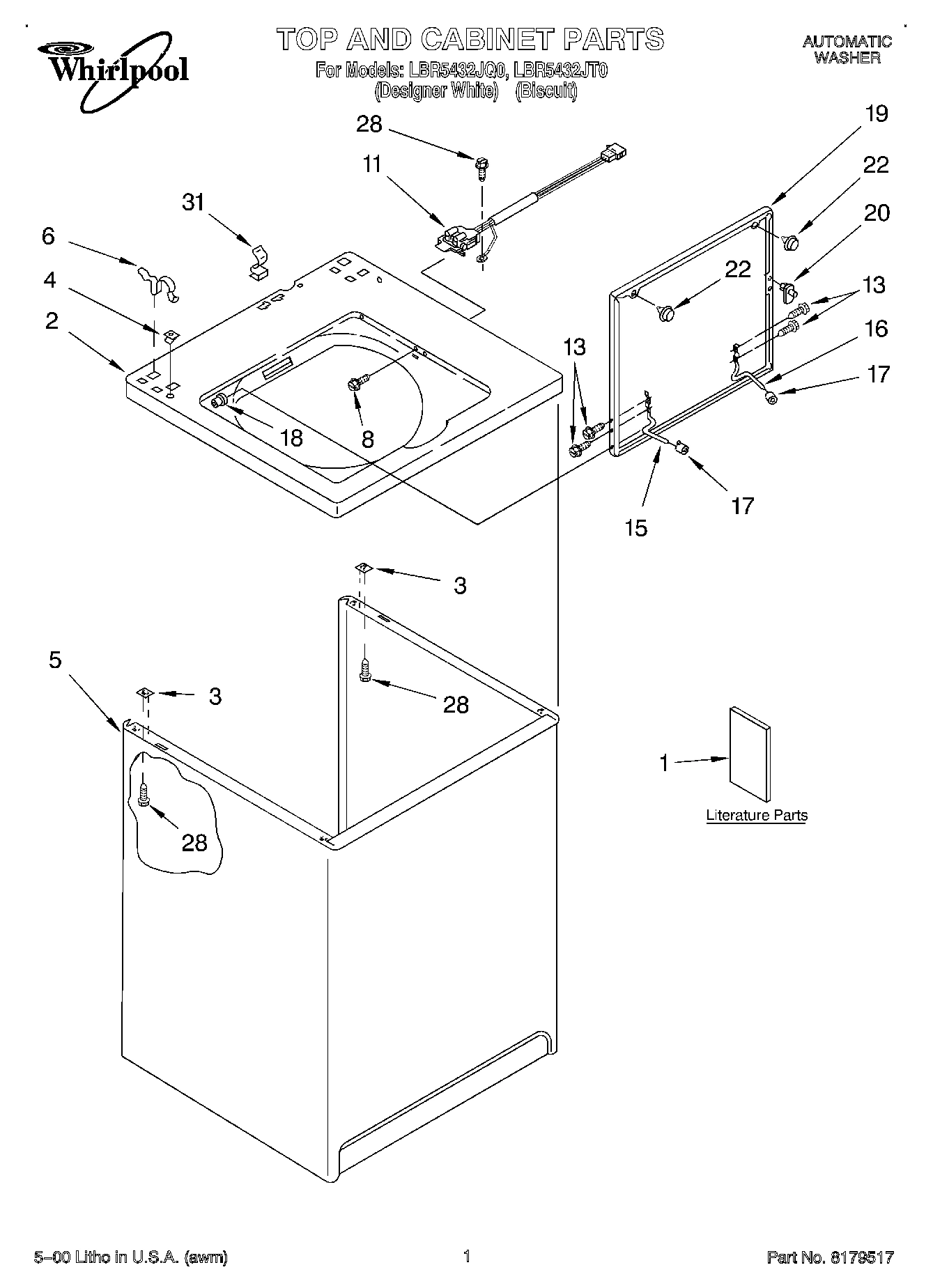

Top (White) WPL 8274311 Contact Us For Availability
2
Top (Biscuit) WPL 8274313 Contact Us For Availability
2
Clip, Harness WPL 388498 Contact Us For Availability
5
Hinge, Console (2) WPL 387402 Contact Us For Availability
5
Tub Ring & Gasket Assembly WPL 3360611 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (Biscuit) WPL 3954777 Contact Us For Availability
5
Cabinet (White) WPL 63128 Contact Us For Availability
5

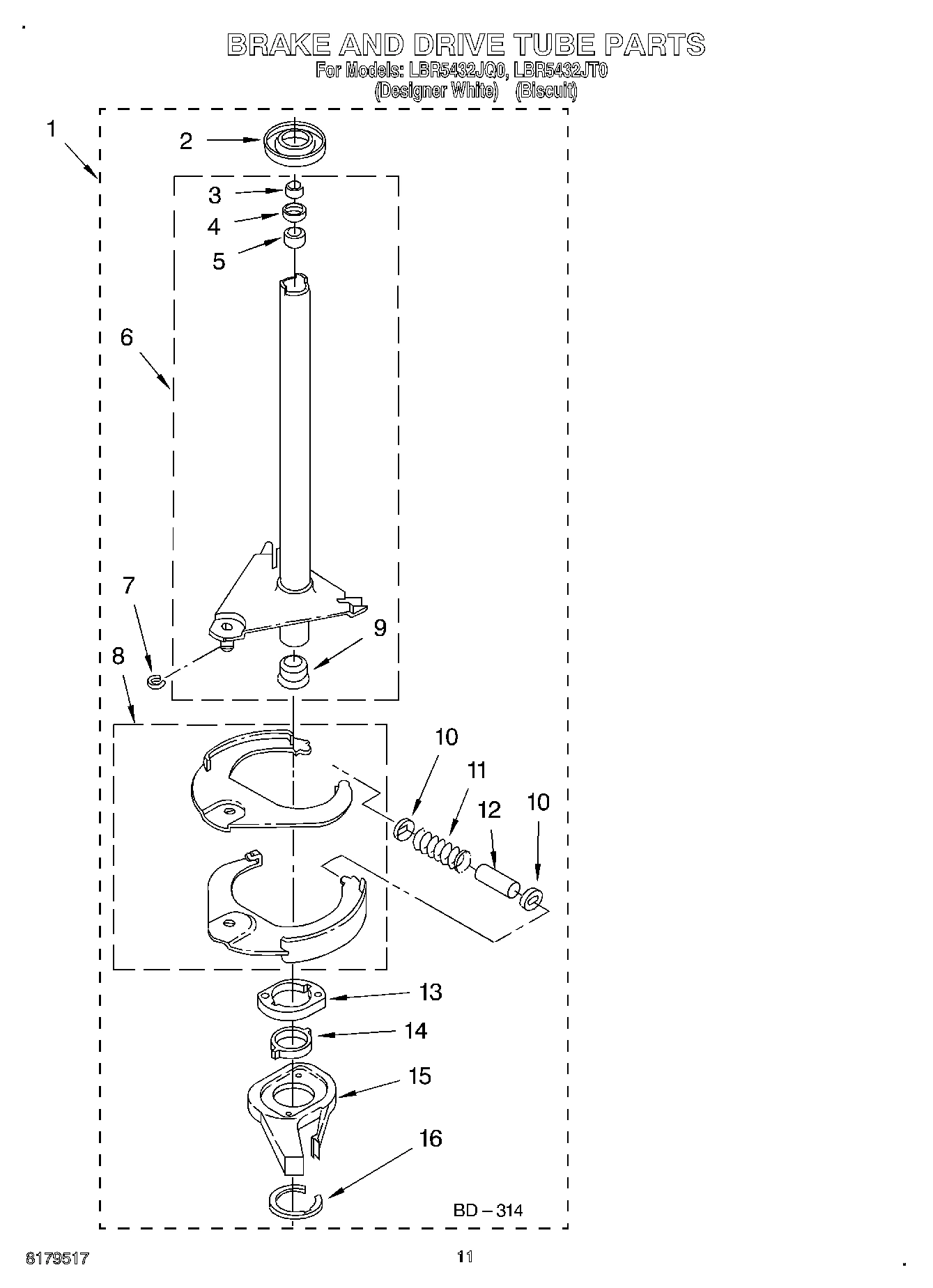

Spacer, Drive Tube WPL 356937 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability
6
Clip, Harness WPL 3390496 Contact Us For Availability
7
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
7
Shipping Kit WPL 3348675 Contact Us For Availability
7

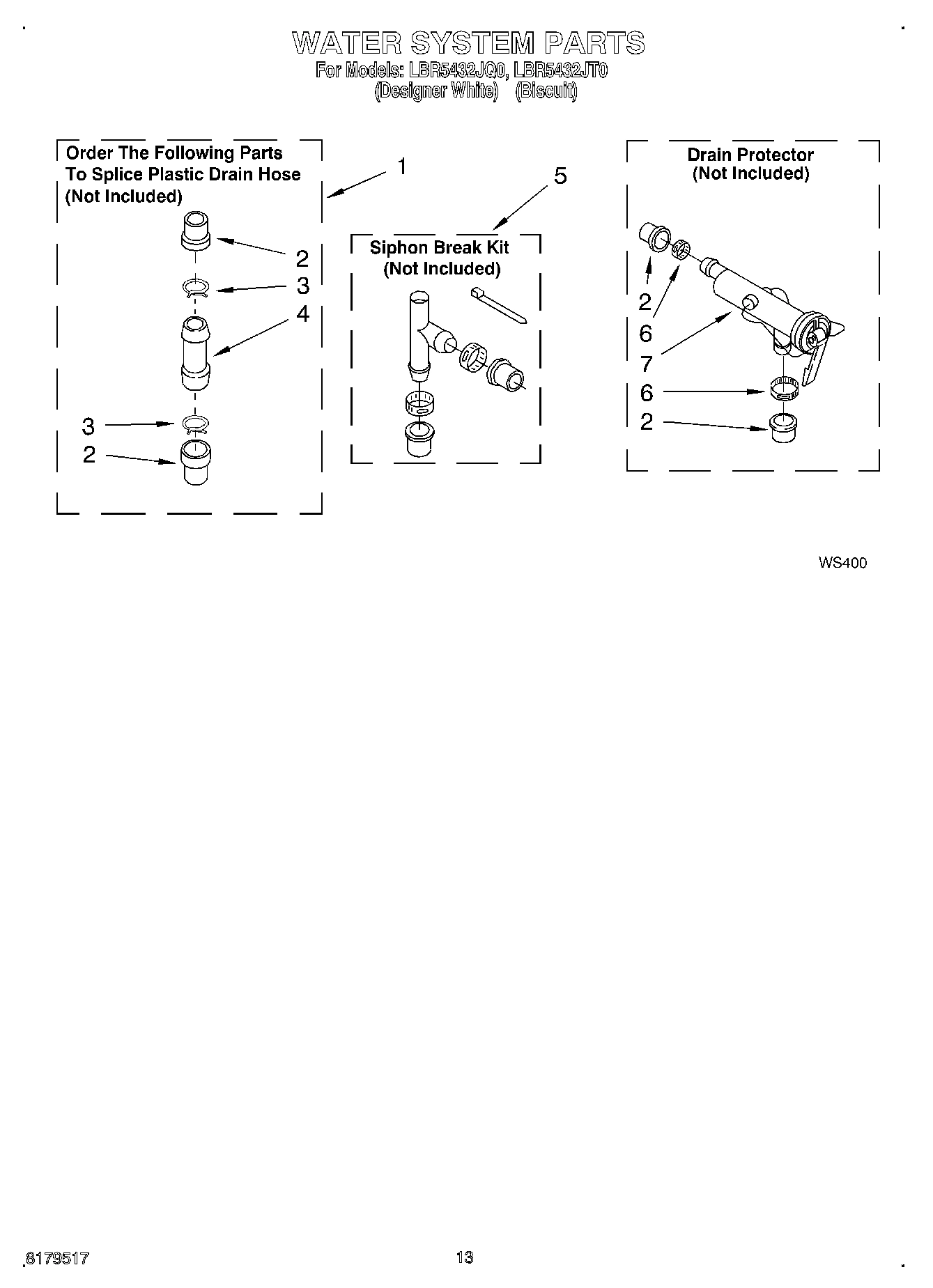

Drain Protector WPL 367031 Contact Us For Availability
7
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
8

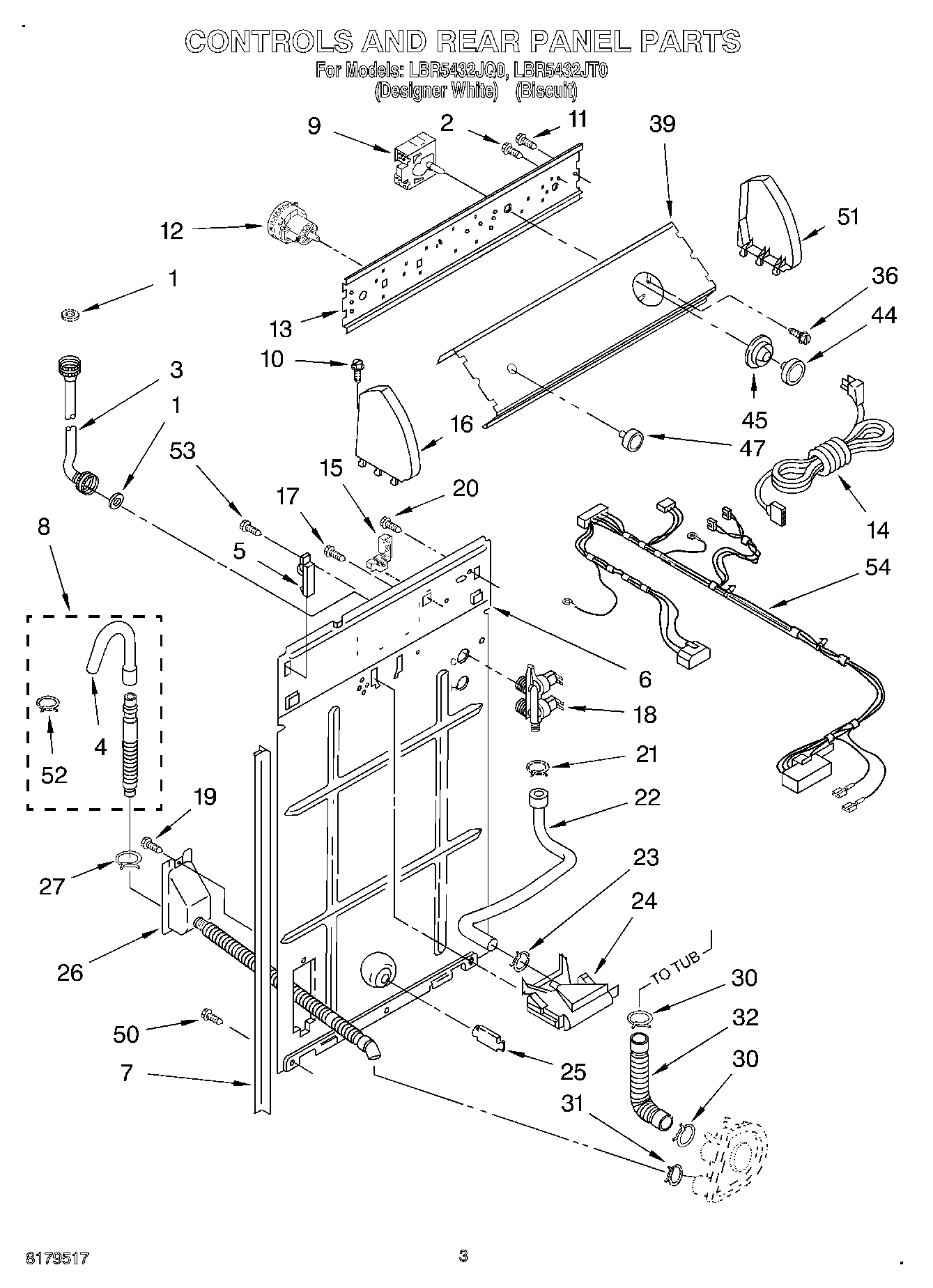

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability
9
Timer, Control (60 Hz.) (Motor Not A Service WPL 3949620 Contact Us For Availability
13

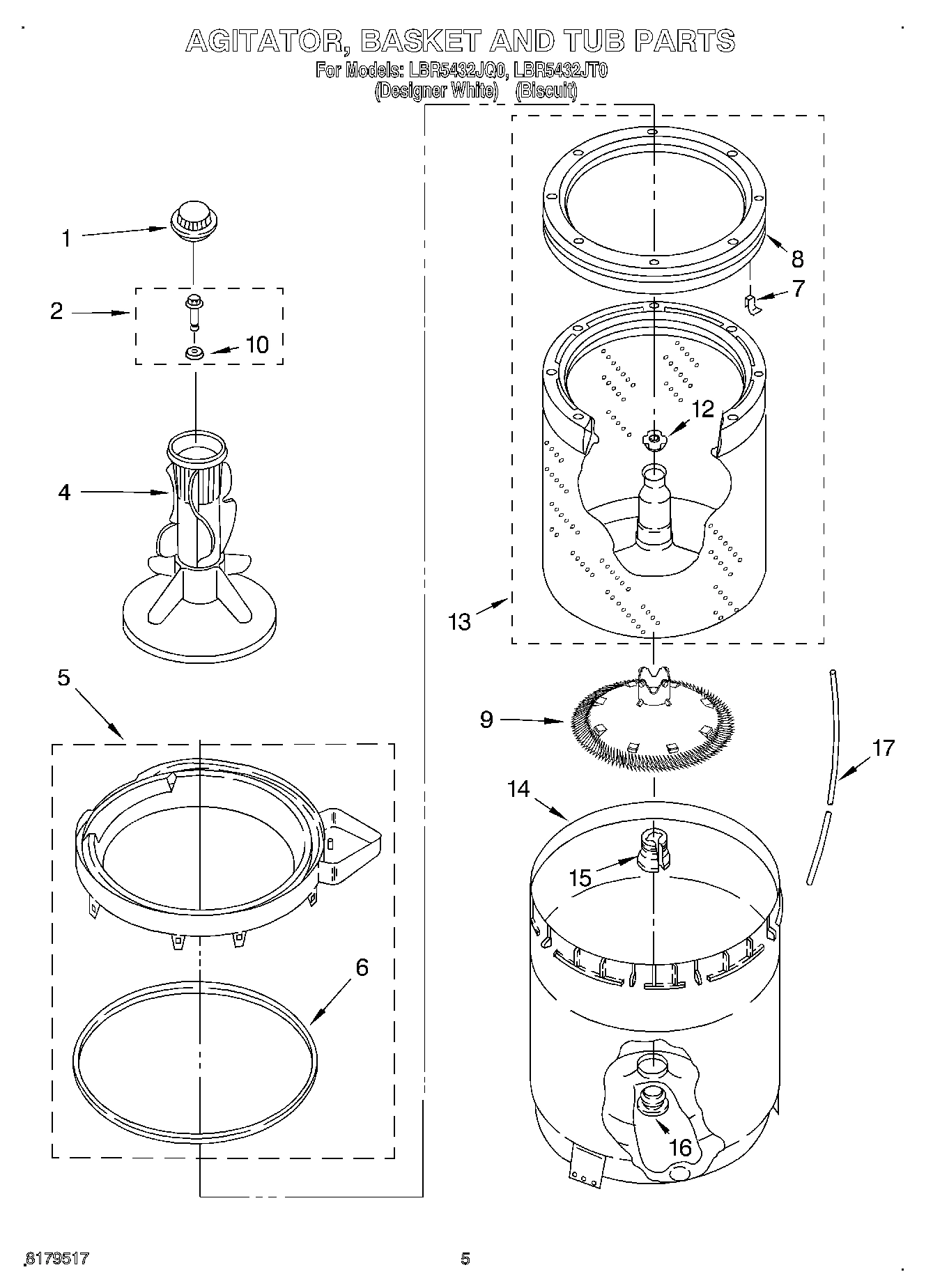

Basket & Balance Ring (Also Order No.9) WPL 8271646 Contact Us For Availability
13
Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability
14
Tub WPL 63125 Contact Us For Availability
14
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
15
Protector WPL 63523 Contact Us For Availability
16
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
16
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
18
Clip, Harness WPL 3352944 Contact Us For Availability
19
Lid (White) WPL 3361411 Contact Us For Availability
19
Lid (Biscuit) WPL 3954457 Contact Us For Availability
19
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
20
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
22
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
23
Connector, Etc WPL 3349494 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
24
Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability
25
Control, ETC WPL 3407125 Contact Us For Availability
29
WPL 3354926 WPL 3354926 Contact Us For Availability
30
WPL 3948615 WPL 3948615 Contact Us For Availability
× ![]()
