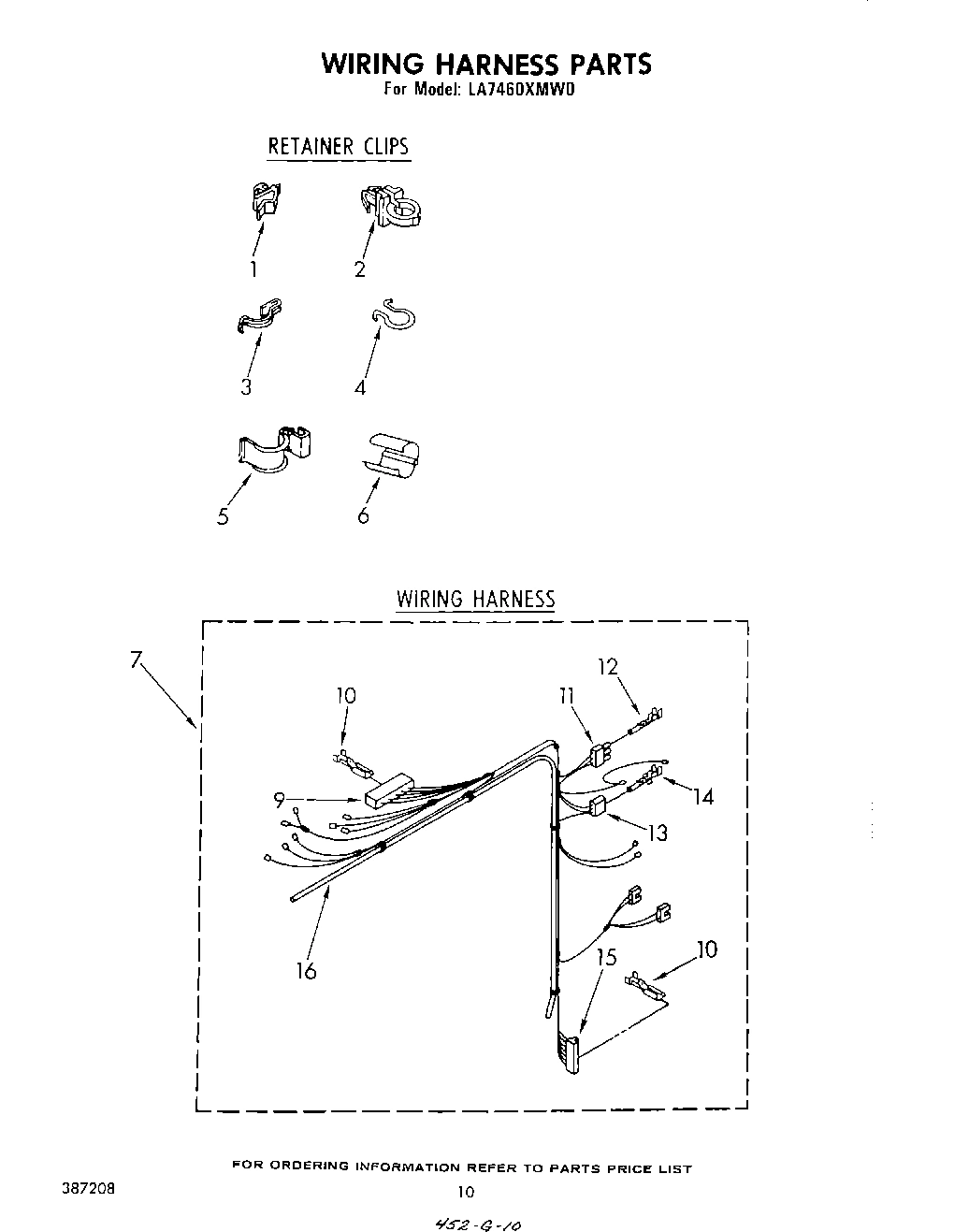

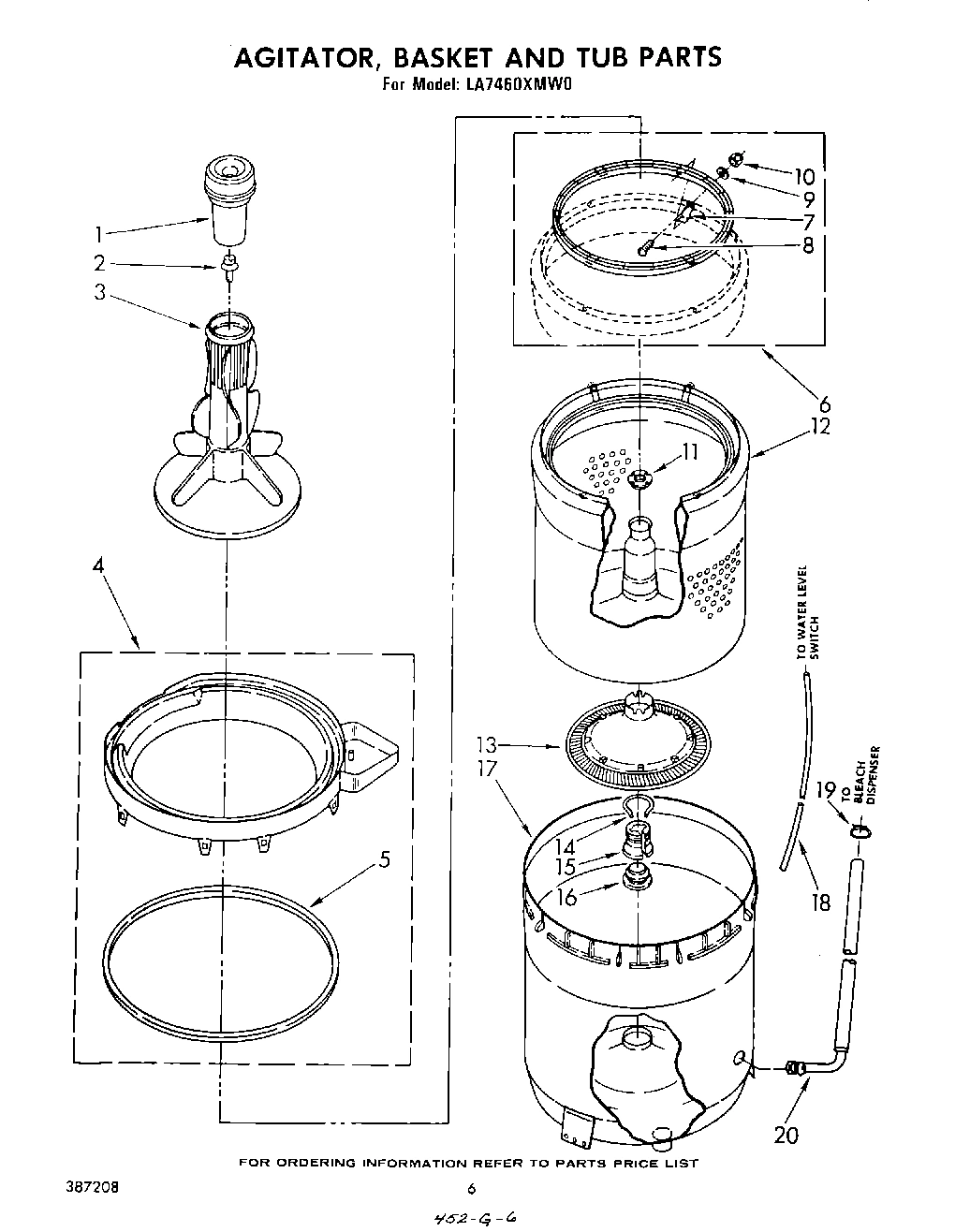

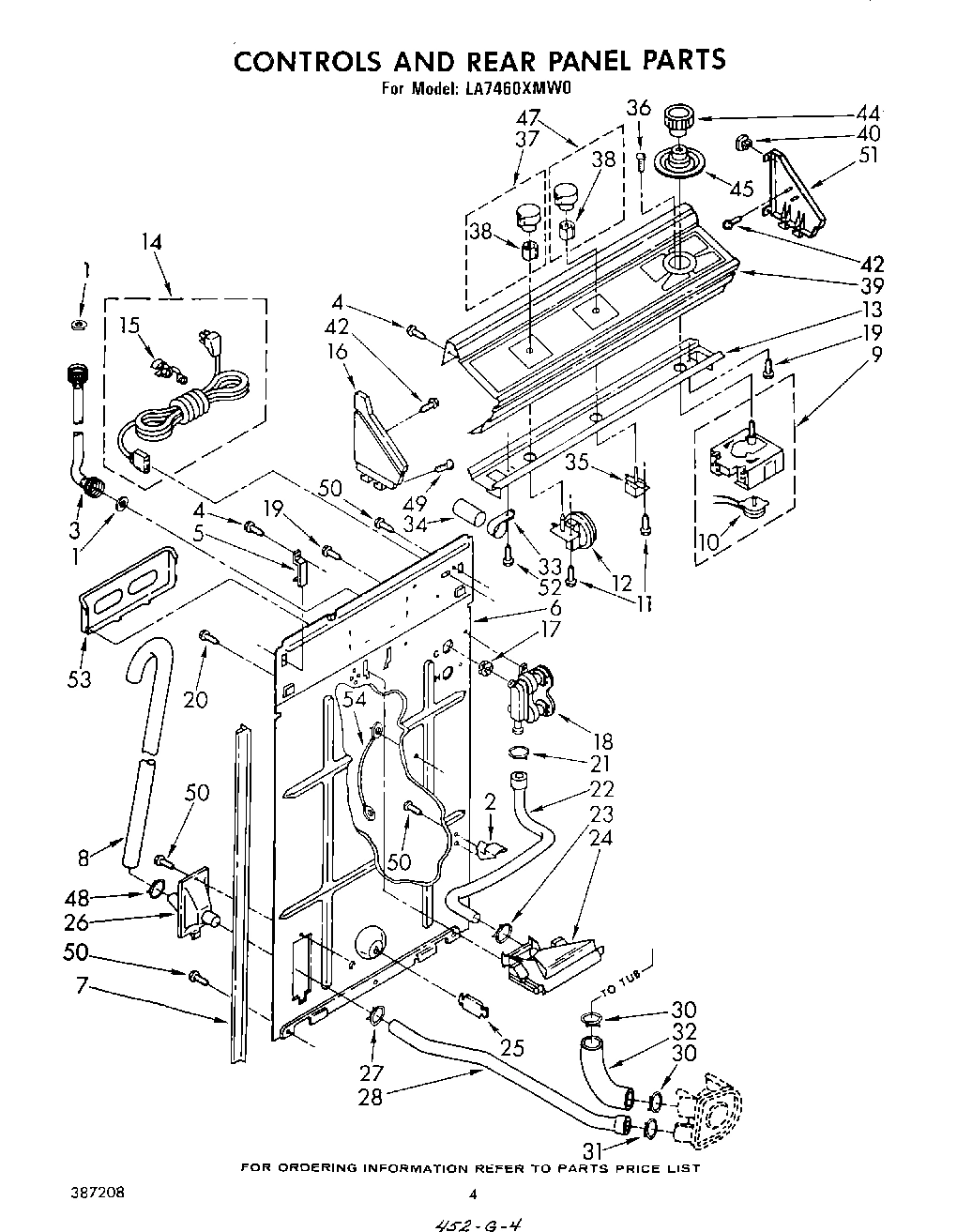

Model Whirlpool LA7460XMW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

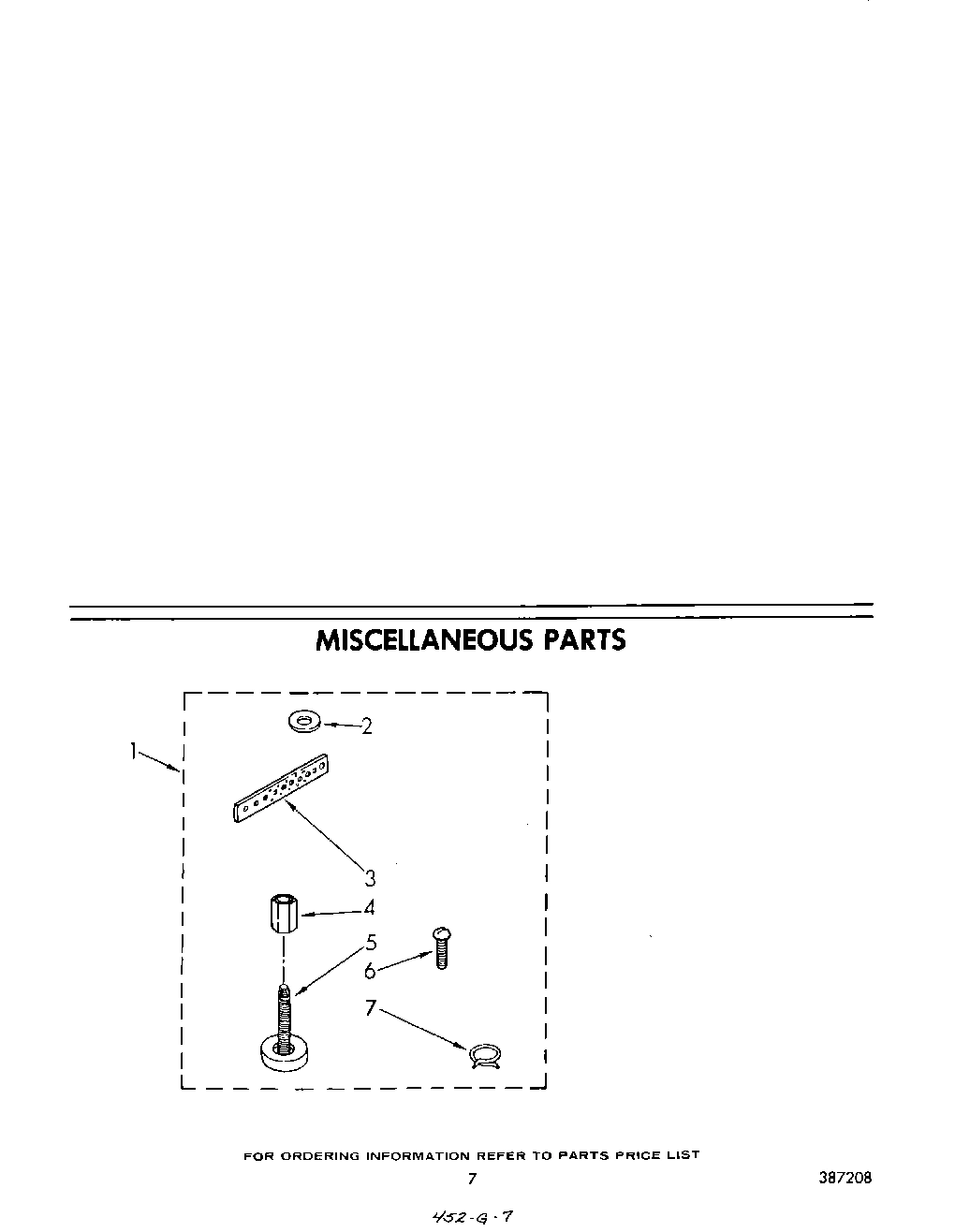

Miscellaneous Parts Bag WPL 384249 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

2

Top (White) WPL 385518 Contact Us For Availability

2

Top (Almond) WPL 385519 Contact Us For Availability

2

Top (Golden Harvest) WPL 385522 Contact Us For Availability

2

Top (Toast) WPL 387274 Contact Us For Availability

2

Top (Platinum) WPL 387275 Contact Us For Availability

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $103.86

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

Strap, Ground WPL 22965 Contact Us For Availability

4

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Hinge, Console (2) WPL 62748 Contact Us For Availability

5

Cabinet (Toast) WPL 386617 Contact Us For Availability

5

Cabinet (Platinum) WPL 386618 Contact Us For Availability

5

Cabinet (White) WPL 63128 Contact Us For Availability

5

Cabinet (Almond) WPL 63129 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63132 Contact Us For Availability

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Panel, Rear WPL 63899 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

8

Spring, Clutch WPL 381046 Contact Us For Availability

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

9

Timer, Control (60 Hz.) WPL 63774 Contact Us For Availability

9

Harness, Lid Switch WPL 63596 Contact Us For Availability

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Terminal, Female WPL 352088 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

Motor, Timer WPL 63493 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Switch, Water Level WPL 63811 Contact Us For Availability

Actuator, Lid Switch WPL 357347 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Bracket, Control WPL 359758 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Lock, Filter WPL 62942 Contact Us For Availability

Cord, Power WPL 62734 Contact Us For Availability

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

Clip, Motor Disconnect Block WPL 386838 Contact Us For Availability

Strain Relief, Power Cord WPL 62733 Contact Us For Availability

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

Cap, End (L.H.) (Golden Harvest) WPL 375318 Contact Us For Availability

Cap, End (L.H.) (Toast) WPL 377284 Contact Us For Availability

Cap, End (L.H.) (Platinum) WPL 377285 Contact Us For Availability

17

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

17

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Lid (White) WPL 387084 Contact Us For Availability

Lid (Almond) WPL 387085 Contact Us For Availability

Lid (Toast) WPL 387086 Contact Us For Availability

Lid (Platinum) WPL 387087 Contact Us For Availability

Lid (Golden Harvest) WPL 387088 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

Handle, Lid (White) WPL 379884 Contact Us For Availability

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Plug, Button WPL 54690 Contact Us For Availability

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $33.23

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261880 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 383978 WPL 383978 Contact Us For Availability

WPL 385238 WPL 385238 Contact Us For Availability

WPL 386218 WPL 386218 Contact Us For Availability

WPL 387208 WPL 387208 Contact Us For Availability

WPL 387245 WPL 387245 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

35

Switch, Water Temperature WPL 660746 Contact Us For Availability

35

Switch, Water Temperature (Alt.) WPL 358934 Contact Us For Availability

35

Switch, Water Temperature (Alt.) WPL 358935 Contact Us For Availability

36

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

37

Knob, Water Level WPL 690297 Contact Us For Availability

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

39

Panel, Console WPL 63801 Contact Us For Availability

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 359206 Contact Us For Availability

45

Dial, Timer WPL 359254 Contact Us For Availability

47

Knob, Water Temperatu WPL 690300 Contact Us For Availability

49

WPL 358225 WPL 358225 Contact Us For Availability

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WPL 375309 WPL 375309 Contact Us For Availability

WPL 375315 WPL 375315 Contact Us For Availability

WPL 377283 WPL 377283 Contact Us For Availability

WPL 377286 WPL 377286 Contact Us For Availability

WPL 377287 WPL 377287 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

53

WPL 63020 WPL 63020 Contact Us For Availability

54

WPL 364089 WPL 364089 Contact Us For Availability
