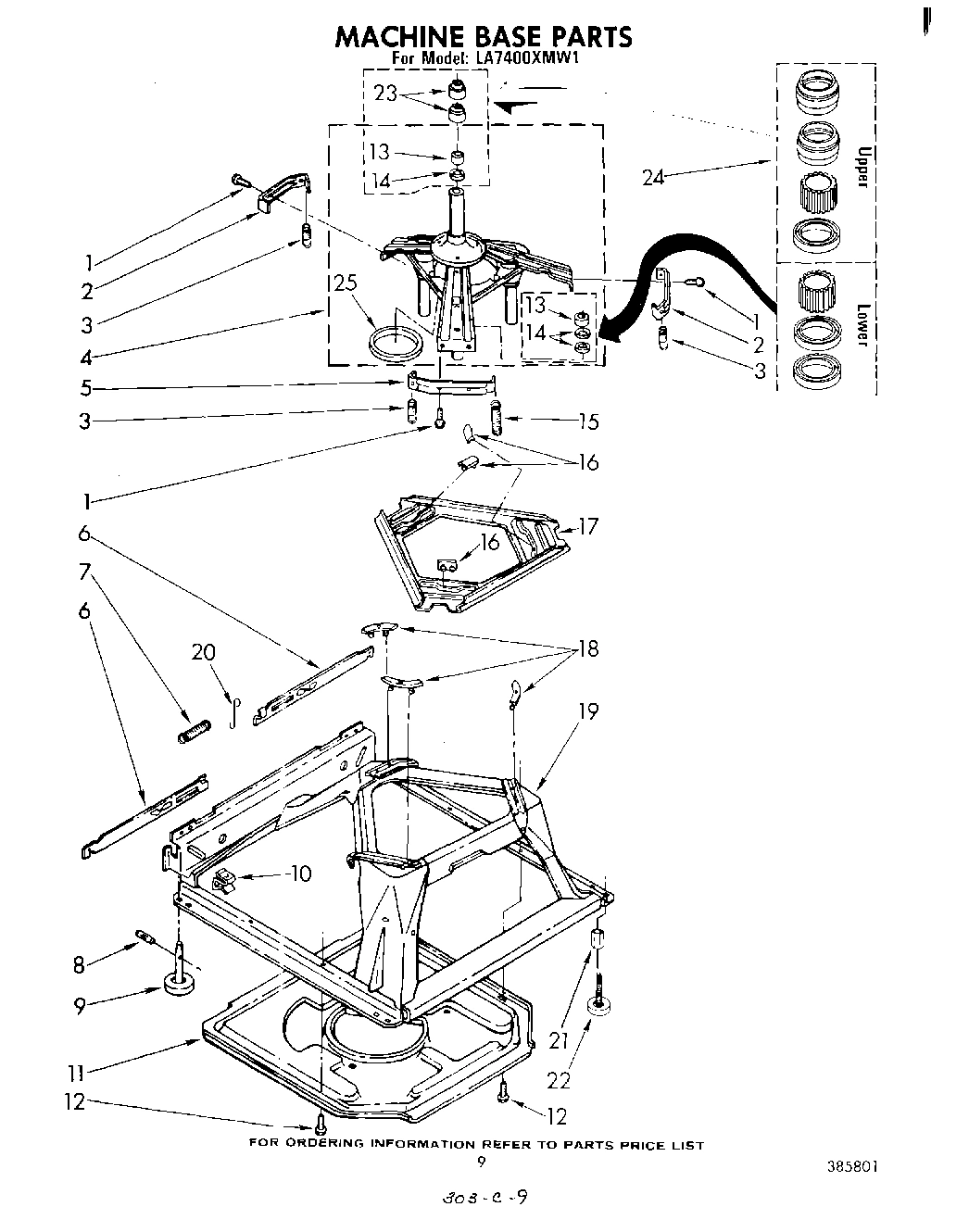

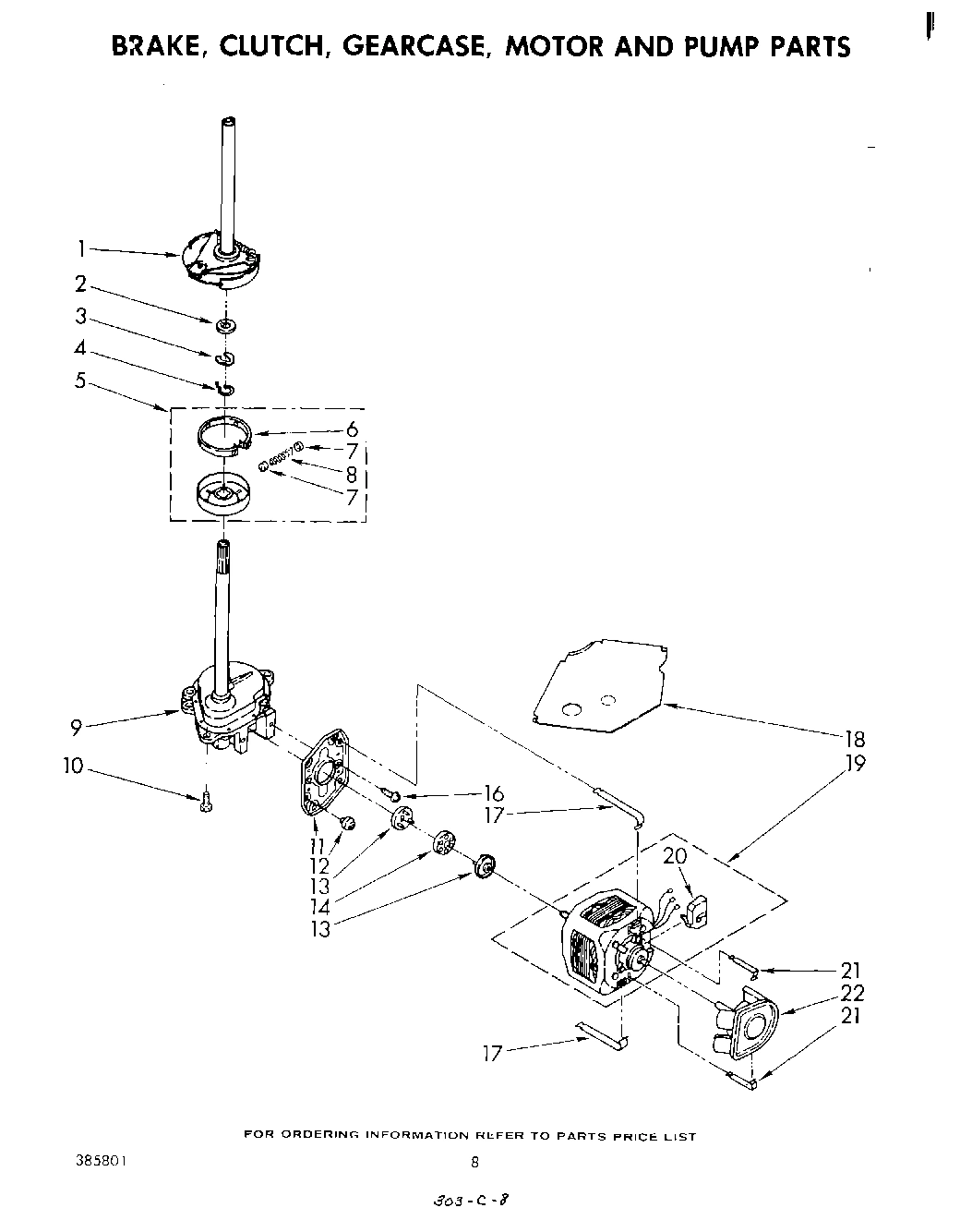

Model Whirlpool LA7400XMW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.88

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

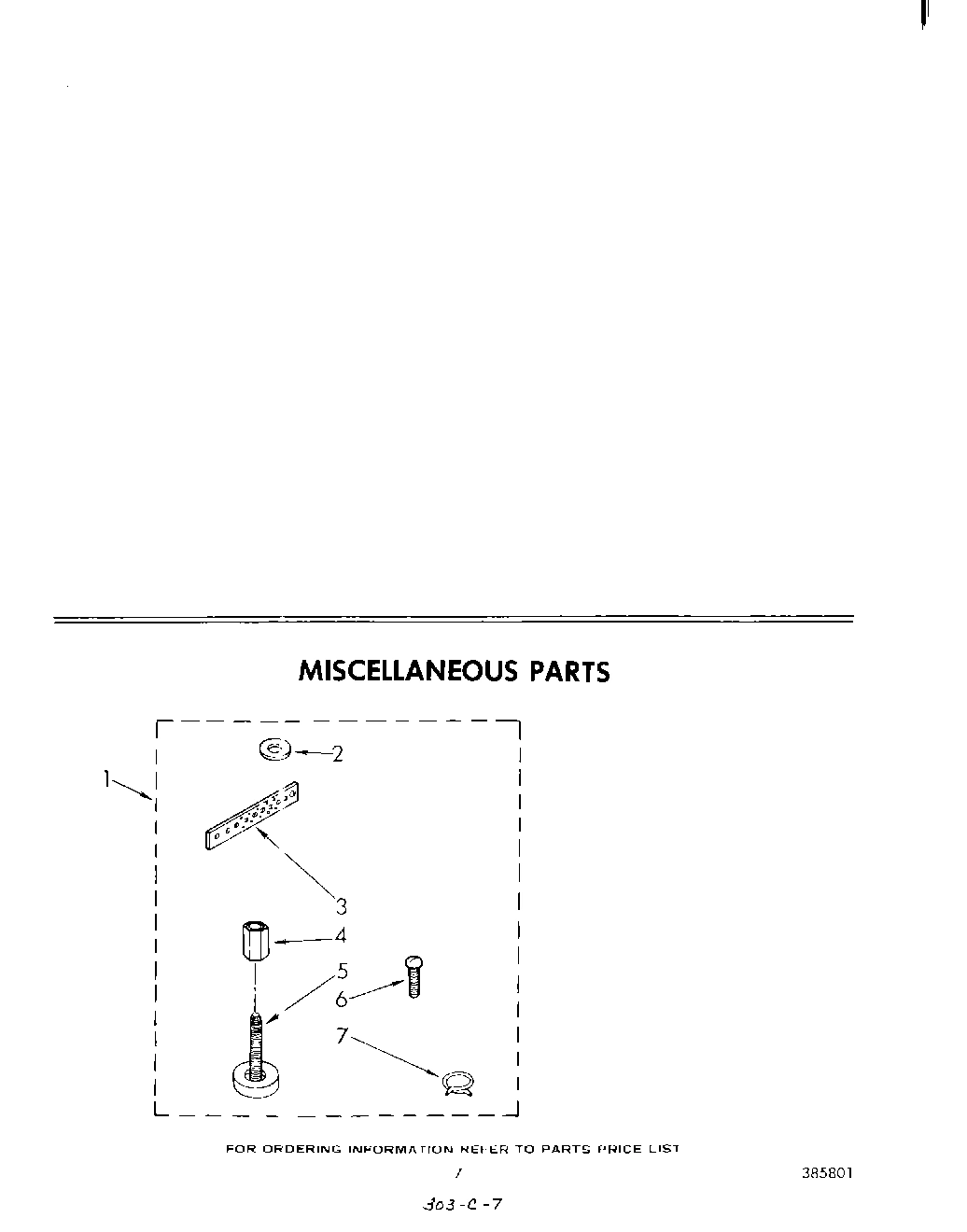

Miscellaneous Parts Bag WPL 384249 Contact Us For Availability

1

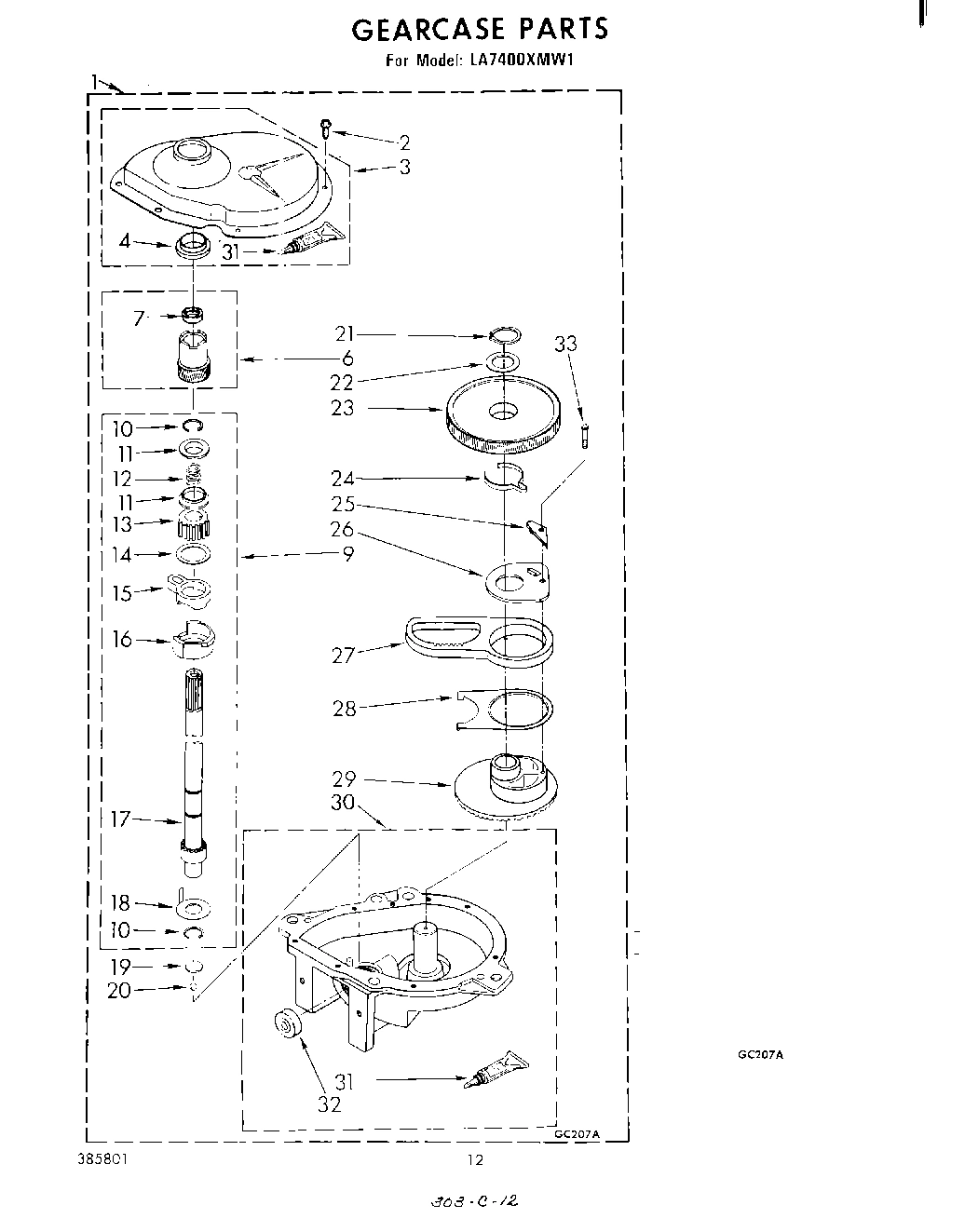

Gearcase (Complete) WPL 385899 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Clip, Harness WPL 62749 Contact Us For Availability

2

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

3

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

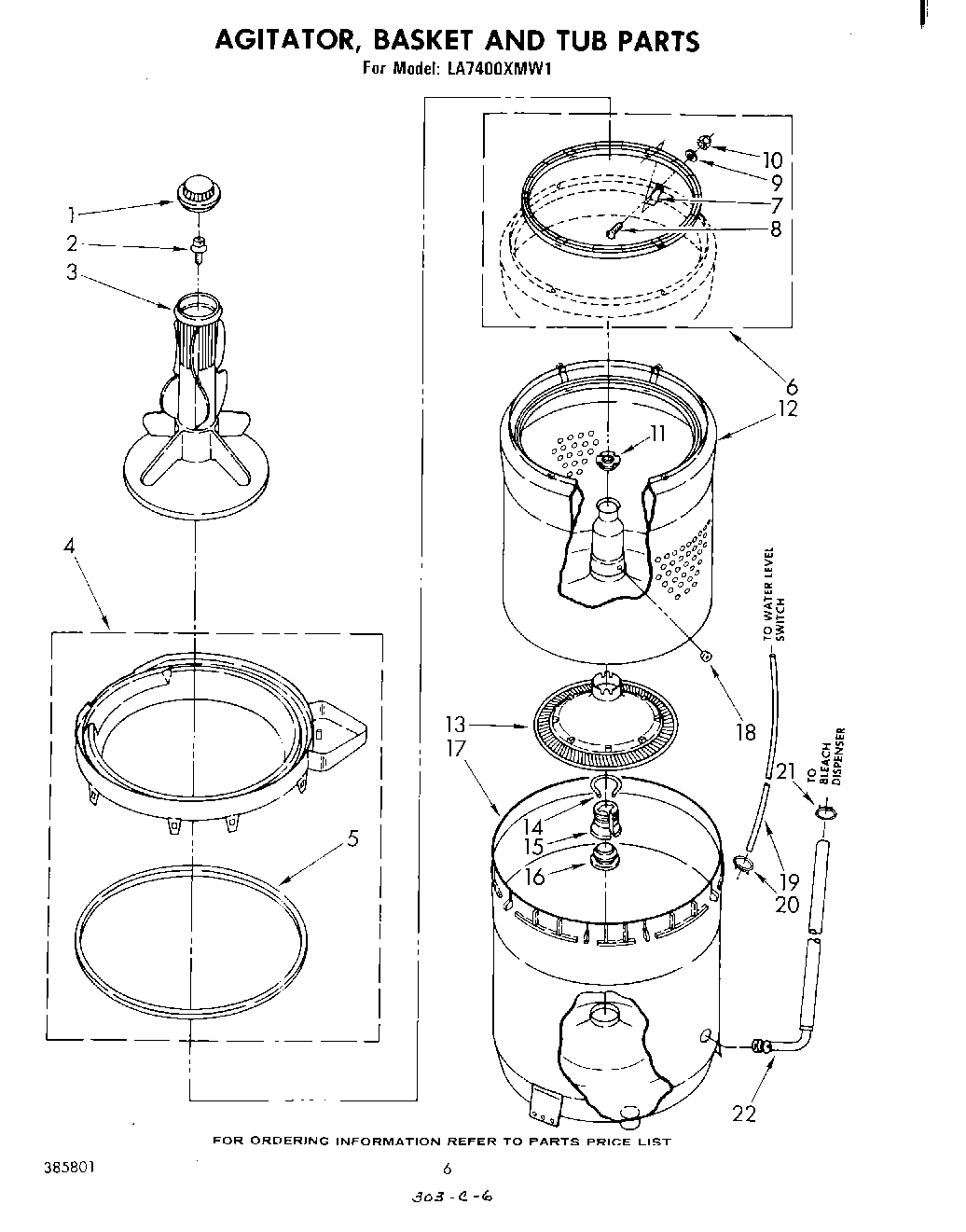

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $107.25

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

3

Strap, Ground WPL 22965 Contact Us For Availability

3

Spring (3) WPL 62740 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

4

Tub Ring WPL 63223 Contact Us For Availability

4

Support & Brake, Tub WPL 63239 Contact Us For Availability

4

Clip, Harness (3) WPL 357469 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $19.34

5

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

5

Bracket, Spring Outer (L.F.) WPL 62606 Contact Us For Availability

5

Hinge, Console (2) WPL 62748 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Clothes Guard Repair Kit WPL 285350 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

6

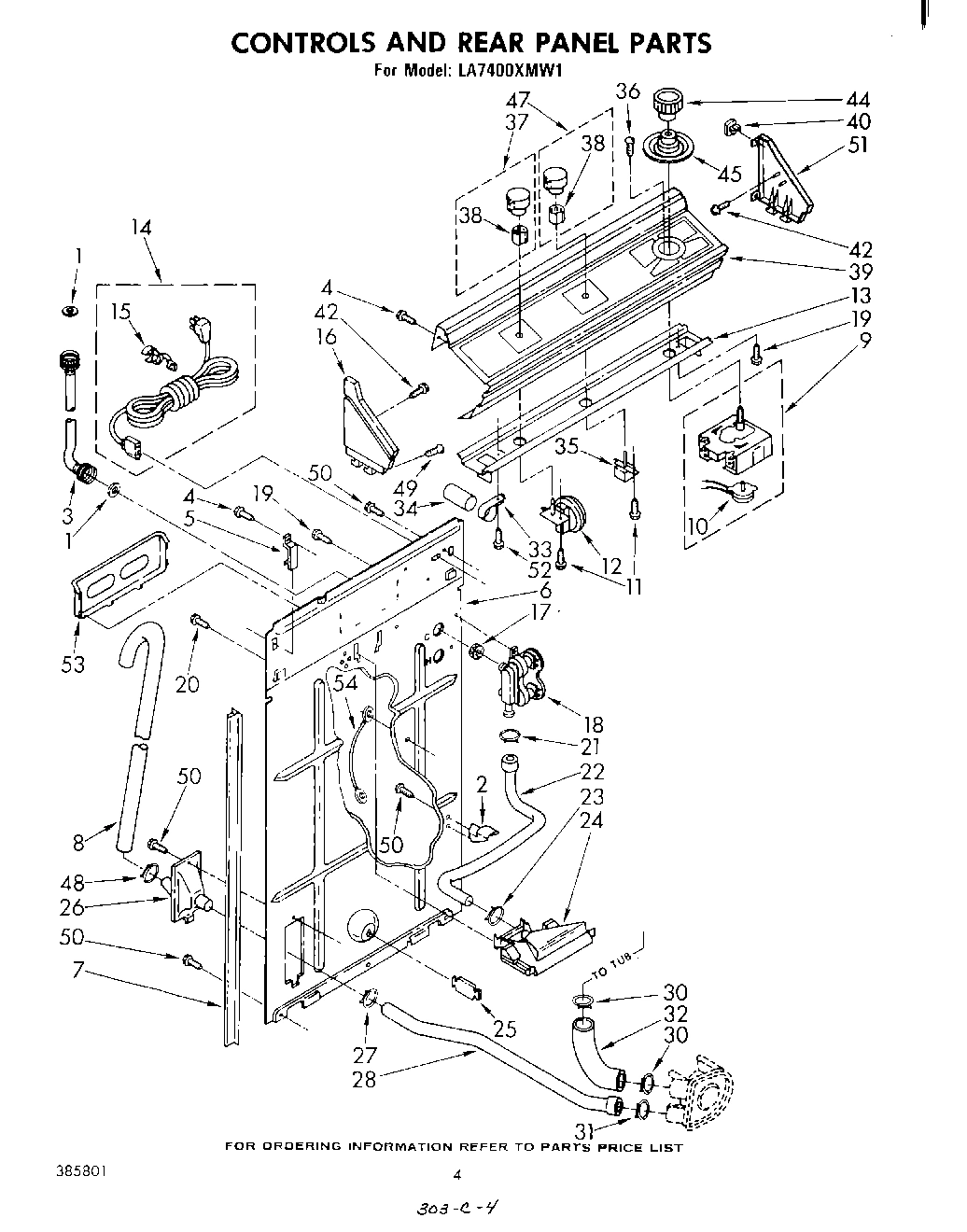

Panel, Rear WPL 63179 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

7

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Clip, Clothes Guard (6) WPL 63552 Contact Us For Availability

7

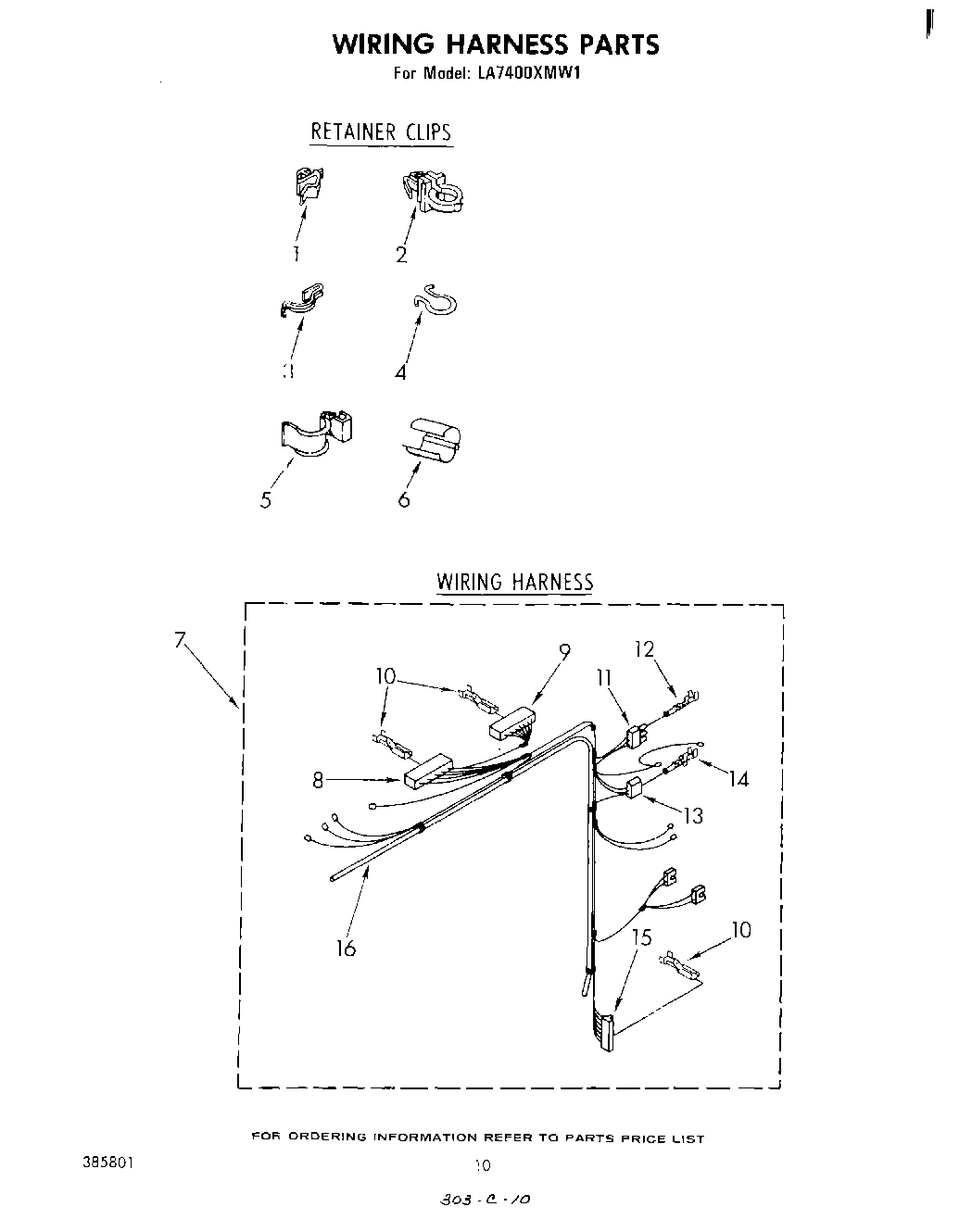

Wiring Harness & Pressure Switch Hose WPL 63331 Contact Us For Availability

8

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

8

Spring, Clutch WPL 381046 Contact Us For Availability

8

Block, Disconnect (Timer) WPL 352090 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

9

Washer, Nylon (6) WPL 680829 Contact Us For Availability

9

Timer, Control (60 Hz.) (Mallory) WPL 63315 Contact Us For Availability

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Terminal, Female WPL 352088 Contact Us For Availability

Clip, Mounting (2) WPL 62825 Contact Us For Availability

Locknut (2) WPL 285348 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

Motor, Timer WPL 62920 Contact Us For Availability

Ring, Retaining (2) WPL 90369 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Basket & Clothes Guard (Includes Illus. 6) WPL 63043 Contact Us For Availability

Switch, Water Level WPL 63173 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

285868 Whirlpool Washer Filter Plug Kit Backorder WPL 285868 $9.92

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Bracket, Control WPL 359758 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Lock, Filter WPL 62942 Contact Us For Availability

Cord, Power WPL 62734 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $108.46

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Strain Relief, Power Cord WPL 62733 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

Cap, End (L.H.) (Coffee) WPL 375314 Contact Us For Availability

Cap, End (L.H.) (New Avocado) WPL 375317 Contact Us For Availability

Cap, End (L.H.) (Golden Harvest) WPL 375318 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Tub WPL 63039 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $14.60

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.88

Stopper (2) WPL 21265 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

19

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

19

285459 Whirlpool Washer Base Backorder WPL 285459 $202.38

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Clamp, Hose WPL 272841 Contact Us For Availability

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Ring, Retaining WPL 95082 Contact Us For Availability

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $21.92

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Hose, Bleach WPL 63323 Contact Us For Availability

Washer Kit, Thrust WPL 285292 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $30.12

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

26

285715 Whirlpool Drain Kit Backorder WPL 285715 $83.95

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $185.93

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $34.90

29

Gear, Main Drive WPL 62528 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Spin Pinion Assembly, Gearcase WPL 63167 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

WP62638 Whirlpool Screw Backorder WPL WP62638 $2.38

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

35

Switch, Water Temperature WPL 660746 Contact Us For Availability

35

Switch, Water Temperature (Alt.) WPL 358934 Contact Us For Availability

35

Switch, Water Temperature (Alt.) WPL 358935 Contact Us For Availability

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

37

Knob, Water Level WPL 690297 Contact Us For Availability

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

39

Panel, Console WPL 382670 Contact Us For Availability

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 359206 Contact Us For Availability

45

Dial, Timer WPL 359254 Contact Us For Availability

47

Knob, W WPL 690300 Contact Us For Availability

49

WPL 358225 WPL 358225 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WPL 375309 WPL 375309 Contact Us For Availability

WPL 375315 WPL 375315 Contact Us For Availability

WPL 375316 WPL 375316 Contact Us For Availability

WPL 377282 WPL 377282 Contact Us For Availability

WPL 377283 WPL 377283 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

53

WPL 63020 WPL 63020 Contact Us For Availability

54

WPL 364089 WPL 364089 Contact Us For Availability
