Model Whirlpool LA5800XTF1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 72017 WPL 72017 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability

Paint, Spray 13 WPL 350956 Contact Us For Availability

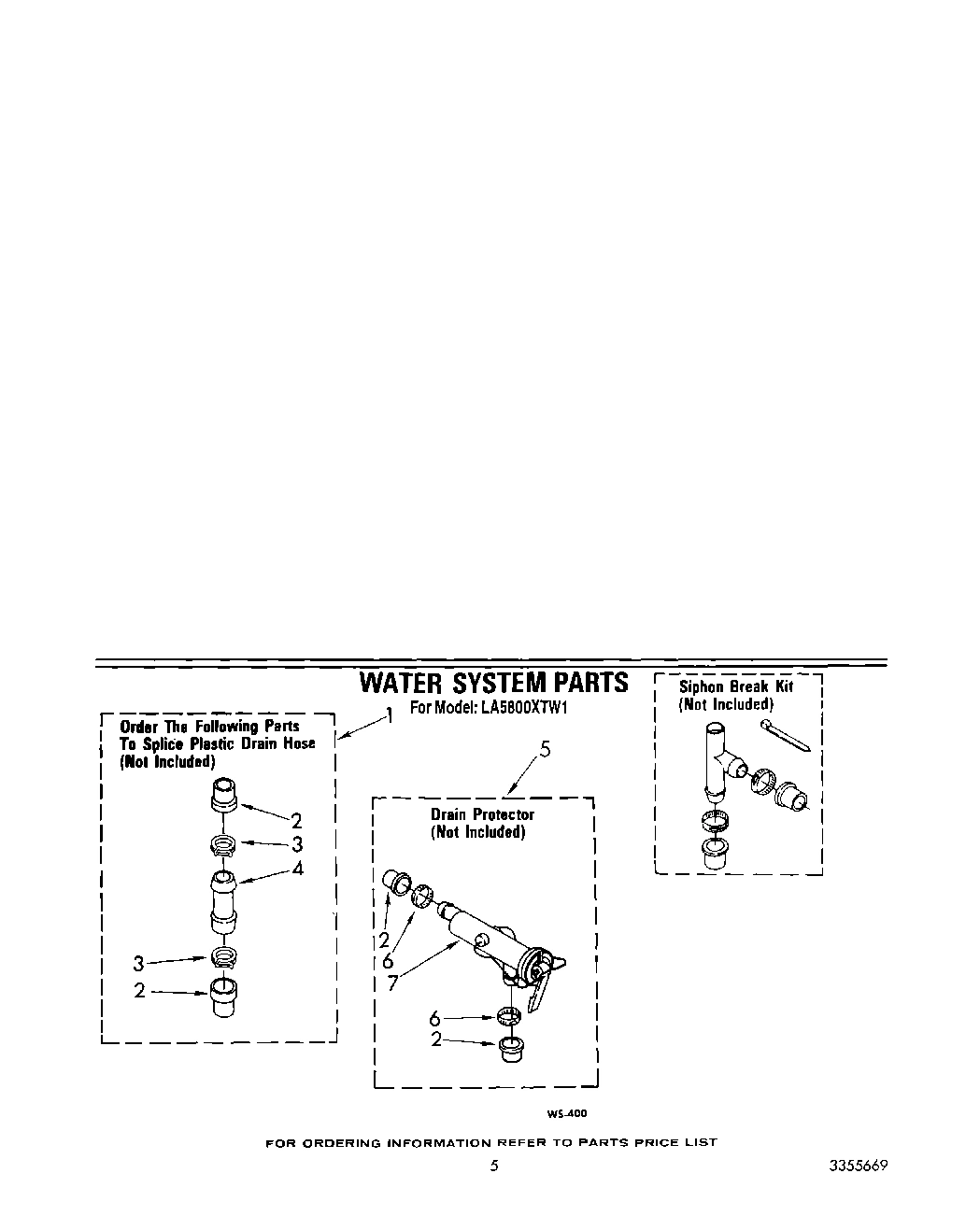

Siphon Break Kit WPL 285320 Contact Us For Availability

WPL 72110 WPL 72110 Contact Us For Availability

OIL WPL 350572 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability

WPL 72113 WPL 72113 Contact Us For Availability

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

3

WP3348752 Whirlpool Agitator Mover In Stock WPL WP3348752 $85.90

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

Support & Brake, Tub WPL 389350 Contact Us For Availability

5

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $73.90

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (White) WPL 63424 Contact Us For Availability

6

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $76.64

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability

6

Panel, Rear WPL 3348430 Contact Us For Availability

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $103.30

7

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

9

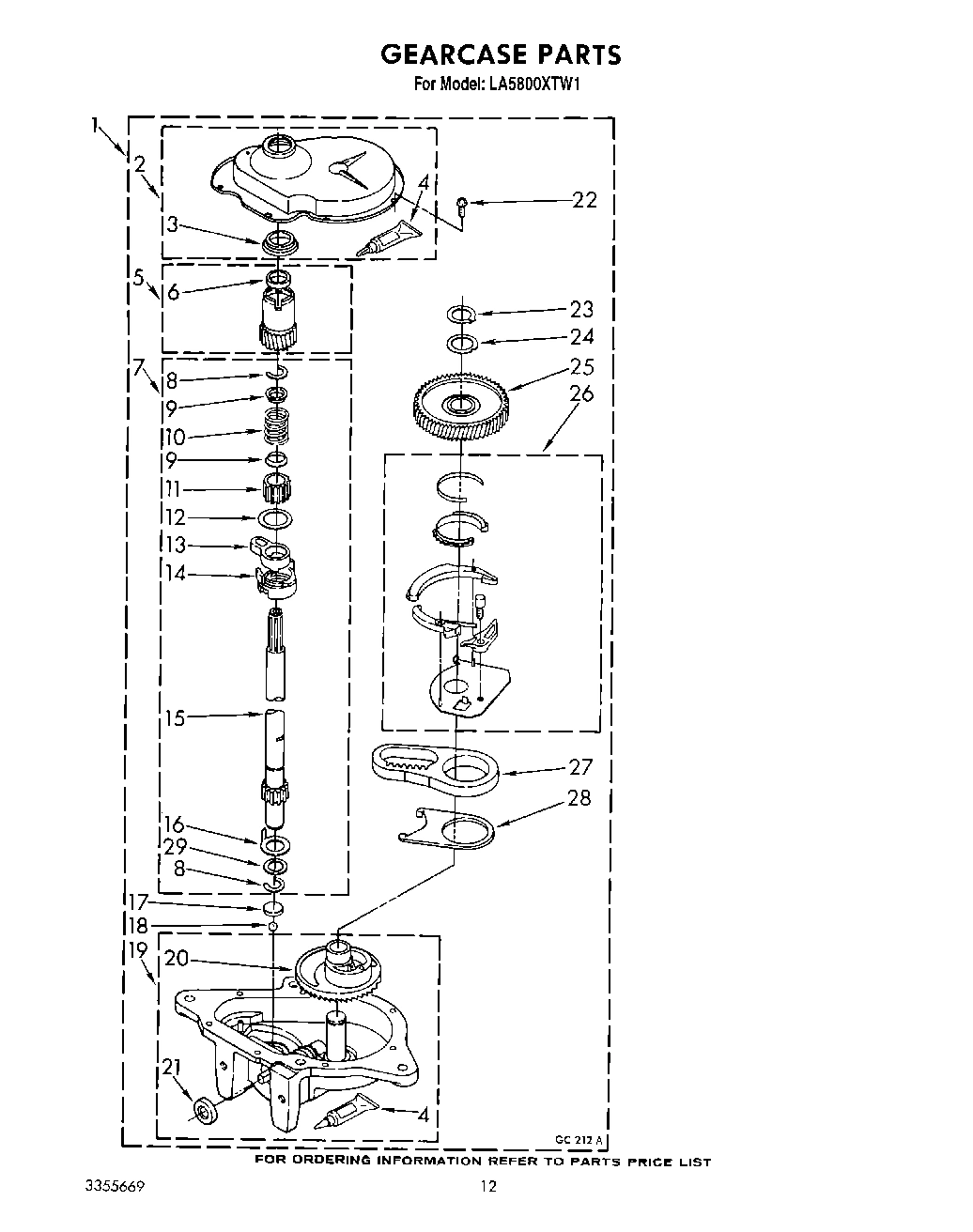

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

9

W10389328 Whirlpool Basket Backorder WPL W10389328 $190.38

9

WP3351744 Whirlpool Timer Backorder WPL WP3351744 $181.39

9

Retainer, Spring (2) WPL 62677 Contact Us For Availability

10

Terminal, Female WPL 352088 Contact Us For Availability

10

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

11

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

11

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Lock, Filter WPL 62942 Contact Us For Availability

Washer, Agitator Gear WPL 62619 Contact Us For Availability

Switch, Water Level WPL 64103 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Plug, Terminal (3-Way) (Power Cord) WPL 353424 Contact Us For Availability

Bracket, Control WPL 63687 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 62734 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

16

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

16

Cap, End (L.H.) WPL 63789 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Hose, Bleach WPL 63323 Contact Us For Availability

18

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Seal, Agitator WPL 357574 Contact Us For Availability

Lid (Almond) WPL 3354571 Contact Us For Availability

Lid (Toast) WPL 3354572 Contact Us For Availability

Lid (Platinum) WPL 3354573 Contact Us For Availability

Lid (Golden Harvest) WPL 3354574 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3352259 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

Seal, Thrust Plug WPL 285352 Contact Us For Availability

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

24

Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

26

Stop, Push-In Top (3-Way) WPL 358472 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $33.23

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

33

Clamp, Capacitor WPL 357030 Contact Us For Availability

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

35

Switch, Water Temperature WPL 3354236 Contact Us For Availability

36

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

37

Knob, Water Level WPL 386636 Contact Us For Availability

39

Panel, Console WPL 3348087 Contact Us For Availability

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

43

Gasket, WPL 3348392 Contact Us For Availability

44

WPL 3347726 WPL 3347726 Contact Us For Availability

45

WPL 64140 WPL 64140 Contact Us For Availability

47

WPL 3354108 WPL 3354108 Contact Us For Availability

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

49

WPL 64211 WPL 64211 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

51

WPL 63795 WPL 63795 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

54

WPL 364089 WPL 364089 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

WPL 3350222 WPL 3350222 Contact Us For Availability

57

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

58

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

60

WPL 3348424 WPL 3348424 Contact Us For Availability

61

WPL 3348102 WPL 3348102 Contact Us For Availability

61

WPL 3349096 WPL 3349096 Contact Us For Availability

61

WPL 661524 WPL 661524 Contact Us For Availability
