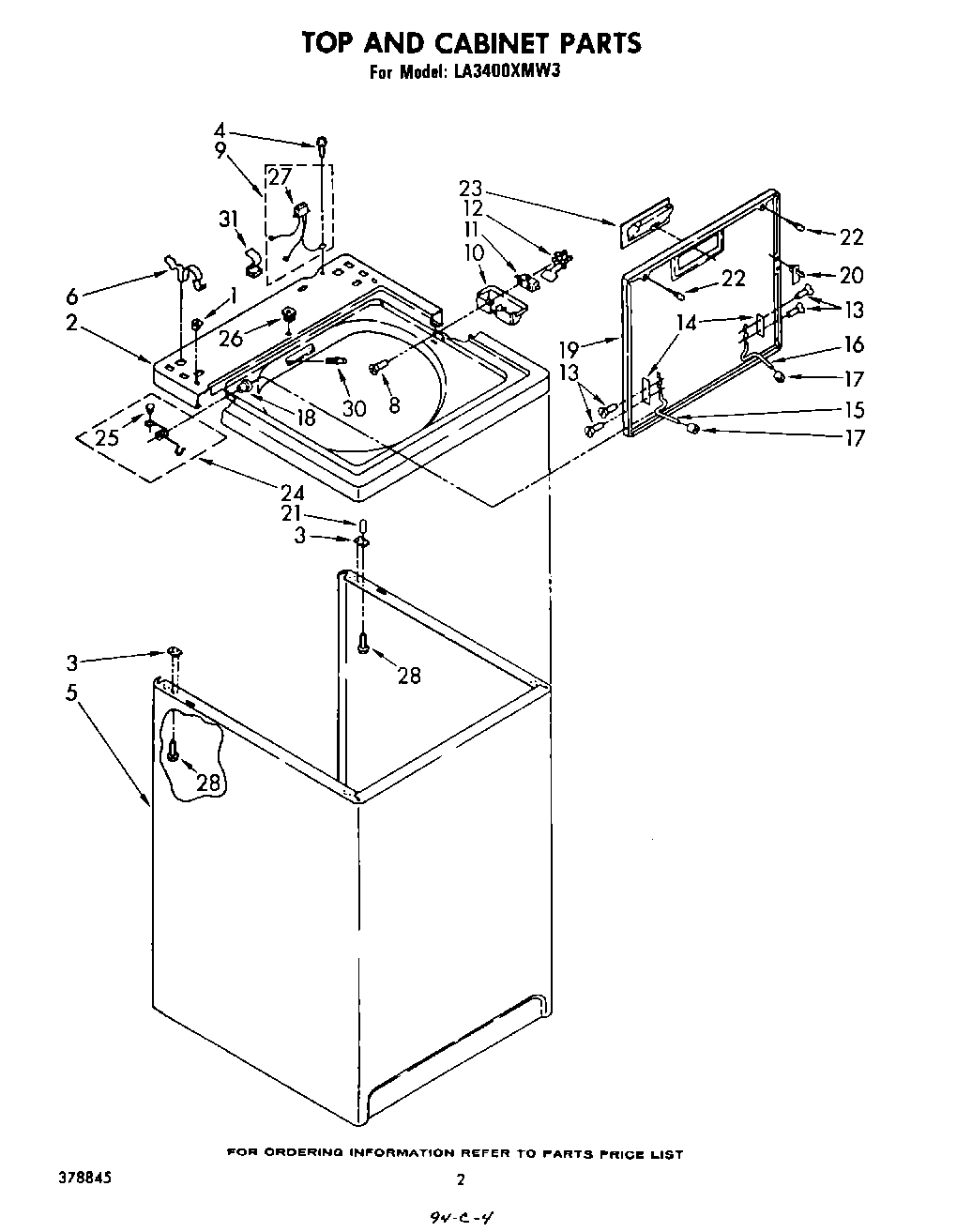

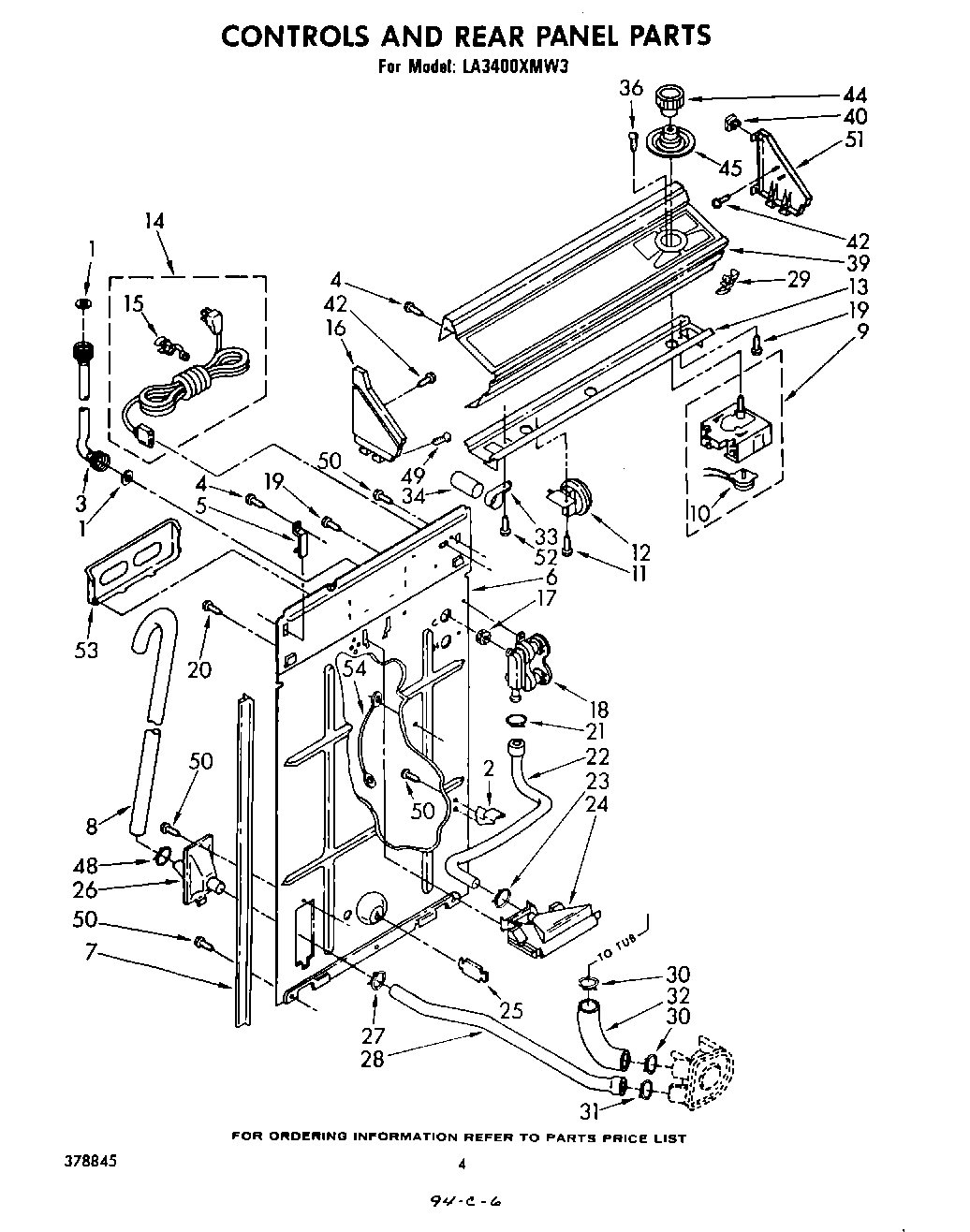

Model Whirlpool LA3400XMW3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

Clip, Harness WPL 62749 Contact Us For Availability

3

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $103.86

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

4

Clip, Harness (3) WPL 357469 Contact Us For Availability

4

Tub Ring & Gasket WPL 63223 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

5

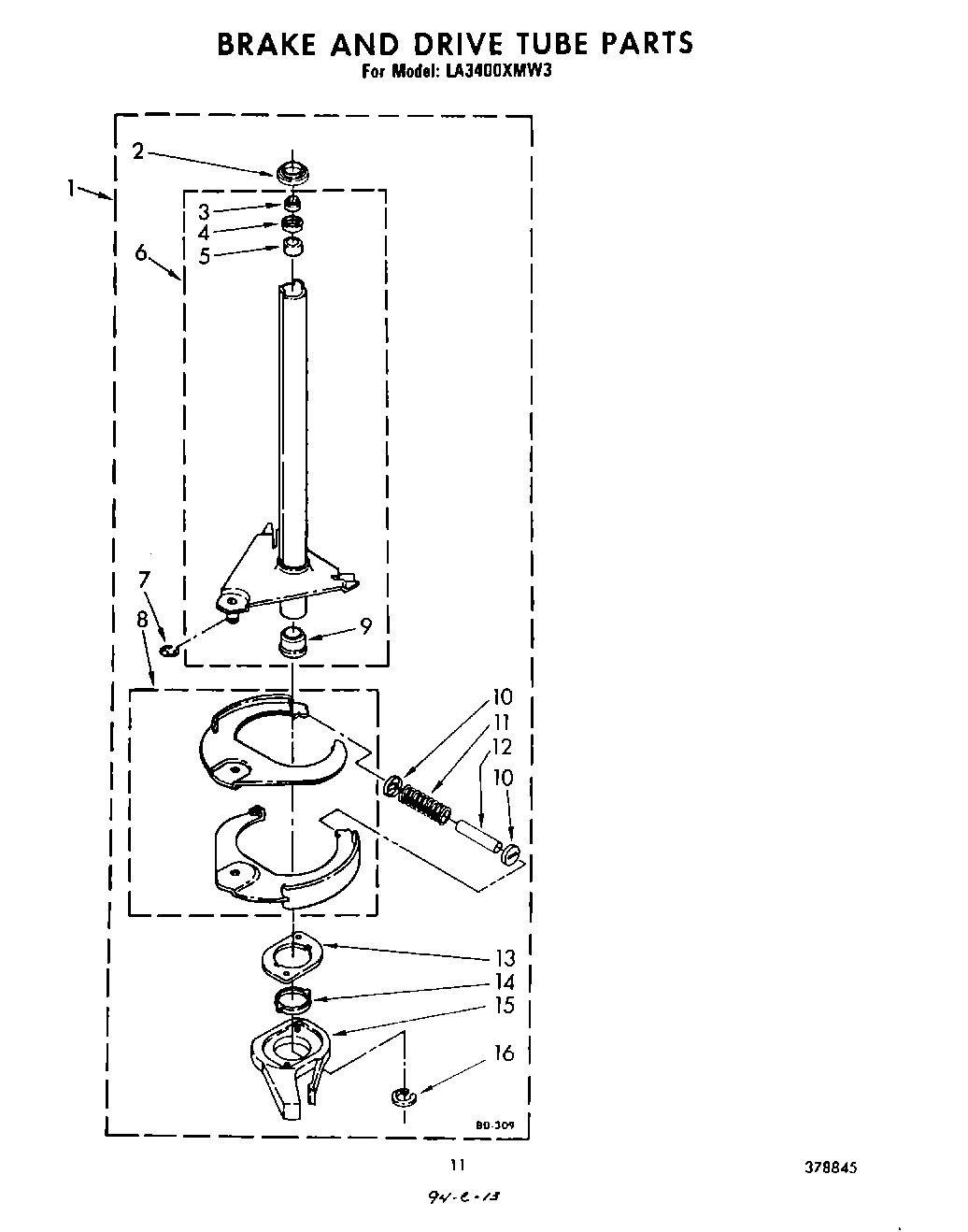

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

6

Clothes Guard Repair Kit WPL 285350 Contact Us For Availability

7

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

7

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

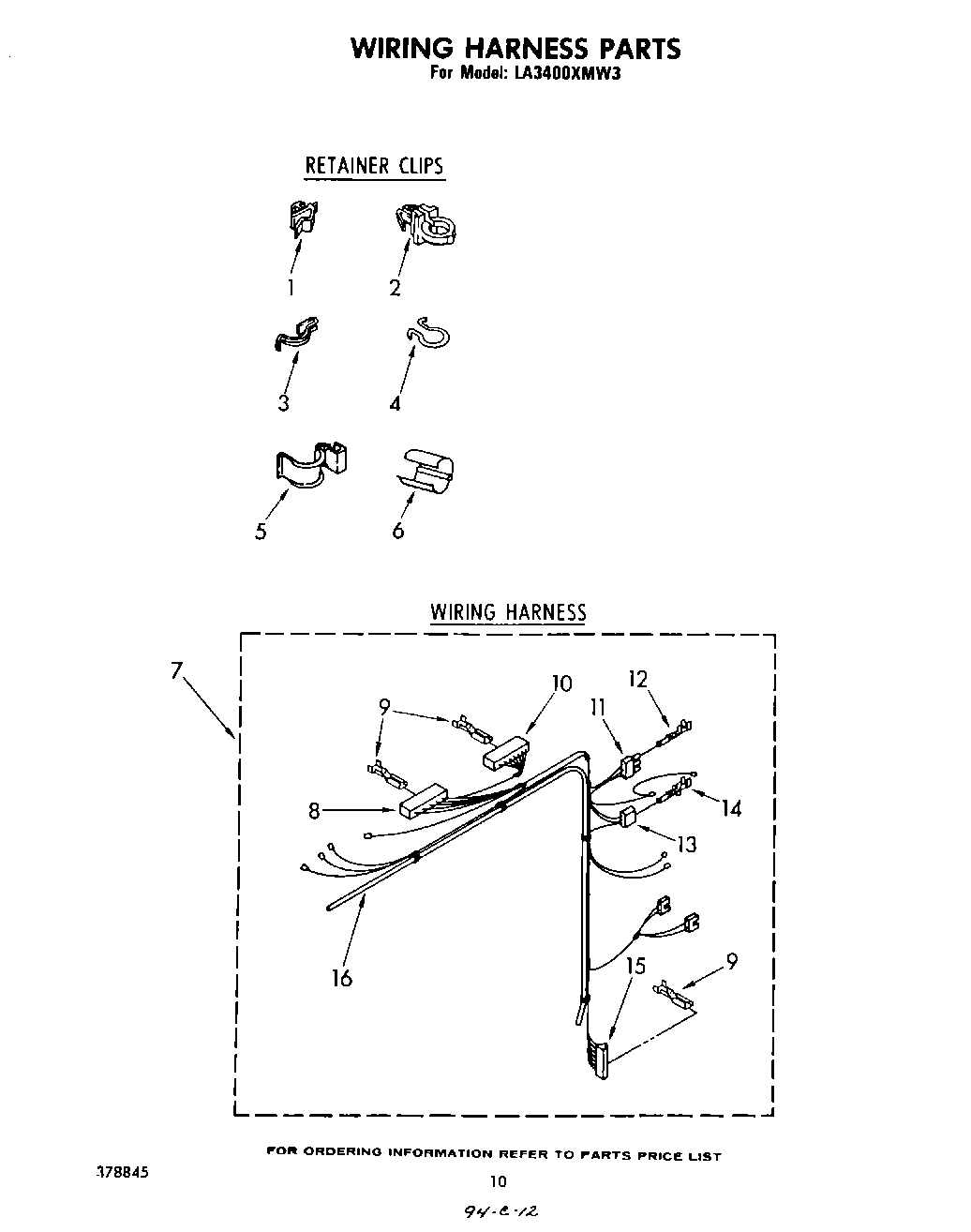

Wiring Harness & Pressure Switch Hose WPL 63279 Contact Us For Availability

7

Clip, Clothes Guard (6) WPL 63552 Contact Us For Availability

8

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

8

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

8

Block, Disconnect (Timer) (White) WPL 352090 Contact Us For Availability

8

Spring, Clutch WPL 381046 Contact Us For Availability

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

9

Terminal, Female WPL 352088 Contact Us For Availability

9

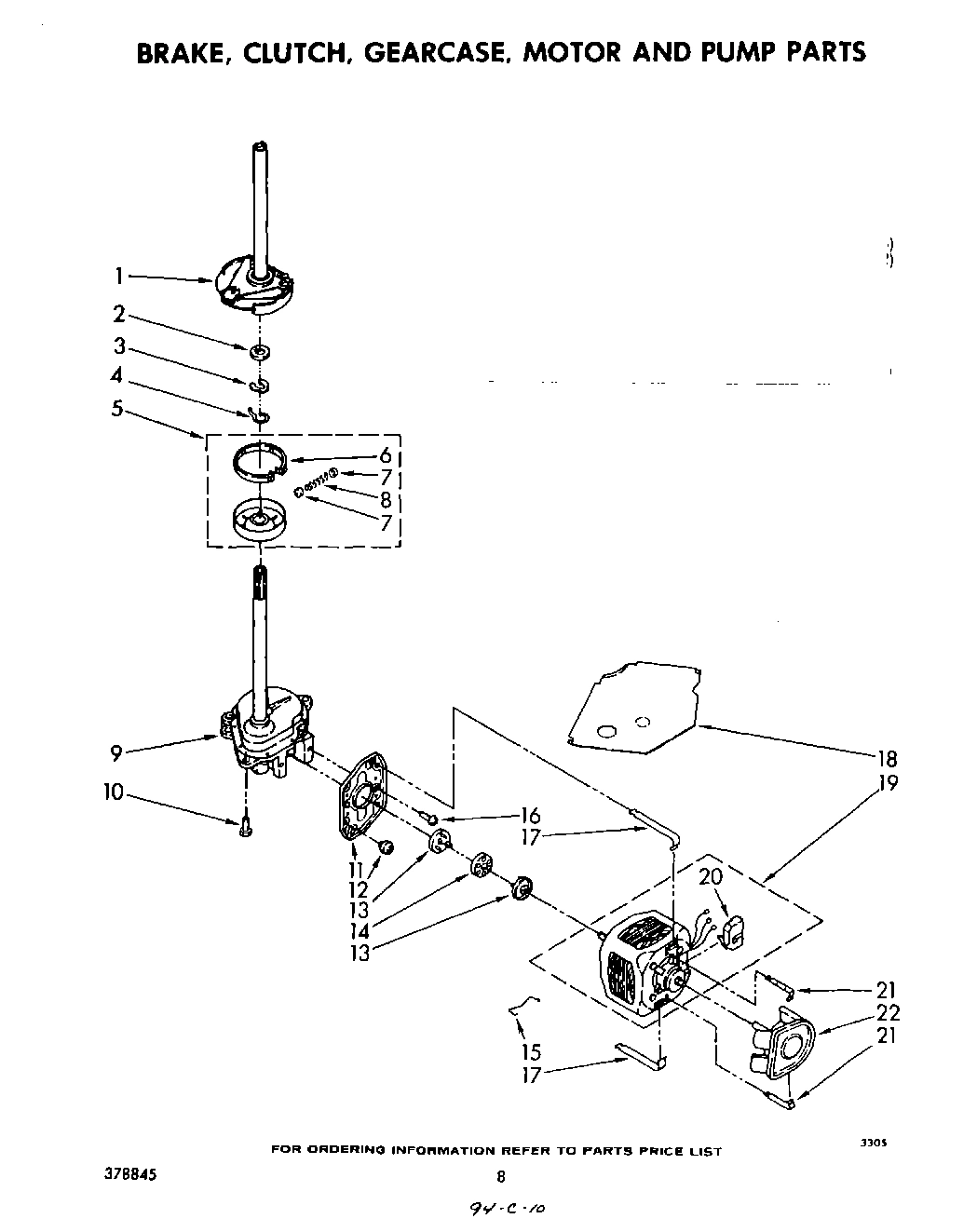

Gearcase (Complete) (Refer To Page 12 For Fur WPL 385899 Contact Us For Availability

9

Washer, Nylon (6) WPL 680829 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Clip, Mounting (2) WPL 62825 Contact Us For Availability

Ring, Retaining (2) WPL 90369 Contact Us For Availability

Locknut (6) WPL 285348 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP62647 Whirlpool Spring Pressure Backorder WPL WP62647 $3.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Switch, Water Level WPL 63176 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

Basket & Clothes Guard (Includes Illus. 6) WPL 63780 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Bracket, Control WPL 359758 Contact Us For Availability

Plate, Restrictor WPL 63546 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Lock, Filter WPL 62942 Contact Us For Availability

Cord, Power WPL 62734 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

Strain Relief, Power Cord WPL 62733 Contact Us For Availability

Clip, Motor Disconnect Block WPL 386838 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Cap, End (L.H.) (White) WPL 377314 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Tub WPL 63125 Contact Us For Availability

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Washer, Cam Thrust WPL 62618 Contact Us For Availability

19

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

19

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Switch, Main Drive Motor WPL 62851 Contact Us For Availability

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

21

Ring, Retaining WPL 95082 Contact Us For Availability

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

22

Washer Kit, Thrust WPL 285292 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

26

285715 Whirlpool Drain Kit Backorder WPL 285715 $79.95

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $33.23

29

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

29

Gear, Main Drive WPL 62528 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Spin Pinion Assembly, Gearcase WPL 63167 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

33

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

33

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

33

WP62638 Whirlpool Screw Backorder WPL WP62638 $2.38

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

36

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

39

Panel, Console WPL 375696 Contact Us For Availability

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 359822 Contact Us For Availability

45

Dial, Timer WPL 359826 Contact Us For Availability

49

Screw, 8-18 (2) (Panel to Top) WPL 358225 Contact Us For Availability

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

51

Cap , End (R.H.) (White) WPL 377315 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

53

Rack, Literature WPL 63020 Contact Us For Availability

54

Wire, Ground WPL 364089 Contact Us For Availability
