Model Whirlpool LA3300XPW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Sheet, Installation Instructions WPL LIT383979 Contact Us For Availability

Guide, Laundry WPL LIT385238 Contact Us For Availability

List, Repair Parts WPL LIT387212 Contact Us For Availability

Guide, Use and Care WPL LIT387408 Contact Us For Availability

Label, Energy Guide WPL LIT387725 Contact Us For Availability

Dryer WPL LIT677818 Contact Us For Availability

Compactor WPL LIT677821 Contact Us For Availability

Dishwasher WPL LIT677967 Contact Us For Availability

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

1

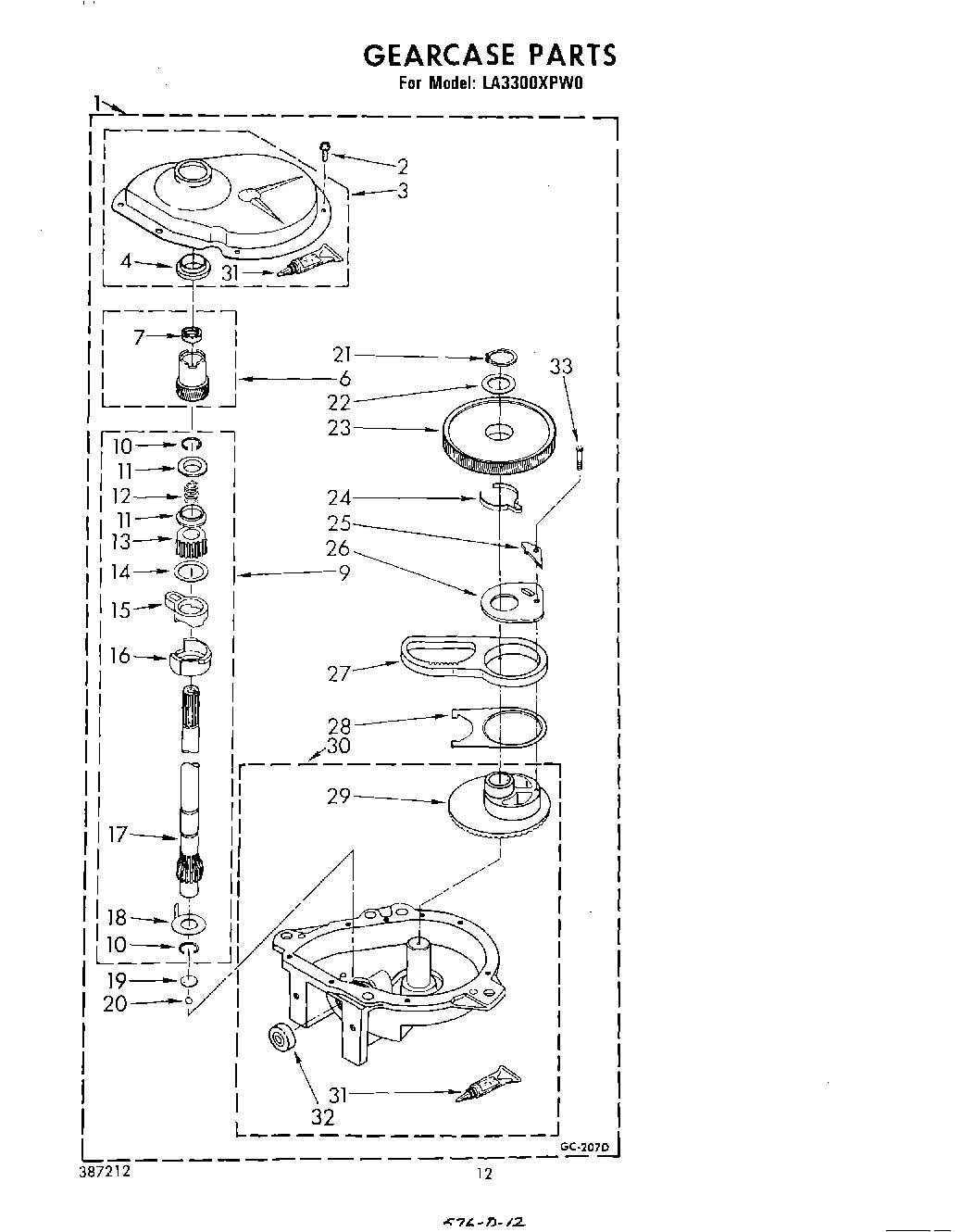

Gearcase (Complete) WPL 385899 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Clip, Harness WPL 62749 Contact Us For Availability

2

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

2

Top (White) WPL 63989 Contact Us For Availability

3

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $107.25

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

4

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

4

Clip, Harness (3) WPL 357469 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Hinge, Console (2) WPL 62748 Contact Us For Availability

5

Cabinet (White) WPL 63128 Contact Us For Availability

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

6

Panel, Rear WPL 63730 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

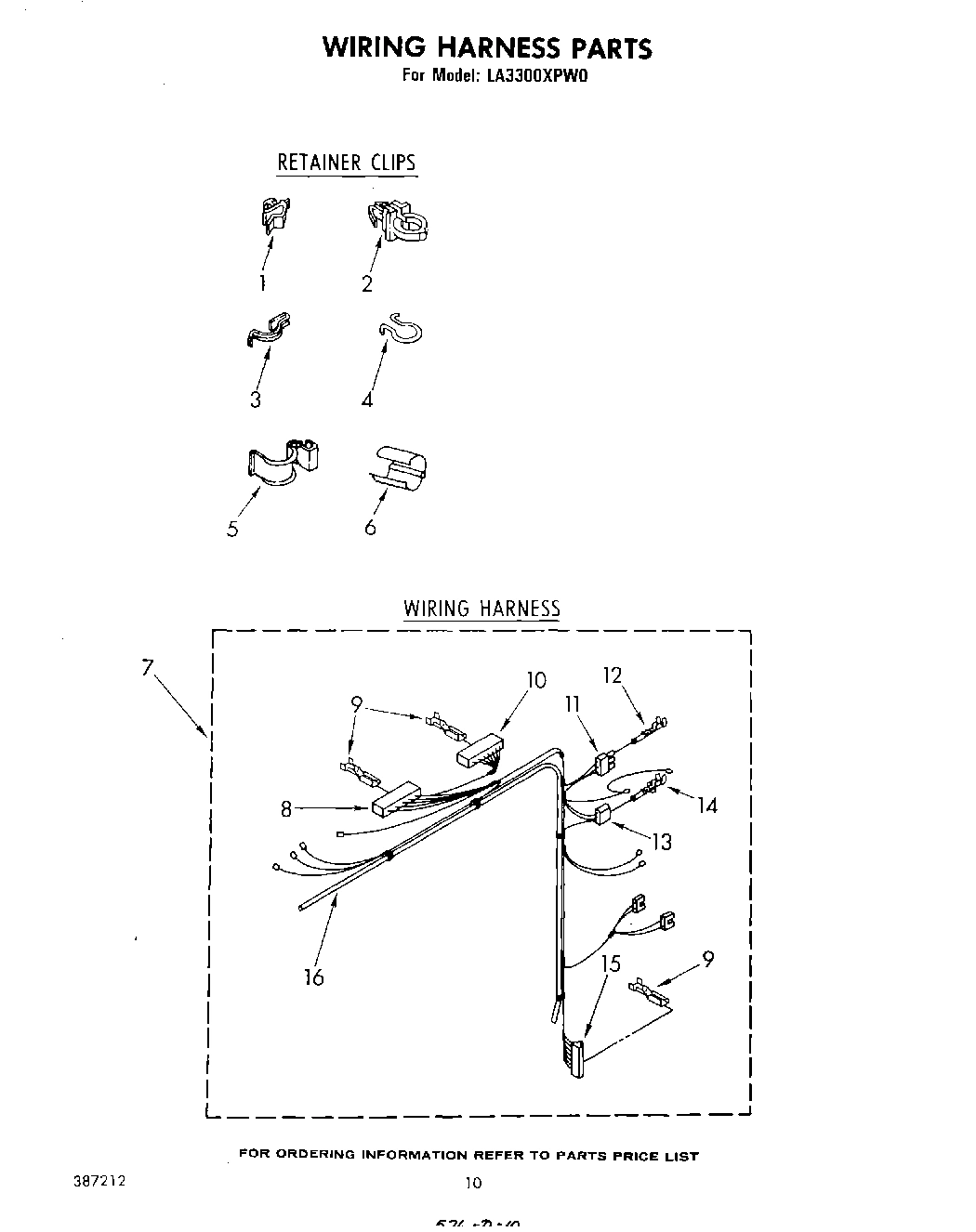

Wiring Harness & Pressure Switch Hose WPL 64110 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $25.33

8

Block, Disconnect (Timer) (White) WPL 352090 Contact Us For Availability

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

Terminal, Female WPL 352088 Contact Us For Availability

9

Timer, Control (60 Hz.) WPL 64010 Contact Us For Availability

9

Harness, Lid Switch WPL 63833 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Ring, Retaining (2) WPL 90369 Contact Us For Availability

Motor, Timer WPL 63493 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $3.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Spring, Agitator WPL 62676 Contact Us For Availability

Switch, Water Level WPL 63904 Contact Us For Availability

Actuator, Lid Switch WPL 357347 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

Bracket, Control WPL 63688 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Lock, Filter WPL 62942 Contact Us For Availability

Cord, Power WPL 62734 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $108.46

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

Strain Relief, Power Cord WPL 62733 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Cap, End (L.H.) WPL 63790 Contact Us For Availability

17

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

17

Tub WPL 63125 Contact Us For Availability

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $14.60

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.88

18

Washer, Cam Thrust WPL 62618 Contact Us For Availability

19

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

19

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

19

Lid (White) WPL 386027 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

21

Ring, Retaining WPL 95082 Contact Us For Availability

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

22

Washer Kit, Thrust WPL 285292 Contact Us For Availability

23

Handle, Lid (White) WPL 379889 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $30.12

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Plug, Button (2) WPL 54690 Contact Us For Availability

26

285715 Whirlpool Drain Kit Backorder WPL 285715 $83.95

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $185.93

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $34.90

29

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

29

Gear, Main Drive WPL 62528 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Spin Pinion Assembly, Gearcase (Also Includes WPL 63167 Contact Us For Availability

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

33

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

33

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

33

WP62638 Whirlpool Screw Backorder WPL WP62638 $2.38

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

39

Panel, Console WPL 64088 Contact Us For Availability

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 386565 Contact Us For Availability

45

Dial, Timer WPL 64139 Contact Us For Availability

49

Screw, 8-18 (2) (Panel to Top) WPL 64211 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

51

Cap , End (R.H.) WPL 63796 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

53

Rack, Literature WPL 63020 Contact Us For Availability

54

Wire, Ground WPL 364089 Contact Us For Availability
