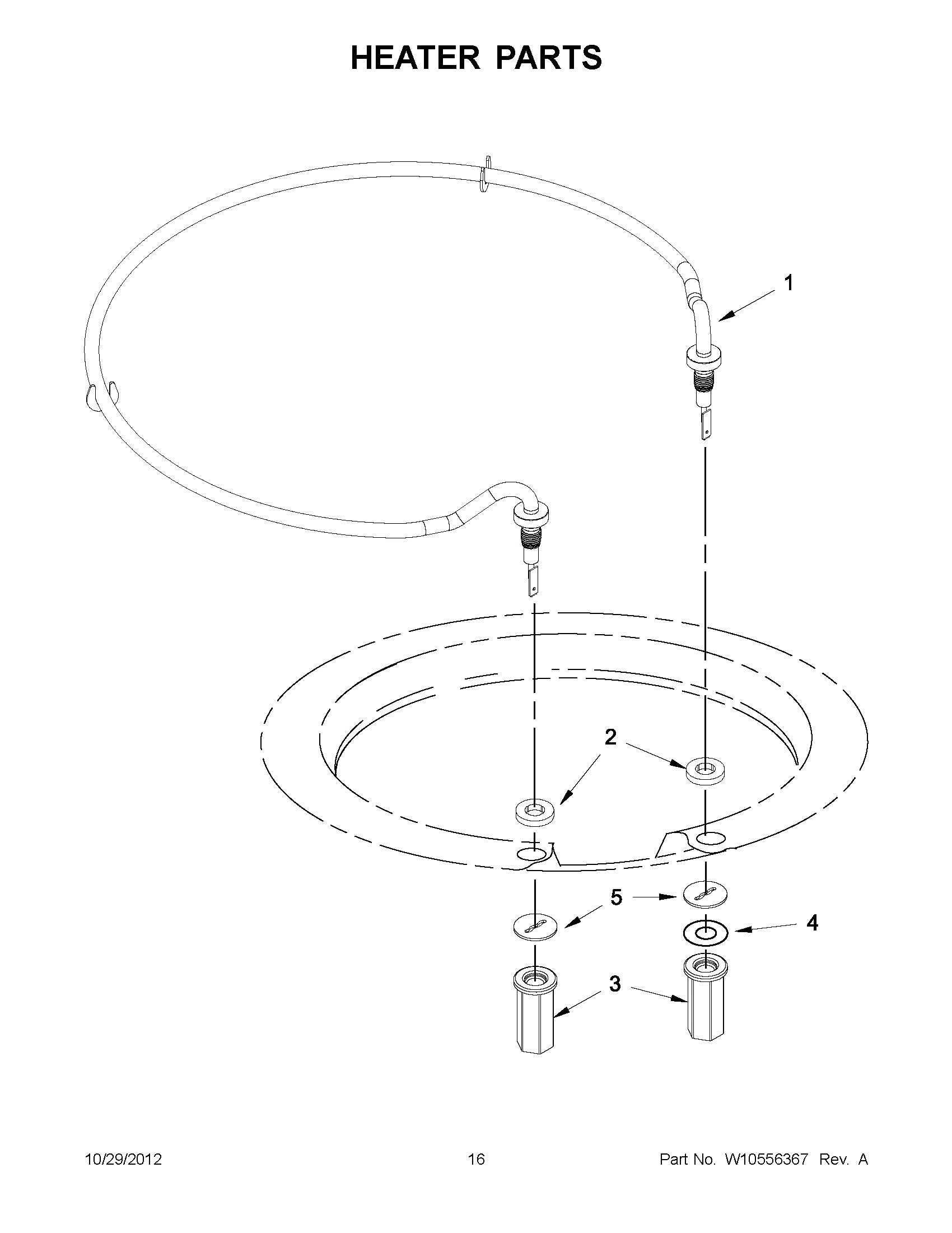

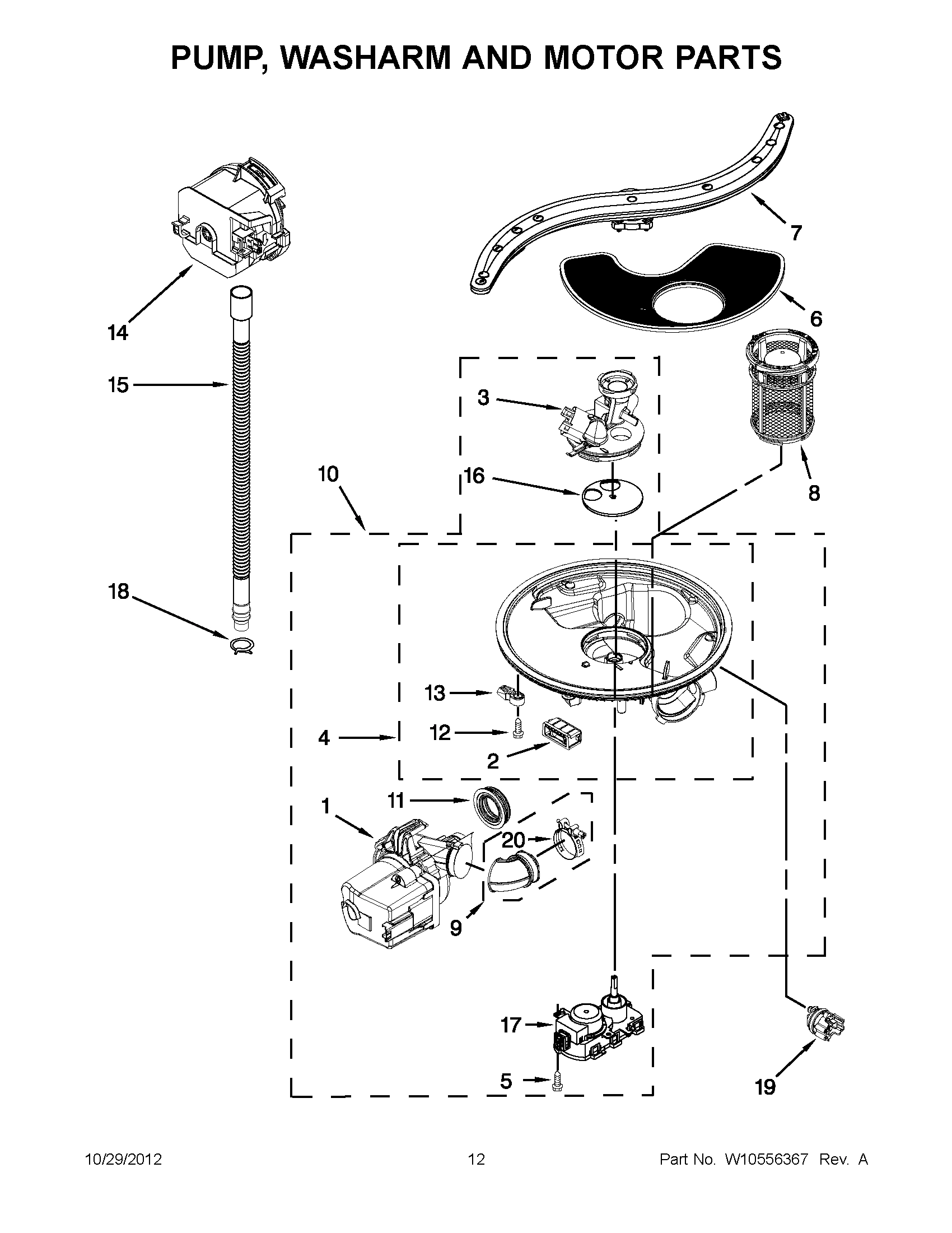

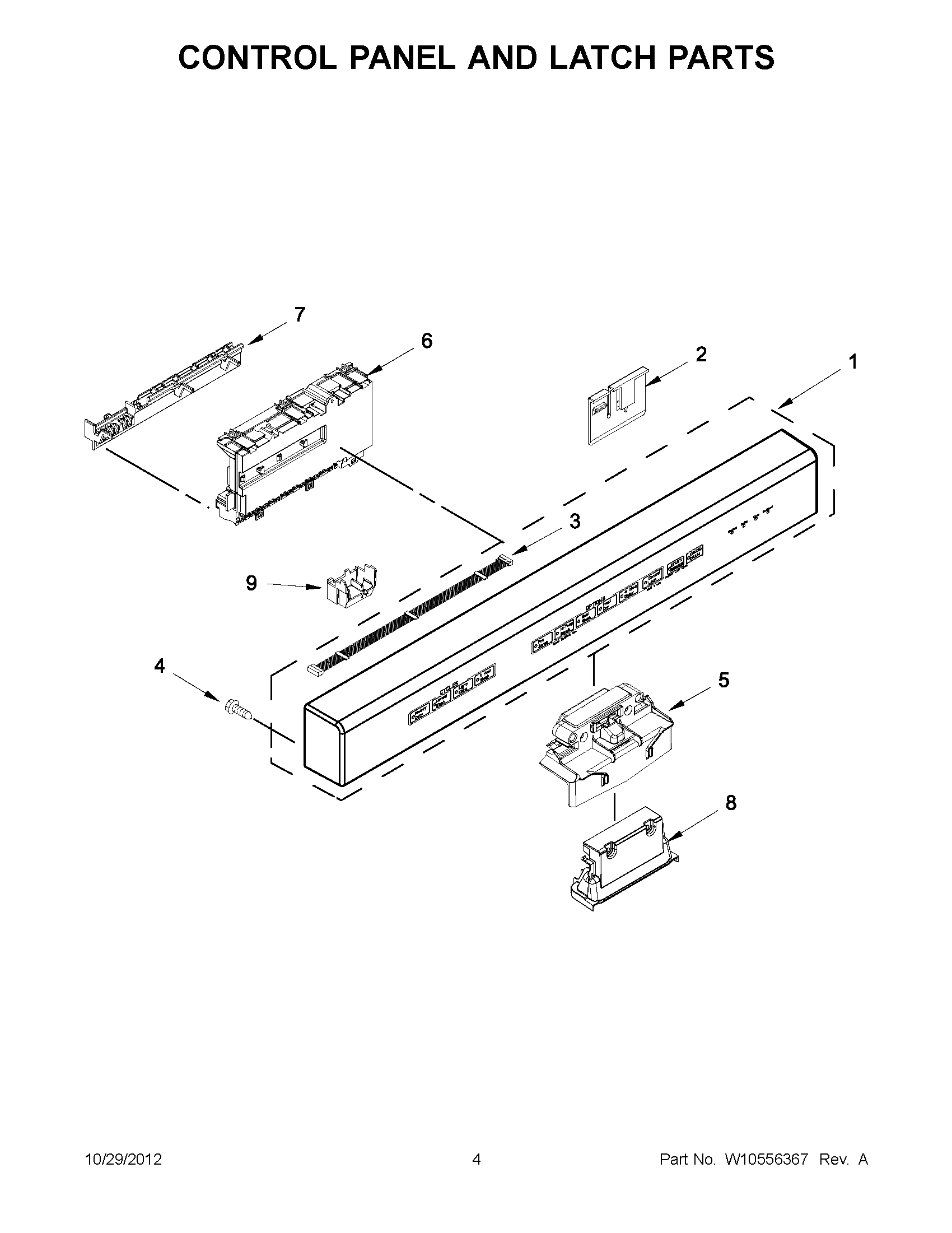

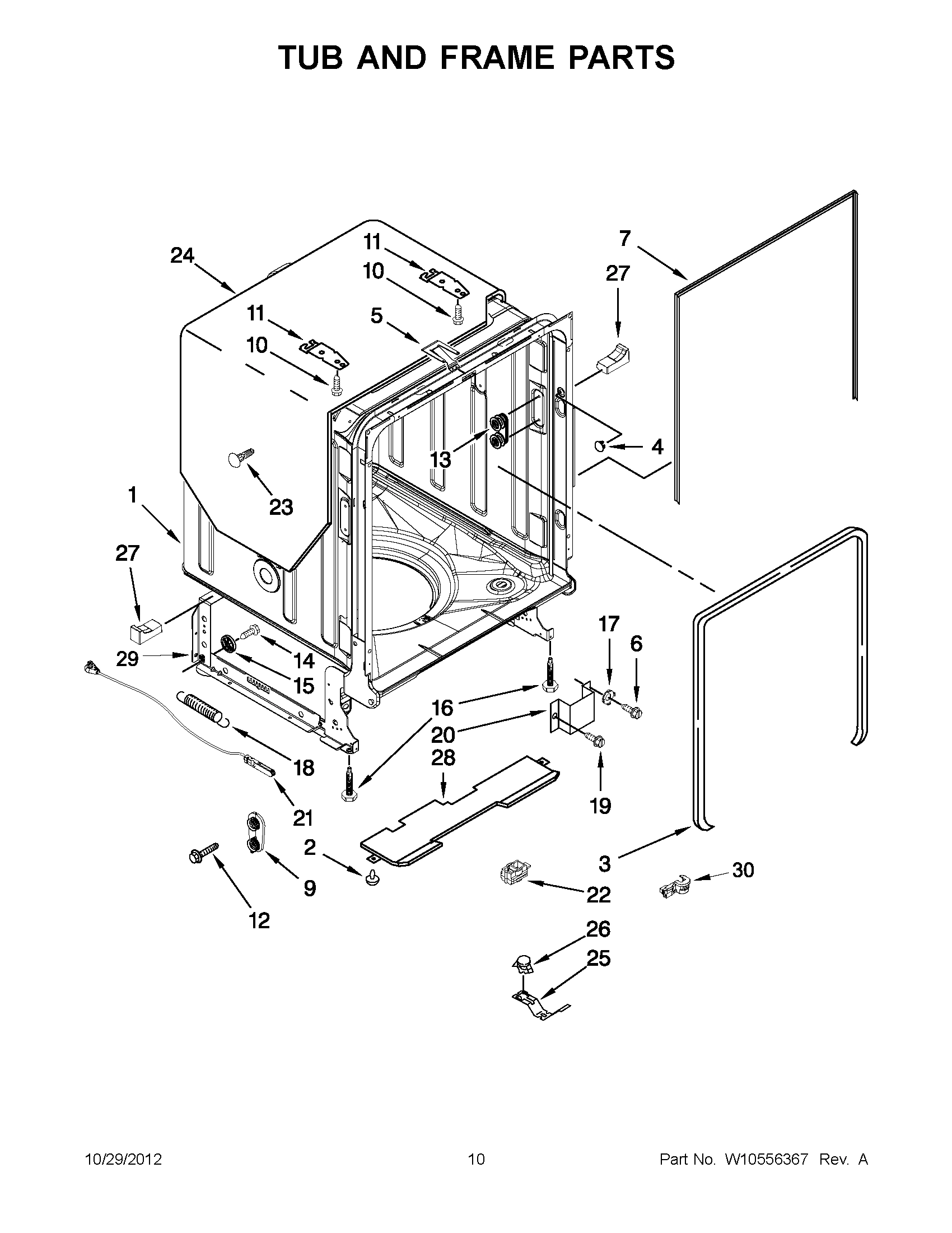

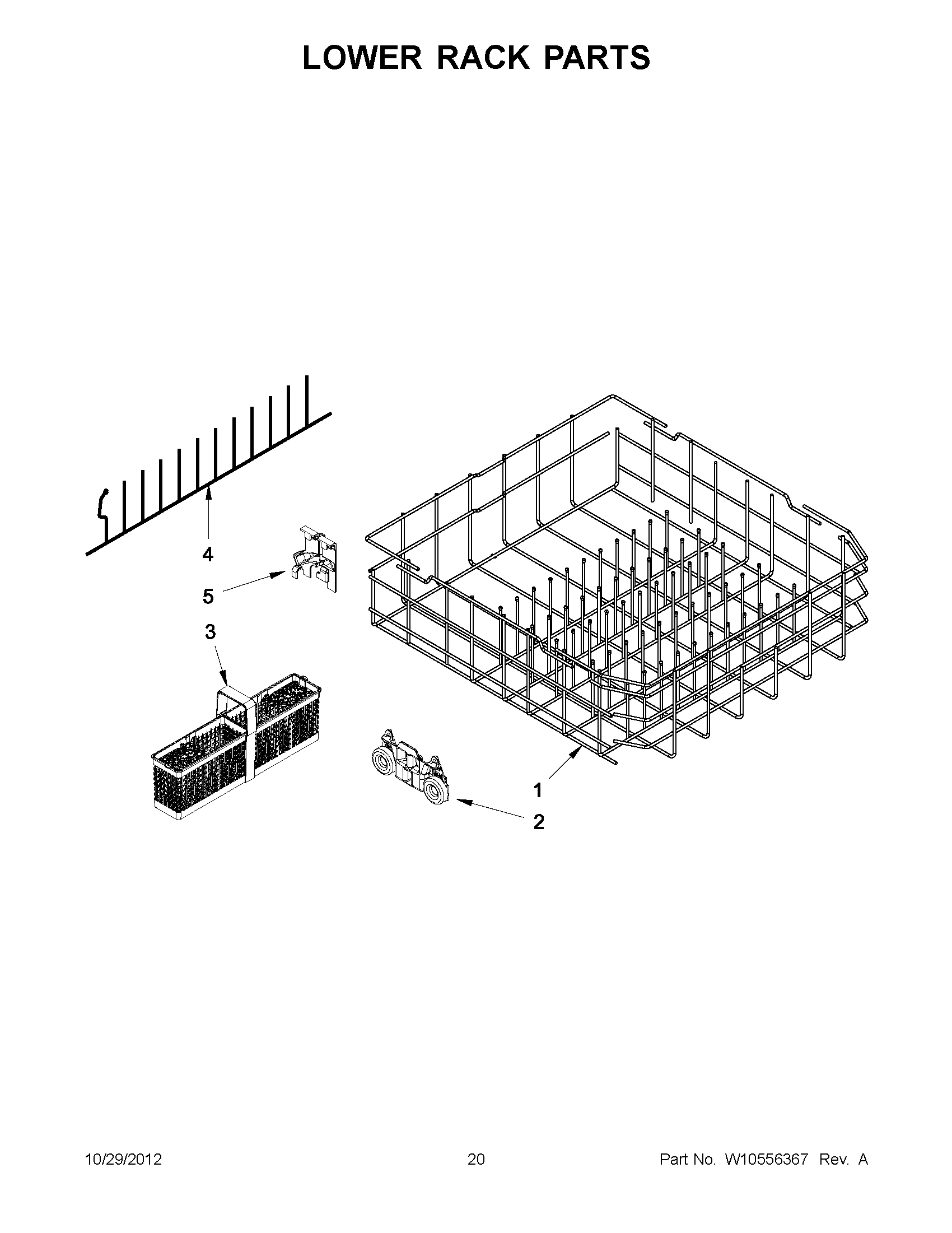

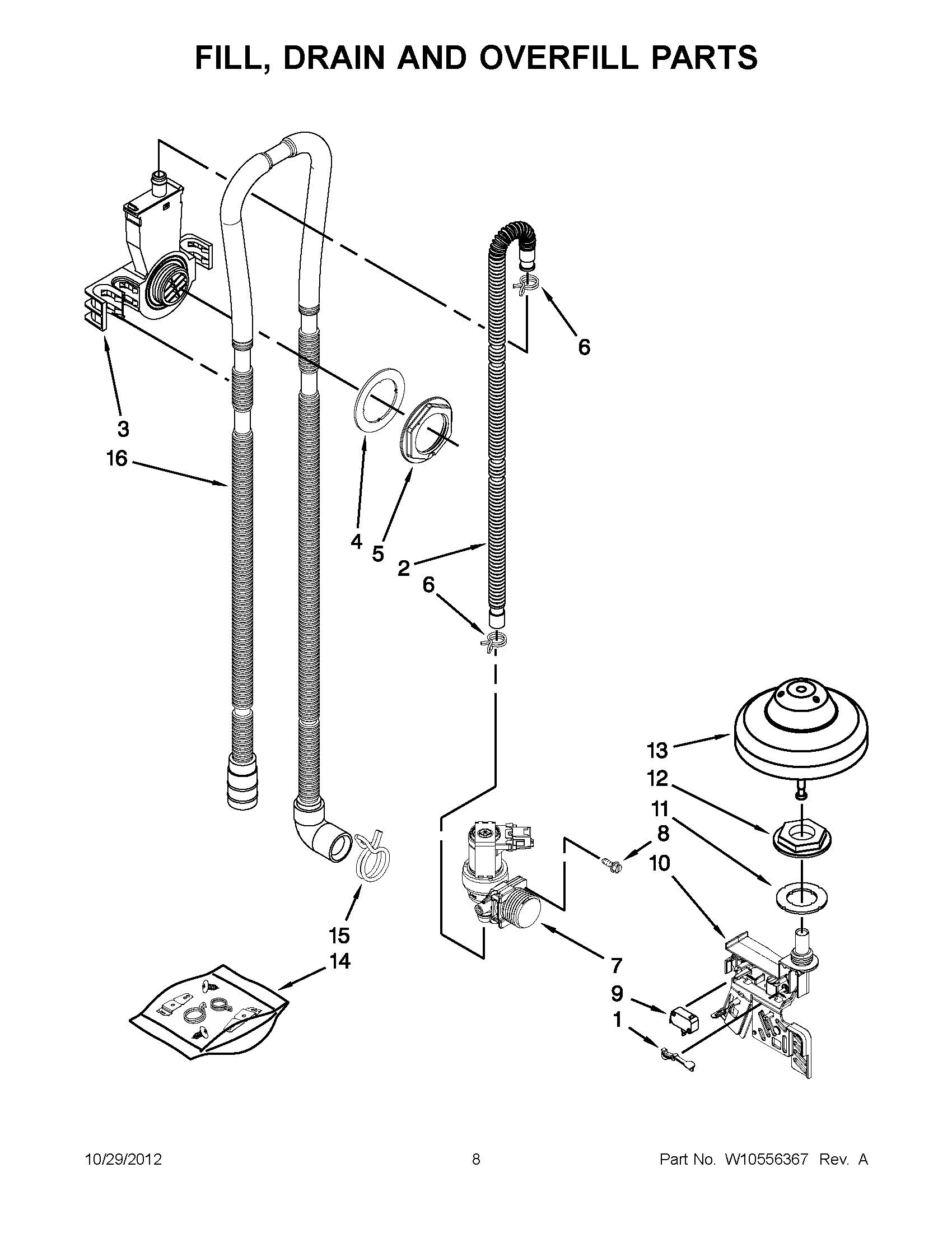

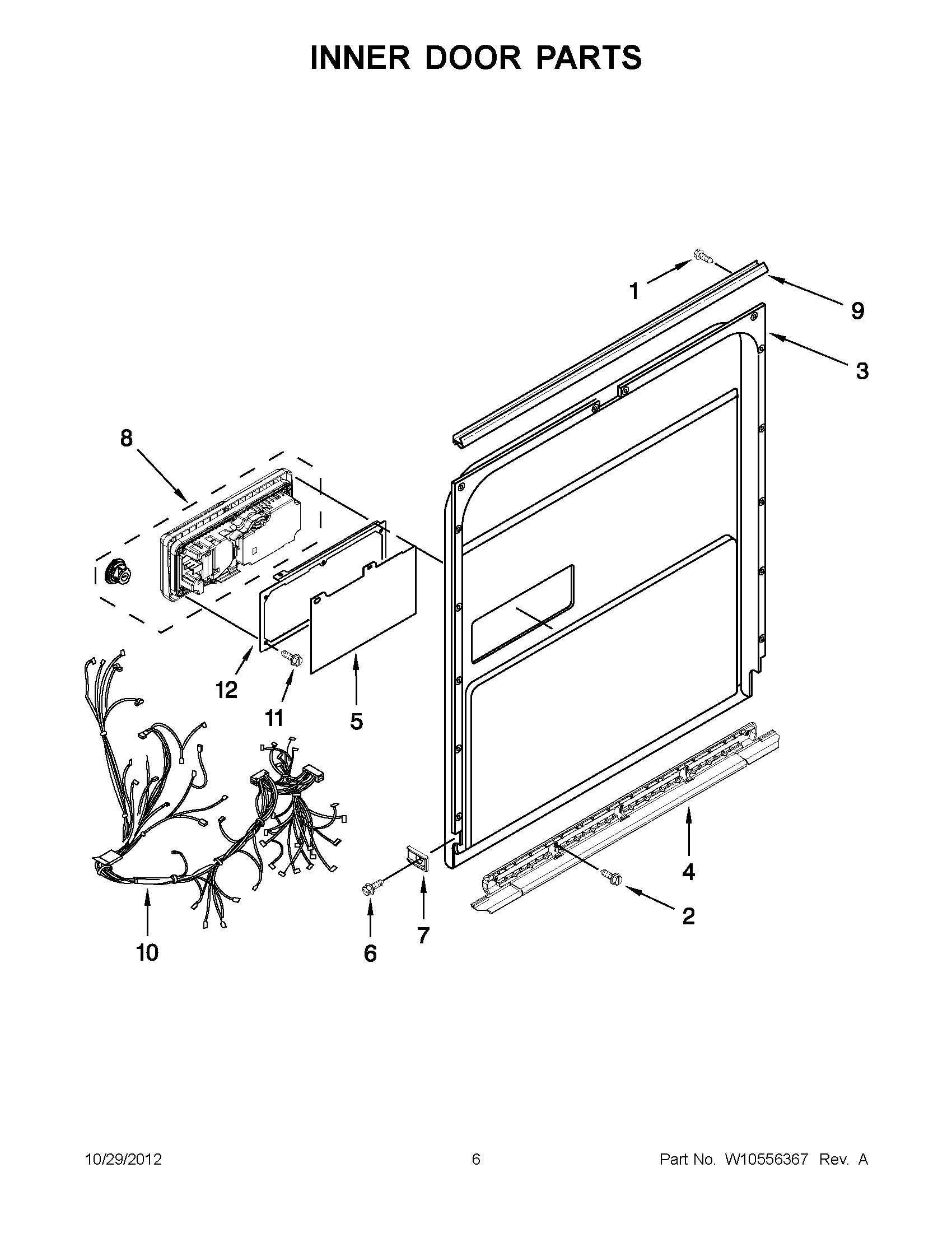

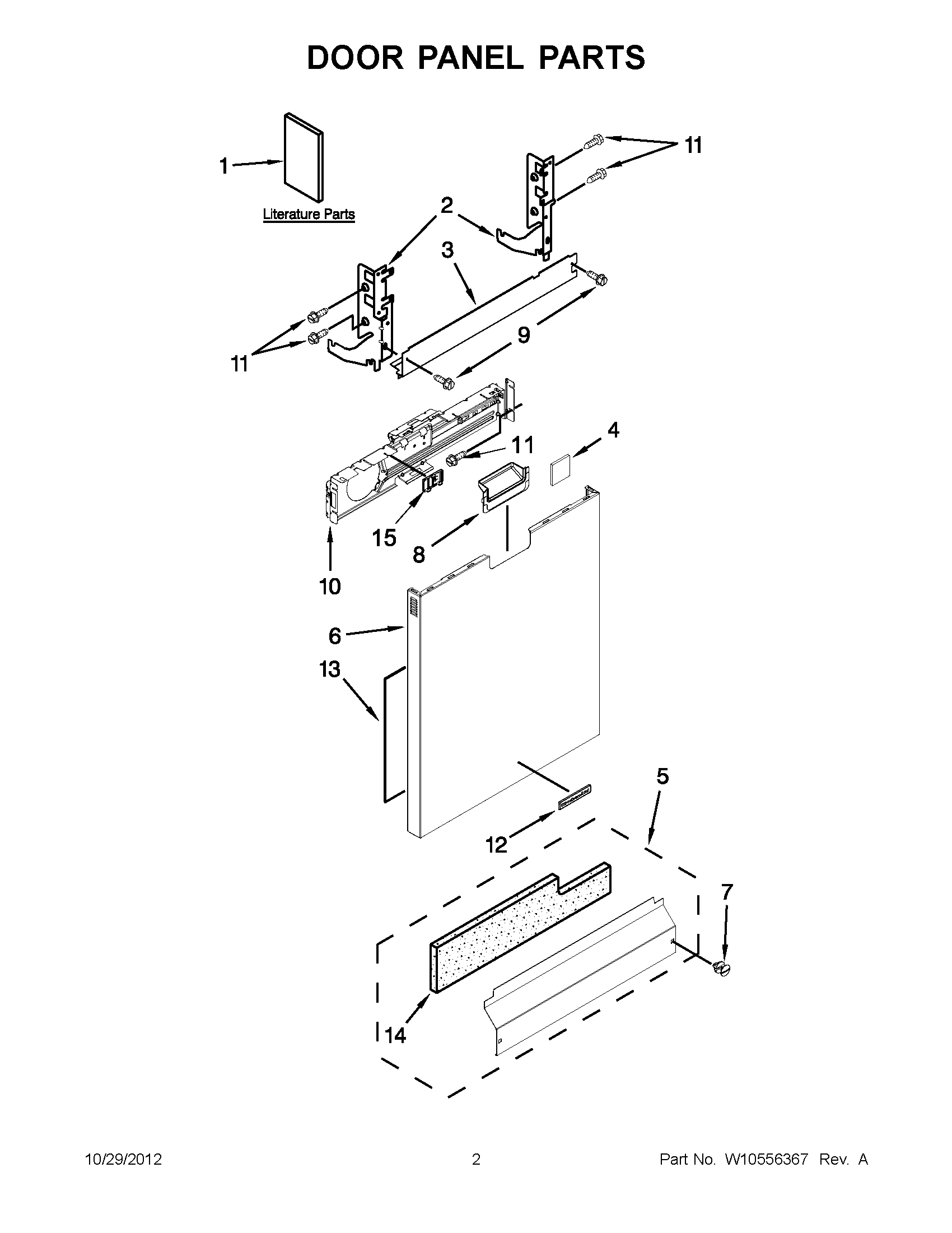

Model Whirlpool KUDE20IXBL9 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

WPW10195037 Whirlpool Lever Assembly In Stock WPL WPW10195037 $4.41

1

WPW10312792 Whirlpool Dishwasher Dishrack Backorder WPL WPW10312792 $189.11

1

WPW10340745 Whirlpool Water Feed Tube In Stock WPL WPW10340745 $52.08

1

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $3.33

2

W10195416V Whirlpool Dishwasher Roller Wheel In Stock WPL W10195416V $18.37

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $44.34

2

W11243394 Whirlpool Dishwasher Support Backorder WPL W11243394 $5.98

2

W11256107 Whirlpool Dishwasher Clip Backorder WPL W11256107 $10.76

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $75.56

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $80.45

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $10.41

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

2

WPW10327455 Whirlpool Dishwasher Spray Arm In Stock WPL WPW10327455 $48.12

2

WPW10588164 Whirlpool Dishwasher Left Hand Ho In Stock WPL WPW10588164 $11.20

2

WPW10588165 Whirlpool Adjuster Housing In Stock WPL WPW10588165 $30.71

3

W10315814 Whirlpool Dishwasher Wire Harness Backorder WPL W10315814 $9.00

3

W10850371 Whirlpool Dishwasher Door Brace In Stock WPL W10850371 $13.63

3

W11177741 Whirlpool Dishwasher Door Gasket In Stock WPL W11177741 $38.77

3

WPW10195536 Whirlpool Water Inlet Valve In Stock WPL WPW10195536 $63.20

3

WPW10250160 Whirlpool Clip In Stock WPL WPW10250160 $27.18

3

WPW10455271 Whirlpool Cover In Stock WPL WPW10455271 $12.77

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $4.52

3

WPW10480715 Whirlpool Dishwasher Inner Door Backorder WPL WPW10480715 $134.91

4

W10712394 Whirlpool Dishwasher Adjuster Kit W In Stock WPL W10712394 $26.29

4

W10795980 Whirlpool Cap In Stock WPL W10795980 $6.44

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.87

4

WPW10340542 Whirlpool Manifold In Stock WPL WPW10340542 $63.46

4

WPW10348408 Whirlpool Dishwasher Screw Backorder WPL WPW10348408 $2.51

4

WPW10455268 Whirlpool Sump In Stock WPL WPW10455268 $109.01

4

WPW10497235 Whirlpool Dishwasher Lower Door S In Stock WPL WPW10497235 $5.01

4

Nut, Speed WPL 3400931 Contact Us For Availability

4

BLOCK, FOAM WPL W10354790 Contact Us For Availability

5

W10827631 Whirlpool Toe Panel In Stock WPL W10827631 $74.50

5

W10827632 Whirlpool Dishwasher Control Panel Backorder WPL W10827632 $76.45

5

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $3.33

5

WPW10078215 Whirlpool Dishwasher Tine Row Com In Stock WPL WPW10078215 $4.52

5

WPW10195839 Whirlpool Dishwasher Rack Adjuste In Stock WPL WPW10195839 $20.62

5

WPW10213825 Whirlpool Dishwasher Tube Nut Backorder WPL WPW10213825 $3.70

5

WPW10300779 Whirlpool Dishwasher Strike Backorder WPL WPW10300779 $35.52

5

WPW10343251 Whirlpool Dishwasher Shield Backorder WPL WPW10343251 $3.81

5

WPW10448645 Whirlpool Dishwasher Upper Spray In Stock WPL WPW10448645 $28.44

5

WPW10482094 Whirlpool Dishwasher Cover Backorder WPL WPW10482094 $10.65

6

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

6

WPW10195532 Whirlpool Dishwasher Panel Backorder WPL WPW10195532 $148.97

6

WPW10195840 Whirlpool Dishwasher Adjuster Arm In Stock WPL WPW10195840 $27.76

6

WPW10463906 Whirlpool Dishwasher Screen Filte In Stock WPL WPW10463906 $14.37

6

PANEL, FULL FRONT (INCLUDES ITEMS 8 & 12) (WH WPL W10195533 Contact Us For Availability

6

PANEL, FULL FRONT (INCLUDES ITEMS 8 & 12) (ST WPL W10195531 Contact Us For Availability

7

W10195837 Whirlpool Dishwasher Barrier Backorder WPL W10195837 $10.47

7

W10864081 Whirlpool Dishwasher Seal In Stock WPL W10864081 $50.29

7

WPW10082649 Whirlpool Dishwasher Cup Shelf In Stock WPL WPW10082649 $33.42

7

WPW10462395 Whirlpool Dishwasher Brace Backorder WPL WPW10462395 $7.59

7

WPW10491331 Whirlpool Dishwasher Lower Spray In Stock WPL WPW10491331 $25.58

7

WPW10503548 Whirlpool Dishwasher Panel Retain In Stock WPL WPW10503548 $10.17

7

WPW10503549 Whirlpool Dishwasher Retainer Cli In Stock WPL WPW10503549 $3.11

8

W11032769 Whirlpool Dishwasher Dispenser In Stock WPL W11032769 $78.27

8

WPW10195718 Whirlpool Dishwasher Handle In Stock WPL WPW10195718 $47.85

8

WPW10267076 Whirlpool Guard Clip In Stock WPL WPW10267076 $12.00

8

POCKET, HANDLE (BLACK) WPL W10195653 Contact Us For Availability

8

HANDLE (WHITE) WPL W10195833 Contact Us For Availability

8

HANDLE (STAINLESS) WPL W10195835 Contact Us For Availability

8

POCKET, HANDLE (WHITE) WPL W10195654 Contact Us For Availability

9

W10445975 Whirlpool Dishwasher Sump Hose with In Stock WPL W10445975 $43.00

9

WPW10084086 Whirlpool Dishwasher Mount Backorder WPL WPW10084086 $13.34

9

WPW10195007 Whirlpool Dishwasher Seal In Stock WPL WPW10195007 $60.89

9

WPW10195039 Whirlpool Dishwasher Float Switch In Stock WPL WPW10195039 $38.71

9

WPW10250162 Whirlpool Dishwasher Rack Adjuste In Stock WPL WPW10250162 $4.52

10

W10873429 Whirlpool Housing In Stock WPL W10873429 $13.38

10

W11116870 Whirlpool Dishwasher Control Bracke Backorder WPL W11116870 $30.95

10

WPW10455260 Whirlpool Dishwasher Pump and Mot In Stock WPL WPW10455260 $177.39

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $3.33

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $6.27

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $30.76

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $4.45

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $3.33

WPW10195038 Whirlpool Dishwasher Nut In Stock WPL WPW10195038 $4.52

WPW10195622 Whirlpool Stop In Stock WPL WPW10195622 $5.56

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $28.26

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

WPW10348407 Whirlpool Dishwasher Screw In Stock WPL WPW10348407 $3.70

WPW10462232 Whirlpool Dishwasher Dispenser Mo In Stock WPL WPW10462232 $12.13

WPW10073520 Whirlpool Dishwasher Insulation P Backorder WPL WPW10073520 $30.25

WPW10077844 Whirlpool Dishwasher Clip In Stock WPL WPW10077844 $5.56

WPW10195036 Whirlpool Dishwasher Float In Stock WPL WPW10195036 $32.28

WPW10372113 Whirlpool Dishwasher Sump Tab Backorder WPL WPW10372113 $10.21

WPW10505748 Whirlpool Dishwasher Dishrack Whe In Stock WPL WPW10505748 $4.70

WPW10082848 Whirlpool Clip In Stock WPL WPW10082848 $2.51

WPW10292152 Whirlpool Hardware Kit In Stock WPL WPW10292152 $18.21

WPW10348411 Whirlpool Roller Wheel Screw In Stock WPL WPW10348411 $4.50

WPW10531320 Whirlpool Drain Pump In Stock WPL WPW10531320 $49.71

15

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $12.37

15

W10463662 Whirlpool Dishwasher Spacer Plate Backorder WPL W10463662 $28.40

15

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $5.54

16

WPW10476221 Whirlpool Dishwasher Diffuser Backorder WPL WPW10476221 $9.53

17

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

18

WP8269146 Whirlpool Dishwasher Clamp Backorder WPL WP8269146 $3.70

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $13.60

19

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

22

W10292870 Whirlpool Dishwasher Housing Backorder WPL W10292870 $10.76

24

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.97

25

W10300703 Whirlpool Dishwasher Bracket Stat Backorder WPL W10300703 $7.37

27

W10195630 Whirlpool Dishwasher Spacer Backorder WPL W10195630 $6.39

27

W10195631 Whirlpool Dishwasher Tank Spacer Backorder WPL W10195631 $6.35

30

STRAIN RELIEF WPL W10337661 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $29.65

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $14.48

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $10.80

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $17.29

8212489 Whirlpool Dishwasher Panel Backorder WPL 8212489 $125.83

8212560 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8212560 $11.09

W10195735A Whirlpool Dishwasher Door Handle B Backorder WPL W10195735A $28.26

W10195736A Whirlpool Dishwasher Handle Backorder WPL W10195736A $25.69

W10195738A Whirlpool Stainless Steel Door Han Backorder WPL W10195738A $25.97

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $16.60

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $16.25

ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL WPL 8171659 Contact Us For Availability

ACCESSORIES, SIDE PANEL KITS (WHITE) WPL 8171656 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

ACCESSORIES, SIDE PANEL KITS (BLACK) WPL 8171657 Contact Us For Availability
