Model Whirlpool KSRS25QGAL01 REFRIGERATOR – Common Parts & Diagrams
04 - FREEZER LINER
07 - FREEZER DOOR

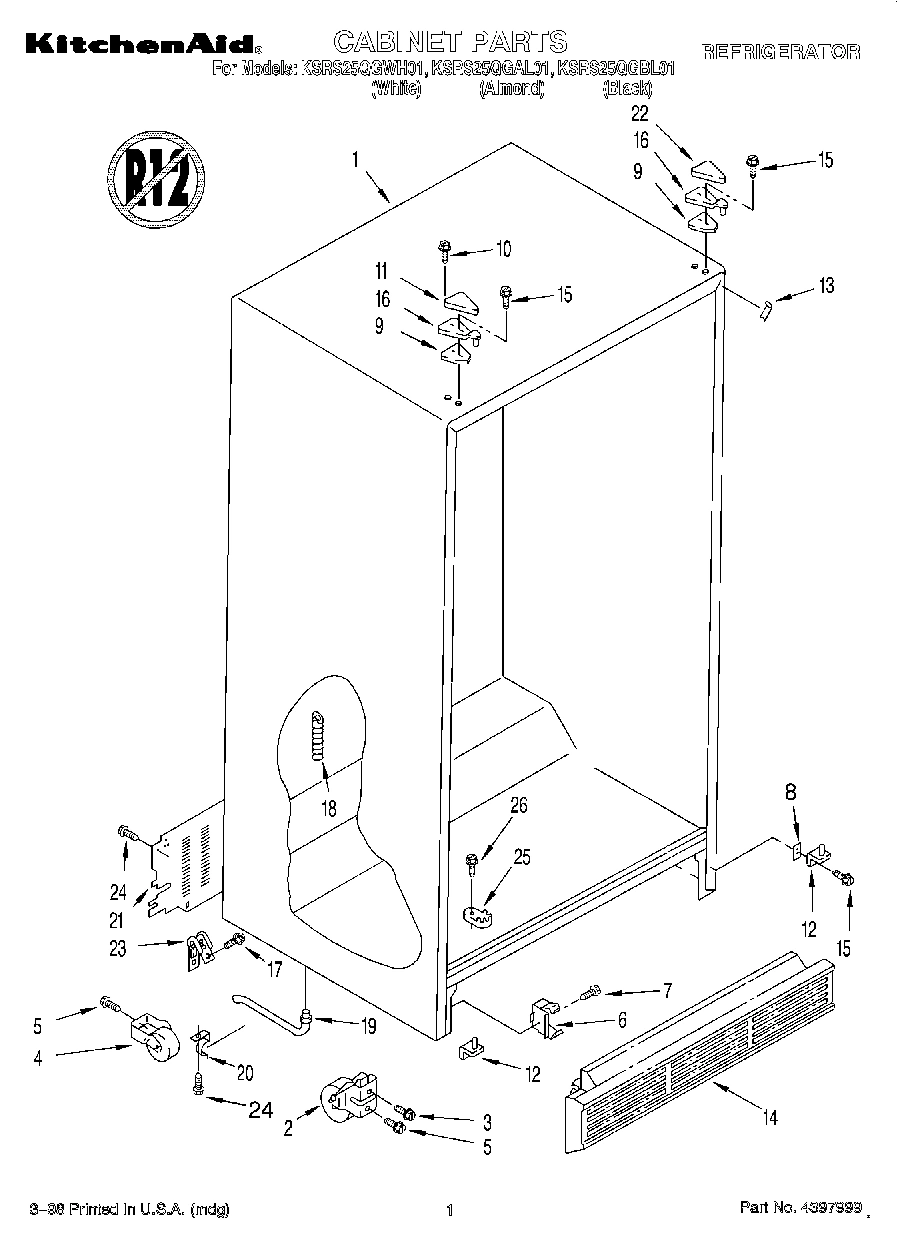

01 - CABINET

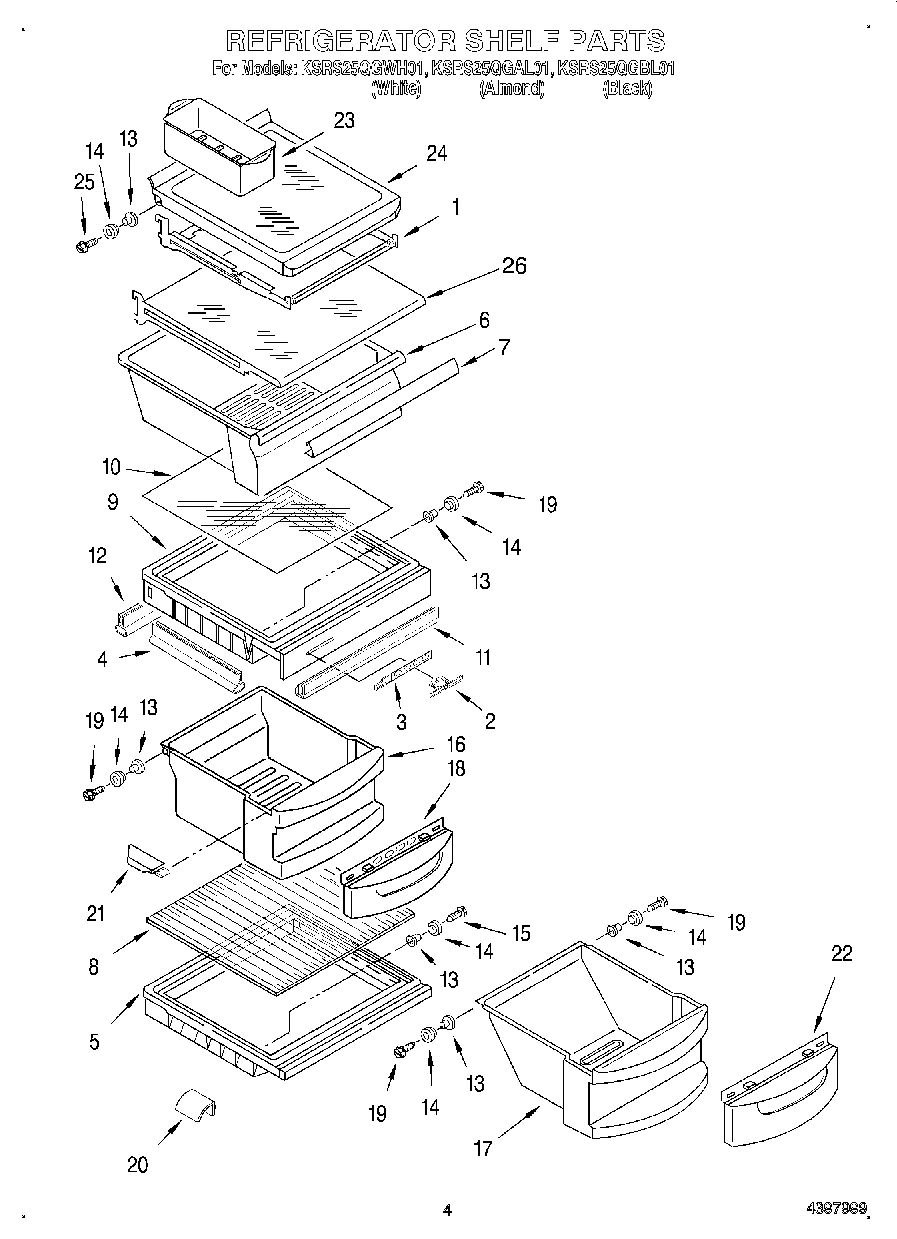

03 - REFRIGERATOR SHELF
08 - DISPENSER FRONT

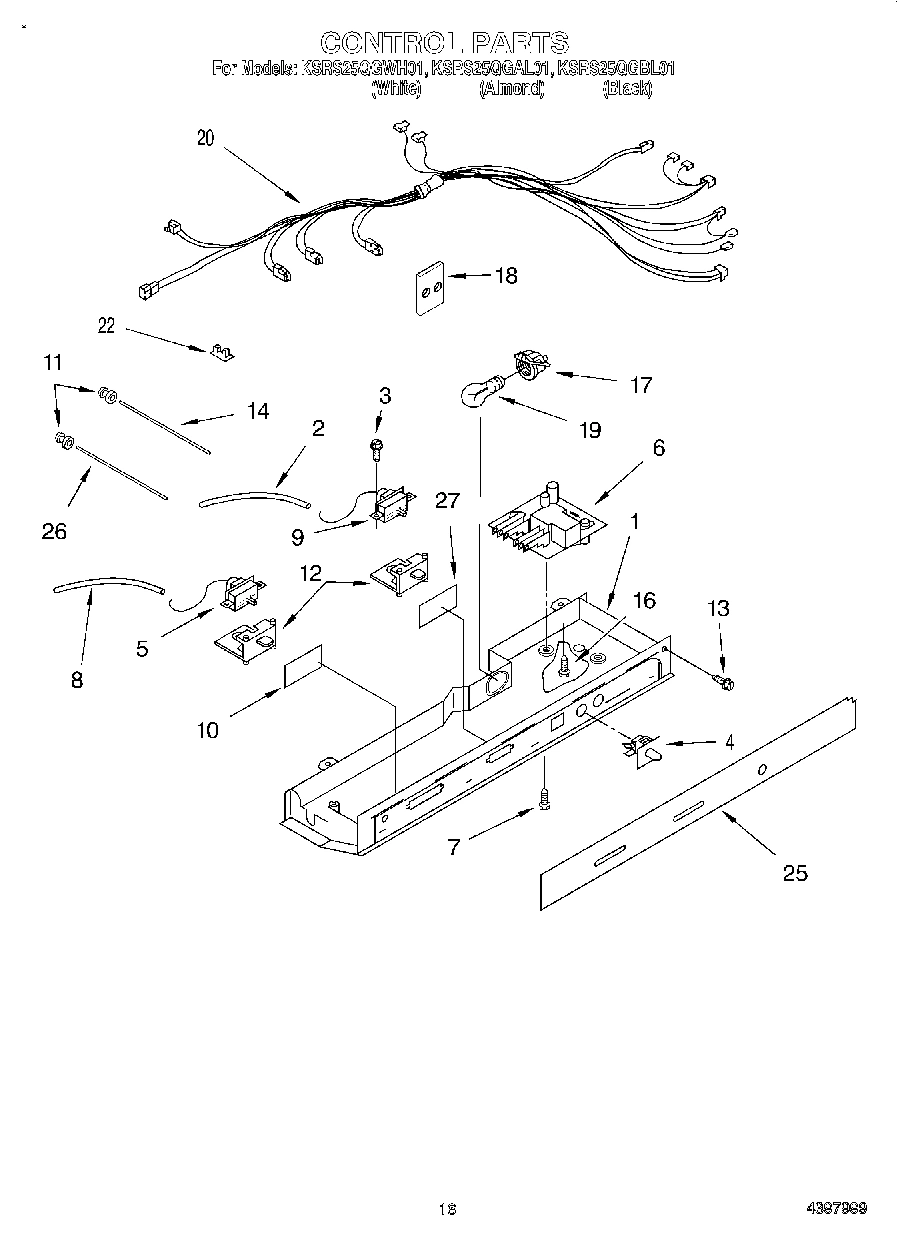

10 - CONTROL

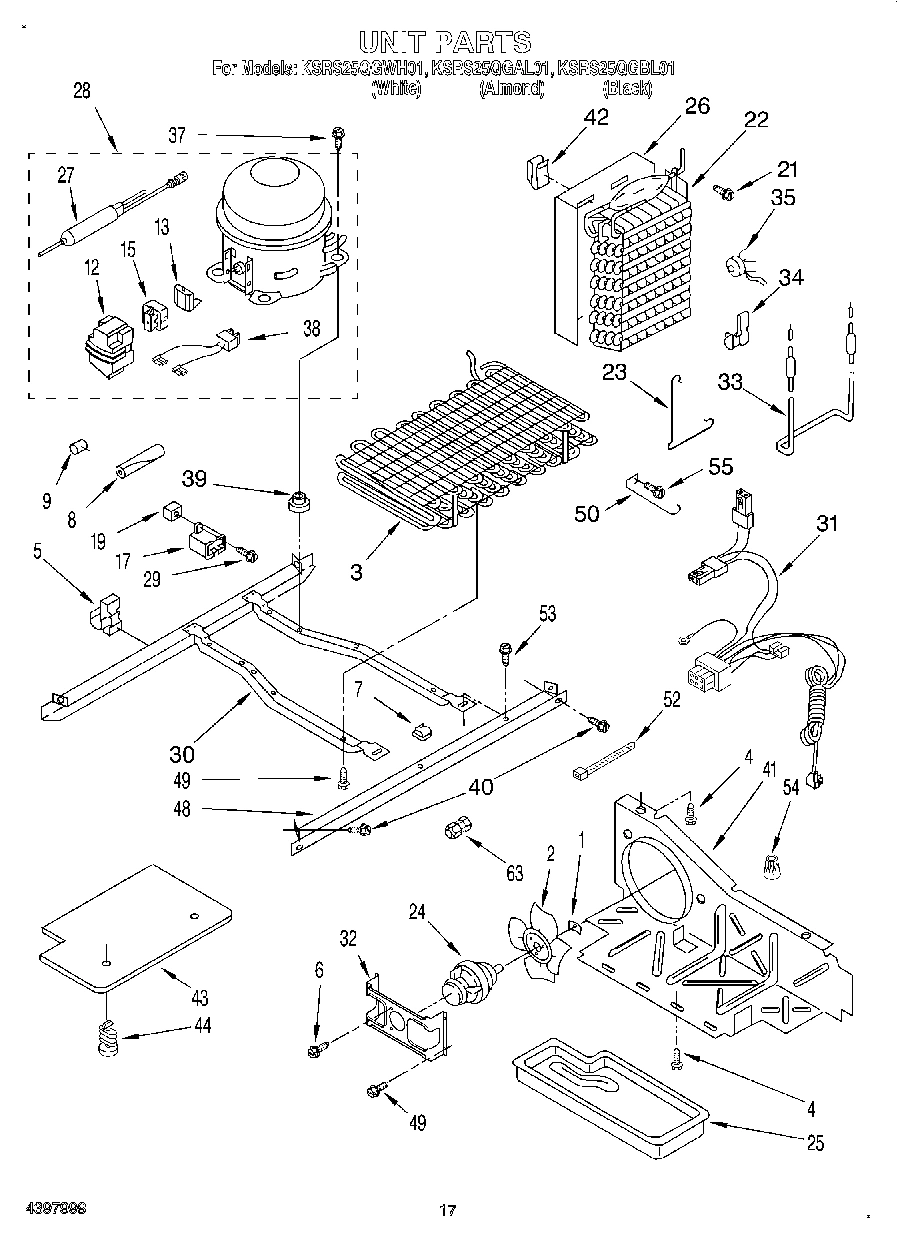

11 - UNIT

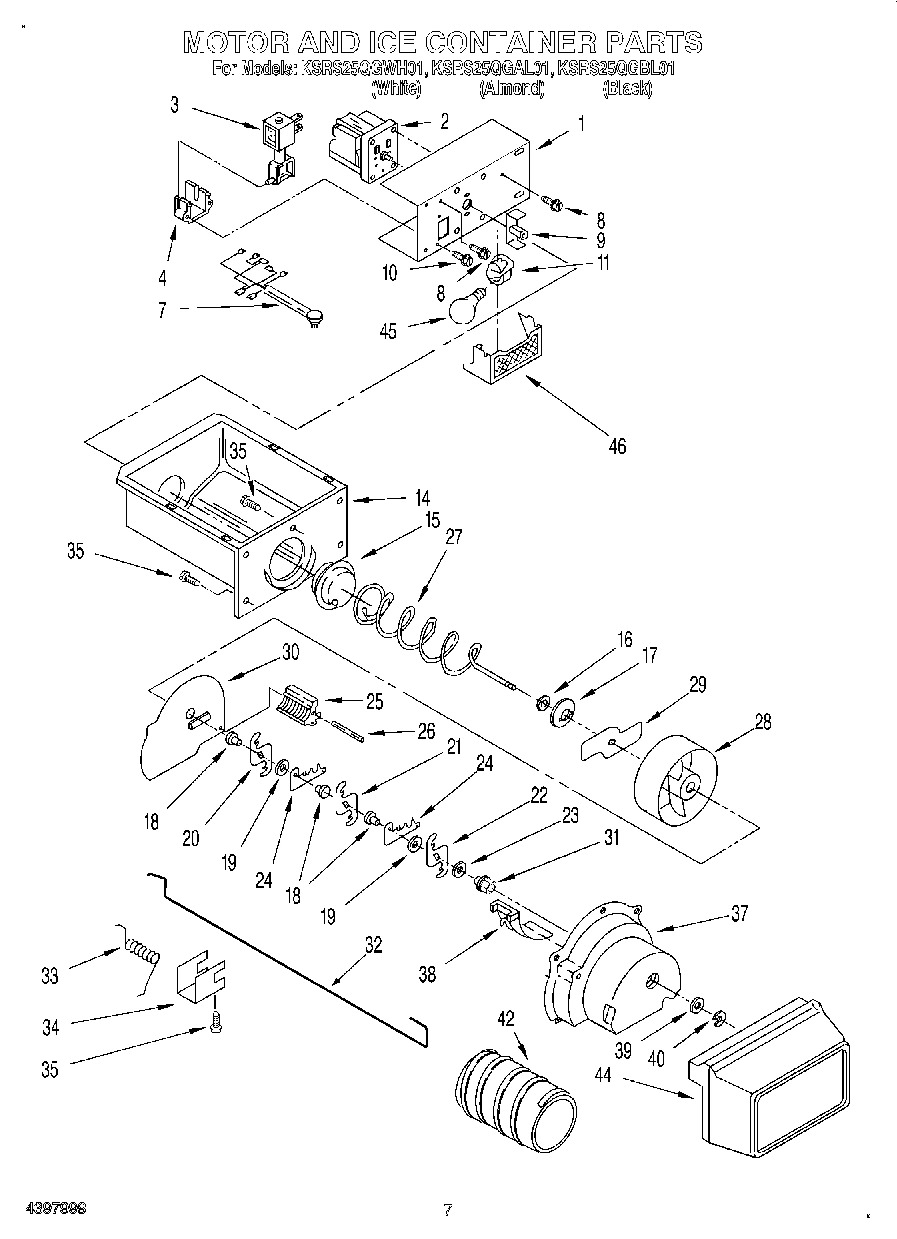

05 - MOTOR AND ICE CONTAINER
06 - REFRIGERATOR DOOR

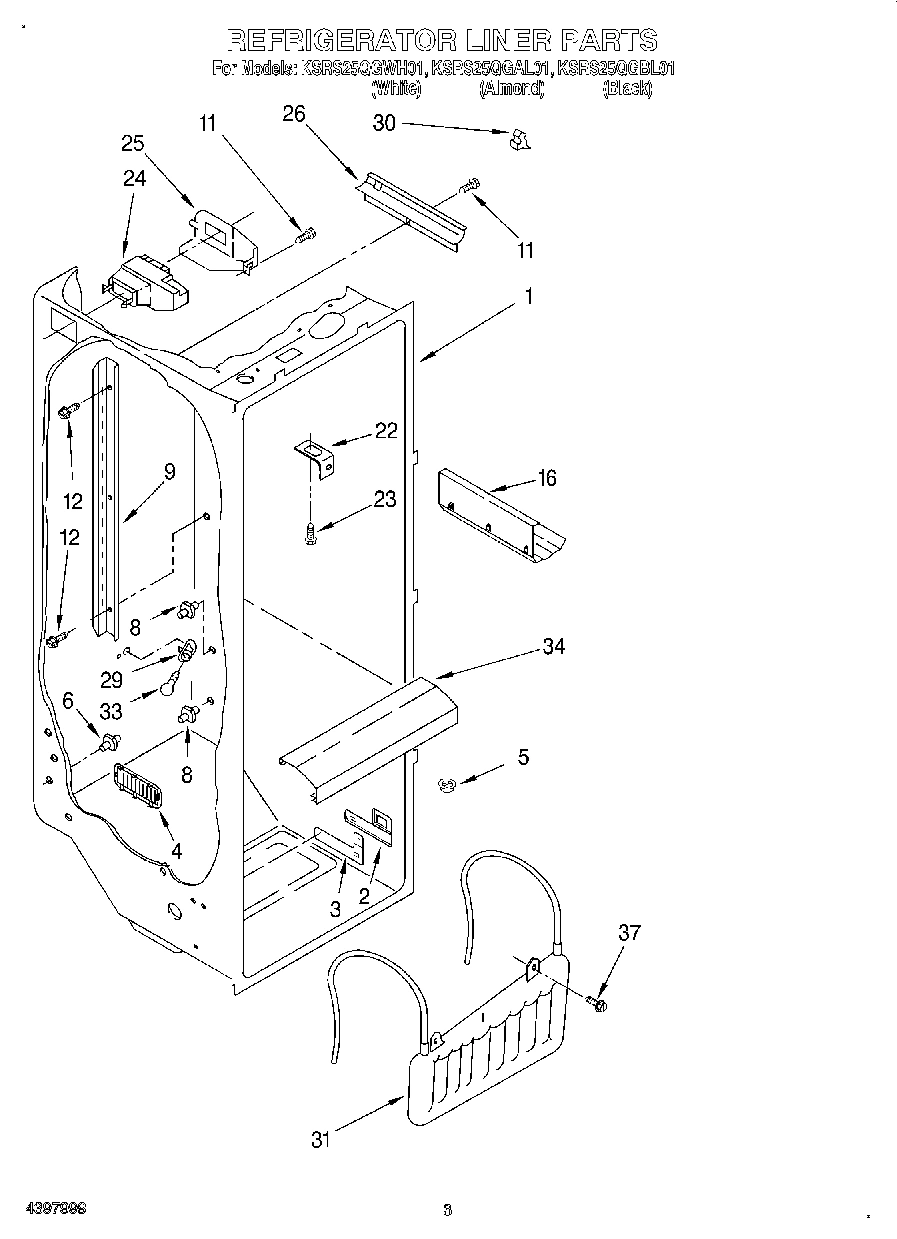

02 - REFRIGERATOR LINER
09 - AIR FLOW

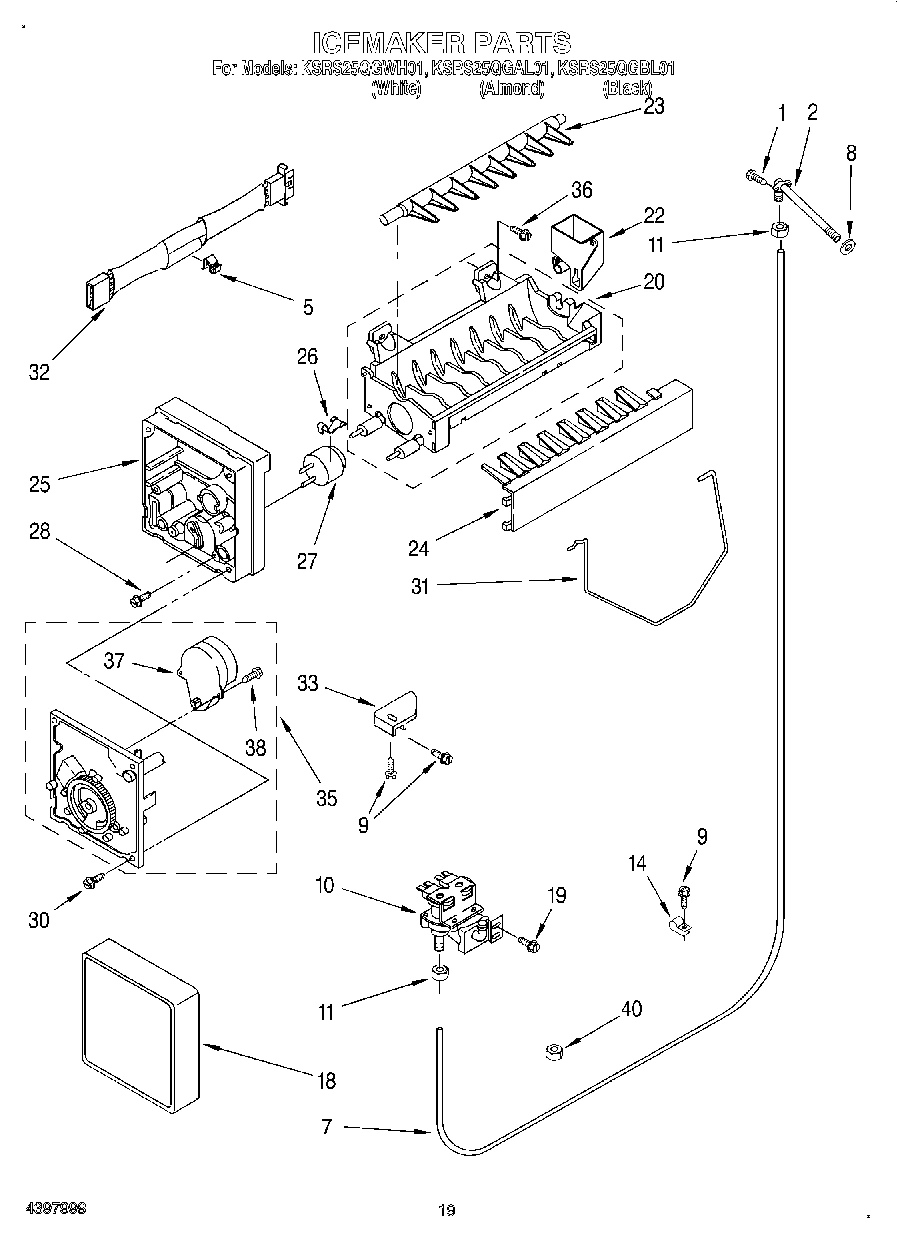

12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool KSRS25QGAL01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186479 WPL LIT2186479 Contact Us For Availability
WPL LIT2186928 WPL LIT2186928 Contact Us For Availability
WPL LIT2196109 WPL LIT2196109 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Black) WPL 2194233B Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194233N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194233W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI102657A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Load Lock WPL 2195497 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Insert, Handle (White) WPL 2173825 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
6
Insert, Handle (Black) WPL 2173829 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
End Cap, Handle (Black) WPL 2194778B Contact Us For Availability
8
End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
10
Retainer, Insert (Black) WPL 2194777B Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability
10
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
14
Grille (Black) WPL 2155485 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
15
Bracket, Door Stop (Chrome) WPL 2195952 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Bracket, Door Stop (Black) WPL 2195950 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
31
Unit, Harness WPL 2194749 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
KIT, WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
