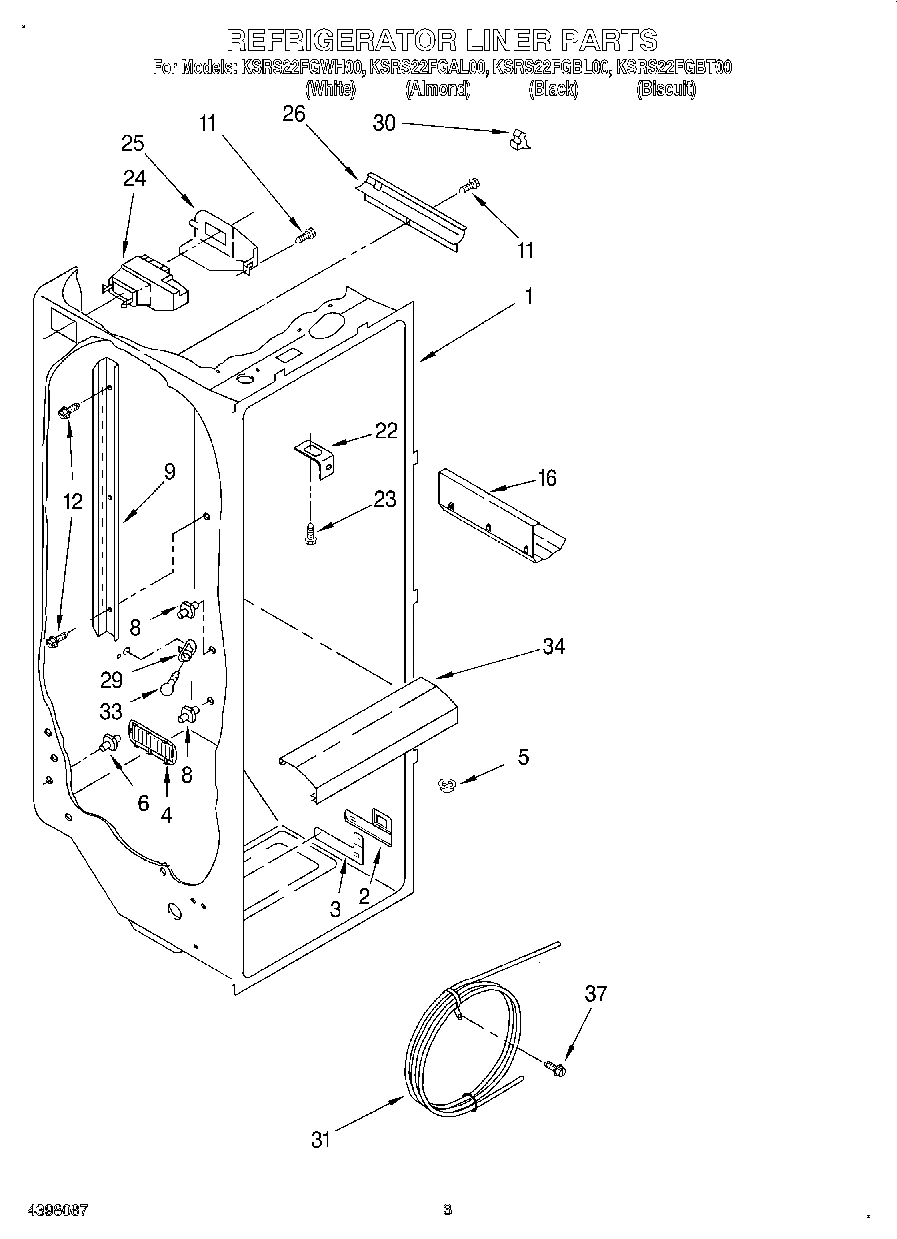

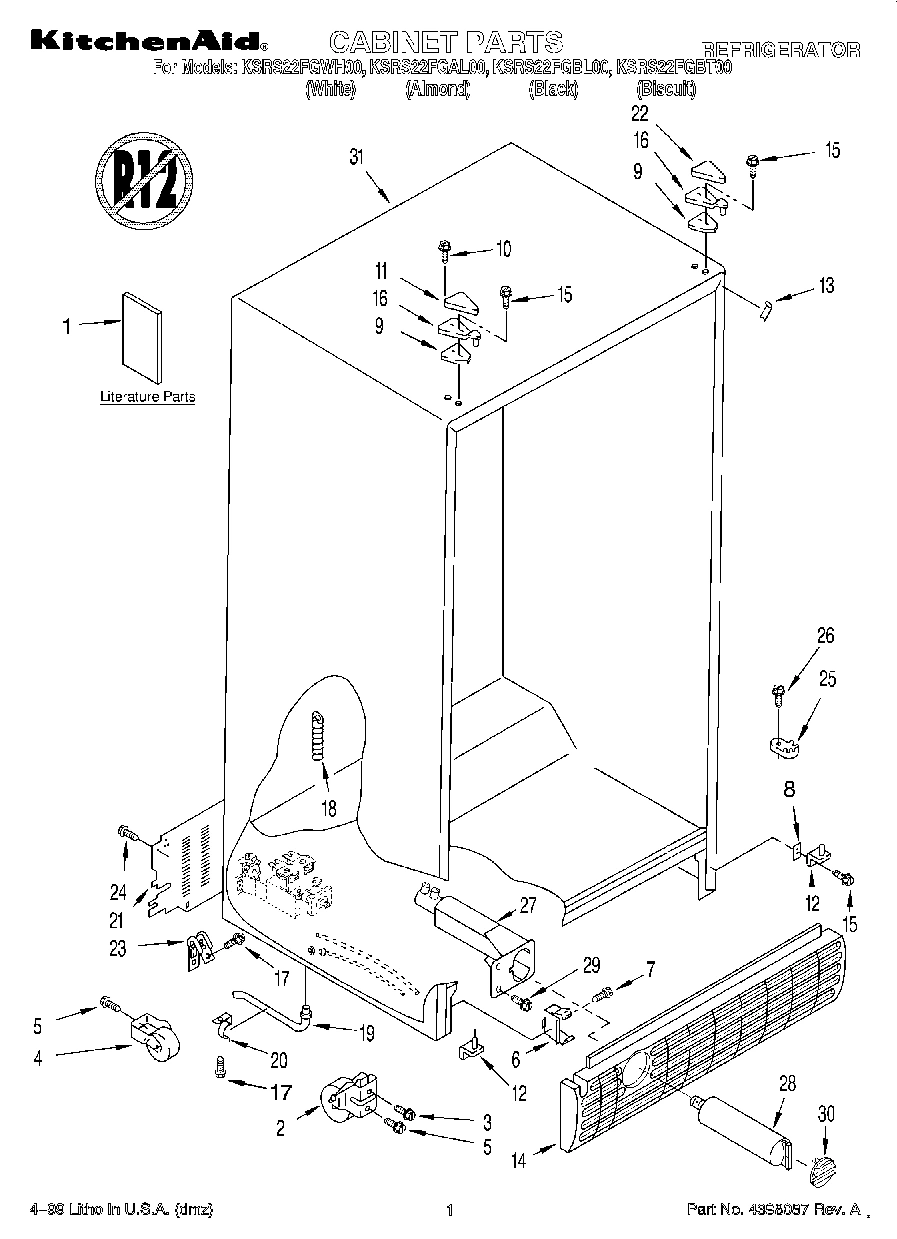

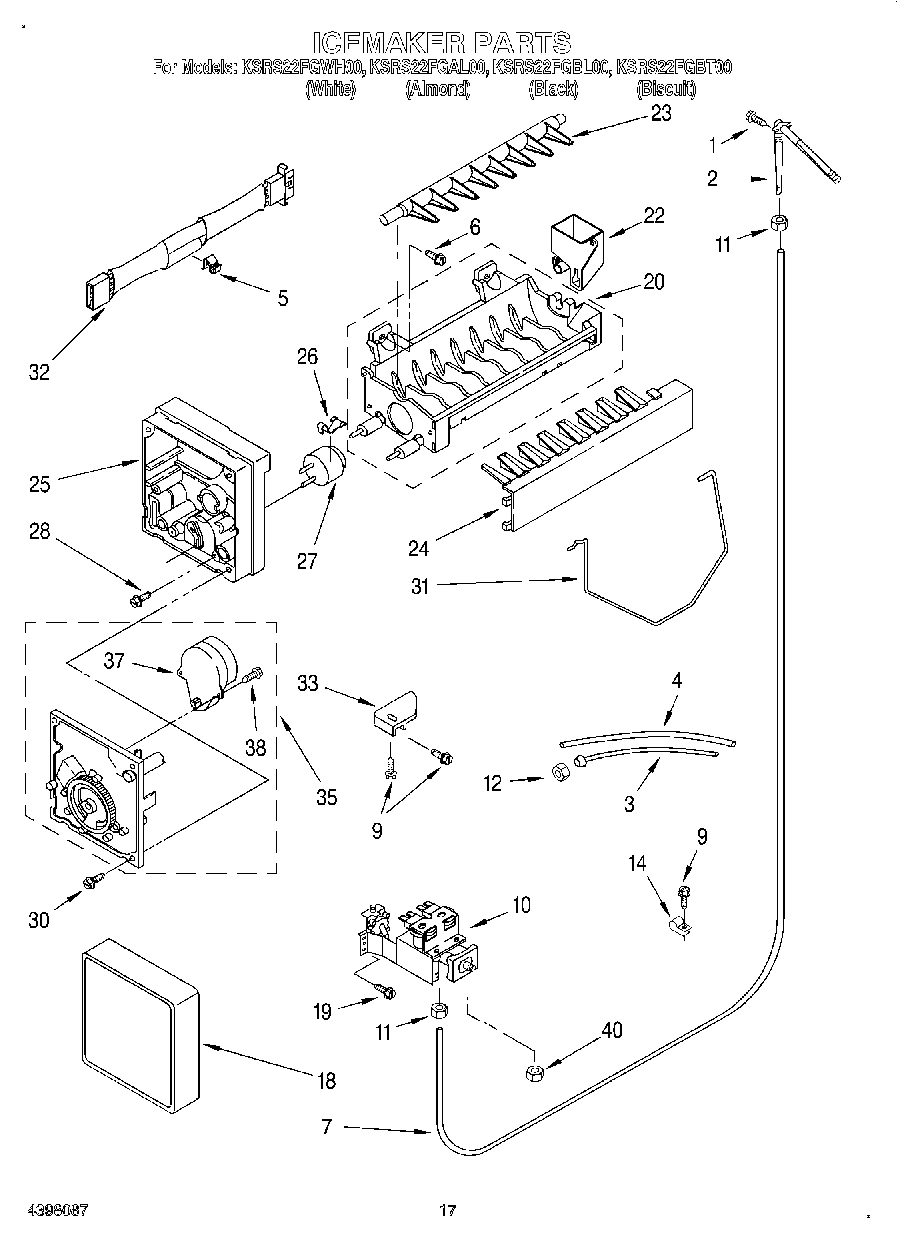

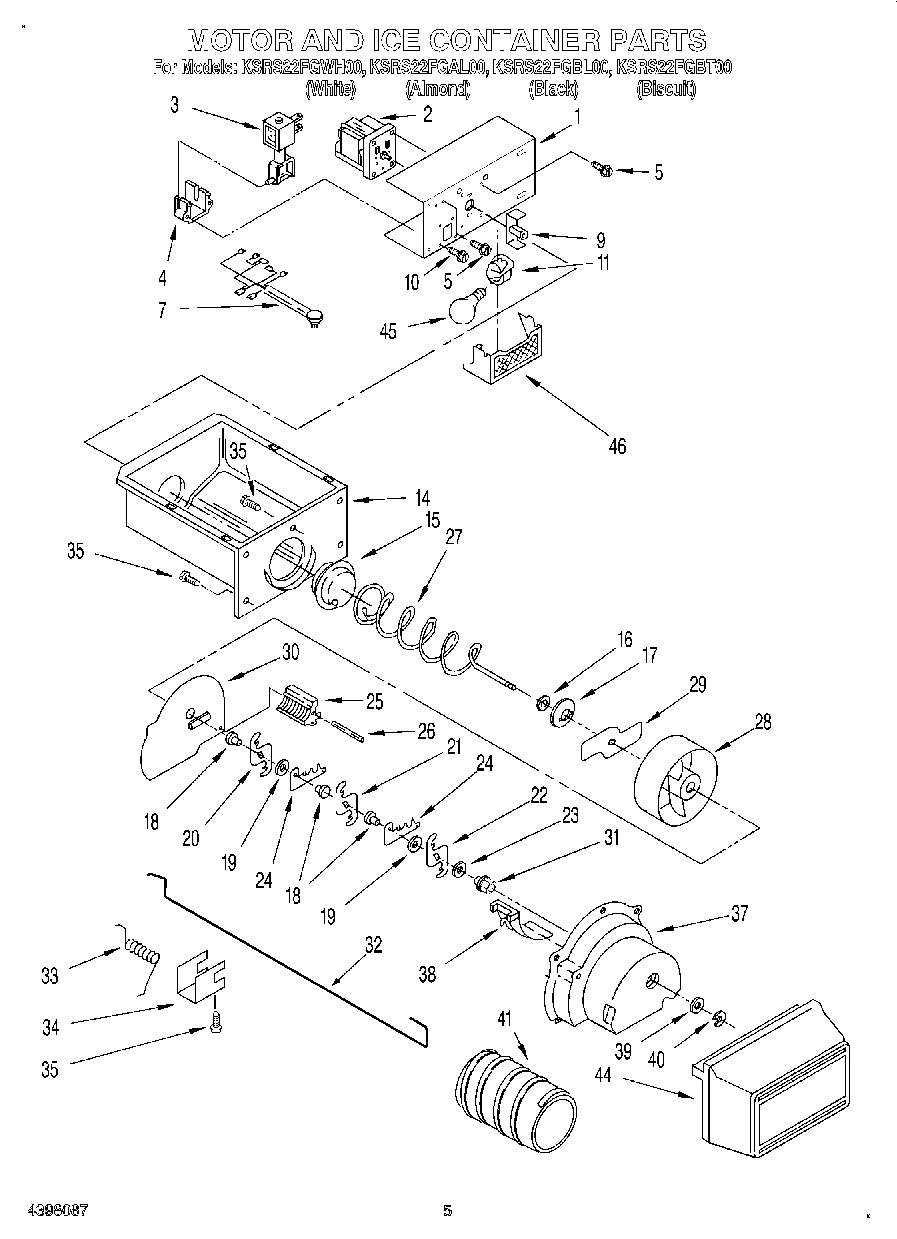

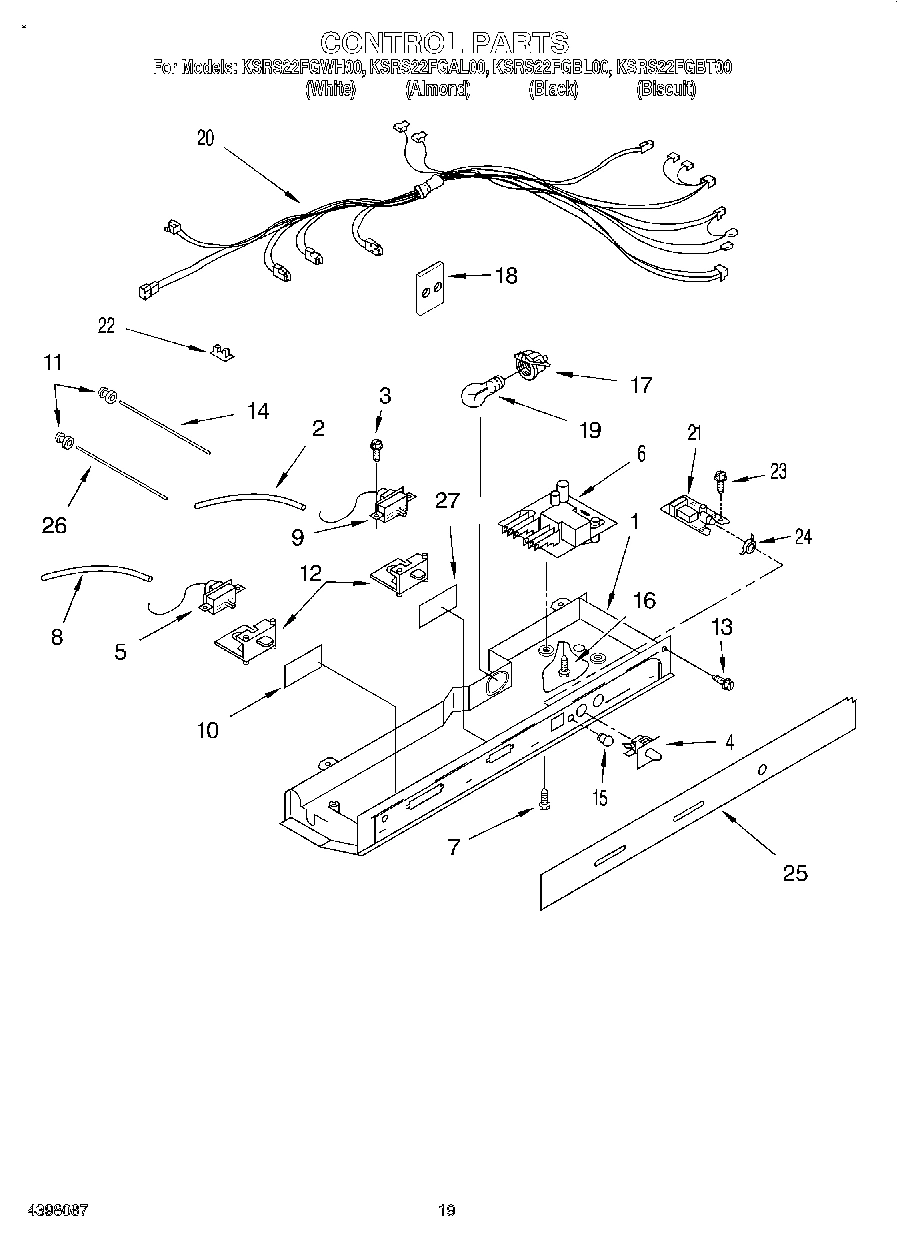

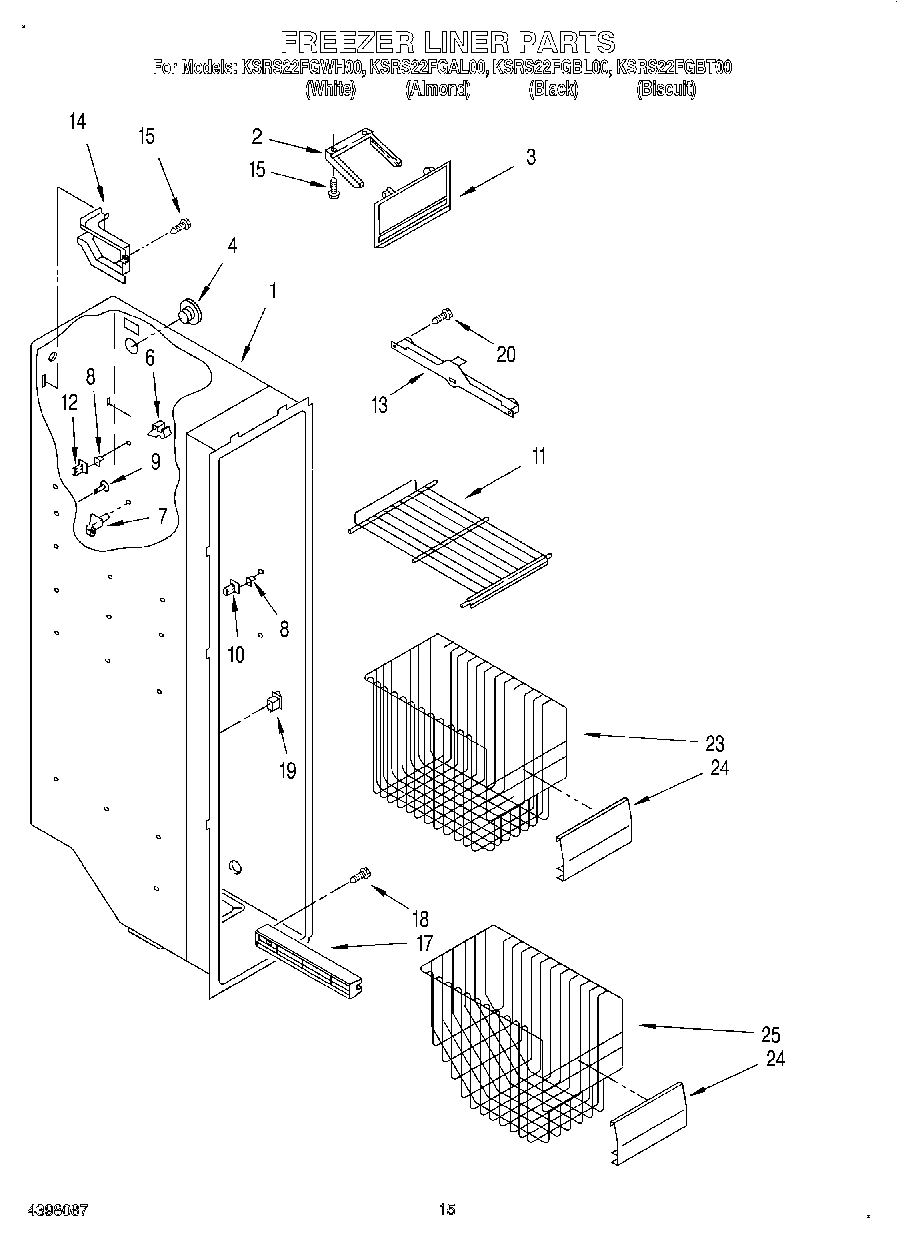

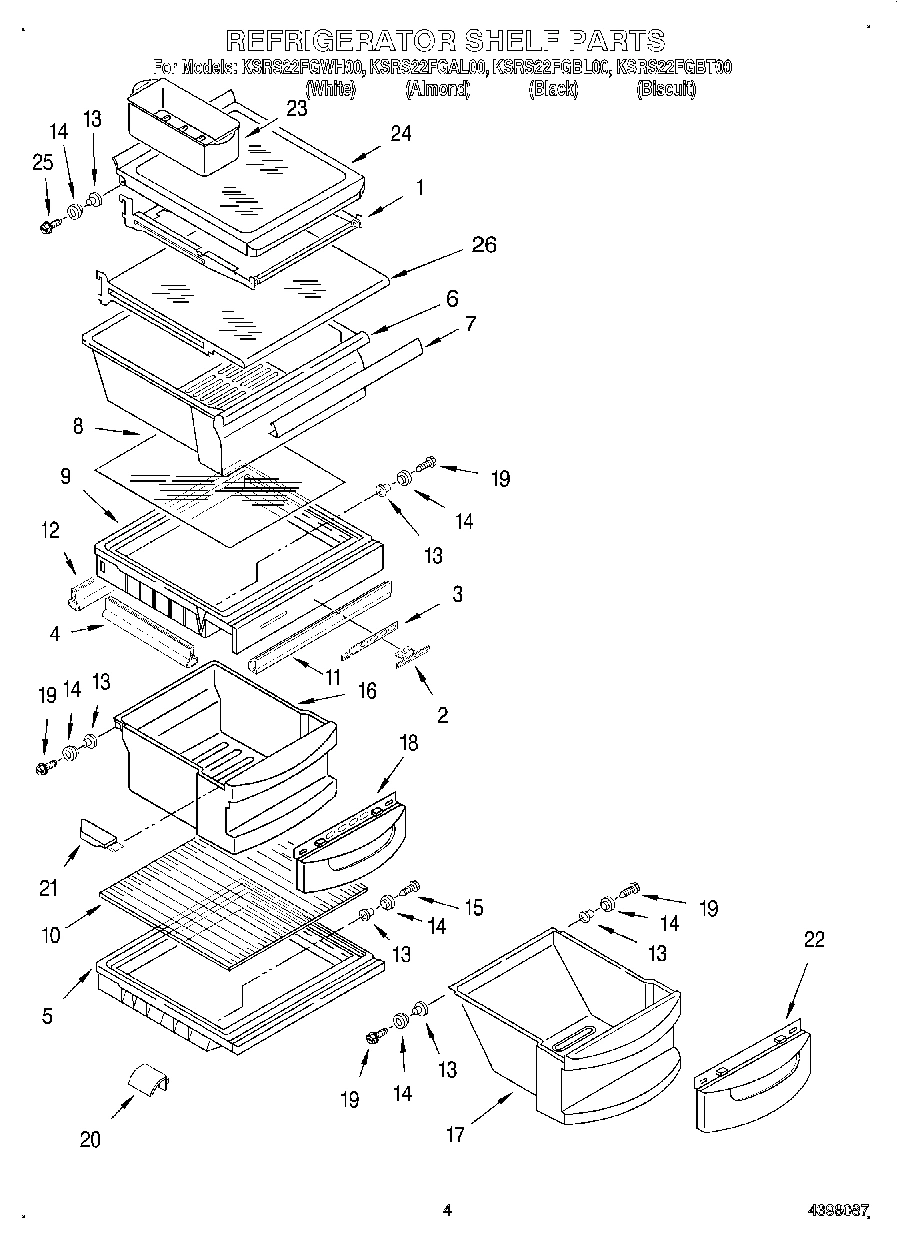

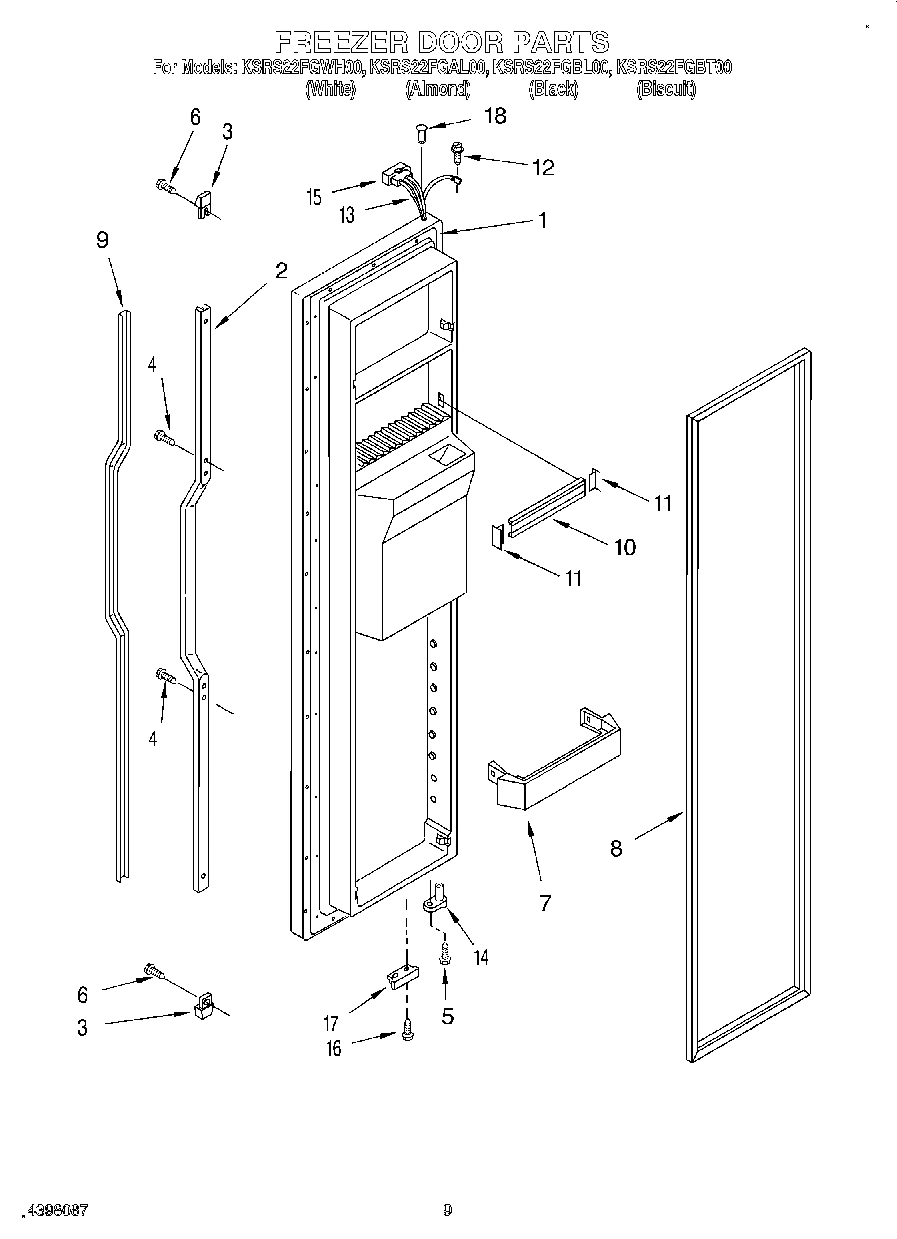

Model Whirlpool KSRS22FGWH00 – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Bracket, Motor WPL 2183728 Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2186518B Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2186518N Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2186518T Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2186518W Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2200139 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2200278 Contact Us For Availability

1

Energy Label WPL LIT2204298 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $166.24

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Retainer, Insert (Black) WPL 2194776B Contact Us For Availability

2

Retainer, Insert (Almond) WPL 2194776N Contact Us For Availability

2

Retainer, Insert (Biscuit) WPL 2194776T Contact Us For Availability

2

Retainer, Insert (White) WPL 2194776W Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $14.90

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

End Cap (2) (Black) WPL 2194778B Contact Us For Availability

3

End Cap (2) (Almond) WPL 2194778N Contact Us For Availability

3

End Cap (2) (Biscuit) WPL 2194778T Contact Us For Availability

3

End Cap (2) (White) WPL 2194778W Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $82.14

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

7

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

7

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

7

Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability

7

Shelf Bin (4) WPL 2171071 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

Support, Stud (2) WPL 946355 Contact Us For Availability

8

Glass, Cover WPL 2189526 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $40.99

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (4) WPL 2176134 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Insert, Handle (White) WPL 2173830 Contact Us For Availability

9

Insert, Handle (Almond) WPL 2173831 Contact Us For Availability

9

Insert, Handle (Black) WPL 2173832 Contact Us For Availability

9

Insert, Handle (Biscuit) WPL 2200434 Contact Us For Availability

9

Shim, Hinge Top WPL 2196048 Contact Us For Availability

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Stud, Front WPL 946356 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

Glass, Cover WPL 2174148 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $113.37

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

Hinge Cover (Black) WPL 2151694 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $43.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Stud, Rear WPL 1106982 Contact Us For Availability

Nut, Compression WPL 2200083 Contact Us For Availability

Gasket, (Rear) WPL 2174274 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Wire Harness WPL 2198272 Contact Us For Availability

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $58.14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

Roller WPL 2174388 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $133.84

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Stop, Cone WPL 1118480 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability

Feeder Cone WPL 1119074 Contact Us For Availability

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Window, Crisper WPL 2174076 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $30.25

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $68.58

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Basket, Upper WPL 2181761 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

NLA:SCREW Backorder WPL WPW10141645 $3.70

Front, Basket WPL 2171768 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Basket, Lower WPL 2181762 Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Shelf, Snack Pan WPL 2198277 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

28

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $57.55

29

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Cap, Water Filter (Almond) WPL 2186884N Contact Us For Availability

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

Cabinet (Not A Serviceable Part) WPL ARI100844A Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2174436 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $86.61

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
