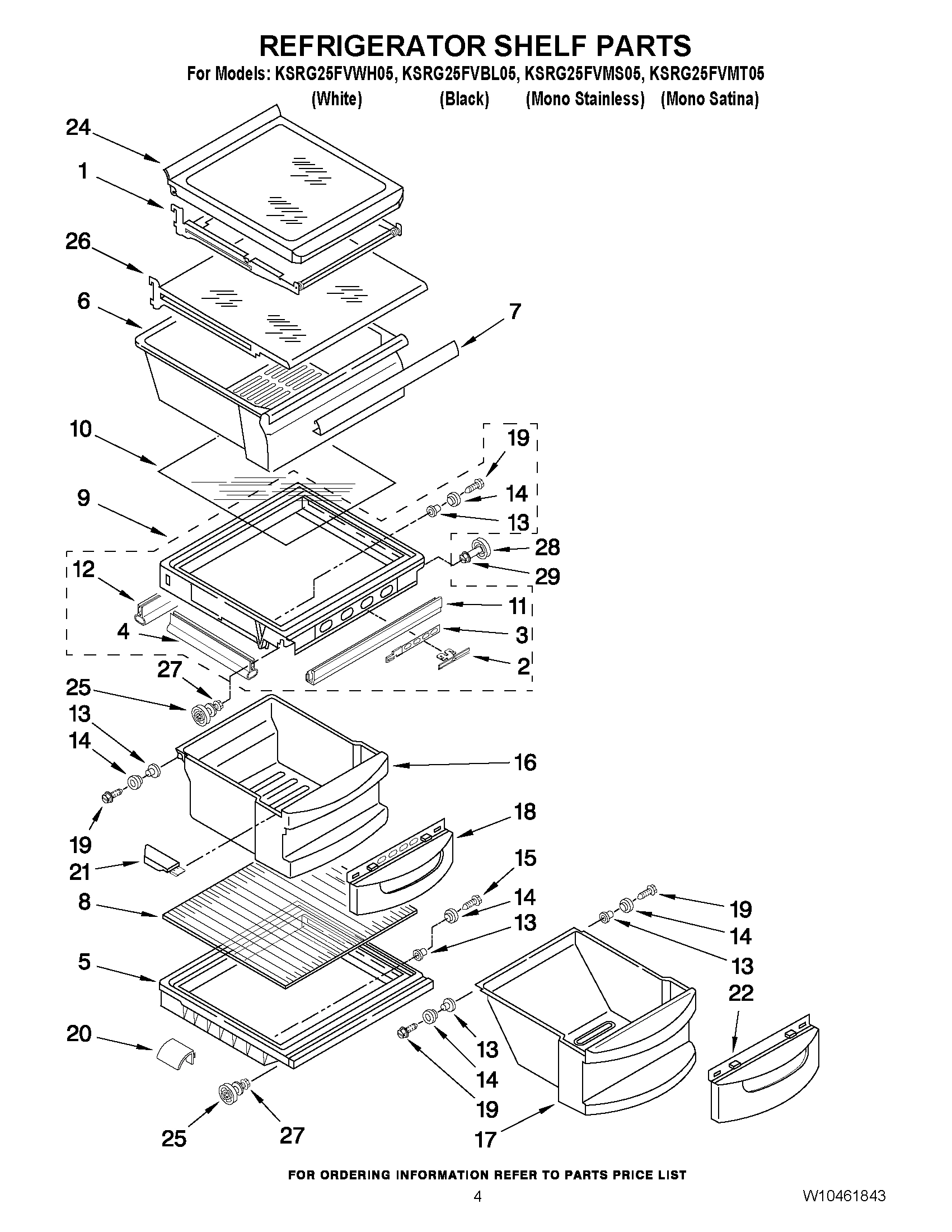

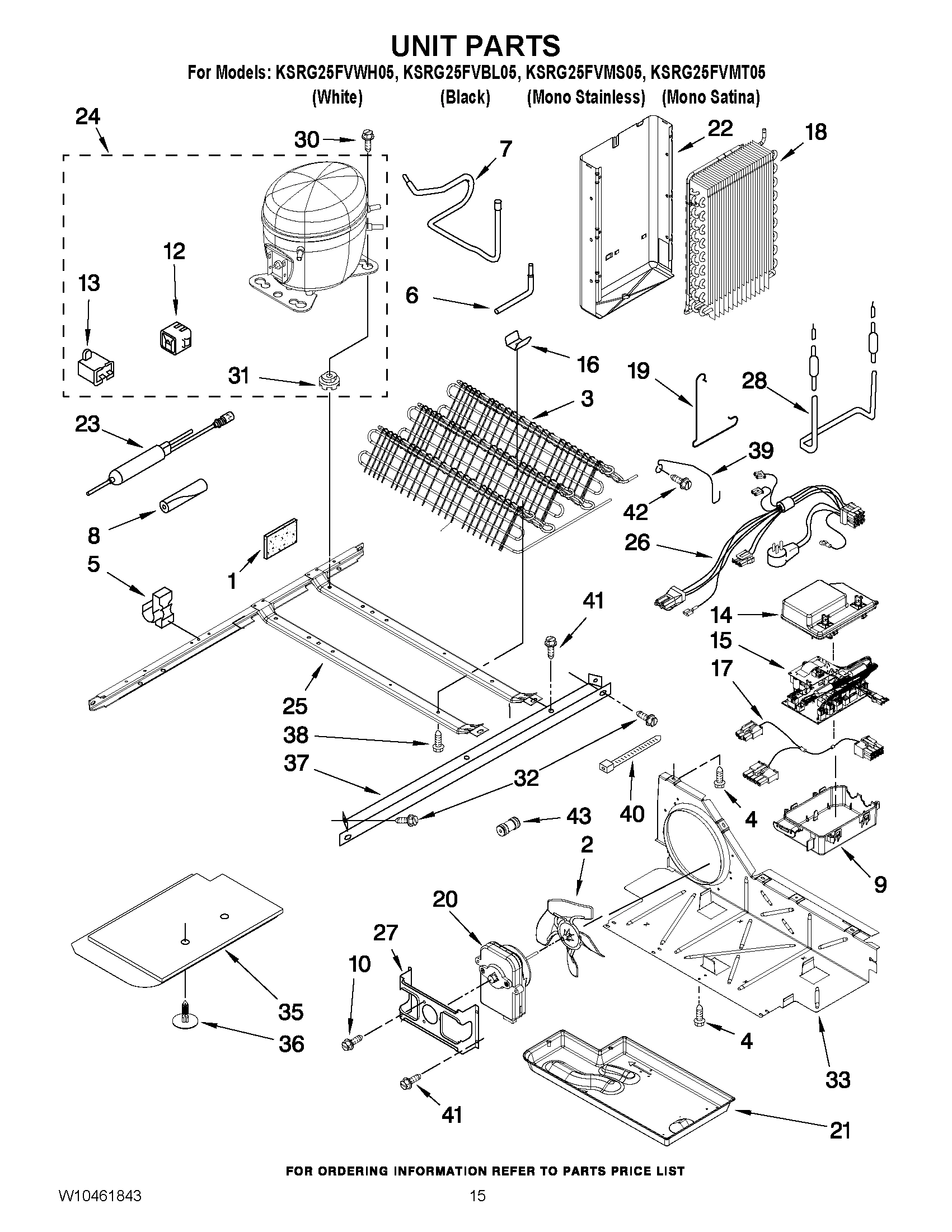

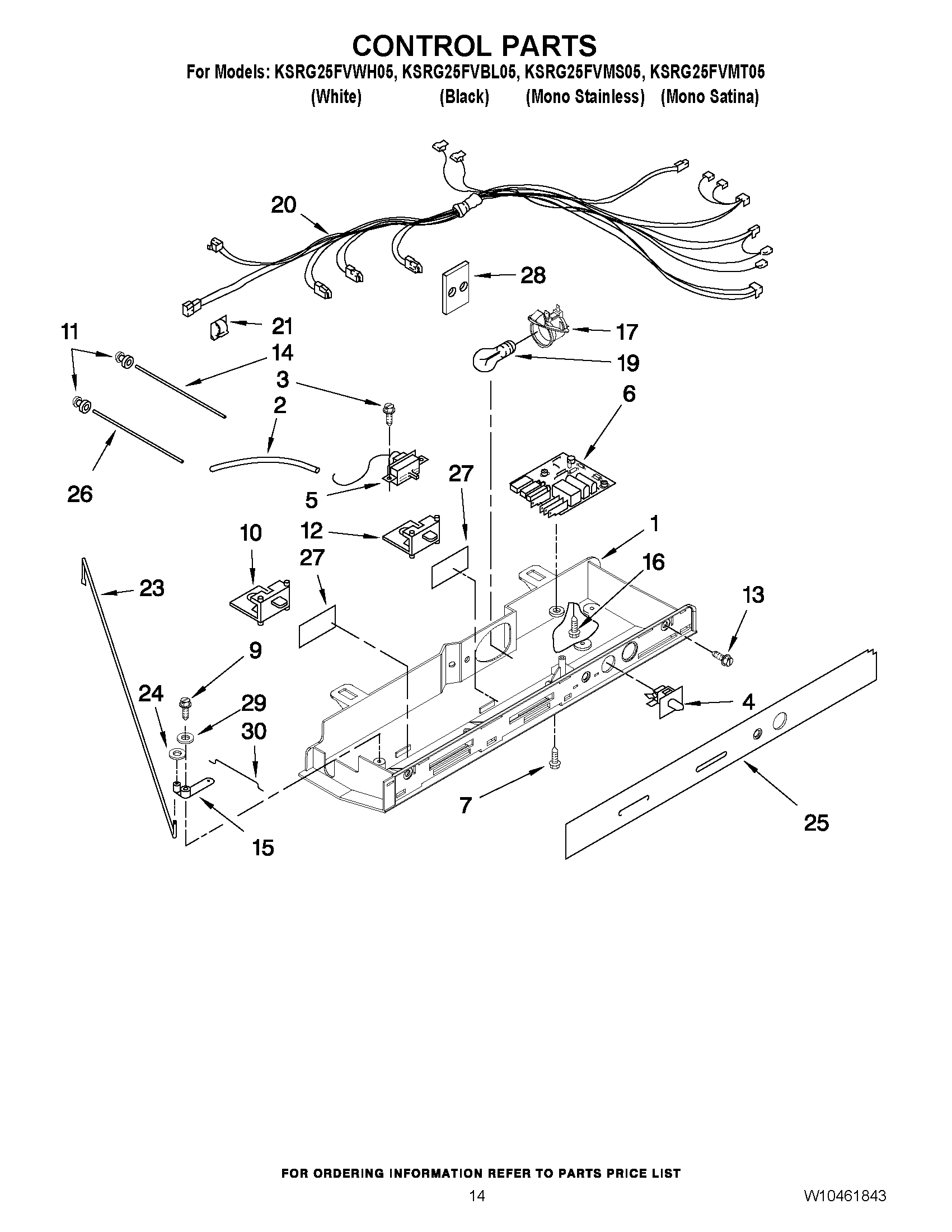

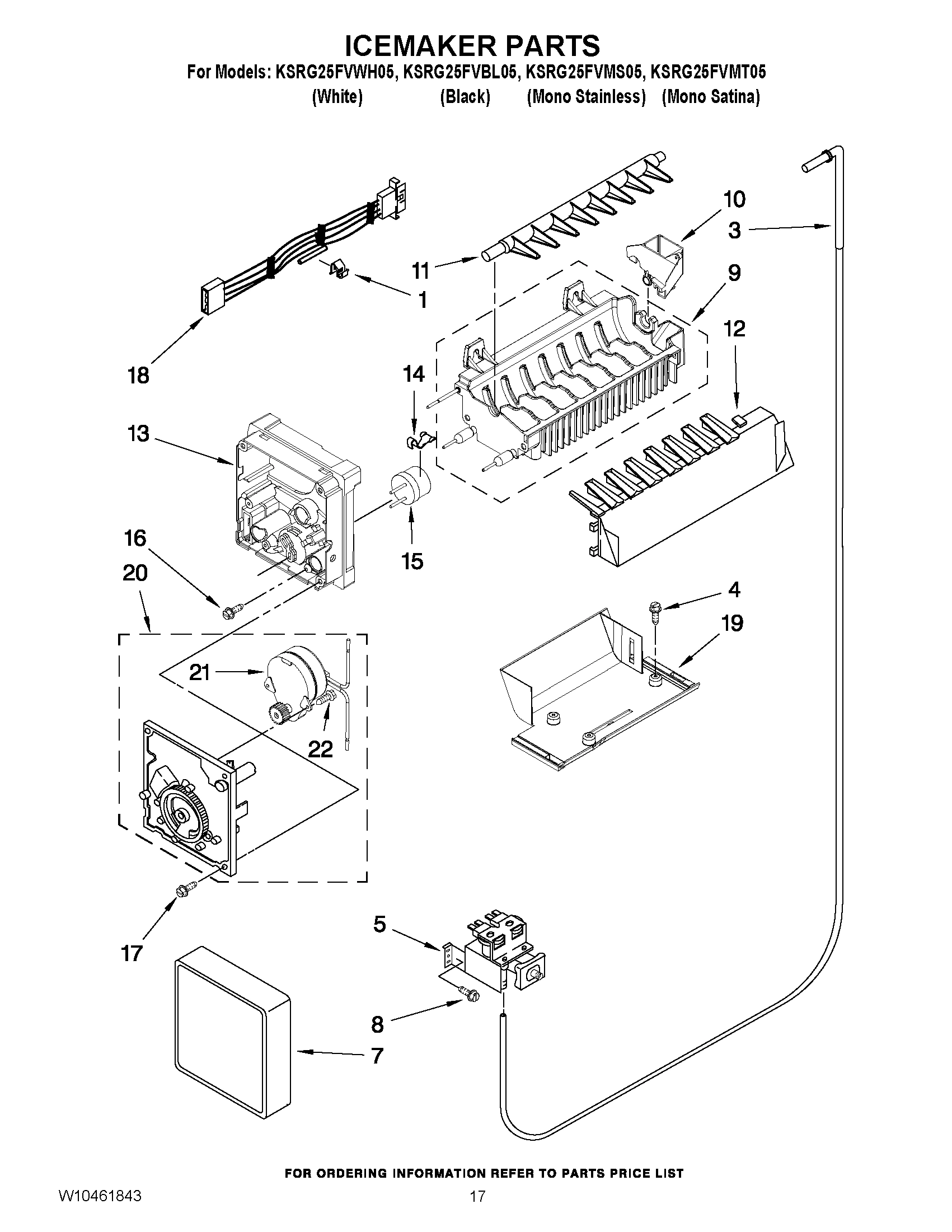

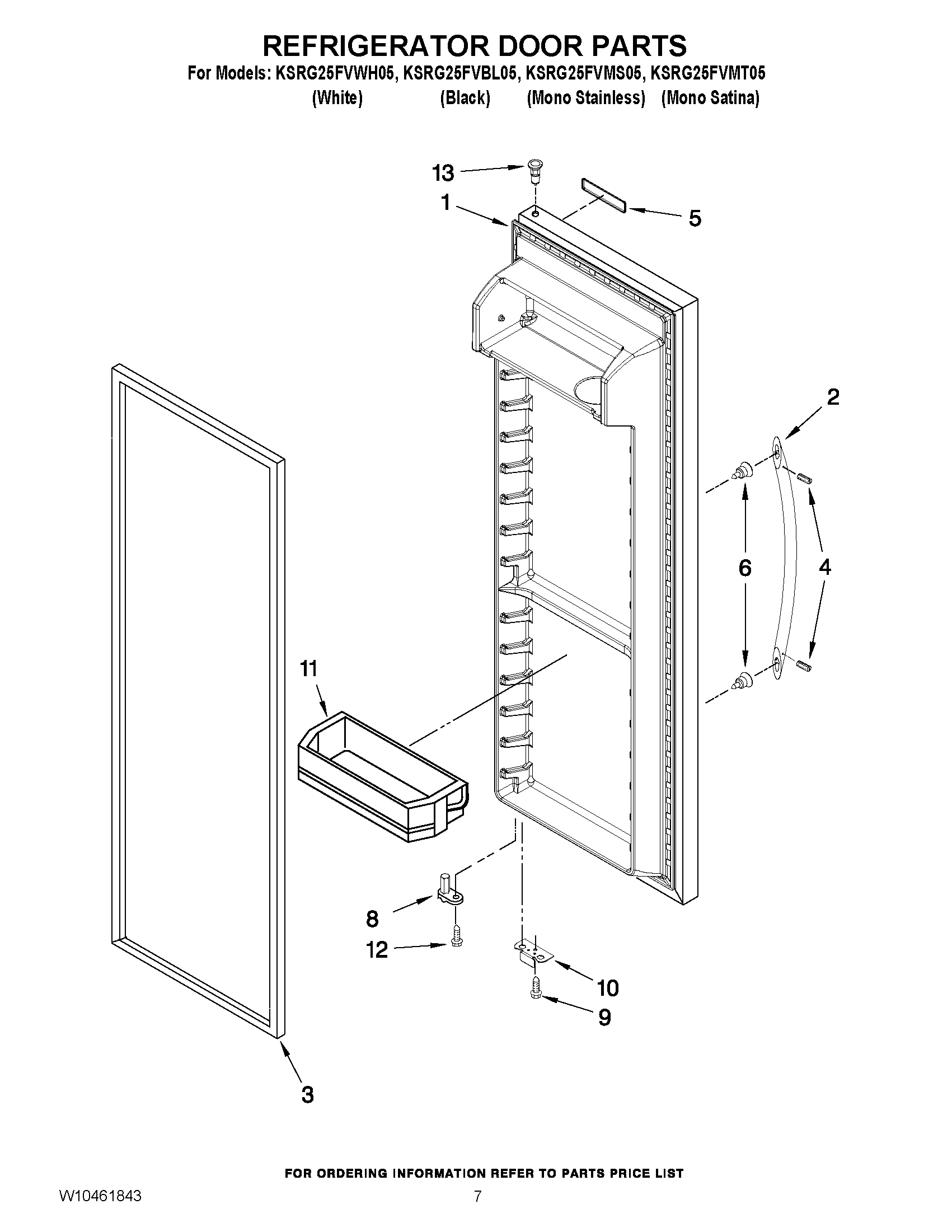

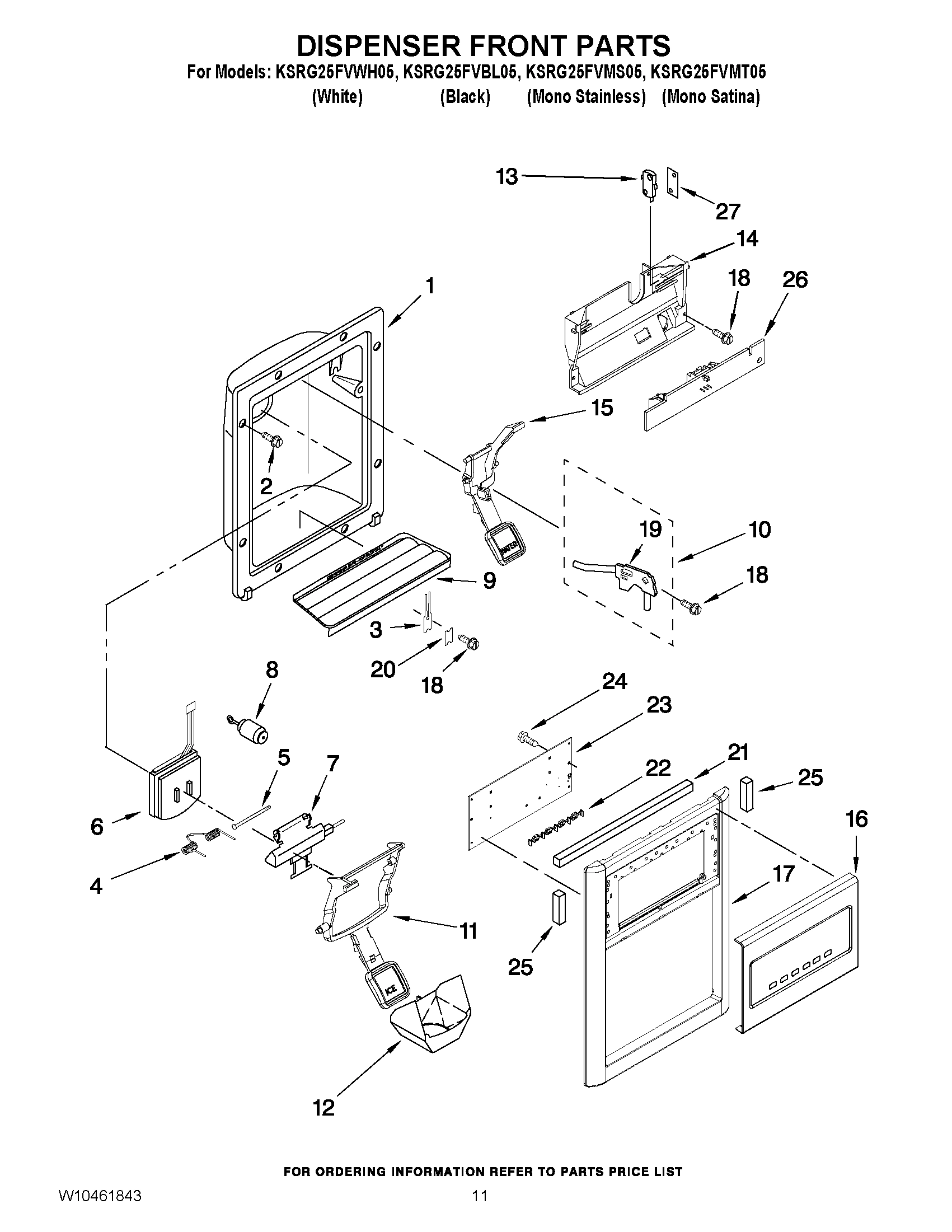

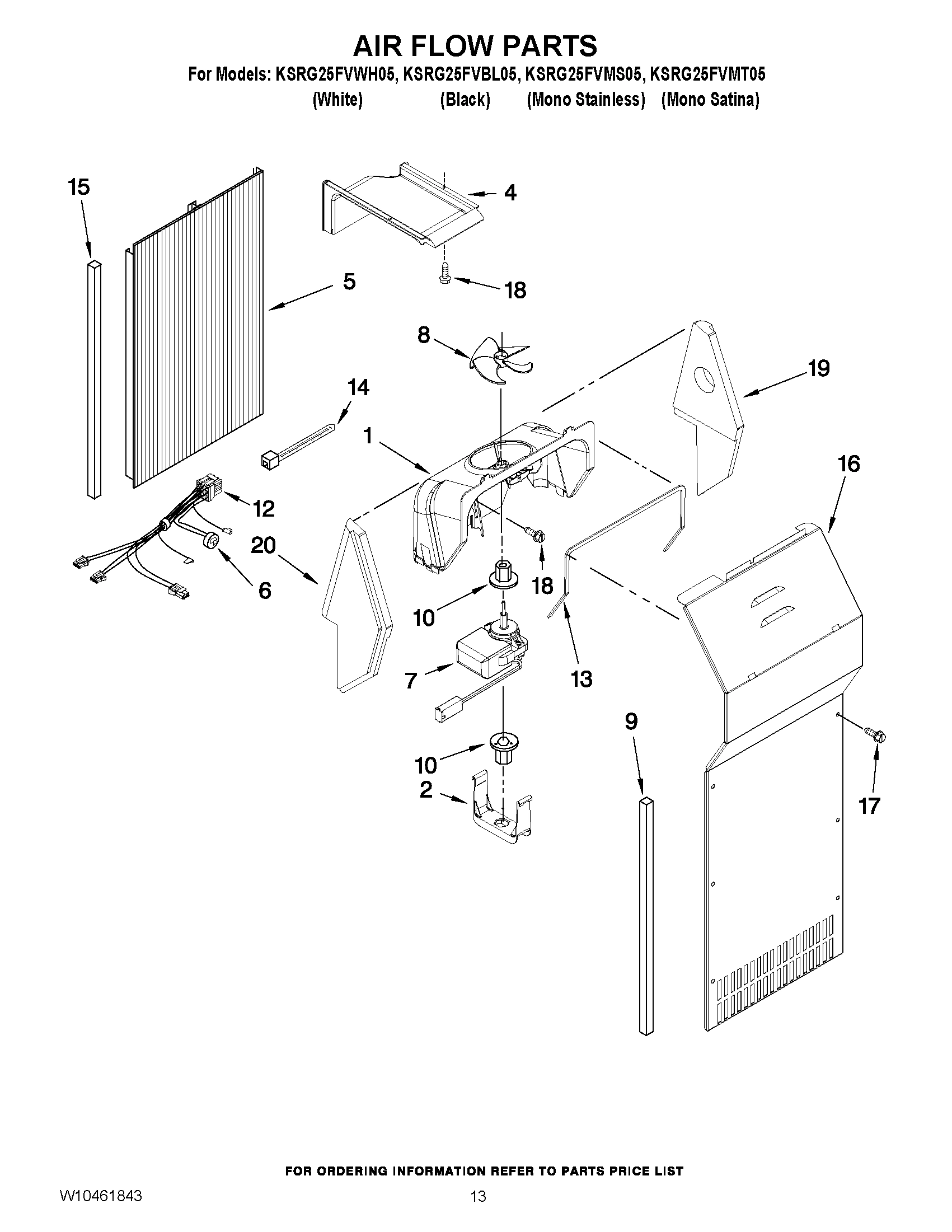

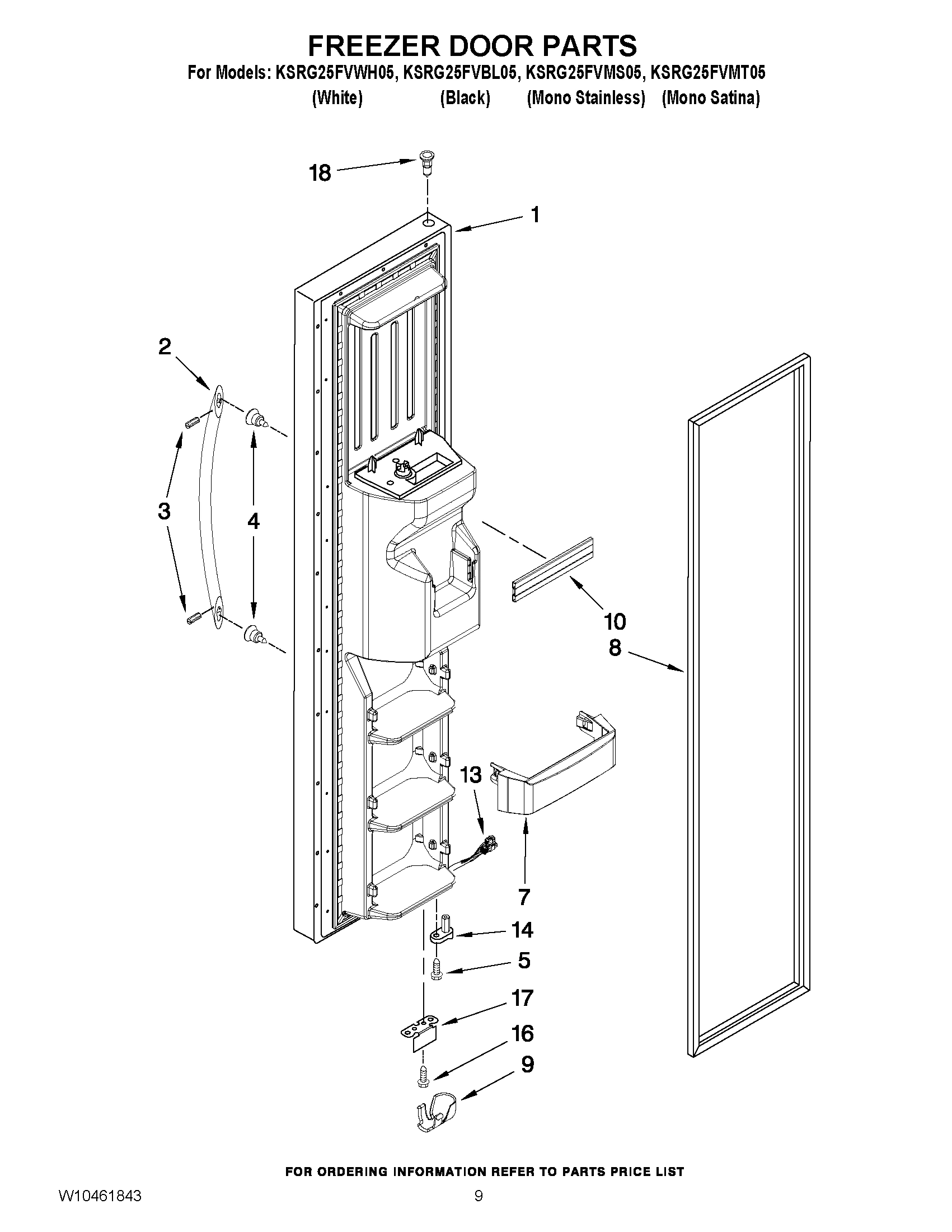

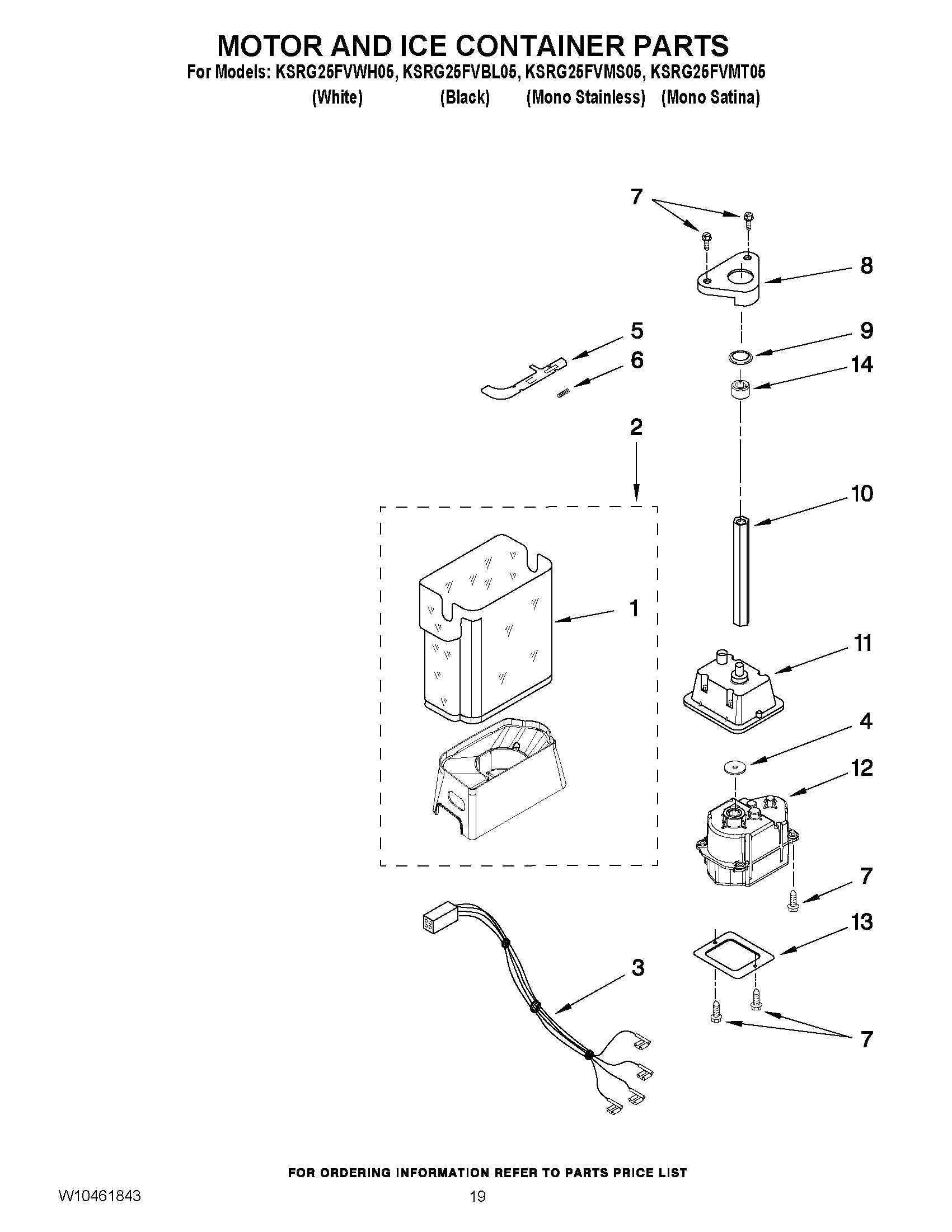

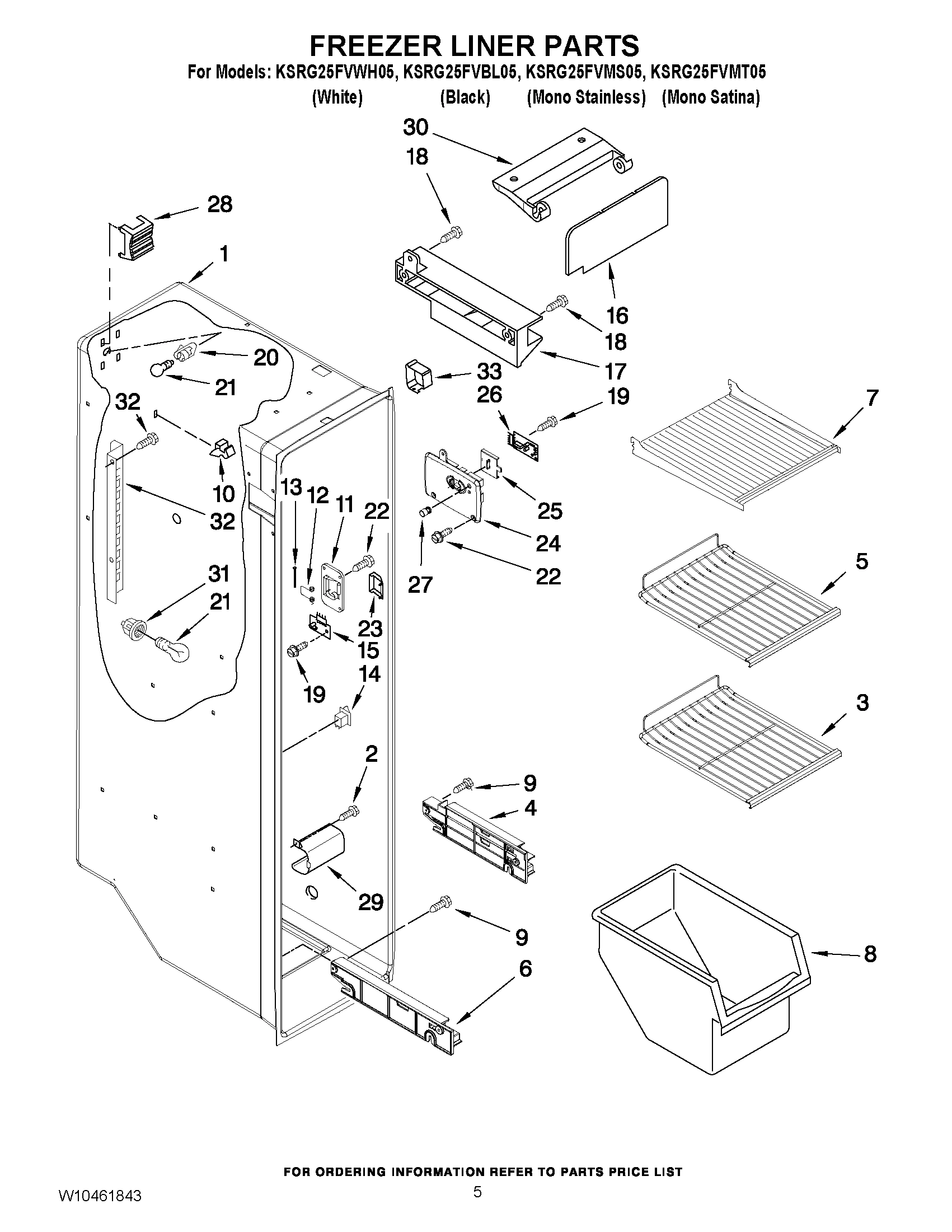

Model Whirlpool KSRG25FVWH05 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $137.43

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

1

REFRIGERATOR DOOR (INCLUDES No.3) (MONO SATIN WPL 2301184LAP Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.3) (BLACK) WPL 2313299B Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.3) (WHITE) WPL 2313299W Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.3) (MONO STAIN WPL W10318336 Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10214271B Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10214271LG Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10214271W Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10318285 Contact Us For Availability

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $8.42

2

Handle (Stainless) WPL 2319727S Contact Us For Availability

2

Handle (Black) WPL 2319727B Contact Us For Availability

2

Handle (White) WPL 2319727W Contact Us For Availability

3

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

3

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

3

W10281266 Whirlpool Refrigerator Wire Harness Backorder WPL W10281266 $8.89

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WPW10136734 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10136734 $121.32

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Tube, Water WPL 2303216 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

WPW10254073 Whirlpool Refrigerator Washer Backorder WPL WPW10254073 $4.15

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $170.79

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

5

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

5

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $28.26

5

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

5

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

5

Latch, Bin WPL 2317277 Contact Us For Availability

5

Ladder, Shelf WPL 2319866 Contact Us For Availability

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

TRACK, BASKET (RH) WPL 2301289 Contact Us For Availability

6

TRACK, BASKET (LH) WPL 2301290 Contact Us For Availability

7

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $33.53

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $138.30

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $147.90

8

W10136735 Whirlpool Refrigerator Door Gasket In Stock WPL W10136735 $123.48

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

8

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

8

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $29.85

9

W10242649 Whirlpool Refrigerator Door Hinge Backorder WPL W10242649 $35.25

9

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

9

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

9

COVER, CRISPER PAN ASSY (INCLUDES 2, 3,4,11,1 WPL W10160318 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $44.36

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $32.15

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

BRACKET, DOOR STOP (CHROME) WPL W10219811 Contact Us For Availability

BRACKET, DOOR STOP (BLACK) WPL W10219812 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $59.15

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $35.83

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

Enclosure, Motor WPL 2322488 Contact Us For Availability

DOOR BIN WPL W10169669 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W11225843 Whirlpool Refrigerator Wire Harness Backorder WPL W11225843 $64.74

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $67.68

WPW10272161 Whirlpool Refrigerator Stripper A Backorder WPL WPW10272161 $31.09

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WPW10193328 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10193328 $58.46

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $62.77

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

ELEC CONTROL WPL W10259855 Contact Us For Availability

LEVER, WATER DISPENSER (MONO SATINA) WPL W10155162 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $38.12

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

WPW10142233 Whirlpool Refrigerator Screw Backorder WPL WPW10142233 $2.71

CRISPER PAN (INCLUDES 13, 14,18,19 & 21) WPL W10142714 Contact Us For Availability

COVER, EVAPORATOR (INCLUDES No.9) WPL 2206314 Contact Us For Availability

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $75.95

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Bezel, Disp (Stainless) WPL W10139842 Contact Us For Availability

BRACKET, DOOR STOP (CHROME) WPL W10219799 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Window, Crisper WPL 2174076 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

20

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

20

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

21

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

21

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

21

CAP, CRISPER PAN (RH) WPL 2223286 Contact Us For Availability

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

22

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

23

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

23

Control Board WPL 2321704 Contact Us For Availability

24

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $173.34

24

Cover, Receiver WPL W10173569 Contact Us For Availability

25

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

25

W11049959 Whirlpool Refrigerator Hinge In Stock WPL W11049959 $51.68

26

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

27

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

27

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

27

Spacer, Switch WPL 625834 Contact Us For Availability

28

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

28

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

28

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

29

Screw WPL W10191952 Contact Us For Availability

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

30

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

30

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

33

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

33

DOOR CLOSER, (FC) WPL 2223751 Contact Us For Availability

35

TUBE, FILTER INLET WPL W10281289 Contact Us For Availability

36

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

36

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

39

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

43

CONNECTOR, WATER TUBE WPL W10271542 Contact Us For Availability

100

W11512149 Whirlpool Ice Maker Assembly In Stock WPL W11512149 $78.53

100

Ice Container (Complete) WPL 2317273 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Previous Architect Series Handle Kit (Stainle WPL 8201806 Contact Us For Availability
