Model Whirlpool KSRB25FHWH03 – Common Parts & Diagrams
08 - DISPENSER FRONT

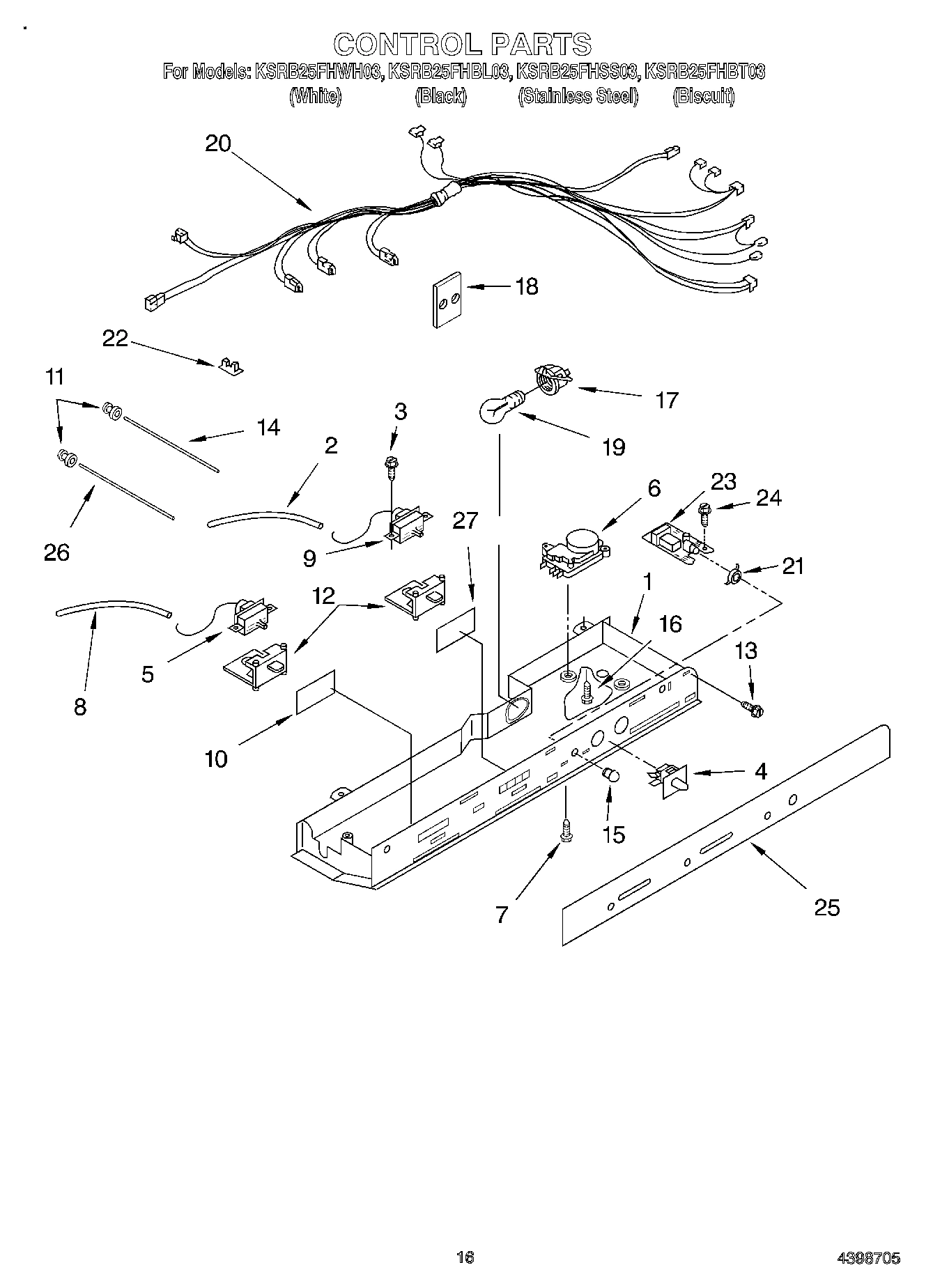

10 - CONTROL
02 - REFRIGERATOR LINER
09 - AIR FLOW
04 - FREEZER LINER
06 - REFRIGERATOR DOOR
05 - MOTOR AND ICE CONTAINER
07 - FREEZER DOOR
12 - ICE MAKER, OPTIONAL
11 - UNIT
01 - CABINET, LITERATURE
03 - REFRIGERATOR SHELF
Common parts from model Whirlpool KSRB25FHWH03
Service & Wiring Sheet WPL LIT2200279 Contact Us For Availability
Energy Label WPL LIT2206415 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2200135 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2204347B Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2204347S Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2204347T Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2204347W Contact Us For Availability
1
LITERATURE PARTS WPL ARI94643A6 Contact Us For Availability
1
Use & Care Guide WPL LIT2206106 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2195978 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Edging, Panel (Black) WPL 2204372B Contact Us For Availability
3
Edging, Panel (Biscuit) WPL 2204372T Contact Us For Availability
3
Edging, Panel (White) WPL 2204372W Contact Us For Availability
3
Condenser Assembly WPL 2204242B Contact Us For Availability
3
Slide, Humidity WPL 2174252 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Release Valve WPL 2171846 Contact Us For Availability
5
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
6
Edging, Panel (Black) WPL 2204375B Contact Us For Availability
6
Edging, Panel (Biscuit) WPL 2204375T Contact Us For Availability
6
Edging, Panel (White) WPL 2204375W Contact Us For Availability
6
Nut, Compression WPL 2200083 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2186815 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Screw (Black) WPL 3400899 Contact Us For Availability
9
Handle (Black) WPL 2203813B Contact Us For Availability
9
Handle (Biscuit) WPL 2203813T Contact Us For Availability
9
Handle (White) WPL 2203813W Contact Us For Availability
9
Handle (Stainless Steel) WPL 2203819S Contact Us For Availability
9
Shim, Hinge Top WPL 2196049 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
10
Glass, Cover WPL 2174148 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Duct, Icemaker WPL 2182146 Contact Us For Availability
11
Hinge Cover (Black) WPL 2171947 Contact Us For Availability
11
Hinge Cover (Biscuit) WPL 2171947T Contact Us For Availability
11
Hinge Cover (White) WPL 2171947W Contact Us For Availability
12
Slide, Thermostat WPL 2161466 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
13
Wire Harness WPL 2180229 Contact Us For Availability
13
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
13
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (Biscuit) WPL 2198468T Contact Us For Availability
14
Roller WPL 2188212 Contact Us For Availability
15
Bracket, Door Stop (Black) WPL 2195950 Contact Us For Availability
15
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Bracket, Door Stop (Chrome) WPL 2195952 Contact Us For Availability
17
Capacitor (Production) WPL 2169137 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Heat Shield WPL 2172931 Contact Us For Availability
18
Trim, Door (Top) (Black) WPL 2203380B Contact Us For Availability
18
Trim, Door (Top) (Biscuit) WPL 2203380T Contact Us For Availability
18
Trim, Door (Top) (White) WPL 2203380W Contact Us For Availability
18
Trim, Door (Top) (Stainless Steel) WPL 2203381S Contact Us For Availability
18
Trim, Door (Top) (Black) WPL 2203372B Contact Us For Availability
18
Trim, Door (Top) (Biscuit) WPL 2203372T Contact Us For Availability
18
Trim, Door (Top) (White) WPL 2203372W Contact Us For Availability
18
Trim, Door (Top) (Stainless Steel) WPL 2203373S Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Trim, Door (Hinge Side) (Black) WPL 2186688B Contact Us For Availability
20
Trim, Door (Hinge Side) (Biscuit) WPL 2186688T Contact Us For Availability
20
Trim, Door (Hinge Side) (White) WPL 2186688W Contact Us For Availability
20
Trim, Door (Hinge Side) (Stainless Steel) WPL 2186765S Contact Us For Availability
20
Deflector WPL 2176095 Contact Us For Availability
21
Trim, Door (Bottom) (Black) WPL 2203376B Contact Us For Availability
21
Trim, Door (Bottom) (Biscuit) WPL 2203376T Contact Us For Availability
21
Trim, Door (Bottom) (White) WPL 2203376W Contact Us For Availability
21
Trim, Door (Bottom) (Stainless Steel) WPL 2203377S Contact Us For Availability
21
Trim, Door (Bottom) (Black) WPL 2203366B Contact Us For Availability
21
Trim, Door (Bottom) (Biscuit) WPL 2203366T Contact Us For Availability
21
Tri WPL 2203366W Contact Us For Availability
21
WPL 2203367S WPL 2203367S Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Hinge Cover (White) WPL 1119787 Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22
Filler, Panel WPL 2208279 Contact Us For Availability
22
WPL 2186702B WPL 2186702B Contact Us For Availability
22
WPL 2186702T WPL 2186702T Contact Us For Availability
22
WPL 2186702W WPL 2186702W Contact Us For Availability
22
WPL 2186778S WPL 2186778S Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Panel (Black) WPL 2203288B Contact Us For Availability
23
Panel (Biscuit) WPL 2203288T Contact Us For Availability
23
Panel (White) WPL 2203288W Contact Us For Availability
23
Panel (S WPL 2203294S Contact Us For Availability
23
WPL 2203284B WPL 2203284B Contact Us For Availability
23
WPL 2203284T WPL 2203284T Contact Us For Availability
23
WPL 2203284W WPL 2203284W Contact Us For Availability
23
WPL 2203290S WPL 2203290S Contact Us For Availability
23
CLAMP, SERVICE CORD WPL 549193 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
WPL 2208277 WPL 2208277 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
BLOCK BLADE WPL 2157405 Contact Us For Availability
25
WPL 2203286B WPL 2203286B Contact Us For Availability
25
WPL 2203286T WPL 2203286T Contact Us For Availability
25
WPL 2203286W WPL 2203286W Contact Us For Availability
25
WPL 2203292S WPL 2203292S Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
26
Roll Pin WPL 489229 Contact Us For Availability
26
Cover, Conduit WPL 2150331 Contact Us For Availability
26
WPL 2208278 WPL 2208278 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Shelf, Snack Bin WPL 2208298 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Tube Kit WPL 876765 Contact Us For Availability
29
Lens, Light WPL 2171705 Contact Us For Availability
31
Unit, Harness WPL 2188346 Contact Us For Availability
31
Cabinet (Not A Serviceable Part) WPL ARI94644A9 Contact Us For Availability
33
Spring, Return WPL 1119020 Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
34
Retainer Clip, Rod WPL 1119021 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
39
Washer, Plain WPL 489234 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Screw WPL 489340 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
44
Clip WPL 489396 Contact Us For Availability
44
Front Cover, Ice Container WPL 2204321 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
Complete Icemaker Assembly WPL 4317943 Contact Us For Availability
100
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
100
Brush Touch-Up Kit (Biscuit WPL 4392899 Contact Us For Availability
100
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
100
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
100
xEnamel, Almond (13 Oz. Spray Can) WPL 350956 Contact Us For Availability
100
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
100
WPL 876370 WPL 876370 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
WPL 833938 WPL 833938 Contact Us For Availability
100
Primer White (13 Oz. Spray Can) WPL 350942 Contact Us For Availability
100
Bag, Insulation (36-5/8`` x 46``) WPL 606755 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
100
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
