Model Whirlpool KSRB25FHSS01 – Common Parts & Diagrams

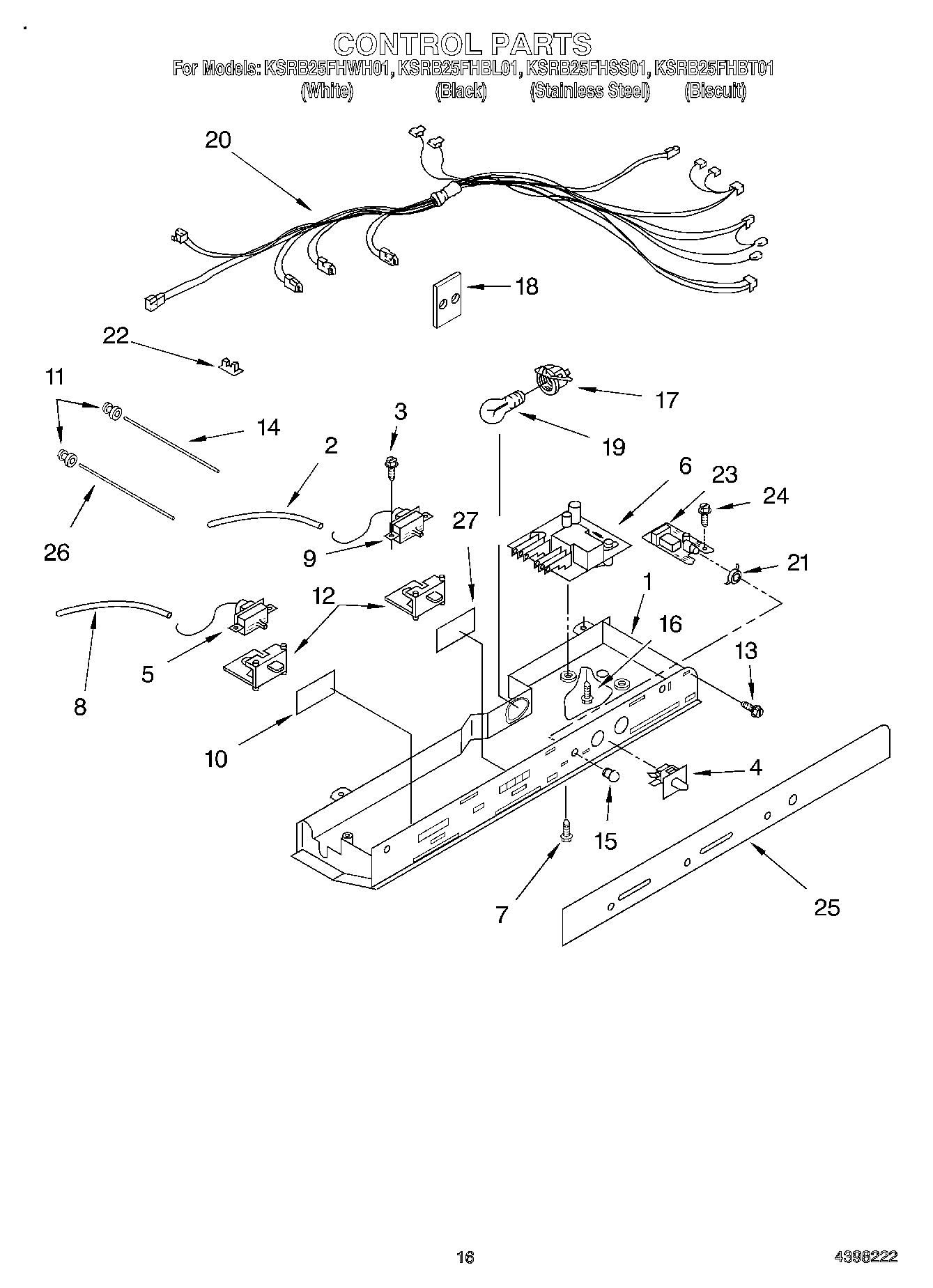

Common parts from model Whirlpool KSRB25FHSS01

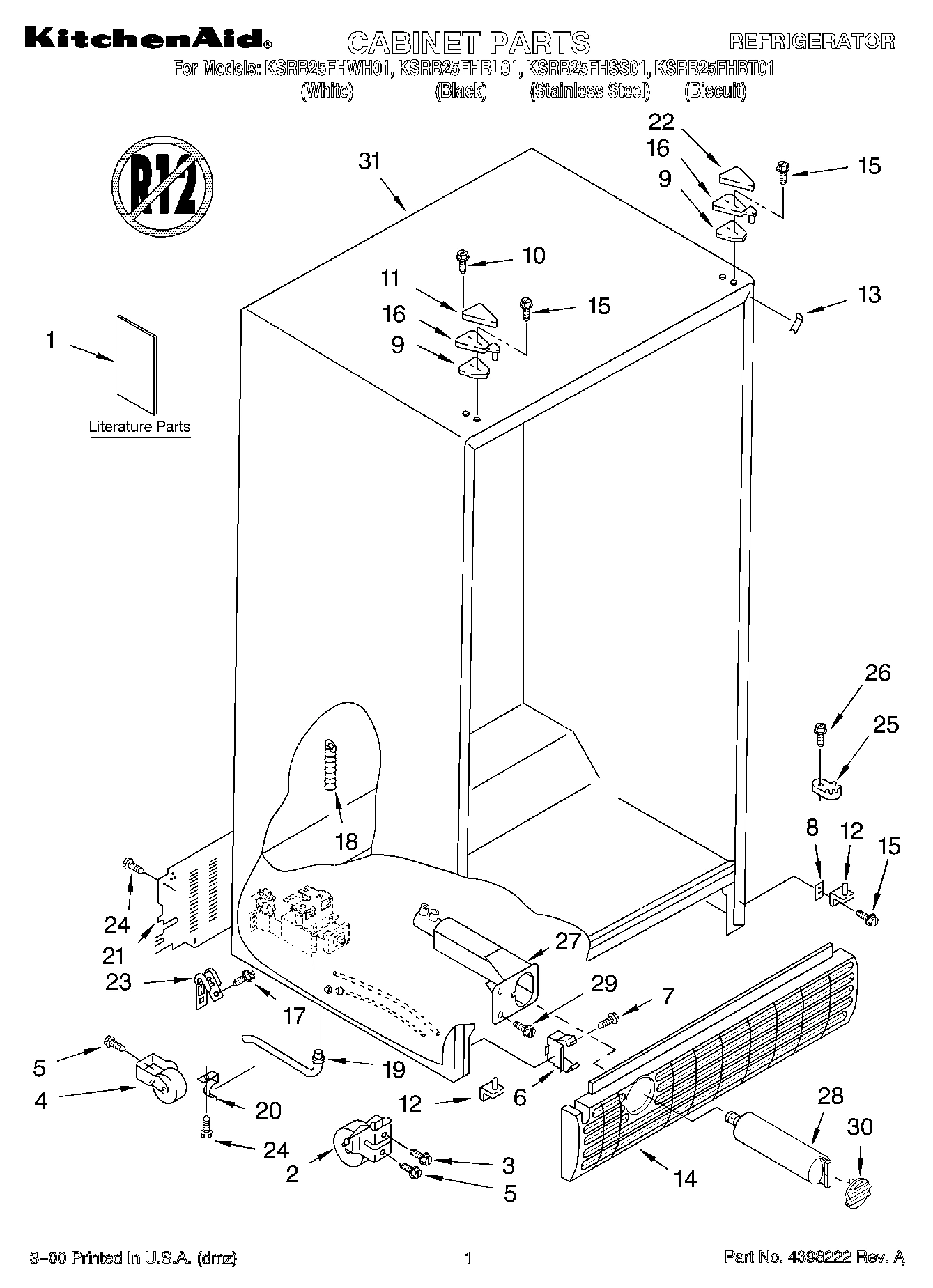

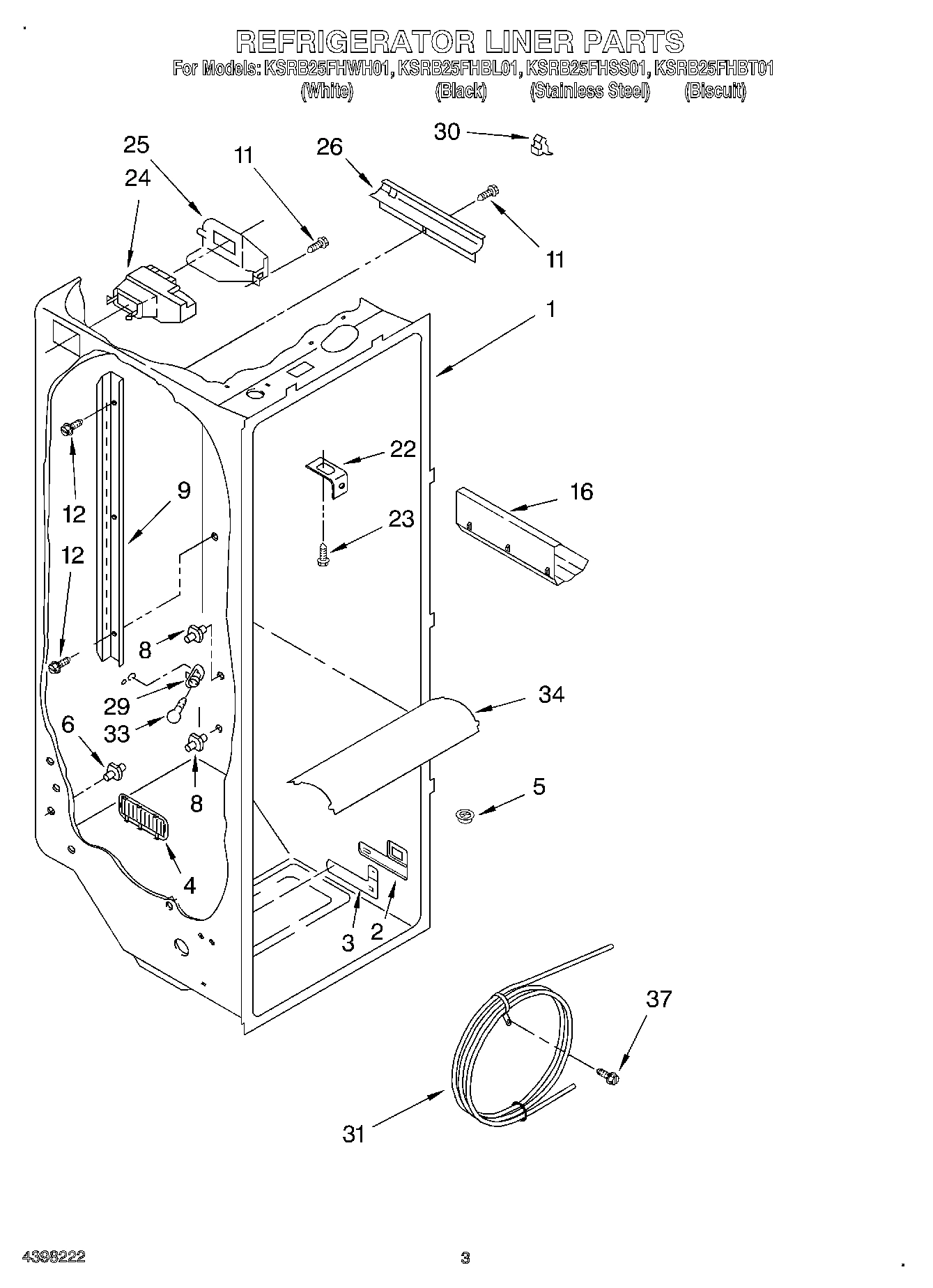

1

Liner (Not A Serviceable Part) WPL ARI94603A5 Contact Us For Availability
1

LITERATURE PARTS (Use & Care Guide) WPL LIT2200139 Contact Us For Availability
1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2200278 Contact Us For Availability
1

Energy Label WPL LIT2203997 Contact Us For Availability
1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1

Shelf Assembly, Cantilever (3) WPL 2195978 Contact Us For Availability
1

Housing, Dispenser (Not a Serviceable Part) WPL ARI94605A5 Contact Us For Availability

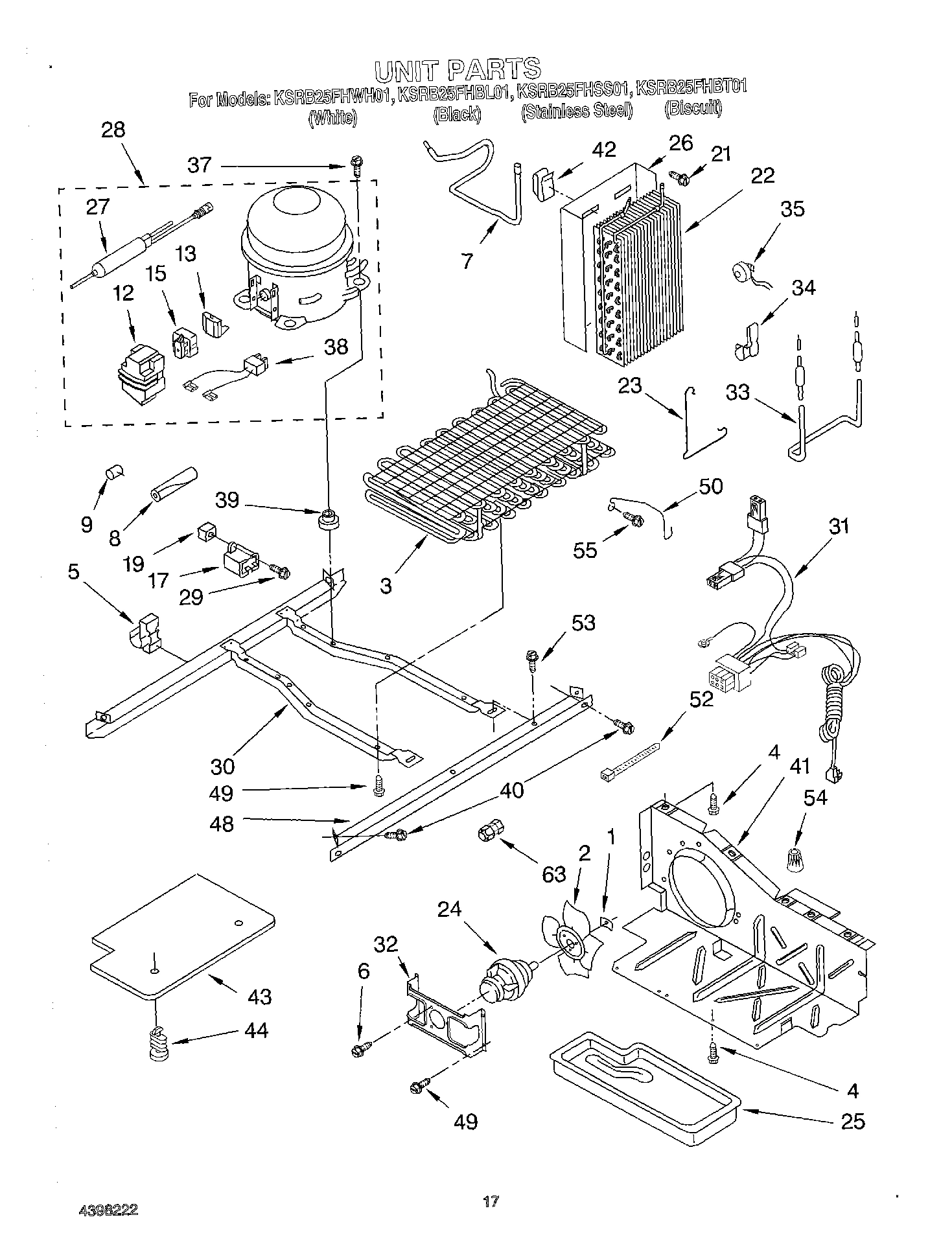

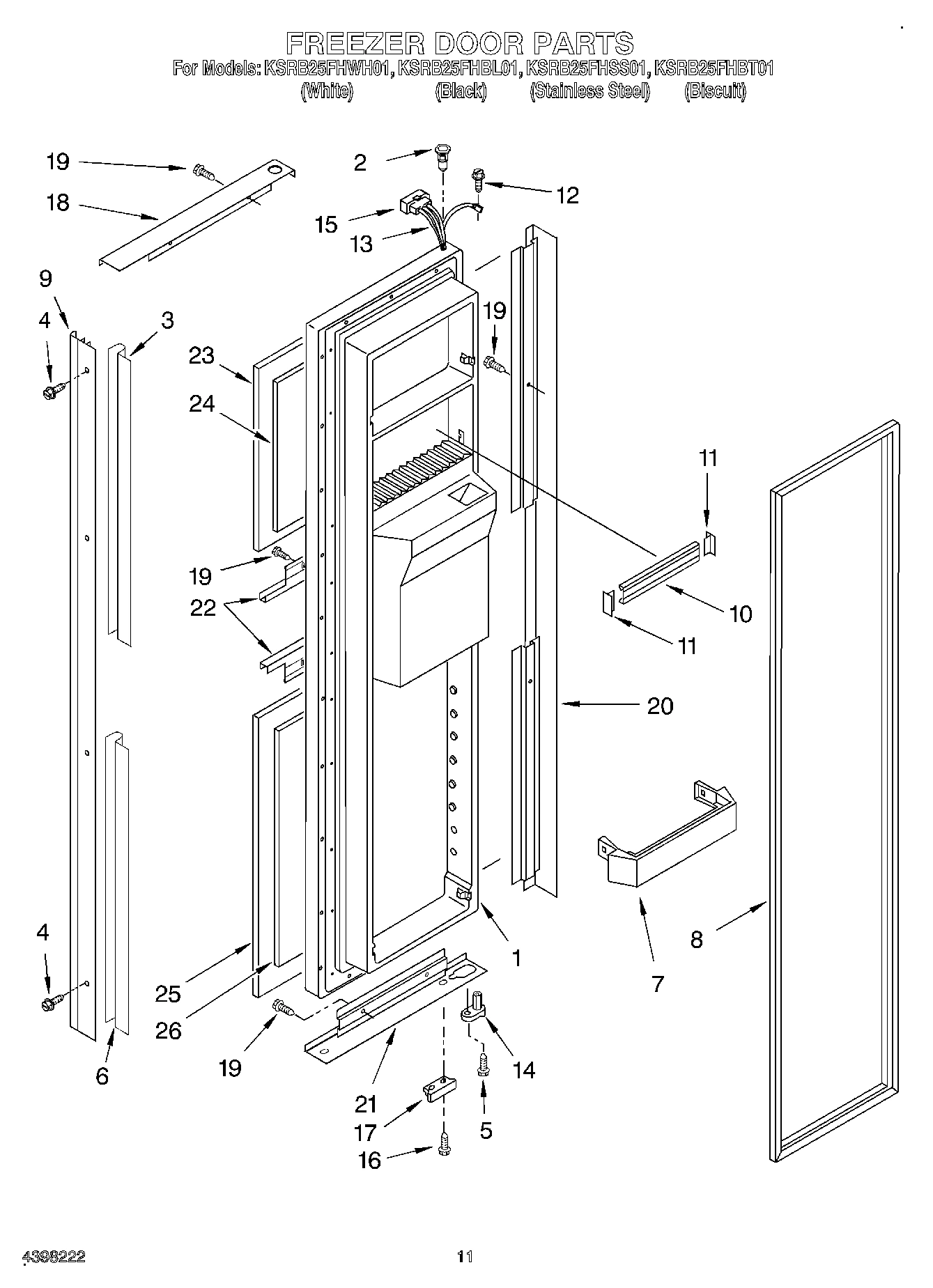

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347B Contact Us For Availability
1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347S Contact Us For Availability
1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347T Contact Us For Availability
1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347W Contact Us For Availability
2

Blade, Fan WPL 2190685 Contact Us For Availability
2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2

Front Roller (2) WPL 2174748 Contact Us For Availability
2

Button, Humidity WPL 2174253 Contact Us For Availability
3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3

Air Scoop WPL 2161231 Contact Us For Availability
3

Edging, Top (Black) WPL 2204372B Contact Us For Availability
3

Edging, Top (Biscuit) WPL 2204372T Contact Us For Availability
3

Edging, Top (White) WPL 2204372W Contact Us For Availability
4

Louver WPL 2182147 Contact Us For Availability
4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

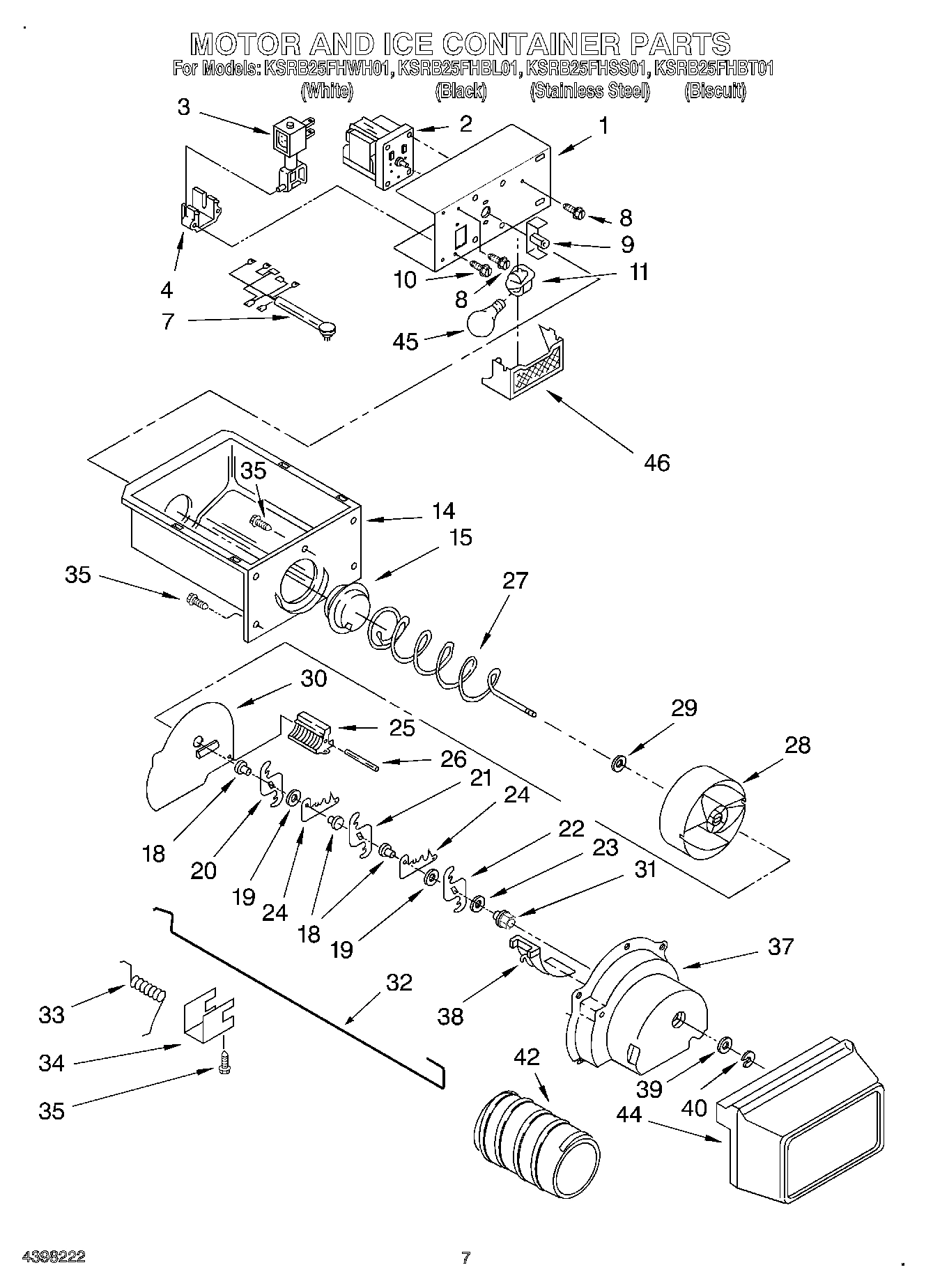

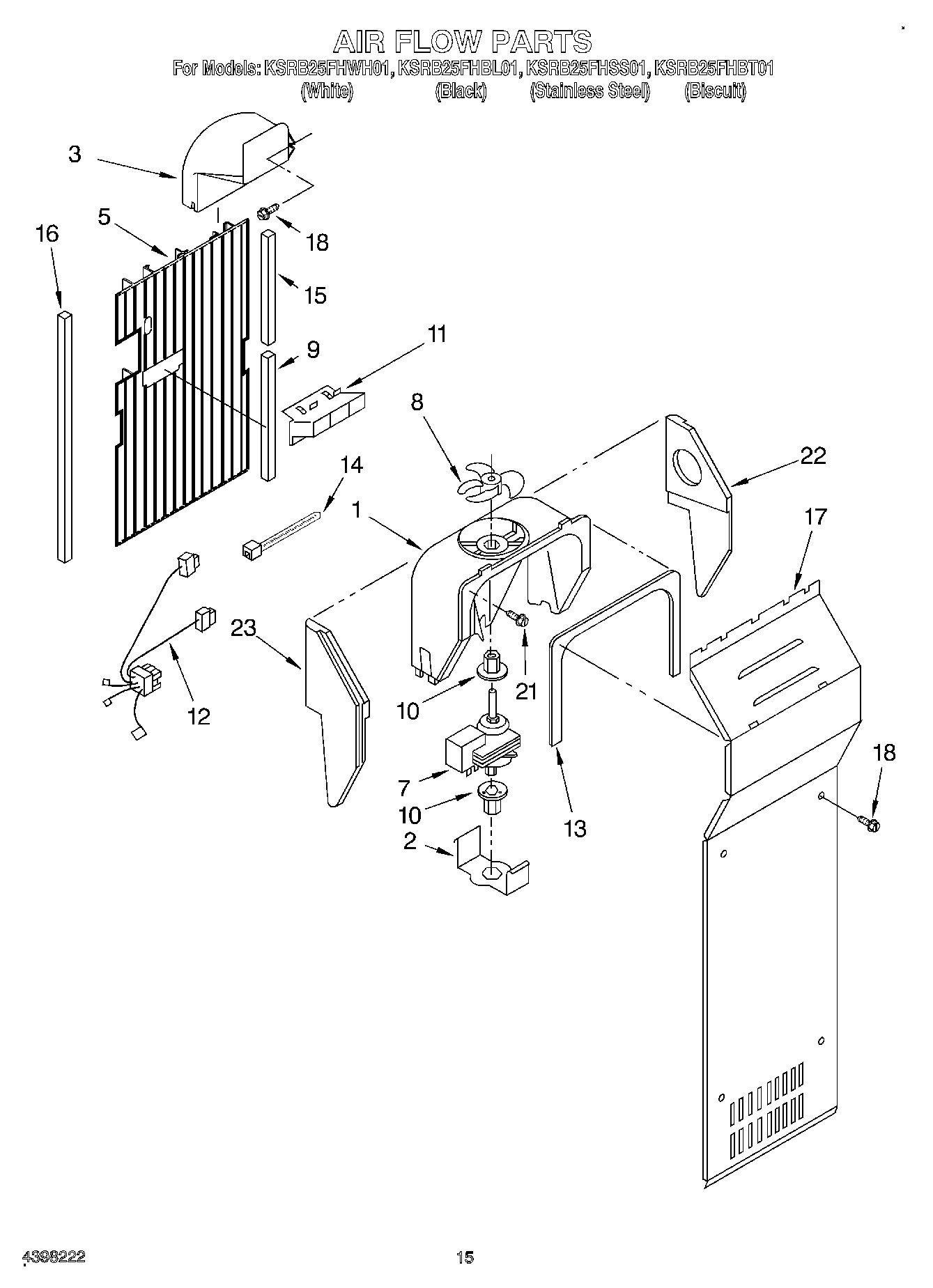

5

Air Duct Freezer WPL 2203593 Contact Us For Availability
6

Door, Ice WPL 2180205 Contact Us For Availability
6

Edging, Bottom (Black) WPL 2204375B Contact Us For Availability
6

Edging, Bottom (Biscuit) WPL 2204375T Contact Us For Availability
6

Edging, Bottom (White) WPL 2204375W Contact Us For Availability
7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7

Shelf Bin (4) WPL 2171070 Contact Us For Availability
8

Glass, Cover WPL 2189526 Contact Us For Availability
8

Delay Mechanism WPL 2180223 Contact Us For Availability
9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9

Grommet (2) WPL 2176134 Contact Us For Availability
9

Screw (Black) WPL 3400899 Contact Us For Availability
9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9

Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9

Shim, Hinge Top WPL 2196049 Contact Us For Availability
9

Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability
9

Handle (Black) WPL 2203813B Contact Us For Availability
9

Handle (Biscuit) WPL 2203813T Contact Us For Availability
9

Handle (White) WPL 2203813W Contact Us For Availability
9

Handle (Stainless Steel) WPL 2203819S Contact Us For Availability
10

Screw WPL 489284 Contact Us For Availability
10

Glass, Cover WPL 2174148 Contact Us For Availability
11

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11

Hinge Cover (Black) WPL 2171947 Contact Us For Availability
11

Hinge Cover (Biscuit) WPL 2171947T Contact Us For Availability
11

Hinge Cover (White) WPL 2171947W Contact Us For Availability
11

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
12

Gasket, (Rear) WPL 2174274 Contact Us For Availability
12

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186800 Contact Us For Availability
13

Eyelet, Roller WPL 2174478 Contact Us For Availability
13

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
13

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
13

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
13

Wire Harness WPL 2180229 Contact Us For Availability
14

Light Bar (RC) WPL 2179920 Contact Us For Availability
14

Grille (Biscuit) WPL 2198468T Contact Us For Availability
14

Roller WPL 2188212 Contact Us For Availability
15

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
17

Bracket, Door Stop (Black) WPL 2195950 Contact Us For Availability
17

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17

Cover, Evaporator WPL 2203841 Contact Us For Availability
17

Bracket, Door Stop (Chrome) WPL 2195952 Contact Us For Availability
18

Window, Crisper WPL 2174076 Contact Us For Availability
18

Trim, Door (Top) (Black) WPL 2203372B Contact Us For Availability
18

Trim, Door (Top) (Biscuit) WPL 2203372T Contact Us For Availability
18

Trim, Door (Top) (White) WPL 2203372W Contact Us For Availability
18

Trim, Door (Top) (Stainless Steel) WPL 2203373S Contact Us For Availability
19

Overlay, Front Cover (Black) WPL 2186718B Contact Us For Availability
19

Overlay, Front Cover (Biscuit) WPL 2186718T Contact Us For Availability
19

Overlay, Front Cover (White) WPL 2186718W Contact Us For Availability
20

Trim, Door (Hinge Side) (Black) WPL 2186688B Contact Us For Availability
20

Trim, Door (Hinge Side) (Biscuit) WPL 2186688T Contact Us For Availability
20

Trim, Door (Hinge Side) (White) WPL 2186688W Contact Us For Availability
20

Trim, Door (Hinge Side) (Stainless Steel) WPL 2186765S Contact Us For Availability
21

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21

Front Cover, Housing (Not Available, Order No WPL ARI94606A6 Contact Us For Availability
21

Trim, Door (Bottom) (Black) WPL 2203366B Contact Us For Availability
21

Trim, Do WPL 2203366T Contact Us For Availability
21

WPL 2203366W WPL 2203366W Contact Us For Availability
21

WPL 2203367S WPL 2203367S Contact Us For Availability
22

Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22

Window, Meat Pan WPL 2174362 Contact Us For Availability
22

WPL 2186702B WPL 2186702B Contact Us For Availability
22

WPL 2186702T WPL 2186702T Contact Us For Availability
22

WPL 2186702W WPL 2186702W Contact Us For Availability
22

WPL 2186778S WPL 2186778S Contact Us For Availability
23

Clamp WPL 2161324 Contact Us For Availability
23

Front Cover Assembly (Includes Items 18, 19, WPL 2186714B Contact Us For Availability
23

Front Cover Assembly (Includes Items 18, 19, WPL 2186714T Contact Us For Availability
23

Front Cover Assembly (Includes Items 18, 19, WPL 2186714W Contact Us For Availability
23

WPL 2203284B WPL 2203284B Contact Us For Availability
23

WPL 2203284T WPL 2203284T Contact Us For Availability
23

WPL 2203284W WPL 2203284W Contact Us For Availability
23

WPL 2203290S WPL 2203290S Contact Us For Availability
24

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
24

WPL 2208277 WPL 2208277 Contact Us For Availability
25

Screw WPL 489439 Contact Us For Availability
25

WPL 2203286B WPL 2203286B Contact Us For Availability
25

WPL 2203286T WPL 2203286T Contact Us For Availability
25

WPL 2203286W WPL 2203286W Contact Us For Availability
25

WPL 2203292S WPL 2203292S Contact Us For Availability
26

Shelf, Snack Bin WPL 2208298 Contact Us For Availability
26

WPL 2208278 WPL 2208278 Contact Us For Availability
27

Cement Alumilastic) WPL 542369 Contact Us For Availability
31

Cabinet (Not A Serviceable Part) WPL ARI94602A8 Contact Us For Availability
34

Light Lens WPL 2203266 Contact Us For Availability
37

Screw WPL 488280 Contact Us For Availability
40

Nut, Compression WPL 1129179 Contact Us For Availability
63

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100

WPL 876029 WPL 876029 Contact Us For Availability
100

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100

WPL 799344 WPL 799344 Contact Us For Availability
100

Torx Key WPL 1117510 Contact Us For Availability
100

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
100

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100

WPL 799340 WPL 799340 Contact Us For Availability
100

WPL 799833 WPL 799833 Contact Us For Availability
100

WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
