Model Whirlpool KSRB25FHSS00 – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

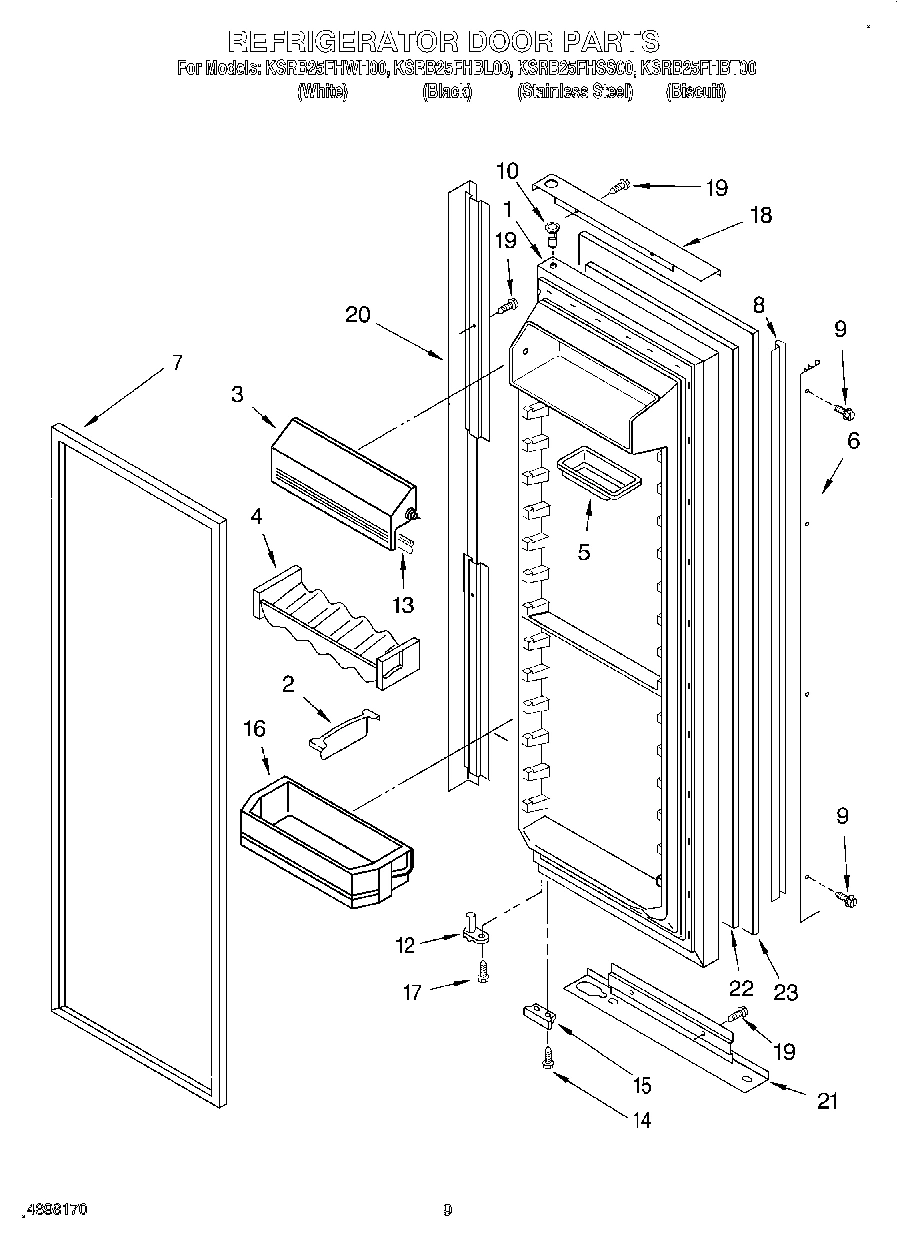

Refrigerator Door (Includes No.7) (Biscuit) WPL 2203356T Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2203356W Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Stainless) WPL 2203359S Contact Us For Availability

1

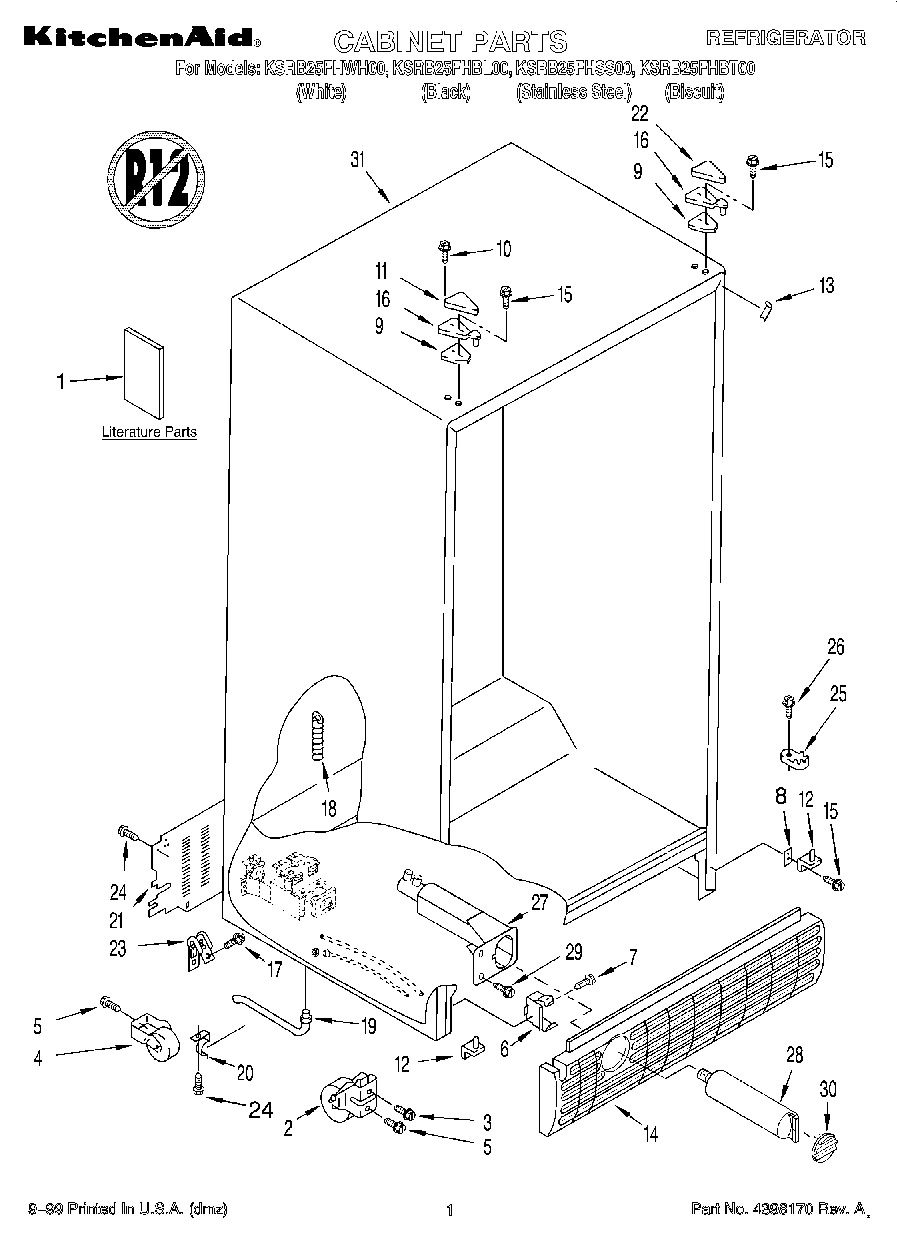

LITERATURE PARTS (Use & Care Guide) WPL LIT2200139 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2200278 Contact Us For Availability

1

Energy Label WPL LIT2203997 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI94600A6 Contact Us For Availability

1

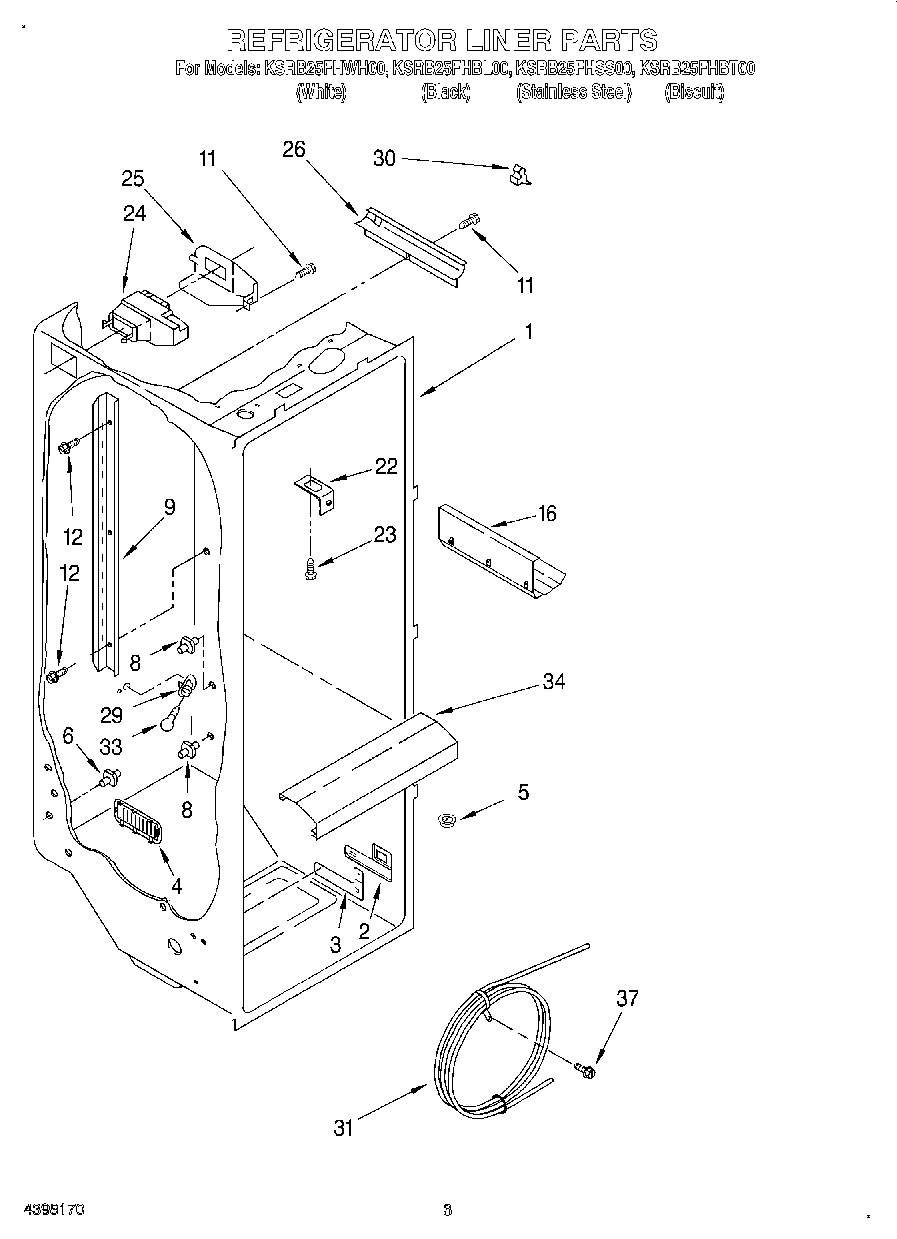

Liner (Not A Serviceable Part) WPL ARI94598A6 Contact Us For Availability

1

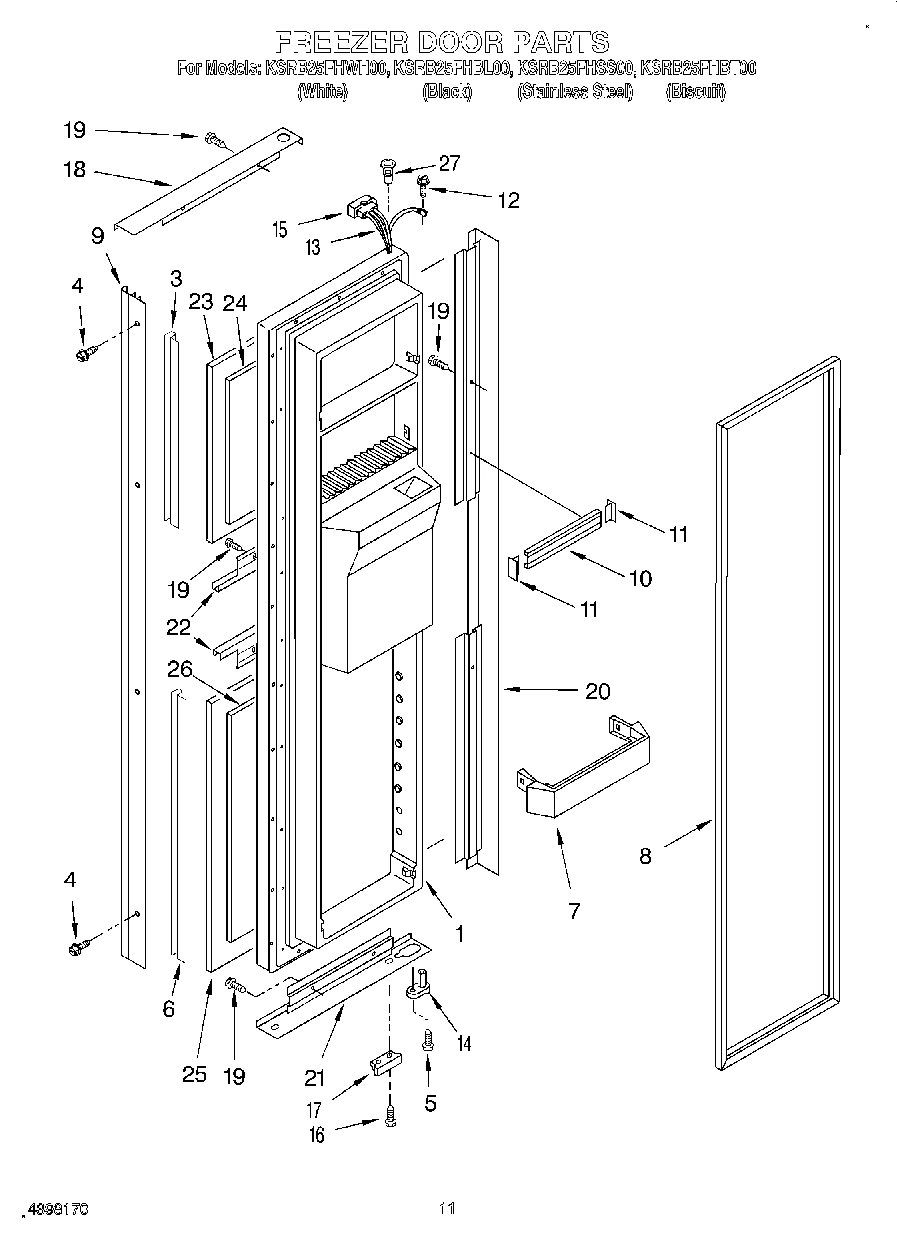

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347B Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347S Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347T Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2203347W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Load Lock WPL 2195497 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

3

Edging, Panel (Top) (Black) WPL 2204372B Contact Us For Availability

3

Edging, Panel (Top) (Biscuit) WPL 2204372T Contact Us For Availability

3

Edging, Panel (Top) (White) WPL 2204372W Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Beverage Holder WPL 2193409 Contact Us For Availability

4

Screw (Stainless) WPL 3400897 Contact Us For Availability

4

Screw (White) WPL 3400898 Contact Us For Availability

4

Screw (Biscuit) WPL 8281135 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2161491 Whirlpool Crisper Drawer Cover Backorder WPL WP2161491 $78.23

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Tray, Butter WPL 2165792 Contact Us For Availability

5

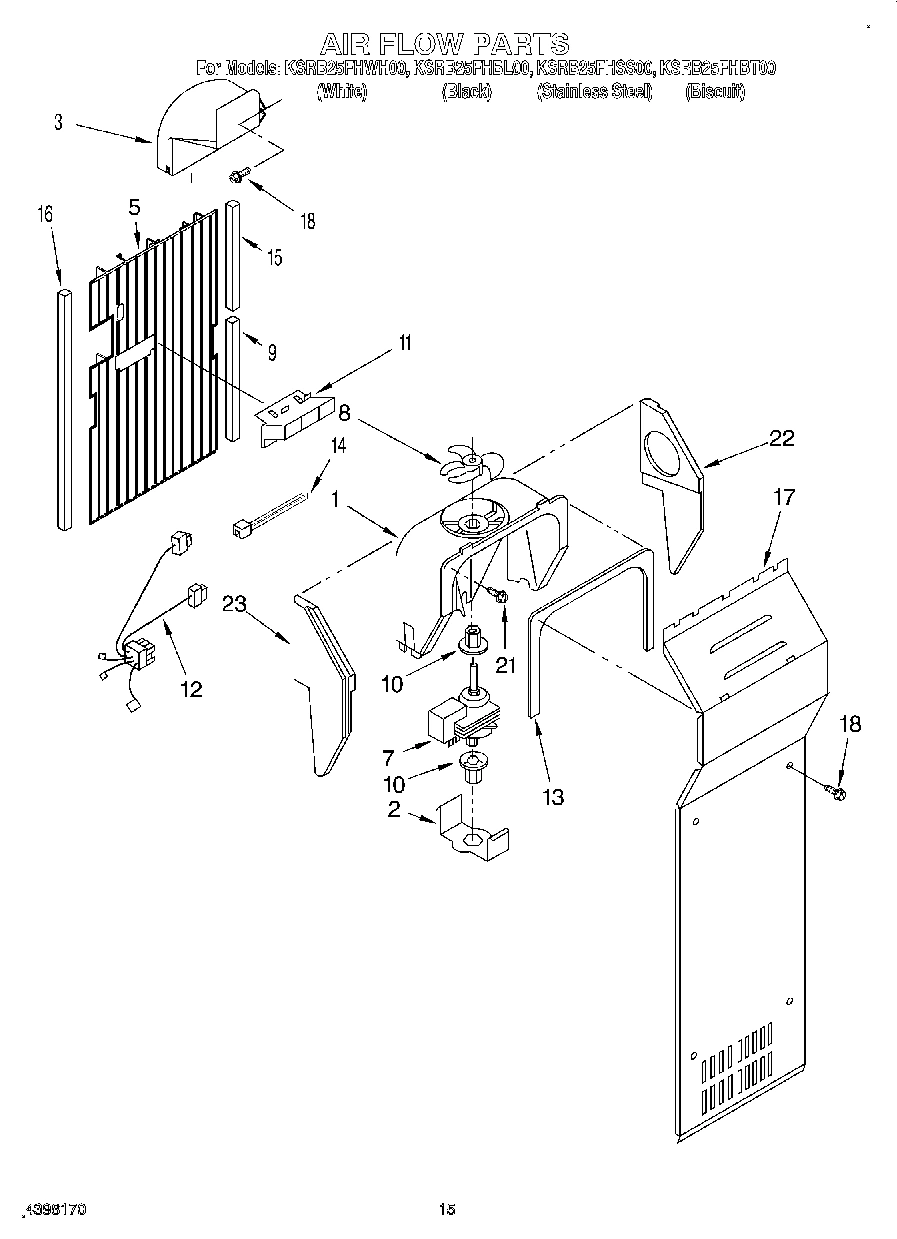

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

4388539 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388539 $9.30

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Handle (Black) WPL 2203810B Contact Us For Availability

6

Handle (Biscuit) WPL 2203810T Contact Us For Availability

6

Handle (White) WPL 2203810W Contact Us For Availability

6

Handle (Stainless Steel) WPL 2203816S Contact Us For Availability

6

Door, Ice WPL 2180205 Contact Us For Availability

6

Edging, Panel (Bottom) (Black) WPL 2204375B Contact Us For Availability

6

Edging, Panel (Bottom) (Biscuit) WPL 2204375T Contact Us For Availability

6

Edging, Panel (Bottom) (White) WPL 2204375W Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

7

Shelf Bin (4) WPL 2171070 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.05

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Edging, Panel (Black) WPL 2204374B Contact Us For Availability

8

Edging, Panel (Biscuit) WPL 2204374T Contact Us For Availability

8

Edging, Panel (White) WPL 2204374W Contact Us For Availability

8

Delay Mechanism WPL 2180223 Contact Us For Availability

9

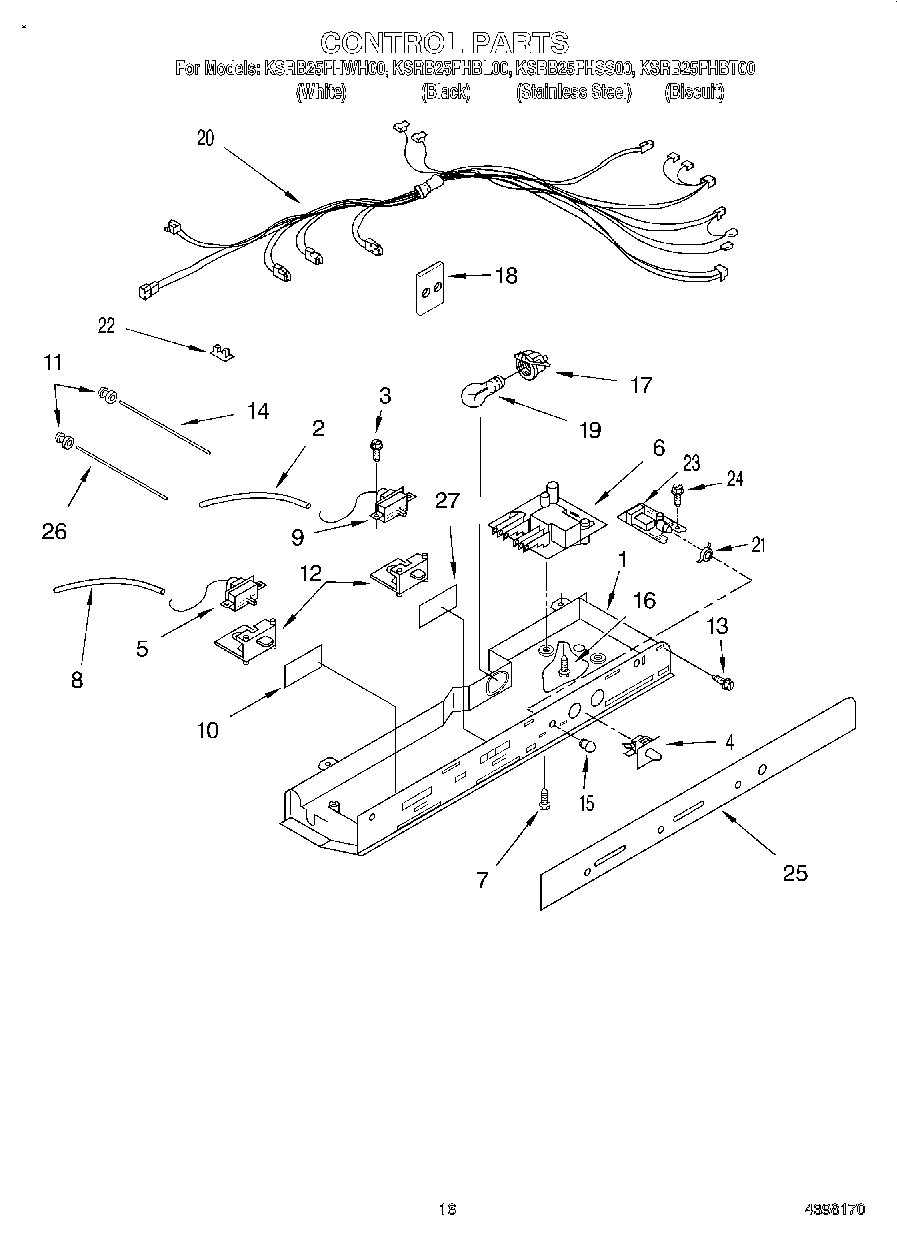

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $39.03

9

WP2209606 Whirlpool Gasket Assembly Backorder WPL WP2209606 $26.21

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (2) WPL 2176134 Contact Us For Availability

9

Screw (Black) WPL 3400899 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Shim, Hinge Top WPL 2196049 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2181796 Contact Us For Availability

9

Handle (Black) WPL 2203813B Contact Us For Availability

9

Handle (Biscuit) WPL 2203813T Contact Us For Availability

9

Handle (White) WPL 2203813W Contact Us For Availability

9

Handle (Stainless Steel) WPL 2203819S Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $83.91

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Screw WPL 489284 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Hinge Cover (Black) WPL 2171947 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2171947T Contact Us For Availability

Hinge Cover (White) WPL 2171947W Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

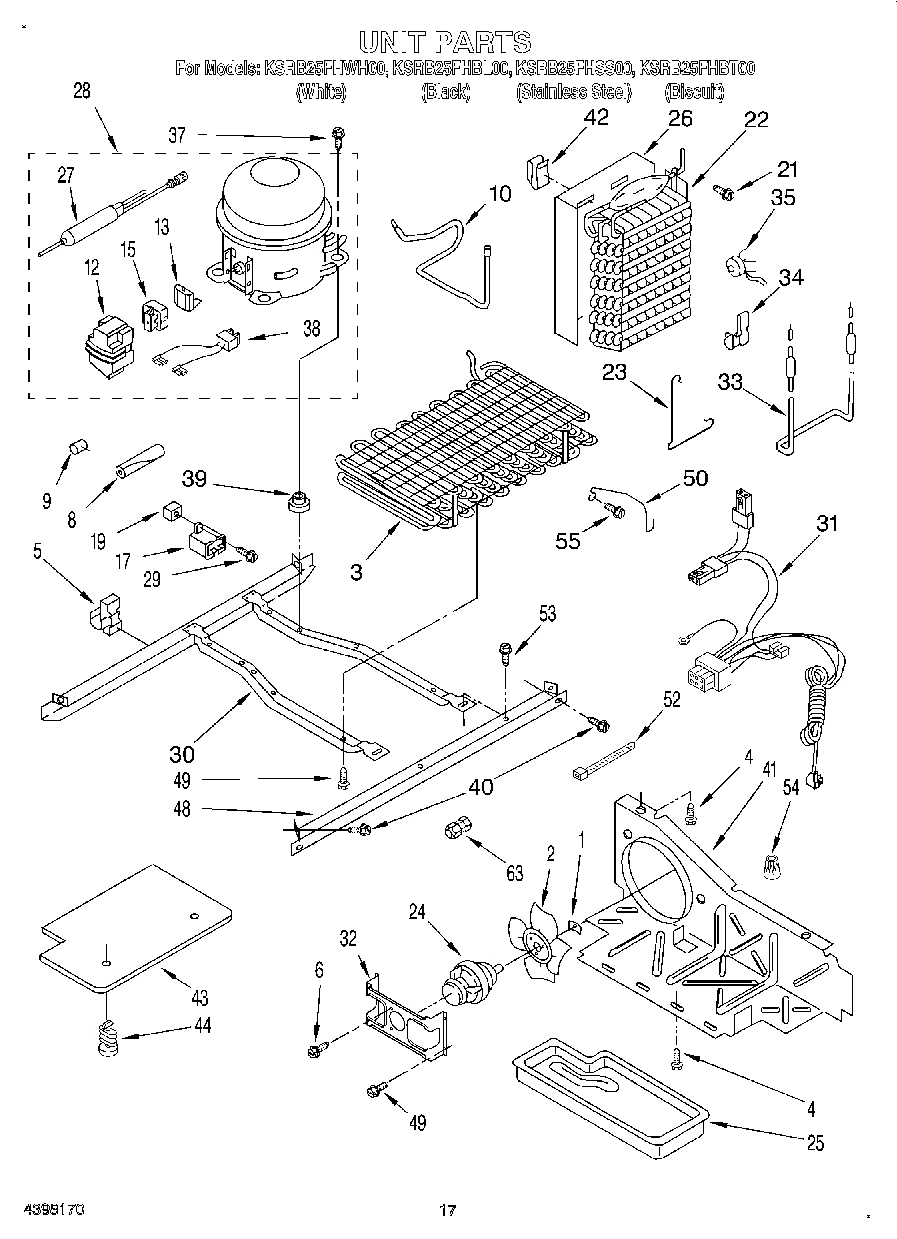

WP2183456 Whirlpool Refrigerator Overload Backorder WPL WP2183456 $47.53

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Wire Harness WPL 2180229 Contact Us For Availability

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $46.67

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Light Bar (RC) WPL 2179920 Contact Us For Availability

Grille (Biscuit) WPL 2198468T Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP2209607 Whirlpool Gasket Assembly Backorder WPL WP2209607 $26.21

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Backorder WPL 2179404 $8.47

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $127.47

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Shelf Bin (4) WPL 2171063 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

Window, Crisper WPL 2174076 Contact Us For Availability

Trim, Door (Top) (Black) WPL 2203380B Contact Us For Availability

Trim, Door (Top) (Biscuit) WPL 2203380T Contact Us For Availability

Trim, Door (Top) (White) WPL 2203380W Contact Us For Availability

Trim, Door (Top) (Stainless Steel) WPL 2203381S Contact Us For Availability

Trim, Door (Top) (Black) WPL 2203372B Contact Us For Availability

Trim, Door (Top) (Biscuit) WPL 2203372T Contact Us For Availability

Trim, Door (Top) (White) WPL 2203372W Contact Us For Availability

Trim, Door (Top) (Stainless Steel) WPL 2203373S Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

Overlay, Front Cover (Black) WPL 2186718B Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2186718T Contact Us For Availability

Overlay, Front Cover (White) WPL 2186718W Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

Trim, Door (Hinge Side) (Black) WPL 2186688B Contact Us For Availability

Trim, Door (Hinge Side) (Biscuit) WPL 2186688T Contact Us For Availability

Trim, Door (Hinge WPL 2186688W Contact Us For Availability

WPL 2186765S WPL 2186765S Contact Us For Availability

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Trim, Door (Bottom) (Black) WPL 2203376B Contact Us For Availability

Trim, Door (Bottom) (Biscuit) WPL 2203376T Contact Us For Availability

Trim, Door (Bottom) (White) WPL 2203376W Contact Us For Availability

Trim, Door (Bottom) (Stainless Steel) WPL 2203377S Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI94601A2 Contact Us For Availability

WPL 2203366B WPL 2203366B Contact Us For Availability

WPL 2203366T WPL 2203366T Contact Us For Availability

WPL 2203366W WPL 2203366W Contact Us For Availability

WPL 2203367S WPL 2203367S Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

WPL 2208279 WPL 2208279 Contact Us For Availability

WPL 2186702B WPL 2186702B Contact Us For Availability

WPL 2186702T WPL 2186702T Contact Us For Availability

WPL 2186702W WPL 2186702W Contact Us For Availability

WPL 2186778S WPL 2186778S Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clamp WPL 2161324 Contact Us For Availability

WPL 2203288B WPL 2203288B Contact Us For Availability

WPL 2203288T WPL 2203288T Contact Us For Availability

WPL 2203288W WPL 2203288W Contact Us For Availability

WPL 2203294S WPL 2203294S Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186714B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186714T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186714W Contact Us For Availability

WPL 2203284B WPL 2203284B Contact Us For Availability

WPL 2203284T WPL 2203284T Contact Us For Availability

WPL 2203284W WPL 2203284W Contact Us For Availability

WPL 2203290S WPL 2203290S Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $174.78

24

WPL 2208277 WPL 2208277 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $80.31

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

WPL 2203286B WPL 2203286B Contact Us For Availability

WPL 2203286T WPL 2203286T Contact Us For Availability

WPL 2203286W WPL 2203286W Contact Us For Availability

WPL 2203292S WPL 2203292S Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

26

WPL 2208278 WPL 2208278 Contact Us For Availability

27

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

31

Cabinet (Not A Serviceable Part) WPL ARI94597A7 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2174436 Contact Us For Availability

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

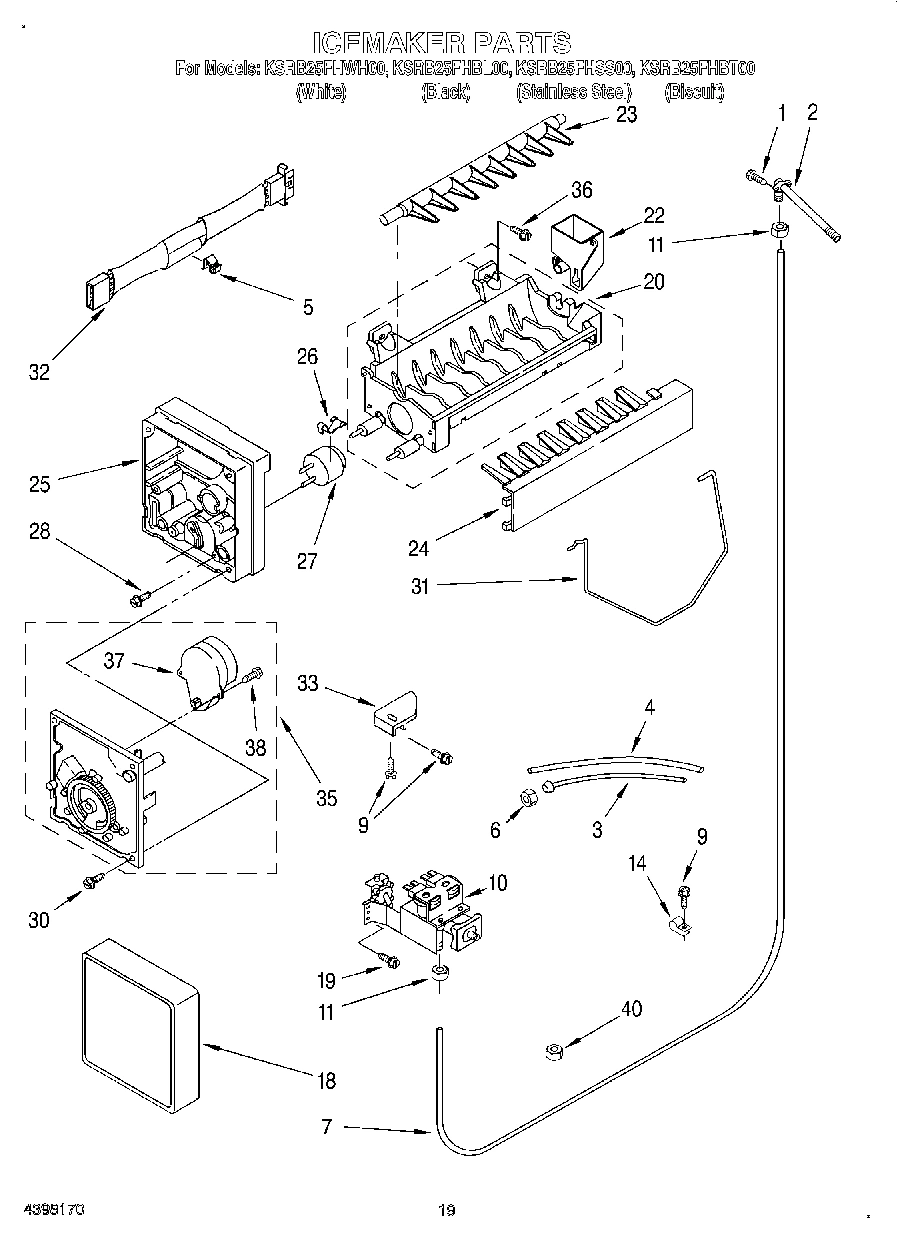

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
