Model Whirlpool KSRB22FGBL00 REFRIGERATOR – Common Parts & Diagrams

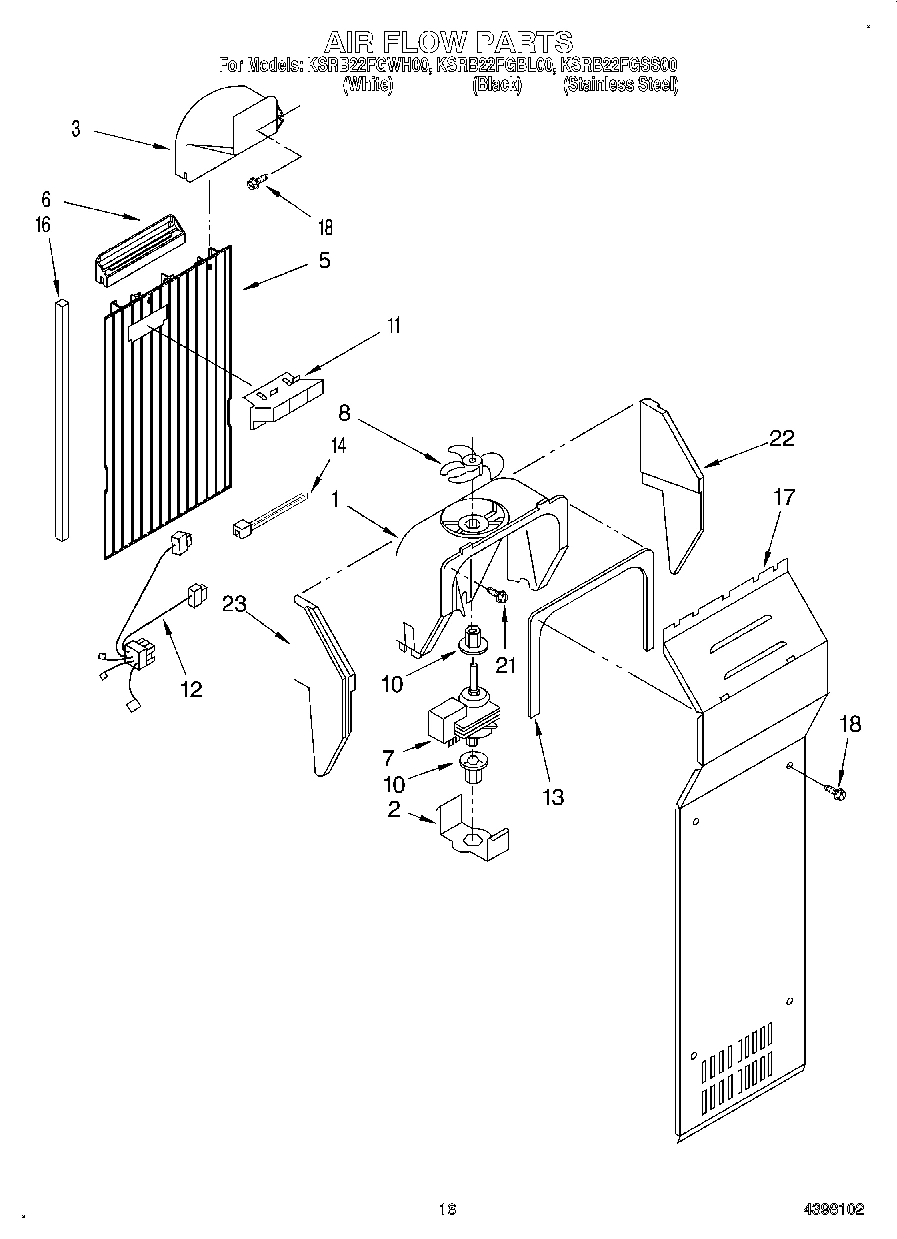

10 - AIR FLOW

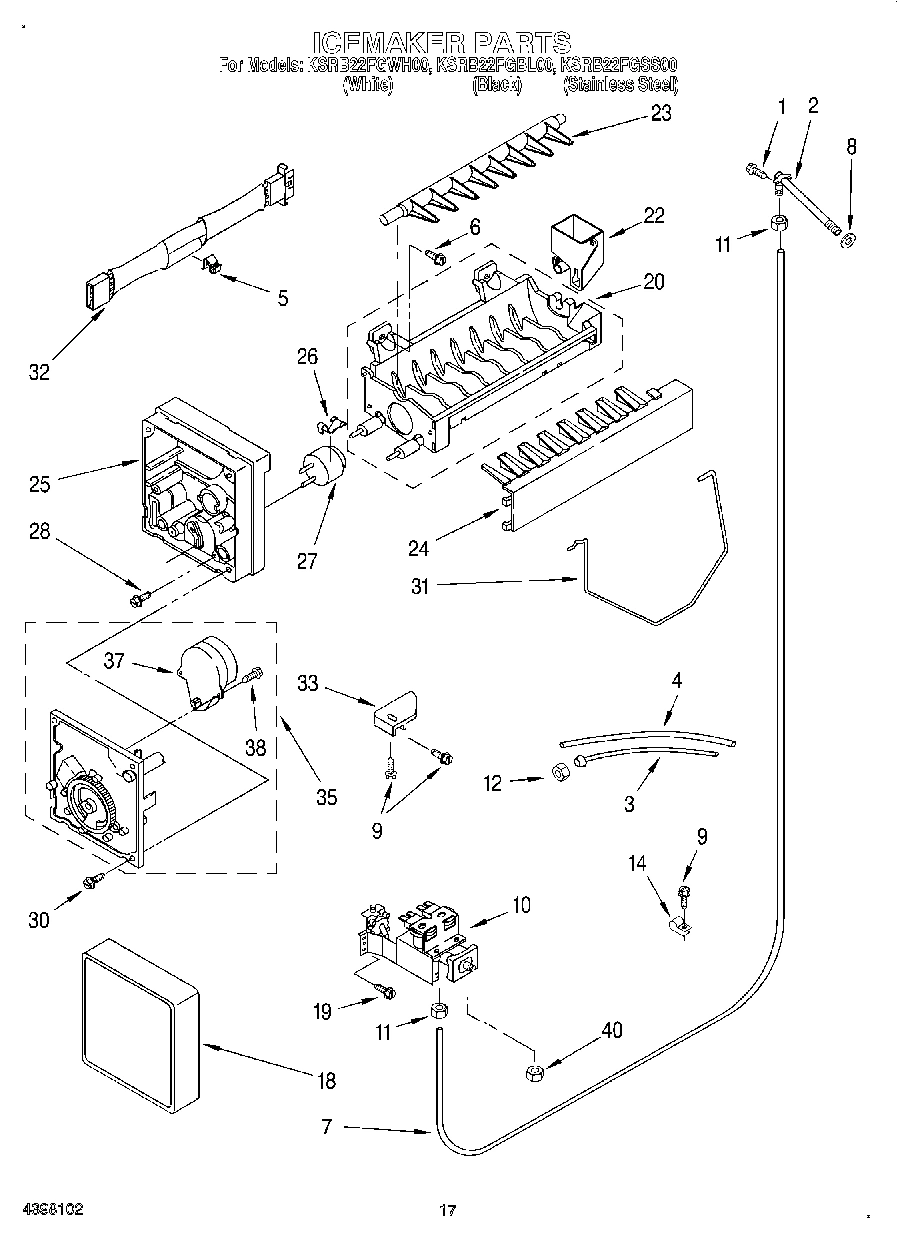

11 - ICEMAKER

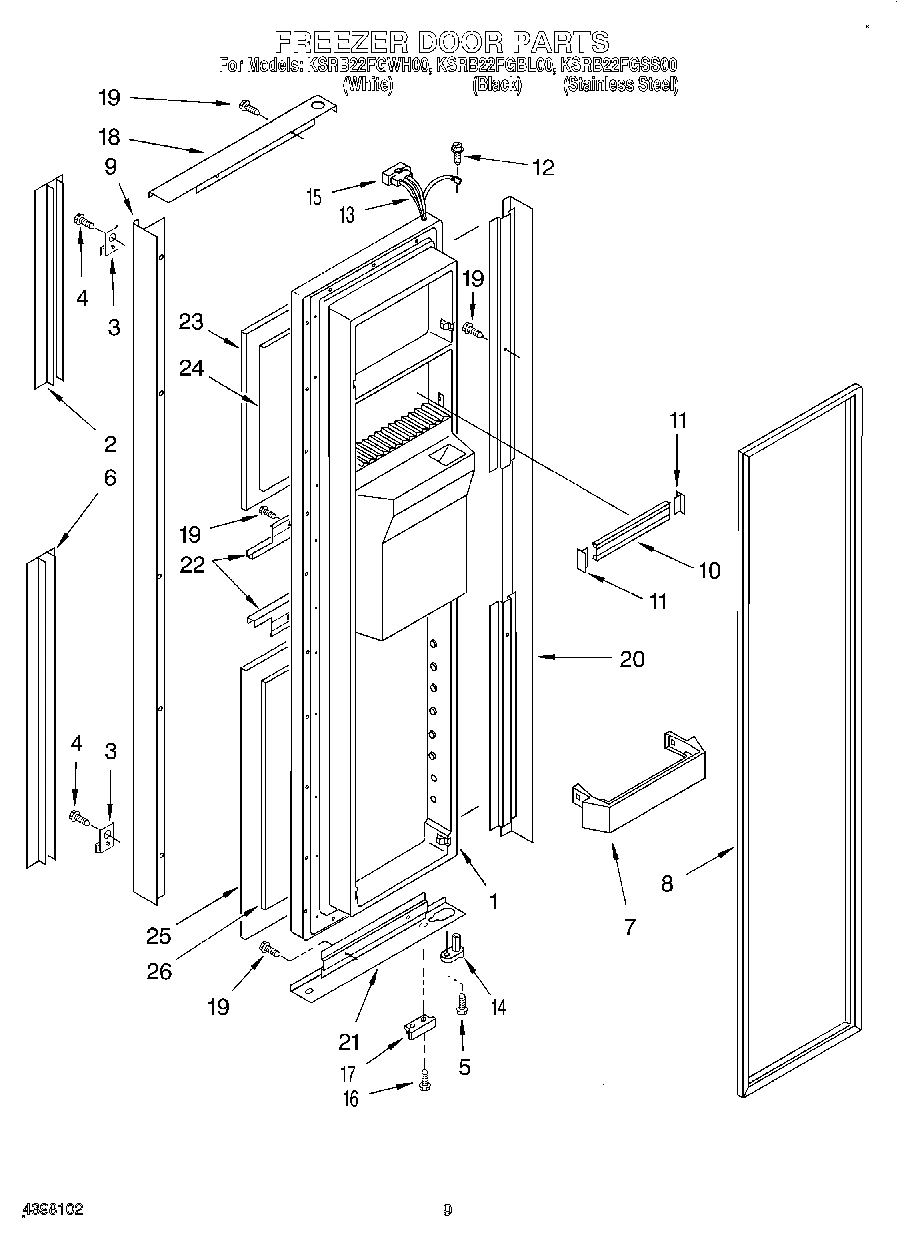

06 - FREEZER DOOR

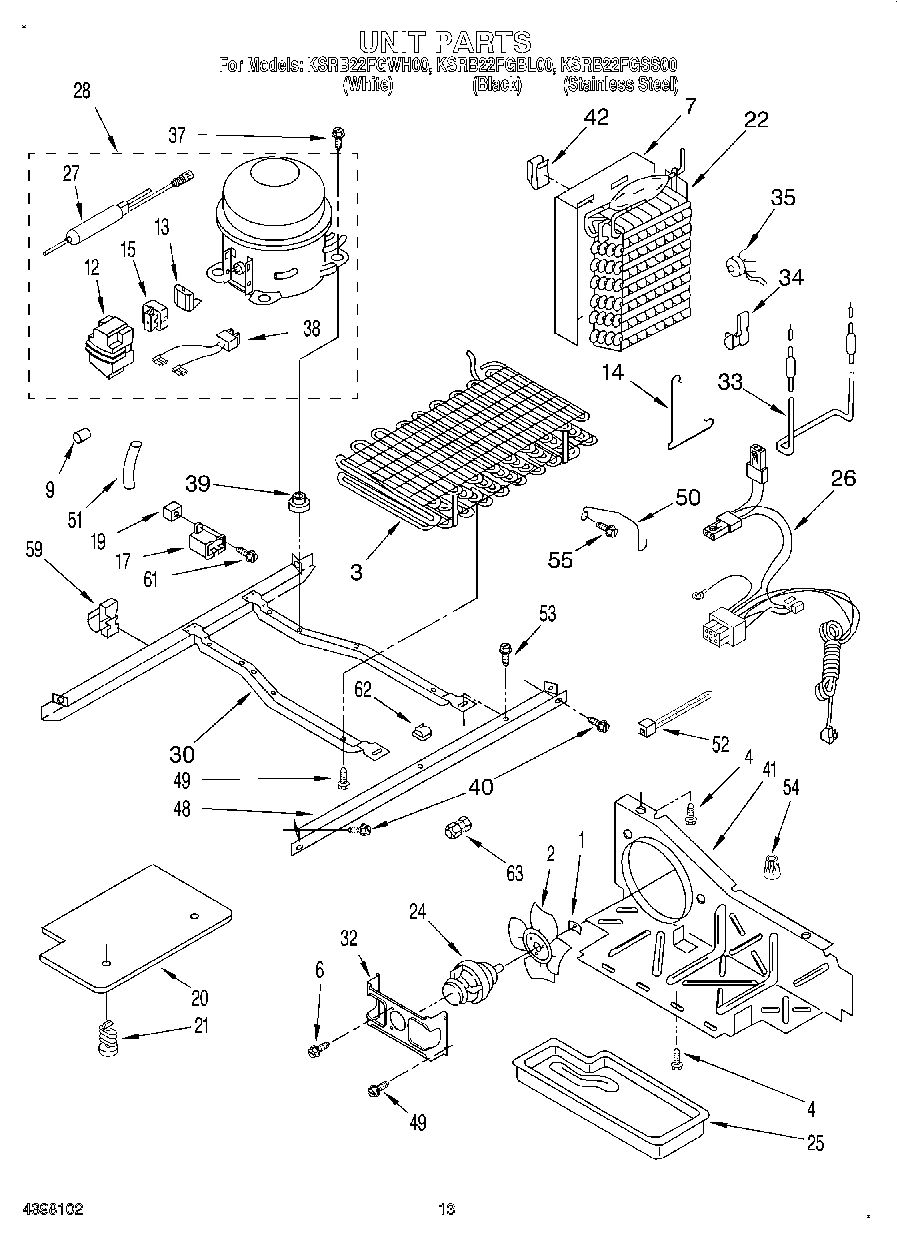

08 - UNIT

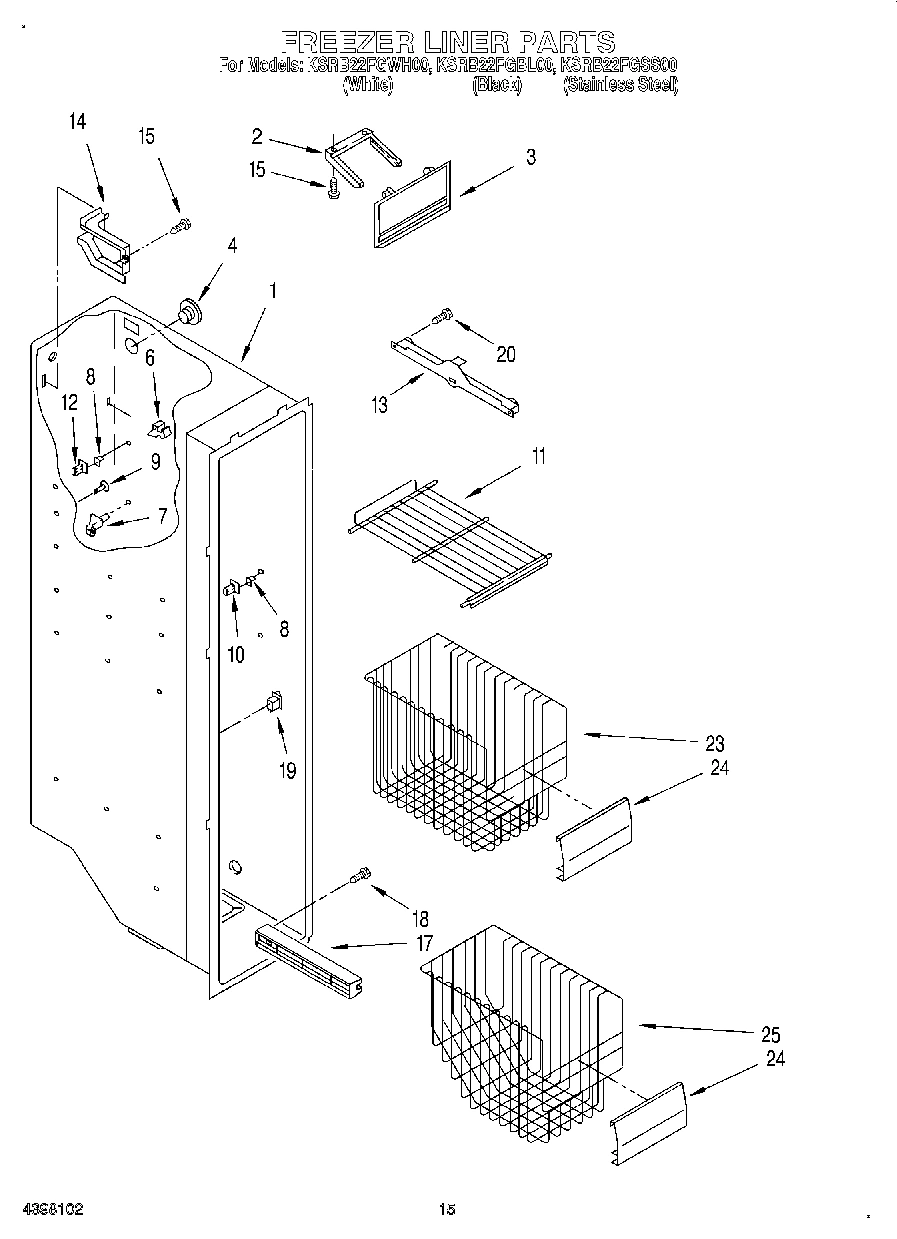

09 - FREEZER LINER

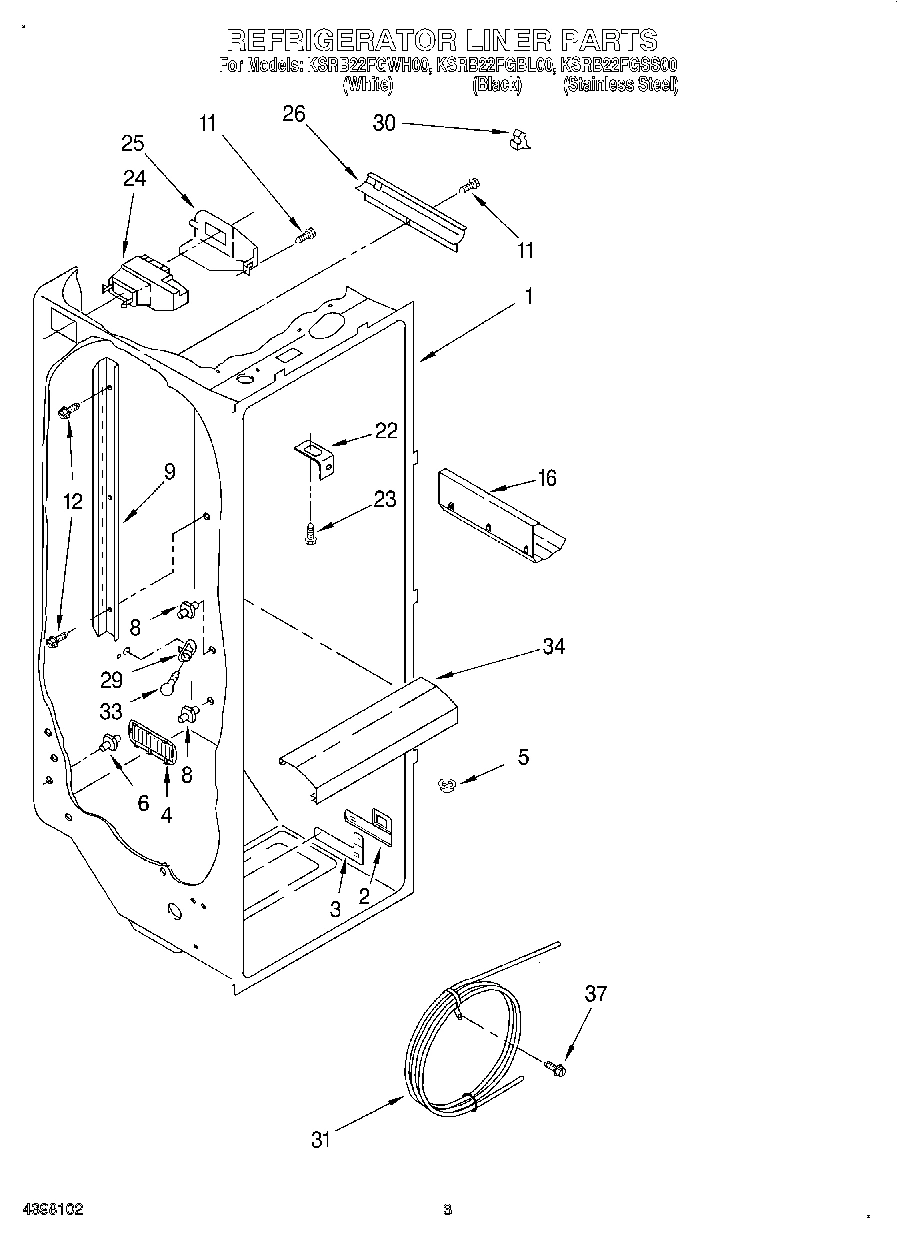

02 - REFRIGERATOR LINER

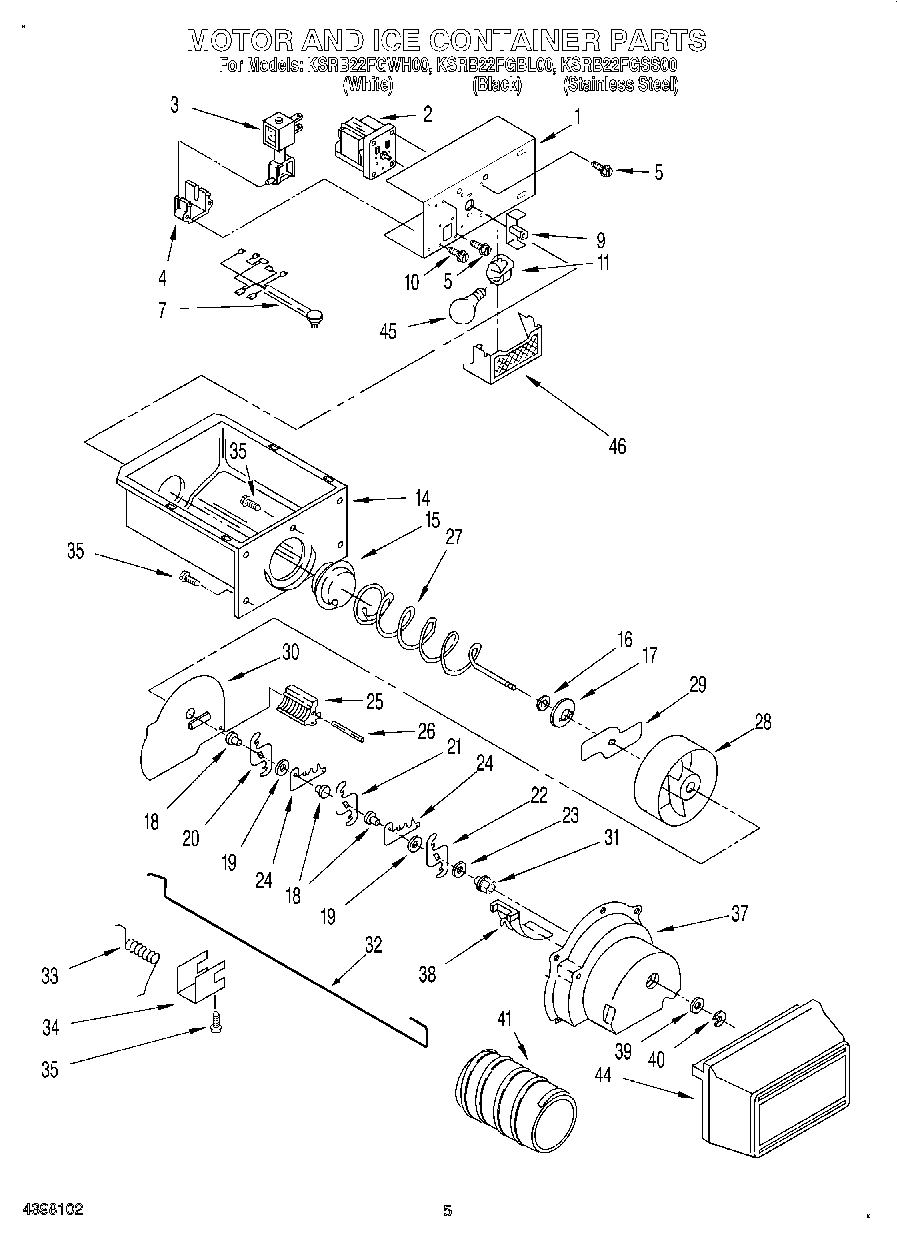

04 - MOTOR AND ICE CONTAINER

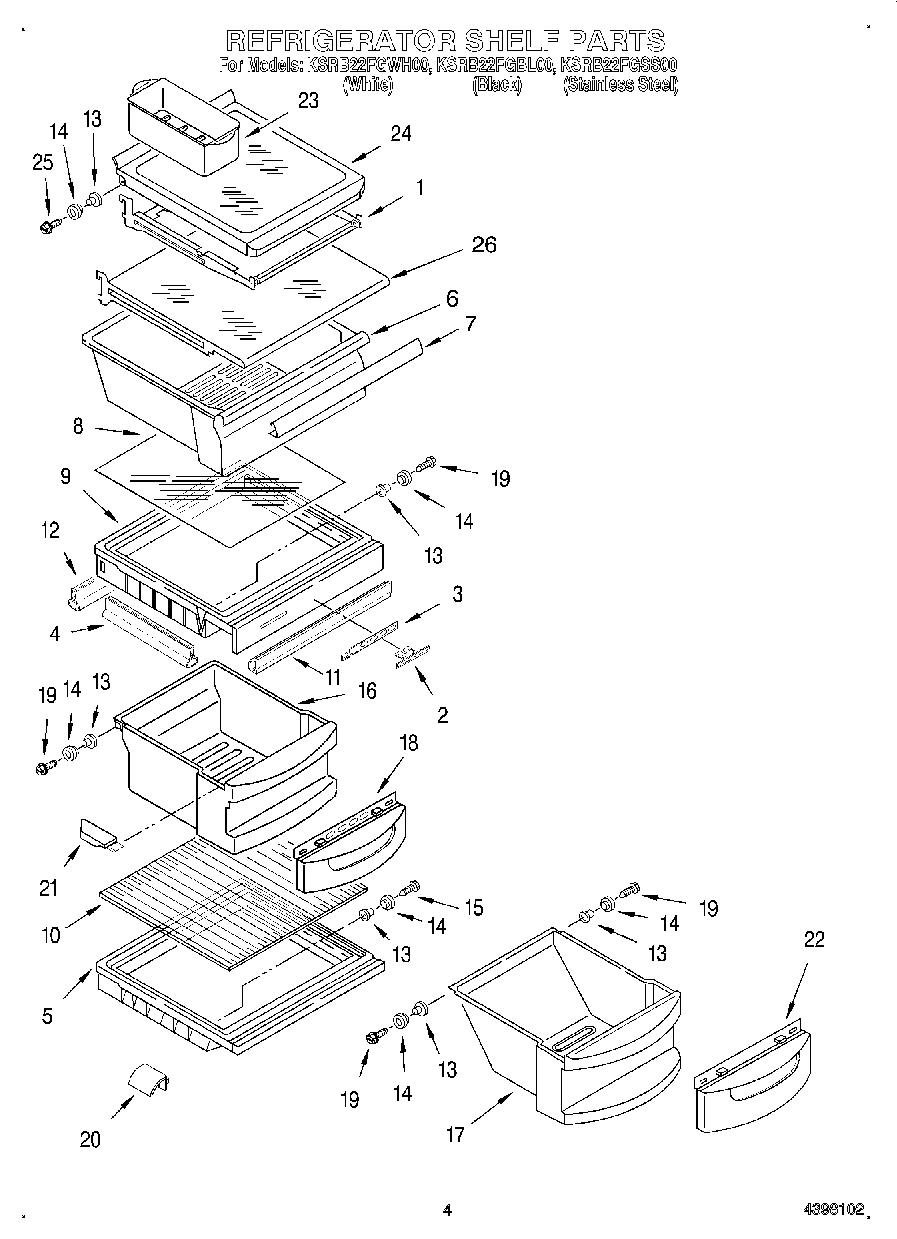

03 - REFRIGERATOR SHELF

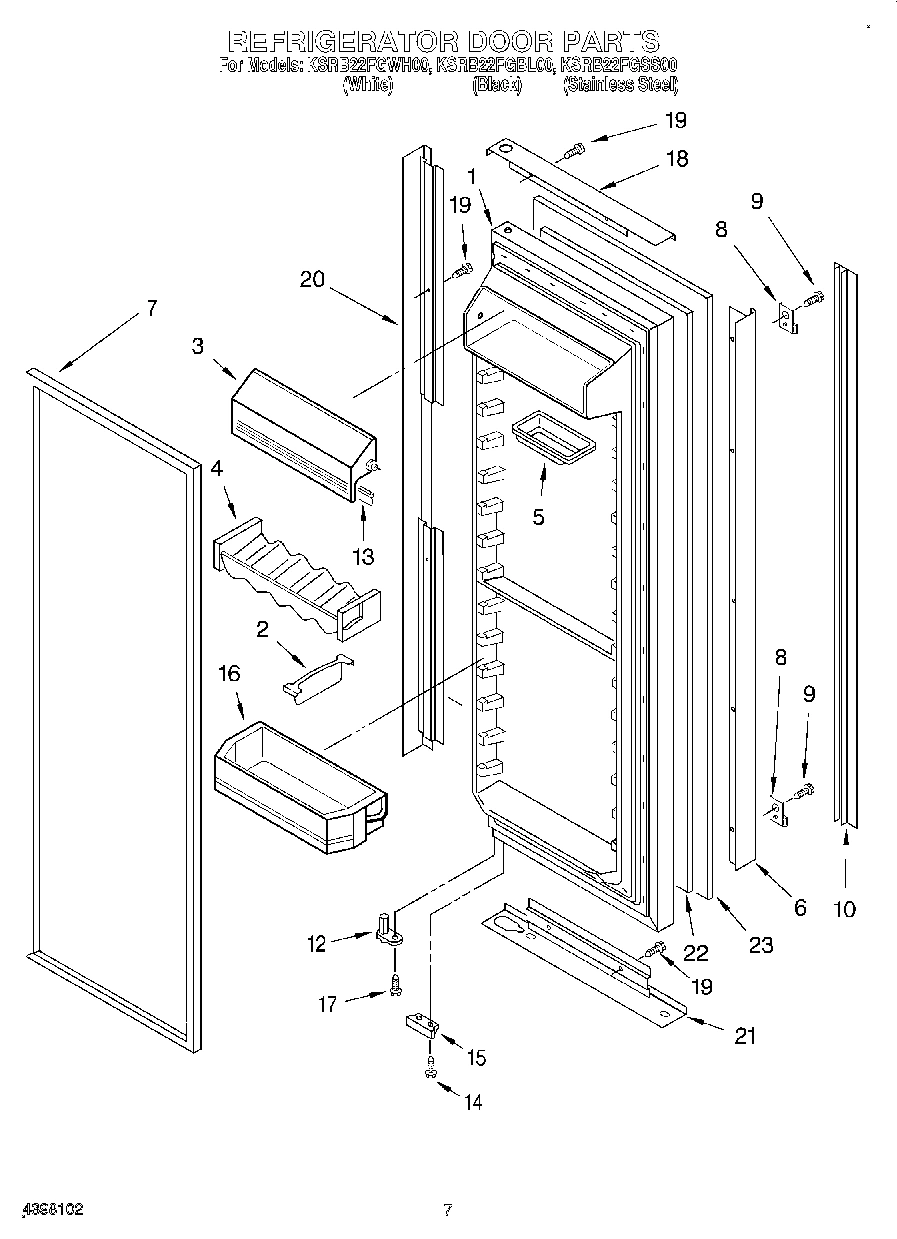

05 - REFRIGERATOR DOOR

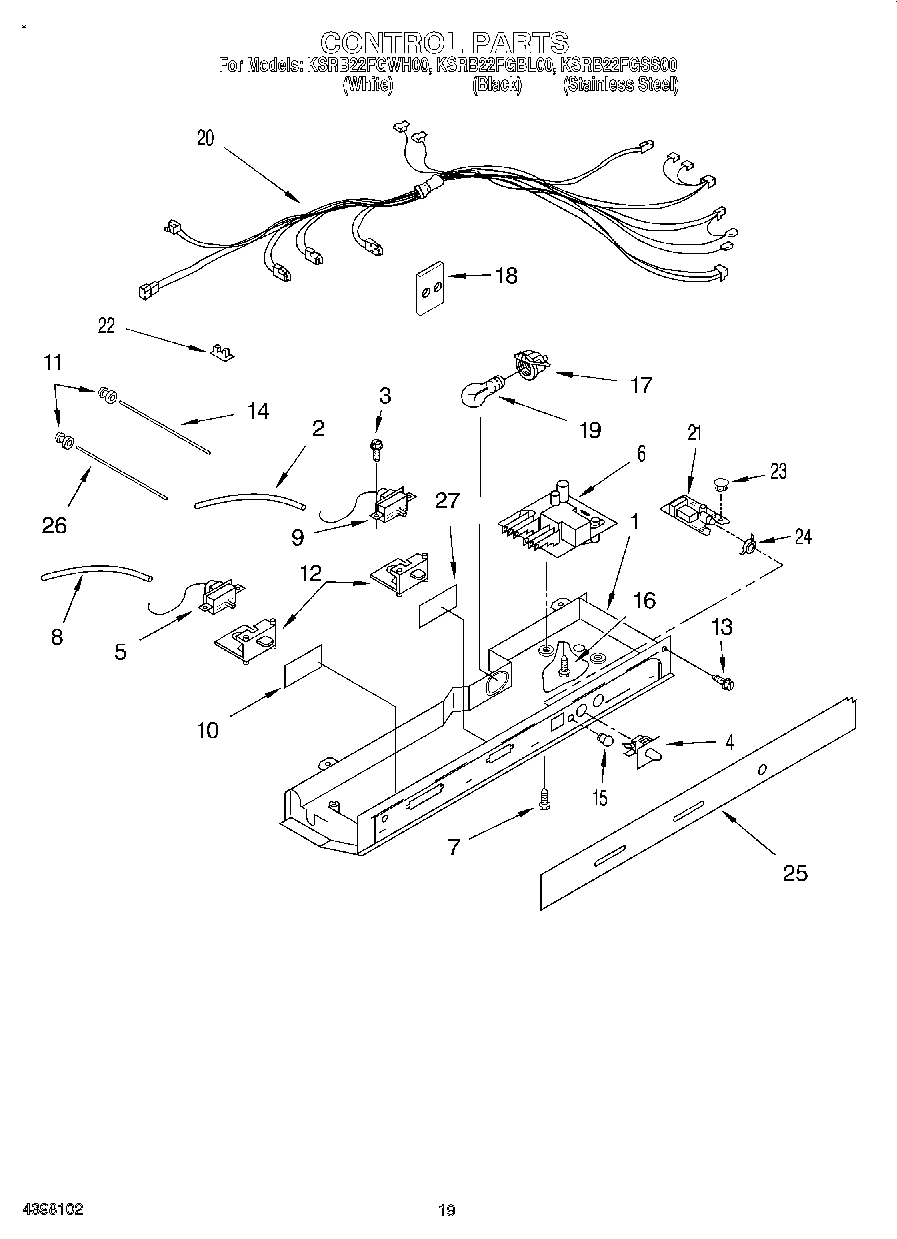

12 - CONTROL, LIT/OPTIONAL
07 - DISPENSER FRONT

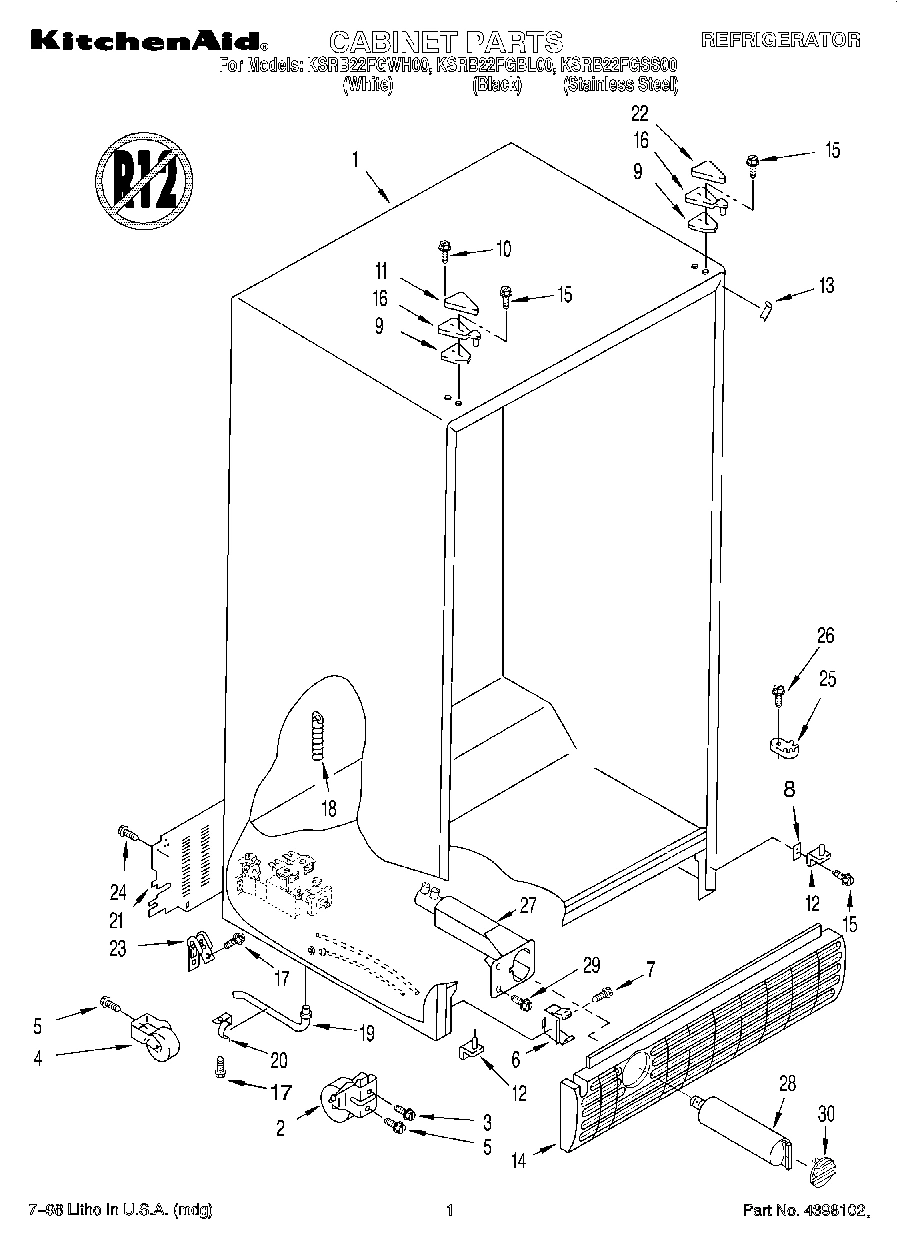

01 - CABINET
Common parts from model Whirlpool KSRB22FGBL00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186524 WPL LIT2186524 Contact Us For Availability
WPL LIT2200139 WPL LIT2200139 Contact Us For Availability
WPL LIT2200278 WPL LIT2200278 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Black) WPL 2186676B Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Stainless WPL 2186676S Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2186676W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI94059A6 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI94057A2 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Load Lock WPL 2195497 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Release Valve WPL 2171846 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Handle (Black) WPL 2200176B Contact Us For Availability
6
Handle (White) WPL 2200176W Contact Us For Availability
6
Handle (Stainless Steel) WPL 2200179S Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
Clip, Handle Retainer WPL 2186700 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Shim, Hinge Top WPL 2196049 Contact Us For Availability
10
Glass, Cover WPL 2174148 Contact Us For Availability
10
Cover, Screw (Black) WPL 2186776B Contact Us For Availability
10
Cover, Screw (White) WPL 2186776W Contact Us For Availability
10
Cover, Screw (Stainless Steel) WPL 2186977S Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11
Hinge Cover (Black) WPL 2171947 Contact Us For Availability
11
Hinge Cover (White) WPL 2171947W Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
13
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Bracket, Door Stop WPL 2195950 Contact Us For Availability
15
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Trim, Door (Top) (Black) WPL 2186723B Contact Us For Availability
18
Trim, Door (Top) (White) WPL 2186723W Contact Us For Availability
18
Trim, Door (Top) (Stainless Steel) WPL 2186785S Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2186718B Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2186718W Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Trim, Door (Hinge Side) (Black) WPL 2186687B Contact Us For Availability
20
Trim, Door (Hinge Side) (White) WPL 2186687W Contact Us For Availability
20
Trim, Door (Hinge Side) (Stainless Steel) WPL 2186764S Contact Us For Availability
20
Control Box Harness WPL 2200109 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Trim, Door (Bottom) (Black) WPL 2186721B Contact Us For Availability
21
Trim, Door (Bottom) (White) WPL 2186721W Contact Us For Availability
21
Trim, Door (Bottom) (Stainless Steel) WPL 2186783S Contact Us For Availability
21
P.C. Board Filter Indicator WPL 2200098 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI94060A3 Contact Us For Availability
22
Hinge Cover (White) WPL 1119787 Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
Filler, Panel WPL 2186731 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Panel (Black) WPL 2186728B Contact Us For Availability
23
Panel (White) WPL 2186728W Contact Us For Availability
23
Panel (Stainless Steel) WPL 2186790S Contact Us For Availability
23
Hole PLug WPL 2200379 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186713B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186713W Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
24
Retainer, Light Lens WPL 2200097 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
25
Escutcheon, Control Box WPL 2200099 Contact Us For Availability
26
Shelf, Snack Pan WPL 2198277 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
WPL 876029 WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
PAINT, BULK (1 QT.) (WHITE (UNCUT WPL 799344 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
27
WPL 799833 WPL 799833 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
