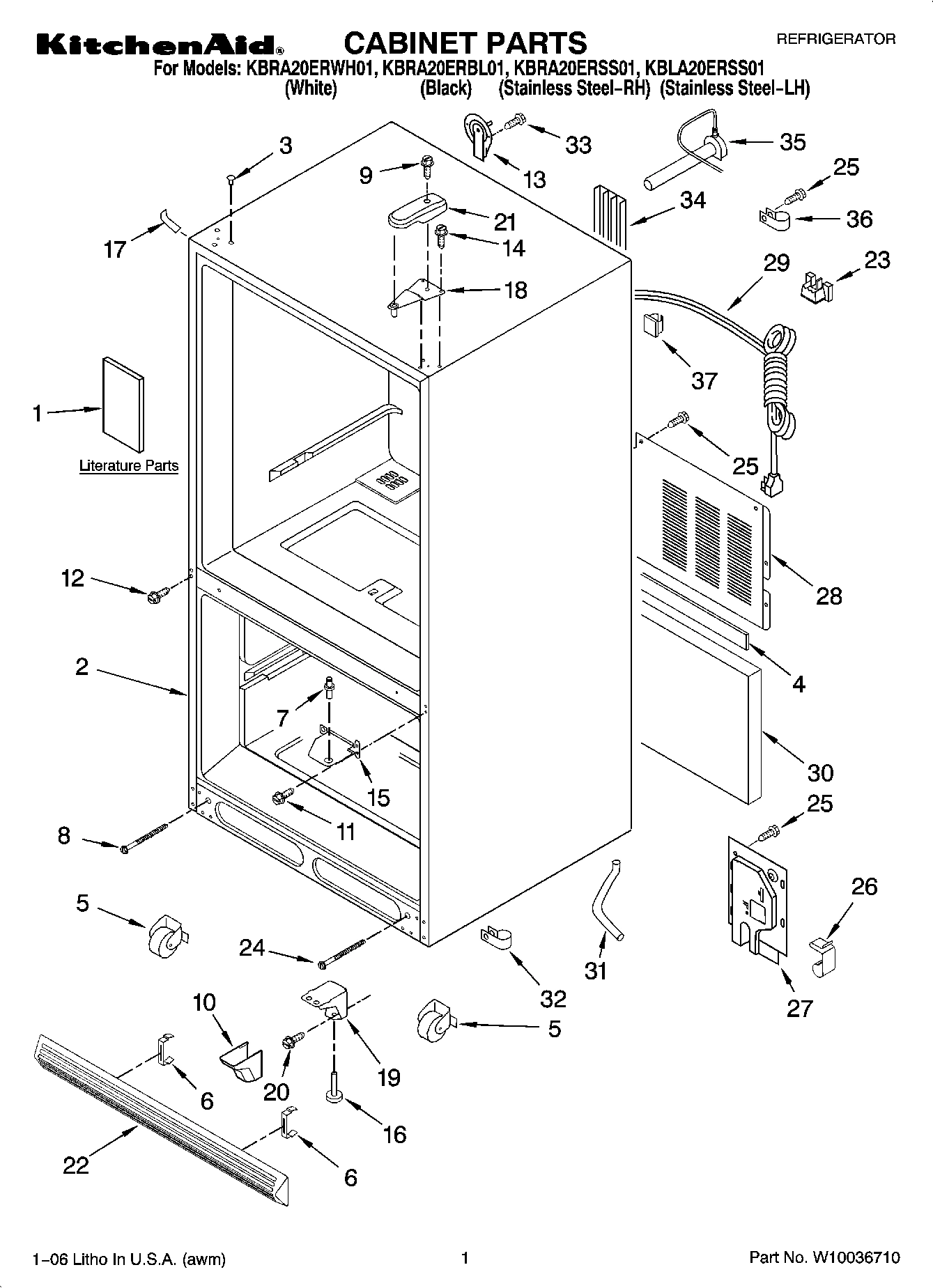

Model Whirlpool KBRA20ERSS01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 qt.) (Black (Uncut)) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Miscellaneous WPL ARI153662A Contact Us For Availability

TORX SCR WPL ARI153663A Contact Us For Availability

WPL ARI153664A WPL ARI153664A Contact Us For Availability

1

12658537SQ Whirlpool Refrigerator Foam In Pla Backorder WPL 12658537SQ $458.96

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

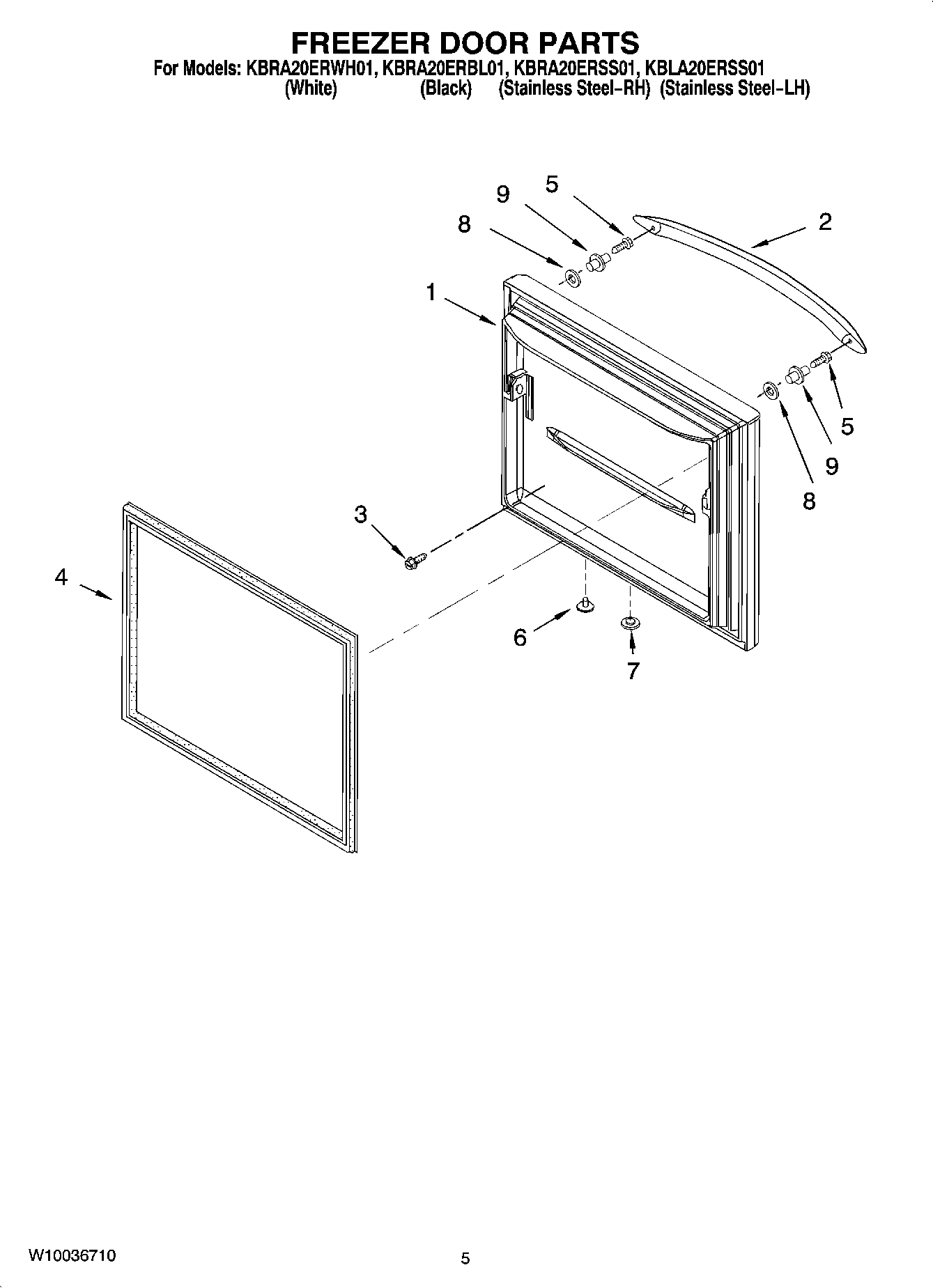

Freezer Door (w/ Insulation) (Stainless Steel WPL 8171178 Contact Us For Availability

1

Freezer Door (w/ Insulation) (Black) WPL 8171179 Contact Us For Availability

1

Freezer Door (w/ Insulation) (White) WPL 8171181 Contact Us For Availability

1

Mold & Heater Assembly (Not Available -- Orde WPL ARI153658A Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Black) WPL 8171187 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (White) WPL 8171188 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Stainless WPL 8171190 Contact Us For Availability

1

Ladder, Side WPL 8171069 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI153652A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI153654A Contact Us For Availability

2

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

2

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $50.17

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $33.03

2

Bracket, Control and Lights WPL 8208184 Contact Us For Availability

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $55.71

3

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

3

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

3

Ladder, Center WPL 8171068 Contact Us For Availability

3

Overlay WPL 8208271 Contact Us For Availability

3

Base WPL 8208292 Contact Us For Availability

4

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $129.24

4

W11416469 Whirlpool Refrigerator Housing Backorder WPL W11416469 $87.50

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

4

Screw WPL 4344167 Contact Us For Availability

4

Gasket, Door (White) WPL 8171185 Contact Us For Availability

4

Screw WPL 8170578 Contact Us For Availability

4

Cover, Light WPL 8208205 Contact Us For Availability

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

5

WP67002321 Whirlpool Refrigerator Divider Pan Backorder WPL WP67002321 $16.54

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

5

Bin, Shelf (3) (Medium) WPL 8208309 Contact Us For Availability

5

Electronic Control WPL 8208269 Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

6

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $3.70

6

Shelf, Glide (4) WPL 8208281 Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $38.12

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

7

WP67006655 Whirlpool Refrigerator Crisper Gla Backorder WPL WP67006655 $119.06

7

Dish, Butter WPL 4344296 Contact Us For Availability

7

Harness, Evap Heater WPL 8208316 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $45.48

8

W10443317 Whirlpool Refrigerator FIP Gasket Backorder WPL W10443317 $128.68

8

W10849442 Whirlpool Refrigerator FIP Gasket In Stock WPL W10849442 $124.88

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $160.13

8

WP67006185 Whirlpool Refrigerator Crisper Fra In Stock WPL WP67006185 $107.57

8

Thermostat (Not Available -- Order 8170937) WPL ARI153659A Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

9

Handle, Door (Stainless Steel) WPL 8171176 Contact Us For Availability

9

Handle, Door (Black) WPL 8171182 Contact Us For Availability

9

Handle, Door (White) WPL 8171184 Contact Us For Availability

9

Screw WPL 4344523 Contact Us For Availability

9

Grommet (3) WPL 8171209 Contact Us For Availability

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $86.21

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $72.11

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

Housing, Frz. Light WPL 8170838 Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $34.44

WP67003417 Whirlpool Refrigerator Front Seal Backorder WPL WP67003417 $3.70

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $42.09

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $4.56

WP67002513 Whirlpool Refrigerator Rear Crispe Backorder WPL WP67002513 $4.14

WP67005154 Whirlpool Water Valve In Stock WPL WP67005154 $58.25

Bin, Shelf (1) (Small) WPL 8208310 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $45.29

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.30

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $58.93

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $51.55

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $35.72

Trim, Door Shelf WPL 8171012 Contact Us For Availability

Trim, Crisper WPL 8208280 Contact Us For Availability

Insulation WPL 8208194 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $49.87

WP67002659 Whirlpool Crisper Pan In Stock WPL WP67002659 $96.47

WP67003903 Whirlpool Refrigerator Damper Cont In Stock WPL WP67003903 $102.84

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.70

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.86

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $30.25

Washer WPL 8171212 Contact Us For Availability

Screw WPL 8208302 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $9.90

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.59

Handle, Basket WPL 8208220 Contact Us For Availability

Strap WPL 8170724 Contact Us For Availability

W10251557 Whirlpool Refrigerator Bracket Backorder WPL W10251557 $42.66

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $153.47

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Stud, Handle WPL 8171220 Contact Us For Availability

Divider, Upper Basket WPL 8208265 Contact Us For Availability

WP12866903 Whirlpool Refrigerator Discharge T Backorder WPL WP12866903 $75.40

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $45.48

Hinge Bottom (Black) WPL 8171066 Contact Us For Availability

Hinge Bottom (White) WPL 8171067 Contact Us For Availability

Module Assembly (Not Available -- Order 81709 WPL ARI153660A Contact Us For Availability

Screw WPL 8171073 Contact Us For Availability

Slide, Drawer (2) WPL 8208266 Contact Us For Availability

Tank, Water WPL 8171250 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

W10503185 Whirlpool Refrigerator Cutlery Bask Backorder WPL W10503185 $57.94

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

Screw WPL 8171202 Contact Us For Availability

Dispenser WPL 8171034 Contact Us For Availability

Tray, Drip WPL 8171081 Contact Us For Availability

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $29.13

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

W10284690 Whirlpool Refrigerator Bracket Backorder WPL W10284690 $27.52

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

Divider, Lower Basket WPL 8171227 Contact Us For Availability

Bracket, Slide (Right) WPL 8208268 Contact Us For Availability

Spacer WPL 8208319 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $201.99

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $6.62

WP67002224 Whirlpool Refrigerator Grille Asse Backorder WPL WP67002224 $44.94

WP67002332 Whirlpool Refrigerator Glass Pan Backorder WPL WP67002332 $121.31

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $40.86

Grille Assembly (Includes Clips) (White) WPL 8170866 Contact Us For Availability

Plug, Button (Black) WPL 4343926 Contact Us For Availability

Plug, Button (White) WPL 8170953 Contact Us For Availability

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

WP67004106 Whirlpool Water Filter Housing In Stock WPL WP67004106 $79.55

WP67006010 Whirlpool Refrigerator Shelf Trim Backorder WPL WP67006010 $91.97

Nameplate (Black) WPL 8170732 Contact Us For Availability

Nameplate (White) WPL 8170734 Contact Us For Availability

Shroud, Evap.Fan WPL 8171153 Contact Us For Availability

Dam (Left Side) WPL 8171154 Contact Us For Availability

Dam (Right Side) WPL 8171155 Contact Us For Availability

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $56.24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $55.44

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

WP12656018 Whirlpool Drawer Support In Stock WPL WP12656018 $45.67

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $32.45

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $44.96

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

Clip, Water Line WPL 8208295 Contact Us For Availability

Head, Filter Bypass WPL 8171042 Contact Us For Availability

Harness, Unit WPL 8208293 Contact Us For Availability

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $54.81

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.00

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.08

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

Cover, Water Valve WPL 8208294 Contact Us For Availability

67003794 Whirlpool Refrigerator Temperature C Backorder WPL 67003794 $8.09

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

W10309989 Whirlpool Refrigerator Compressor In Stock WPL W10309989 $344.71

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

Cover, Unit WPL 8170910 Contact Us For Availability

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $12.55

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $28.31

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $17.57

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

Control Board WPL 8208298 Contact Us For Availability

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

67005419 Whirlpool Refrigerator HV Board Harn In Stock WPL 67005419 $62.05

W11490183 Whirlpool Refrigerator Utility Pan Backorder WPL W11490183 $76.45

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $29.21

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $31.09

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

WP67005930 Whirlpool Refrigerator Pantry Draw In Stock WPL WP67005930 $48.40

Tube, Drain WPL 8170861 Contact Us For Availability

SHROUD WPL 8170906 Contact Us For Availability

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

67005644 Whirlpool Refrigerator Wire Harness Backorder WPL 67005644 $33.38

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $30.89

Clip WPL 4343952 Contact Us For Availability

Harness, Damper Control WPL 8208197 Contact Us For Availability

Following Parts Not Illustrated WPL ARI153655A Contact Us For Availability

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.14

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

Harness, Lights (Freezer) WPL 8208350 Contact Us For Availability

Following Parts Not Illustrated WPL ARI153653A Contact Us For Availability

Box, Control WPL 8208318 Contact Us For Availability

34

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $113.76

34

Track, Water Line WPL 8208152 Contact Us For Availability

34

Clip, Drier WPL 8170901 Contact Us For Availability

35

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $43.94

35

Grommet (4) WPL 4343845 Contact Us For Availability

36

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

36

Clip, Evaporator WPL 4344219 Contact Us For Availability

37

W10709801 Whirlpool Refrigerator Screw Backorder WPL W10709801 $9.13

37

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

38

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

39

Screw WPL 4344292 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Screw WPL 8208297 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI153656A Contact Us For Availability

REFRIGERANT CHARGE 5.00 Ozs. (R-134A) WPL ARI153657A Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $78.49

Screw, Bracket WPL 8170943 Contact Us For Availability

Retainer, Tube WPL 8170944 Contact Us For Availability

Following Parts Not Illustrated WPL ARI153661A Contact Us For Availability
