Model Whirlpool KBFS25EWBL4 REFRIGERATOR – Common Parts & Diagrams
04 - REFRIGERATOR DOOR PARTS
08 - ICEMAKER PARTS

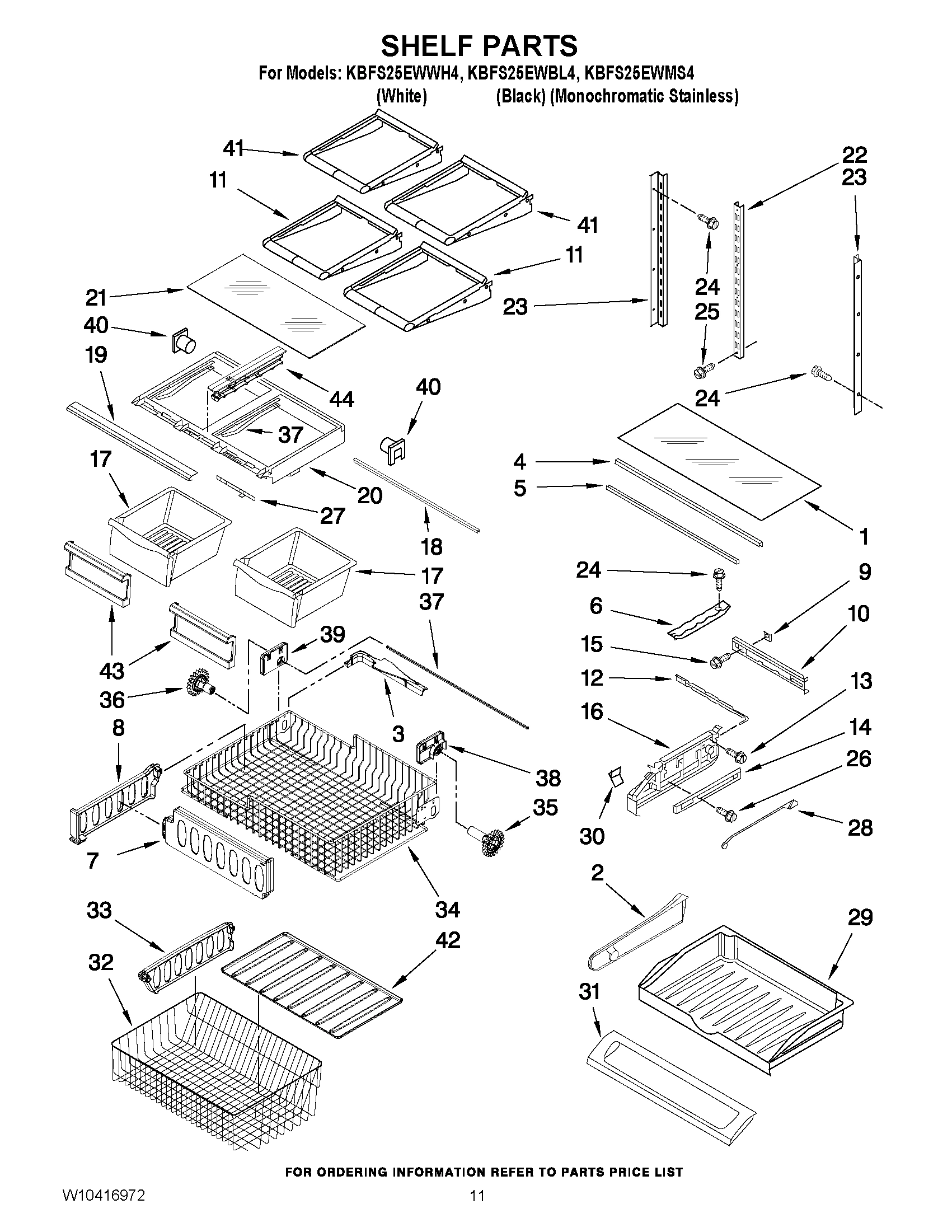

06 - SHELF PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)

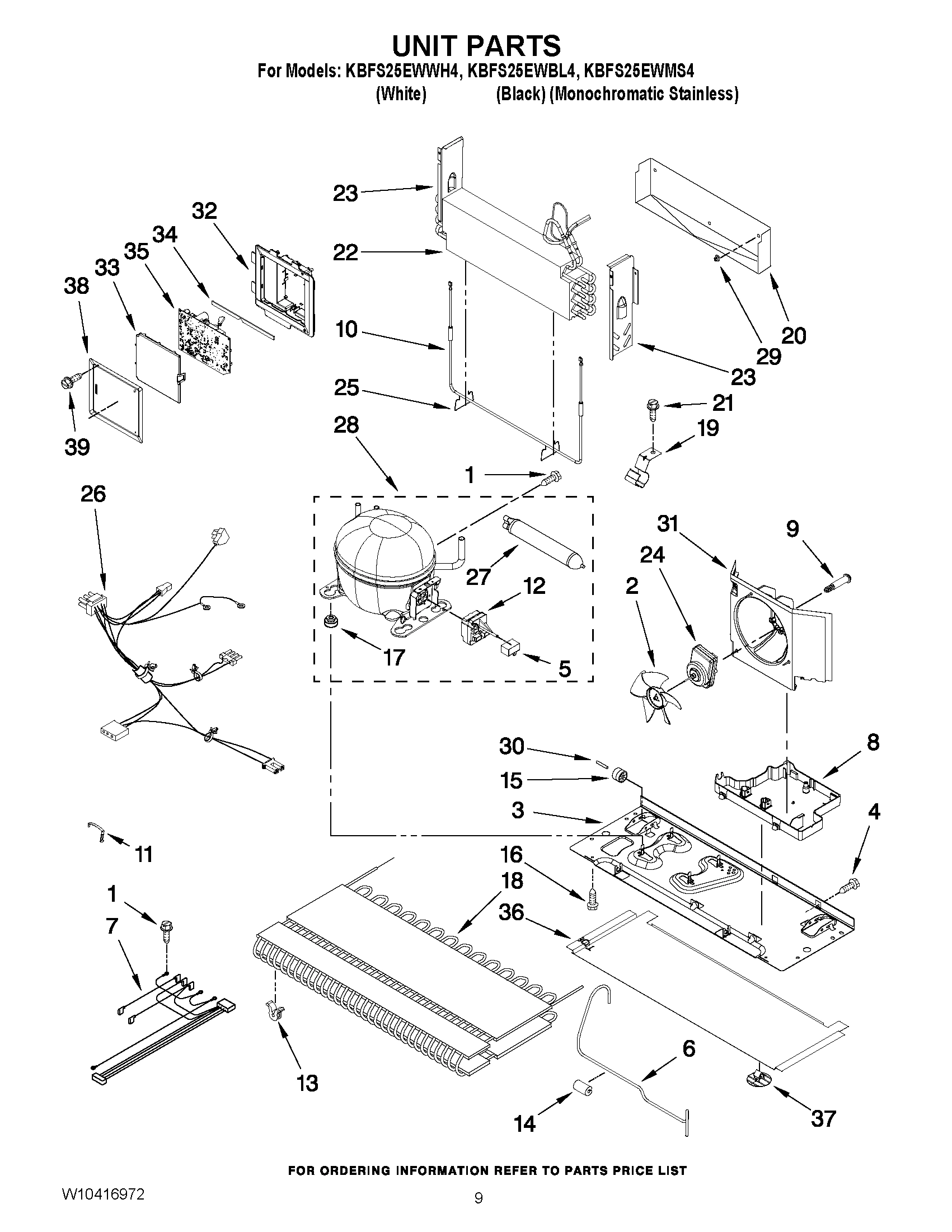

05 - UNIT PARTS

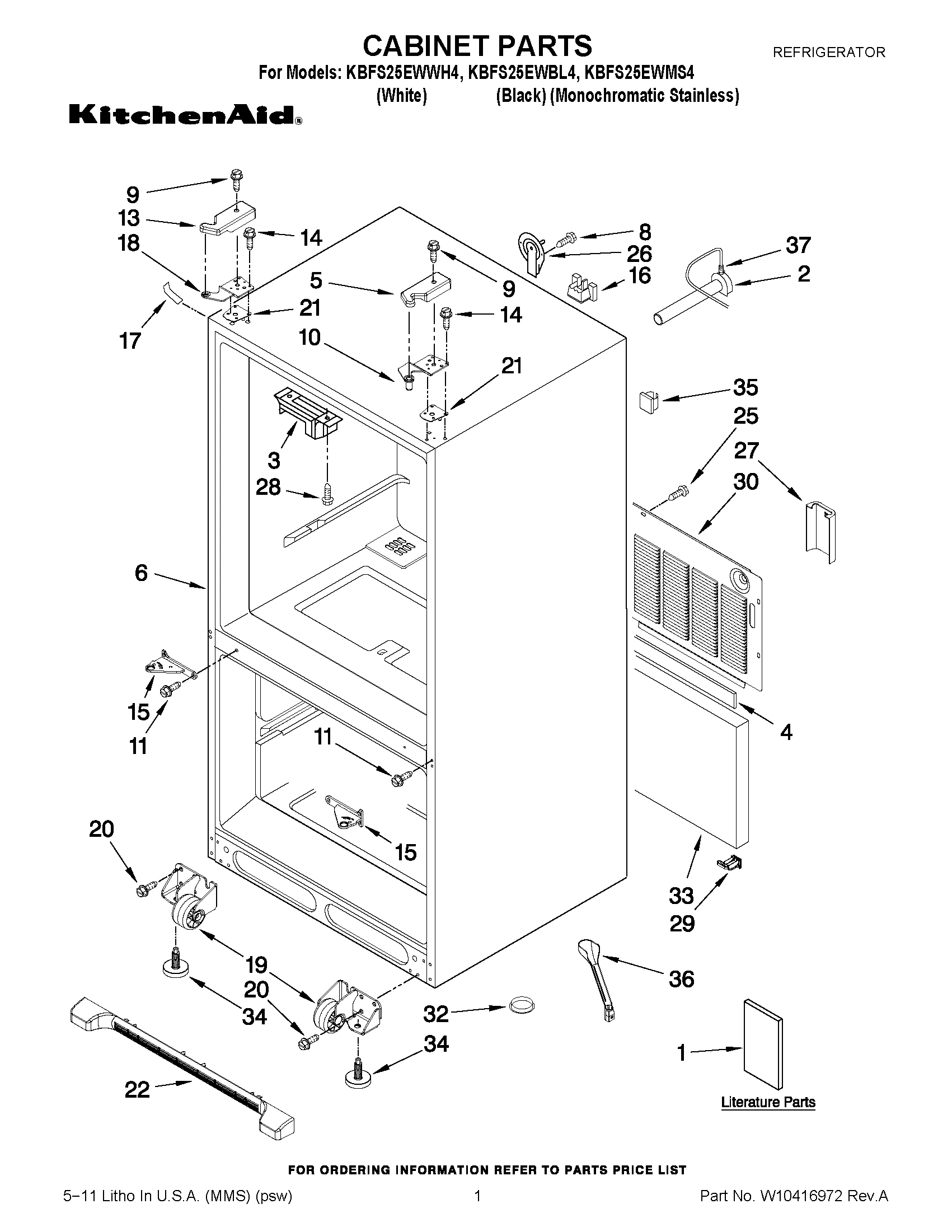

01 - CABINET PARTS

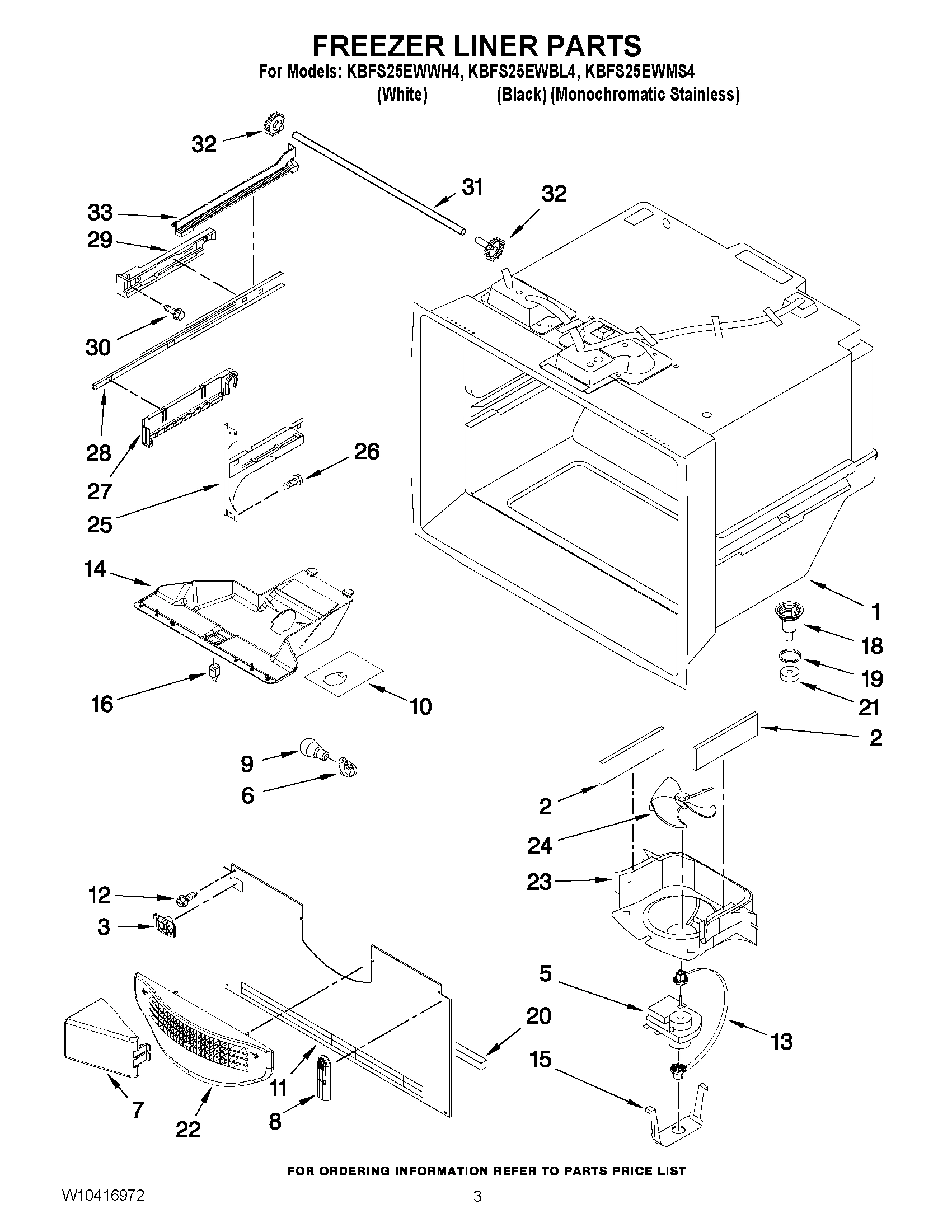

02 - FREEZER LINER PARTS

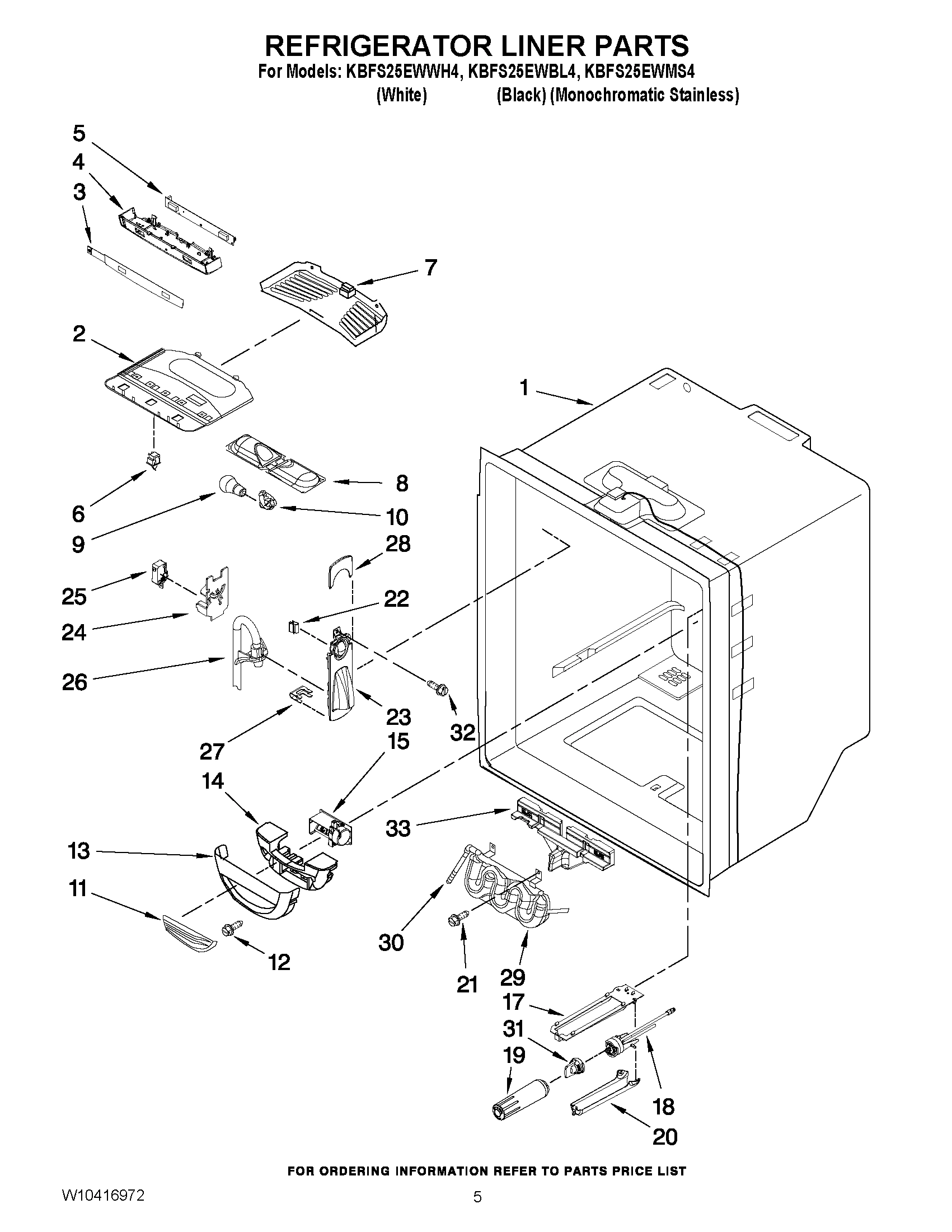

03 - REFRIGERATOR LINER PARTS

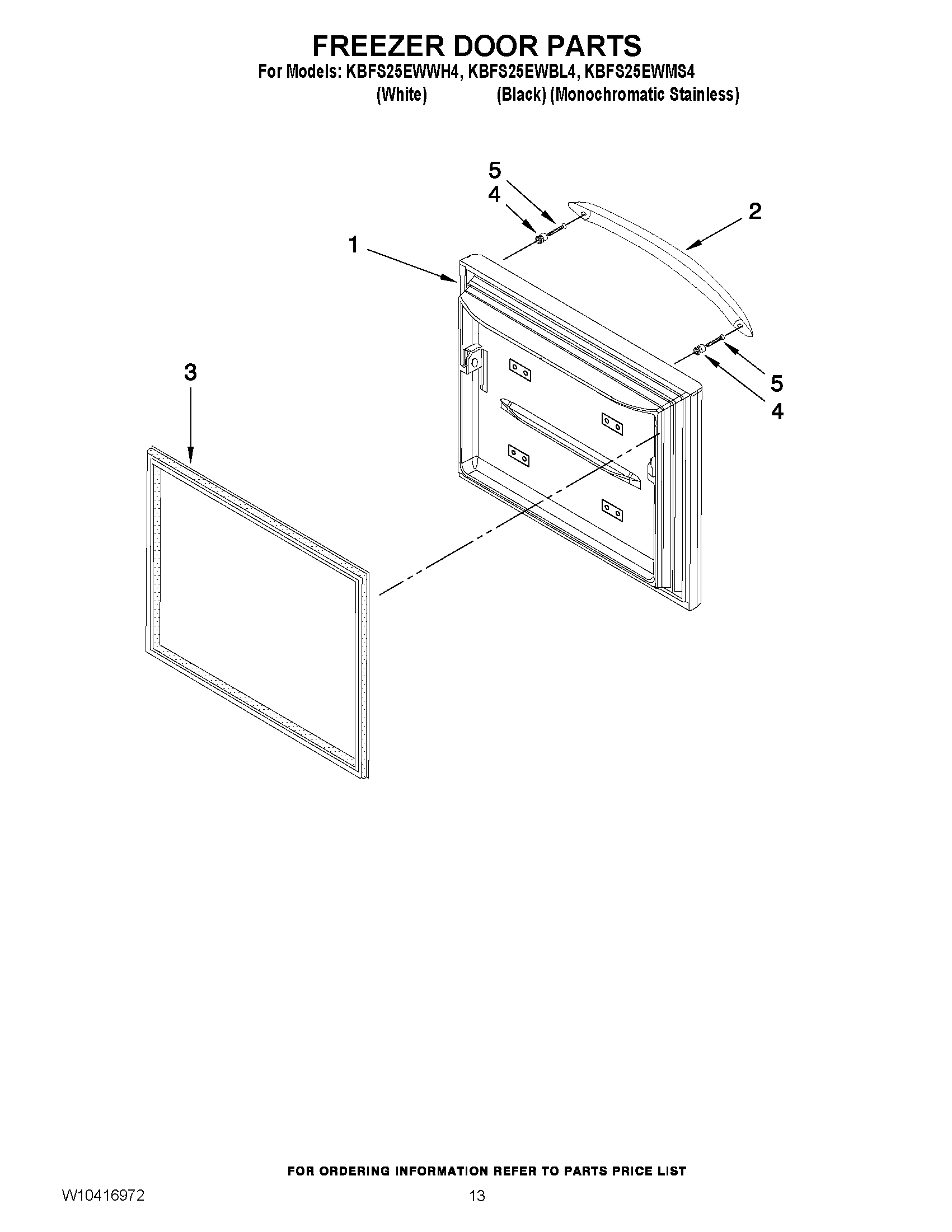

07 - FREEZER DOOR PARTS
Common parts from model Whirlpool KBFS25EWBL4 REFRIGERATOR
1
SCREW WPL 12992301 Contact Us For Availability
3
LIFT, BAIL ARM WPL W10149389 Contact Us For Availability
4
GASKET WPL B5759655 Contact Us For Availability
7
DIVERTER, AIR WPL W10157765 Contact Us For Availability
7
DIVIDER, UPPER BASKET WPL W10171558 Contact Us For Availability
7
SCREW, MOUNT WPL W10290759 Contact Us For Availability
7
HARNESS, EVAP. (INCL.DEF.HEATER) WPL W10292242 Contact Us For Availability
8
DIVIDER, UPPER BASKET WPL W10241046 Contact Us For Availability
10
HOUSING, CONTROL WPL 12656202 Contact Us For Availability
12
START DEVICE WPL W10361443 Contact Us For Availability
12
BUCKET, GALLON WPL W10289496 Contact Us For Availability
13
GROMMET WPL W10121318 Contact Us For Availability
15
CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability
15
HINGE, CENTER (WHITE - RH) WPL 13000002WD Contact Us For Availability
17
Stop, Door (White) WPL 12968202W Contact Us For Availability
17
COVER, CORNER (2) (WHITE) WPL 12587703W Contact Us For Availability
21
SHIM, HINGE (LEFT) WPL 12999501 Contact Us For Availability
21
SHIM, HINGE (RIGHT) WPL 12999502 Contact Us For Availability
22
LADDER, CENTER WPL W10273463 Contact Us For Availability
22
FUNNEL, FILL TUBE WPL 12918001 Contact Us For Availability
23
Dam (Left Side) WPL 12225602 Contact Us For Availability
25
SCREW (2) WPL W10215666 Contact Us For Availability
26
COVER, WATER LINE WPL 12726003 Contact Us For Availability
27
GUARD, WATER VALVE WPL W10208593 Contact Us For Availability
29
SWEEP, DUAL TUBE WPL 12831101 Contact Us For Availability
32
GEAR,(L & R) WPL 12002497 Contact Us For Availability
32
Basket, Freezer (Lower) WPL W10150039 Contact Us For Availability
33
INSULATION, SOUND WPL 12820505 Contact Us For Availability
38
MOUNT, RH WPL W10348260 Contact Us For Availability
38
COVER, CONTROL BOX WPL 12961602 Contact Us For Availability
39
MOUNT, LH WPL W10348259 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
NI
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
NI
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
NI
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
NI
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. X 3`` X 24`` X 48``) WPL 876370 Contact Us For Availability
NI
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
NI
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
NI
Kit, Terminal Connector WPL 833938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH WPL 350942 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability
× ![]()
