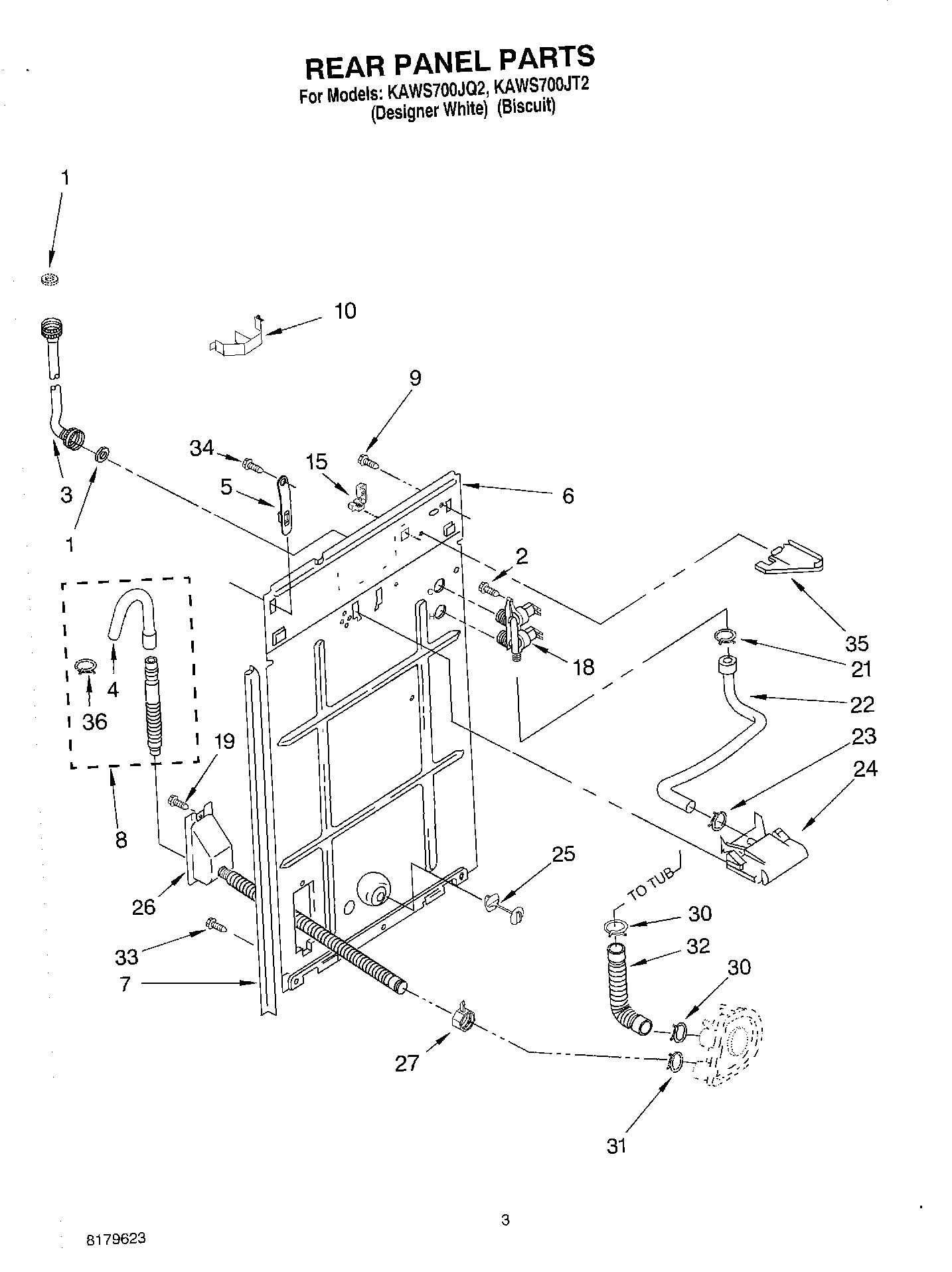

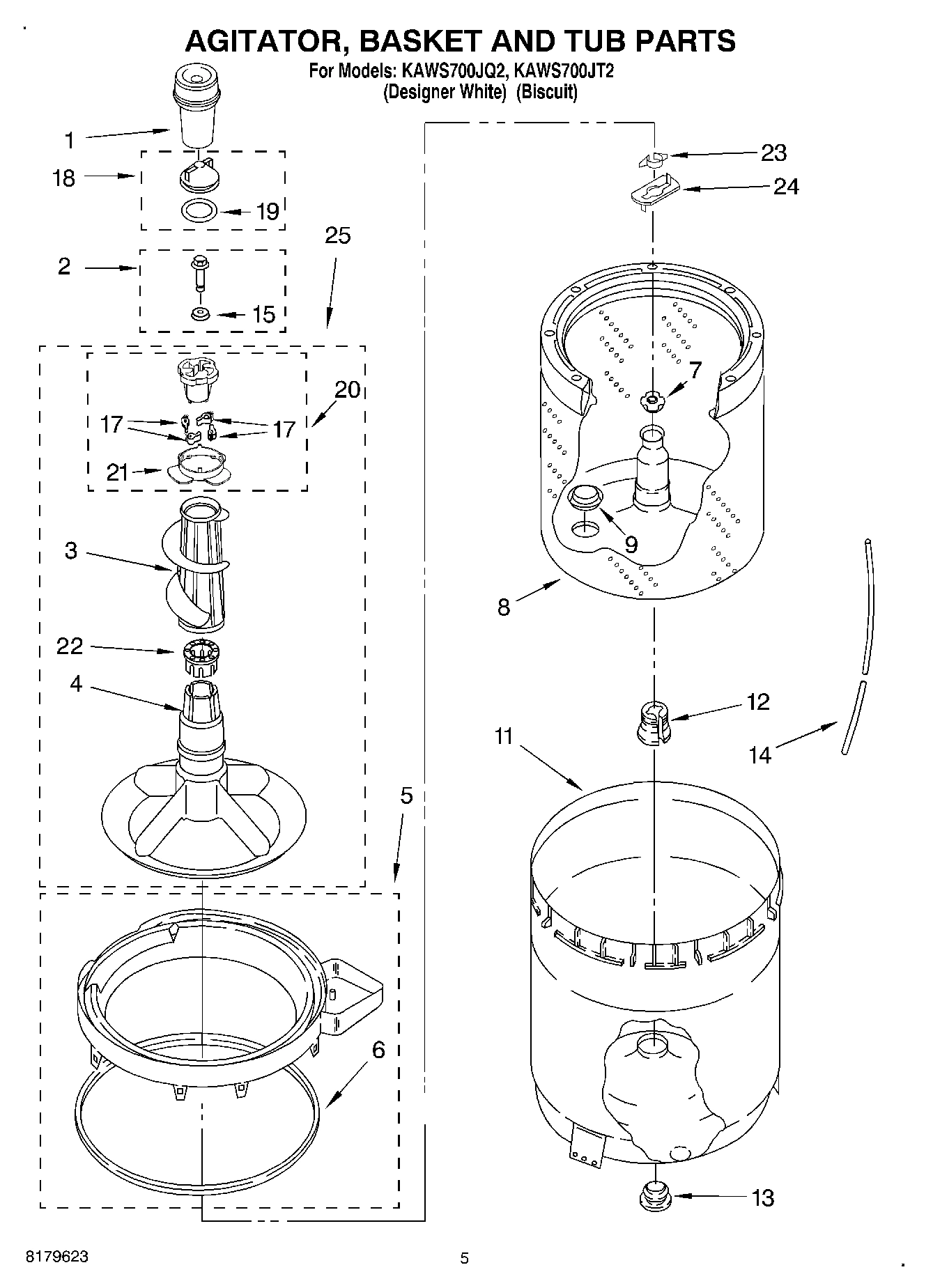

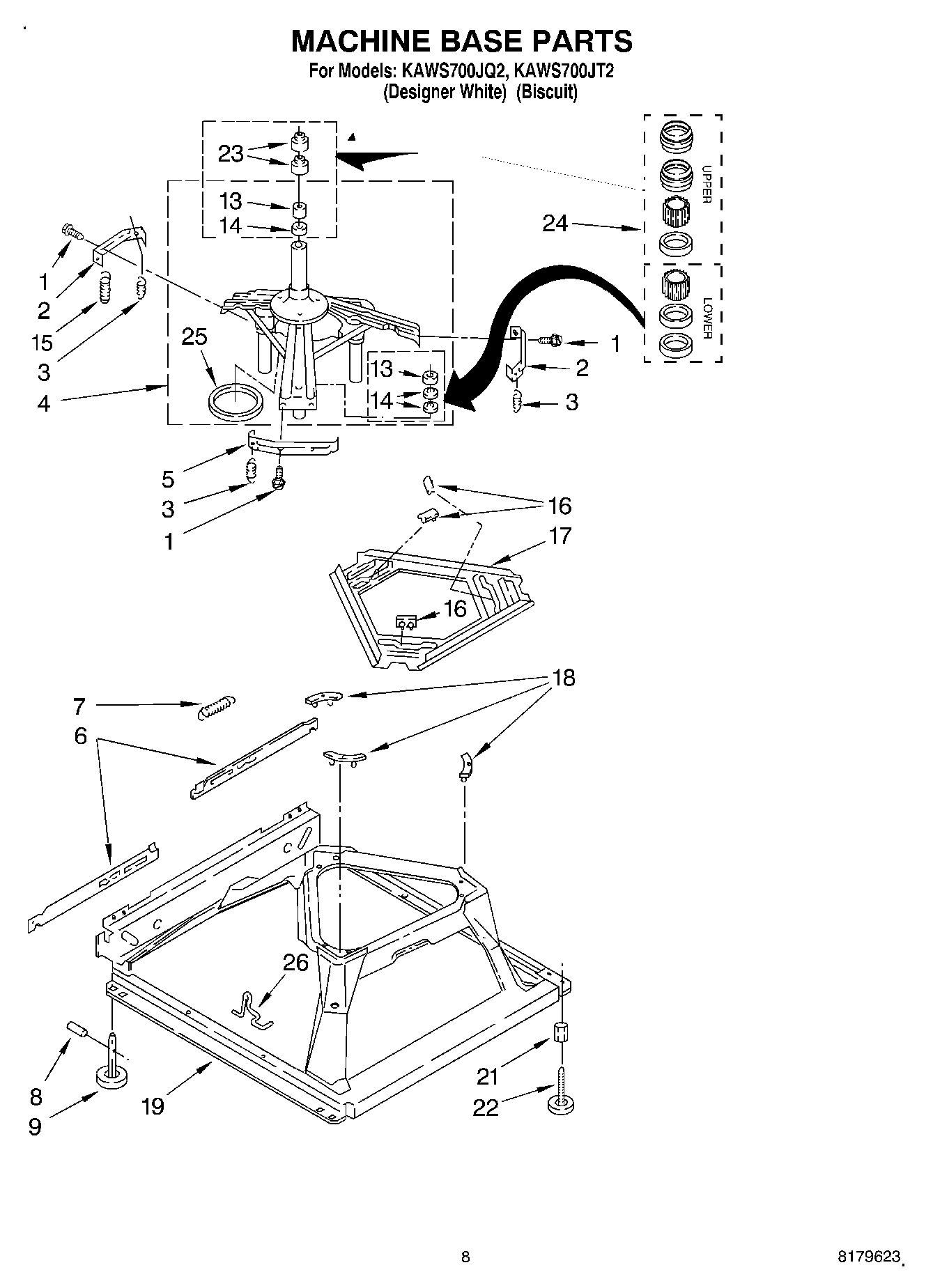

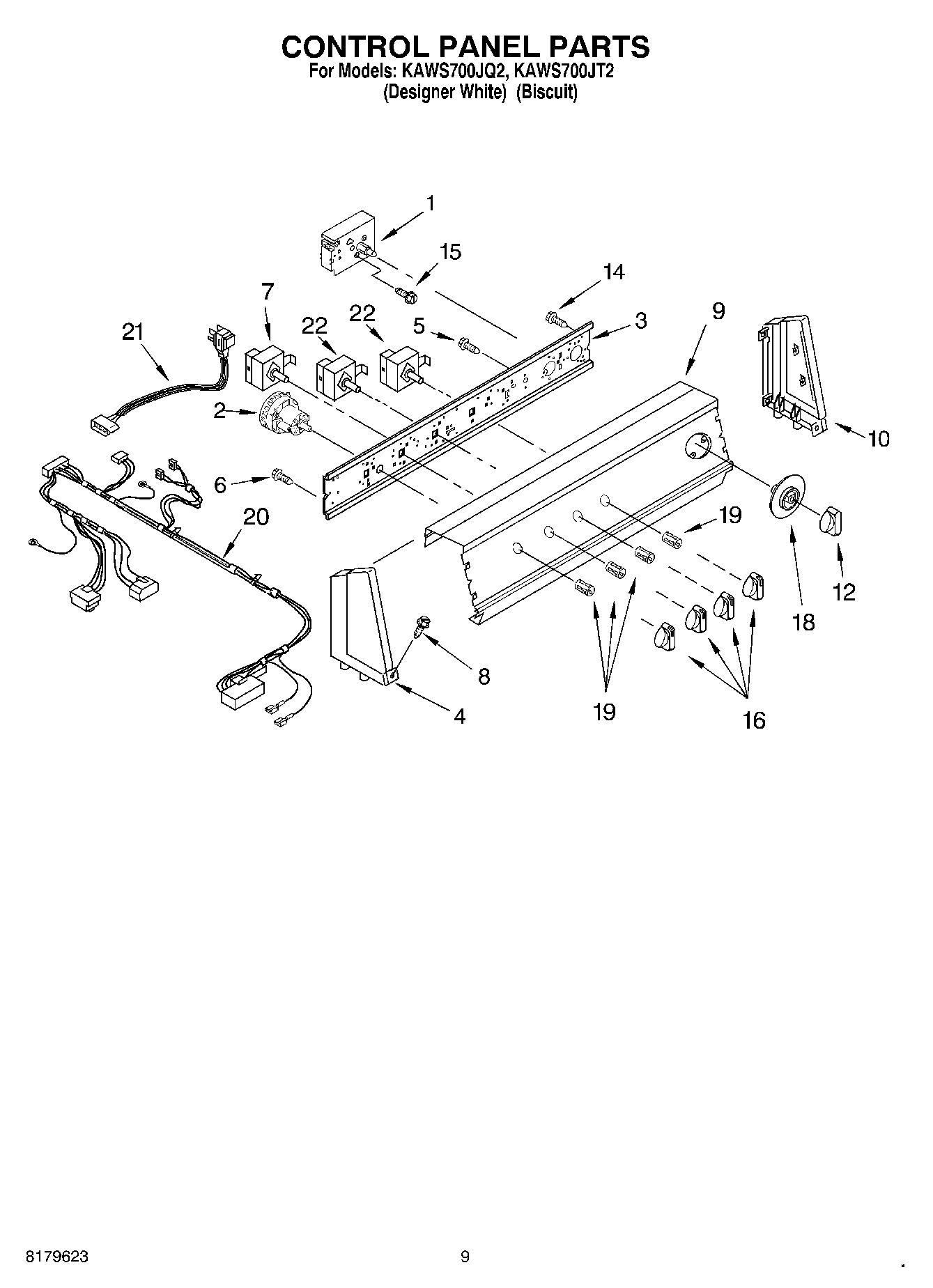

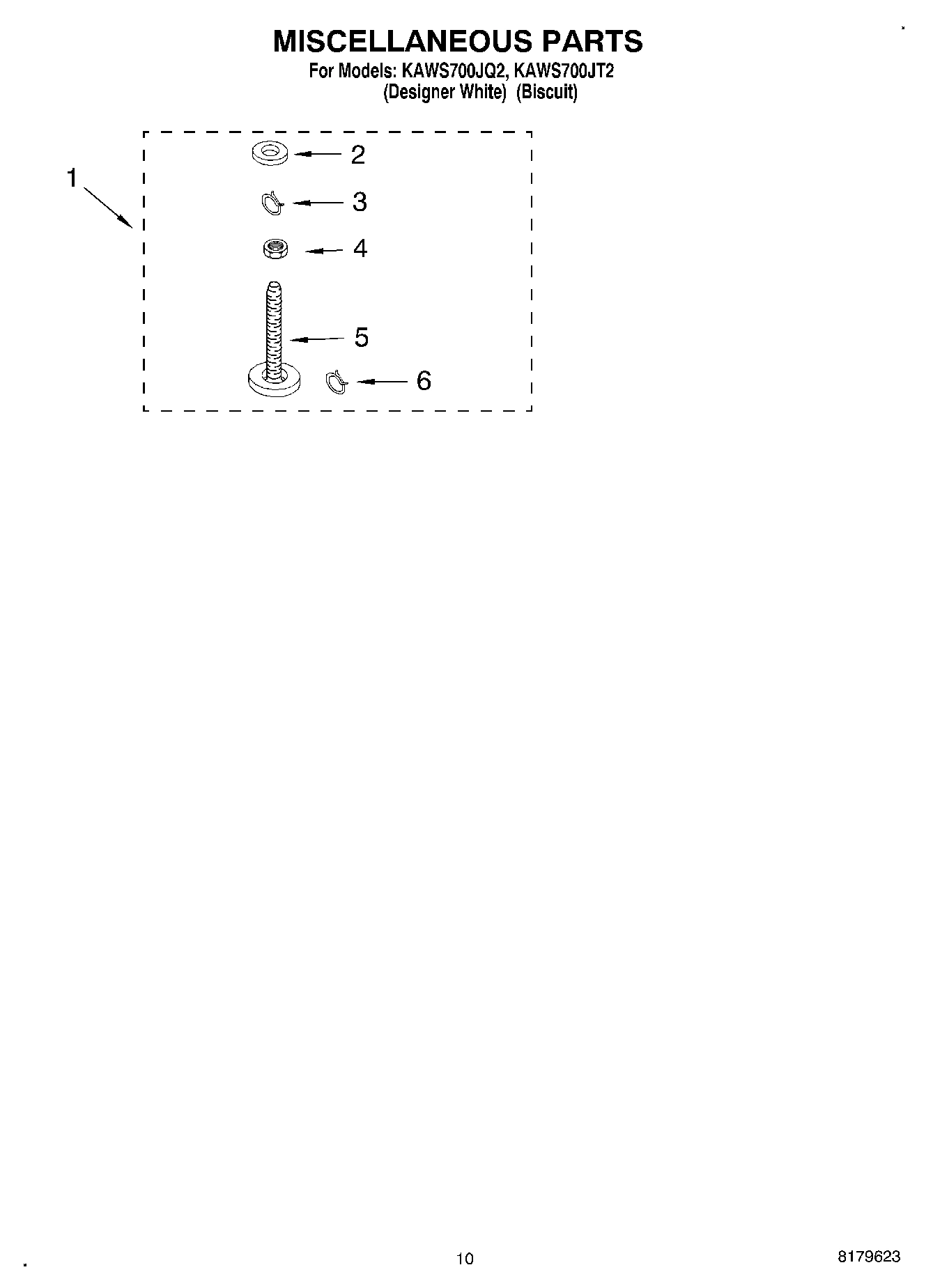

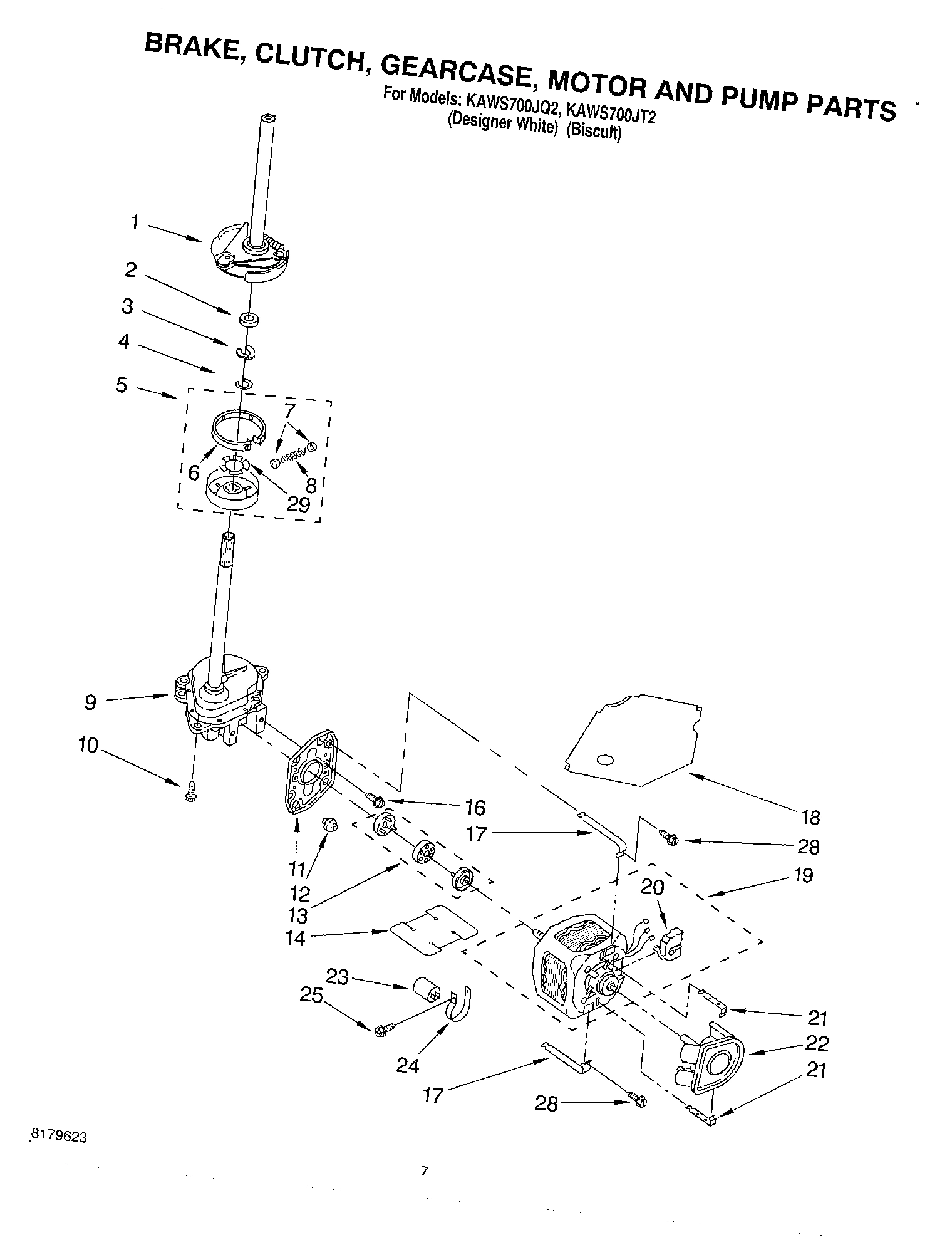

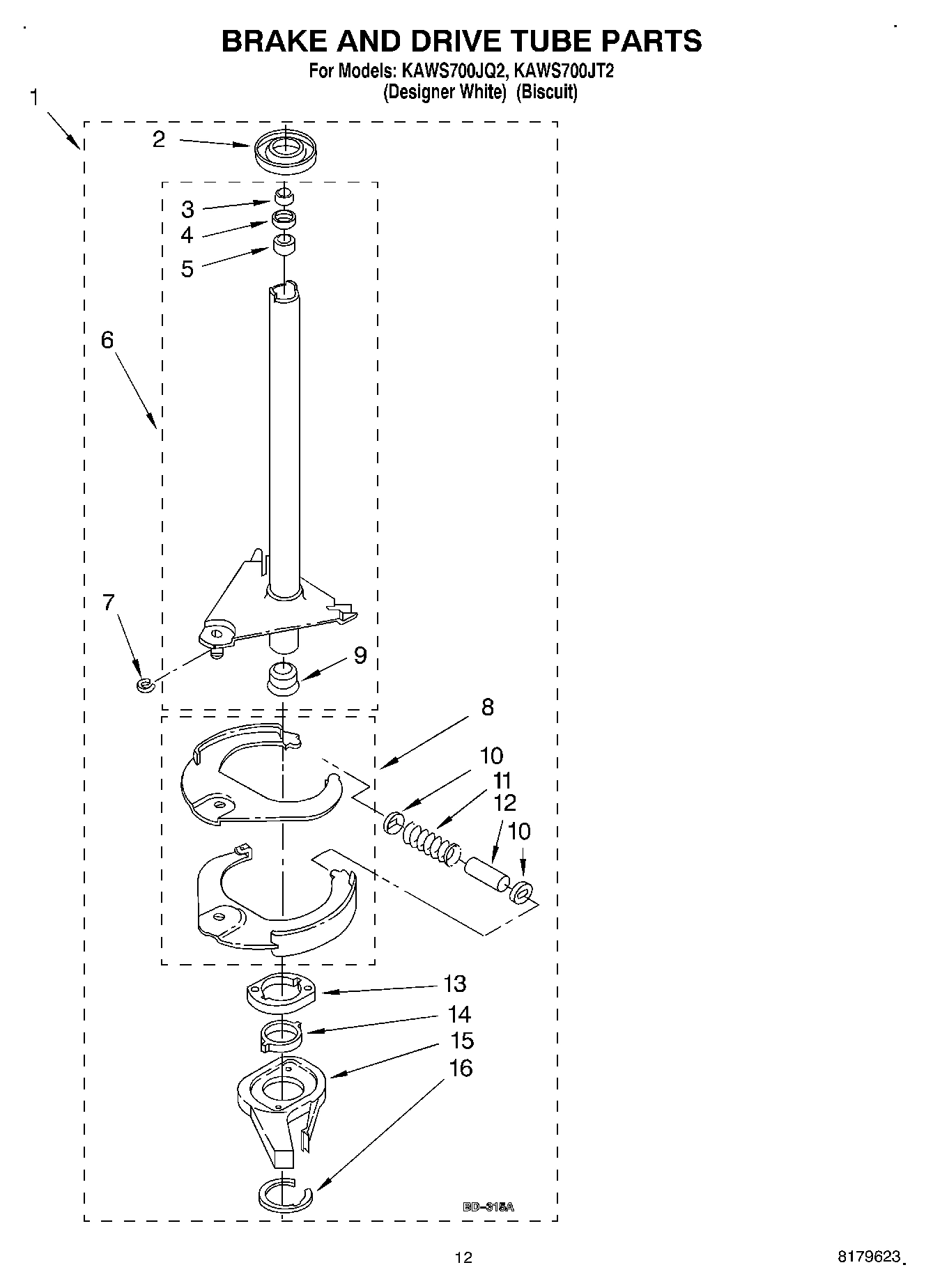

Model Whirlpool KAWS700JT2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Timer, Control 60Hz. (Motor Not Serviced) WPL 3950736 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

Clothes Mover WPL 3950581 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $28.80

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

6

Shipping Kit WPL 3348675 Contact Us For Availability

6

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Switch, Water Temperature WPL 661614 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $126.36

11

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

13

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

14

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $103.30

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Protector WPL 63523 Contact Us For Availability

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

17

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

18

Clip, Harness WPL 3352944 Contact Us For Availability

19

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

19

Motor, Main Drive WPL 3350418 Contact Us For Availability

19

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

W10820044 Whirlpool Power Cord Backorder WPL W10820044 $56.25

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $59.35

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

23

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

23

Connector, Etc WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

Agitator (Complete Asy.) WPL 3950579 Contact Us For Availability

Control, ETC WPL 3407125 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $8.66

26

Hose, Drain (Anchored) WPL 8317941 Contact Us For Availability

27

Clamp, Hose WPL 3976395 No Longer Available

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

28

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

34

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

34

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

35

Sheild, Suds WPL 3348424 Contact Us For Availability
