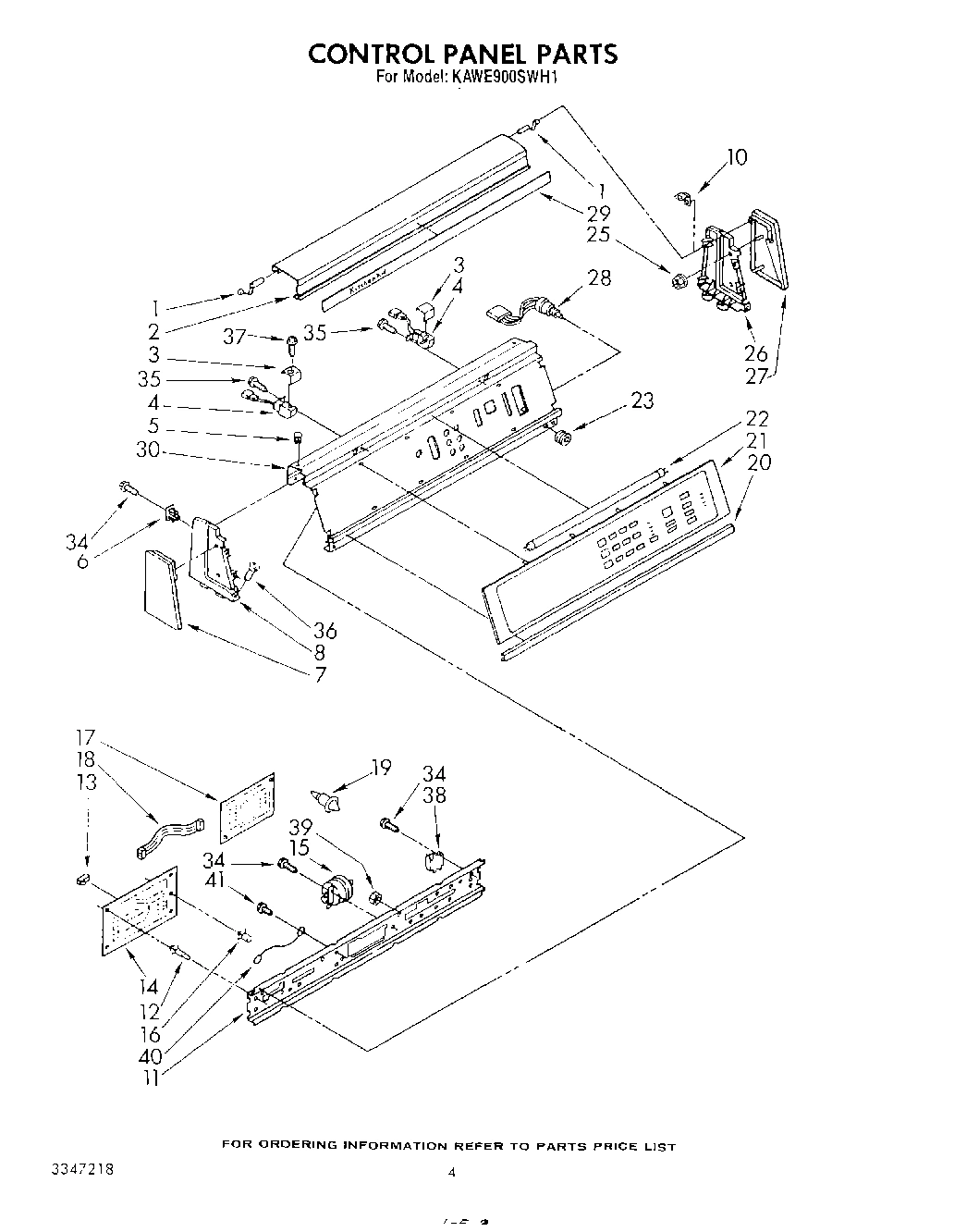

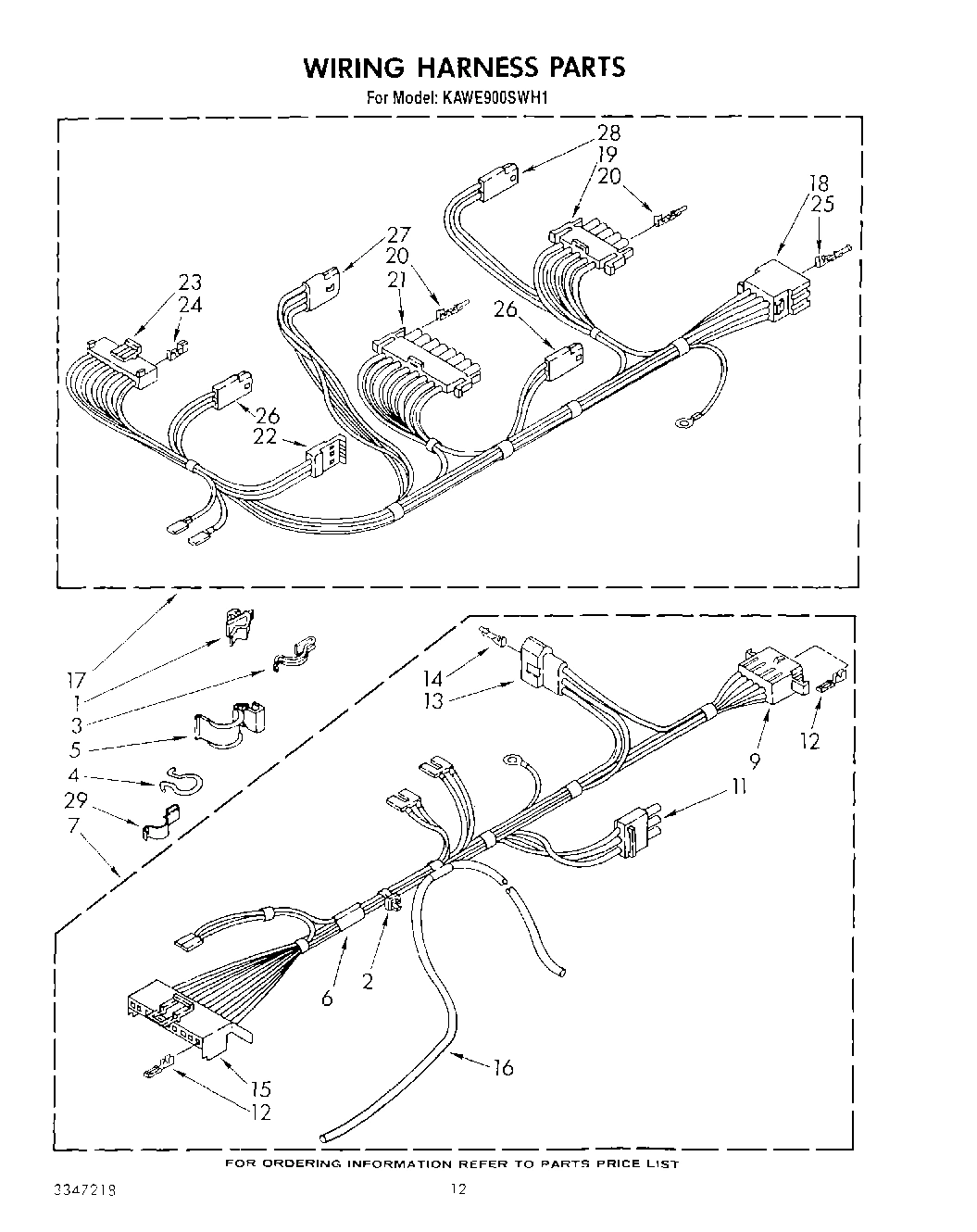

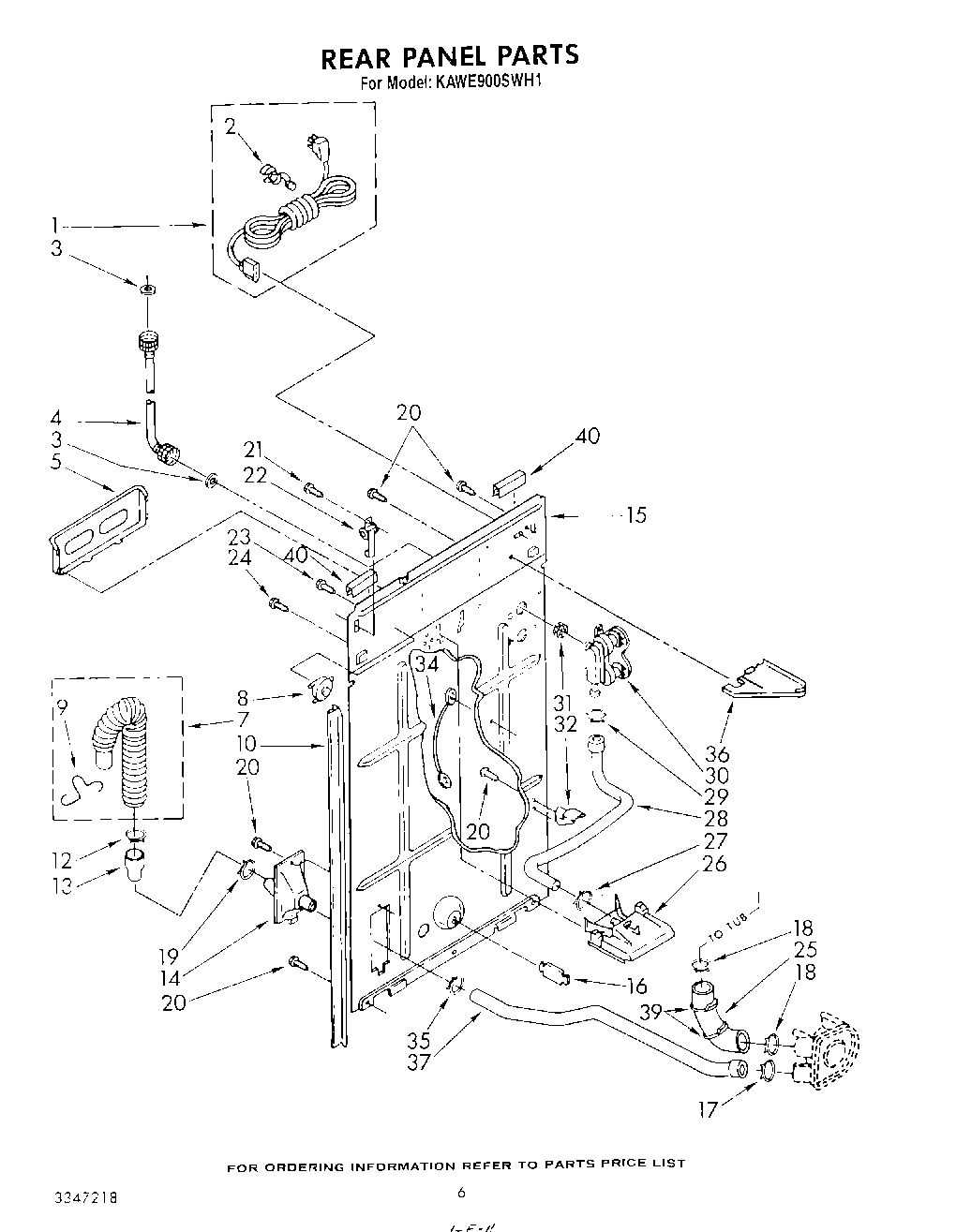

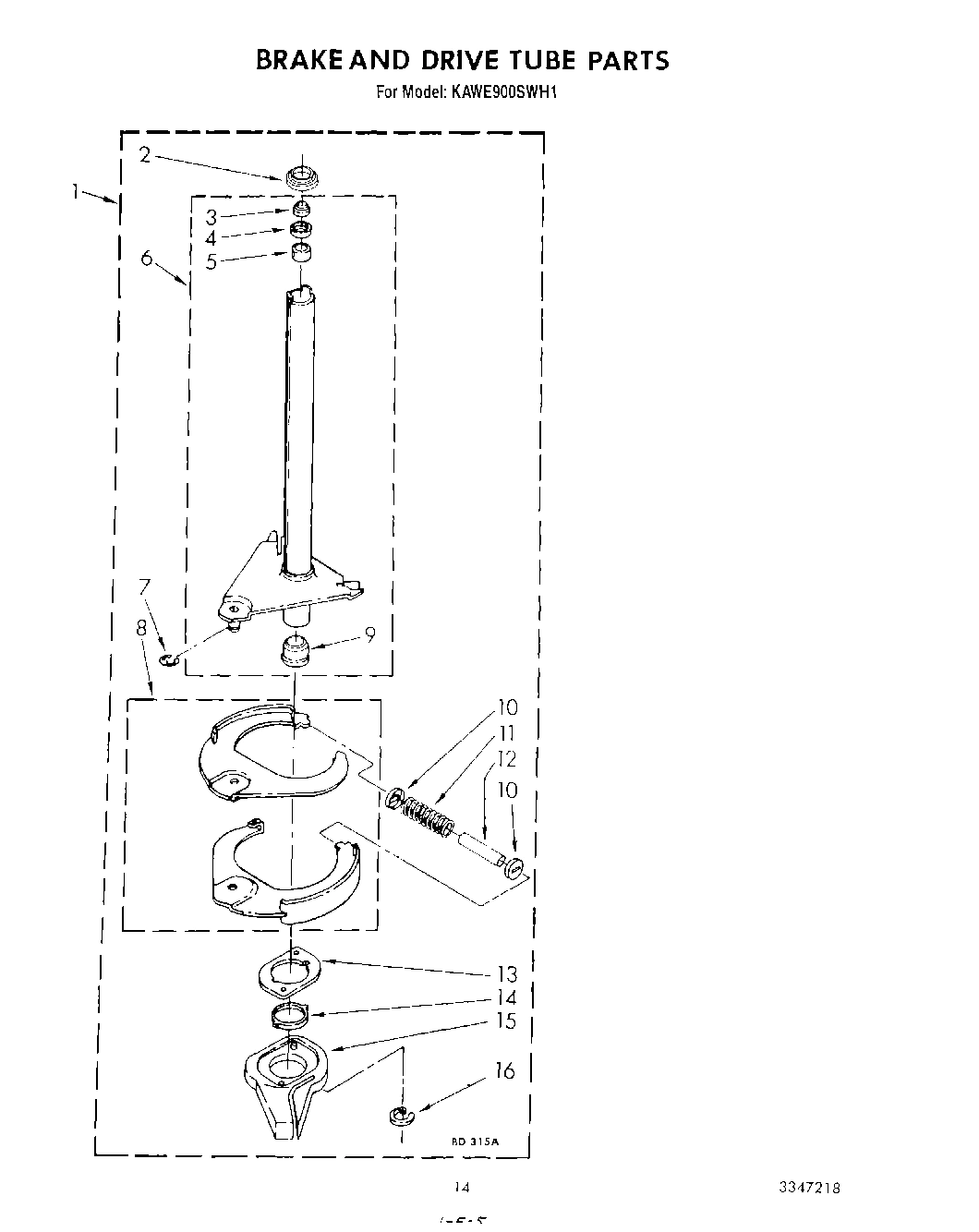

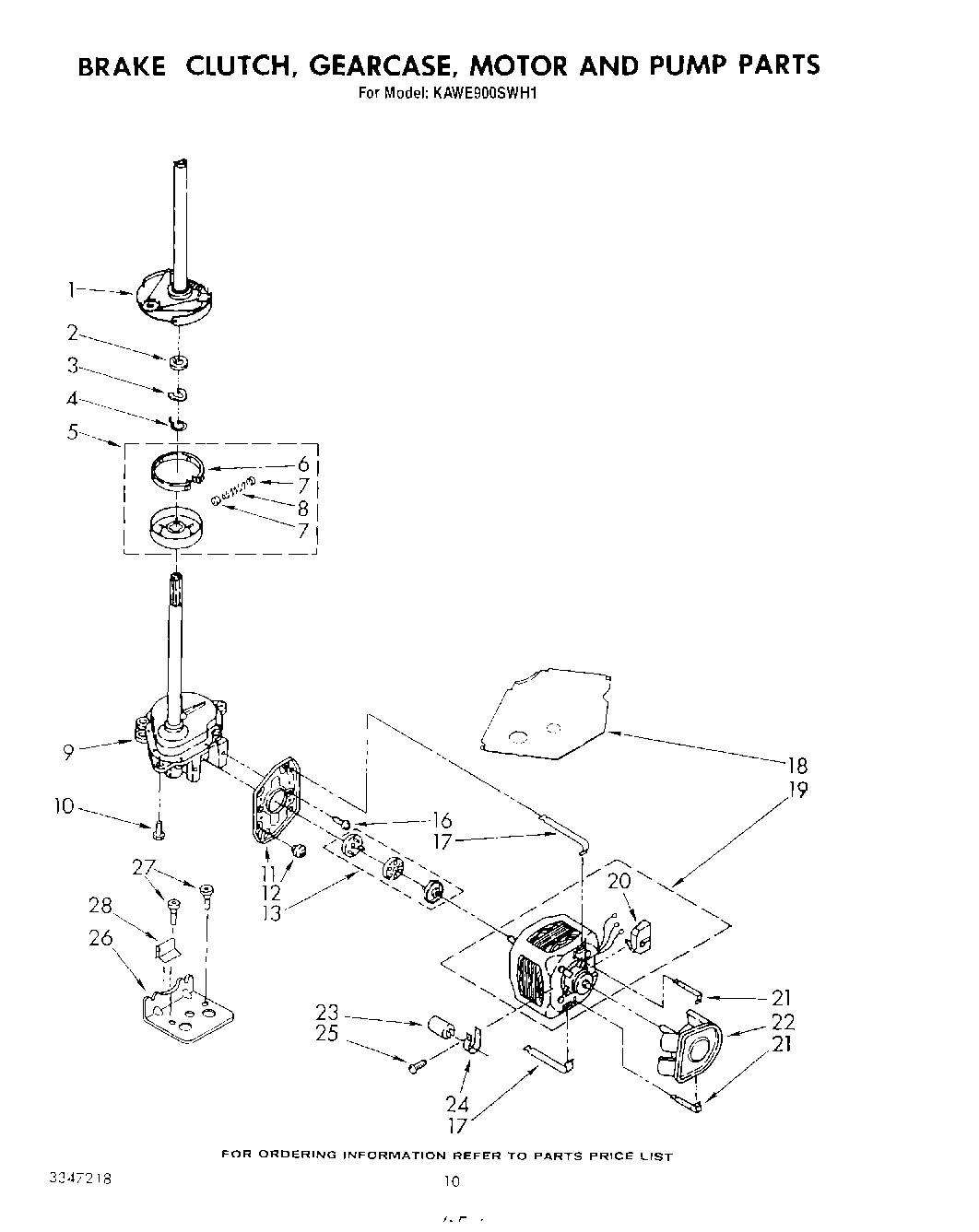

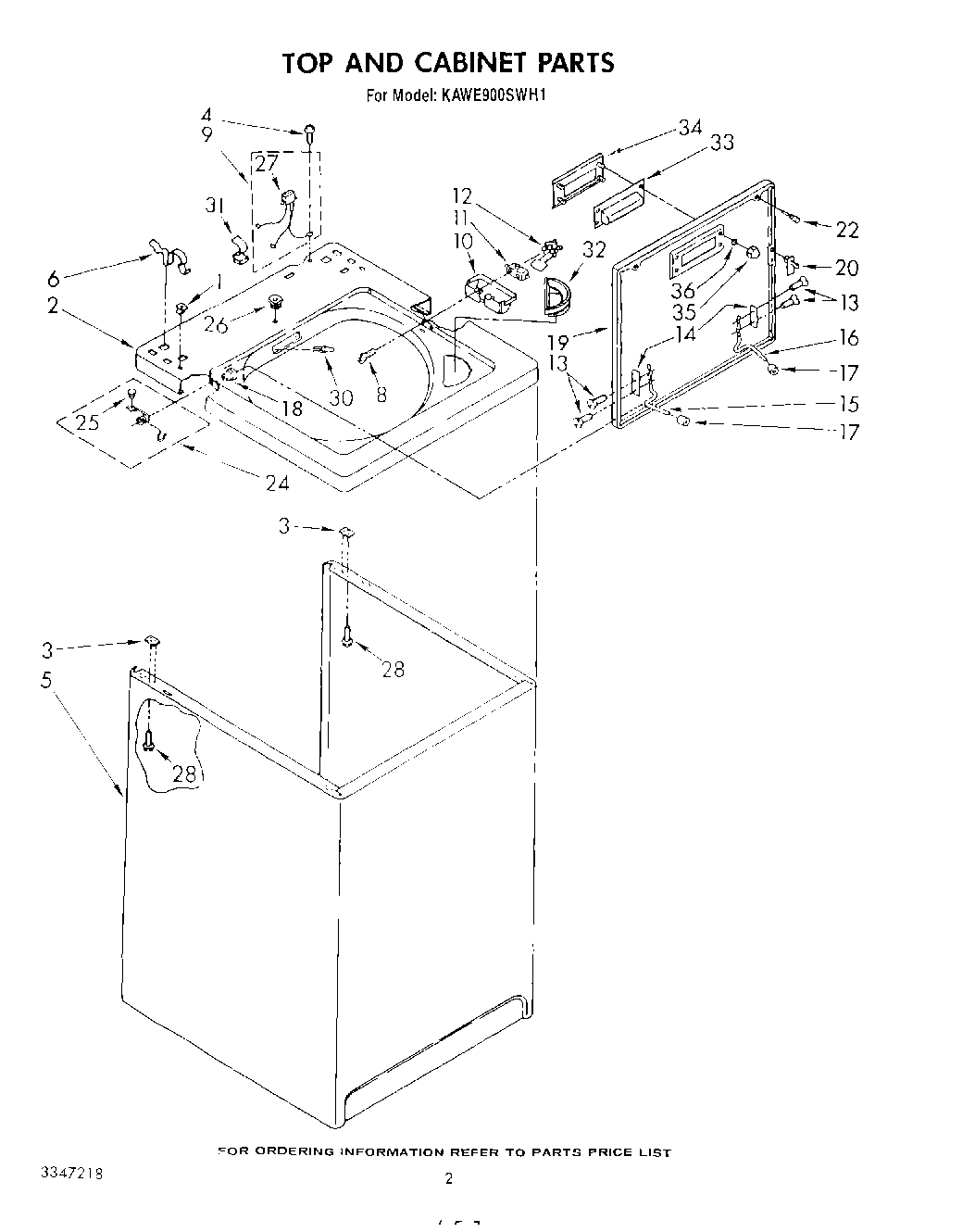

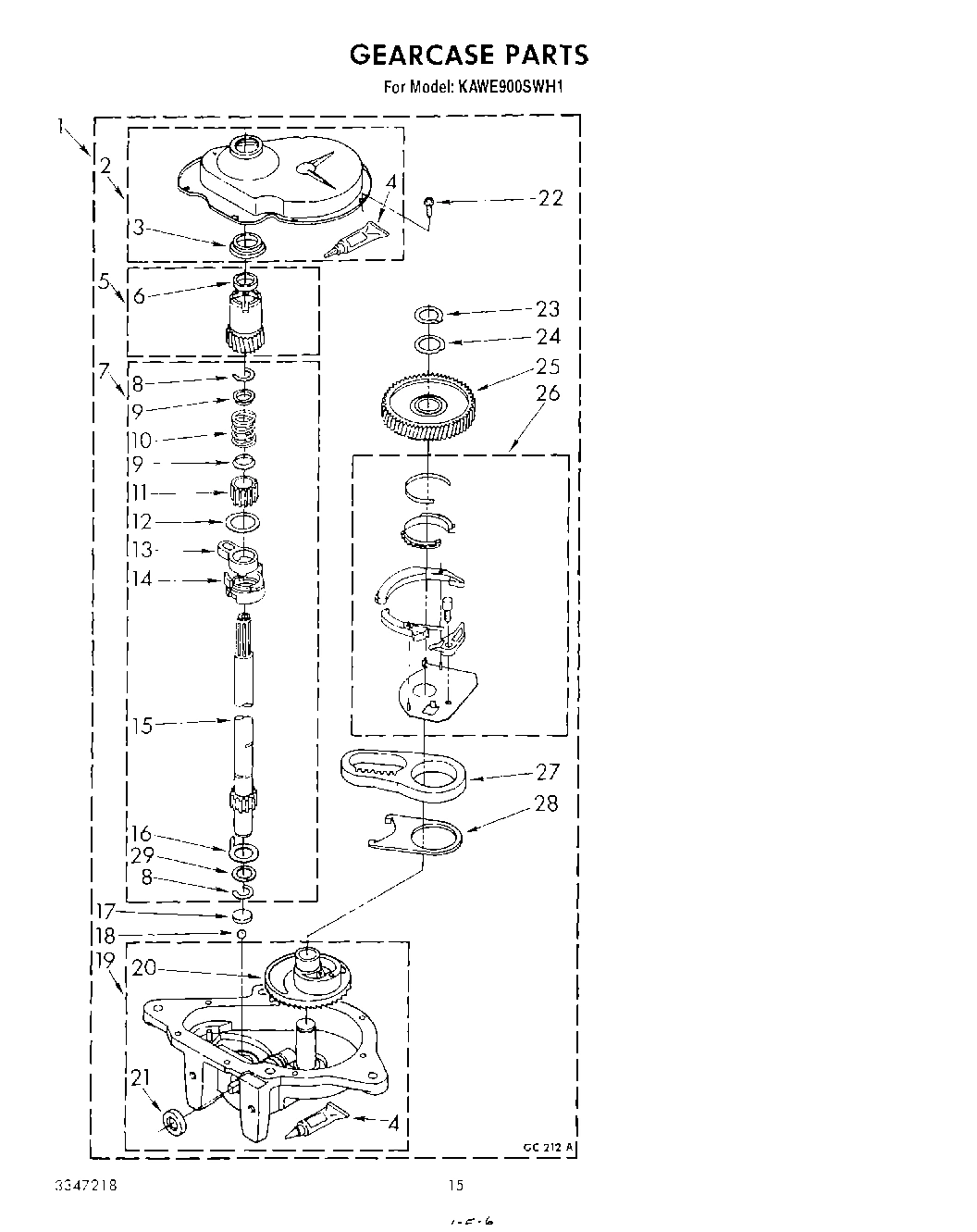

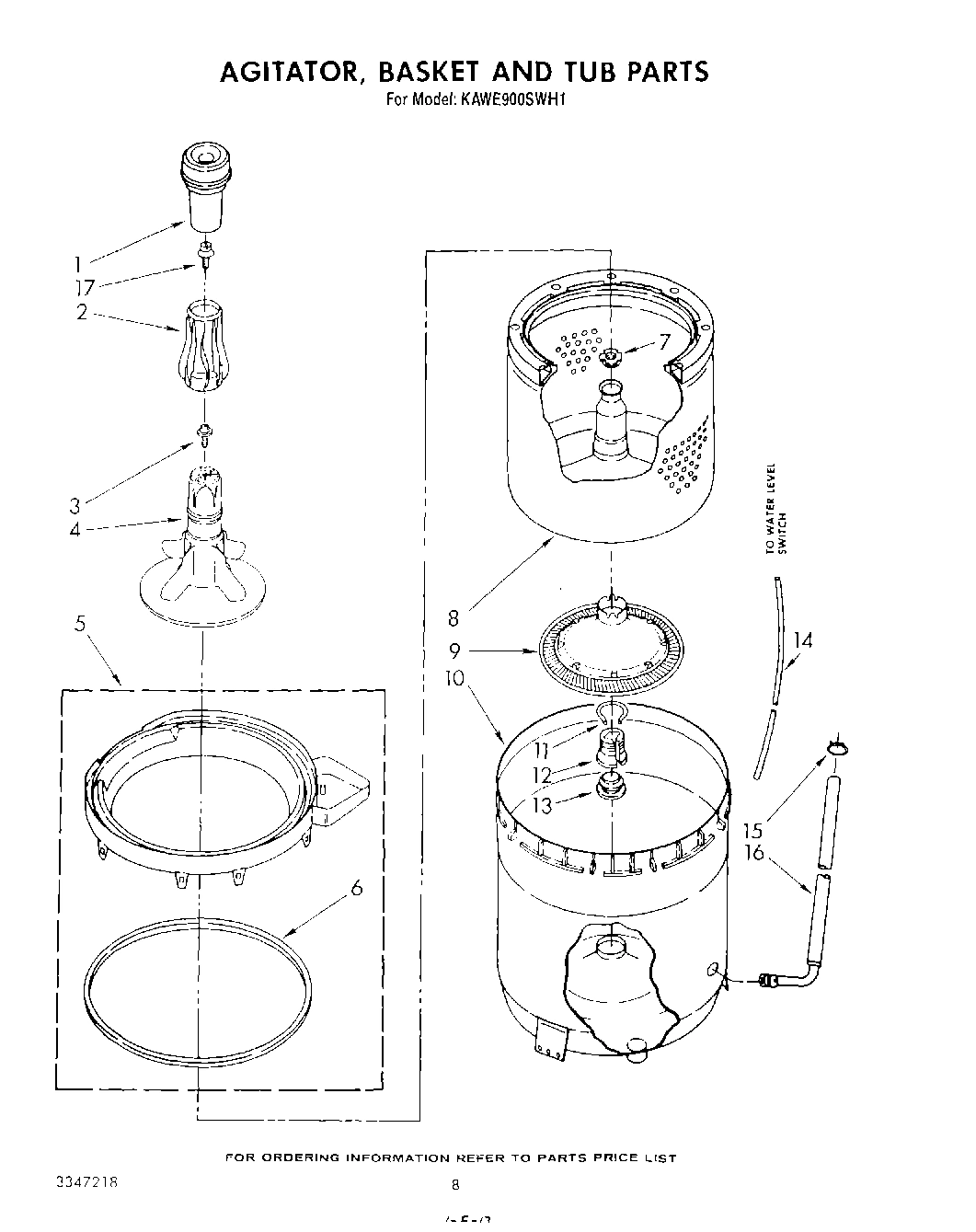

Model Whirlpool KAWE900SWH1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

WPL 285208 WPL 285208 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3347218 WPL LIT3347218 Contact Us For Availability

WPL LIT3347320 WPL LIT3347320 Contact Us For Availability

WPL LIT3347346 WPL LIT3347346 Contact Us For Availability

WPL LIT3347352 WPL LIT3347352 Contact Us For Availability

WPL LIT3347362 WPL LIT3347362 Contact Us For Availability

WPL LIT3347621 WPL LIT3347621 Contact Us For Availability

1

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

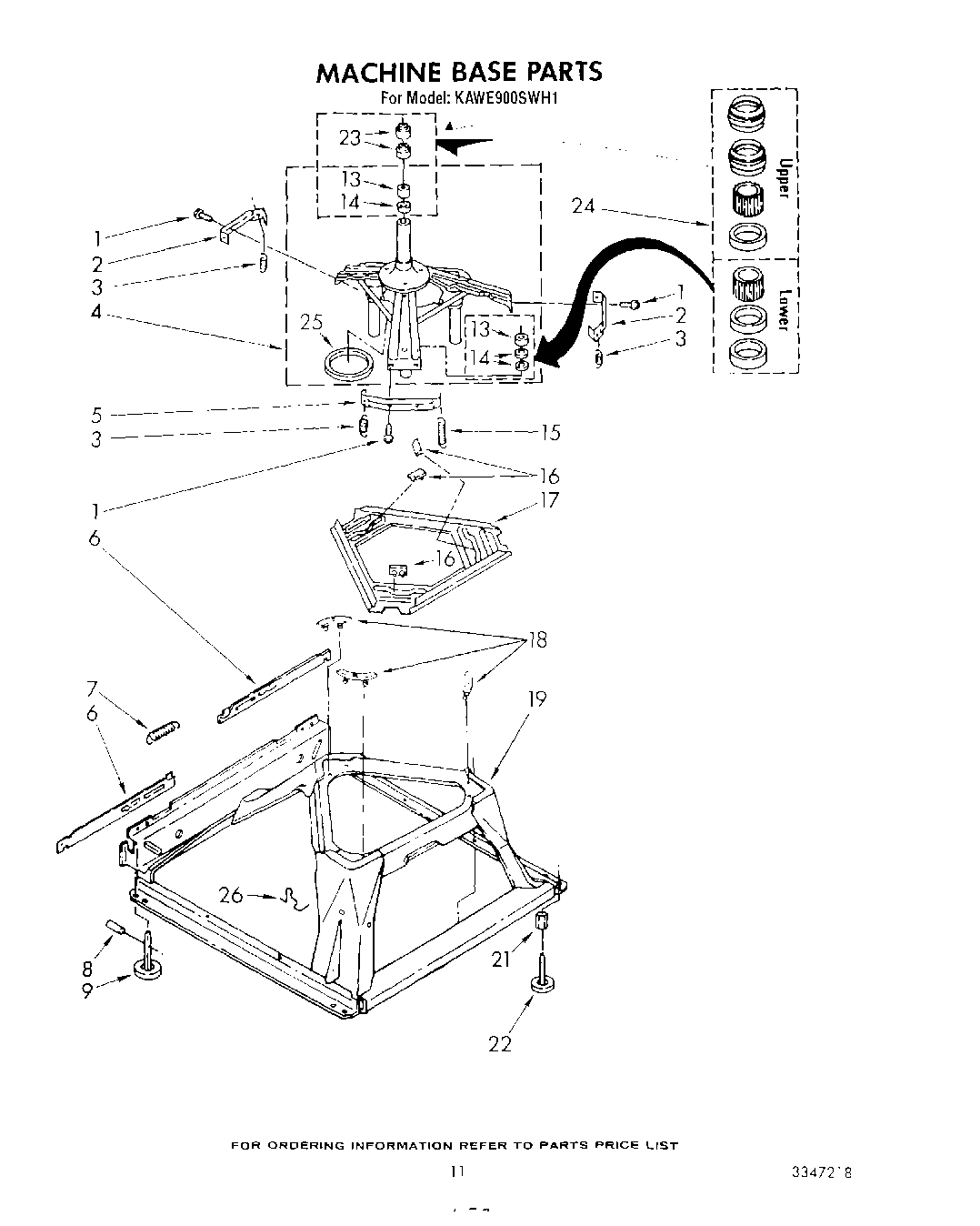

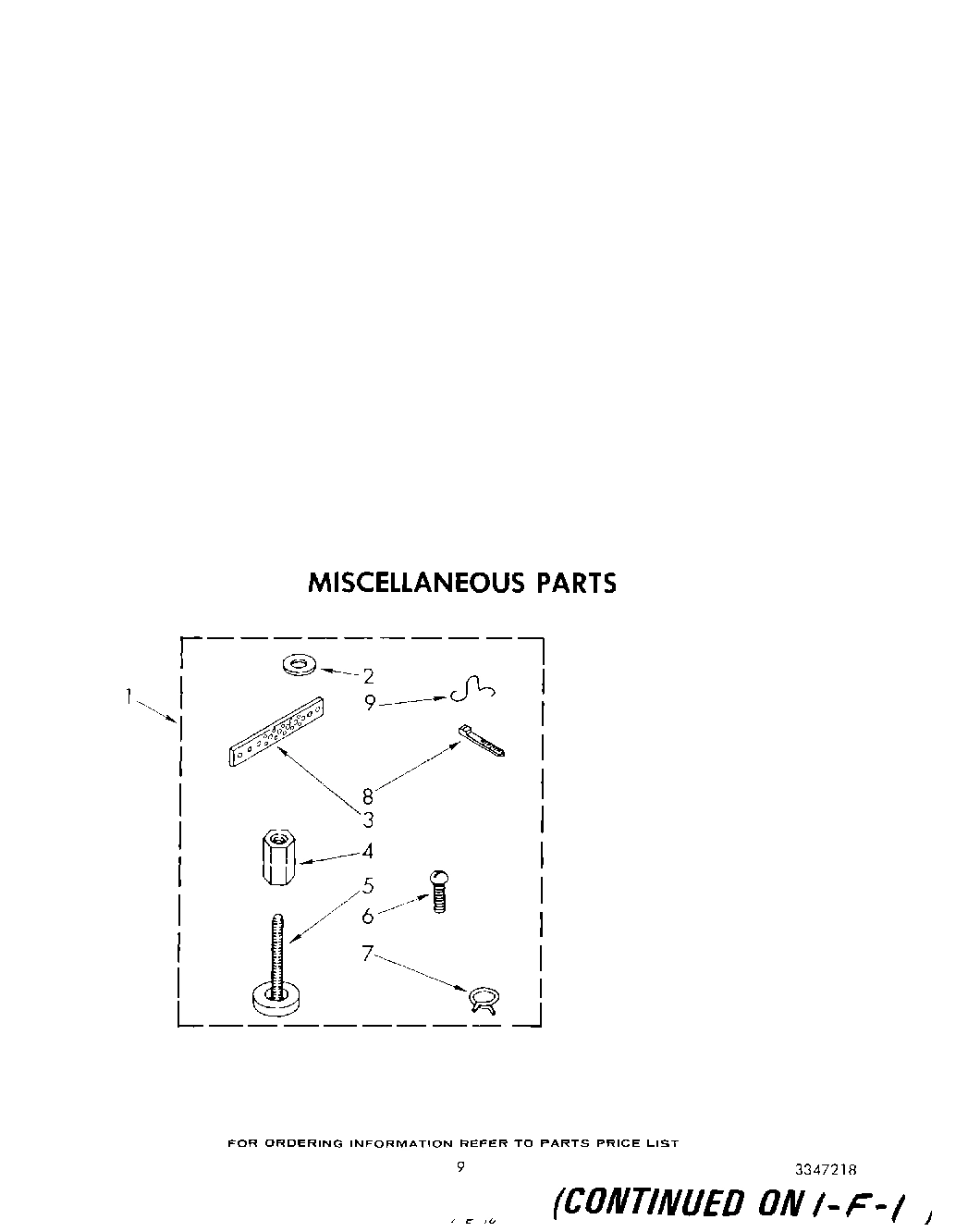

Miscellaneous Parts Bag WPL 384254 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Filter, Barrel WPL 3348592 Contact Us For Availability

2

Top (White) WPL 63431 Contact Us For Availability

2

Top (Almond) WPL 63432 Contact Us For Availability

2

Top (Toast) WPL 63433 Contact Us For Availability

2

Top (Platinum) WPL 63434 Contact Us For Availability

2

Top (Harvest Wheat) WPL 63435 Contact Us For Availability

2

Clip, Harness WPL 62749 Contact Us For Availability

3

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

3

Strap, Ground WPL 22965 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

4

Agitator WPL 3348591 Contact Us For Availability

4

Support & Brake, Tub WPL 389350 Contact Us For Availability

4

Clip, Harness (3) WPL 387551 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $80.47

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Almond) WPL 388392 Contact Us For Availability

5

Cabinet (Toast) WPL 388393 Contact Us For Availability

5

Cabinet (Platinum) WPL 388394 Contact Us For Availability

5

Cabinet (Harvest Wheat) WPL 388395 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Nut, Push-In (2) WPL 689559 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

Wiring Harness & Pressure Switch Hose (Base) WPL 387928 Contact Us For Availability

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

8

W10389328 Whirlpool Basket Backorder WPL W10389328 $199.90

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $14.59

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Retainer, Drain Hose WPL 357247 Contact Us For Availability

9

Harness, Lid Switch WPL 63833 Contact Us For Availability

9

Plug, Terminal (15 Way) WPL 96894 Contact Us For Availability

3361596 Whirlpool Outer Tub Primary In Stock WPL 3361596 $180.24

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Lock, Filter WPL 62942 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Actuator, Lid Switch WPL 357347 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

353424 Whirlpool Connector Backorder WPL 353424 $10.76

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

14

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Shaft, Agitator WPL 389231 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Hose, Bleach WPL 63323 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Harness, Wiring (Console) WPL 3347279 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

Cap, Terminal (15 Way) WPL 96895 Contact Us For Availability

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 389149 Contact Us For Availability

Lid (White) WPL 3348059 Contact Us For Availability

Lid (Almond) WPL 3348060 Contact Us For Availability

Lid (Harvest Wheat) WPL 3348061 Contact Us For Availability

Lid (Toast) WPL 3348062 Contact Us For Availability

Lid (Platinum) WPL 3348063 Contact Us For Availability

Connector, 5 Terminal (Uses Terminal 388499) WPL 388500 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

Terminal WPL 388499 Contact Us For Availability

Gear, Main Drive WPL 62528 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Connector, 8 Terminal (Uses Terminal 388499) WPL 388501 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

Hinge, Console (2) WPL 387402 Contact Us For Availability

Connector, 3 Terminal WPL 388497 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Cap, 10 Pin (Uses Terminal 772581) WPL 772579 Contact Us For Availability

Ring, Retaining WPL 95082 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

Terminal WPL 772581 Contact Us For Availability

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Plug, Button WPL 54690 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Stop, Push-In Top WPL 358472 Contact Us For Availability

Plug, Terminal (2 Way) WPL 717251 Contact Us For Availability

27

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

27

Receptacle, Terminal (4 Way) WPL 717315 Contact Us For Availability

28

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

28

Clip, Motor Shield WPL 3349322 Contact Us For Availability

28

Receptacle, Terminal 2 Way WPL 696669 Contact Us For Availability

29

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

30

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

31

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

32

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

Handle, Lid (White) WPL 389008 Contact Us For Availability

Handle, Lid (Almond) WPL 389009 Contact Us For Availability

Handle, Lid (Harvest Wheat) WPL 389010 Contact Us For Availability

Handle, Lid (Toast) WPL 389011 Contact Us For Availability

Handle, Lid (Platinum) WPL 389012 Contact Us For Availability

34

Wire, Ground WPL 364089 Contact Us For Availability

34

Insert, Handle WPL 389043 Contact Us For Availability

35

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

35

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

36

Sheild, Suds WPL 3348424 Contact Us For Availability

36

``O`` Ring, Lid Handle WPL 3348609 Contact Us For Availability

37

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $34.90

39

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

40

Protector (2) WPL 303294 Contact Us For Availability
