Model Whirlpool KAWE650VAL0 AUTOMATIC WASHER – Common Parts & Diagrams

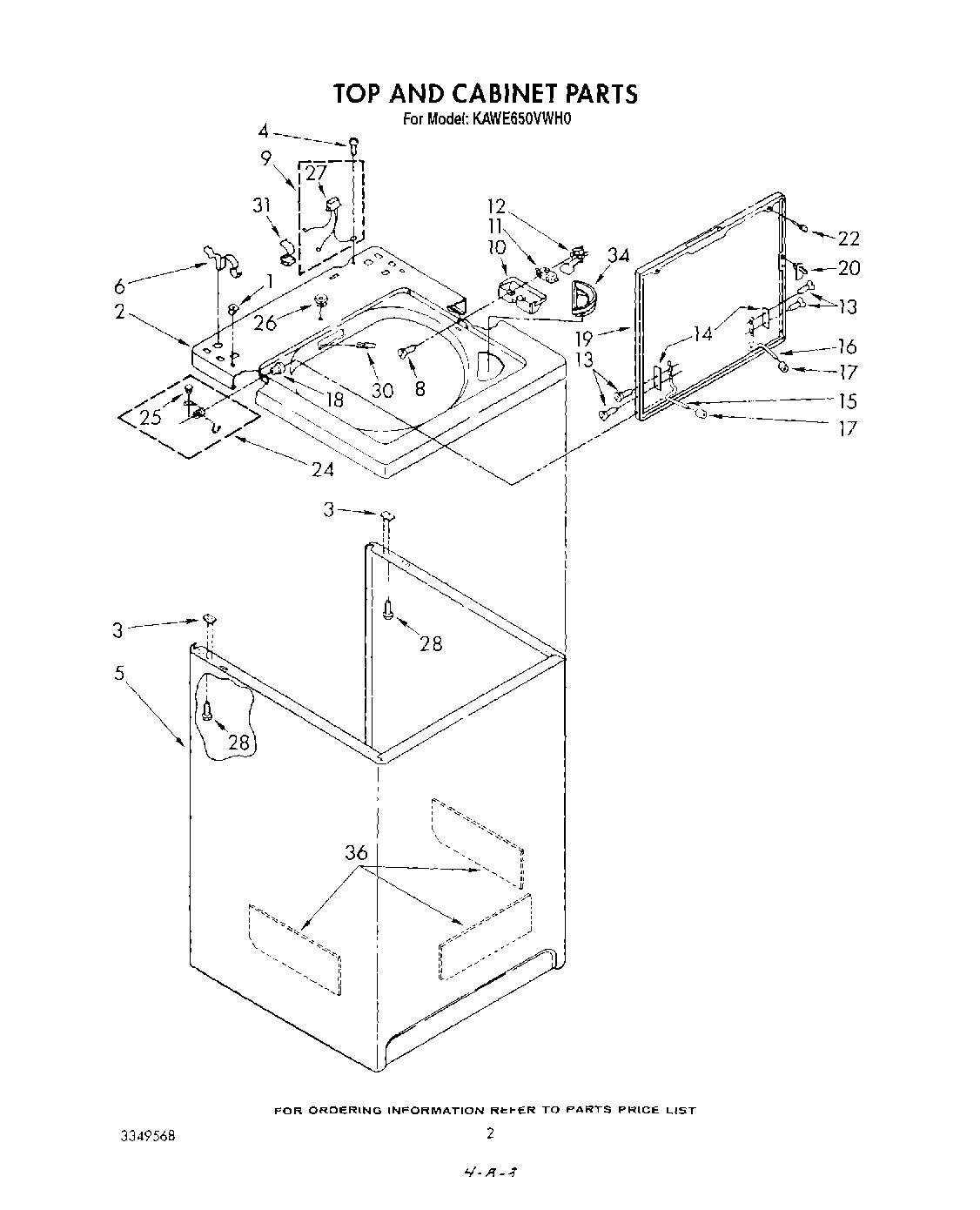

02 - TOP AND CABINET , LITERATURE AND OPTIONAL

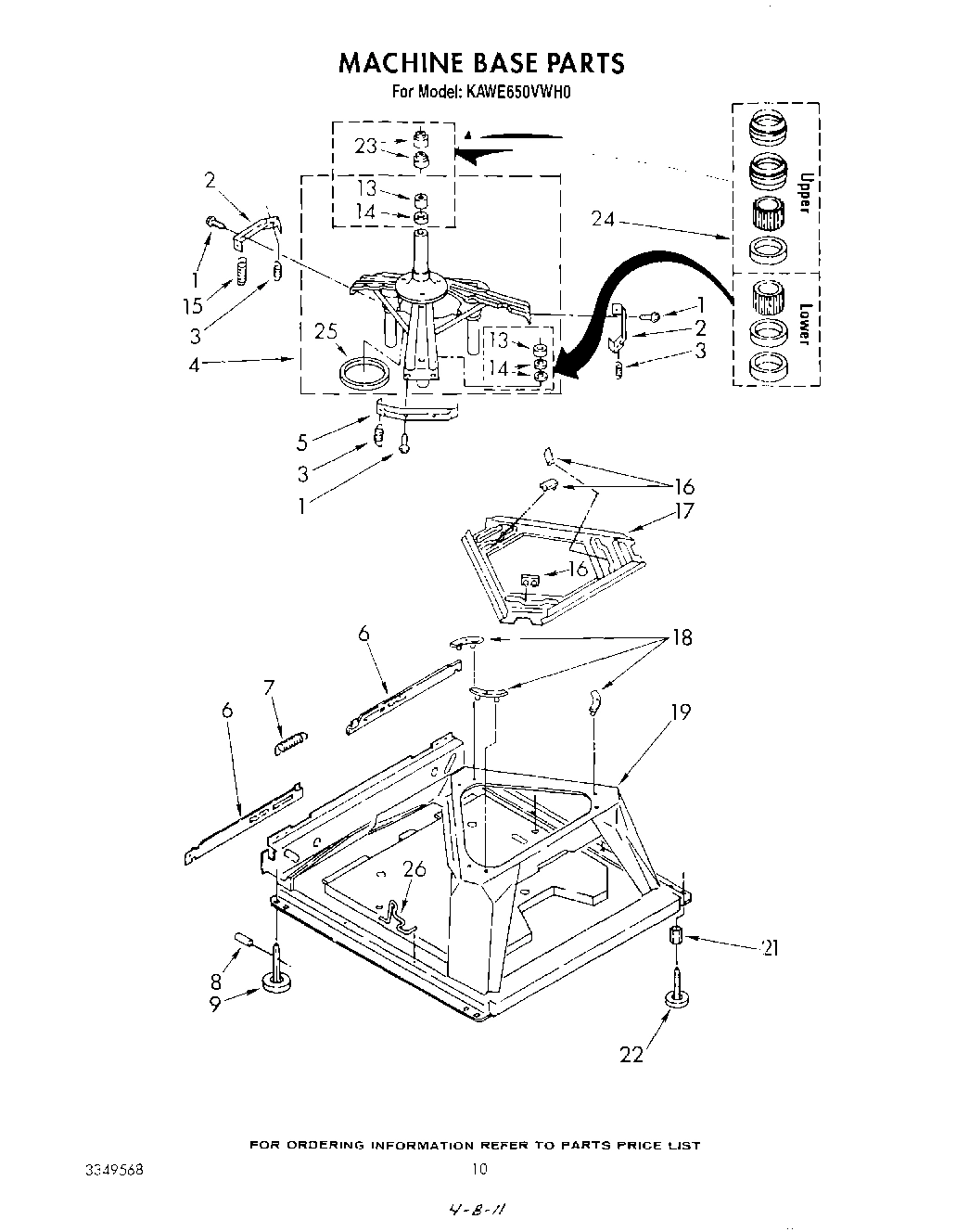

07 - MACHINE BASE

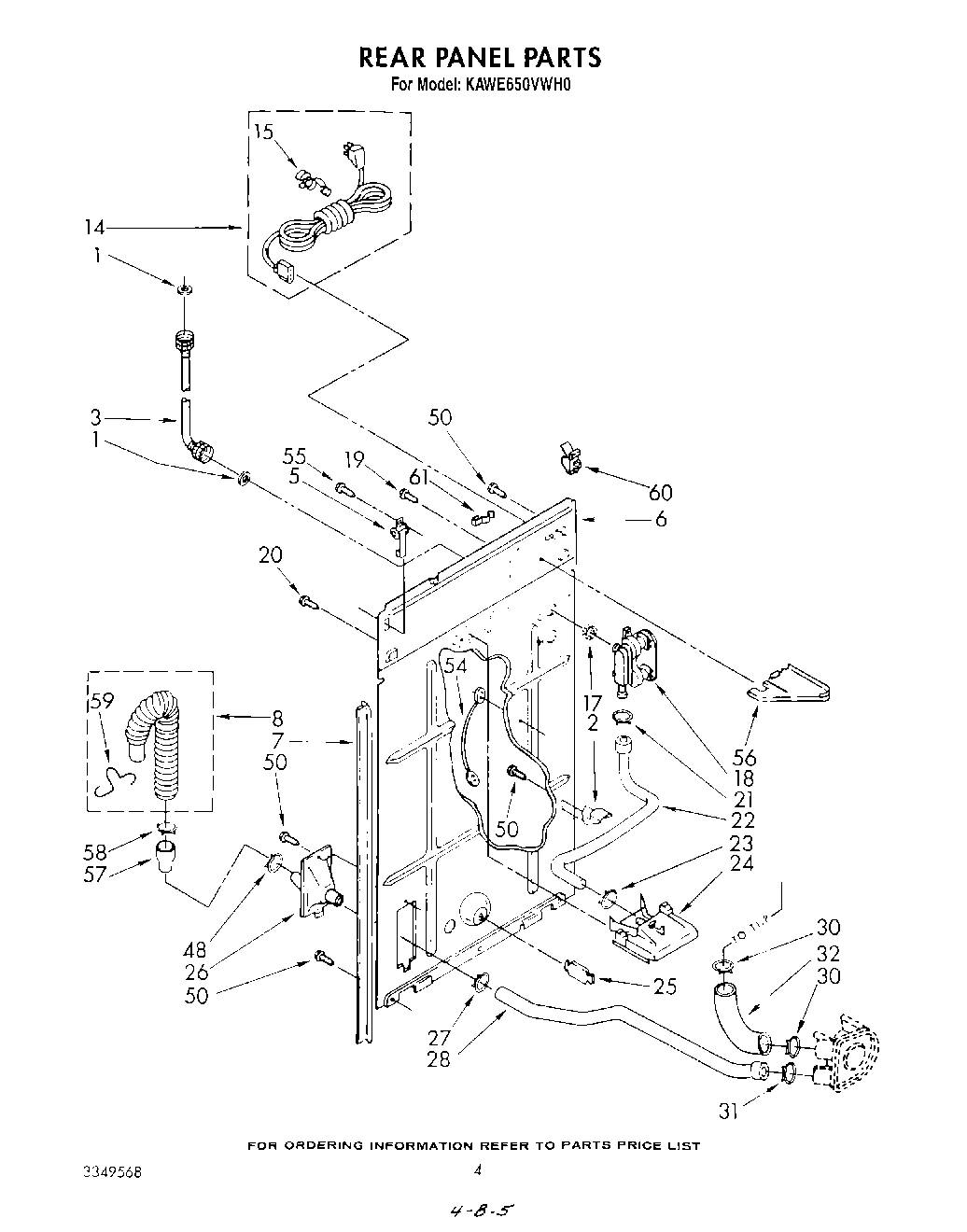

03 - REAR PANEL

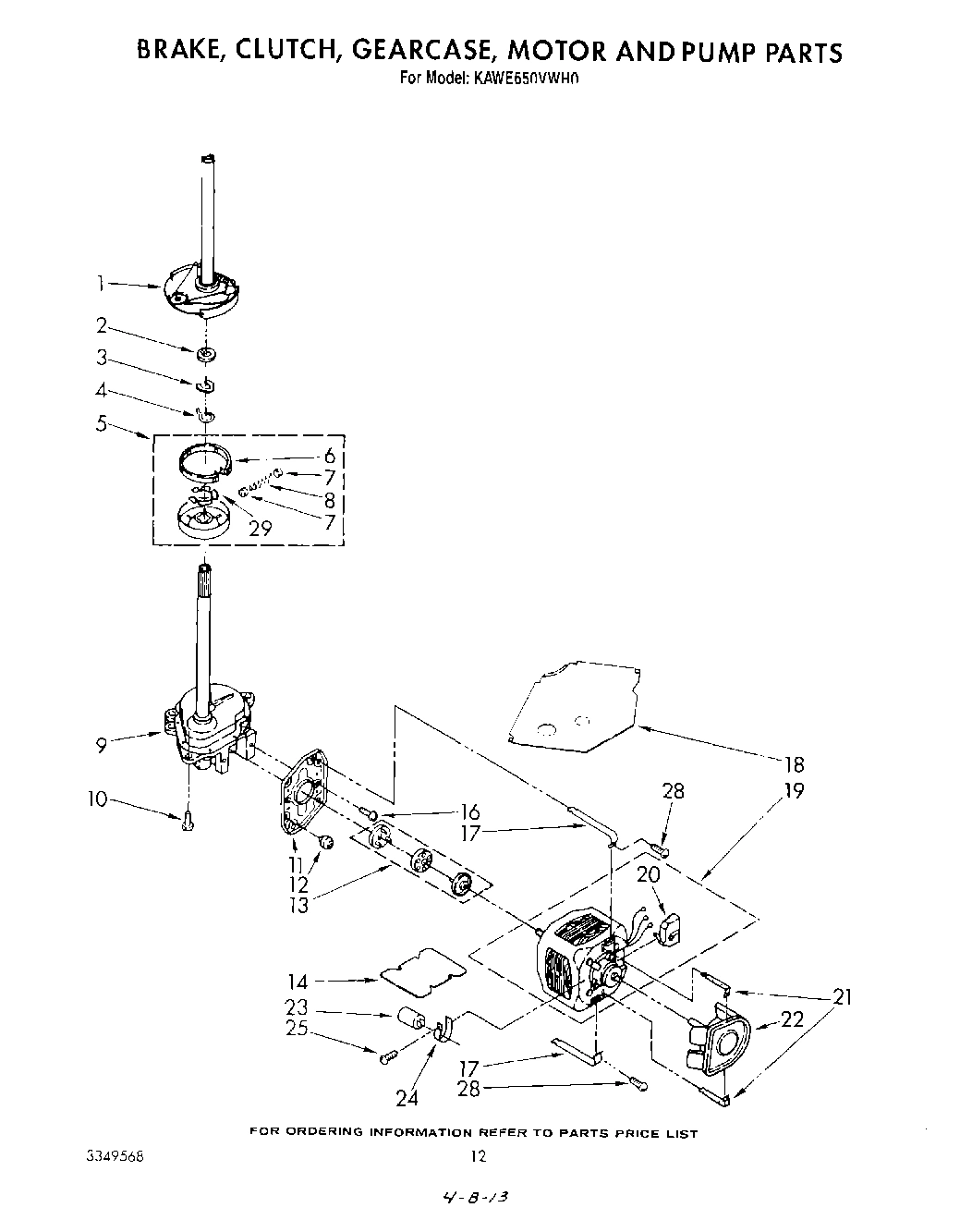

08 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

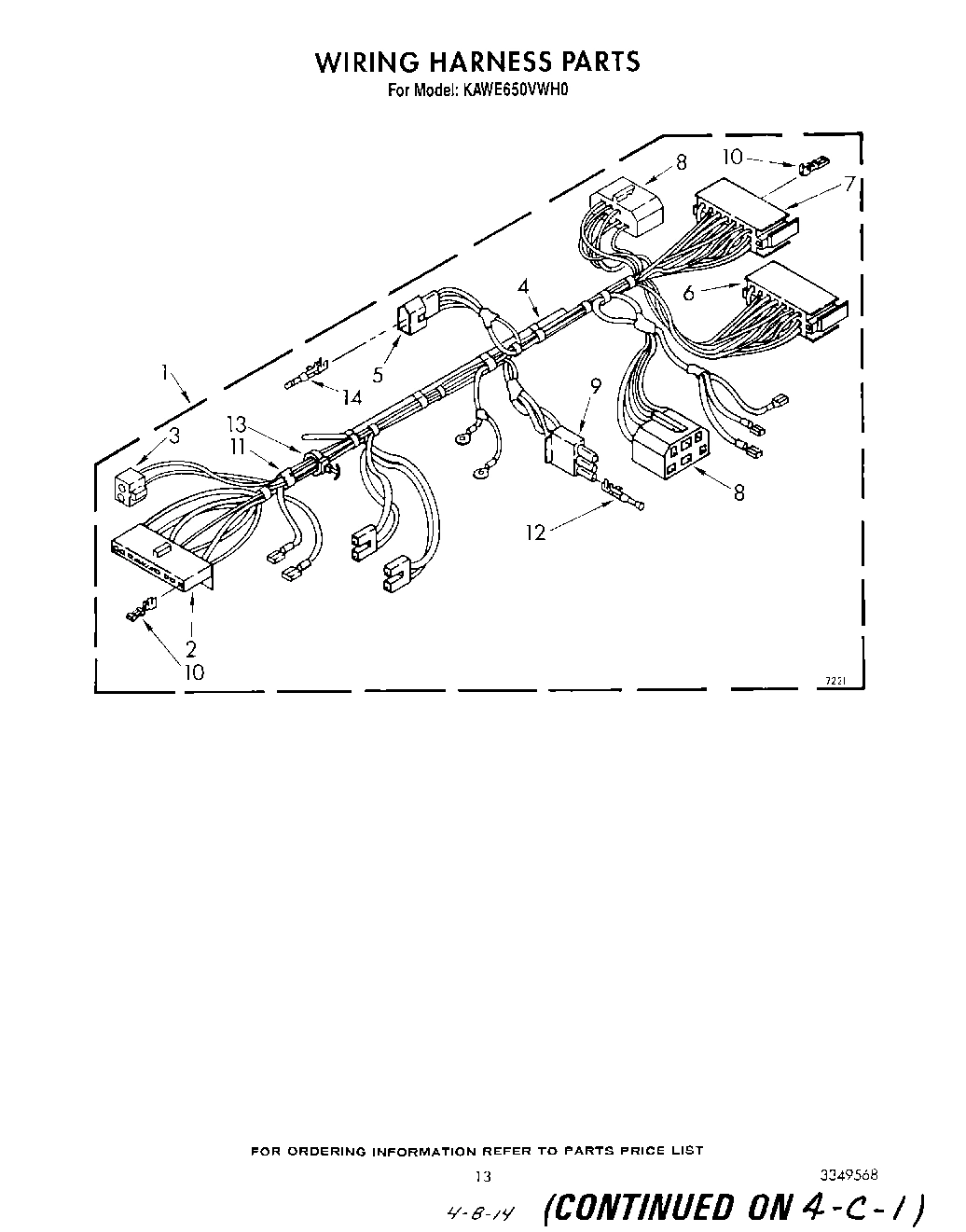

09 - WIRING HARNESS

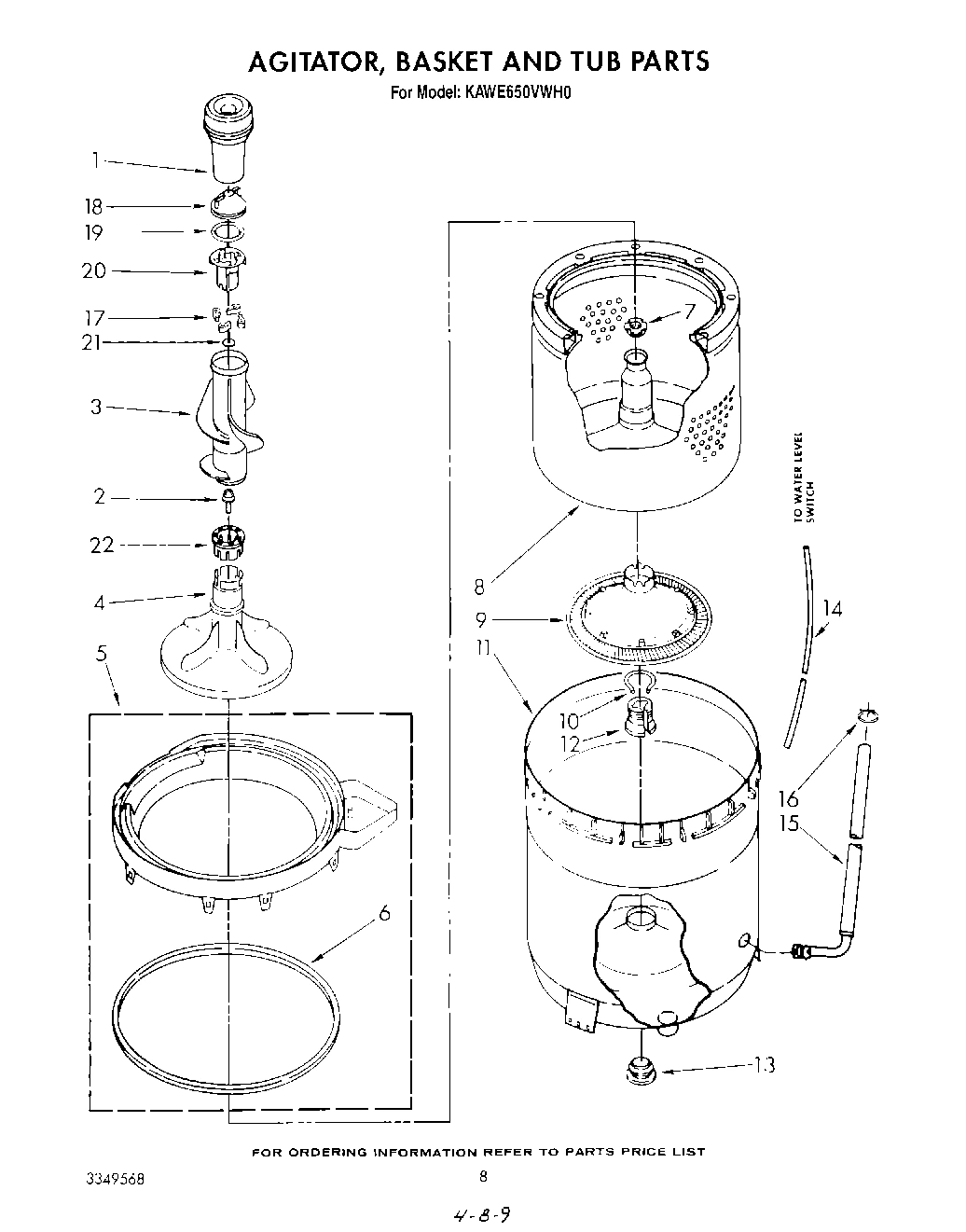

05 - AGITATOR, BASKET AND TUB

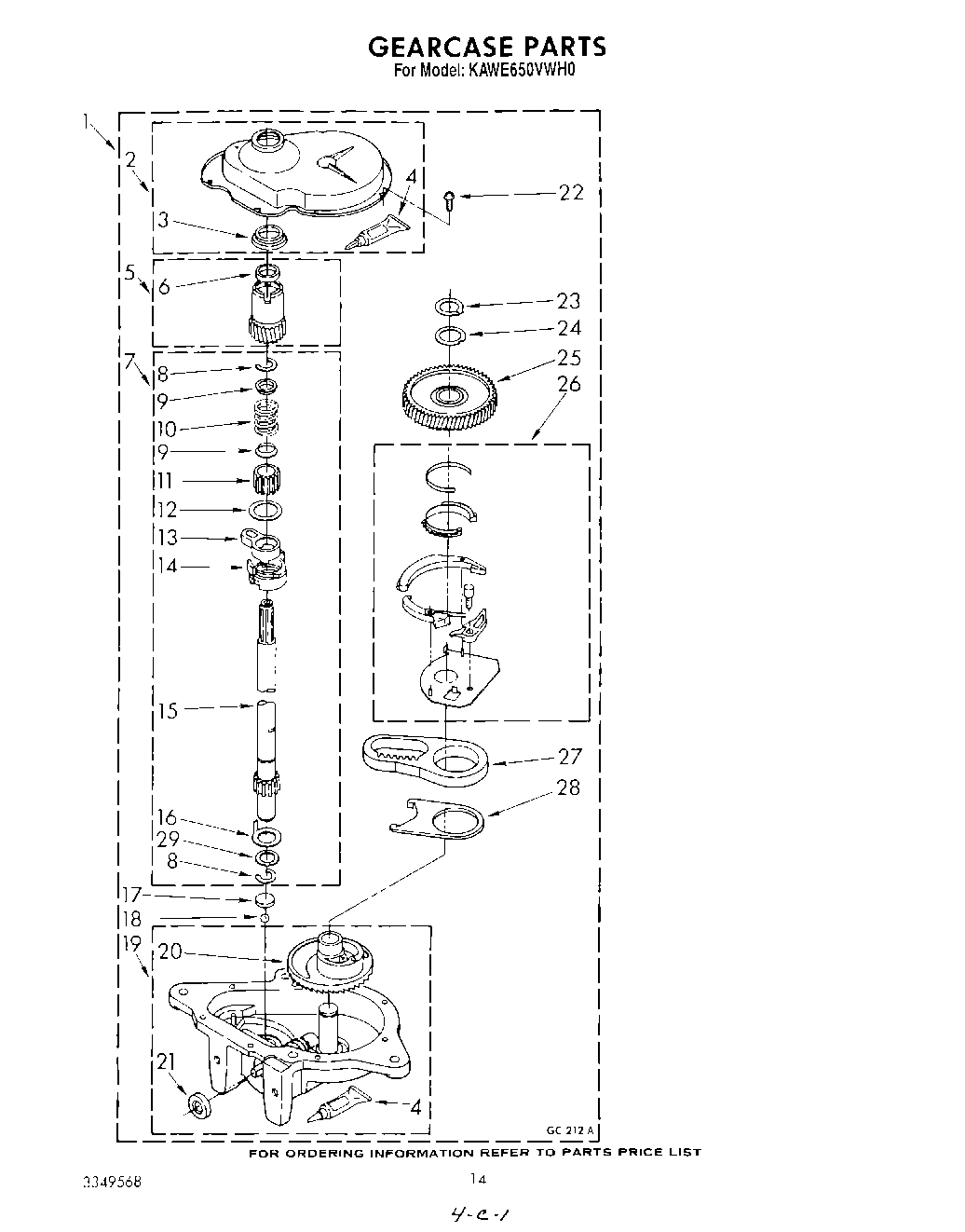

10 - GEARCASE

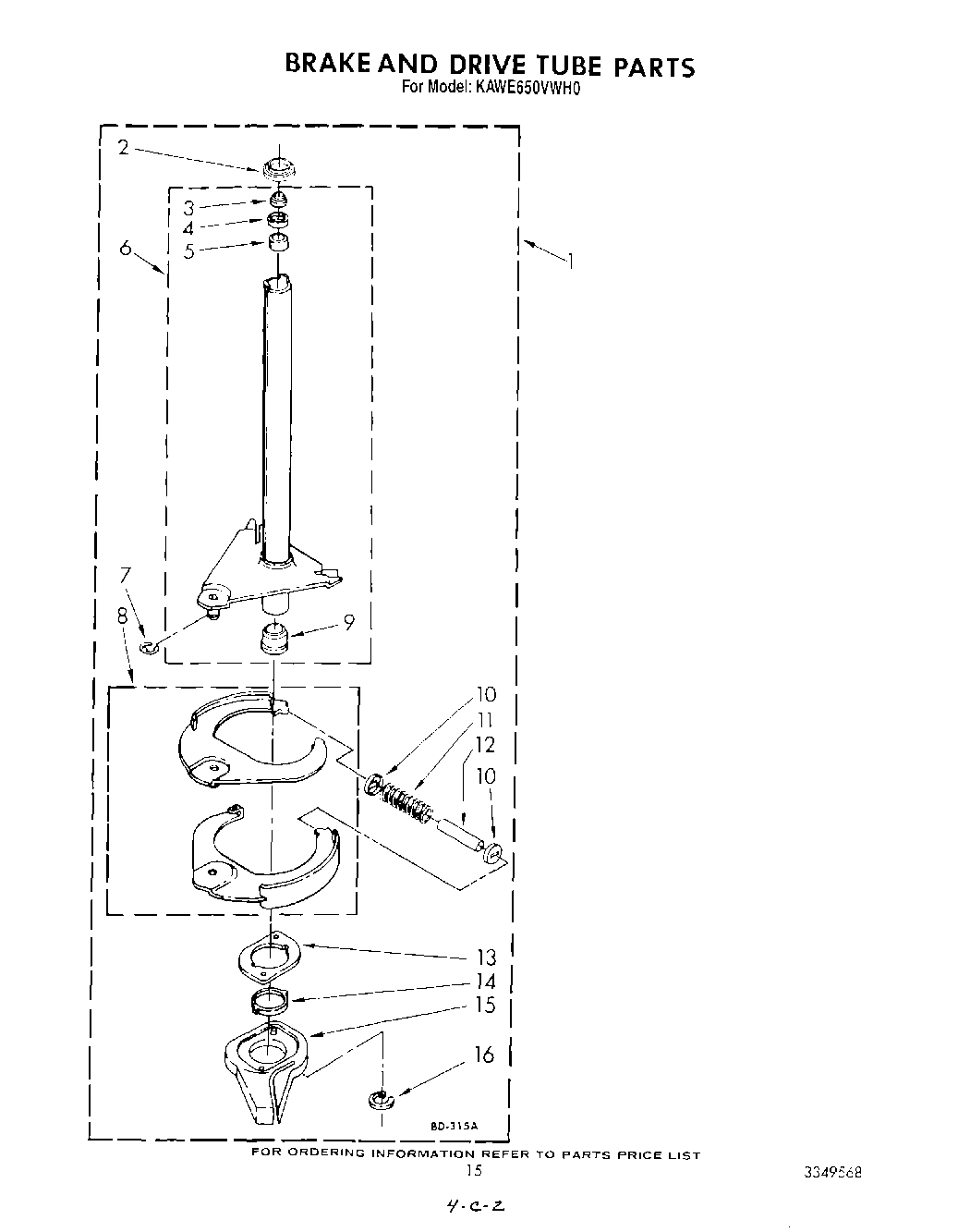

11 - BRAKE AND DRIVE TUBE

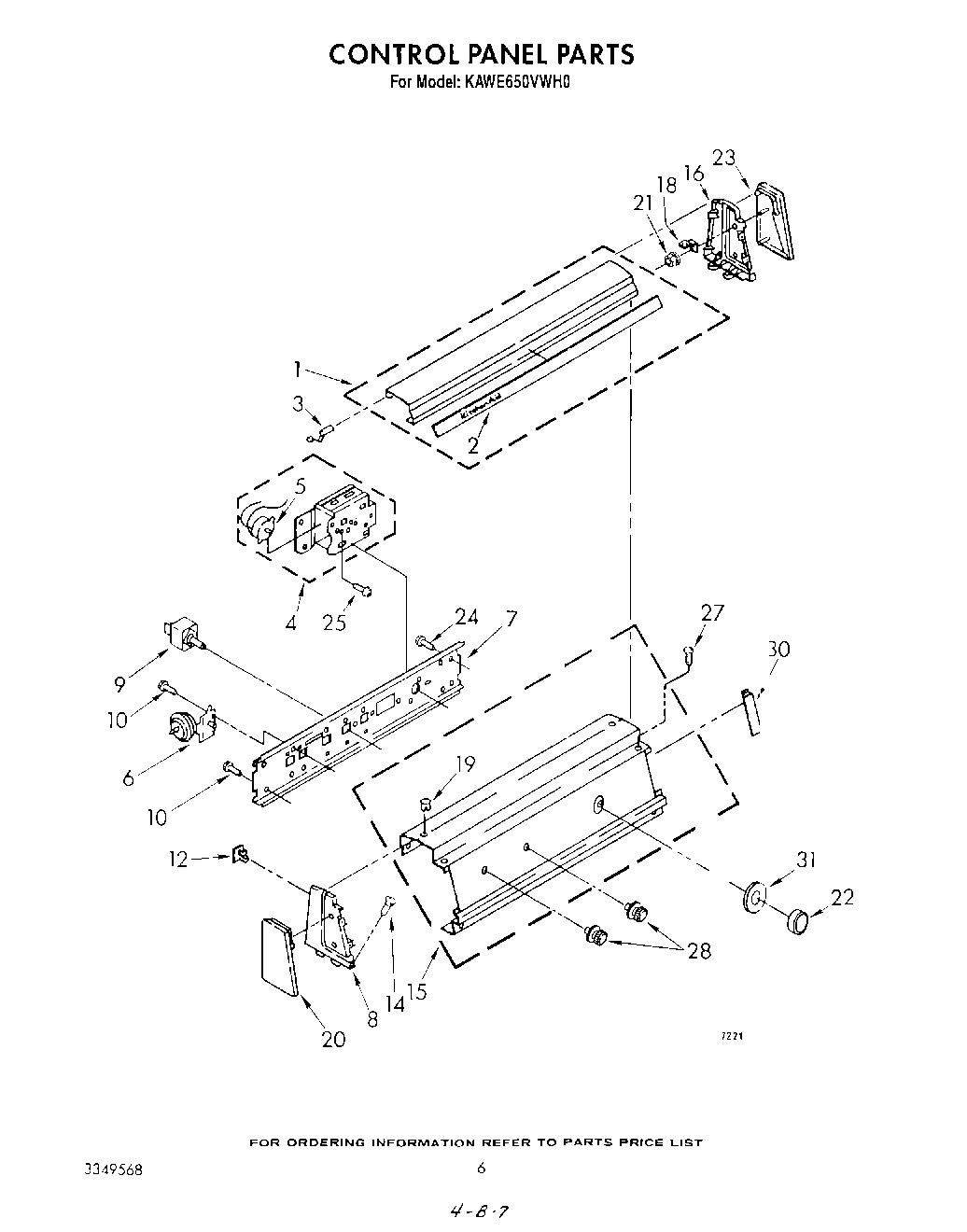

04 - CONTROL PANEL

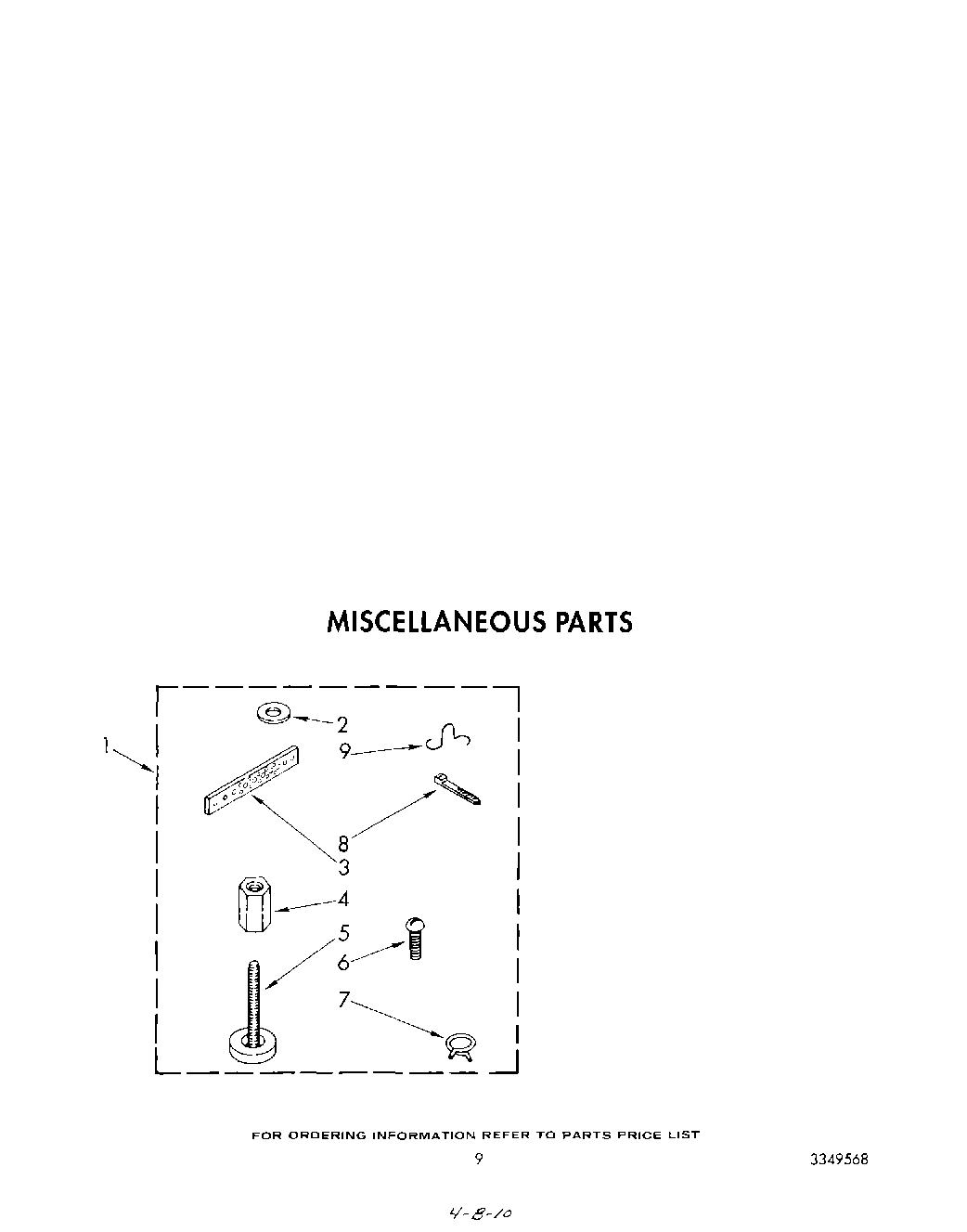

06 - MISCELLANEOUS
Common parts from model Whirlpool KAWE650VAL0 AUTOMATIC WASHER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
WPL 350956 WPL 350956 Contact Us For Availability
WPL 72110 WPL 72110 Contact Us For Availability
OIL WPL 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
WPL 72113 WPL 72113 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
1
Nut, Push-In (2) WPL 358473 Contact Us For Availability
1
Wiring Harness & Pressure Switch WPL 3351379 Contact Us For Availability
1
Cover & Insert WPL 3352307 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 387980 Contact Us For Availability
2
Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability
2
Insert WPL 3352190 Contact Us For Availability
3
Receptacle, Terminal (2 Way) WPL 3348075 Contact Us For Availability
3
Clothes Mover WPL 3349582 Contact Us For Availability
3
Hinge, Lamp Cover WPL 3347112 Contact Us For Availability
3
Strap, Ground WPL 22965 Contact Us For Availability
4
Support & Brake, Tub WPL 389350 Contact Us For Availability
4
Agitator WPL 3349583 Contact Us For Availability
4
Timer, Control 60 Hz, WPL 3351592 Contact Us For Availability
5
Hinge, Console (2) WPL 387402 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Plug Terminal (Power Cord) WPL 353424 Contact Us For Availability
5
Spacer, Drive Tube WPL 356937 Contact Us For Availability
5
Motor, Timer WPL 63493 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
6
Panel, Rear WPL 3348430 Contact Us For Availability
6
Switch, Water Level WPL 3350763 Contact Us For Availability
6
Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability
7
Block, Disconnect WPL 352090 Contact Us For Availability
7
Bracket, Control WPL 3349232 Contact Us For Availability
8
Connector WPL 3347243 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
8
Cap, End (L.H.) WPL 388503 Contact Us For Availability
9
Retainer, Spring WPL 62677 Contact Us For Availability
9
Retainer, Drain Hose WPL 3350222 Contact Us For Availability
9
Switch, Water Temperature (Alt.) WPL 3347117 Contact Us For Availability
9
Switch, Water Temperature (Alt.) WPL 3348352 Contact Us For Availability
9
Switch, Water Temperature WPL 661538 Contact Us For Availability
10
Terminal, Female WPL 352088 Contact Us For Availability
10
Lock, Filter WPL 62942 Contact Us For Availability
10
Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability
10
Spring, Agitator WPL 62676 Contact Us For Availability
11
Protector, Harness WPL 63523 Contact Us For Availability
11
Spring, Brake WPL 387806 Contact Us For Availability
12
Washer, Agitator Gear WPL 62619 Contact Us For Availability
13
Clip WPL 62749 Contact Us For Availability
14
Cord, Power WPL 62734 Contact Us For Availability
14
Screw, 8-18 (2) WPL 64211 Contact Us For Availability
15
Strain Relief, Power Cord WPL 63848 Contact Us For Availability
15
Hose, Bleach WPL 63323 Contact Us For Availability
15
Shaft, Agitator WPL 389231 Contact Us For Availability
15
Console, Panel WPL 3351804 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
16
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
16
Cap, End (R.H.) WPL 388504 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
18
Bracket, End Cap WPL 3349048 Contact Us For Availability
19
Motor, Main Drive WPL 3350418 Contact Us For Availability
19
Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3351807 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability
19
Plug, Latch WPL 387887 Contact Us For Availability
20
Switch, Main Drive Motor WPL 62850 Contact Us For Availability
20
Gear, Main Drive WPL 62528 Contact Us For Availability
20
Trim, EndCap WPL 388745 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
21
Seal, Agitator WPL 357574 Contact Us For Availability
21
Nut, No.10 Thread WPL 388744 Contact Us For Availability
22
Knob, Timer WPL 3349233 Contact Us For Availability
23
Ring, Retaining WPL 95082 Contact Us For Availability
23
Trim, End Cap (R.H.) WPL 388746 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability
24
Clamp, Capacitor WPL 357030 Contact Us For Availability
24
Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability
24
Washer Kit, Thrust WPL 285292 Contact Us For Availability
25
Plug, Button WPL 54690 Contact Us For Availability
26
Stop, Push-In Top WPL 358472 Contact Us For Availability
27
Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability
27
Screw (2) 8-32 x 3/8 WPL 310629 Contact Us For Availability
28
Knob, Control (2) WPL 3351726 Contact Us For Availability
30
Rivet, Serial Nameplate WPL 354239 Contact Us For Availability
30
Spacer, Console (2) WPL 3349338 Contact Us For Availability
31
Dial, Timer WPL 3349243 Contact Us For Availability
36
Sound-Damper (Cabinet) WPL 3349654 Contact Us For Availability
54
Wire, Ground WPL 364089 Contact Us For Availability
56
Sheild, Suds WPL 3348424 Contact Us For Availability
60
Clip WPL 62732 Contact Us For Availability
× ![]()
