Model Huebsch HWRXE1*N1102 Washer – Common Parts & Diagrams

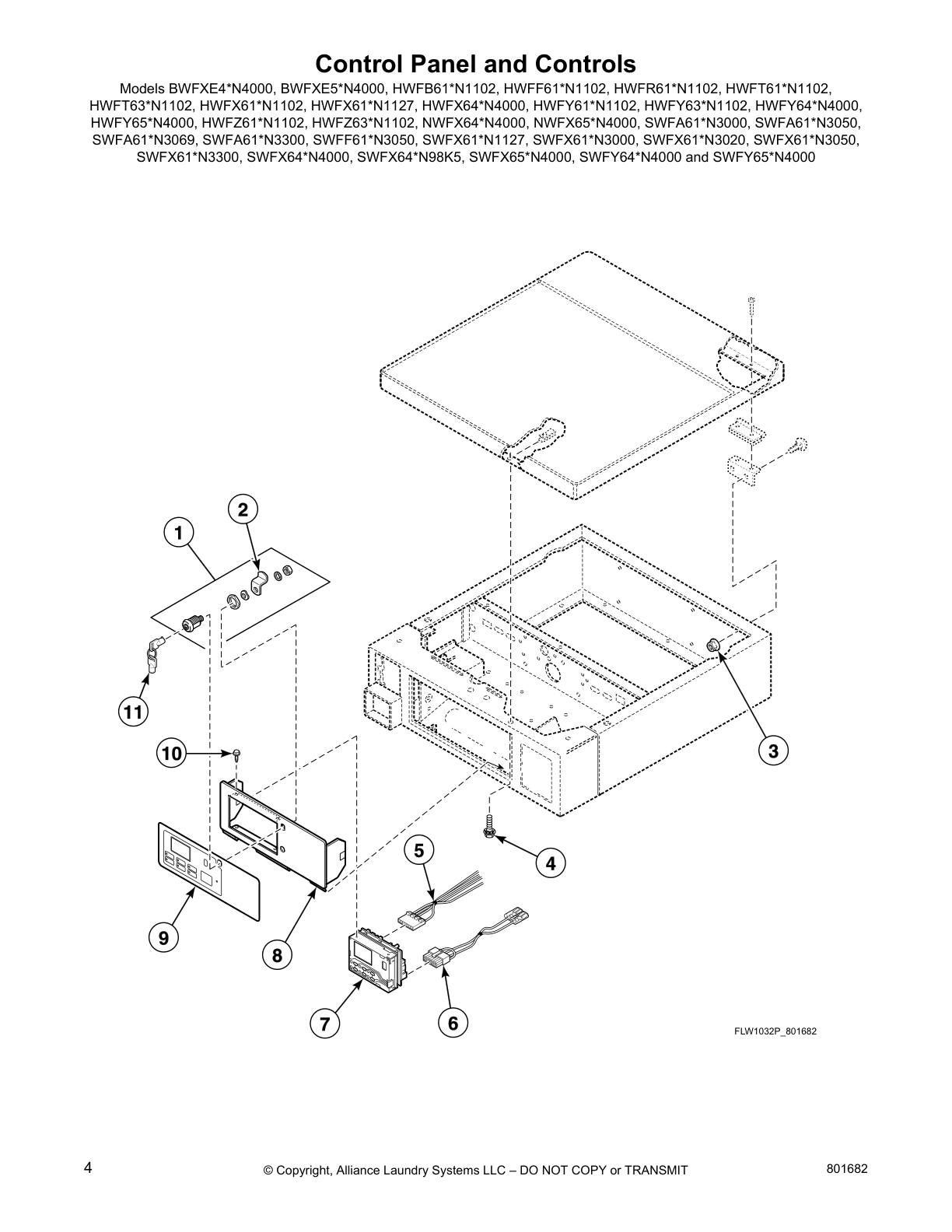

Control Panel and Controls

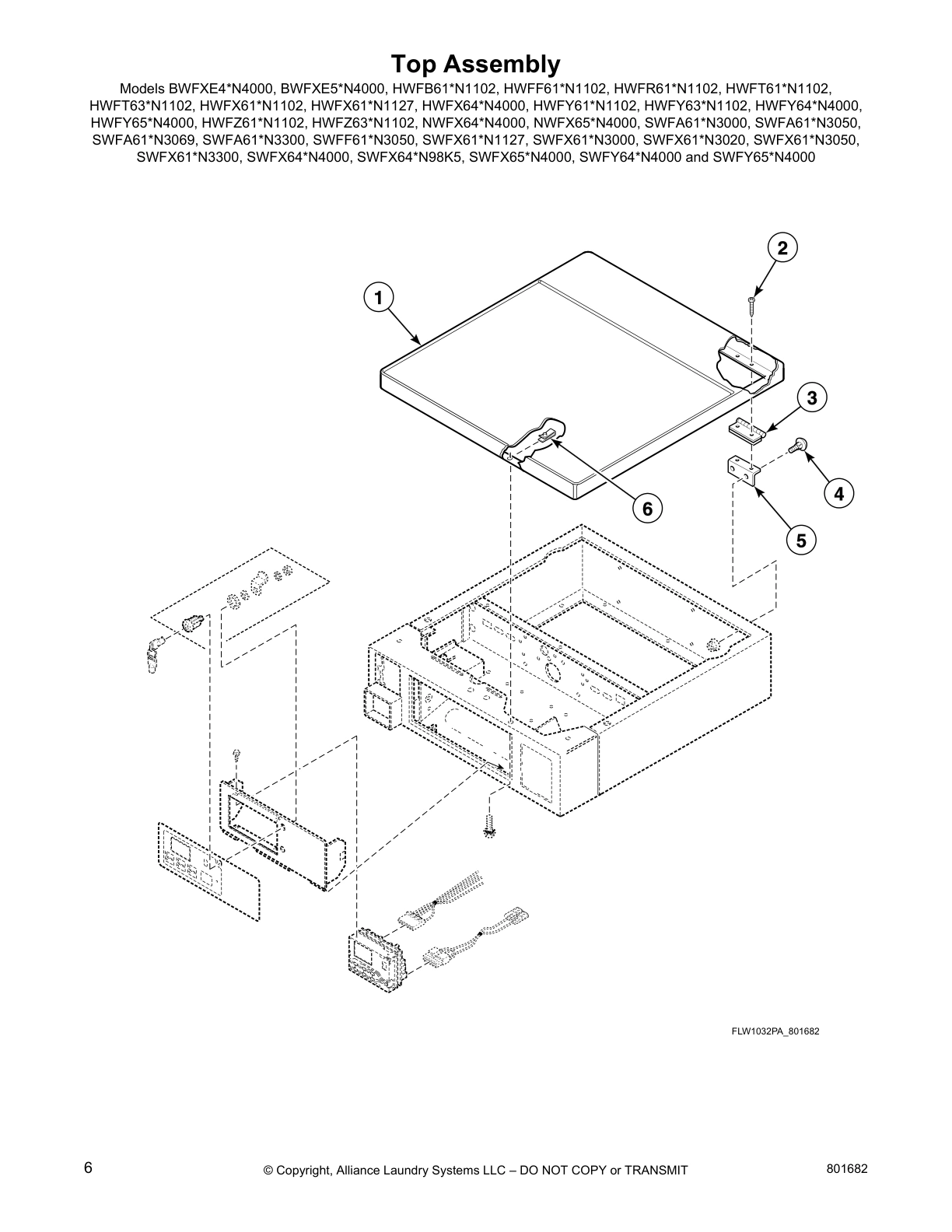

Top Assembly

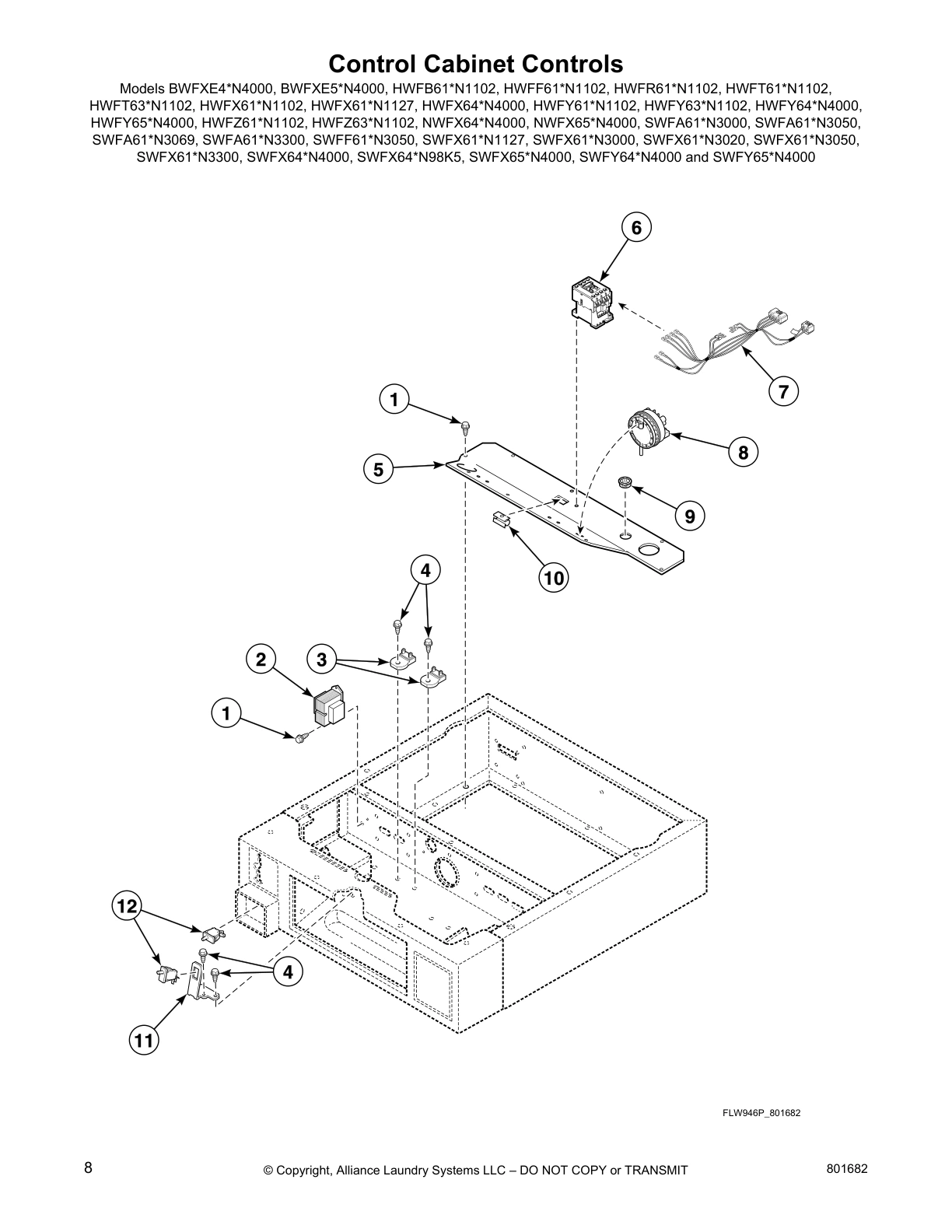

Control Cabinet Controls

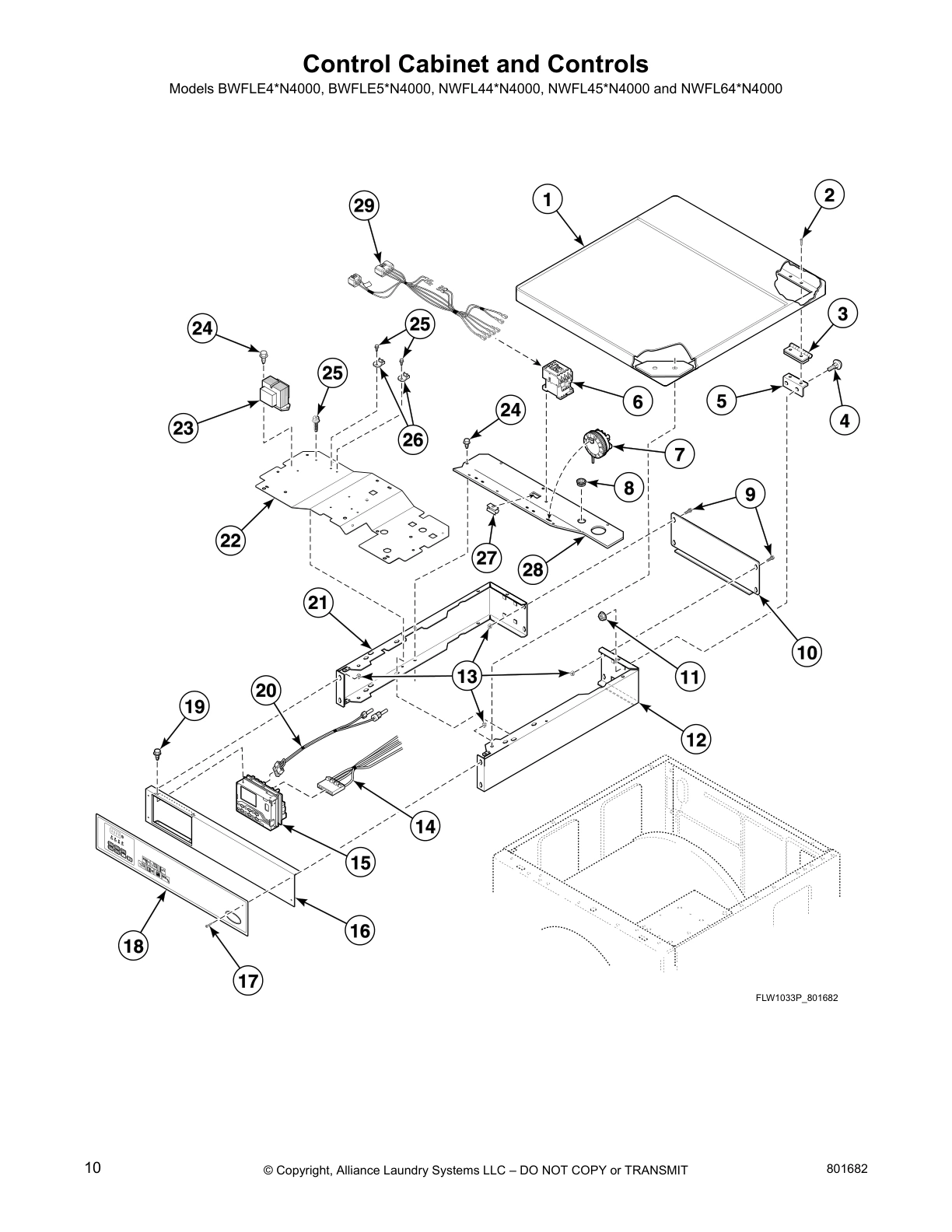

Control Cabinet and Controls

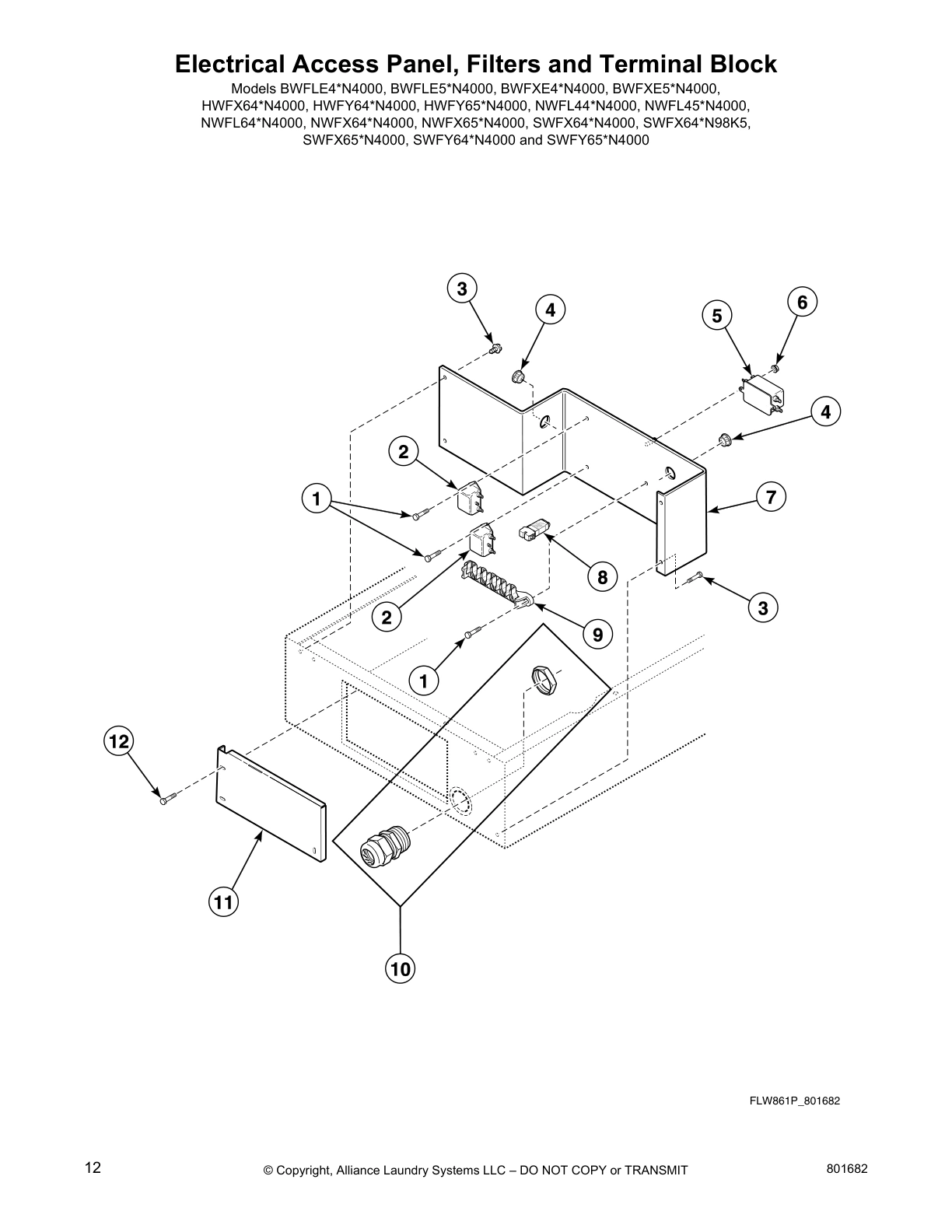

Electrical Access Panel, Filters and Terminal Block

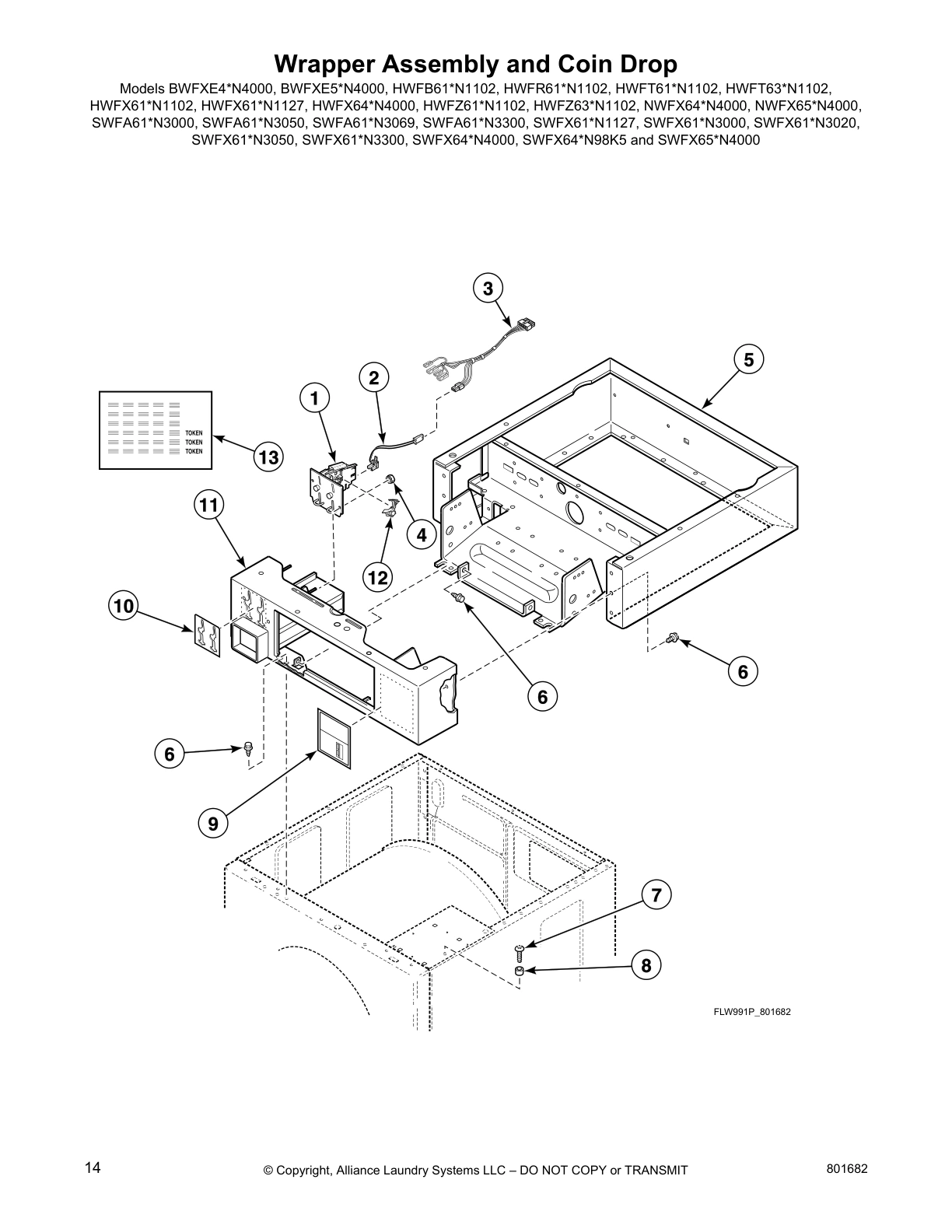

Wrapper Assembly and Coin Drop

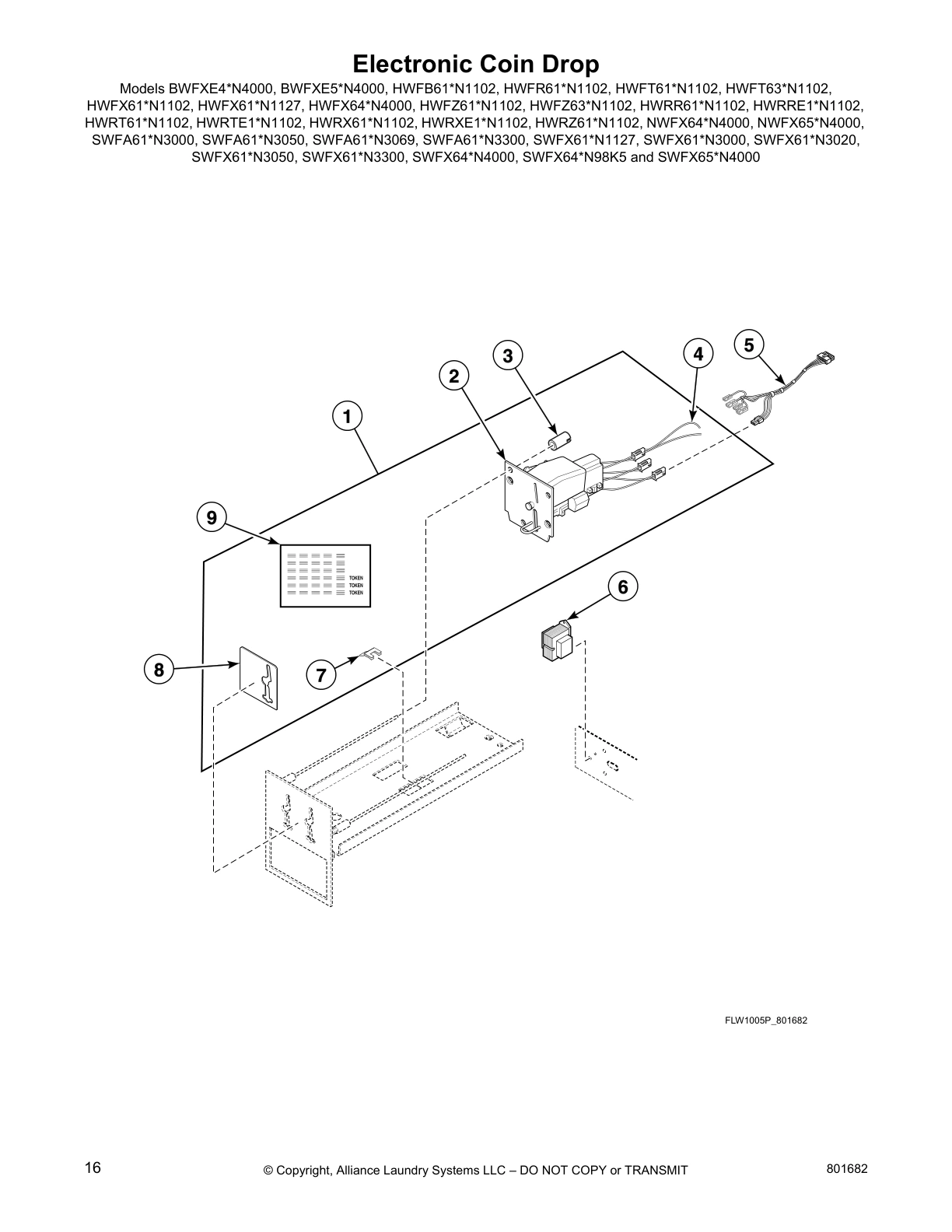

Electronic Coin Drop

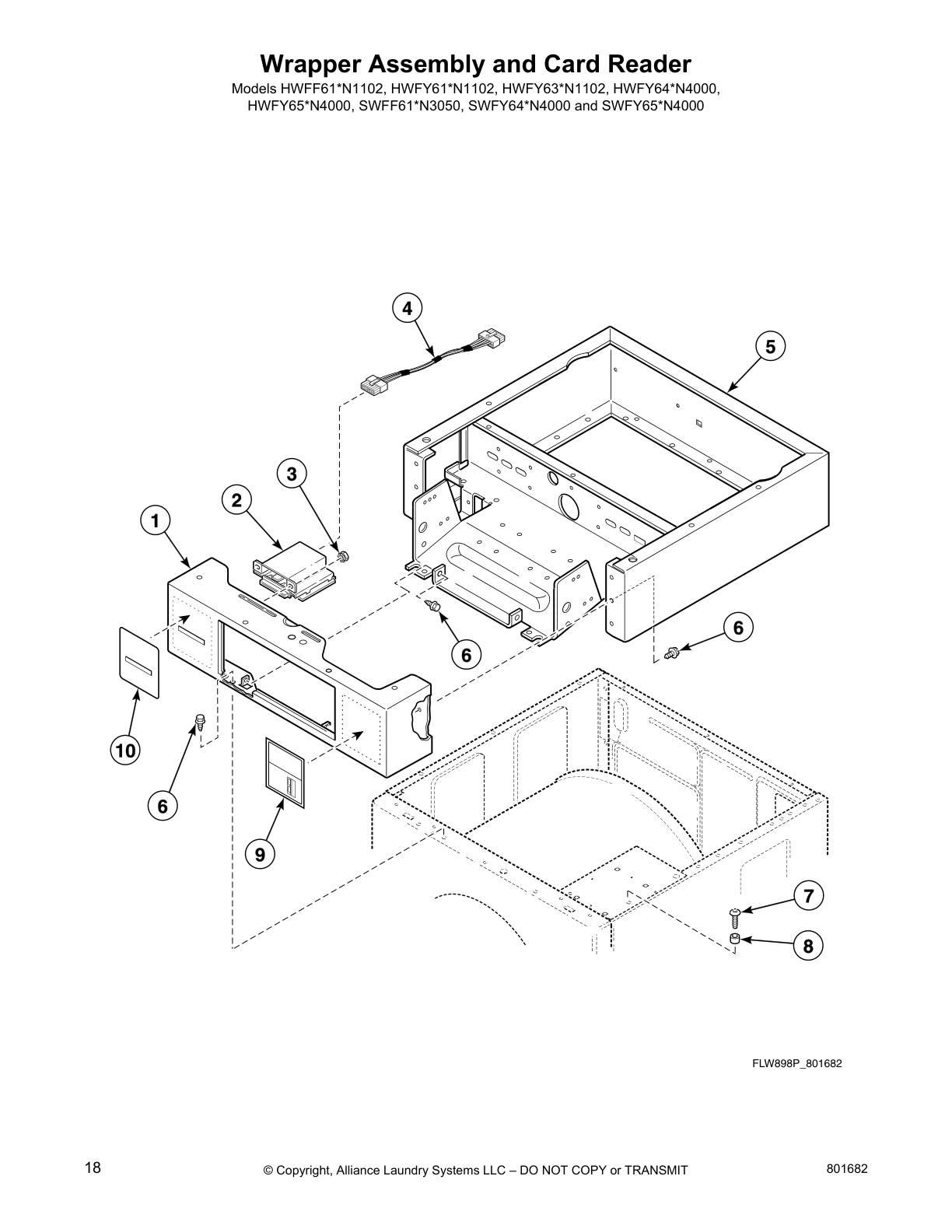

Wrapper Assembly and Card Reader

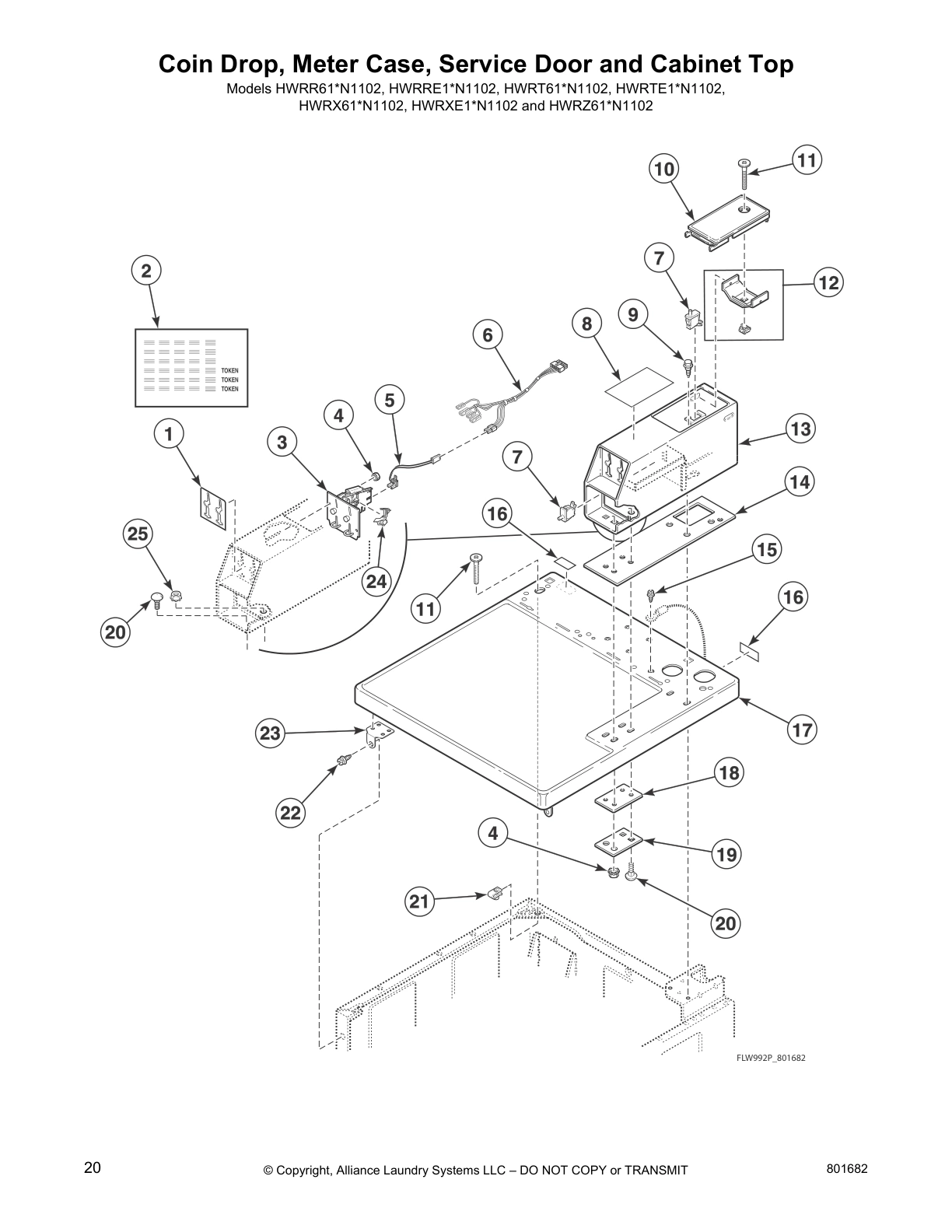

Coin Drop, Meter Case, Service Door and Cabinet Top

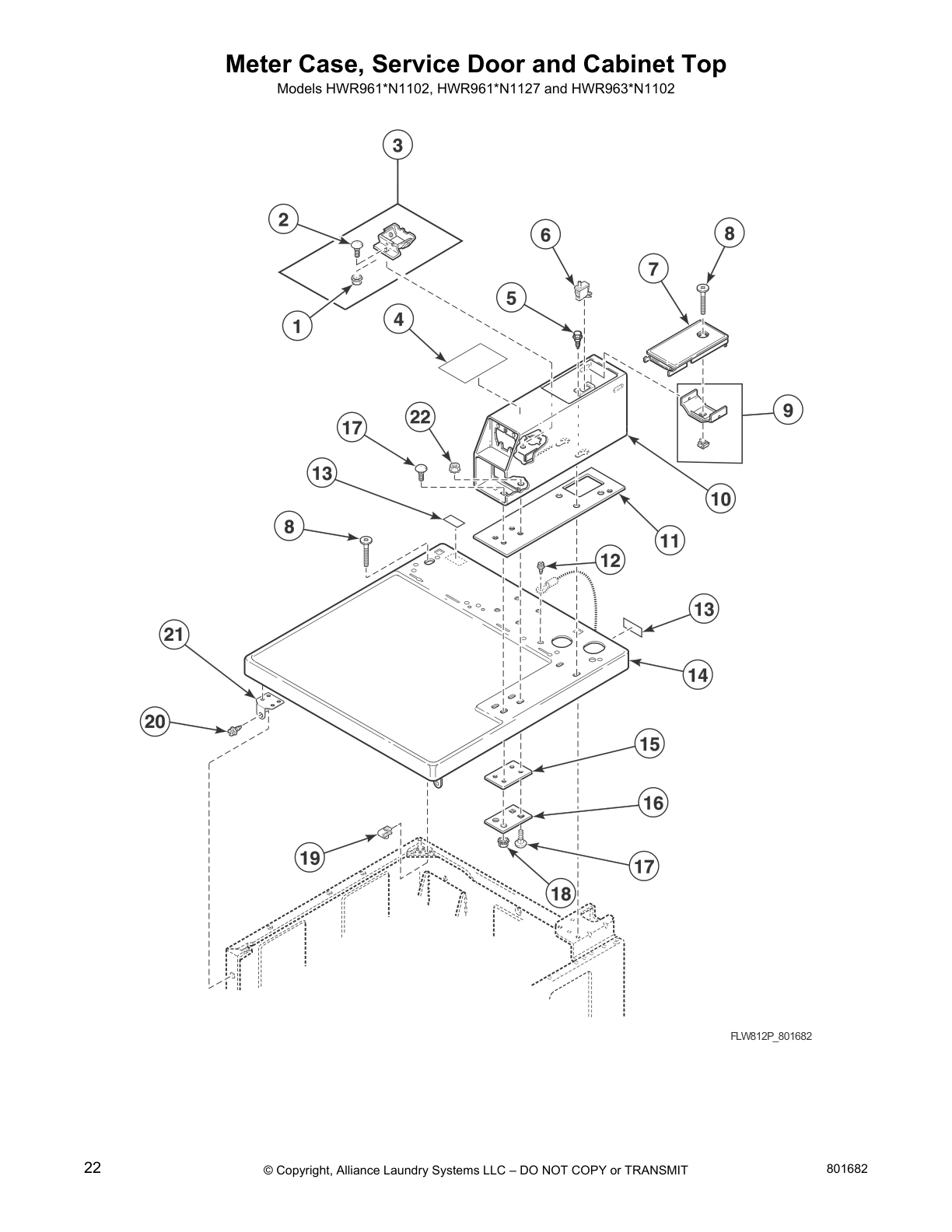

Meter Case, Service Door and Cabinet Top

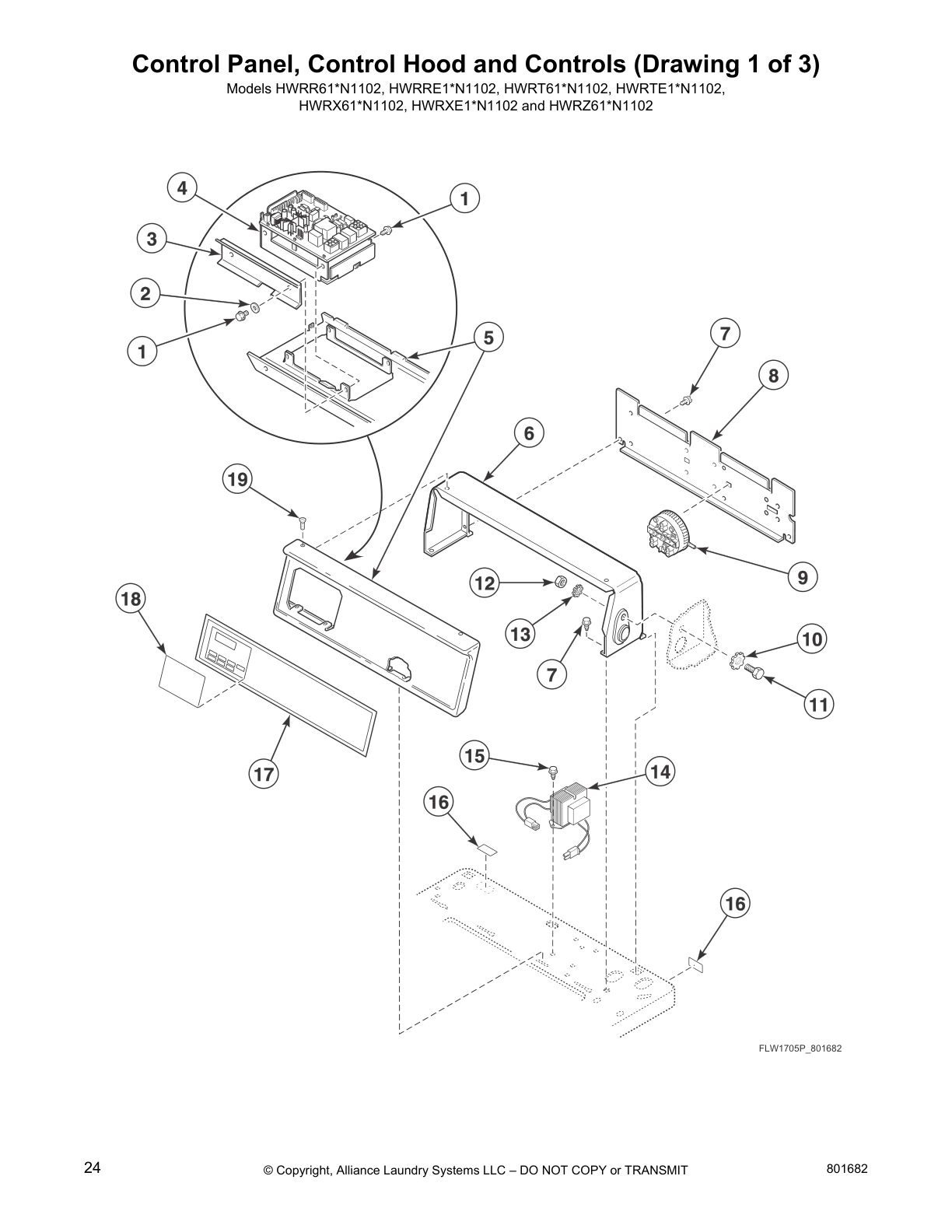

Control Panel, Control Hood and Controls (Drawing 1 of 3)

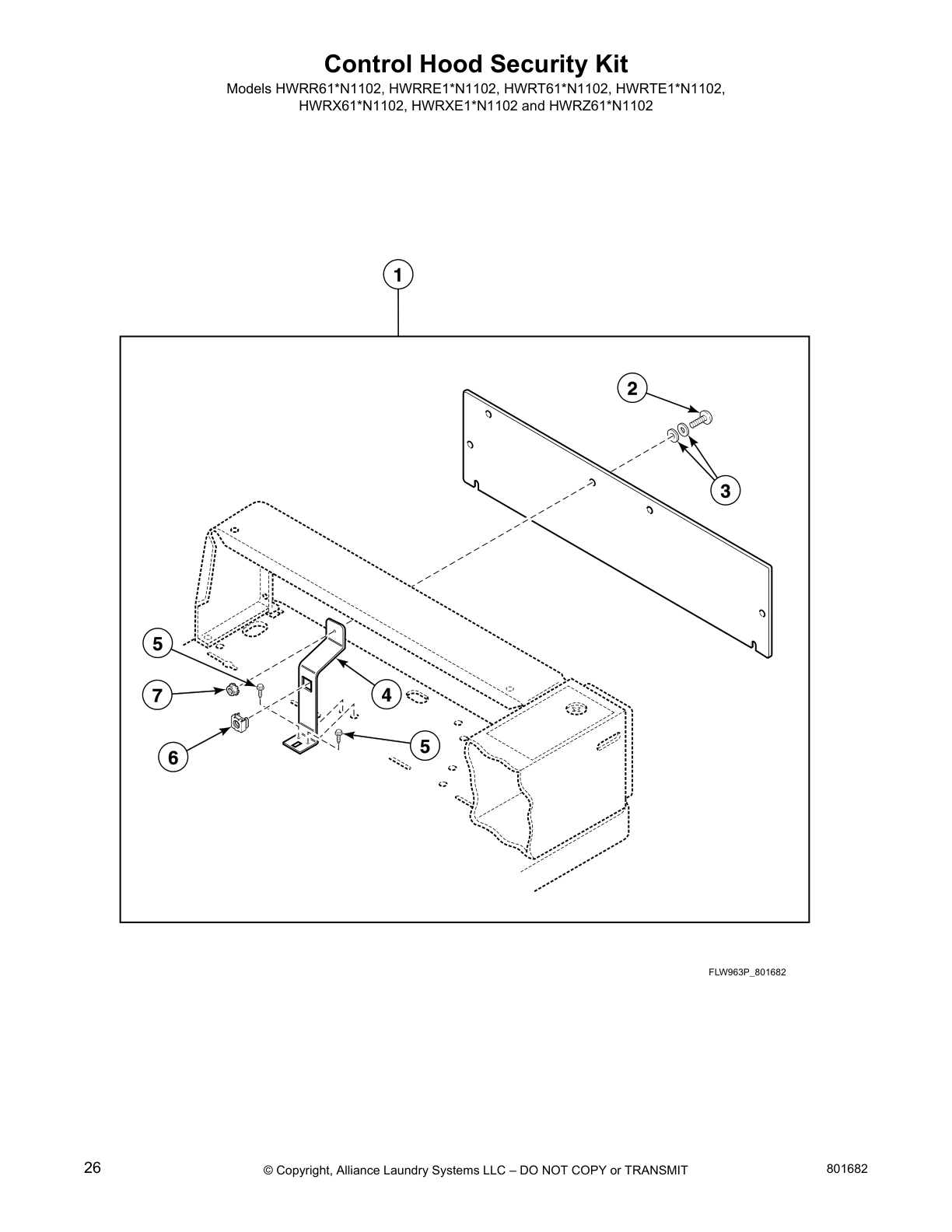

Control Hood Security Kit

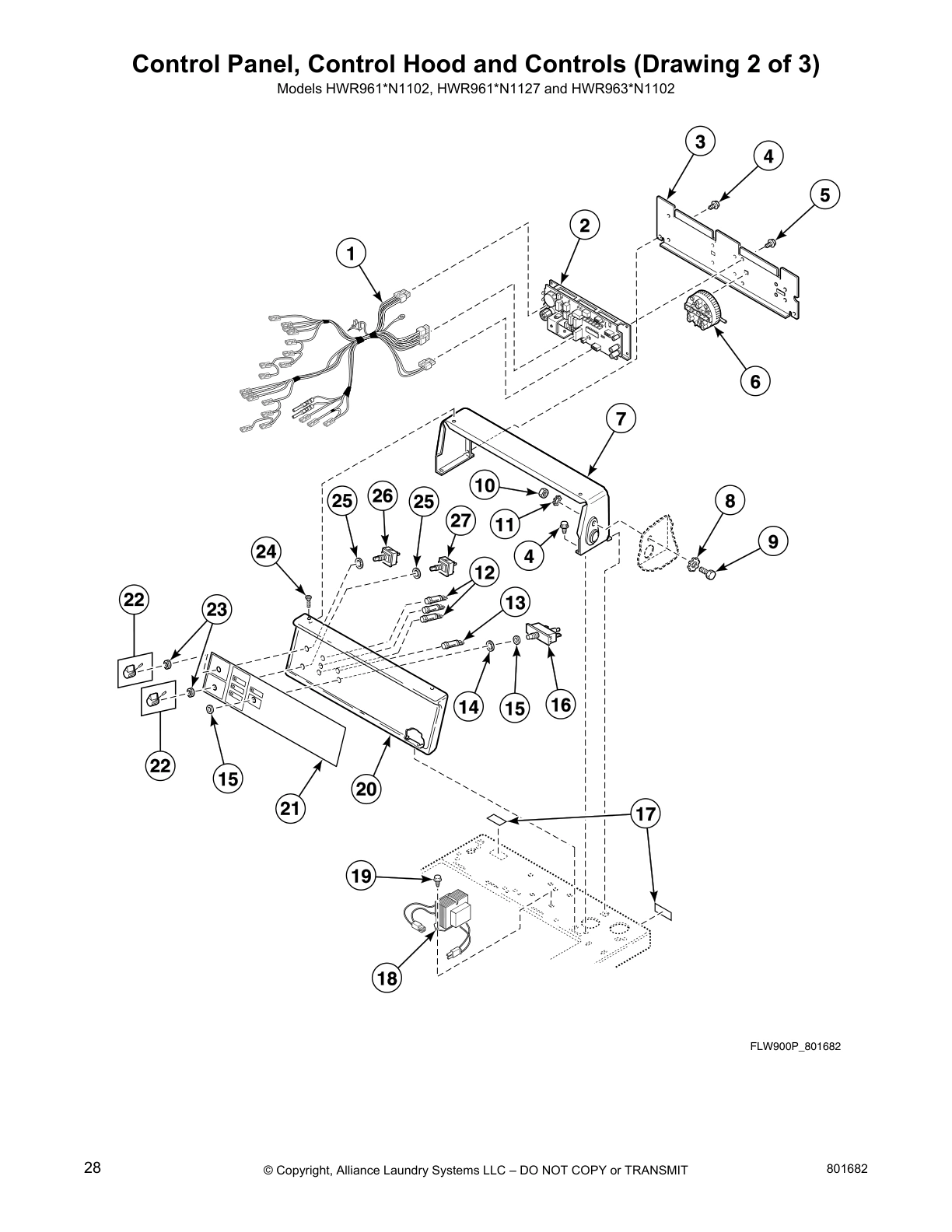

Control Panel, Control Hood and Controls (Drawing 2 of 3)

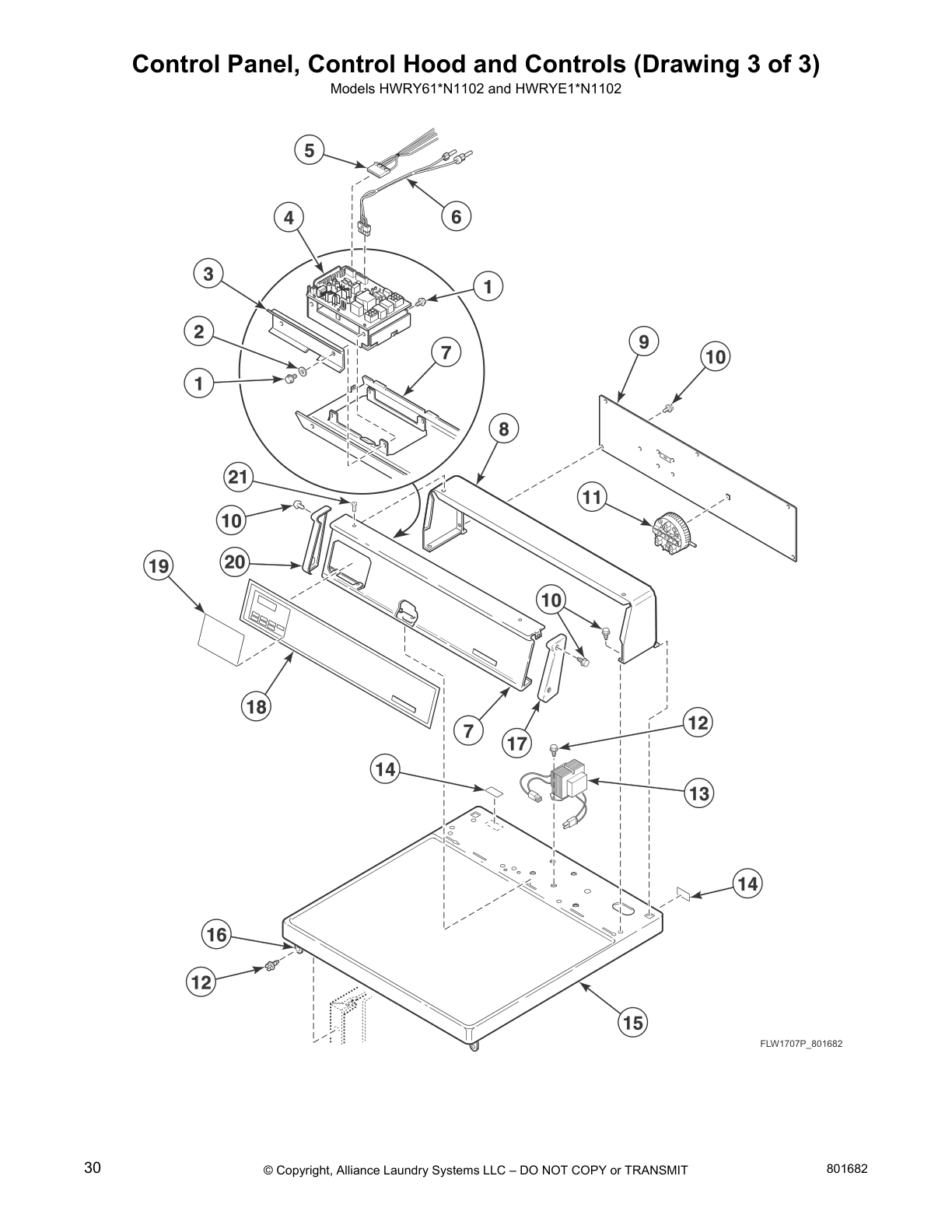

Control Panel, Control Hood and Controls (Drawing 3 of 3)

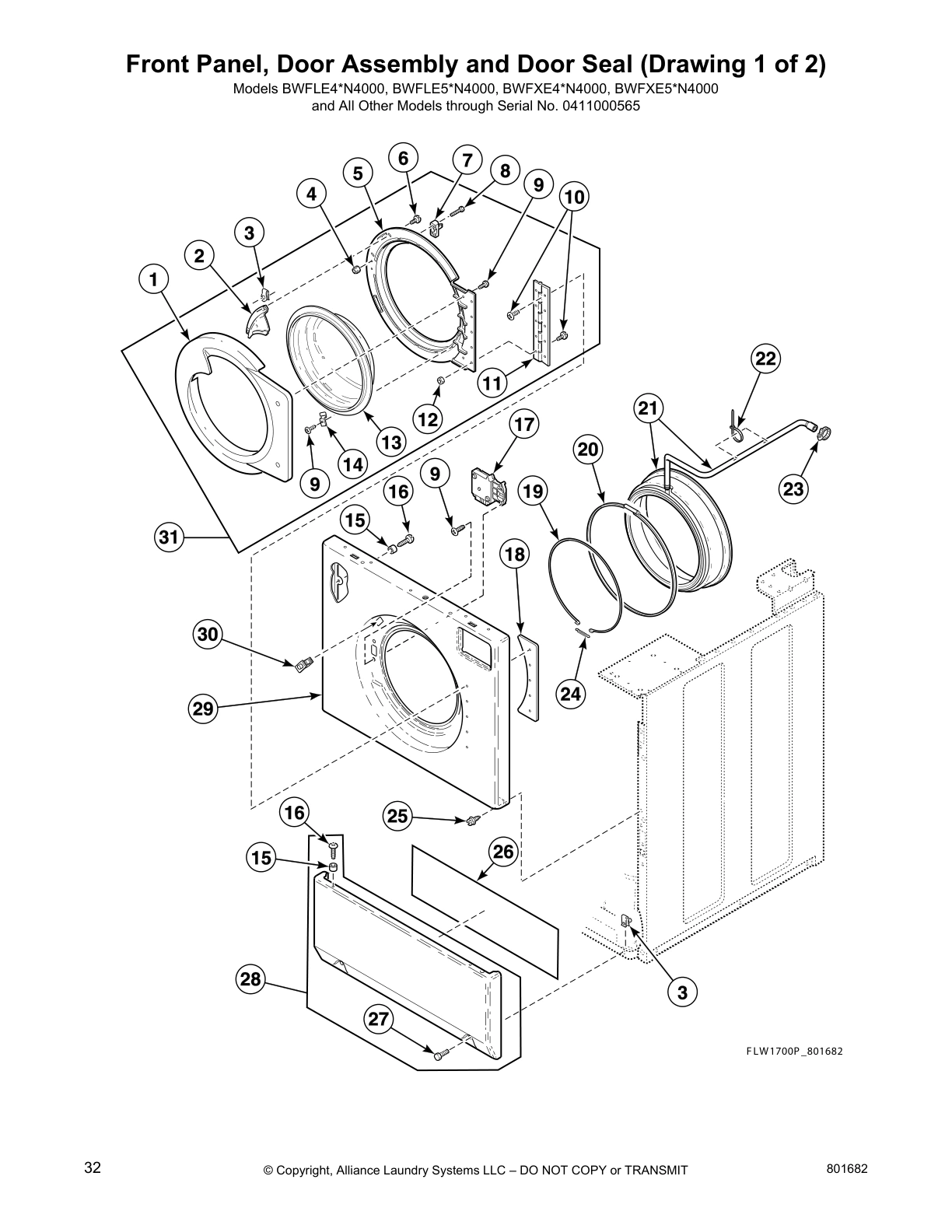

Front Panel, Door Assembly and Door Seal (Drawing 1 of 2)

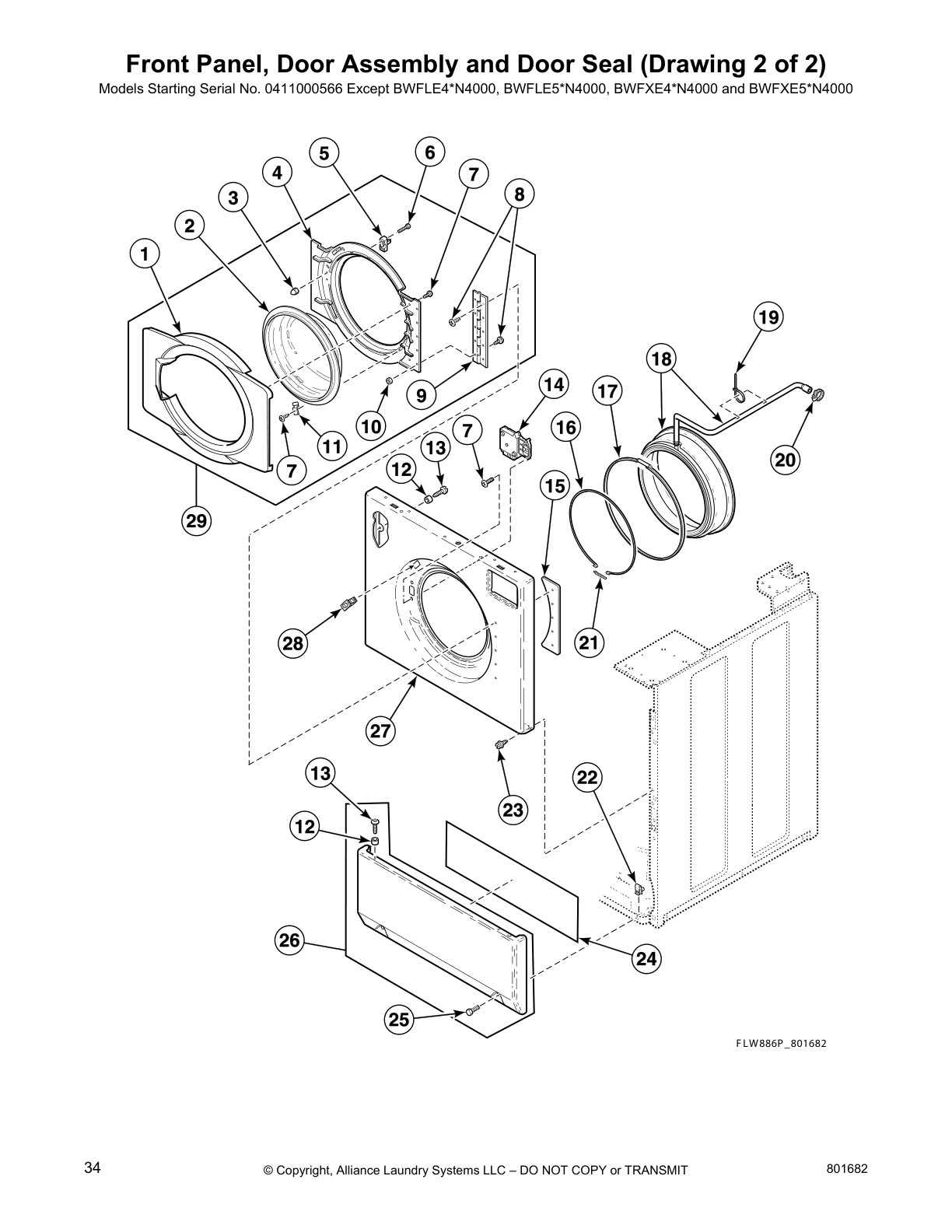

Front Panel, Door Assembly and Door Seal (Drawing 2 of 2)

Dispenser Assembly

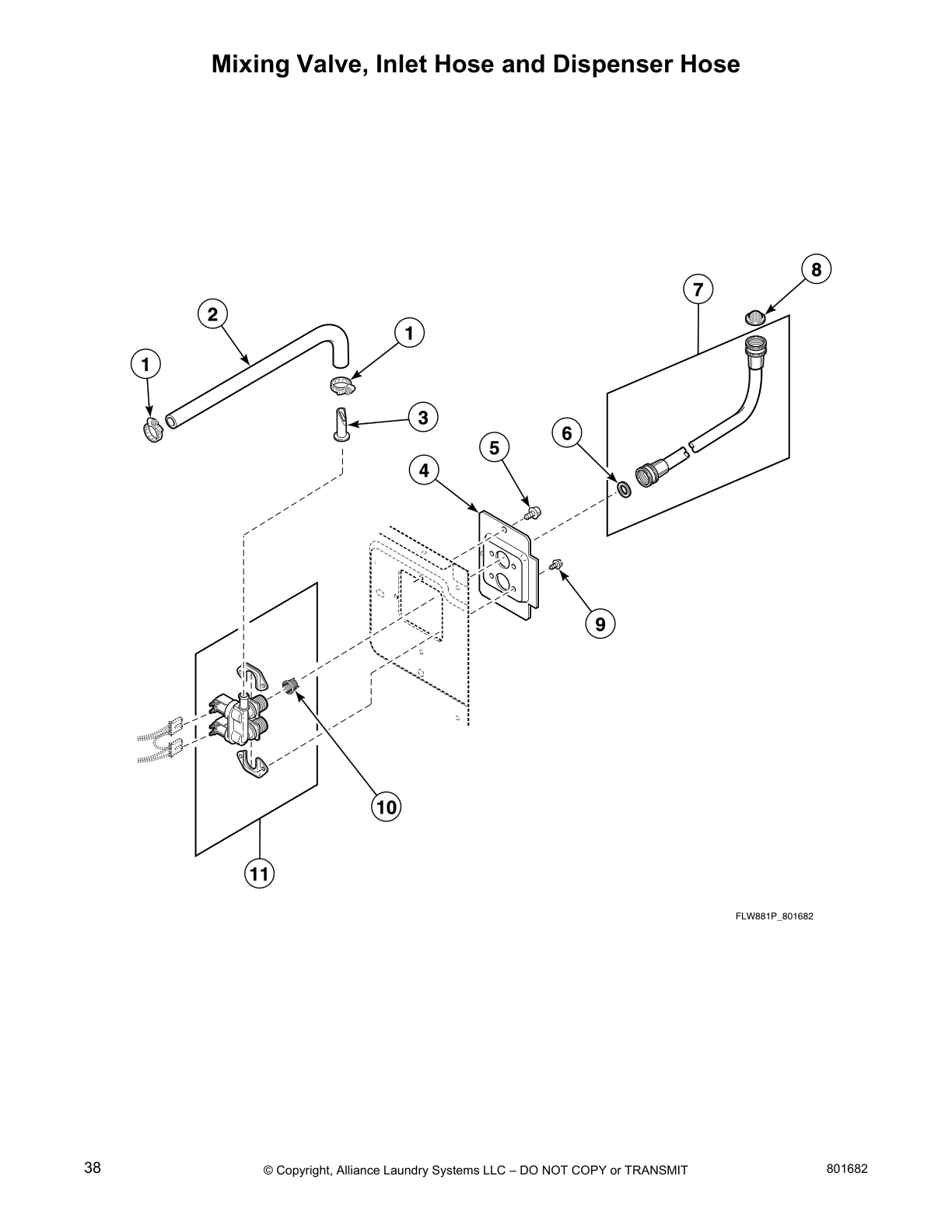

Mixing Valve, Inlet Hose and Dispenser Hose

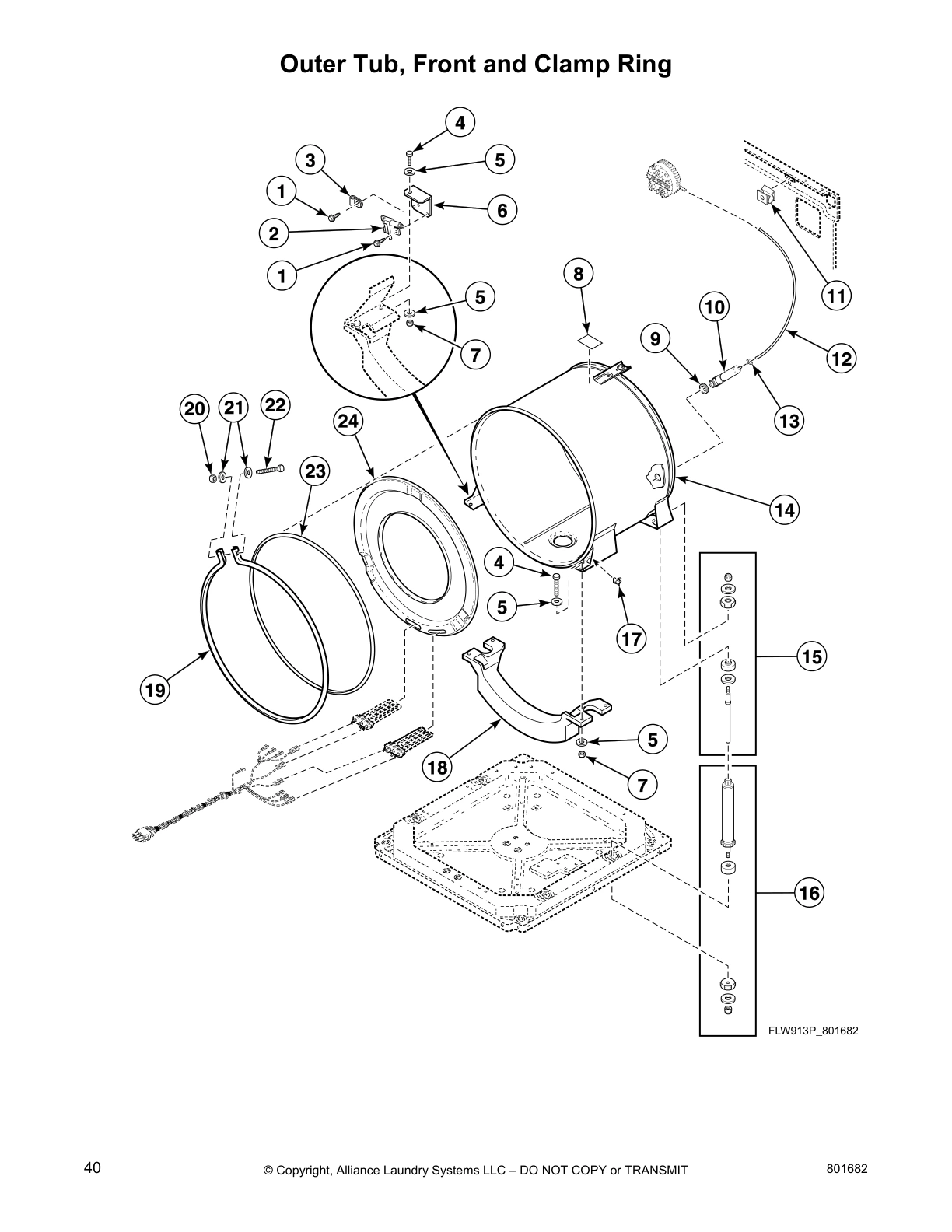

Outer Tub, Front and Clamp Ring

Inner Basket, Trunnion, Bearing Housing and Pulley

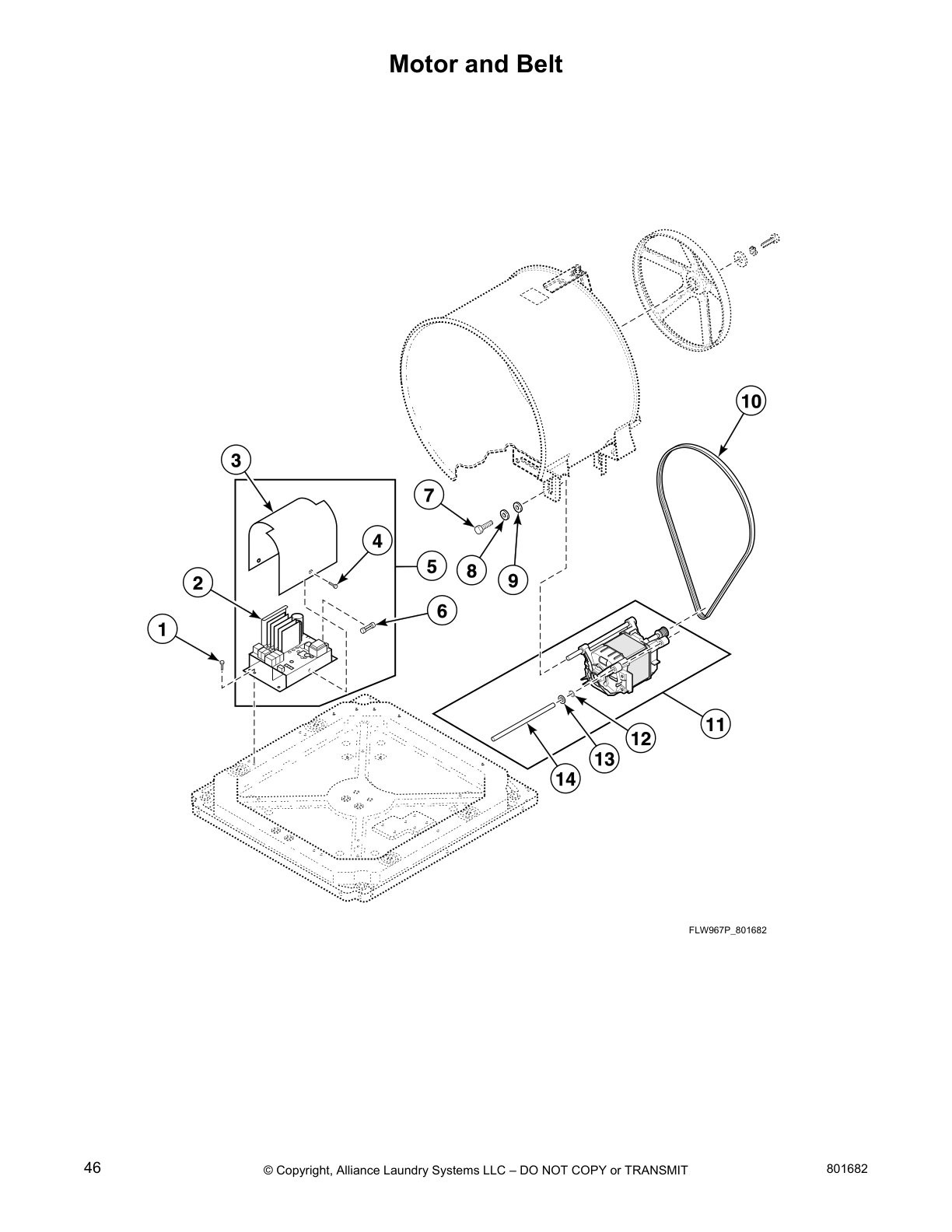

Motor and Belt

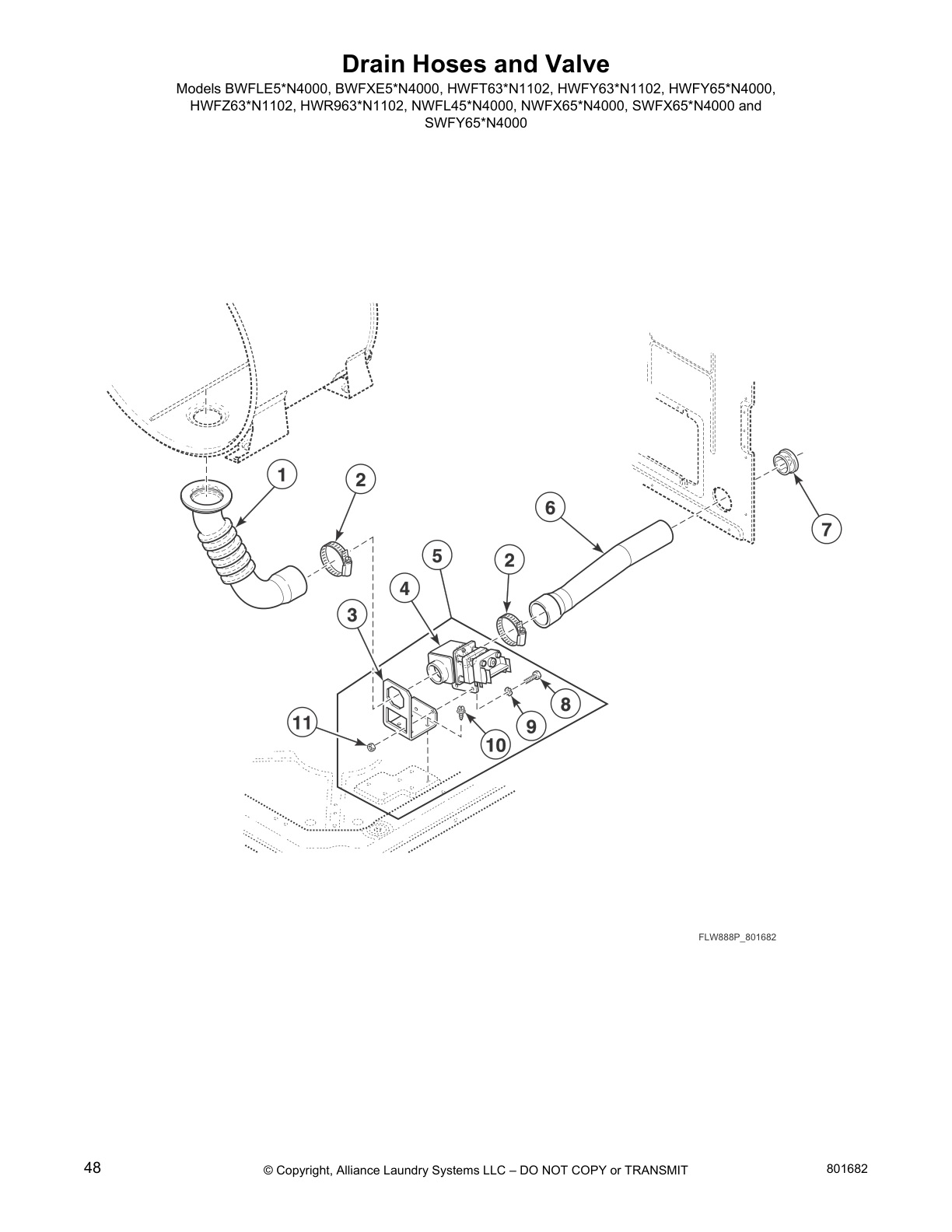

Drain Hoses and Valve

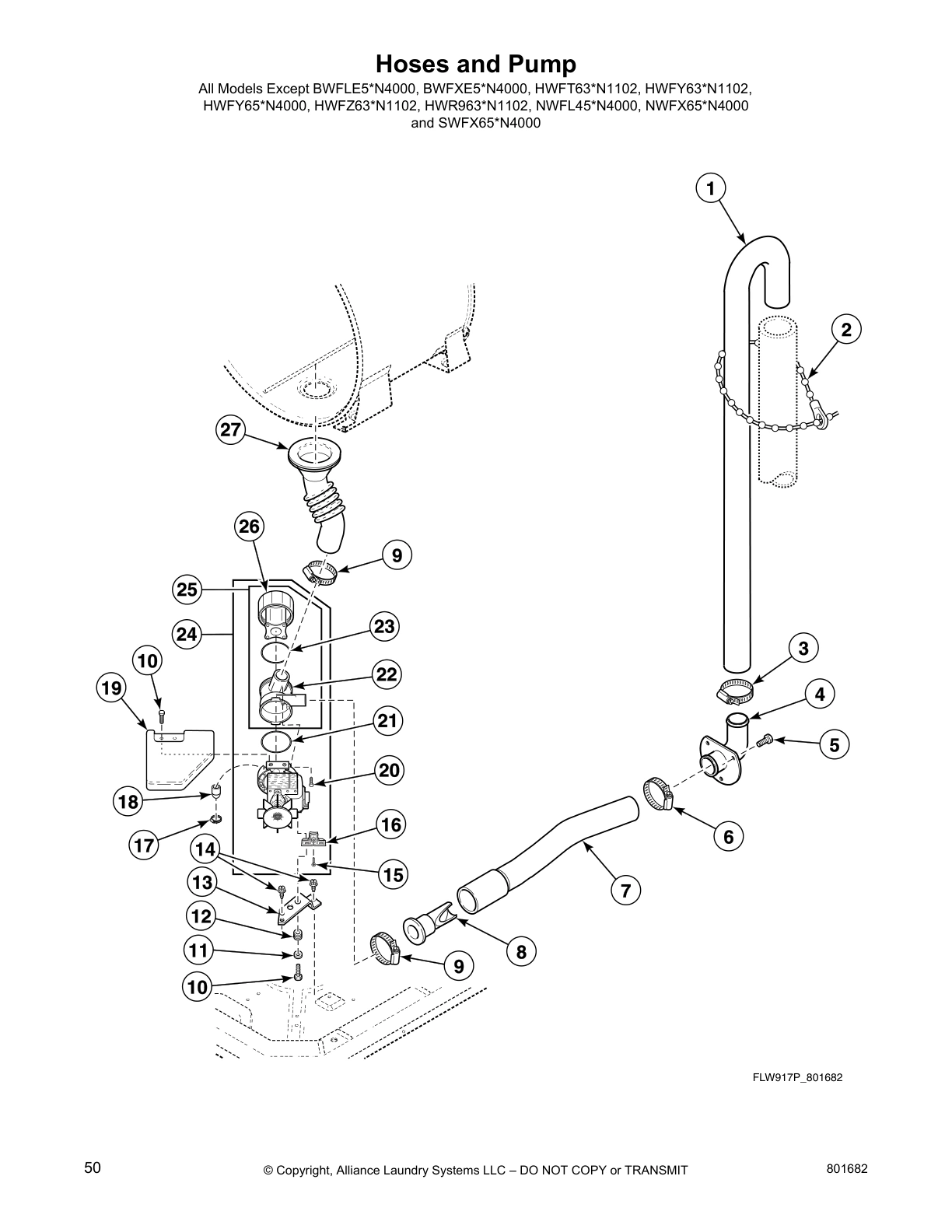

Hoses and Pump

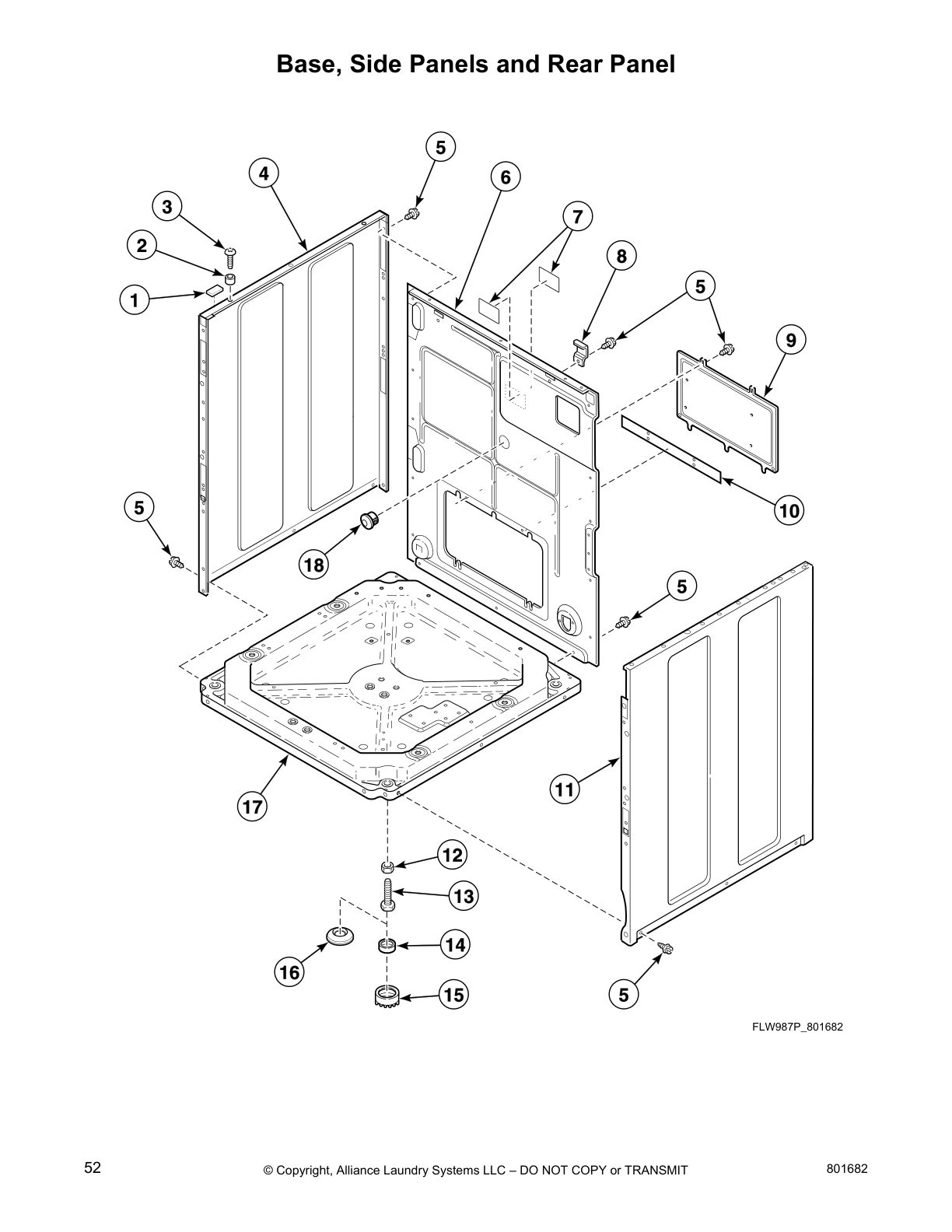

Base, Side Panels and Rear Panel

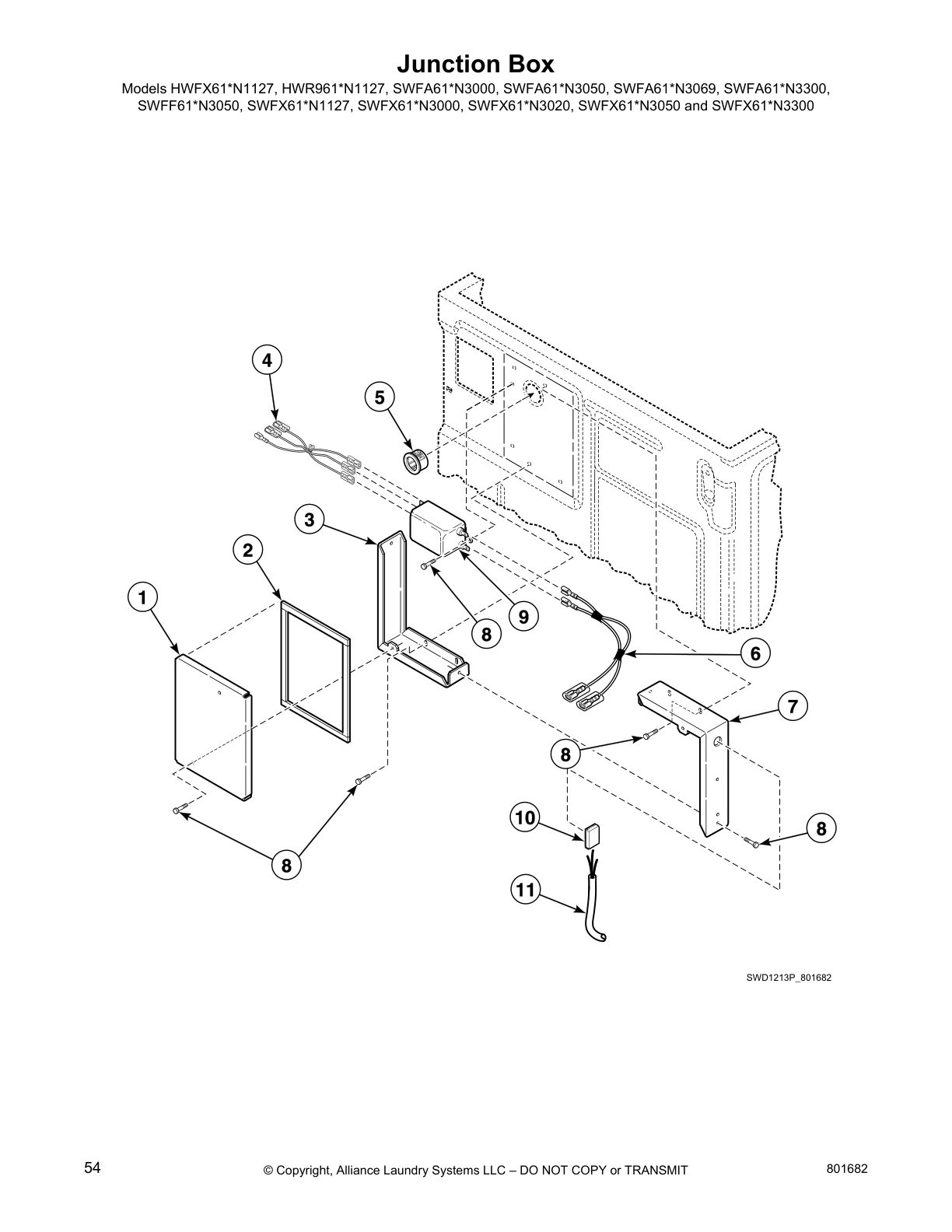

Junction Box

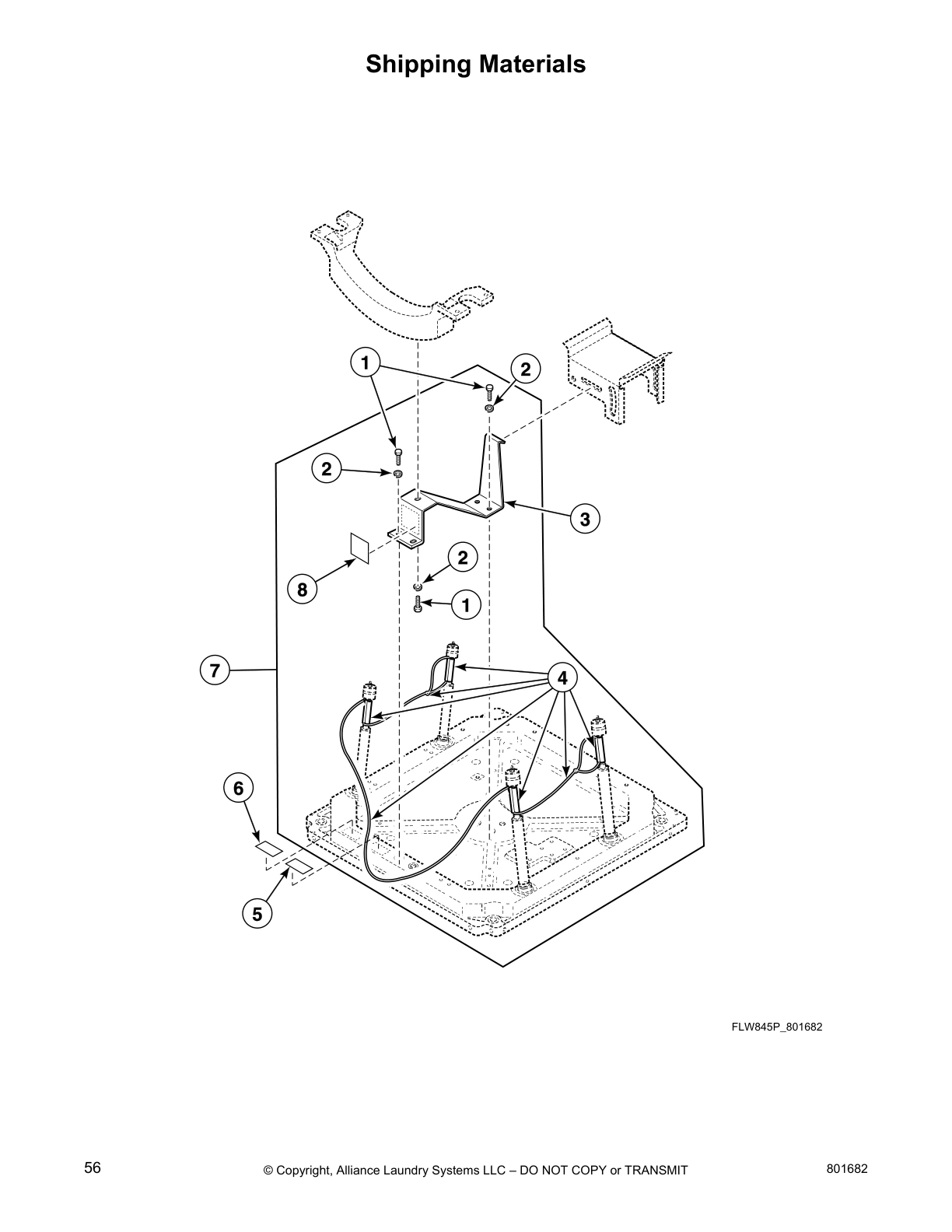

Shipping Materials

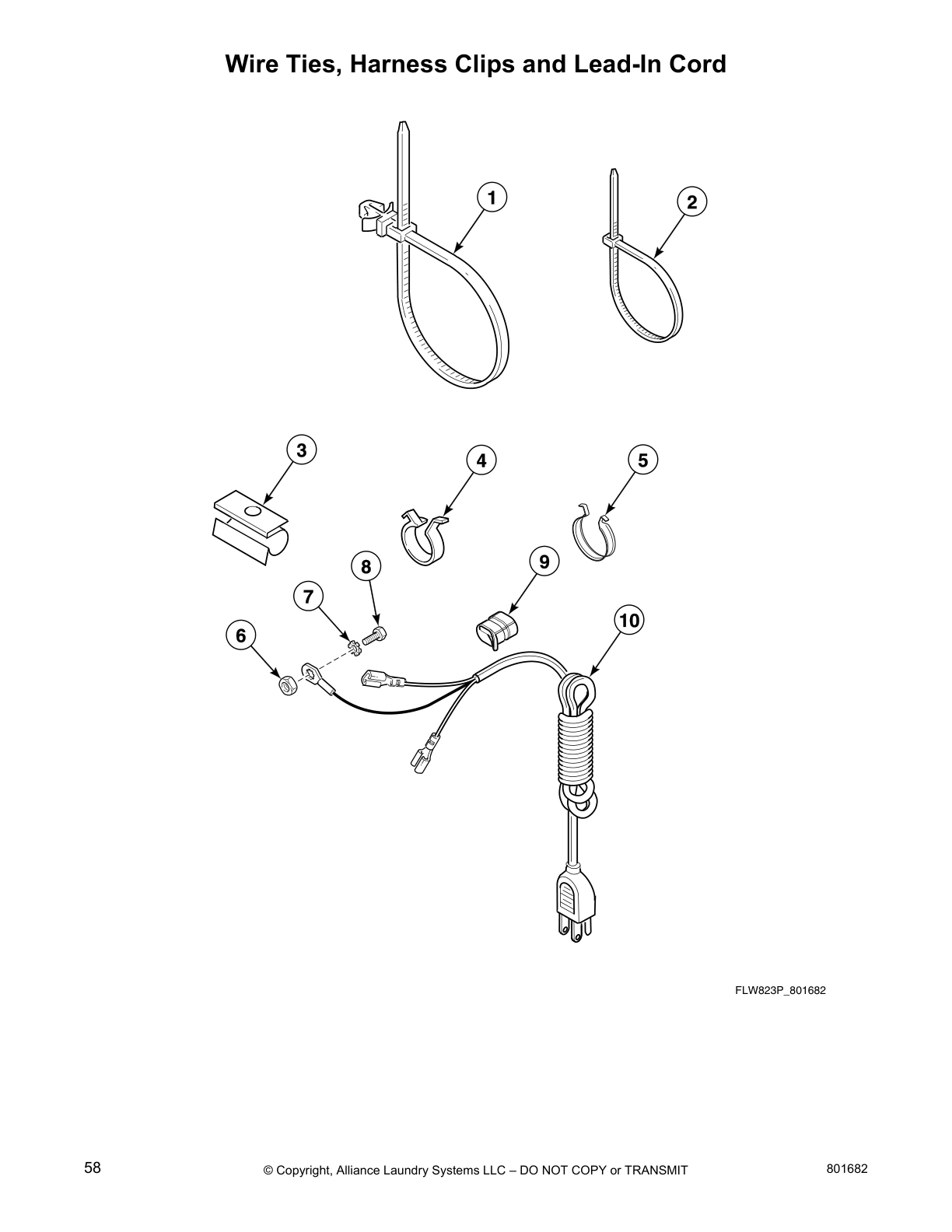

Wire Ties, Harness Clips and Lead-In Cord

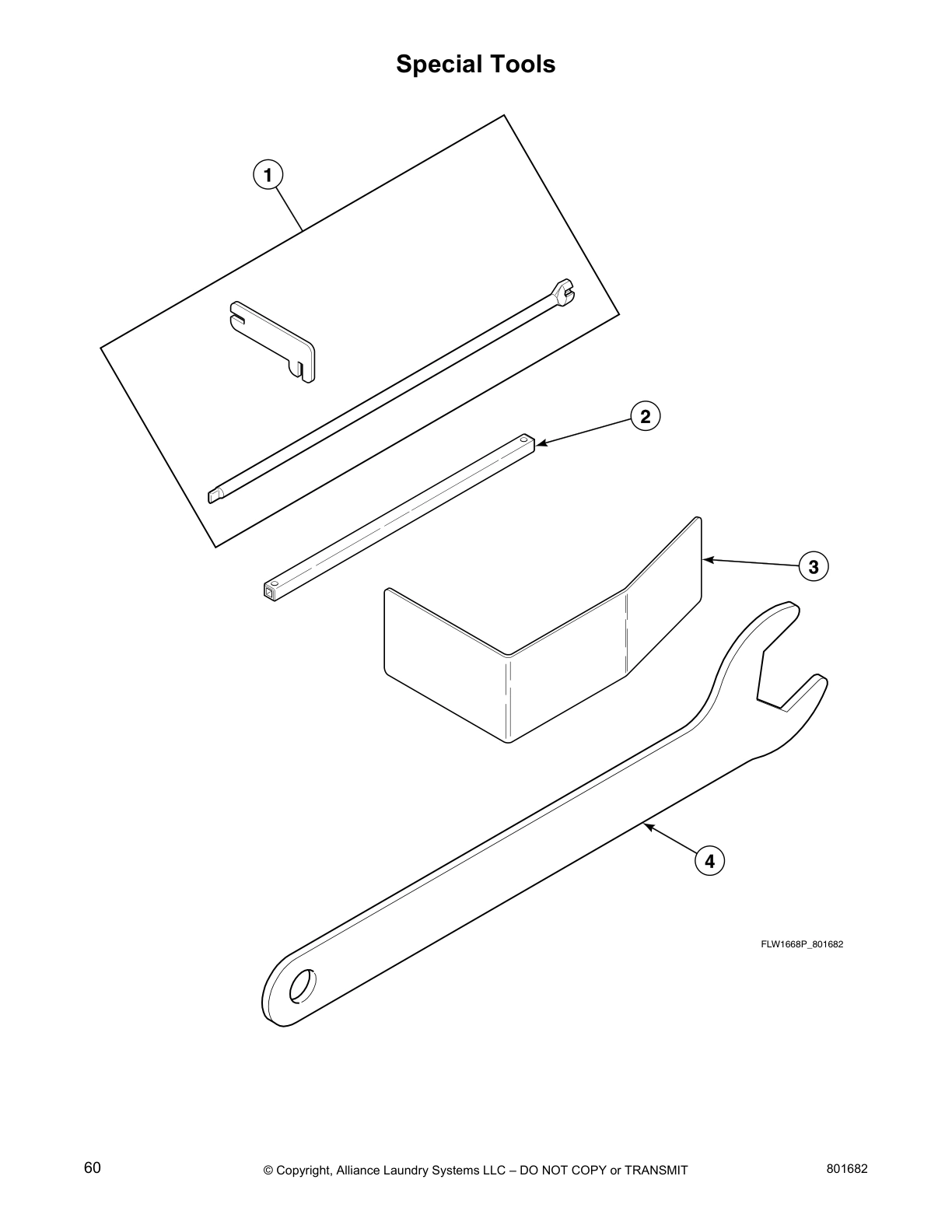

Special Tools

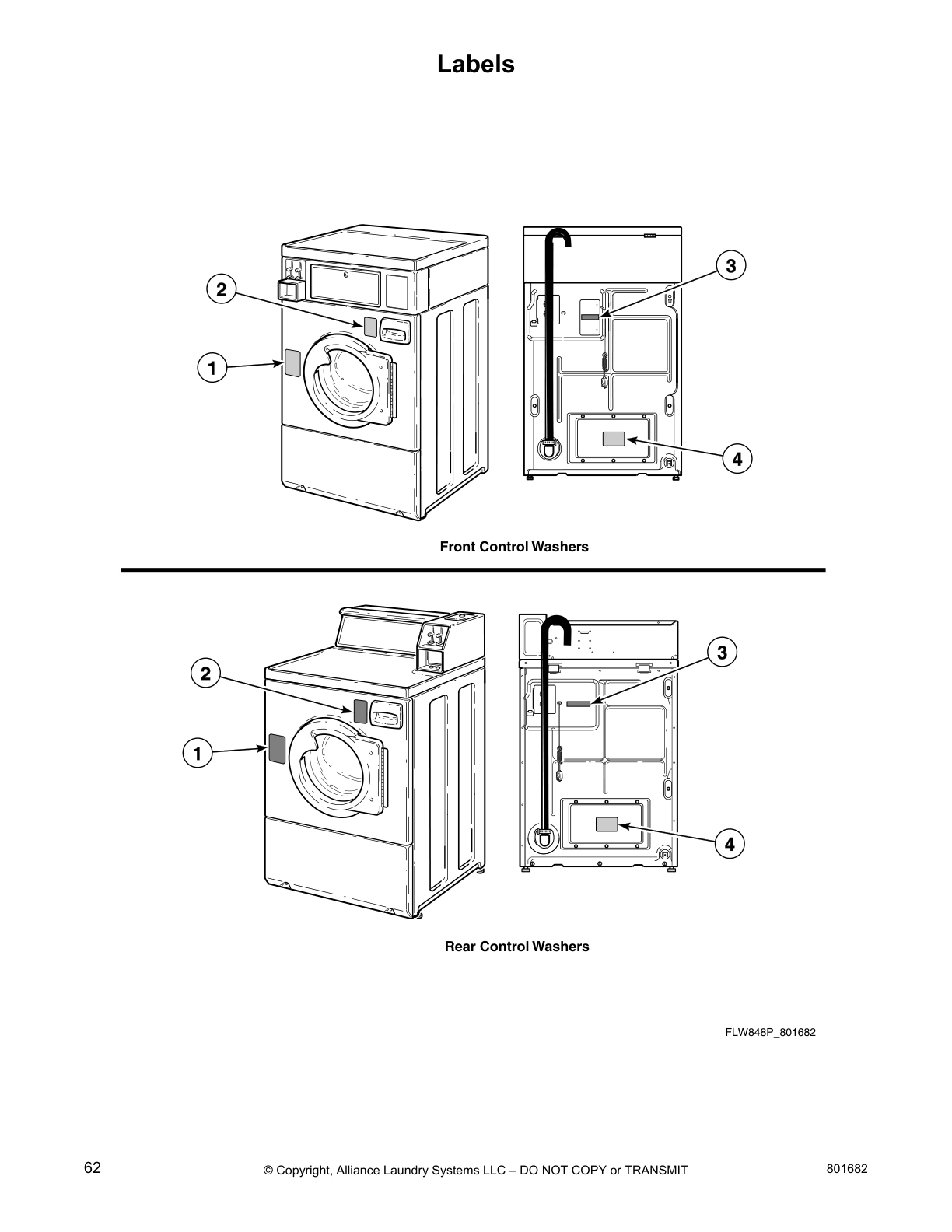

Labels

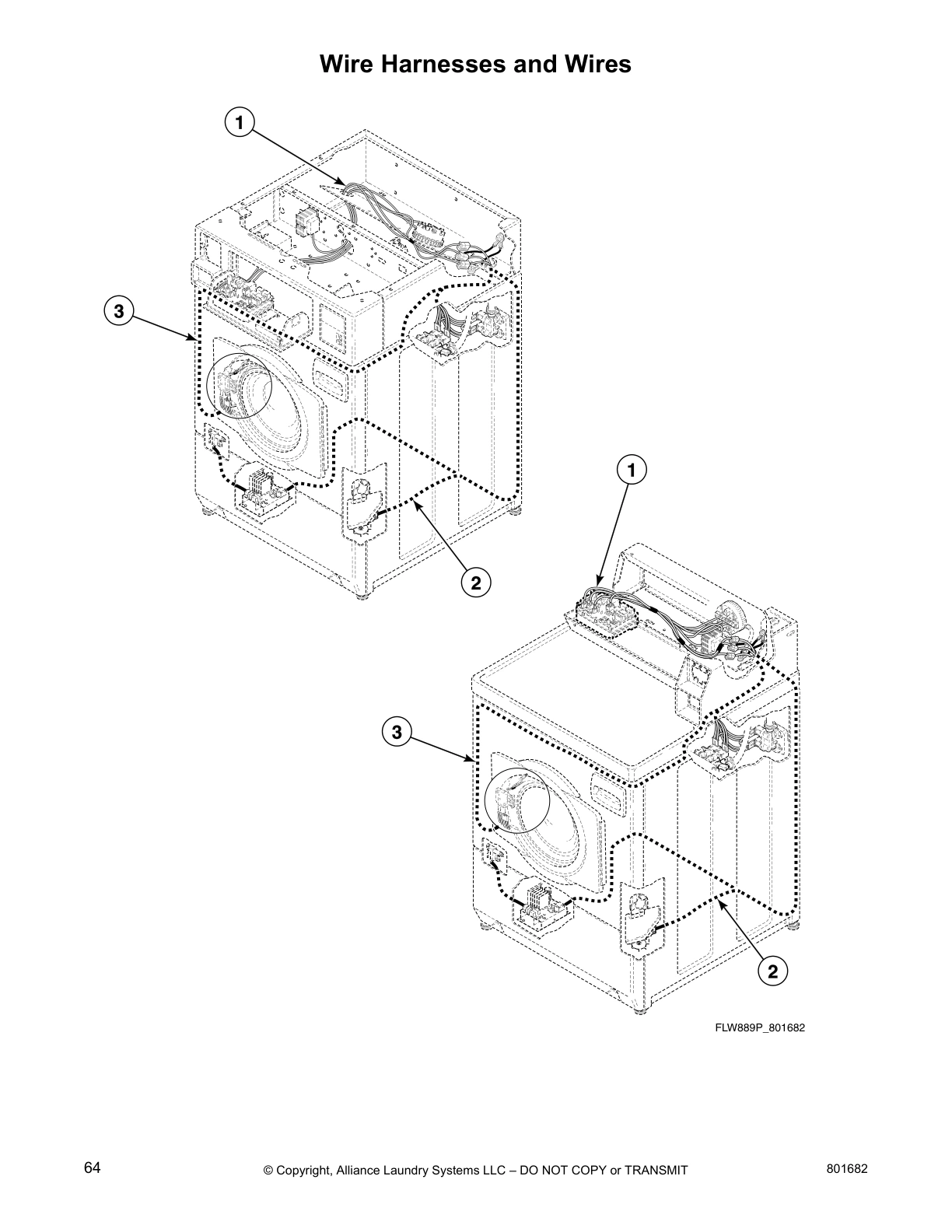

Wire Harnesses and Wires

Common parts from model Huebsch HWRXE1*N1102 Washer

20617 Speed Queen Inlet Hose 8 Feet Backorder SPQ 20617 $31.33

View on Model

52909 Speed Queen Tap-HXWAHD 10B-16X.5 Screw Backorder SPQ 52909 $4.92

View on Model

802254 Speed Queen Washer Flow Restrictor Red In Stock SPQ 802254 $34.90

View on Model

27154 Speed Queen Hose, Elbow to Drain Backorder SPQ 27154 $49.52

View on Model

56128 Speed Queen Bumper Pad Backorder SPQ 56128 $4.92

View on Model

800341W Speed Queen Door Bezel Backorder SPQ 800341W $74.10

View on Model

800666 Speed Queen Complete Tension Rod Assem Backorder SPQ 800666 $98.90

View on Model

801904W Speed Queen Outer Door Bezel Backorder SPQ 801904W $47.58

View on Model

CK096 Speed Queen Mounting Tool Kit Backorder SPQ CK096 $14.64

View on Model

CK110 Speed Queen Drop Kit Munz Ecuador Mexic Backorder SPQ CK110 $171.77

View on Model

310P4 Speed Queen Washer Dryer Ratchet Extens In Stock SPQ 310P4 $41.16

View on Model

55881 Speed Queen Tie Cable Backorder SPQ 55881 $1.78

View on Model

801024 Speed Queen Dispenser Plate Backorder SPQ 801024 $62.54

View on Model

803254P Speed Queen Washer Inverter Control A Backorder SPQ 803254P $1,080.22

View on Model

806512 Speed Queen Motor L120 W120INT Backorder SPQ 806512 $107.81

View on Model

M400014 Speed Queen Washer Lock Regulator Spr Backorder SPQ M400014 $4.92

View on Model

Door Seal Clamp SPQ 800438 Contact Us For Availability

View on Model

318P4 Speed Queen Dispenser Drawer Tool Backorder SPQ 318P4 $7.58

View on Model

800749P Speed Queen KIT,TRUNNION Shaft AND HD In Stock SPQ 800749P $625.17

View on Model

801001 Speed Queen T-20 Torx Plastic Screw 10 Backorder SPQ 801001 $1.90

View on Model

Lid Assembly SPQ 802427 Contact Us For Availability

View on Model

392P4 Speed Queen Horizon TL Locknut Wrench T Backorder SPQ 392P4 $12.48

View on Model

802623P Speed Queen Washer Drain Pump In Stock SPQ 802623P $170.45

View on Model

SPQ 800211 SPQ 800211 Contact Us For Availability

View on Model

SPQ 801928WP SPQ 801928WP Contact Us For Availability

View on Model

685844 Speed Queen Locknut 3/8-16 UNC SS304 Backorder SPQ 685844 $1.30

View on Model

800004WP Speed Queen Left Hand Cabinet Panel Backorder SPQ 800004WP $164.60

View on Model

801526P Speed Queen Washer 120V Inverter Kit Backorder SPQ 801526P $955.91

View on Model

20290 Speed Queen Washer 19/32" ID x 1.031" O In Stock SPQ 20290 $4.92

View on Model

70441602 Speed Queen Dual Coindrop Can Assemb Backorder SPQ 70441602 $579.97

View on Model

800663 Speed Queen Mounting Bracket for Switc Backorder SPQ 800663 $10.05

View on Model

801464 Speed Queen Control Panel Assembly Backorder SPQ 801464 $23.99

View on Model

801755 Speed Queen 10 AMP Fuse (5MM x 20MM) Backorder SPQ 801755 $23.64

View on Model

Drain Hose Elbow SPQ 802434P Contact Us For Availability

View on Model

SPQ 800436WP SPQ 800436WP Contact Us For Availability

View on Model

34500 Speed Queen Duckbill Backflow Preventer Backorder SPQ 34500 $4.92

View on Model

685846 Speed Queen #10-32 UNF Nylon Lock Nut Backorder SPQ 685846 $4.92

View on Model

802426P Speed Queen Lid Assembly with Filter Backorder SPQ 802426P $97.07

View on Model

F200116 Speed Queen Water Hose 3/8" x 60" FXF Backorder SPQ F200116 $20.18

View on Model

Shipping Materials Kit SPQ 728P3 Contact Us For Availability

View on Model

685766P Speed Queen Commercial Dispenser Valv In Stock SPQ 685766P $53.05

View on Model

800340 Speed Queen Inner Door Bezel Backorder SPQ 800340 $54.72

View on Model

200674P Speed Queen Opto I Coupler 12 Backorder SPQ 200674P $106.17

View on Model

29175 Speed Queen Grommet In Stock SPQ 29175 $6.08

View on Model

38384 Speed Queen Strain Relief Backorder SPQ 38384 $1.98

View on Model

800317 Speed Queen Tub To Pump Hose In Stock SPQ 800317 $38.81

View on Model

800331 Speed Queen Detergent Dispenser Hose Backorder SPQ 800331 $50.14

View on Model

801993 Speed Queen Hex Head Machine Screw 10- In Stock SPQ 801993 $4.92

View on Model

M400080 Speed Queen Washer Flat 5/16 Standard Backorder SPQ M400080 $4.92

View on Model

204616 Speed Queen Metercase Bracket and Nut In Stock SPQ 204616 $4.92

View on Model

205241 Speed Queen Pressure Bulb Assembly In Stock SPQ 205241 $6.08

View on Model

34458 Speed Queen Lead-in Cord In Stock SPQ 34458 $20.00

View on Model

800319P Speed Queen Washer Dryer Micro V Driv In Stock SPQ 800319P $46.02

View on Model

D501285 Speed Queen Screw Tap 12-16x.562 Slhx In Stock SPQ D501285 $1.96

View on Model

F200206 Speed Queen Hose Clamp #4 Backorder SPQ F200206 $2.25

View on Model

39874WP Speed Queen Service Door Assembly Backorder SPQ 39874WP $64.04

View on Model

800866 Speed Queen Driven Pulley Backorder SPQ 800866 $113.03

View on Model

801684P Speed Queen Motor and Rod Assembly Ki In Stock SPQ 801684P $385.32

View on Model

802220P Speed Queen Water Mixing Valve In Stock SPQ 802220P $33.75

View on Model

806492 Speed Queen Right Side Panel and Dispe Backorder SPQ 806492 $208.24

View on Model

808210 Speed Queen Screw, Wafer Head Torx In Stock SPQ 808210 $0.29

View on Model

201595P Speed Queen Wire Guard Backorder SPQ 201595P $27.50

View on Model

23748 Speed Queen Washer Retaining Ring In Stock SPQ 23748 $4.92

View on Model

52566 Speed Queen Hex Nut 1/4-20 Jam UNC ZNC In Stock SPQ 52566 $4.92

View on Model

685756P Speed Queen MLD Dispenser with Valves In Stock SPQ 685756P $62.63

View on Model

685831 Speed Queen 3/8-24 Nylon Left-Hand Scr Backorder SPQ 685831 $4.92

View on Model

800465 Speed Queen Washer Flat (#12 Std Type Backorder SPQ 800465 $4.92

View on Model

D512973 Speed Queen Washer Dryer Push Button In Stock SPQ D512973 $8.99

View on Model

21899 Speed Queen Hex Nut 1/2-13 Backorder SPQ 21899 $4.92

View on Model

23951 Speed Queen Hex Keps Nut 10-24 STL In Stock SPQ 23951 $4.92

View on Model

39282 Speed Queen Clamp Hose Assembly Backorder SPQ 39282 $4.92

View on Model

52549 Speed Queen Washer 3/4" Washer/Dryer In Stock SPQ 52549 $3.00

View on Model

M403958 Speed Queen 3/8 Ext Tooth Lock Washer In Stock SPQ M403958 $1.78

View on Model

Dispenser Assembly SPQ 801476P Contact Us For Availability

View on Model

201375P Speed Queen Transformer 120V Dual Sec Backorder SPQ 201375P $76.22

View on Model

202877W Speed Queen Metercase Preparation Ass Backorder SPQ 202877W $316.78

View on Model

34319 Speed Queen Leveling Leg 1/2-13 x 1.87 In Stock SPQ 34319 $4.92

View on Model

801081P Speed Queen Outer Tub Assembly Backorder SPQ 801081P $2,046.14

View on Model

807679 Speed Queen Flat Washer (.406 ID x 1.5 Backorder SPQ 807679 $2.07

View on Model

34318 Speed Queen Washer/Dryer Rubber Foot Pa In Stock SPQ 34318 $3.00

View on Model

800622P Speed Queen Shock Absorber Kit - Tub In Stock SPQ 800622P $34.64

View on Model

M400043 Speed Queen Hex Cap Screw 3/8-16 X 1. Backorder SPQ M400043 $4.58

View on Model

56079 Speed Queen Locator Panel Backorder SPQ 56079 $4.92

View on Model

685715QP Speed Queen Dispenser Handle, Packag Backorder SPQ 685715QP $15.46

View on Model

800623P Speed Queen Shock Absorber Kit, Base In Stock SPQ 800623P $81.25

View on Model

D501855 Speed Queen Rubber Foot In Stock SPQ D501855 $5.98

View on Model

Inner Basket Assembly SPQ 800428P Contact Us For Availability

View on Model

155P3 Speed Queen Anchor, 4 Pack - 4051A In Stock SPQ 155P3 $46.17

View on Model

26354 Speed Queen Metercase Gasket Backorder SPQ 26354 $6.90

View on Model

39733 Speed Queen Screw TAP 10BX5/8 #8PN HD In Stock SPQ 39733 $4.92

View on Model

685715WP Speed Queen Front Dispenser Drawer P In Stock SPQ 685715WP $20.61

View on Model

685429 Speed Queen Door Latch Assembly Backorder SPQ 685429 $96.58

View on Model

685716 Speed Queen Softener/Bleach Dispenser Backorder SPQ 685716 $24.43

View on Model

800899 Speed Queen Detergent Compartment Cove Backorder SPQ 800899 $8.56

View on Model

Clamp Ring SPQ 800312 Contact Us For Availability

View on Model

687500 Speed Queen Wire Clip 1.00 DIA Backorder SPQ 687500 $5.01

View on Model

800342 Speed Queen Door Handle Backorder SPQ 800342 $10.50

View on Model

33489 Speed Queen Washer Dryer Beaded Standpi In Stock SPQ 33489 $2.25

View on Model

685743P Speed Queen Door Seal Clamp Backorder SPQ 685743P $28.51

View on Model

800462 Speed Queen Hex Cap Screw 3/8-16 x 4.0 In Stock SPQ 800462 $4.92

View on Model

D510146 Speed Queen Top Mount Bracket Backorder SPQ D510146 $4.92

View on Model

Hose Clamp SPQ 800232P Contact Us For Availability

View on Model

800432P Speed Queen Front Outer Tub Seal Backorder SPQ 800432P $44.91

View on Model

27222 Speed Queen Nut Retainer Backorder SPQ 27222 $4.92

View on Model

52864 Speed Queen Flat Head Screw, 8AB-18 x 5 Backorder SPQ 52864 $1.24

View on Model

802164 Speed Queen Hose Clamp #8 High Strengt Backorder SPQ 802164 $3.79

View on Model

Gasket SPQ 802429P Contact Us For Availability

View on Model

800346 Speed Queen Spring, Extension 1.25 Backorder SPQ 800346 $4.92

View on Model

D503688 Speed Queen Indicator Screw 10B-16 x In Stock SPQ D503688 $4.92

View on Model

Drain Pump SPQ 801208 Contact Us For Availability

View on Model

D503661 Speed Queen Induction Hex Screw 10-16 Backorder SPQ D503661 $1.96

View on Model

Pump Housing Assembly SPQ 802428 Contact Us For Availability

View on Model

204552 Speed Queen Front Panel Pad Backorder SPQ 204552 $1.17

View on Model

36985 Speed Queen Pressure Hose Clip Backorder SPQ 36985 $1.78

View on Model

801045 Speed Queen Hex Screw WA HD SMS 10-24 In Stock SPQ 801045 $3.00

View on Model

36020 Speed Queen U-Type Nut #10-24 Backorder SPQ 36020 $4.92

View on Model

20618 Speed Queen Inlet Hose 10 Feet Backorder SPQ 20618 $23.20

View on Model

27604P Speed Queen Anti-Seize Compound, 1 oz In Stock SPQ 27604P $5.01

View on Model

27615T Speed Queen 3M-800 Sealant 5 Oz Tube Backorder SPQ 27615T $104.62

View on Model

35766 Speed Queen Plastic Drain Hose Elbow Sp Backorder SPQ 35766 $5.58

View on Model

38725 Speed Queen Coin Identifier Paper Backorder SPQ 38725 $4.92

View on Model

45001 Speed Queen 18GA Black Wire Backorder SPQ 45001 $0.46

View on Model

45380 Speed Queen Wire 12GA ORG/PER FT Backorder SPQ 45380 $4.92

View on Model

685430 Speed Queen Door Locking Catch Backorder SPQ 685430 $14.35

View on Model

70294106 Speed Queen Electric Drop Assembly M Backorder SPQ 70294106 $723.22

View on Model

800310 Speed Queen Backflow Preventer - Pump Backorder SPQ 800310 $17.48

View on Model

800548 Speed Queen Front Load Washer Door Han In Stock SPQ 800548 $2.75

View on Model

802905 Speed Queen Dual Coin Harness Assembly Backorder SPQ 802905 $35.12

View on Model

802934 Speed Queen Door Hinge In Stock SPQ 802934 $54.00

View on Model

803146P Speed Queen Front Load Control Assemb Backorder SPQ 803146P $1,027.10

View on Model

803615 Speed Queen Washer Filter In Stock SPQ 803615 $3.00

View on Model

D501086 Speed Queen Screw Tap SLSERHXWAHD8B-1 Backorder SPQ D501086 $4.92

View on Model

D503673 Speed Queen Screw 5/16-18 x 2.25 PH F Backorder SPQ D503673 $3.26

View on Model

D510136 Speed Queen Top Hinge Backorder SPQ D510136 $4.92

View on Model

Model Huebsch HWRXE1*N1102 Washer – Common Parts & Diagrams

Common parts from model Huebsch HWRXE1*N1102 Washer

Search result for :
