Model Huebsch HWFX61*N1127 Washer – Common Parts & Diagrams

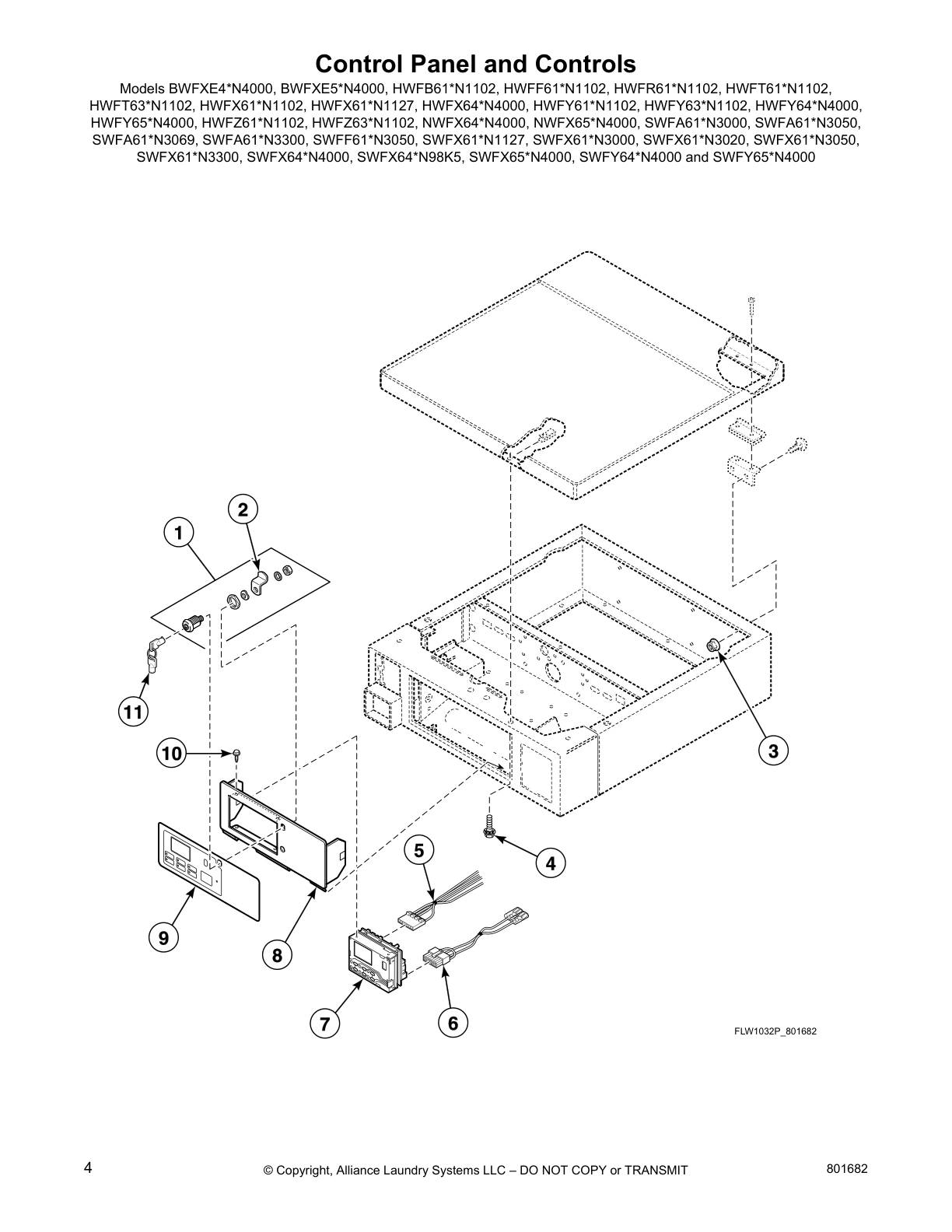

Control Panel and Controls

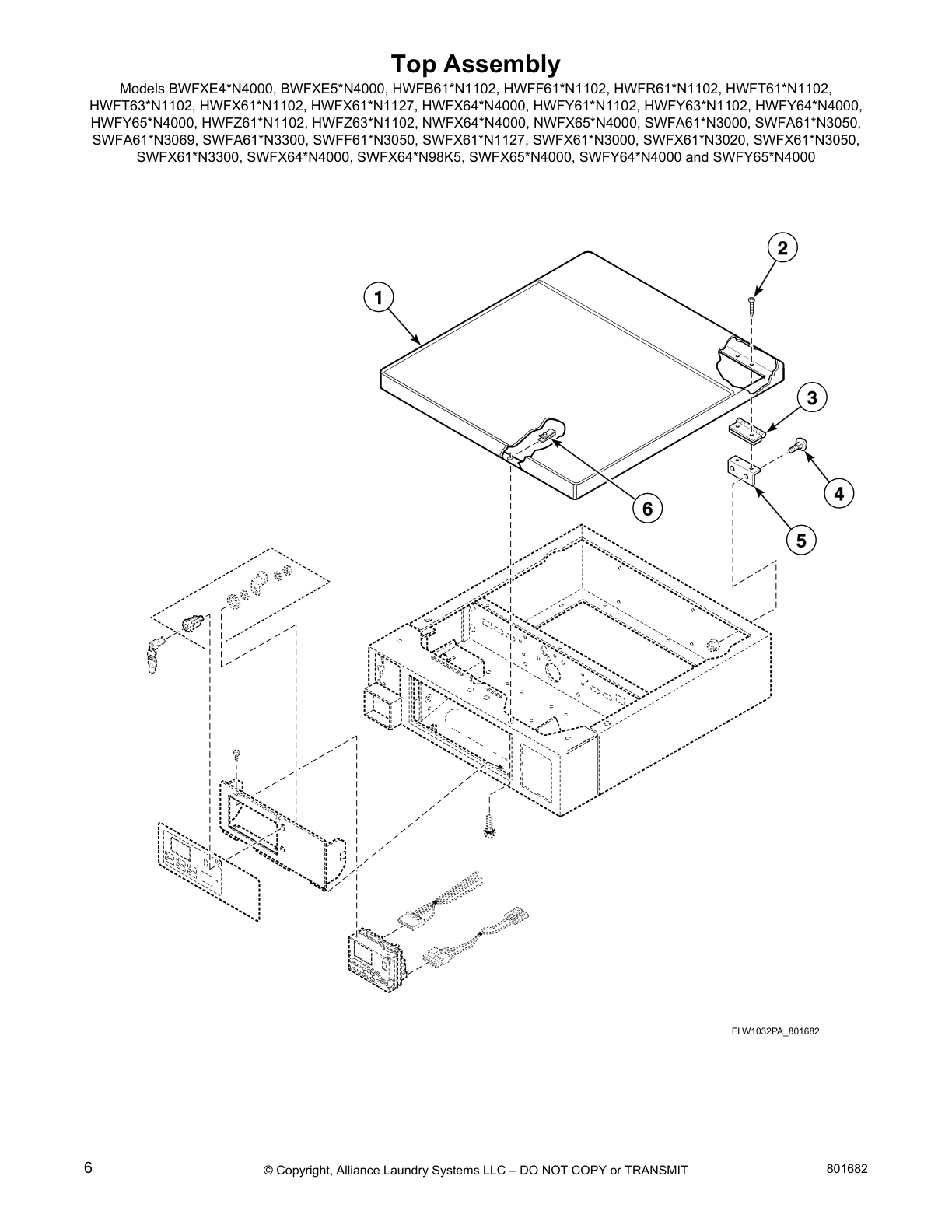

Top Assembly

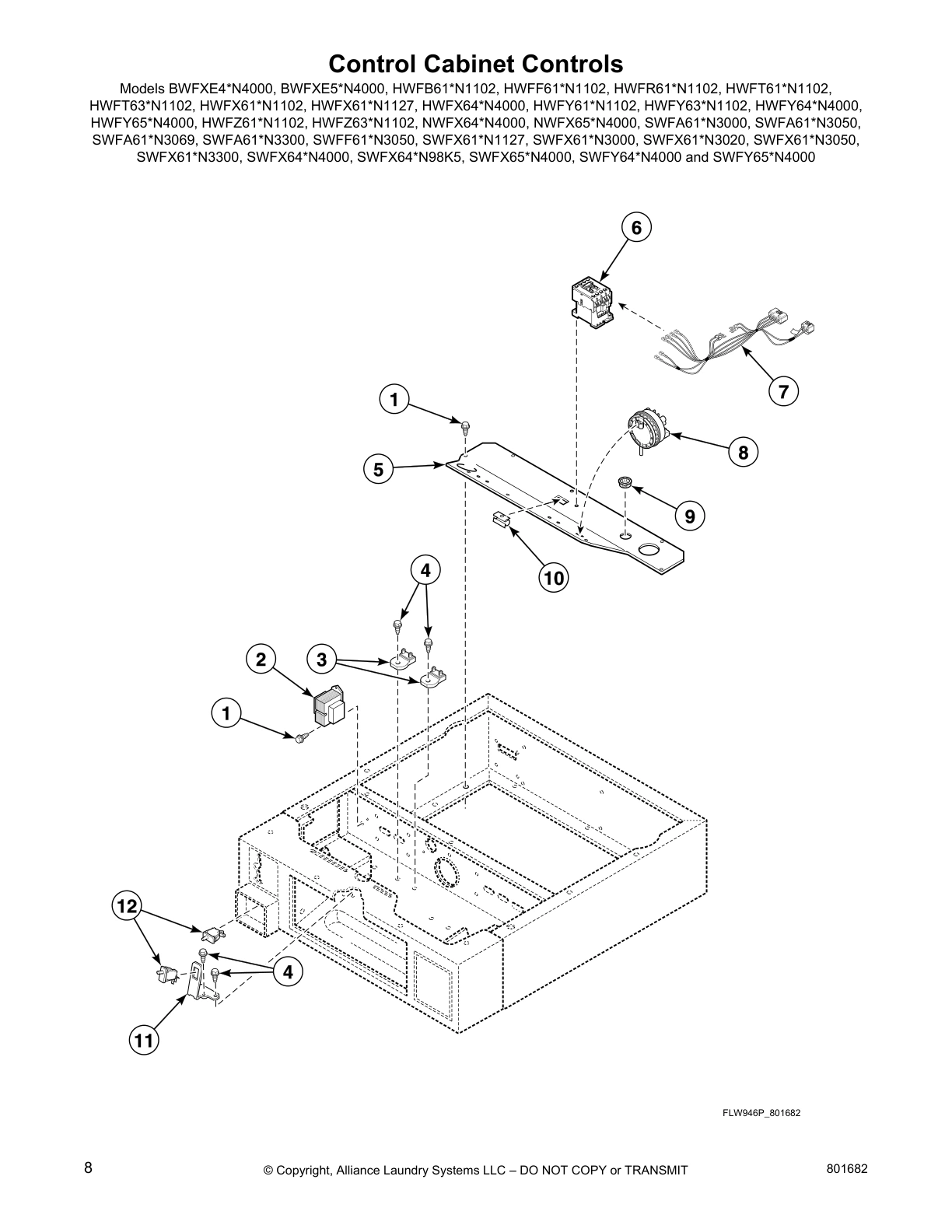

Control Cabinet Controls

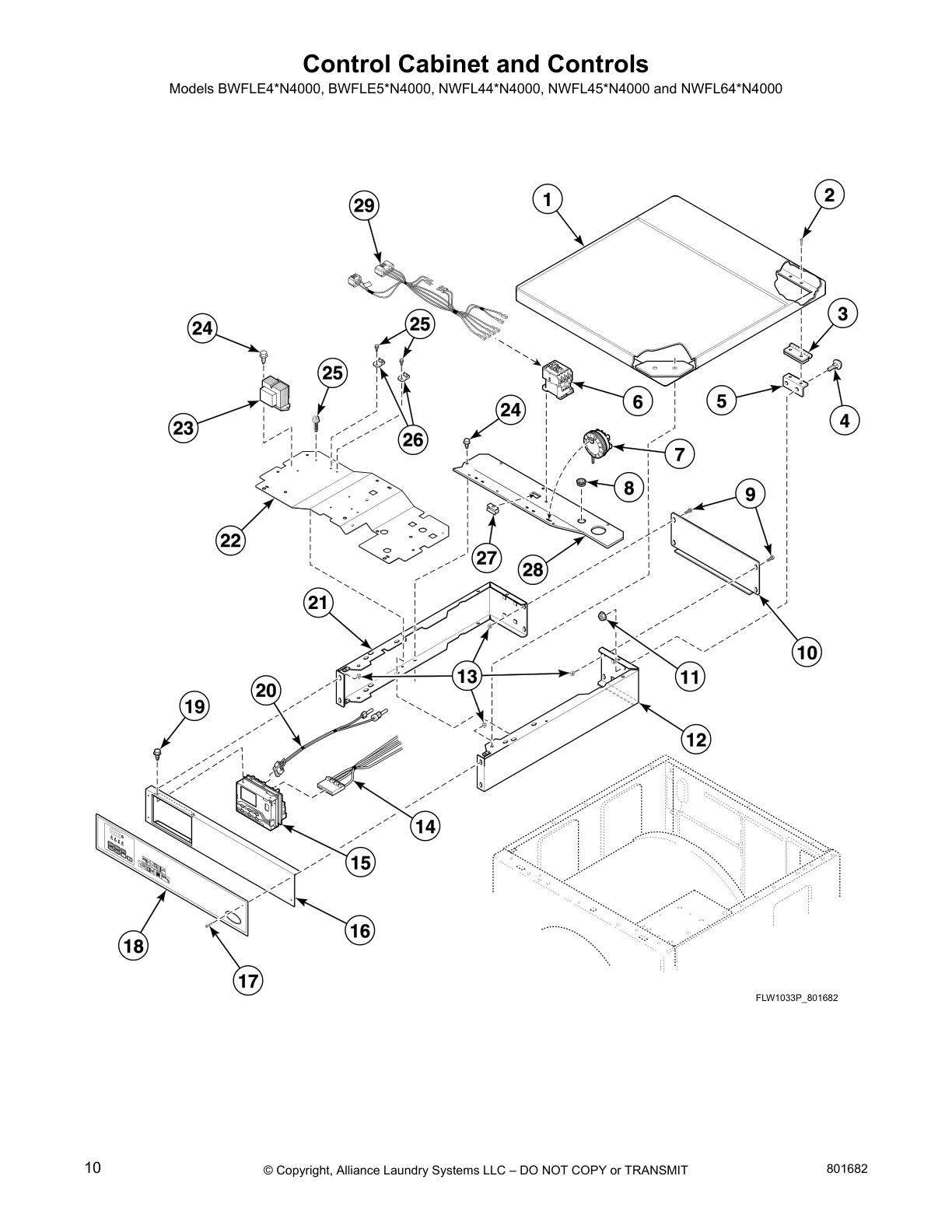

Control Cabinet and Controls

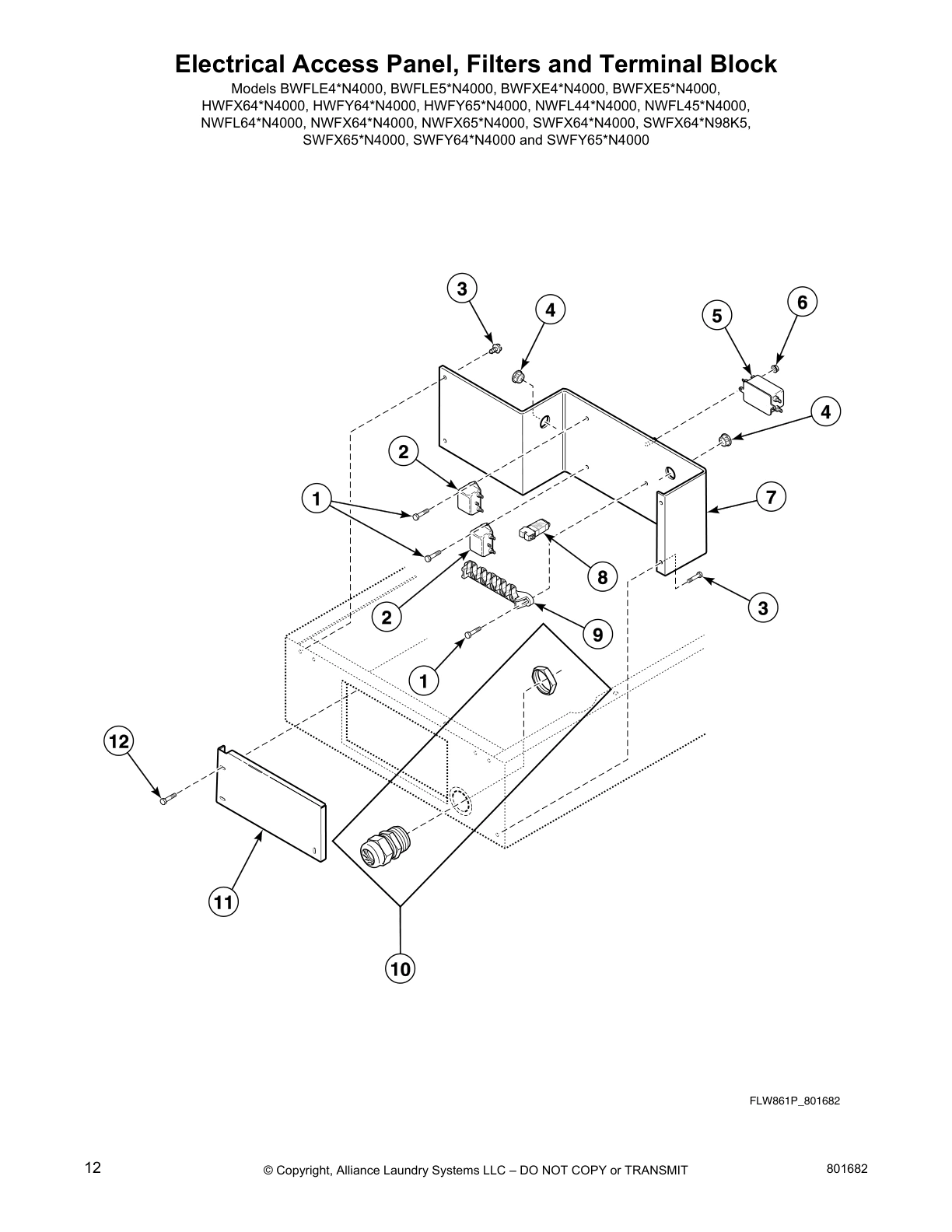

Electrical Access Panel, Filters and Terminal Block

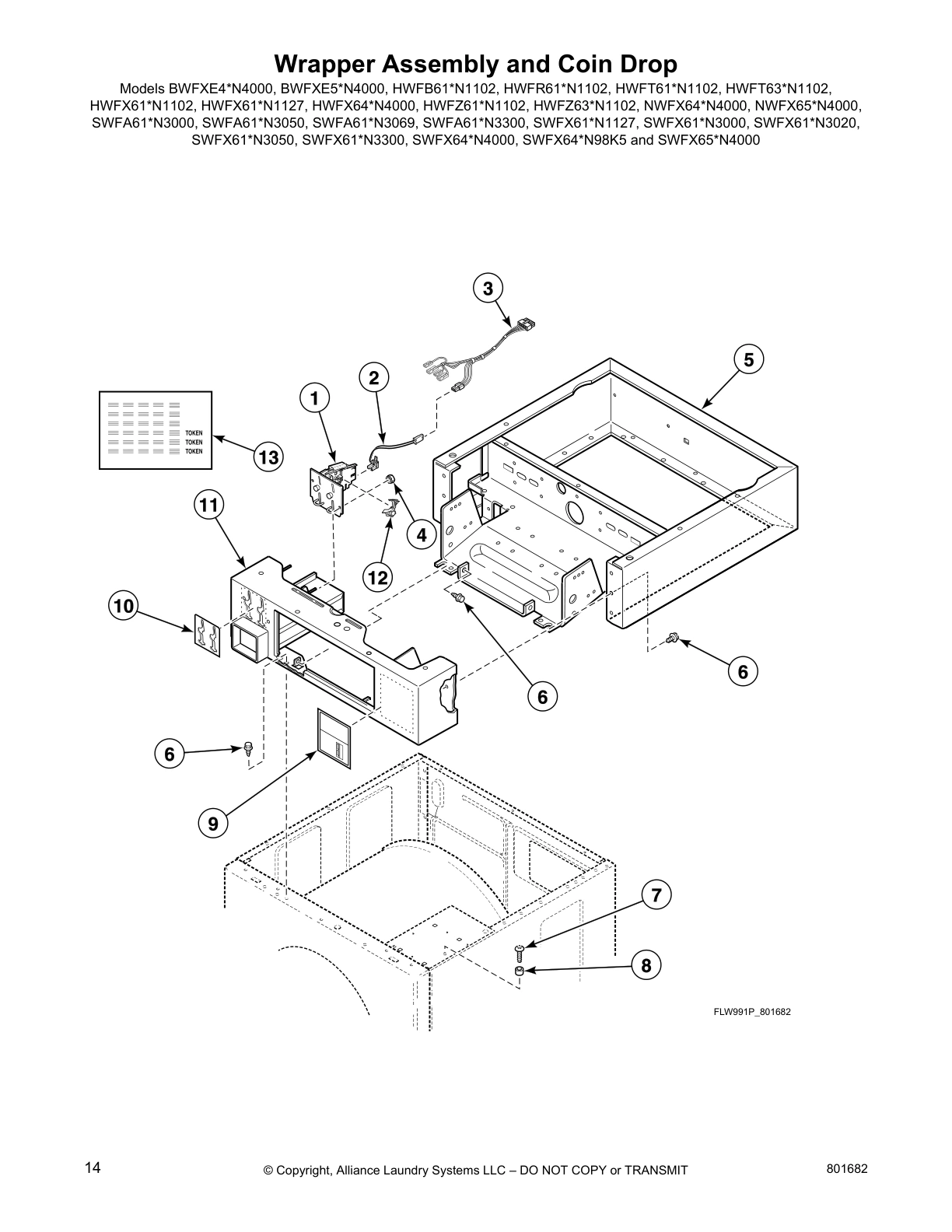

Wrapper Assembly and Coin Drop

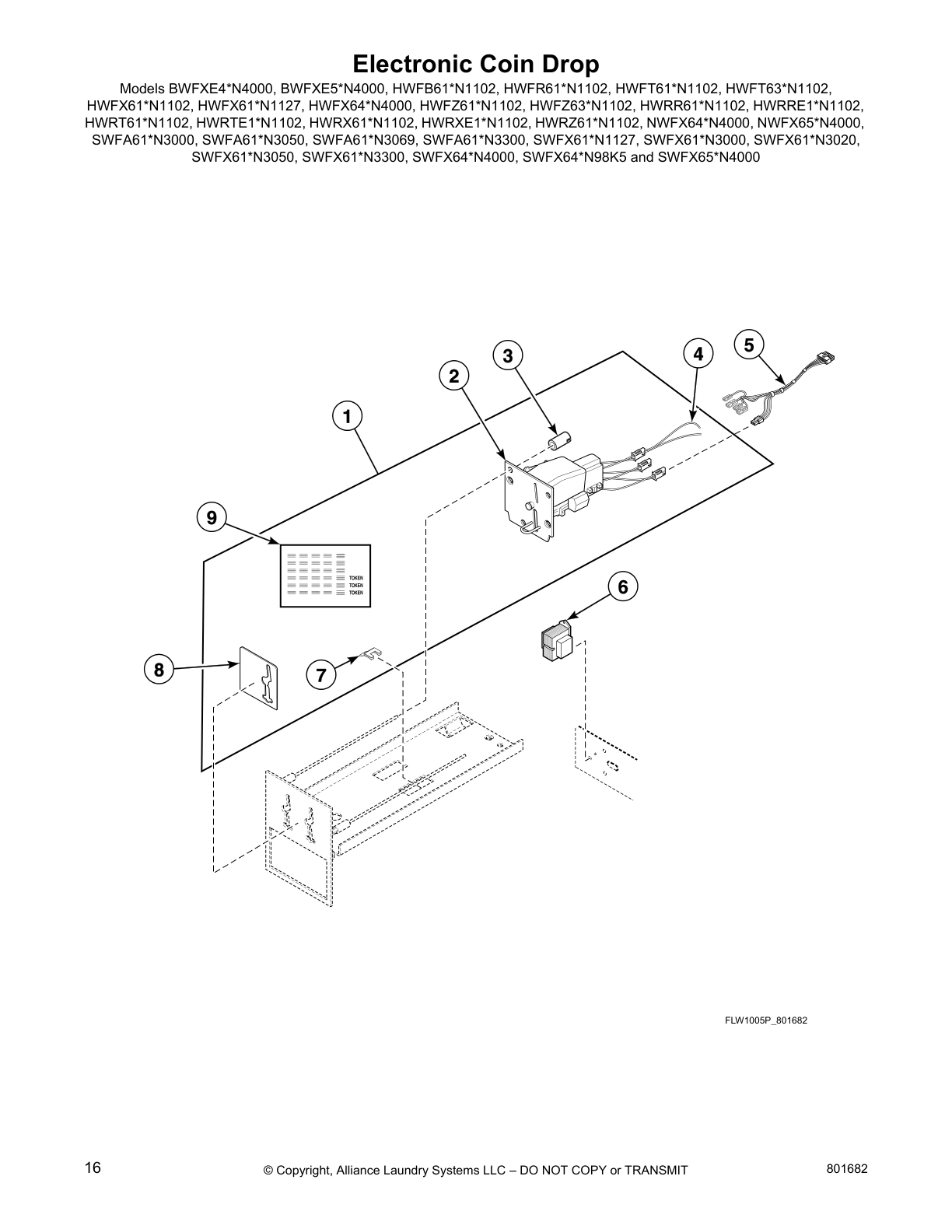

Electronic Coin Drop

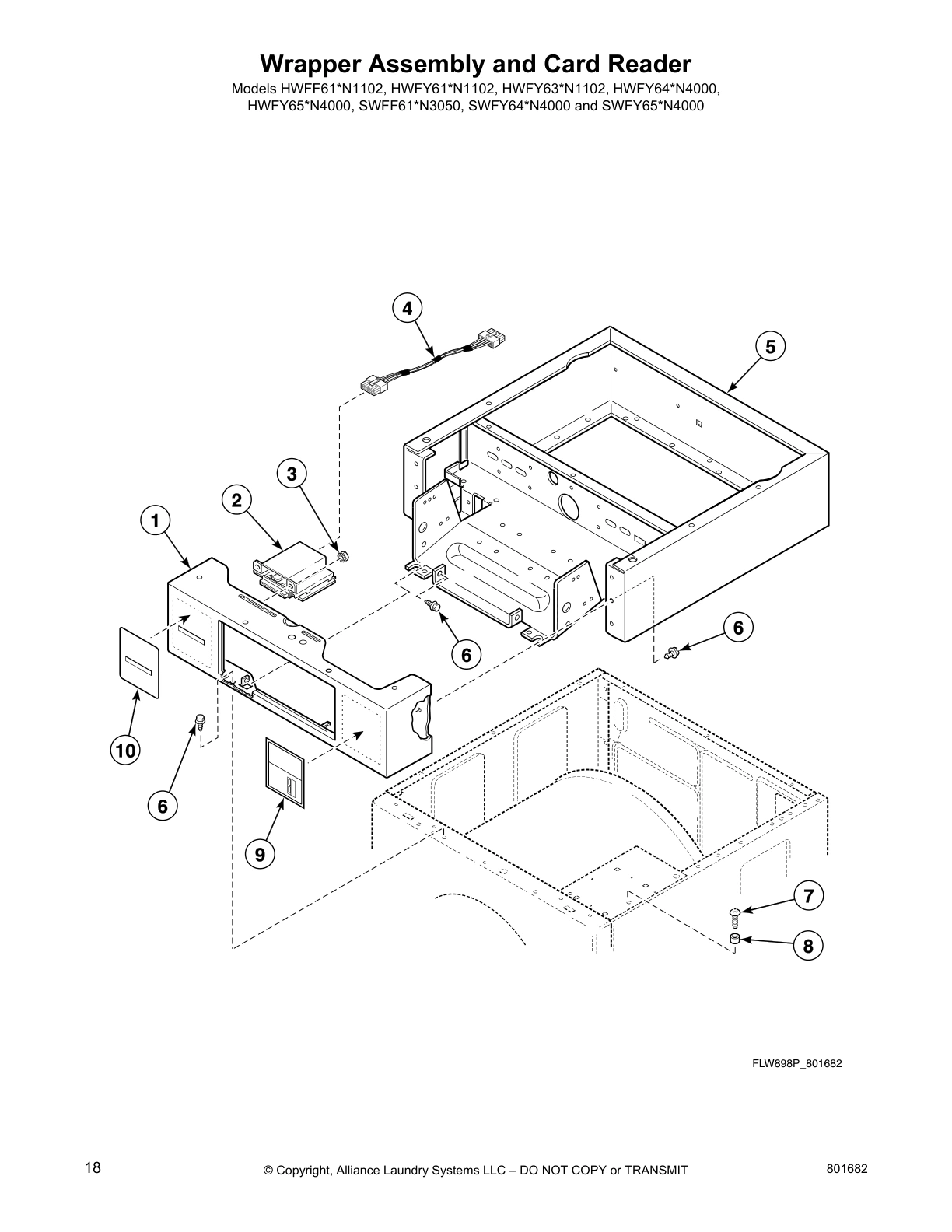

Wrapper Assembly and Card Reader

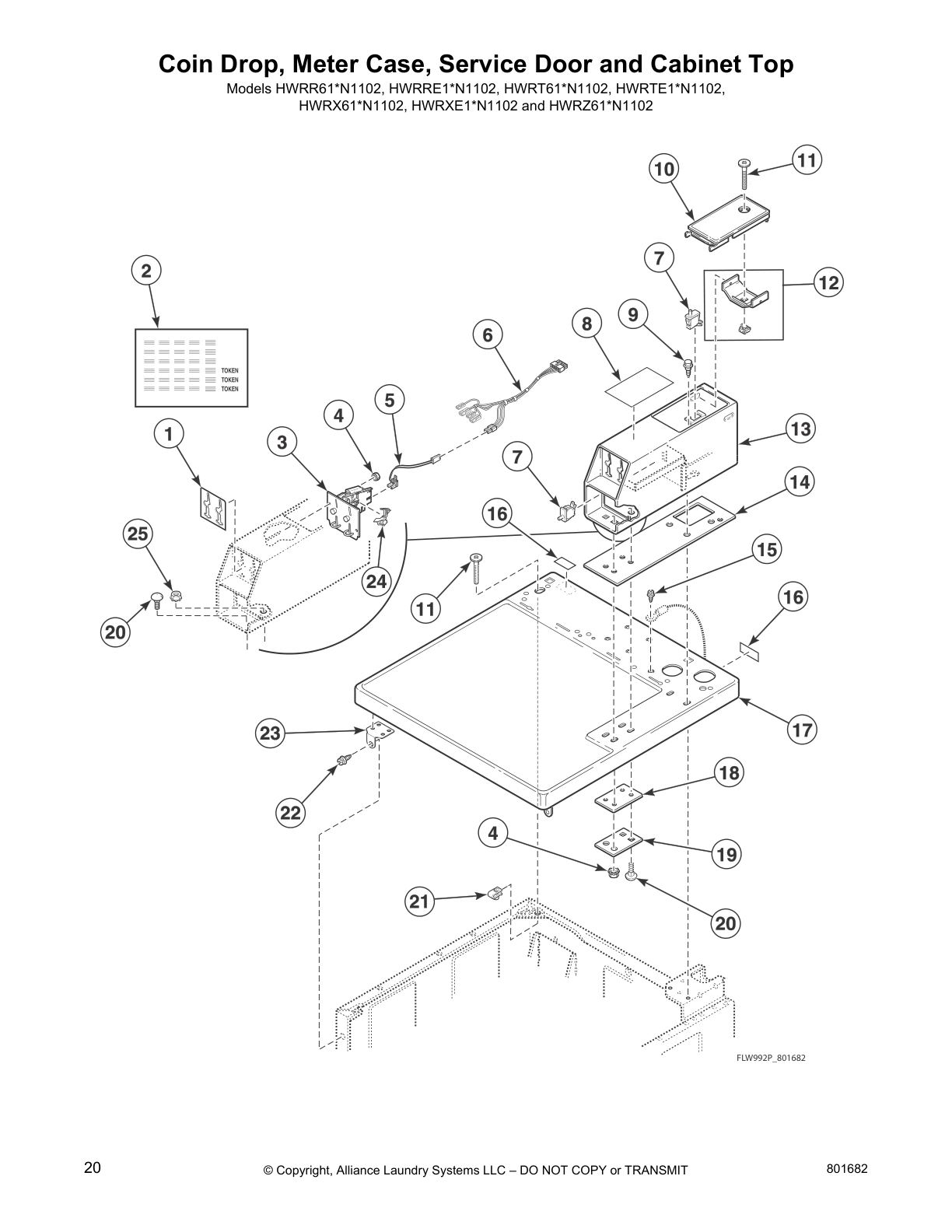

Coin Drop, Meter Case, Service Door and Cabinet Top

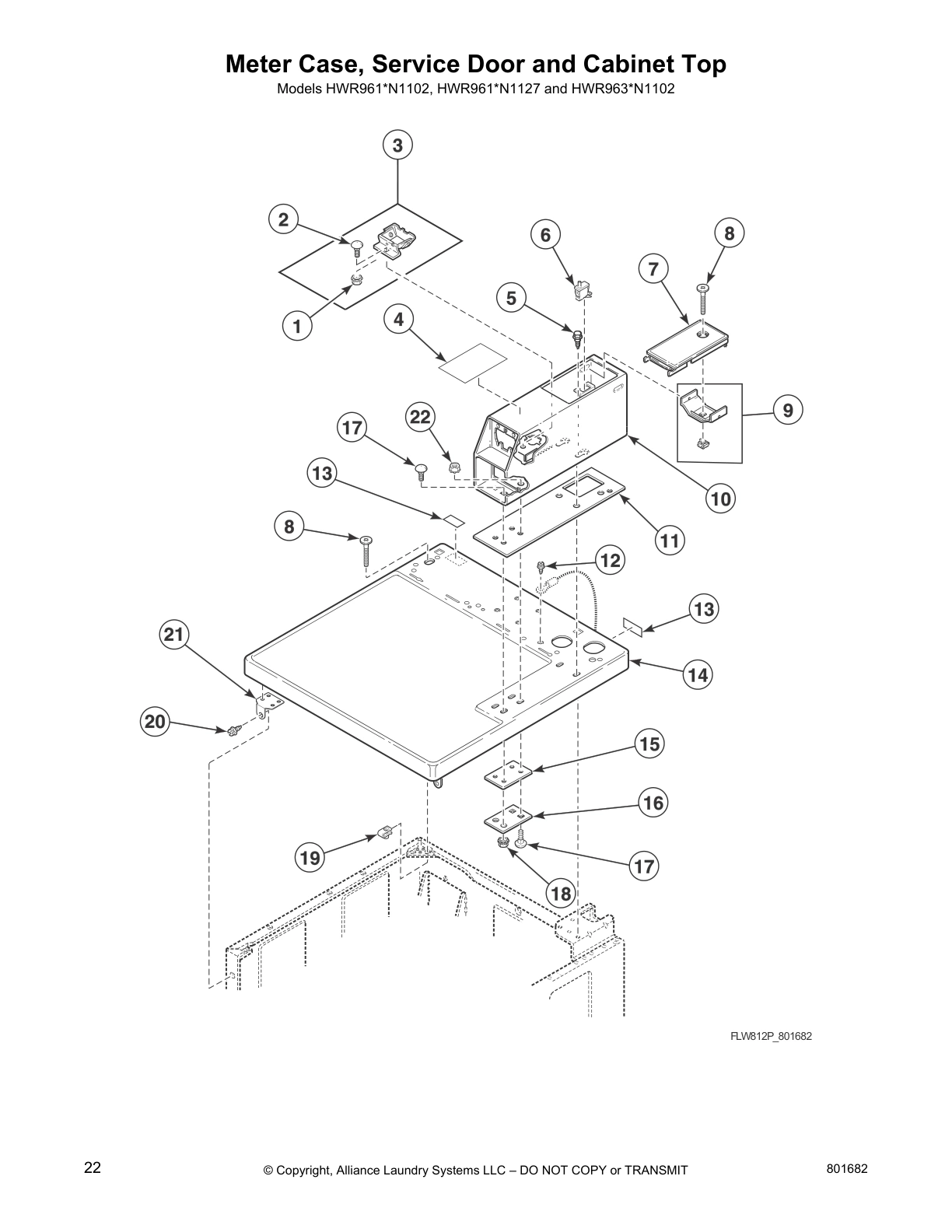

Meter Case, Service Door and Cabinet Top

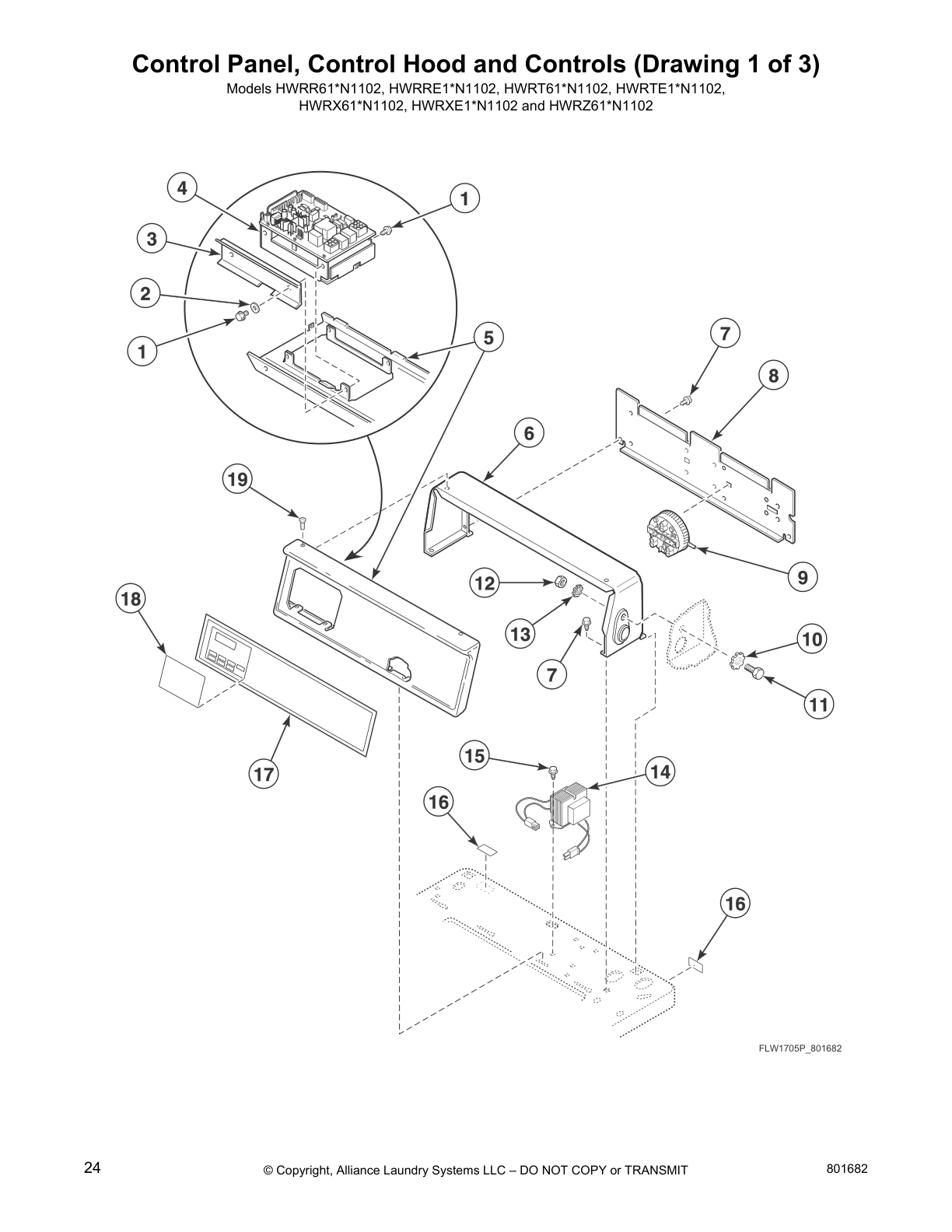

Control Panel, Control Hood and Controls (Drawing 1 of 3)

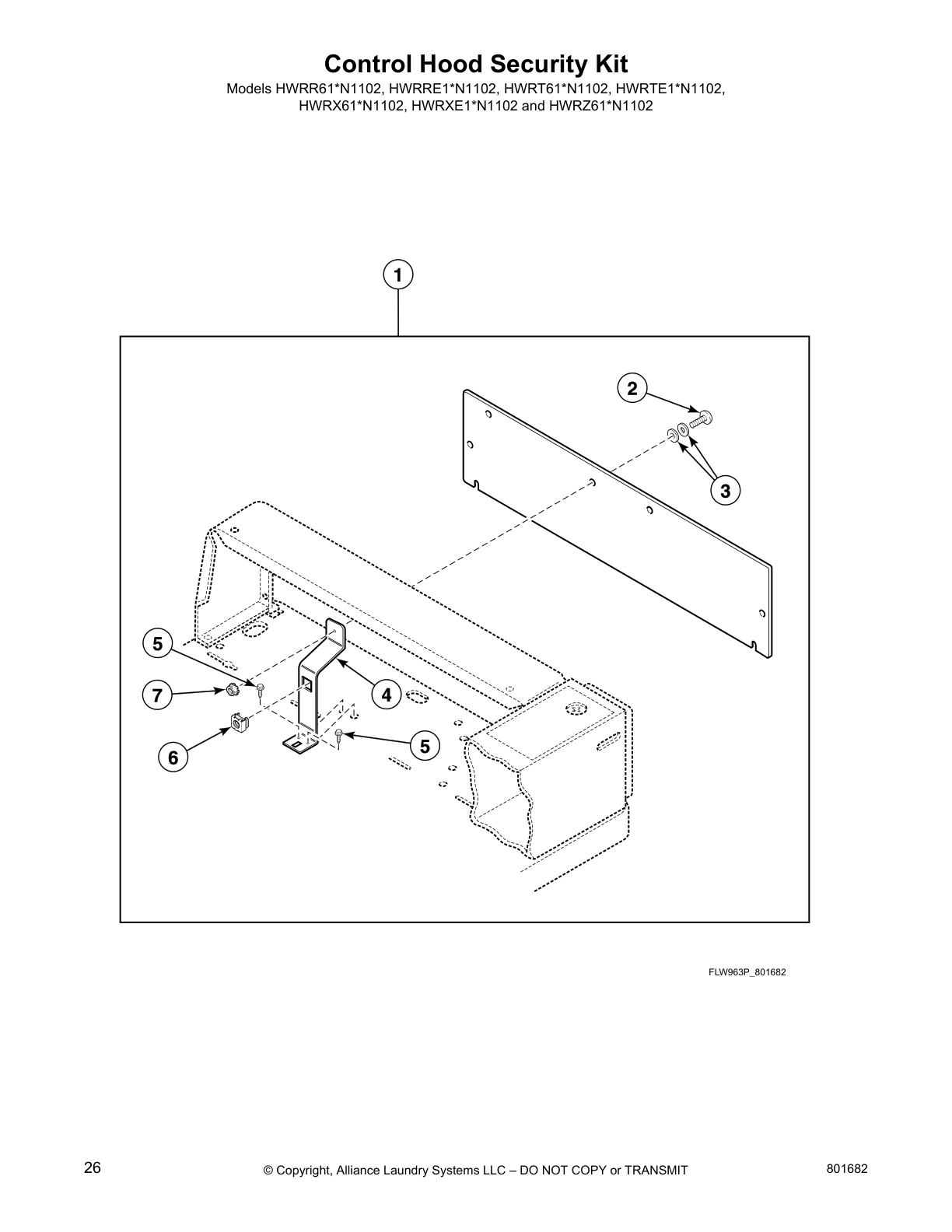

Control Hood Security Kit

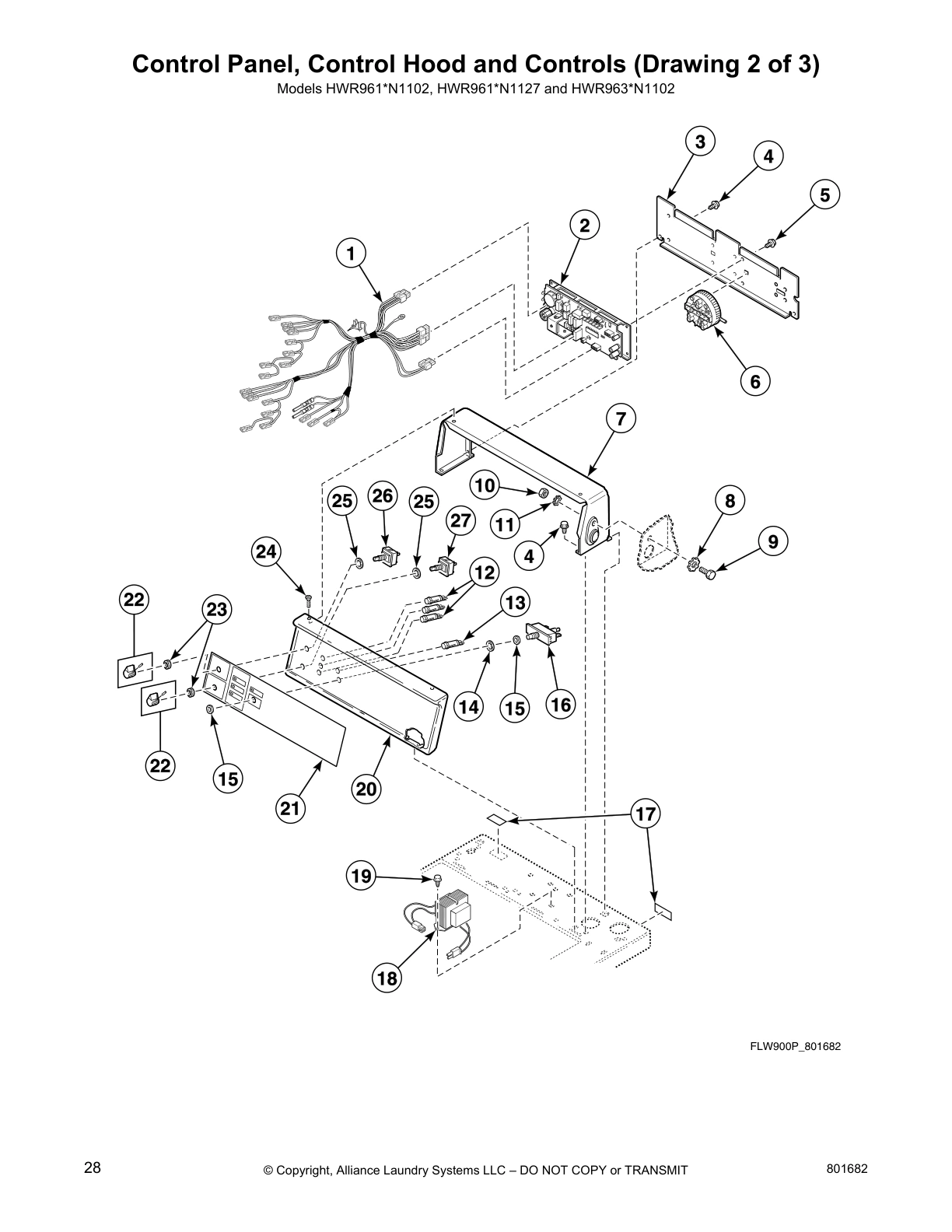

Control Panel, Control Hood and Controls (Drawing 2 of 3)

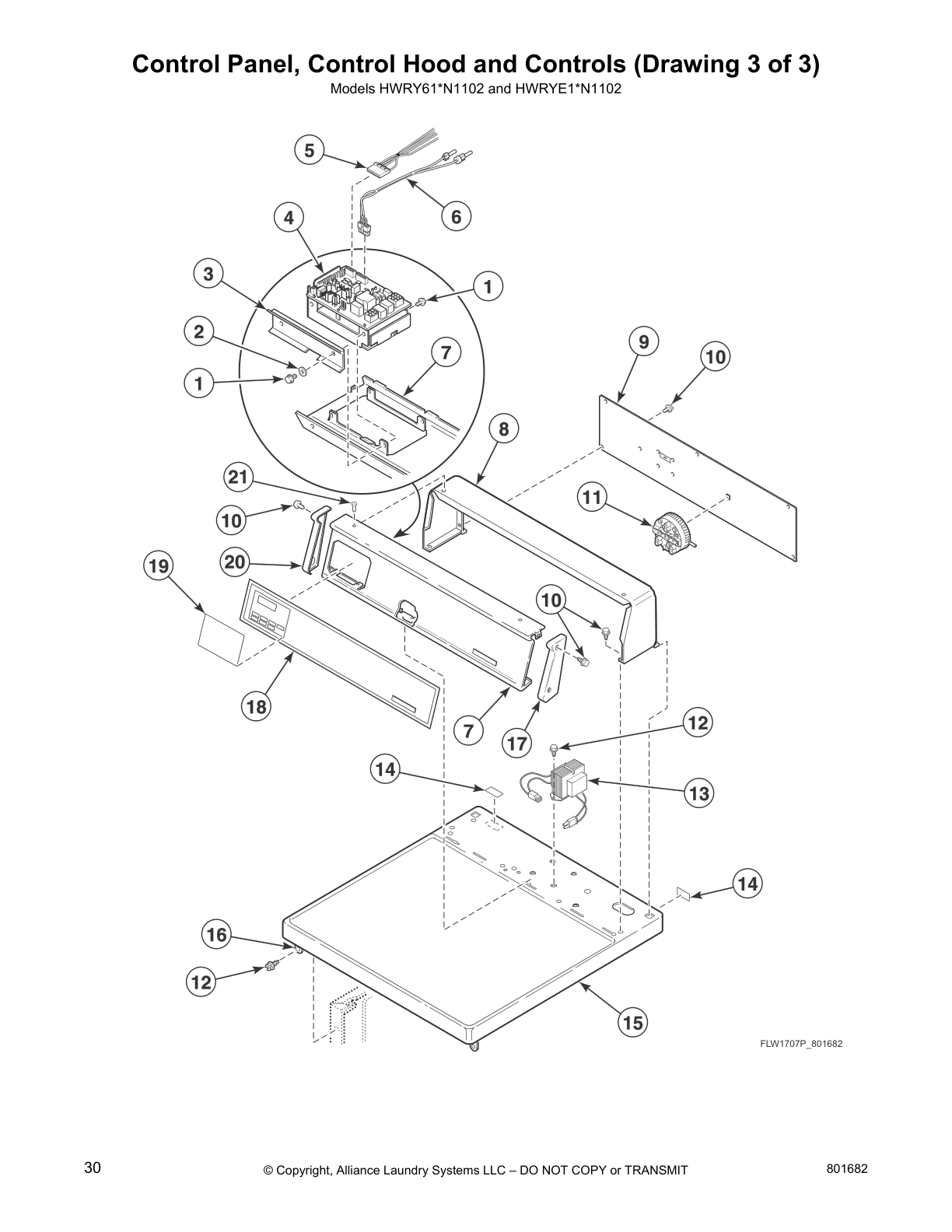

Control Panel, Control Hood and Controls (Drawing 3 of 3)

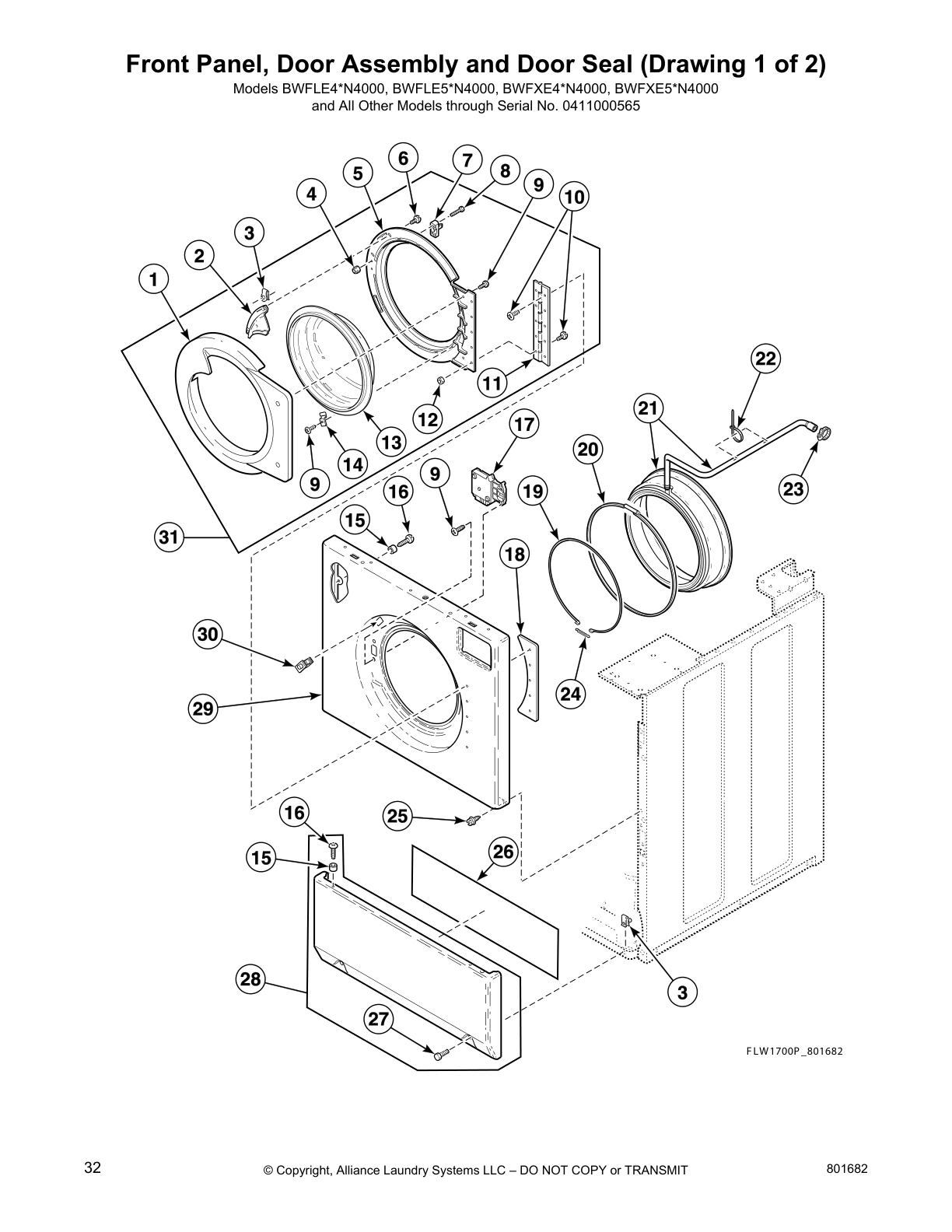

Front Panel, Door Assembly and Door Seal (Drawing 1 of 2)

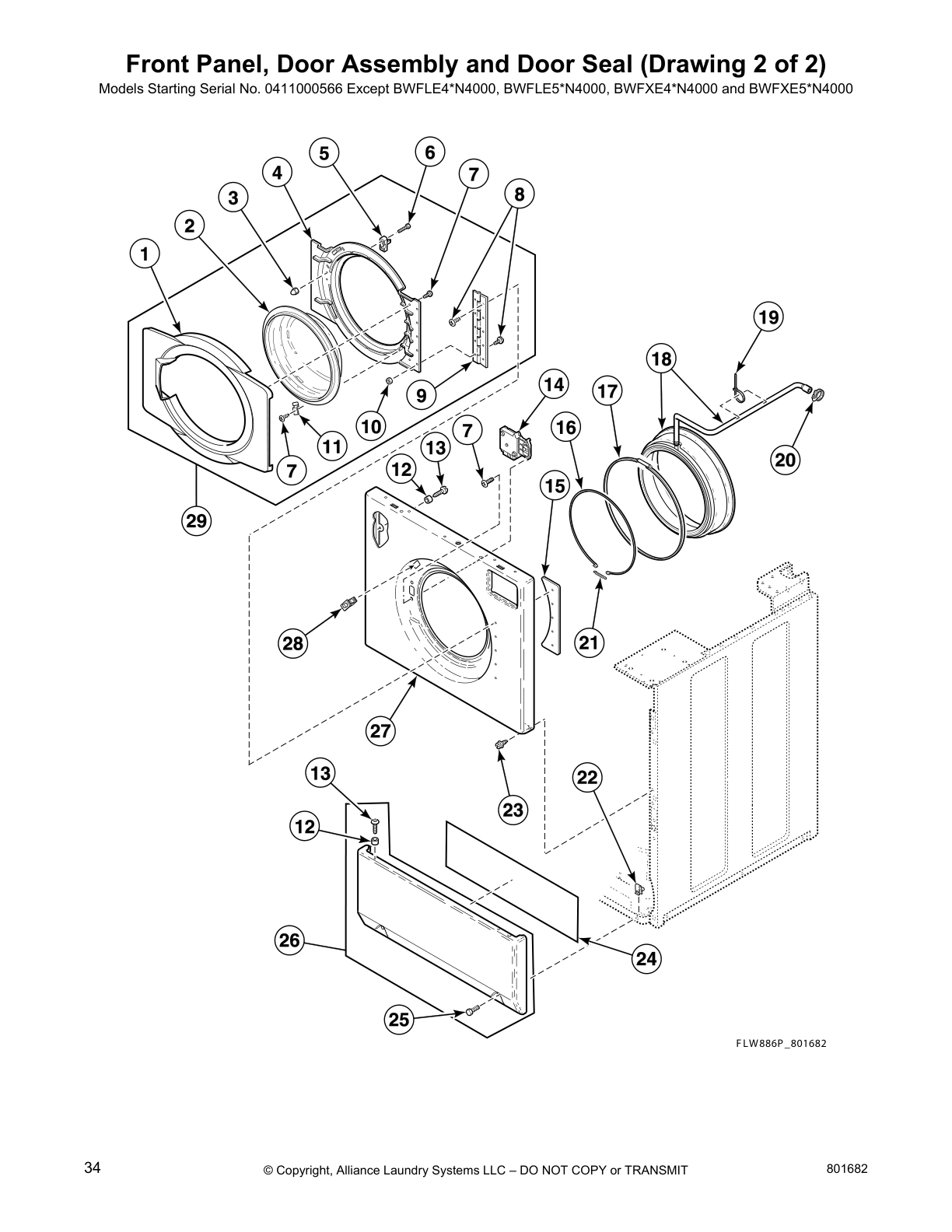

Front Panel, Door Assembly and Door Seal (Drawing 2 of 2)
Dispenser Assembly

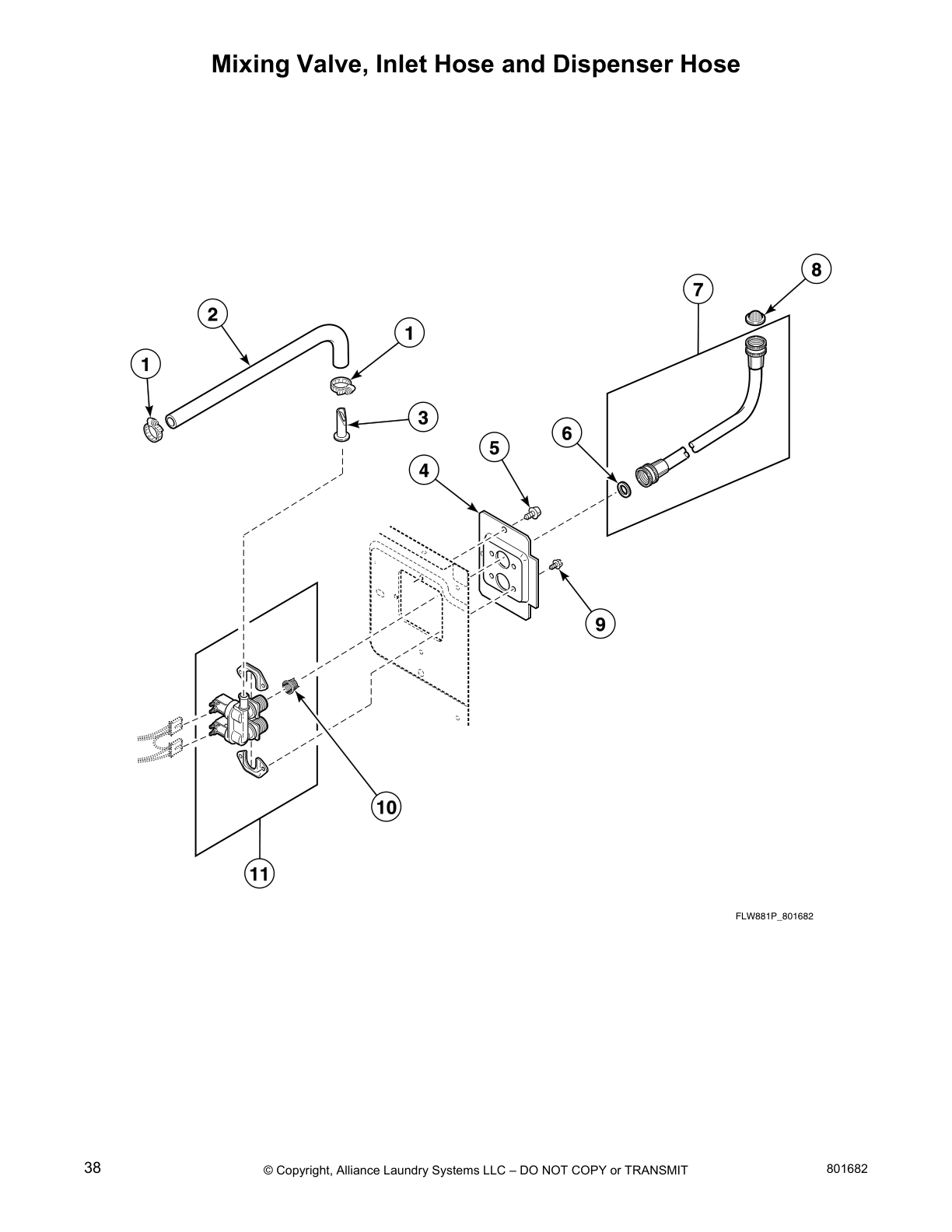

Mixing Valve, Inlet Hose and Dispenser Hose

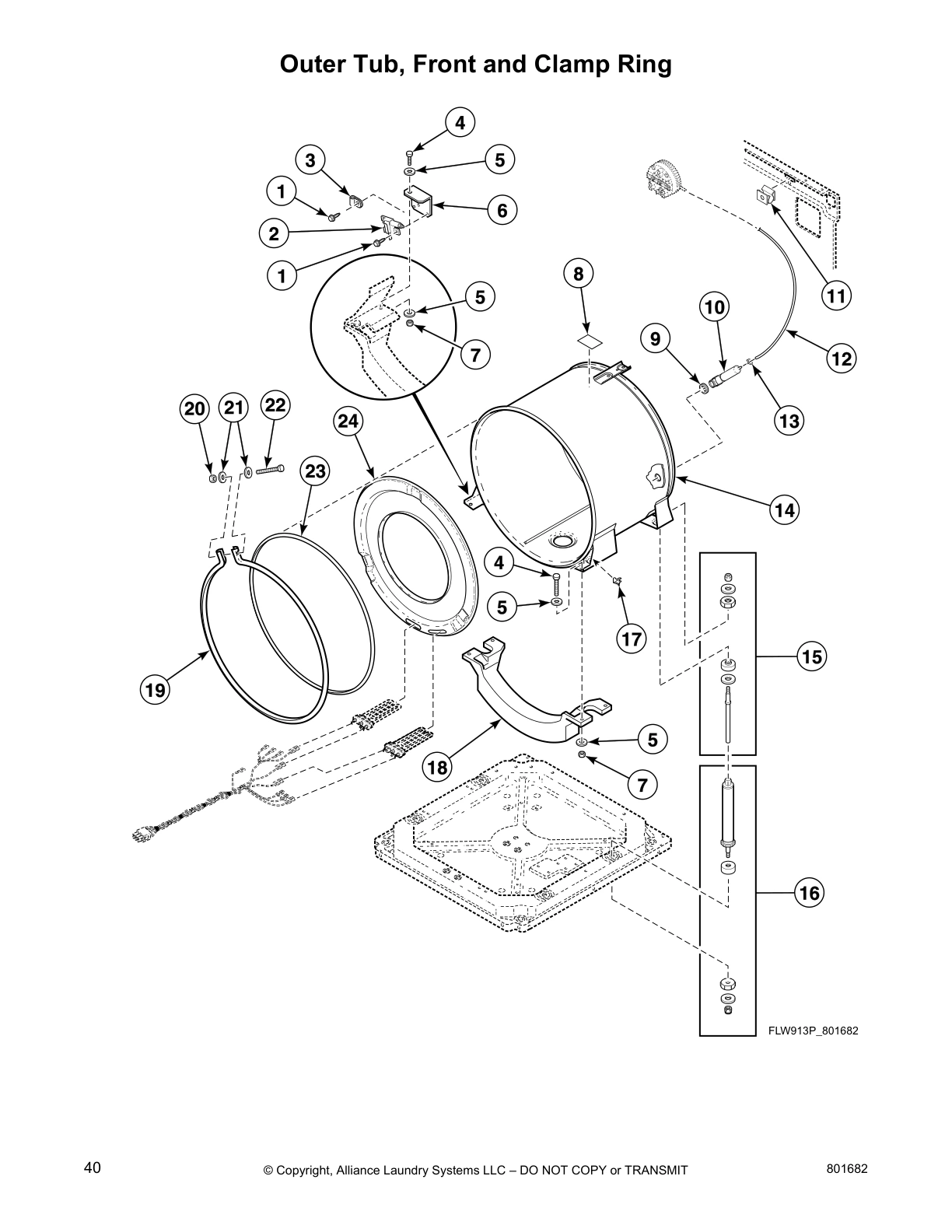

Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley

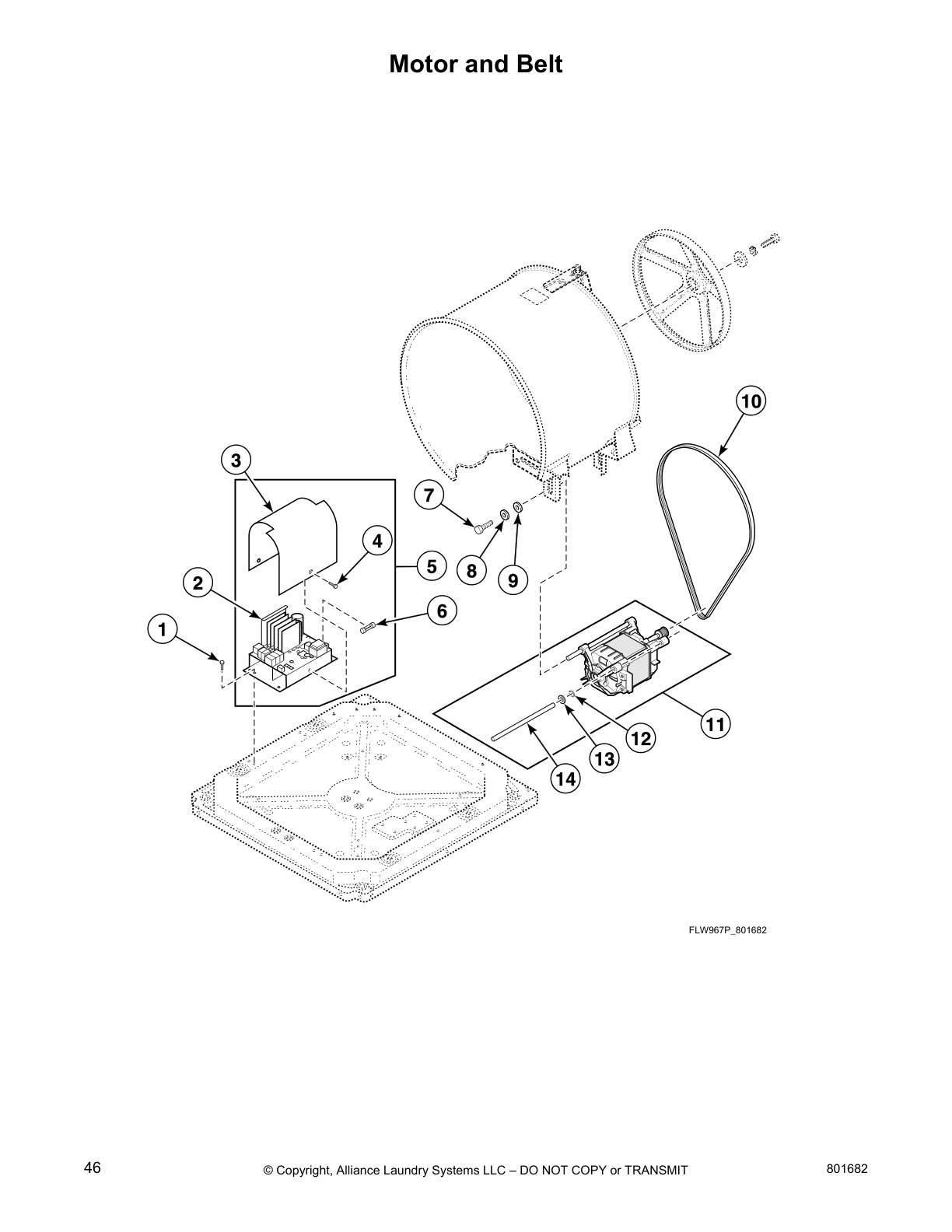

Motor and Belt

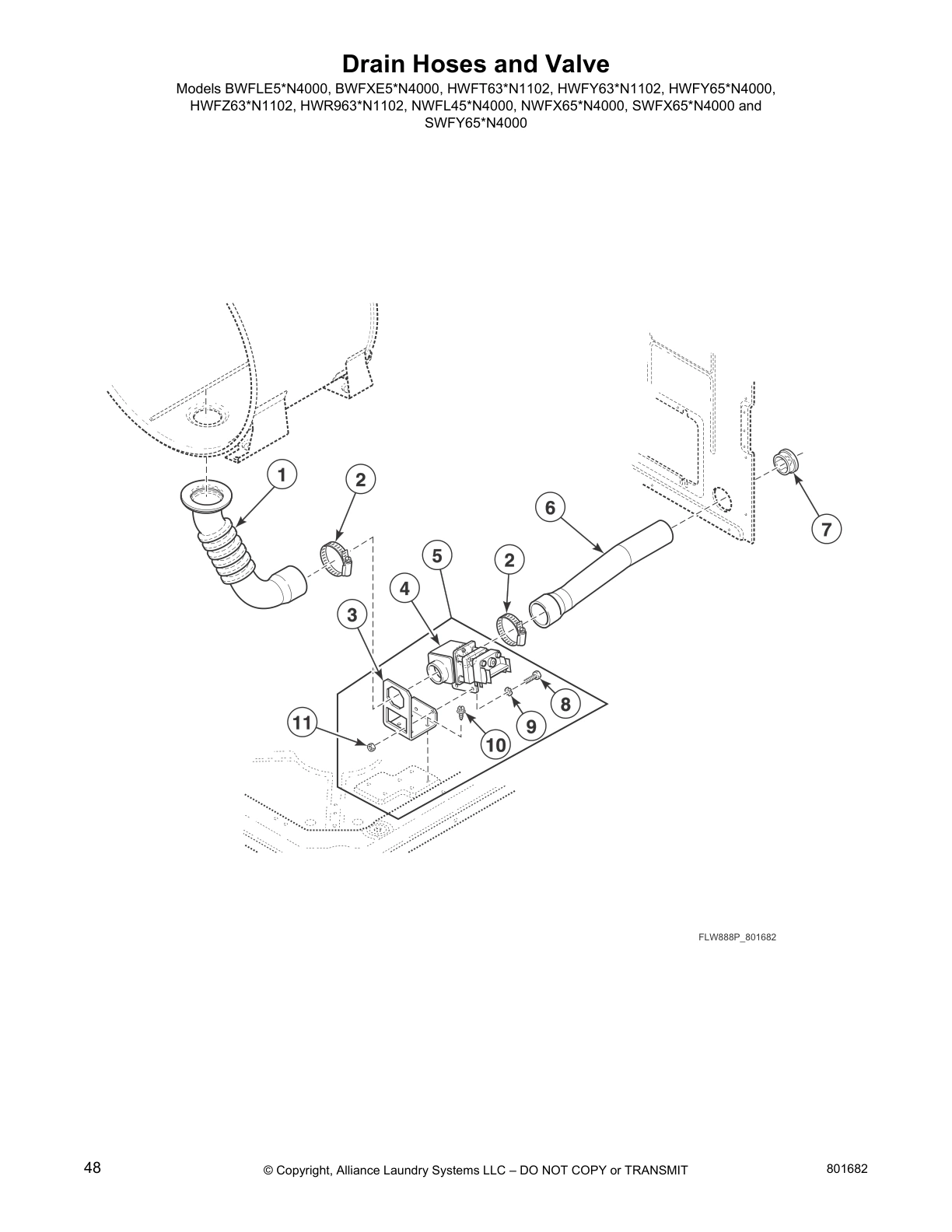

Drain Hoses and Valve

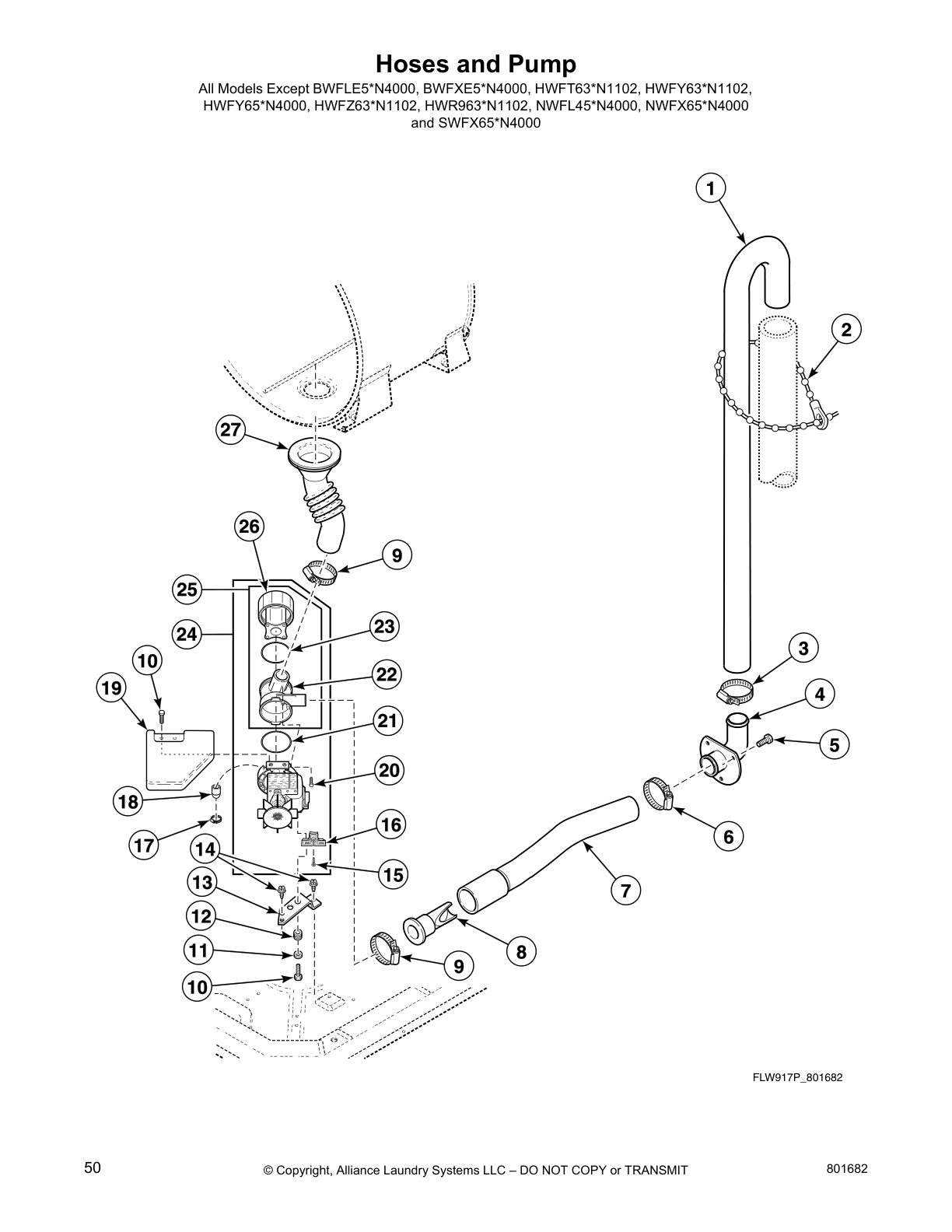

Hoses and Pump

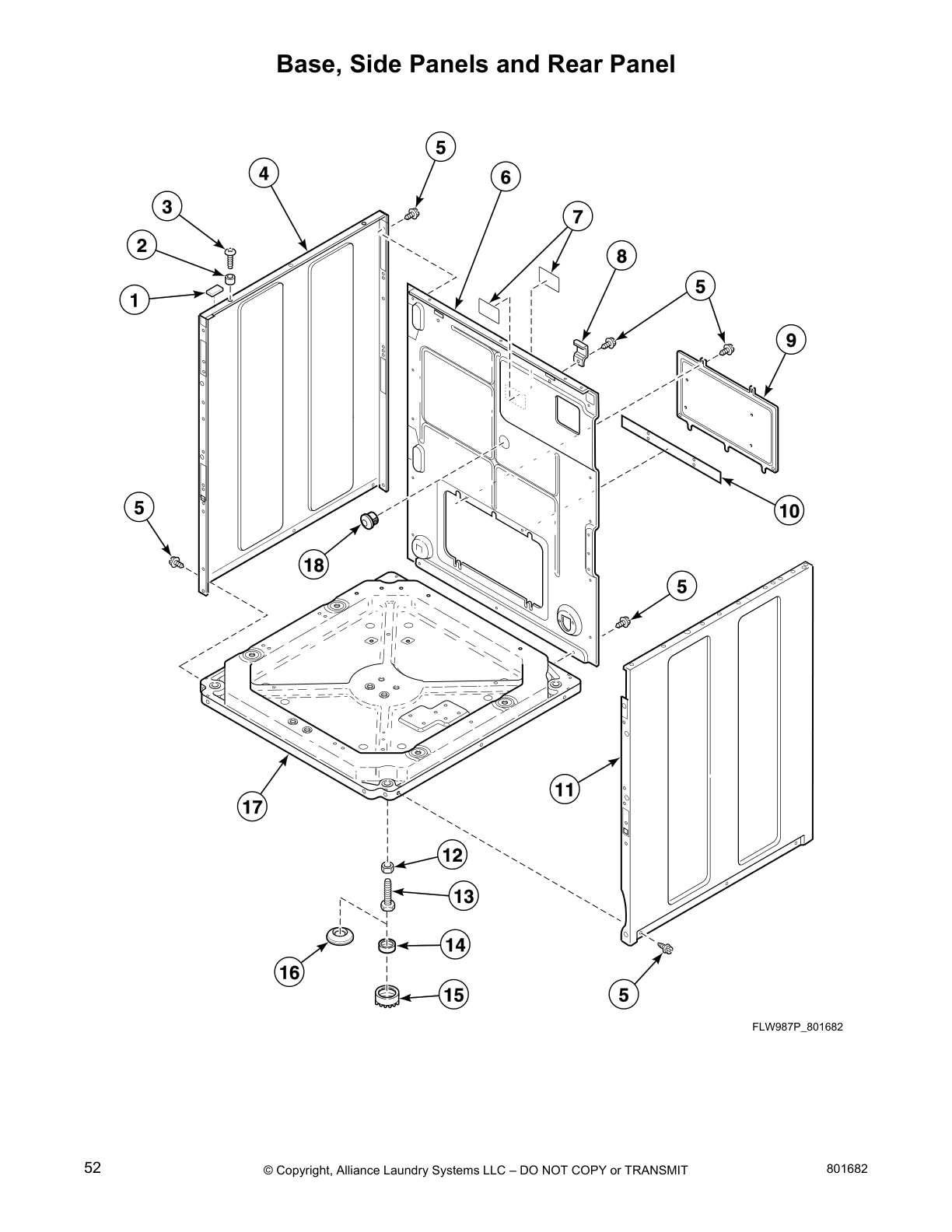

Base, Side Panels and Rear Panel

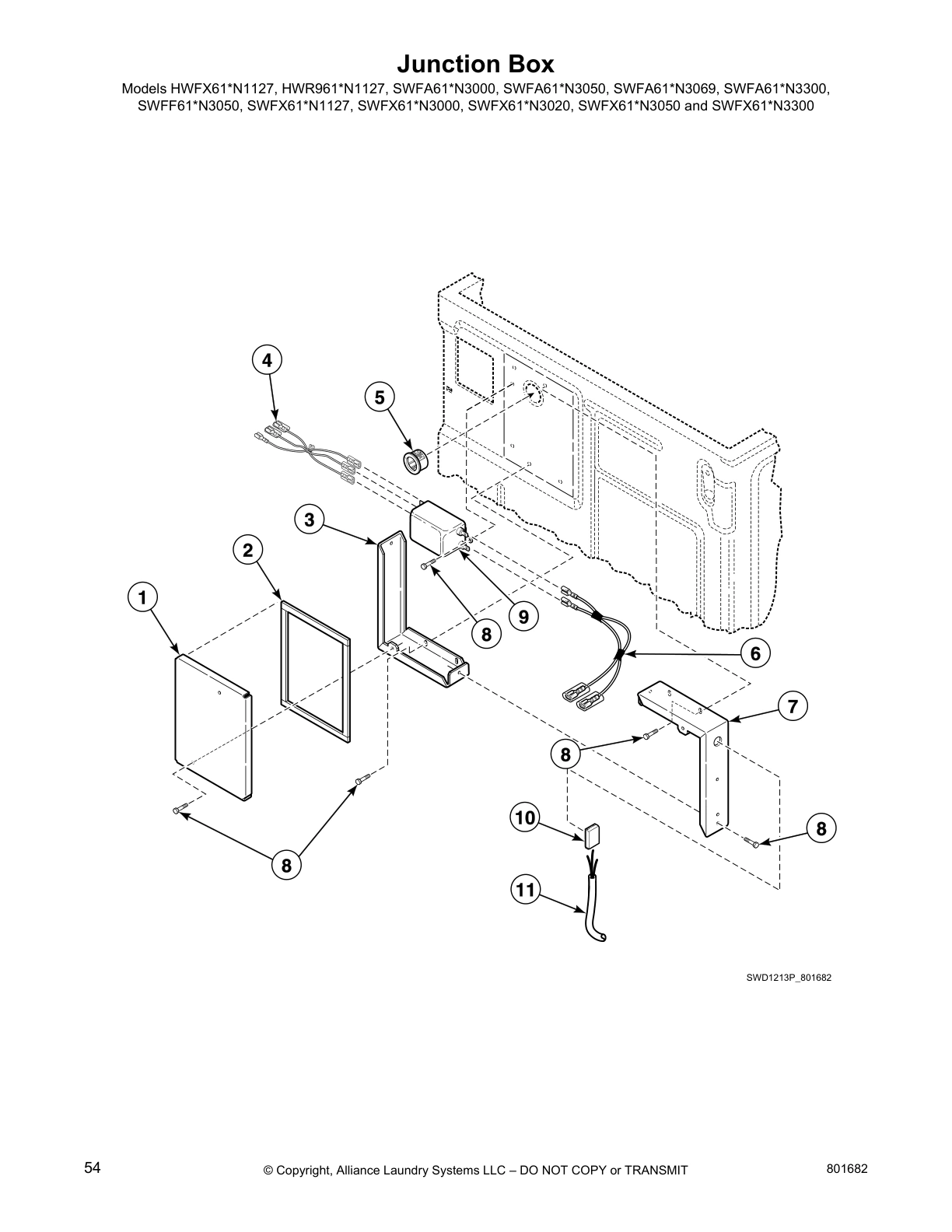

Junction Box

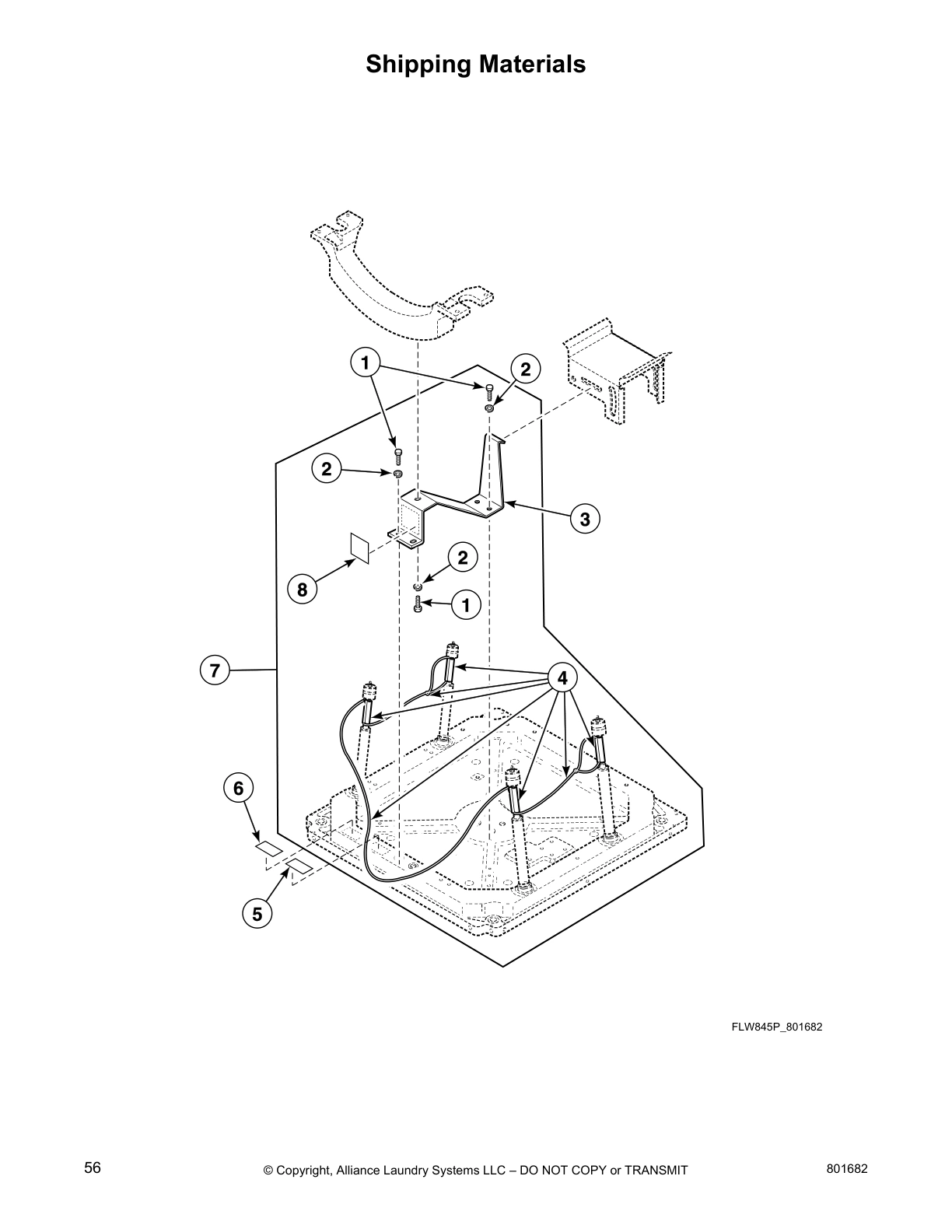

Shipping Materials

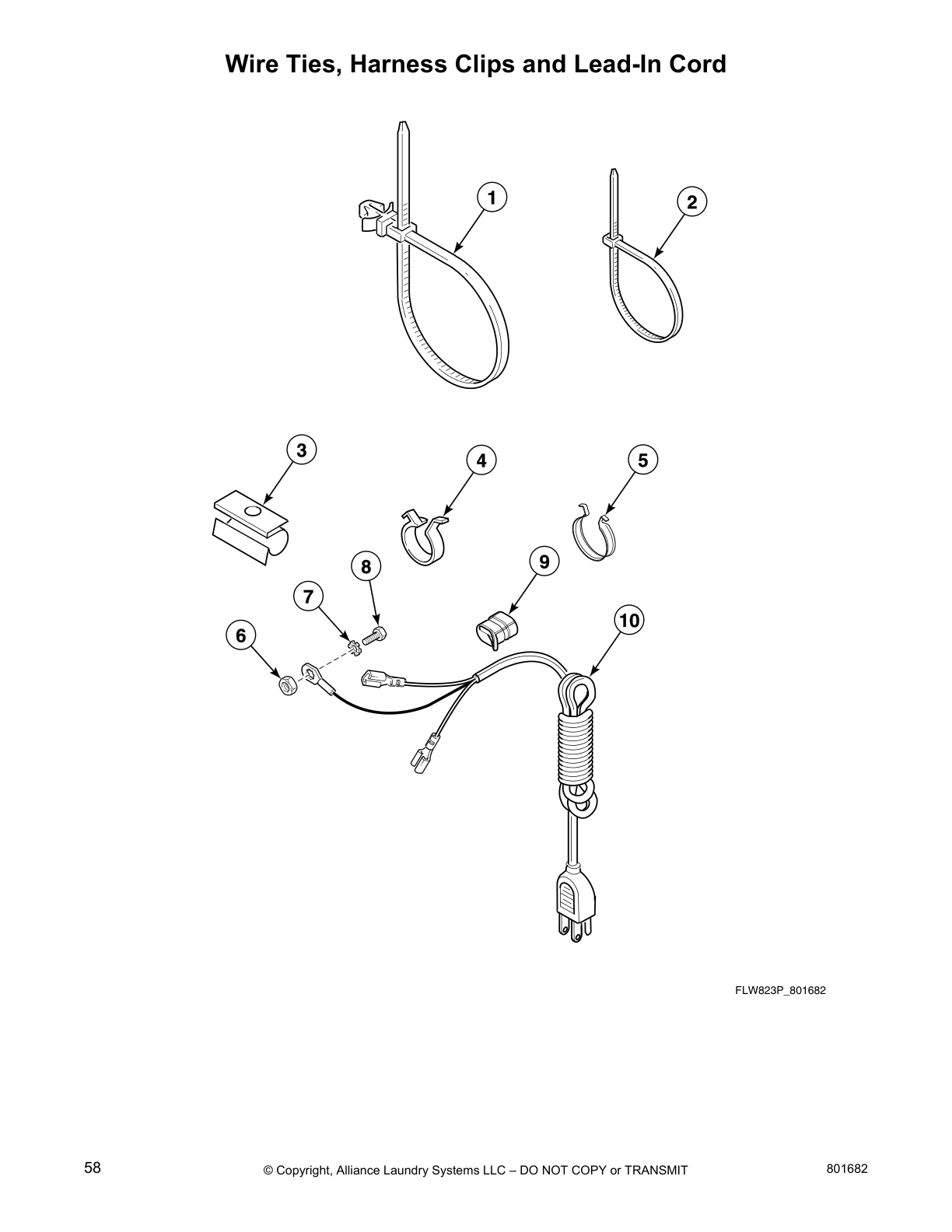

Wire Ties, Harness Clips and Lead-In Cord

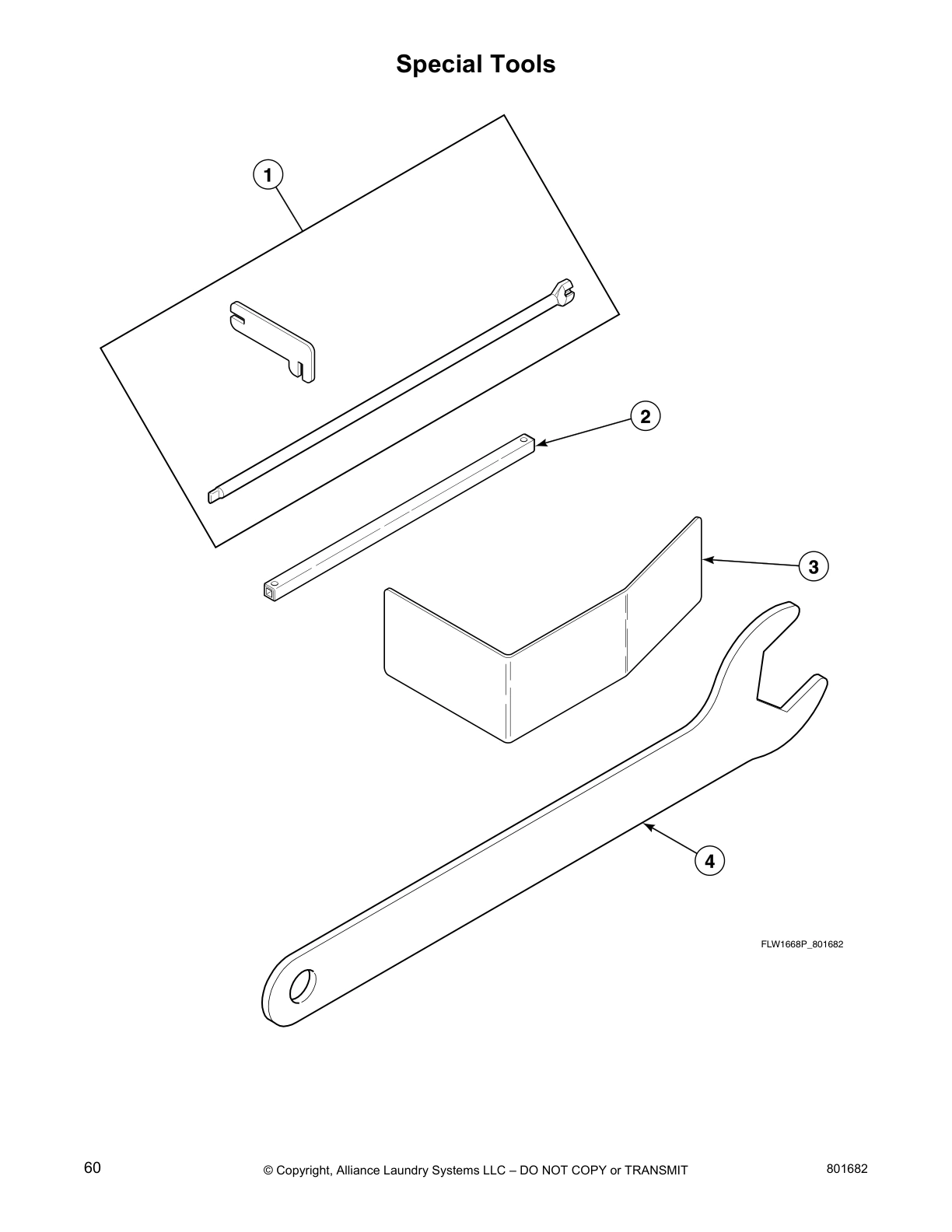

Special Tools

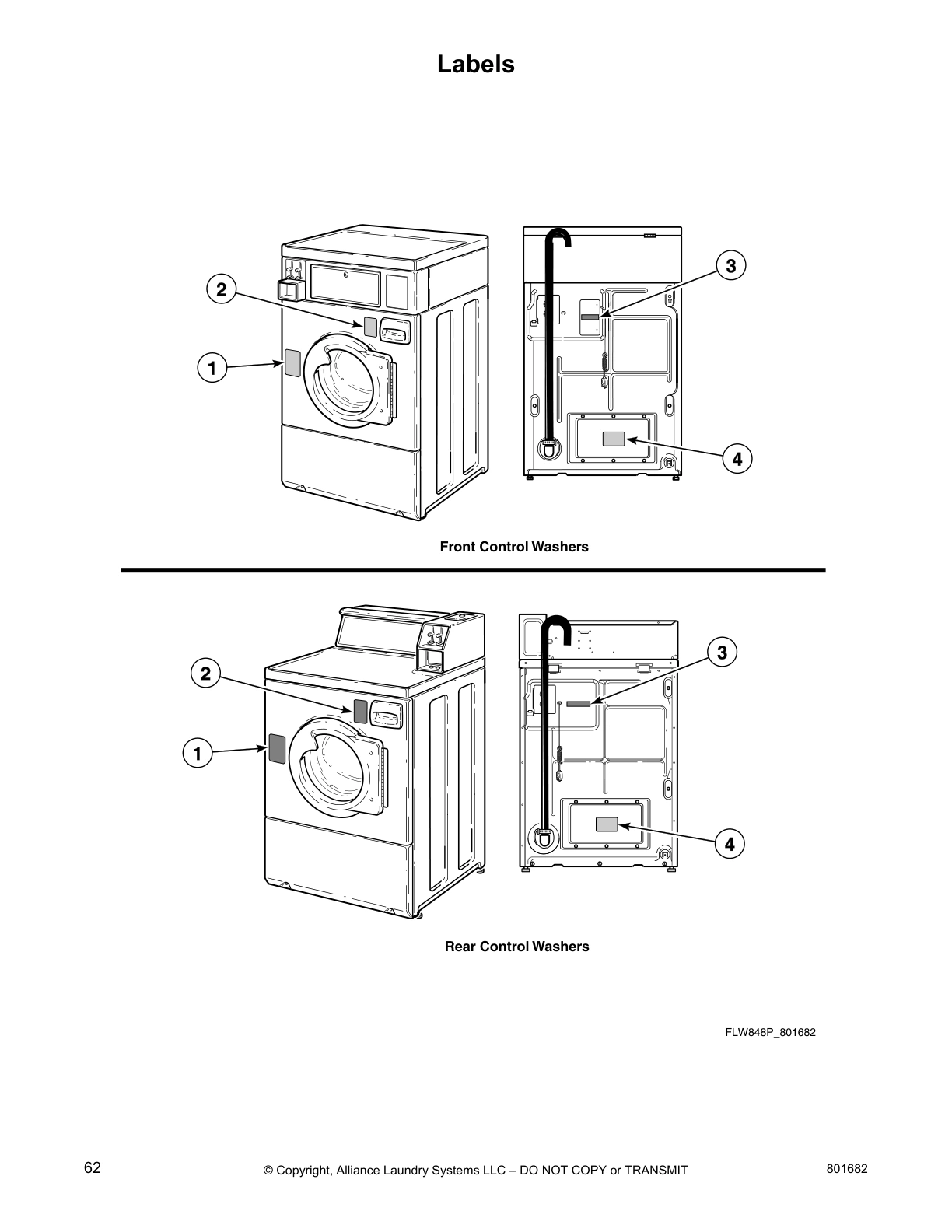

Labels

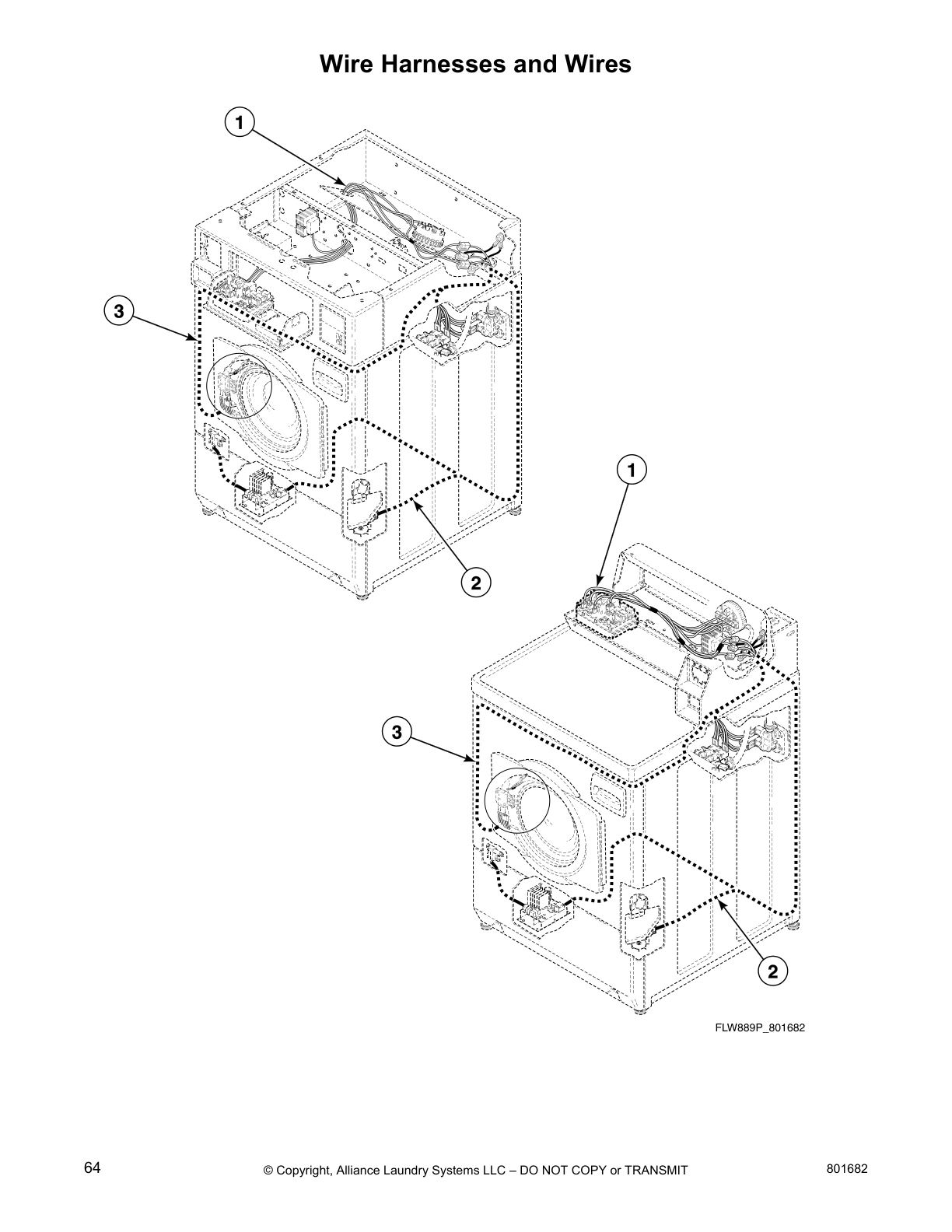

Wire Harnesses and Wires
Common parts from model Huebsch HWFX61*N1127 Washer
1
Door Seal and Hose Assembly Kit SPQ 800232P Contact Us For Availability
4
SPQ 801928WP SPQ 801928WP Contact Us For Availability
6
Drain Hose Elbow SPQ 802434P Contact Us For Availability
11
Key SPQ 54612 No Longer Available
13
Dispenser Assembly SPQ 801476P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
26
Pump Housing Assembly SPQ 802428 Contact Us For Availability
× ![]()
