Model Huebsch HWFT61*N1102 Washer – Common Parts & Diagrams

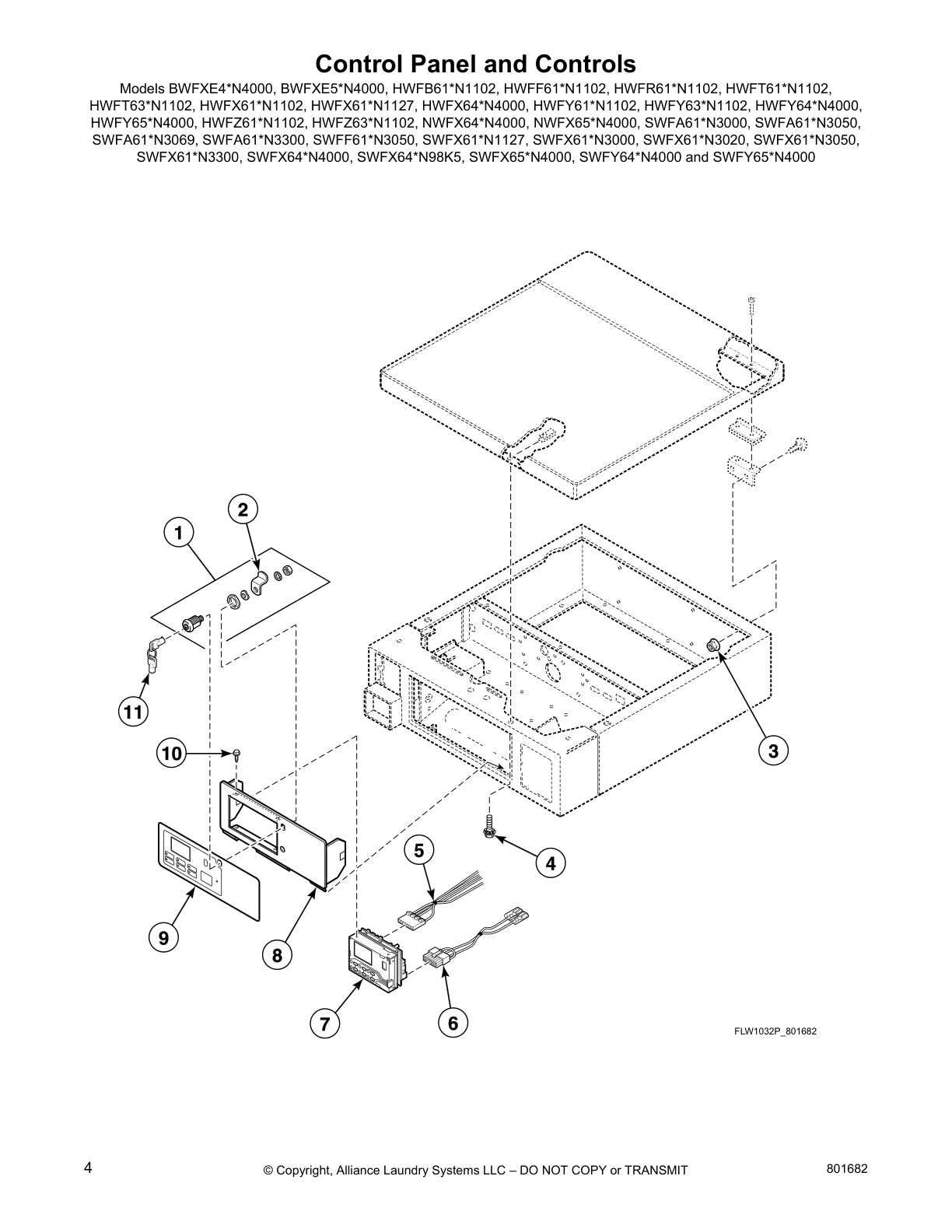

Control Panel and Controls

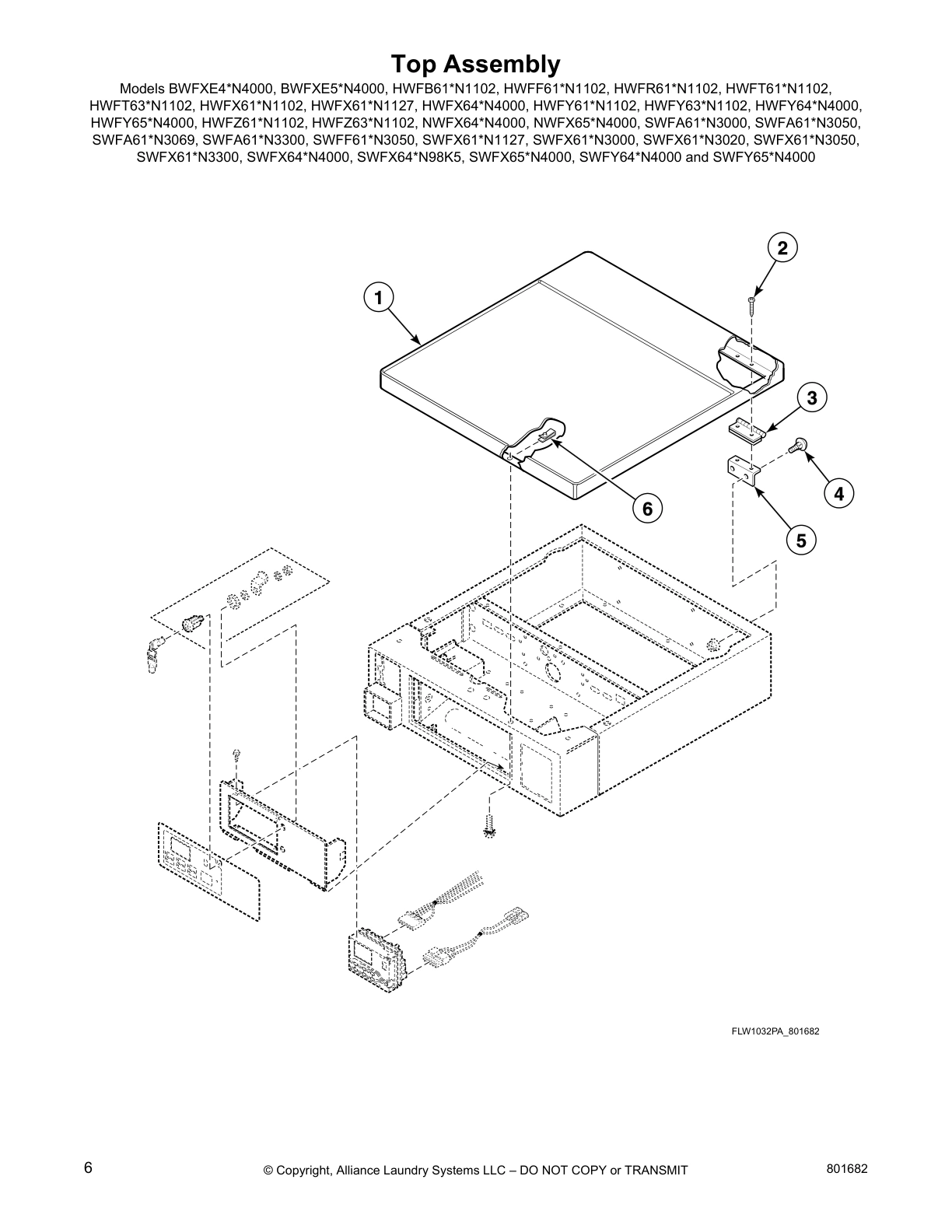

Top Assembly
Control Cabinet Controls

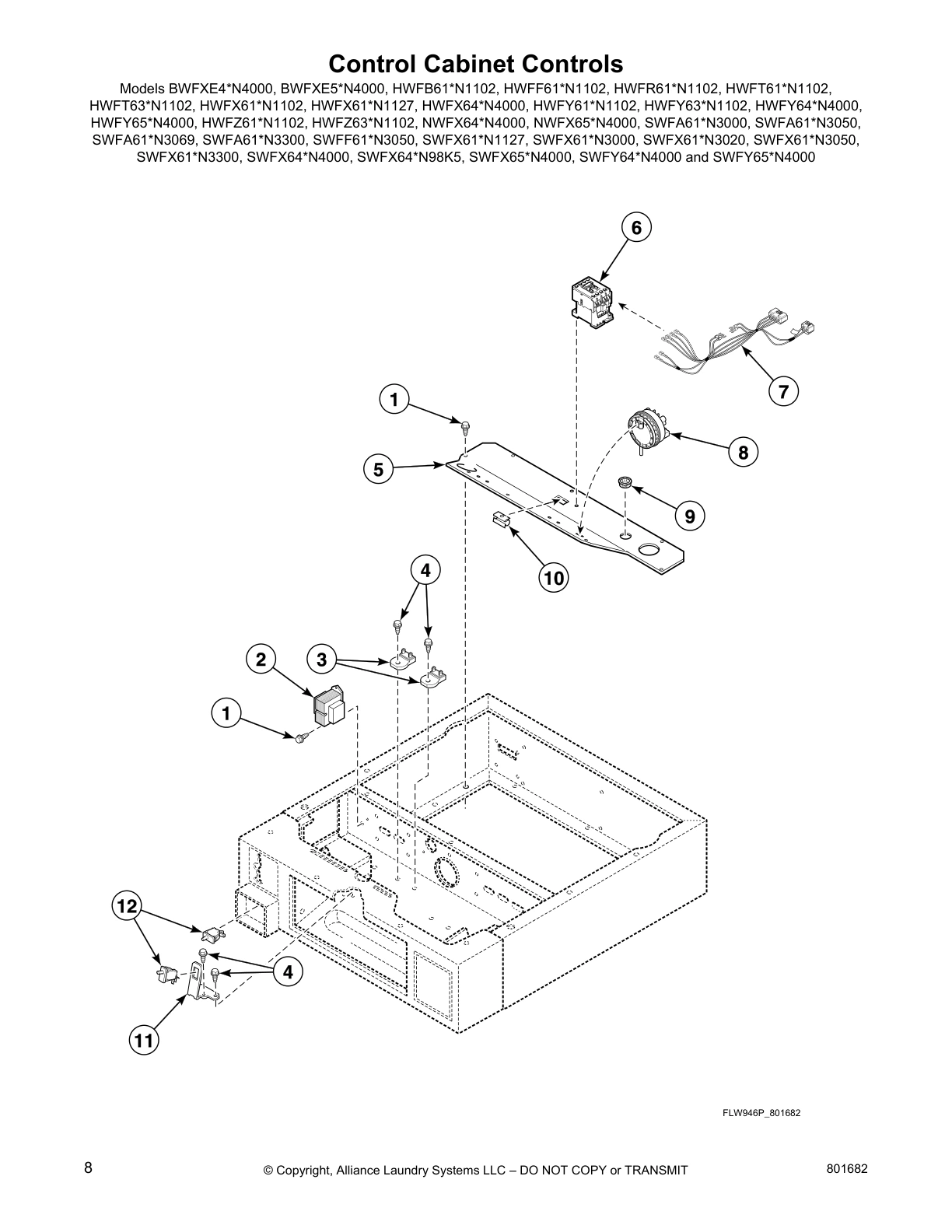

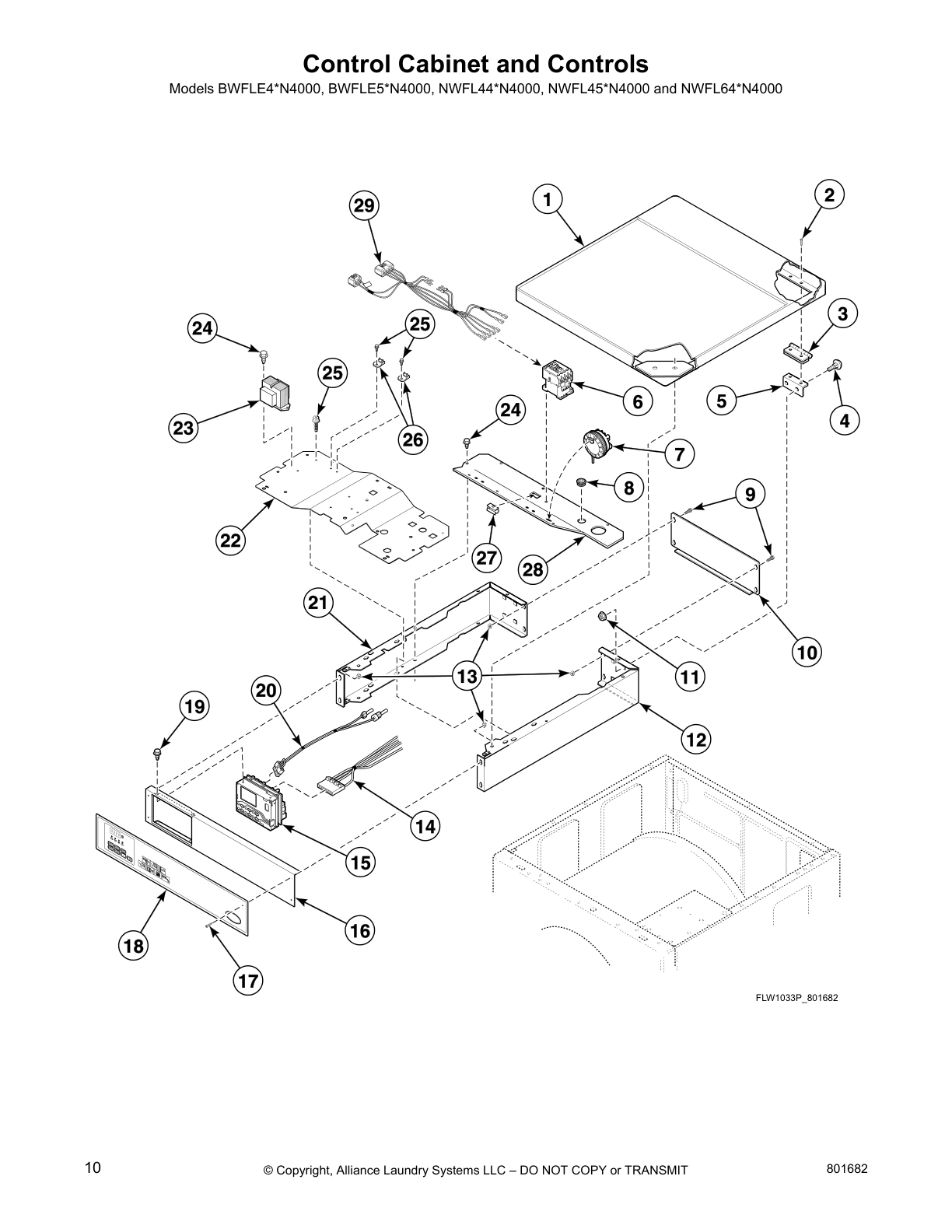

Control Cabinet and Controls

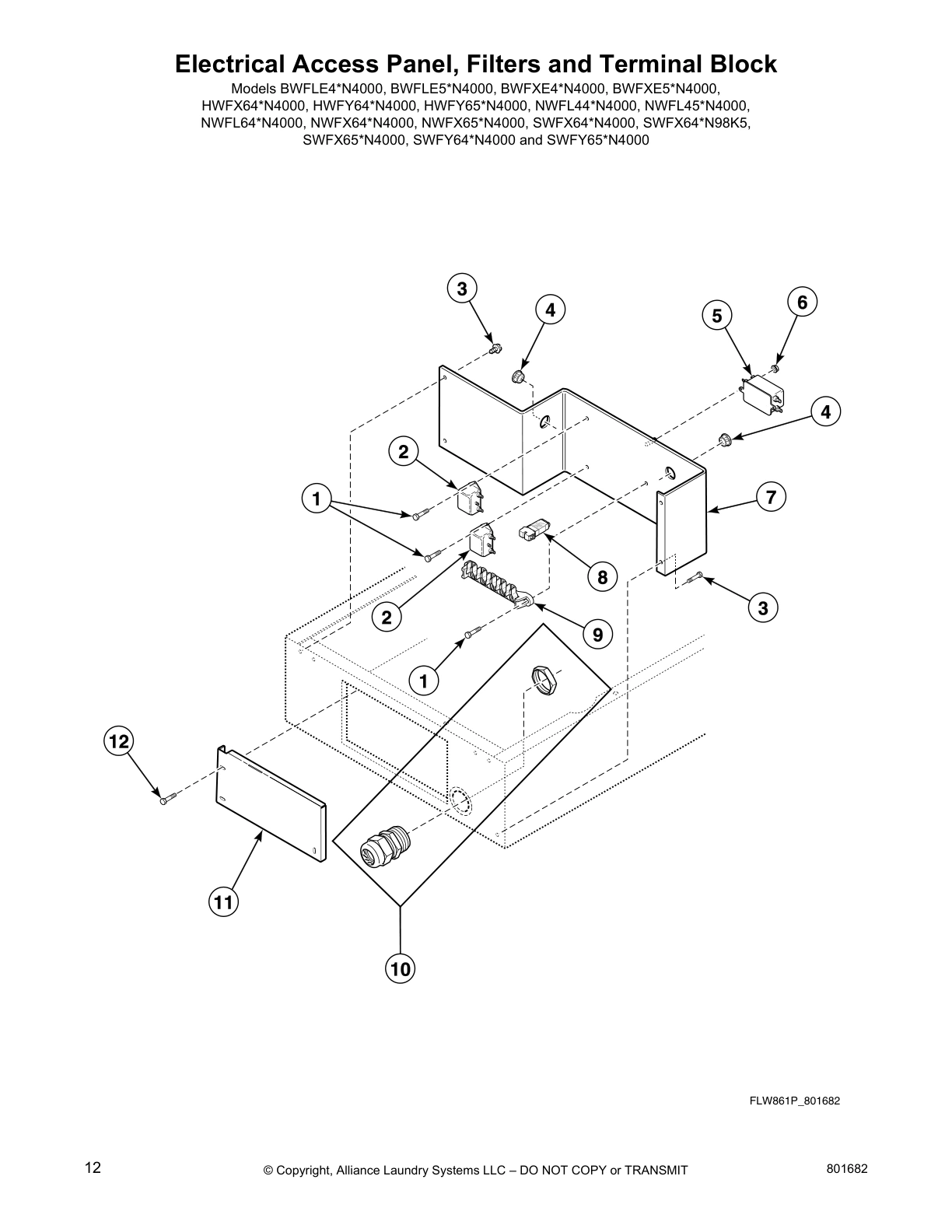

Electrical Access Panel, Filters and Terminal Block

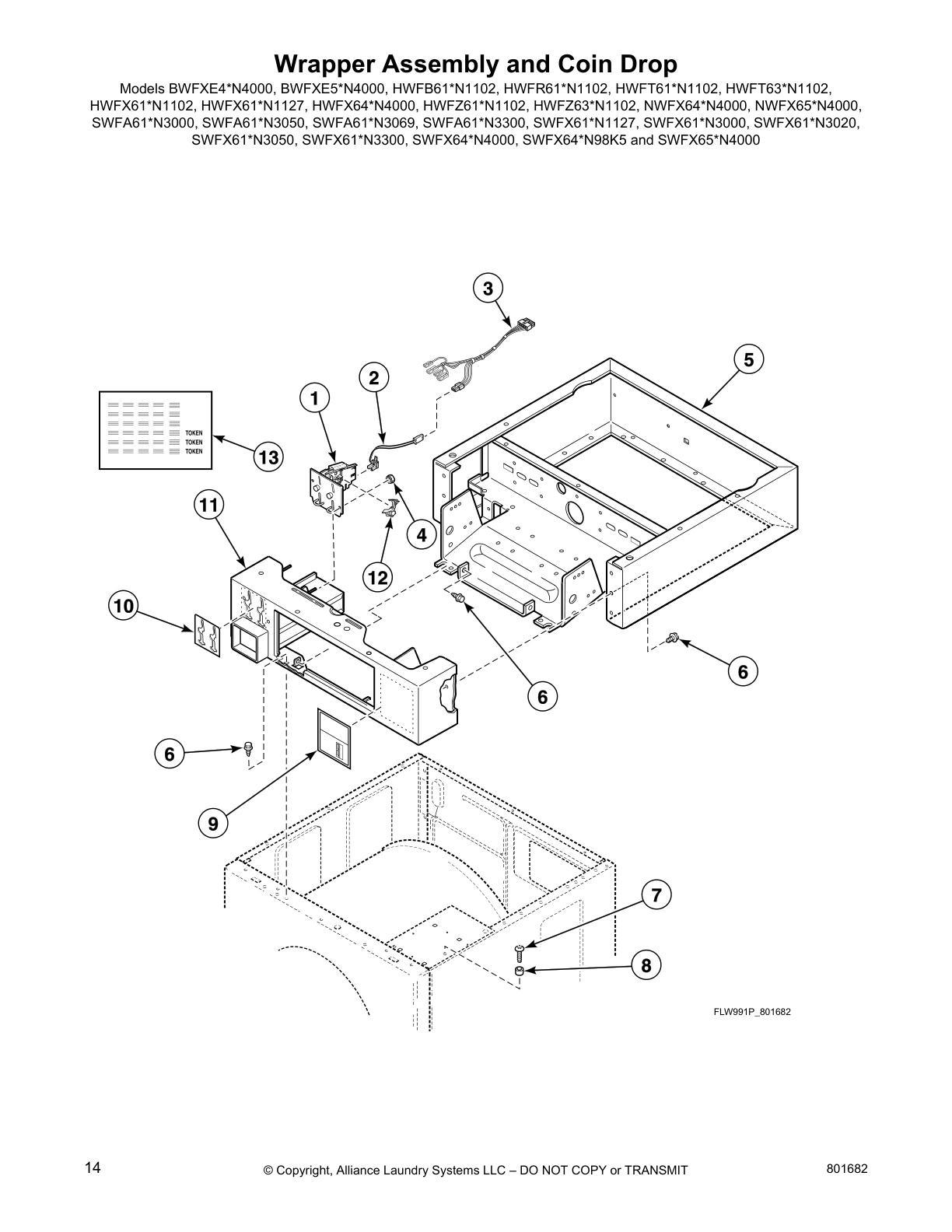

Wrapper Assembly and Coin Drop

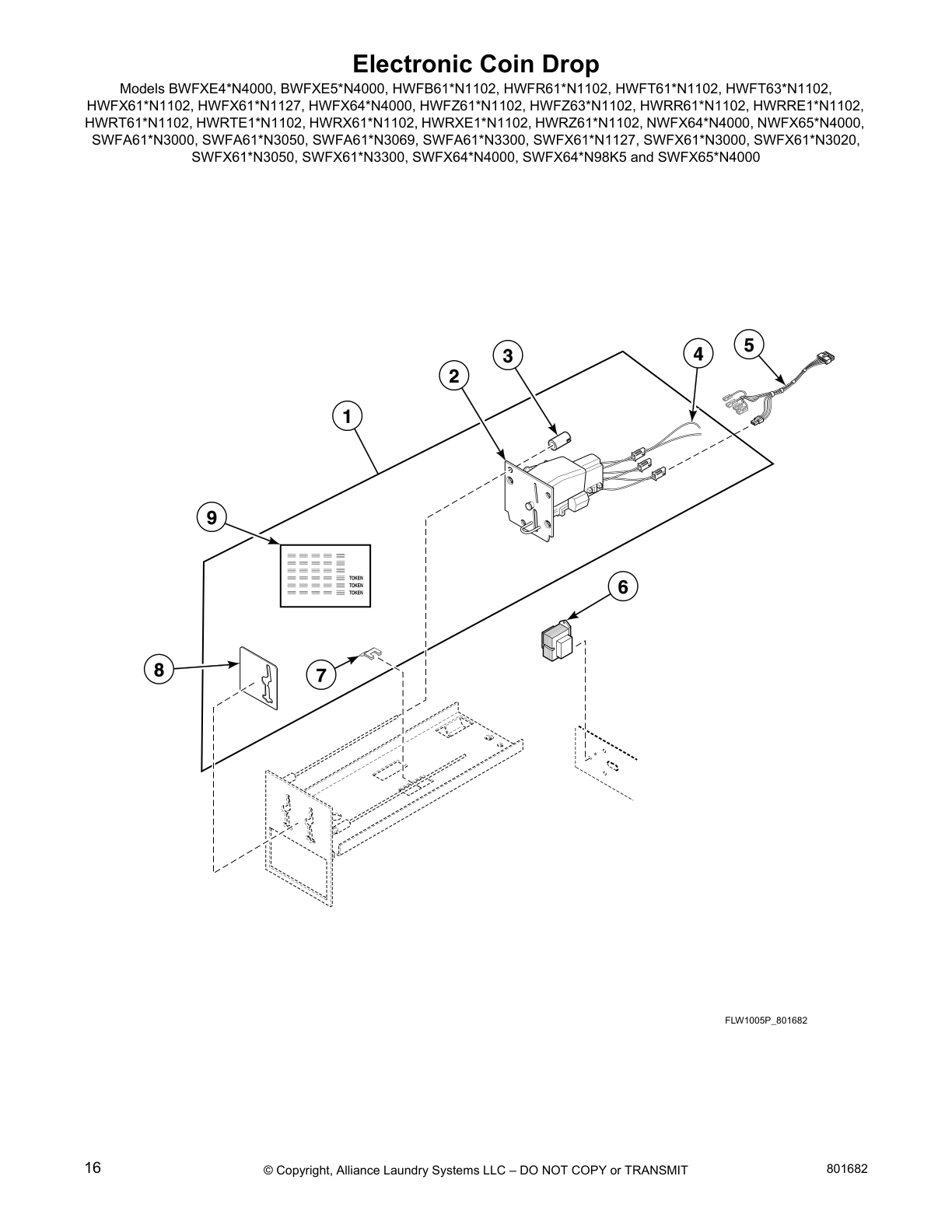

Electronic Coin Drop

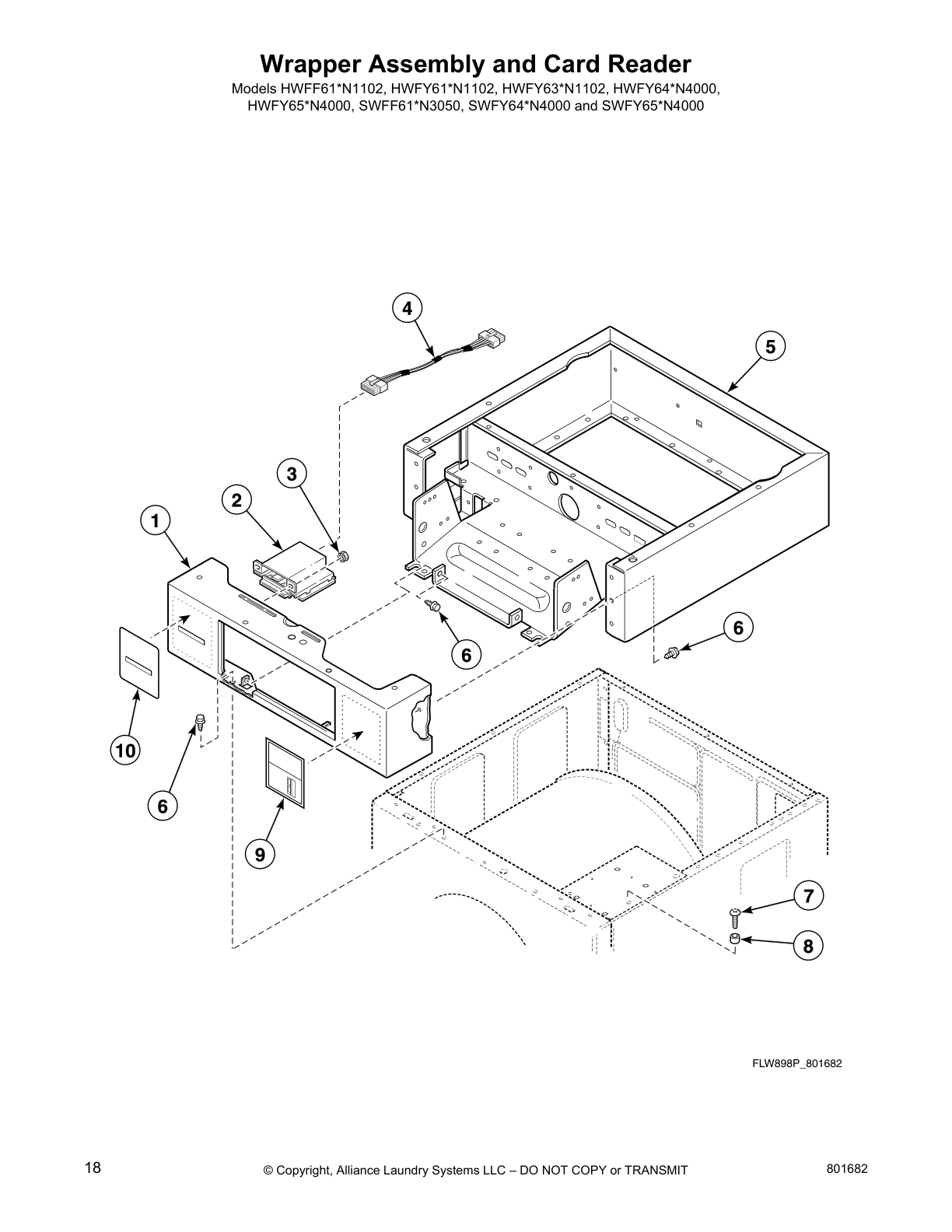

Wrapper Assembly and Card Reader

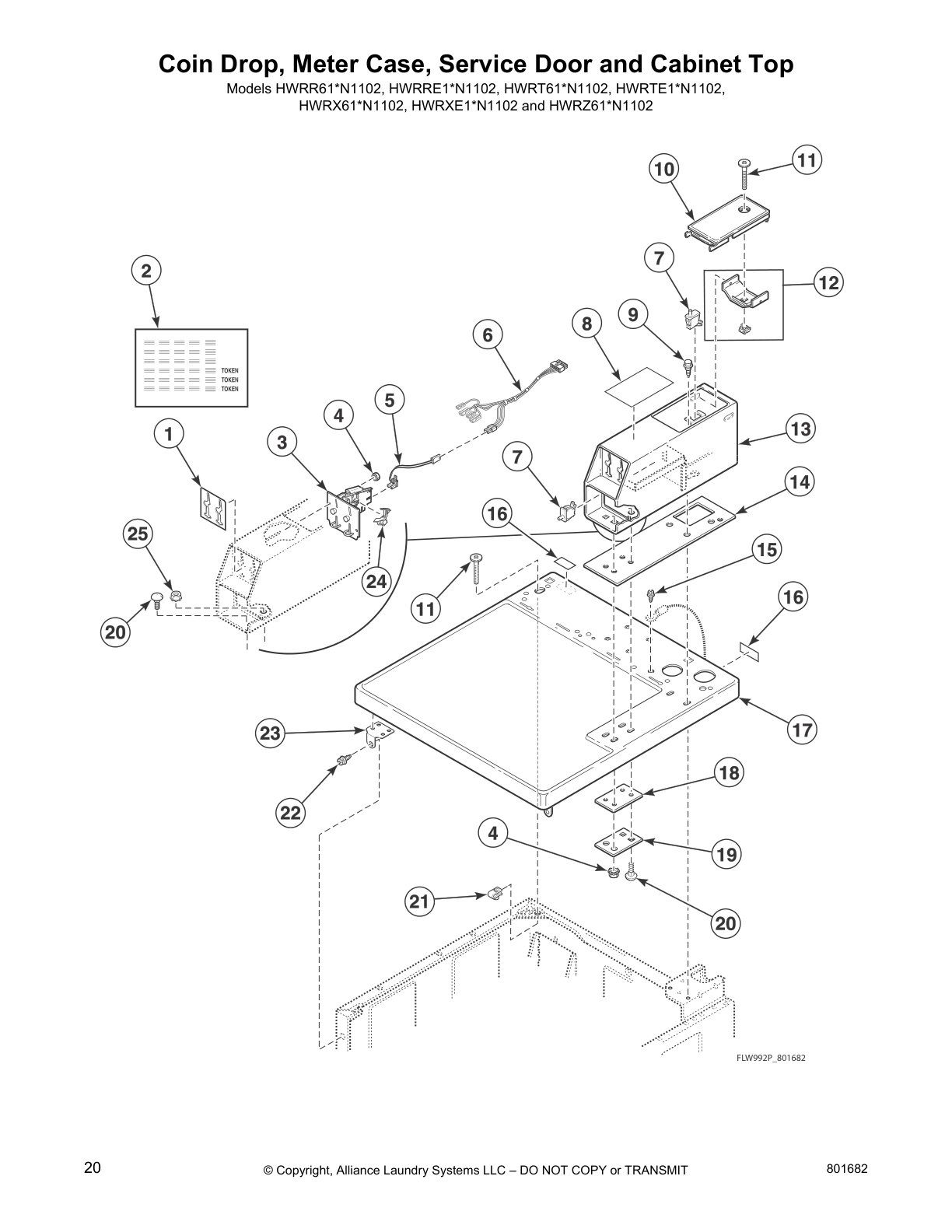

Coin Drop, Meter Case, Service Door and Cabinet Top

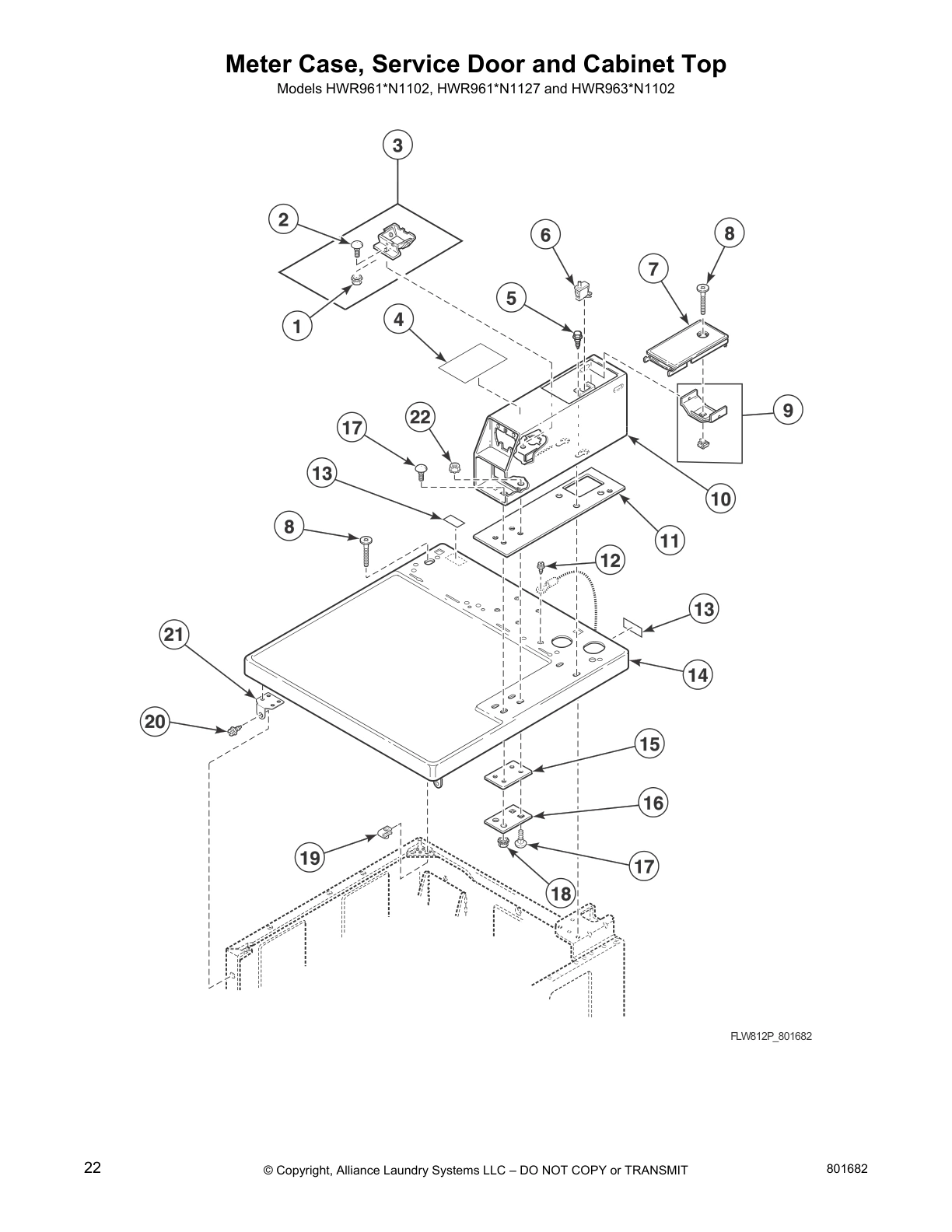

Meter Case, Service Door and Cabinet Top

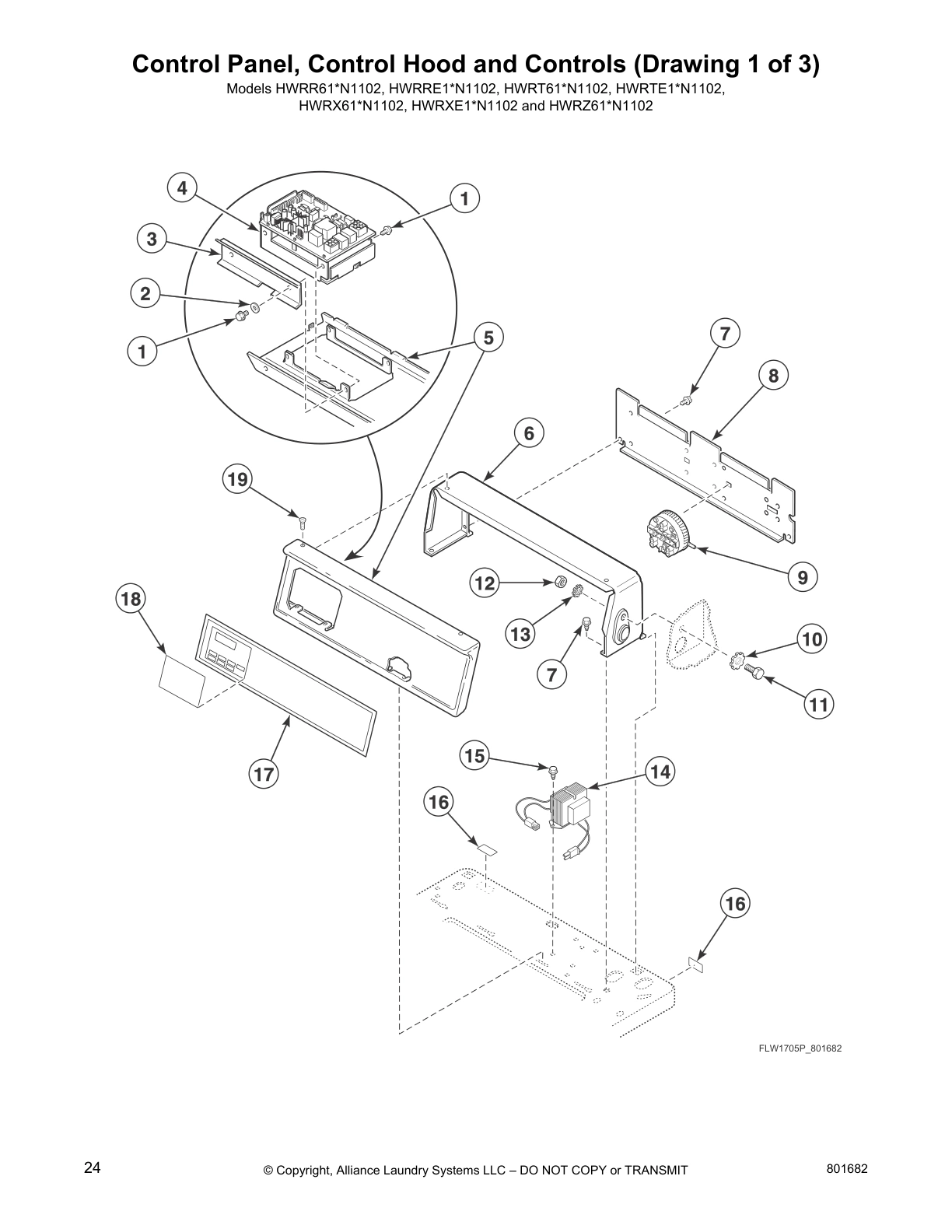

Control Panel, Control Hood and Controls (Drawing 1 of 3)

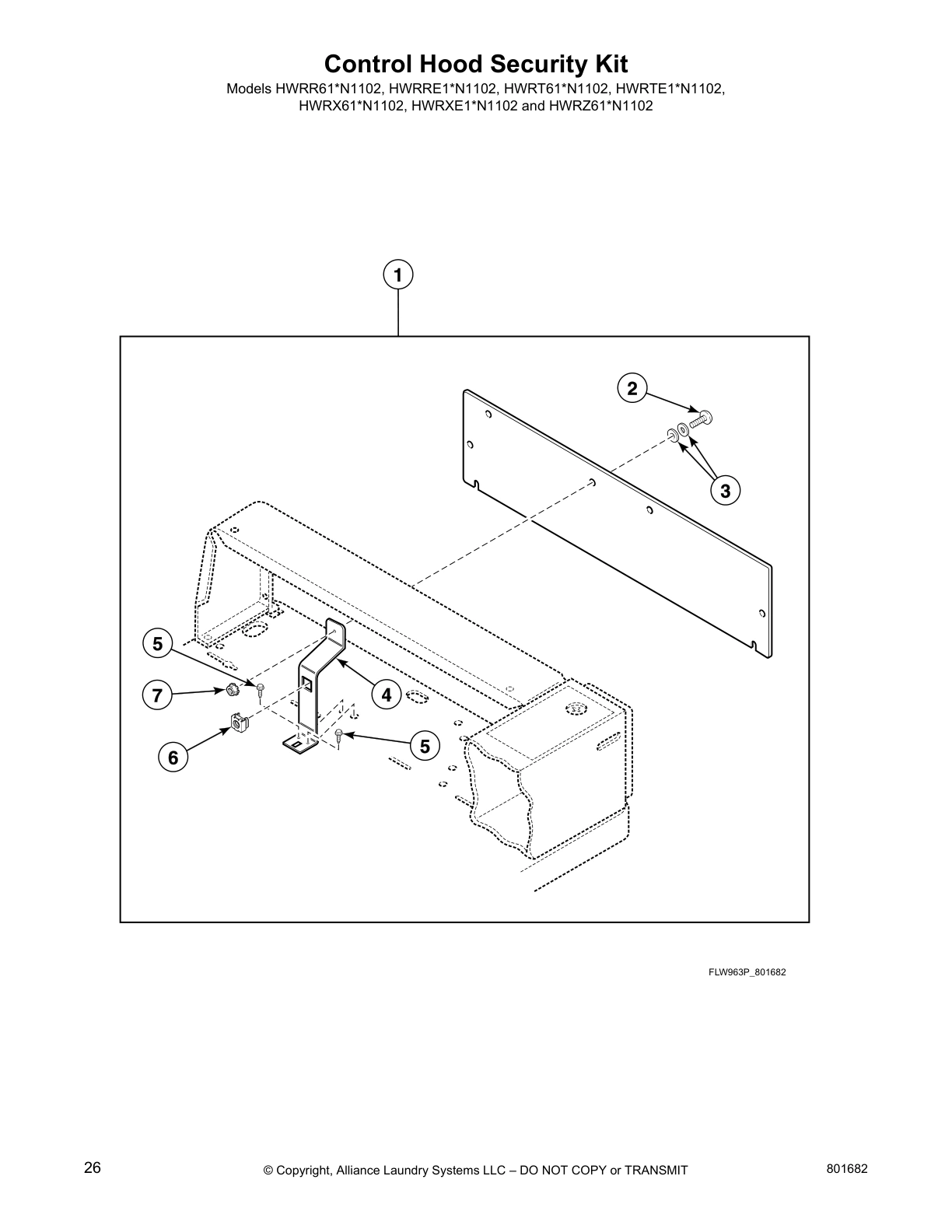

Control Hood Security Kit

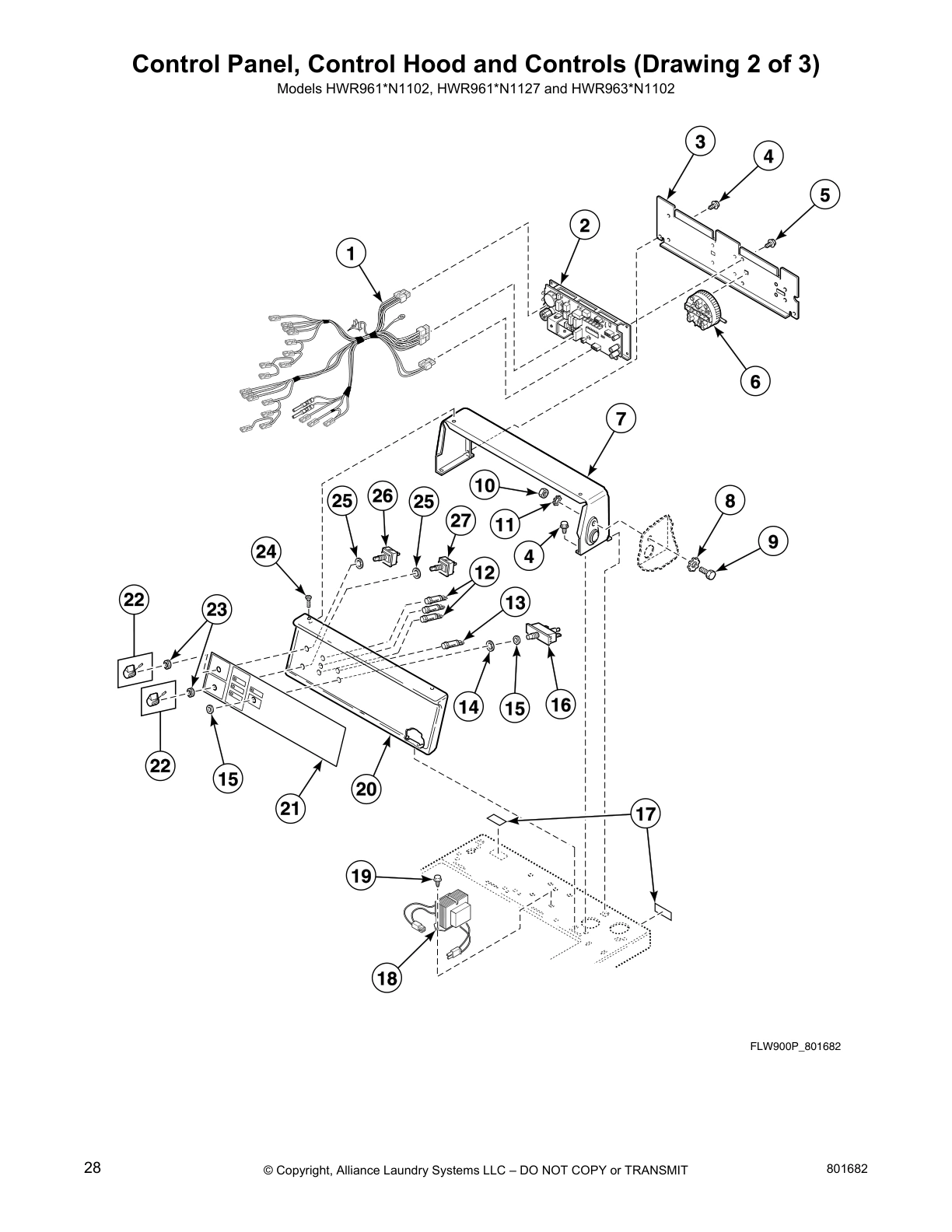

Control Panel, Control Hood and Controls (Drawing 2 of 3)

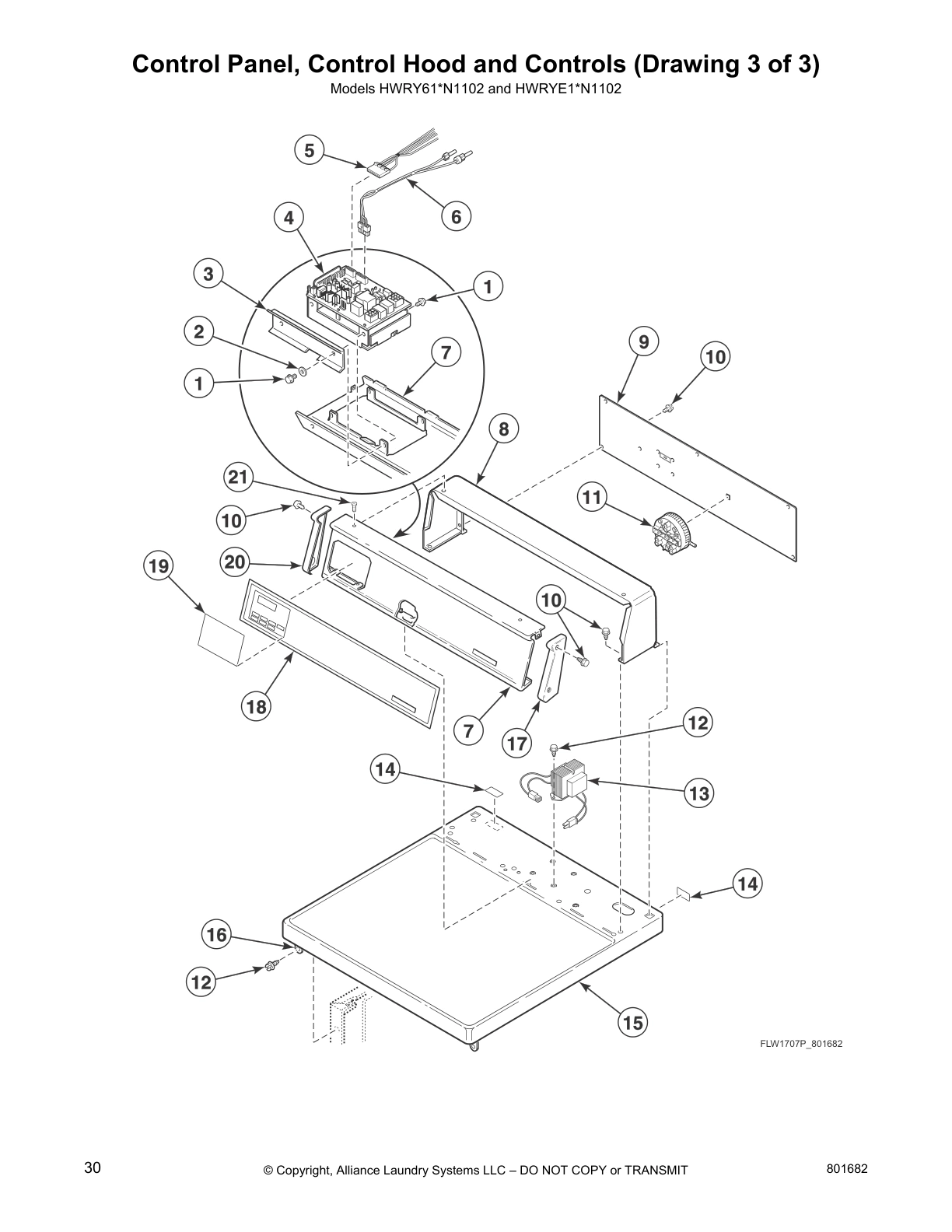

Control Panel, Control Hood and Controls (Drawing 3 of 3)

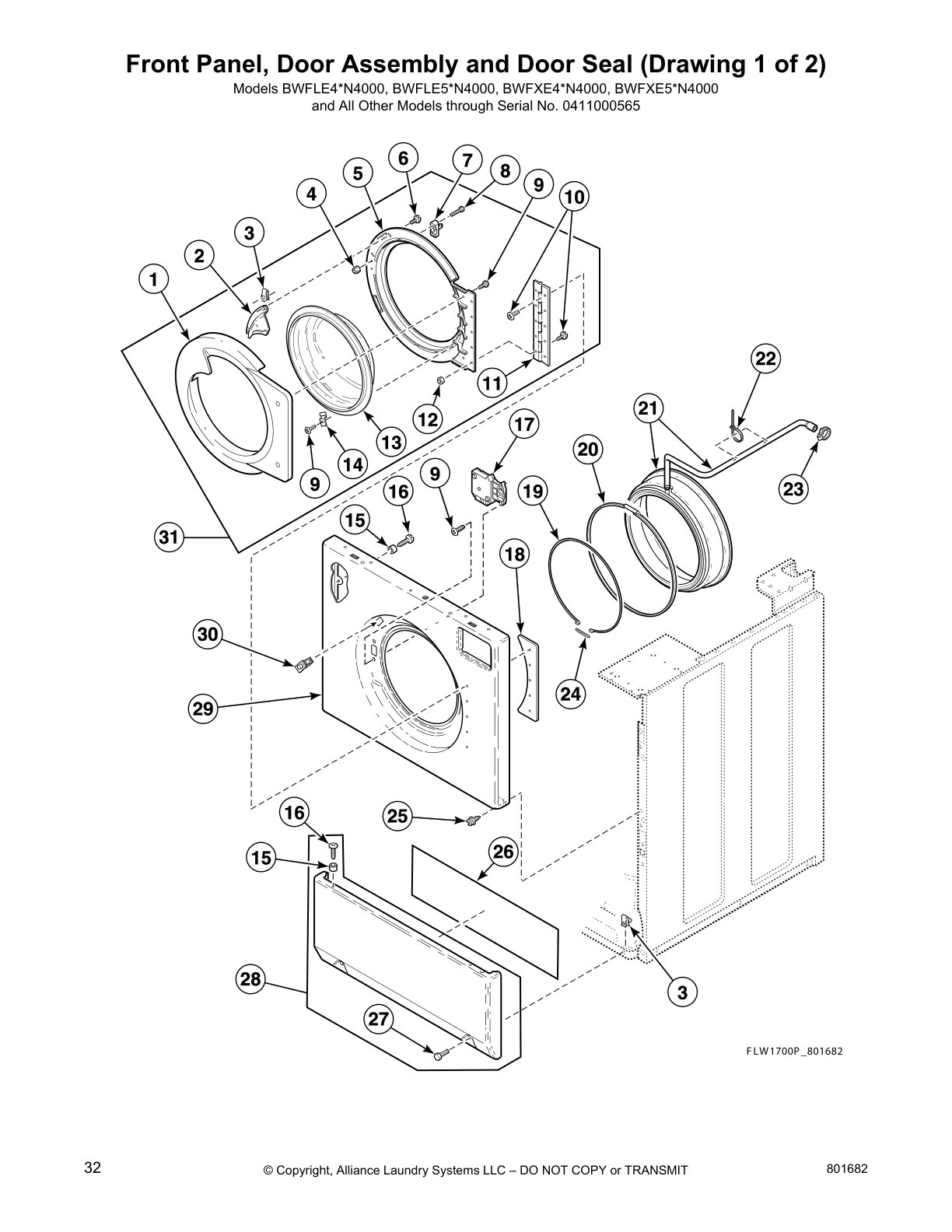

Front Panel, Door Assembly and Door Seal (Drawing 1 of 2)

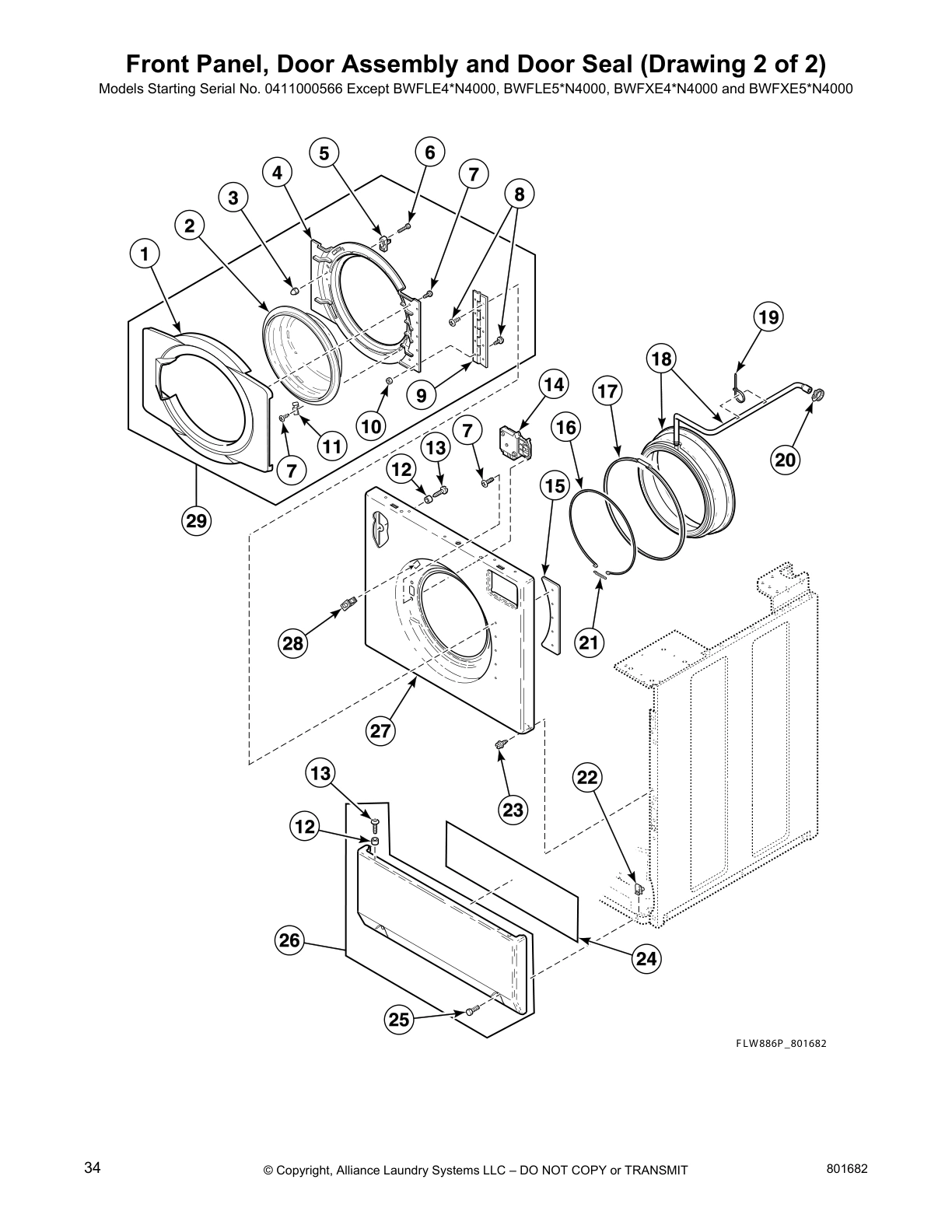

Front Panel, Door Assembly and Door Seal (Drawing 2 of 2)
Dispenser Assembly

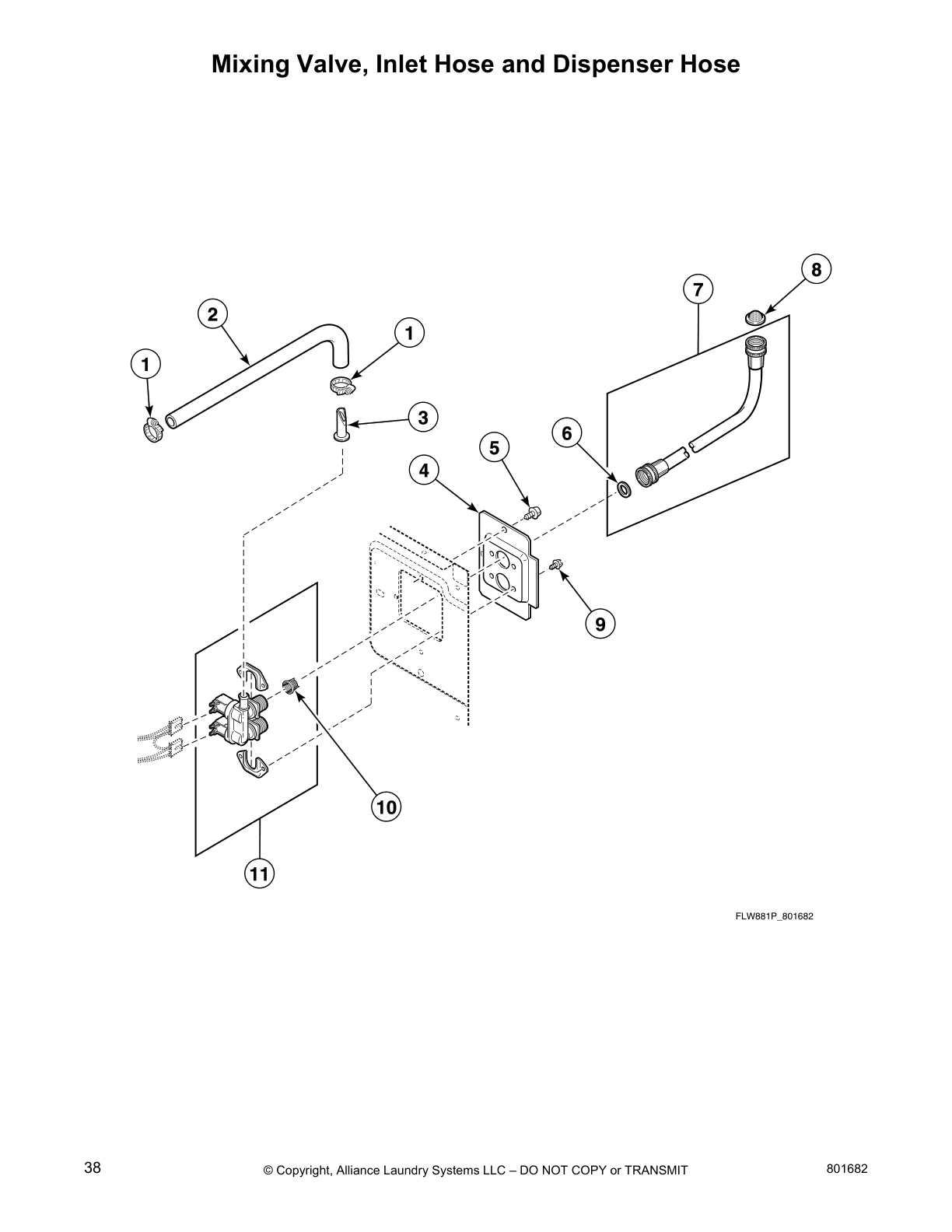

Mixing Valve, Inlet Hose and Dispenser Hose

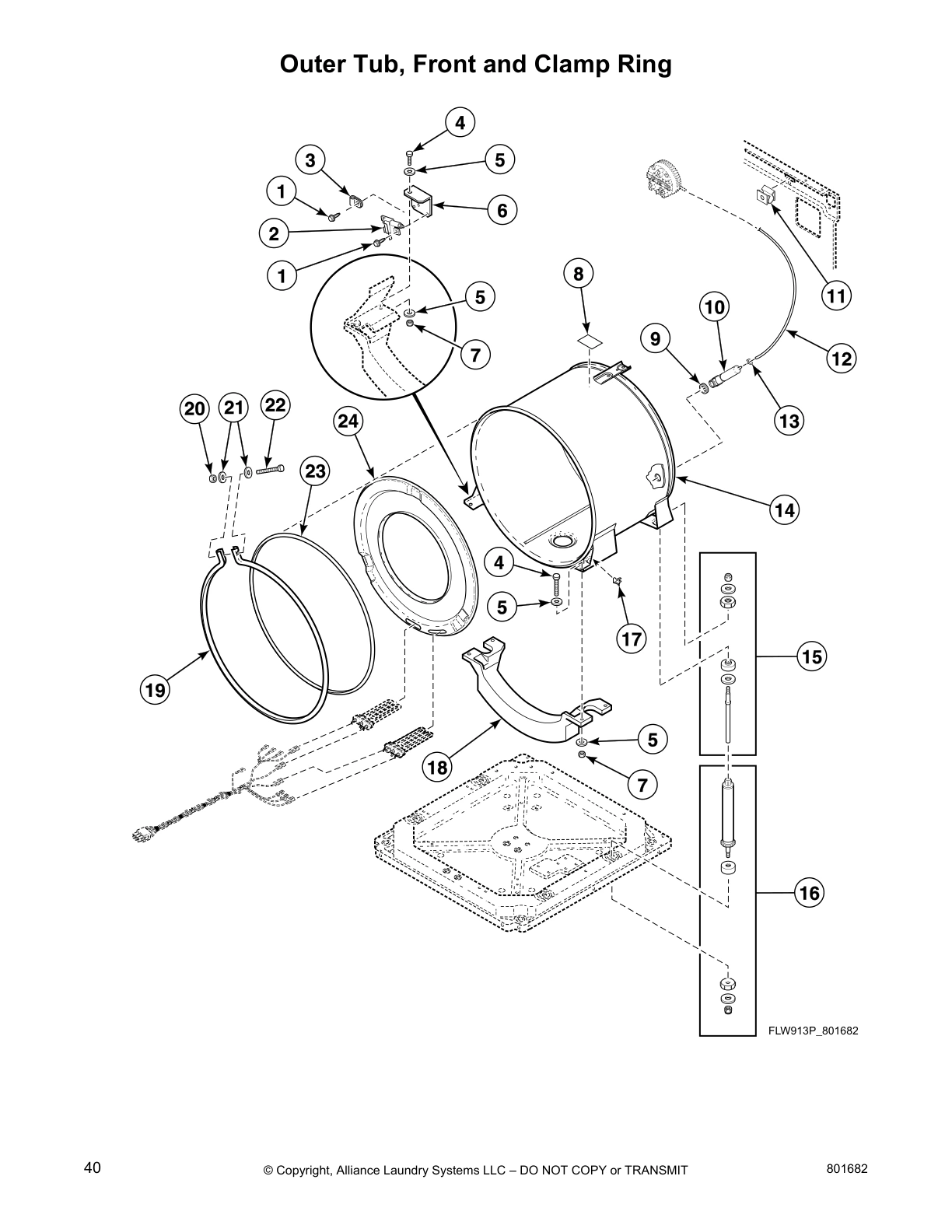

Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley

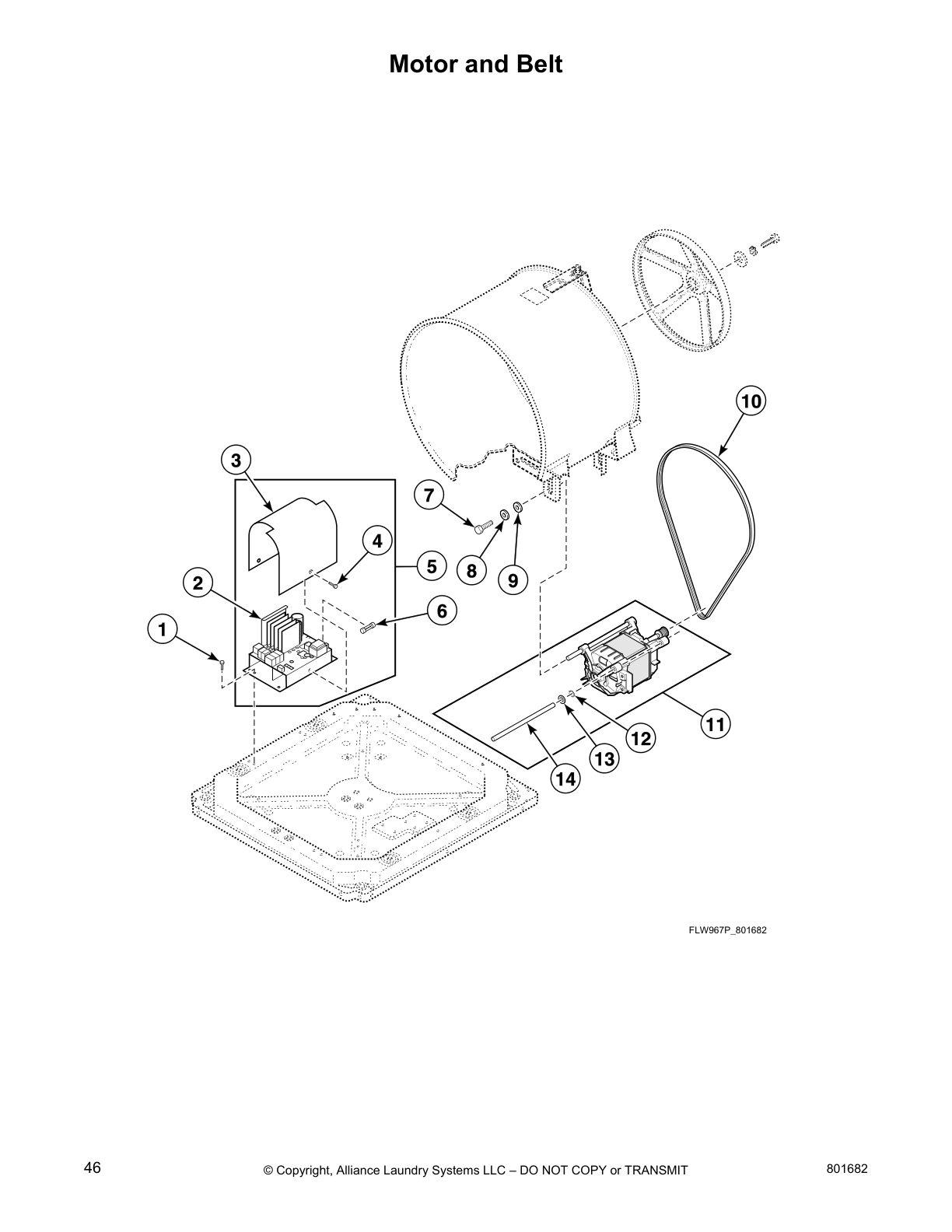

Motor and Belt

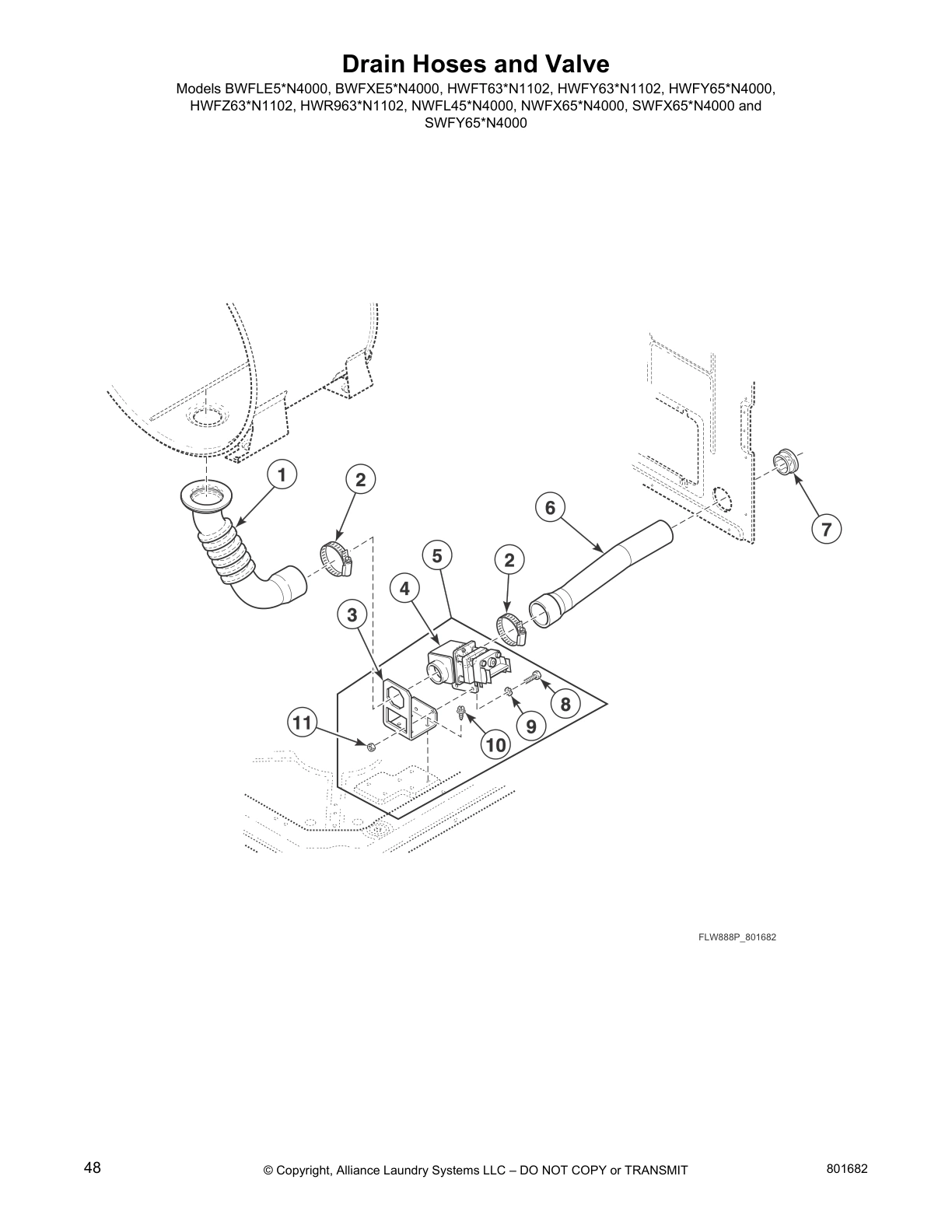

Drain Hoses and Valve

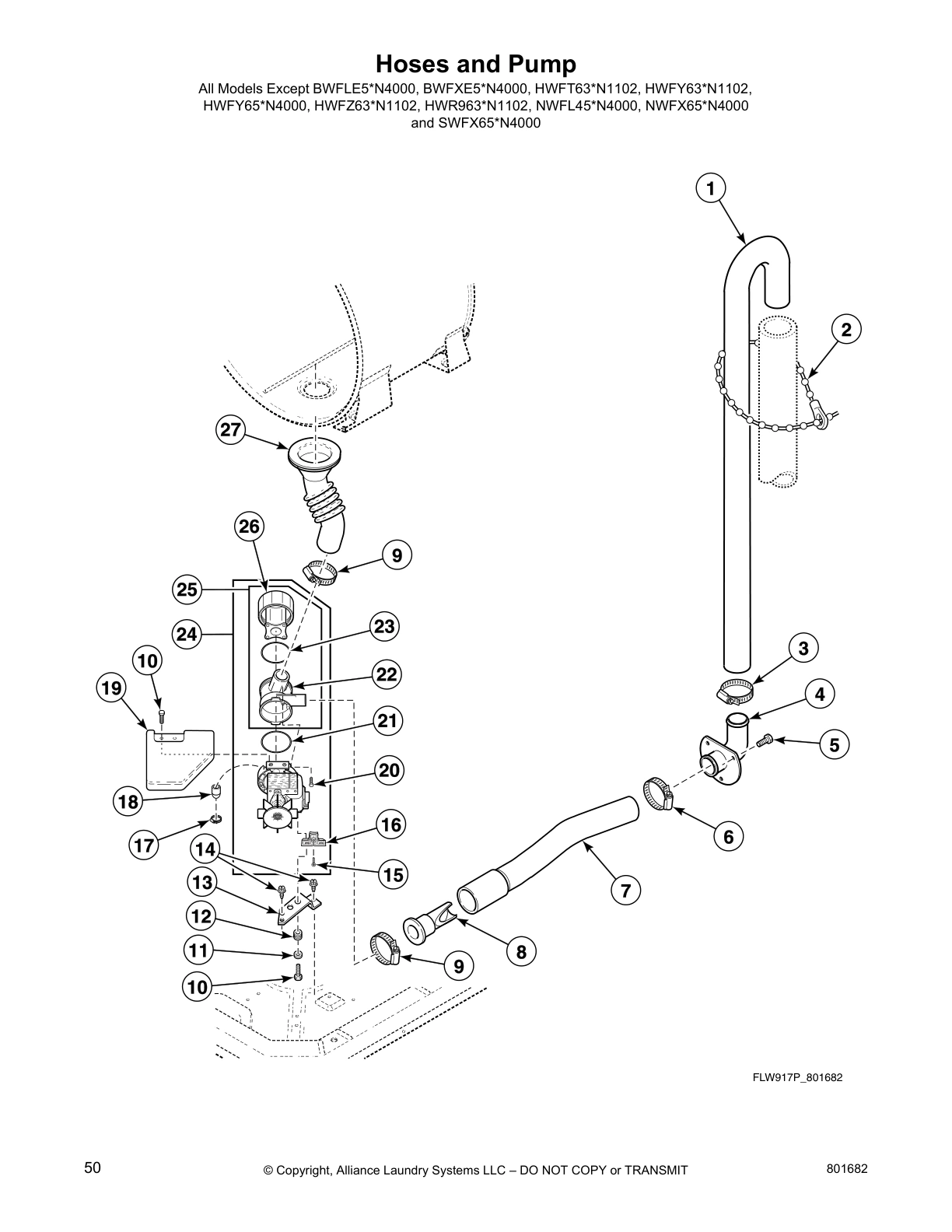

Hoses and Pump

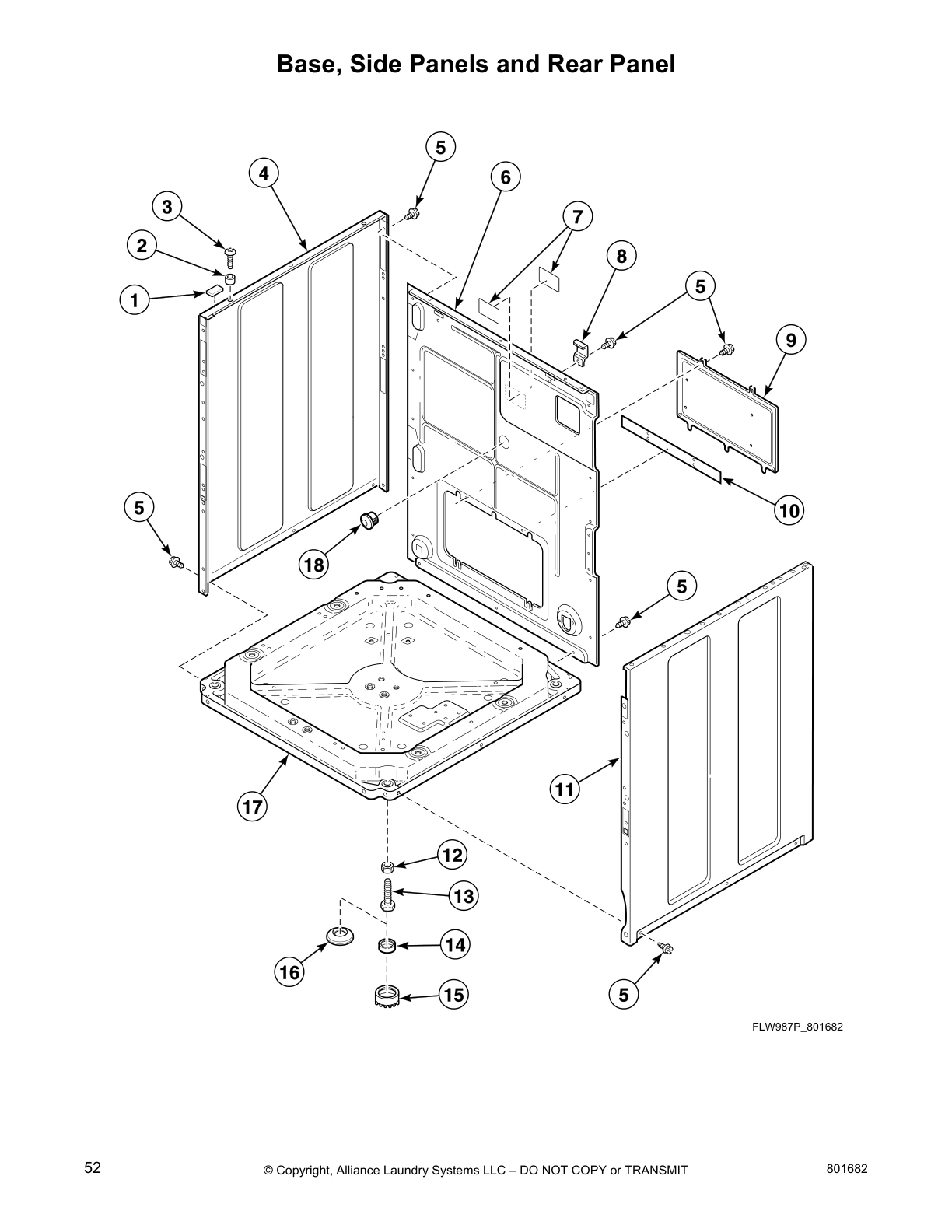

Base, Side Panels and Rear Panel

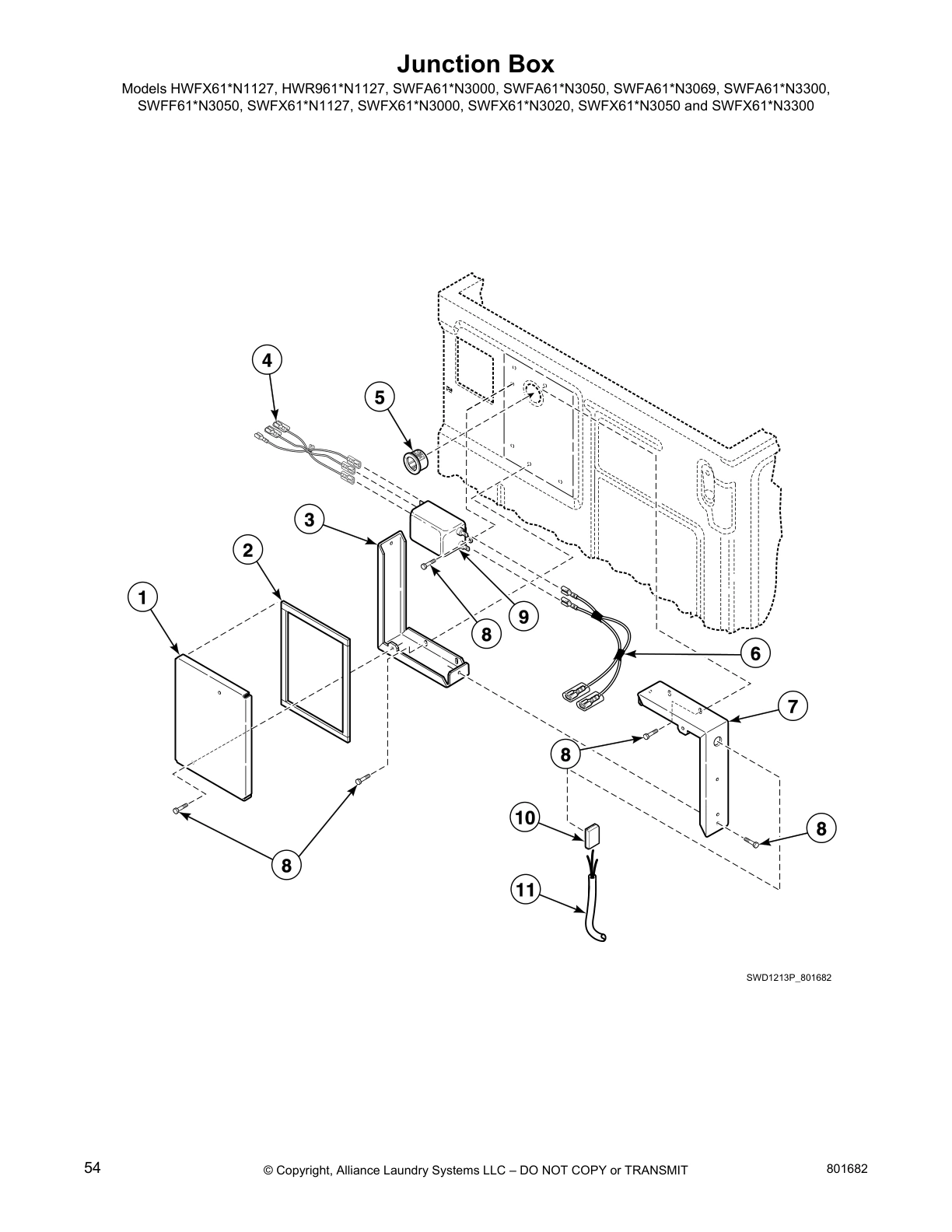

Junction Box

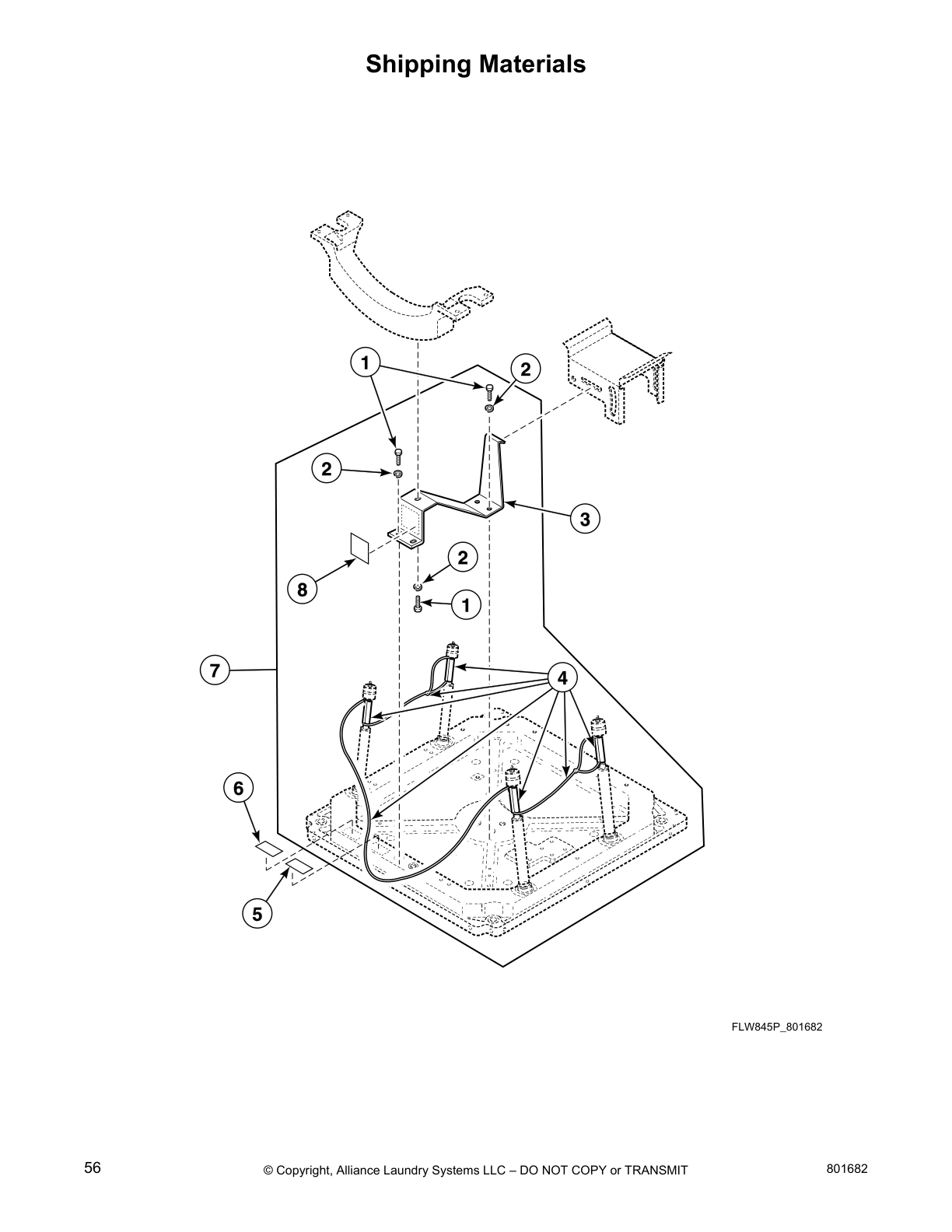

Shipping Materials

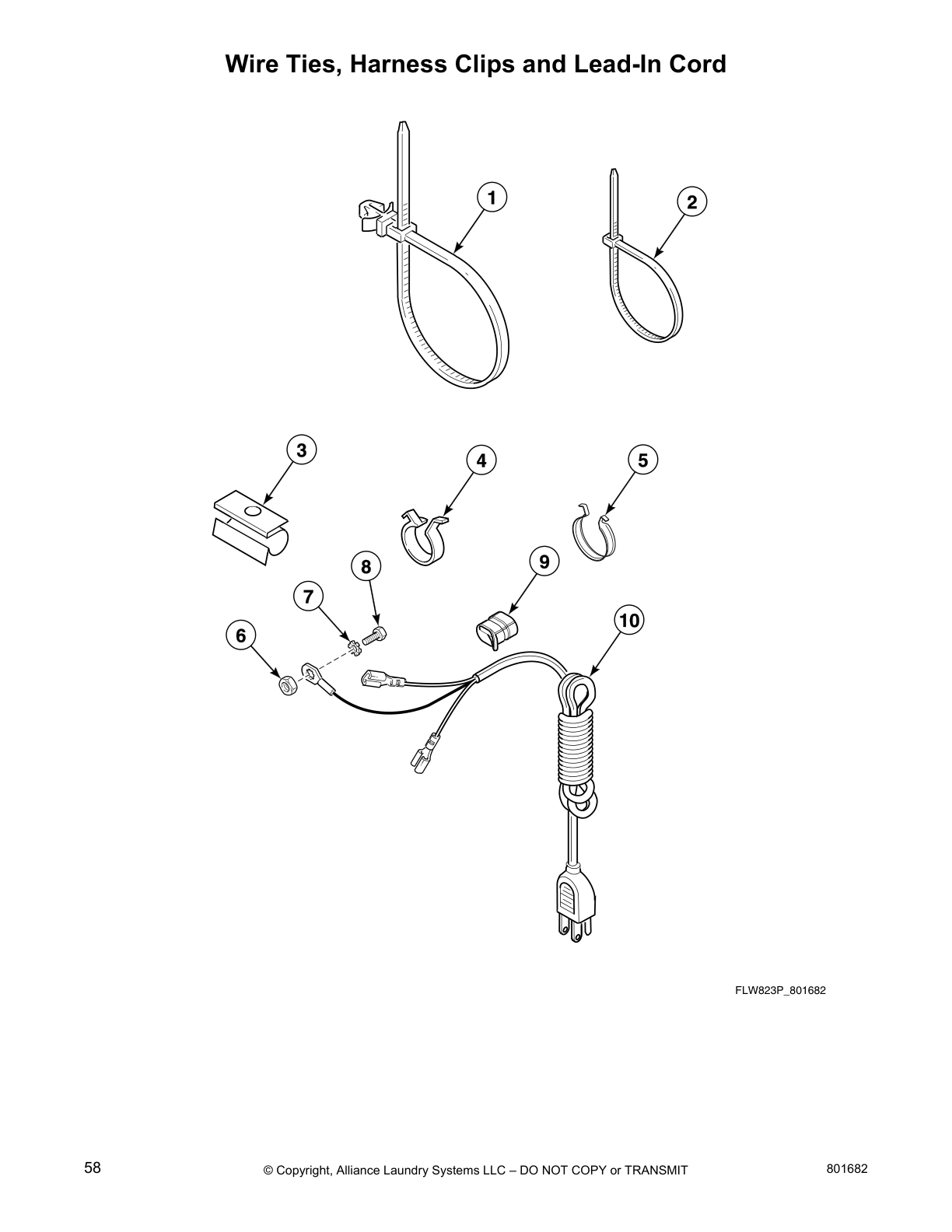

Wire Ties, Harness Clips and Lead-In Cord

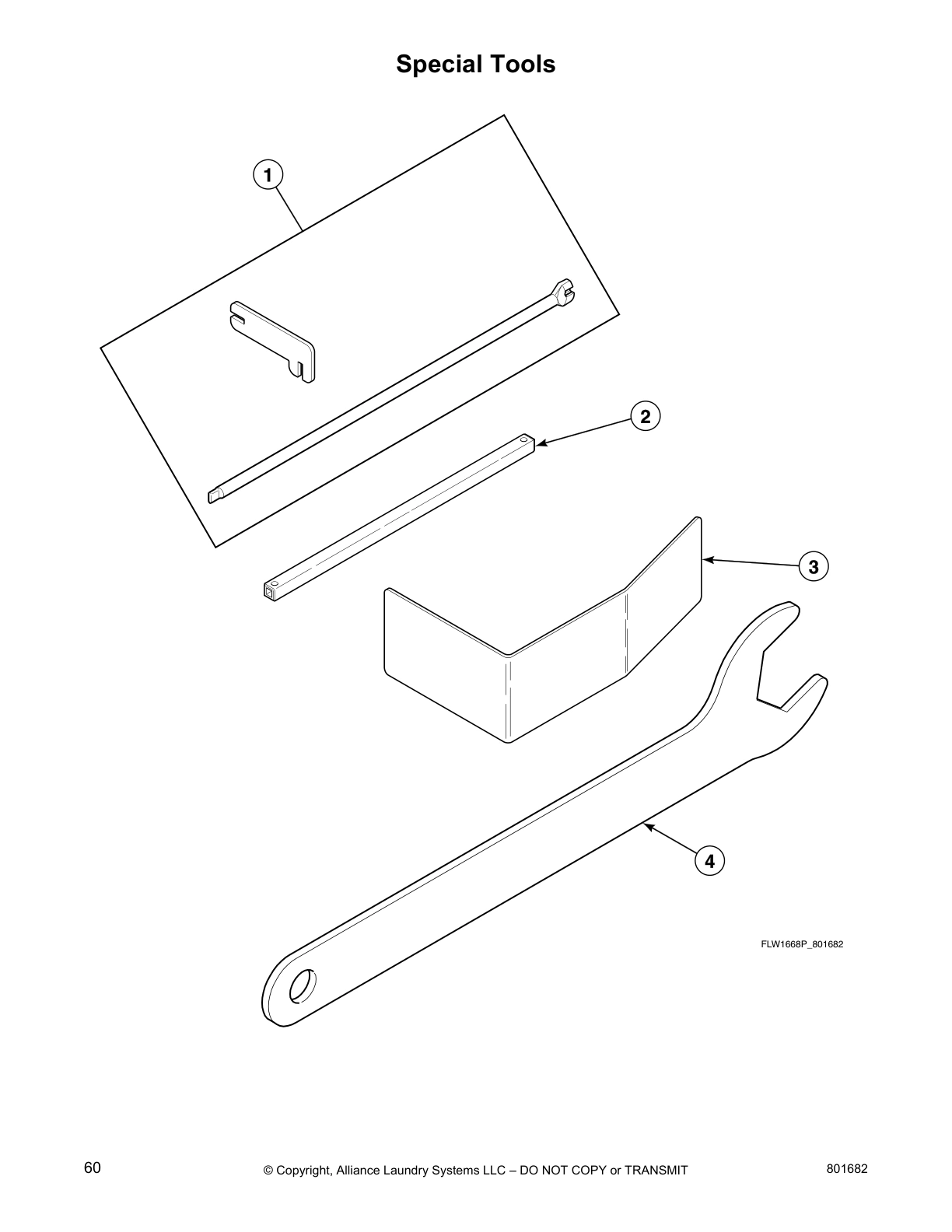

Special Tools

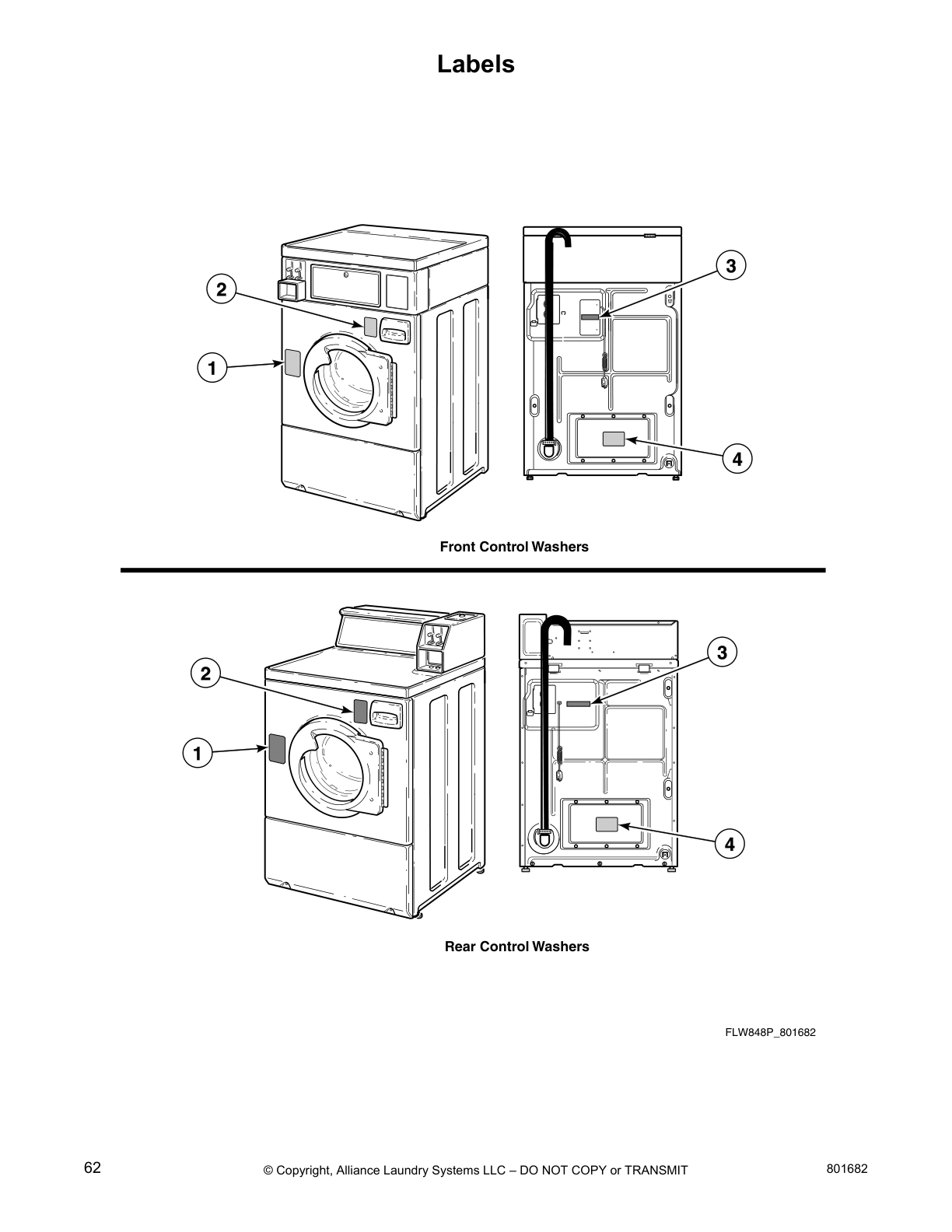

Labels

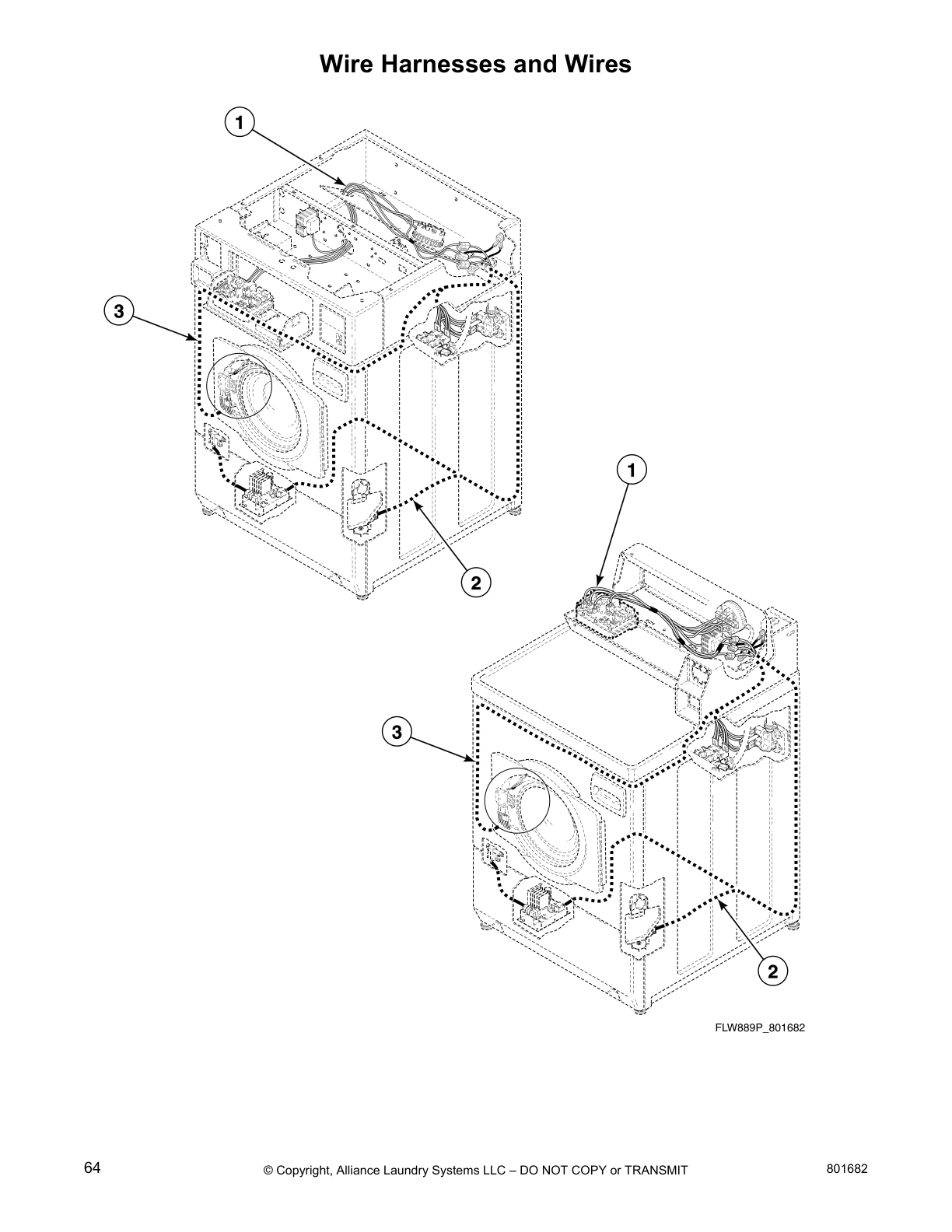

Wire Harnesses and Wires
Common parts from model Huebsch HWFT61*N1102 Washer
4
SPQ 800211 SPQ 800211 Contact Us For Availability
6
Drain Hose Elbow SPQ 802434P Contact Us For Availability
13
Dispenser Assembly SPQ 801476P Contact Us For Availability
22
Hose Clamp SPQ 800232P Contact Us For Availability
× ![]()
