Model GE HTX21GASK0WW – Common Parts & Diagrams

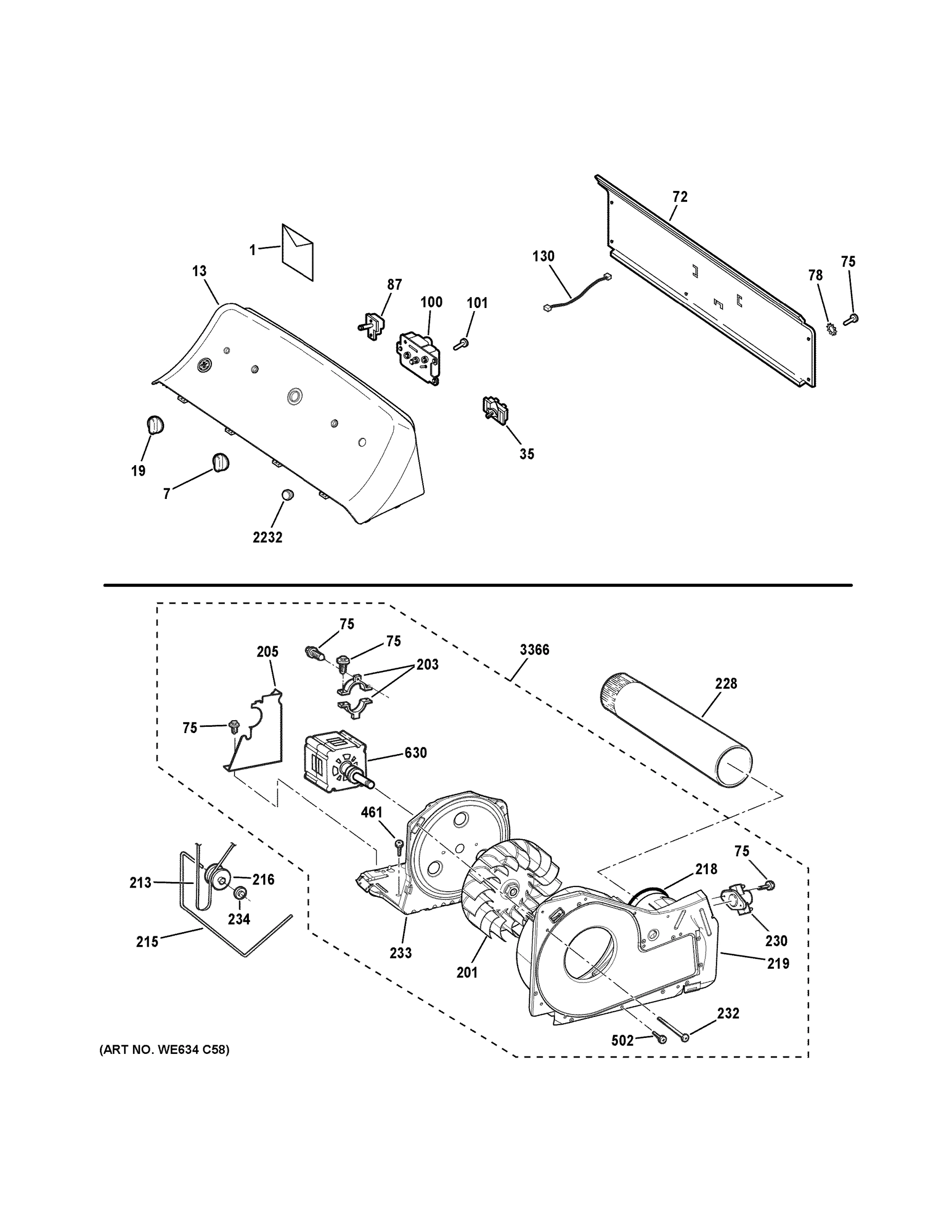

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

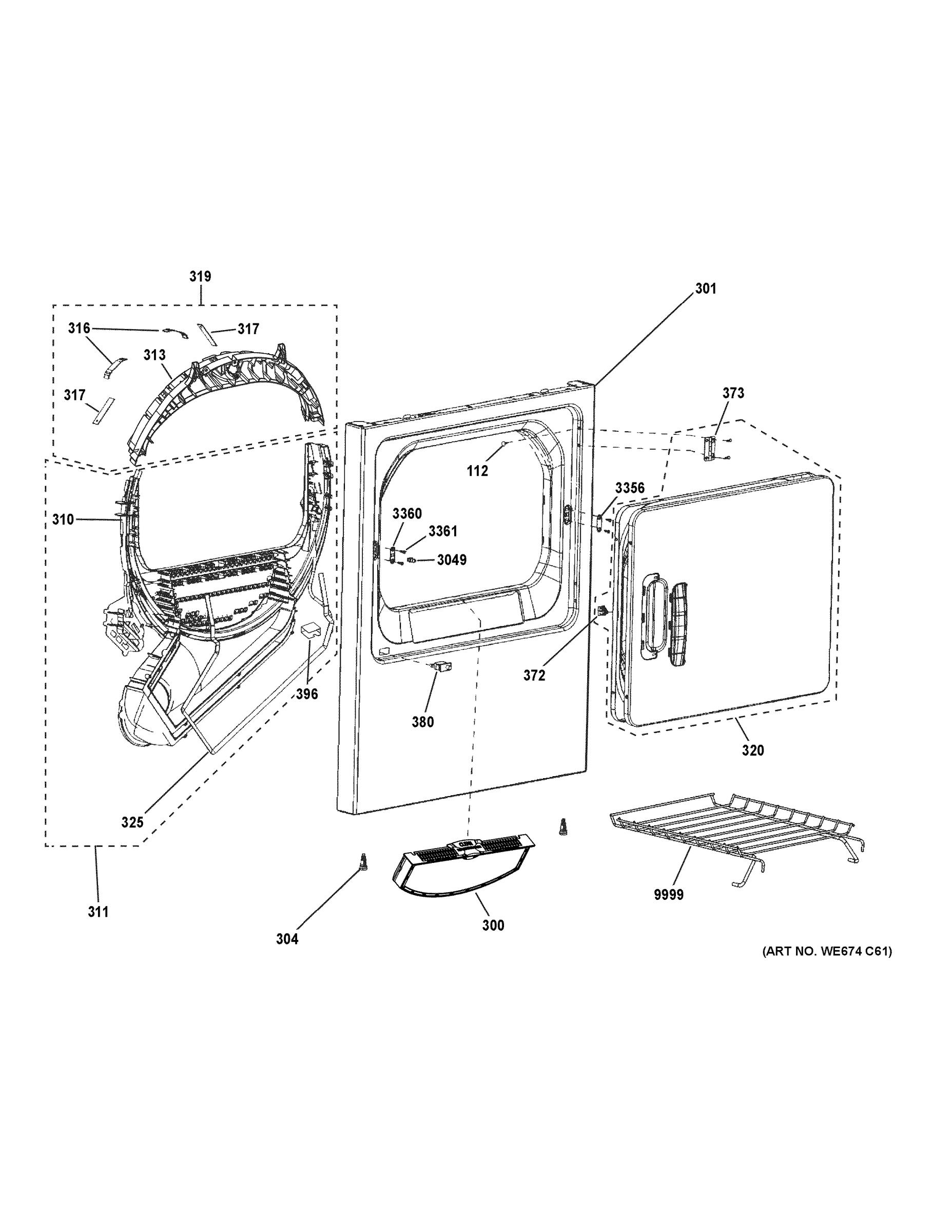

FRONT PANEL & DOOR
WATER SYSTEM
CABINET & TOP PANEL
DRUM
GAS VALVE & BURNER ASSEMBLY
Common parts from model GE HTX21GASK0WW
13
BACKSPLASH ASM GEN WE19X25315 Contact Us For Availability
19
KNOB OPTIONS GEN WE03X25286 Contact Us For Availability
35
SWITCH PTS GEN WE4M416 Contact Us For Availability
72
PANEL BACK GEN WE20X24556 Contact Us For Availability
87
SWITCH ROTARY GEN WE02X25283 Contact Us For Availability
100
TIMER GEN WE04X25281 Contact Us For Availability
101
SCR 30 X 20 IA PP GEN WE01X24720 Contact Us For Availability
112
PLUG BUTTON WHITE GEN WE1M934 Contact Us For Availability
205
MOTOR SUPPORT GEN WE13M39 Contact Us For Availability
215
IDLER ARM GEN WE03X20434 Contact Us For Availability
219
BLOWER HOUSING ASM GEN WE03X24536 Contact Us For Availability
228
EXHAUST DUCT GEN WE01X23892 Contact Us For Availability
230
THERMOSTAT GEN WE04X26215 Contact Us For Availability
232
SCREW GEN WE2M202 Contact Us For Availability
234
CAP NUT GEN WE2M96 Contact Us For Availability
301
PANEL FRONT GEN WE20X25260 Contact Us For Availability
310
TRAP DUCT SLIDES GEN WE01X24546 Contact Us For Availability
311
TRAP DUCT ASM GEN WE03X25275 Contact Us For Availability
313
BEARING TOP SLIDES GEN WE03X23956 Contact Us For Availability
319
BEARING TOP ASM GEN WE03X25314 Contact Us For Availability
325
GASKET (SEAL) 39 INCH GEN WE1M825 Contact Us For Availability
372
LATCH GEN WE01X25316 Contact Us For Availability
373
HINGE ASM GEN WE01X25317 Contact Us For Availability
396
SHIELD SWITCH GEN WE01X23880 Contact Us For Availability
401
COVER TOP LOW DEPTH GEN WE03X24721 Contact Us For Availability
403
SCREW GEN WE01X25318 Contact Us For Availability
408
CHASSIS AND LEG ASM GEN WE04X25159 Contact Us For Availability
420
PANEL REAR GEN WE02X25274 Contact Us For Availability
421
POWER CORD (120V GAS) GEN WE26M345 Contact Us For Availability
502
SCREW # 10 GEN WE2M174 Contact Us For Availability
503
DRUM ASM GEN WE21X23868 Contact Us For Availability
505
THERMOSTAT GEN WE04X25199 Contact Us For Availability
506
INLET THERMOSTAT GEN WE04X25201 Contact Us For Availability
507
HIGH LIMIT THERMOSTAT GEN WE04X26138 Contact Us For Availability
509
BAFFLE GEN WE14X20683 Contact Us For Availability
515
GROUND STRAP ASM GEN WE1M1015 Contact Us For Availability
519
SHAFT & BRACKET ASS'Y GEN WE3M33 Contact Us For Availability
531
DEFLECTOR FLAME GEN WE11X25154 Contact Us For Availability
534
SCREW #10 GEN WE2M163 Contact Us For Availability
552
DETECTOR GEN WE4X448 Contact Us For Availability
715
SCR GEN WD2M101 Contact Us For Availability
716
BURNER ASM. GEN WE14M104 Contact Us For Availability
718
SHUTTER AIR GEN WE02X24214 Contact Us For Availability
2232
BUTTON START ASM GEN WE04X24719 Contact Us For Availability
3102
BEARING RETAINER GEN WE1M300 Contact Us For Availability
3127
O RING GEN WE1M461 Contact Us For Availability
3356
STRIKE PLATE GEN WE1M569 Contact Us For Availability
3360
STRIKE PLATE W/STRK HOLE GEN WE1M570 Contact Us For Availability
3361
SCREW GEN WE2M302 Contact Us For Availability
3366
MOTOR & BLOWER ASM GEN WE17X24535 Contact Us For Availability
9999
VALVE AND PIPE ASM GEN WE03X23918 Contact Us For Availability
9999
VALVE AND PIPE ASM GEN WE03X23916 Contact Us For Availability
9999
KIT DRYING RACK GEN WE01X25160 Contact Us For Availability
× ![]()
