Model Huebsch HFNZCASP113TN31 Washer – Common Parts & Diagrams

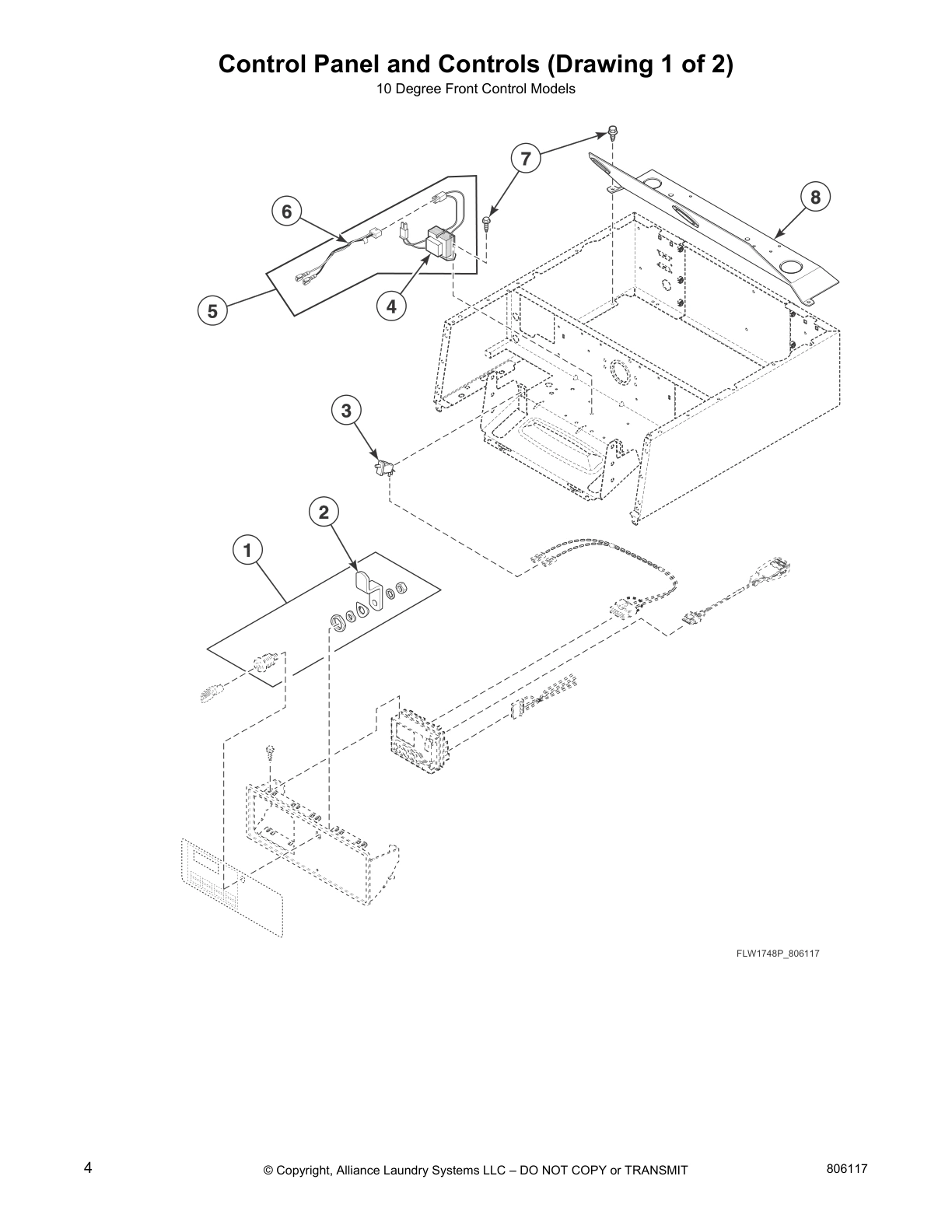

Control Panel and Controls (Drawing 1 of 2)

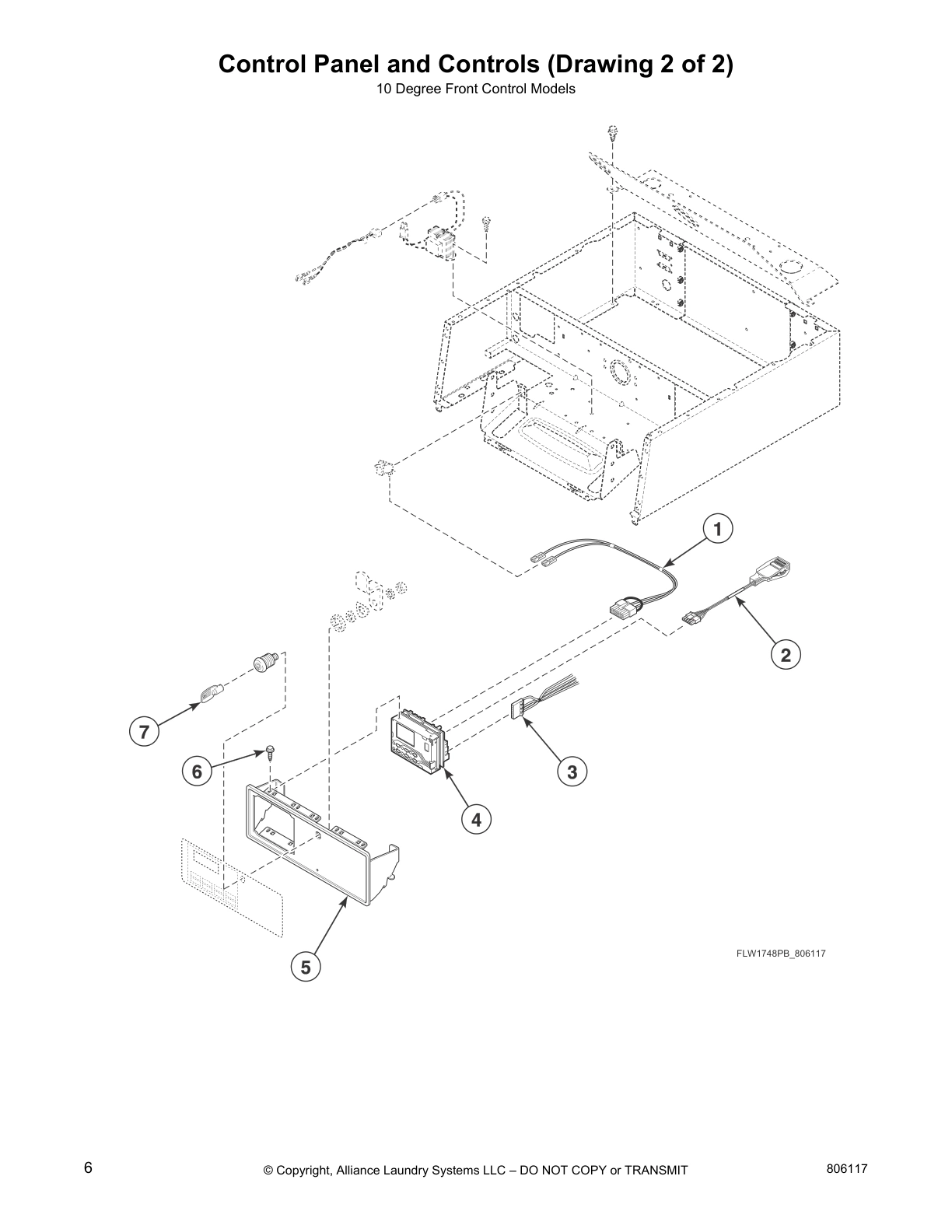

Control Panel and Controls (Drawing 2 of 2)
Control Panel Overlay
Top Assembly
Electrical Access Panel and Filters
Network Board Assembly
Control Cabinet and Meter Case
Non-Electronic Coin Drop
Non-Electronic Coin Drop Harness
Electronic Coin Drop
Control Cabinet - Front Control Card Reader Ready Models
Control Cabinet - 45 Degree Front Control Models
Coin Drop, Meter Case and Service Door
Meter Case, Service Door and Cabinet Top
Coin Slide and Extension
Control Panel, Control Hood and Controls (Drawing 1 of 3)
Control Panel, Control Hood and Controls (Drawing 2 of 3)
Control Panel, Control Hood and Controls (Drawing 3 of 3)
Front Panel, Door Assembly and Door Seal
Front Panel Assembly
Dispenser Assembly
Mixing Valve, Inlet Hose and Dispenser Hose
Outer Tub, Clamp Ring and Shock Absorbers
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt
Drain Hoses and Valve
Hoses and Pump
Base, Side Panels and Rear Panel
Junction Box and Power Cord
Shipping Materials
Wire Ties, Harness Clips and Lead-In Cord
Special Tools
Labels
Wire Harnesses and Wires
Common parts from model Huebsch HFNZCASP113TN31 Washer
SPQ 802803 SPQ 802803 Contact Us For Availability
SPQ 203719 SPQ 203719 Contact Us For Availability
SPQ 803789 SPQ 803789 Contact Us For Availability
SPQ CK078 SPQ CK078 Contact Us For Availability
Paint SPQ 800004QP Contact Us For Availability
1
Out-of-Balance Switch Assembly SPQ 807384 Contact Us For Availability
1
Front Control Harness SPQ 806031 Contact Us For Availability
1
Single Overlay SPQ 38717 Contact Us For Availability
1
Mounting Tool Kit SPQ CK096 Contact Us For Availability
1
Drain Hose SPQ 27154 Contact Us For Availability
1
Bumper Pad SPQ 36226 Contact Us For Availability
1
Lock Assembly SPQ 804339P Contact Us For Availability
1
Electronic Coin Drop Kit SPQ CK110 Contact Us For Availability
1
Dispenser Plate SPQ 803843 Contact Us For Availability
1
Meter Case Assembly SPQ 807396W Contact Us For Availability
1
Cable Tie SPQ M405829 Contact Us For Availability
2
Ratchet Extension Tool SPQ 310P4 Contact Us For Availability
2
Pressure Sensor Harness SPQ 804433 Contact Us For Availability
2
Screw SPQ 806313 Contact Us For Availability
2
Washer SPQ M400014 Contact Us For Availability
2
Anti-Seize Compound SPQ 804382 Contact Us For Availability
2
Coin Drop Kit SPQ 70441602 Contact Us For Availability
2
Pop Rivet SPQ 803868WP Contact Us For Availability
2
Harness Strap SPQ 55881 Contact Us For Availability
2
Coin Identification Paper SPQ 38725 Contact Us For Availability
2
Screw SPQ 805495P Contact Us For Availability
2
Hose Clamp SPQ 685725 Contact Us For Availability
3
SPQ 804376P SPQ 804376P Contact Us For Availability
3
Motor Harness SPQ 806029 Contact Us For Availability
3
Hose Clamp SPQ 803829 Contact Us For Availability
3
Pulley Bolt Tightening Fixture SPQ 802336 Contact Us For Availability
3
Hose Clip SPQ 36985 Contact Us For Availability
3
Hose Clamp SPQ 801001 Contact Us For Availability
3
SPQ 805548 SPQ 805548 Contact Us For Availability
3
Shipping Brace SPQ 807448 Contact Us For Availability
3
Warning Label SPQ 802367 Contact Us For Availability
4
Bolt SPQ D511036 Contact Us For Availability
4
Wrench SPQ 392P4 Contact Us For Availability
4
Mixing Valve Screen SPQ 803849 Contact Us For Availability
4
SPQ 804374P SPQ 804374P Contact Us For Availability
4
Door Lock Harness Assembly SPQ 806028 Contact Us For Availability
4
SPQ 804467 SPQ 804467 Contact Us For Availability
4
Screw SPQ 70240301 Contact Us For Availability
4
Pressure Sensor SPQ 803876 Contact Us For Availability
4
Shipping Bolt Assembly SPQ 807452 Contact Us For Availability
4
Wire Clip SPQ F8449502 Contact Us For Availability
5
Panel Locator SPQ 203843 Contact Us For Availability
5
Washer SPQ 24122 Contact Us For Availability
5
SPQ 803879 SPQ 803879 Contact Us For Availability
5
SPQ 804617W SPQ 804617W Contact Us For Availability
5
Pump-to-Elbow Hose SPQ 35766 Contact Us For Availability
5
Shipping Bracket Label SPQ 807552 Contact Us For Availability
5
Nut SPQ 03673 Contact Us For Availability
5
Caution Label SPQ 801706 Contact Us For Availability
6
Screw SPQ 56079 Contact Us For Availability
6
Wire Guard SPQ 201595P Contact Us For Availability
6
SPQ 802343 SPQ 802343 Contact Us For Availability
6
Motor Control Shield SPQ 804878 Contact Us For Availability
6
Washer SPQ 03815 Contact Us For Availability
6
Left Hand Thread Label SPQ 804949 Contact Us For Availability
7
Fill Hose SPQ 802254 Contact Us For Availability
7
SPQ D503688 SPQ D503688 Contact Us For Availability
7
Foam Pad SPQ 803698 Contact Us For Availability
7
SPQ 802288P SPQ 802288P Contact Us For Availability
7
Washer SPQ D501524 Contact Us For Availability
7
Pump-to-Gravity Drain Kit SPQ 20391 Contact Us For Availability
7
Screw SPQ 20530 Contact Us For Availability
7
Electrical Shock Label SPQ F8211201 Contact Us For Availability
8
Strain Relief SPQ 38384 Contact Us For Availability
8
SPQ 44087201 SPQ 44087201 Contact Us For Availability
8
Screw SPQ M400057 Contact Us For Availability
8
SPQ 02916 SPQ 02916 Contact Us For Availability
8
SPQ 803734 SPQ 803734 Contact Us For Availability
9
SPQ D512973 SPQ D512973 Contact Us For Availability
9
Lead-In Cord SPQ 202777 Contact Us For Availability
9
SPQ 804717 SPQ 804717 Contact Us For Availability
9
SPQ 800310 SPQ 800310 Contact Us For Availability
9
Rear Panel SPQ 806086 Contact Us For Availability
10
Pressure Bulb SPQ 803415 Contact Us For Availability
10
Dispenser Handle SPQ 804227WP Contact Us For Availability
10
Belt Kit SPQ 807429P Contact Us For Availability
10
Screw SPQ D503661 Contact Us For Availability
10
Shipping Plate SPQ 803851 Contact Us For Availability
11
Washer SPQ 807679 Contact Us For Availability
11
Motor and Rod Assembly Kit SPQ 808067P Contact Us For Availability
11
Nut SPQ 29786 Contact Us For Availability
11
Gravity Drain Bracket SPQ 803833 Contact Us For Availability
12
Glass Mounting Clip SPQ 802934 Contact Us For Availability
12
Screw SPQ 685831 Contact Us For Availability
12
Motor and Rod Assembly Kit SPQ 808034P Contact Us For Availability
12
Drain Base Bracket SPQ 803814 Contact Us For Availability
12
Drain Hose Bracket SPQ 803828 Contact Us For Availability
13
Hose Clamp SPQ 804483 Contact Us For Availability
13
Balance Ring Assembly SPQ M403958 Contact Us For Availability
13
Control Assembly SPQ 203423 Contact Us For Availability
13
Panel Locator SPQ 23951 Contact Us For Availability
13
Drain Pump Isolator SPQ 802431 Contact Us For Availability
13
Cabinet Side Panel SPQ 802526P Contact Us For Availability
14
Screw SPQ 802700 Contact Us For Availability
14
O-Ring SPQ 803815 Contact Us For Availability
14
Side Panel Kit SPQ 800005DG Contact Us For Availability
15
Rubber Foot SPQ 806492 Contact Us For Availability
16
Rubber Foot SPQ D501855 Contact Us For Availability
16
Pump Housing Assembly SPQ 802429P Contact Us For Availability
17
Anchor Floor Mount Assembly SPQ 34318 Contact Us For Availability
17
Tub Front SPQ 803864 Contact Us For Availability
17
Pump Housing SPQ 802434P Contact Us For Availability
18
Trunnion Shaft Kit SPQ 804393 Contact Us For Availability
18
Foreign Object Deflector SPQ 803770 Contact Us For Availability
18
Anchor SPQ 802844P Contact Us For Availability
18
Gasket SPQ 802428 Contact Us For Availability
19
Tub Front Seal SPQ 806361 Contact Us For Availability
19
Standpipe Strap SPQ 802427 Contact Us For Availability
20
Access Panel Assembly SPQ 806466 Contact Us For Availability
20
Clamp Ring SPQ 806308 Contact Us For Availability
20
Sealant SPQ 802426P Contact Us For Availability
21
Nut SPQ 803801 Contact Us For Availability
21
Front Panel SPQ 802281 Contact Us For Availability
23
Clothes Guard Deflector SPQ 803802 Contact Us For Availability
23
Door Glass Mounting Plate SPQ 802206 Contact Us For Availability
24
Door Glass SPQ 36020 Contact Us For Availability
27
Grommet SPQ 802596 Contact Us For Availability
NI
SPQ 70441601P SPQ 70441601P Contact Us For Availability
NI
SPQ 54612 SPQ 54612 Contact Us For Availability
NI
SPQ CK115 SPQ CK115 Contact Us For Availability
NI
SPQ 29175 SPQ 29175 Contact Us For Availability
NI
SPQ 808095 SPQ 808095 Contact Us For Availability
NI
Fill Hose SPQ 803615 Contact Us For Availability
NI
Porcelain Touch-Up Paint SPQ 800004WP Contact Us For Availability
NI
SPQ 38462P SPQ 38462P Contact Us For Availability
NI
SPQ 801993 SPQ 801993 Contact Us For Availability
NI
SPQ 806716 SPQ 806716 Contact Us For Availability
NI
SPQ 203720 SPQ 203720 Contact Us For Availability
NI
SPQ 805771 SPQ 805771 Contact Us For Availability
NI
SPQ 803859 SPQ 803859 Contact Us For Availability
NI
SPQ 70441603 SPQ 70441603 Contact Us For Availability
NI
Shipping Plug SPQ 802525P Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
NI
SPQ 23008 SPQ 23008 Contact Us For Availability
NI
SPQ M400080 SPQ M400080 Contact Us For Availability
NI
SPQ 02834 SPQ 02834 Contact Us For Availability
NI
Belt Install Tool SPQ 807623 Contact Us For Availability
NI
SPQ 805770 SPQ 805770 Contact Us For Availability
NI
SPQ 800004DG SPQ 800004DG Contact Us For Availability
NI
SPQ 806436P SPQ 806436P Contact Us For Availability
NI
Label SPQ 807550 Contact Us For Availability
× ![]()
