Model GE GTD84ECSN0WS Dryer Electric – Common Parts & Diagrams

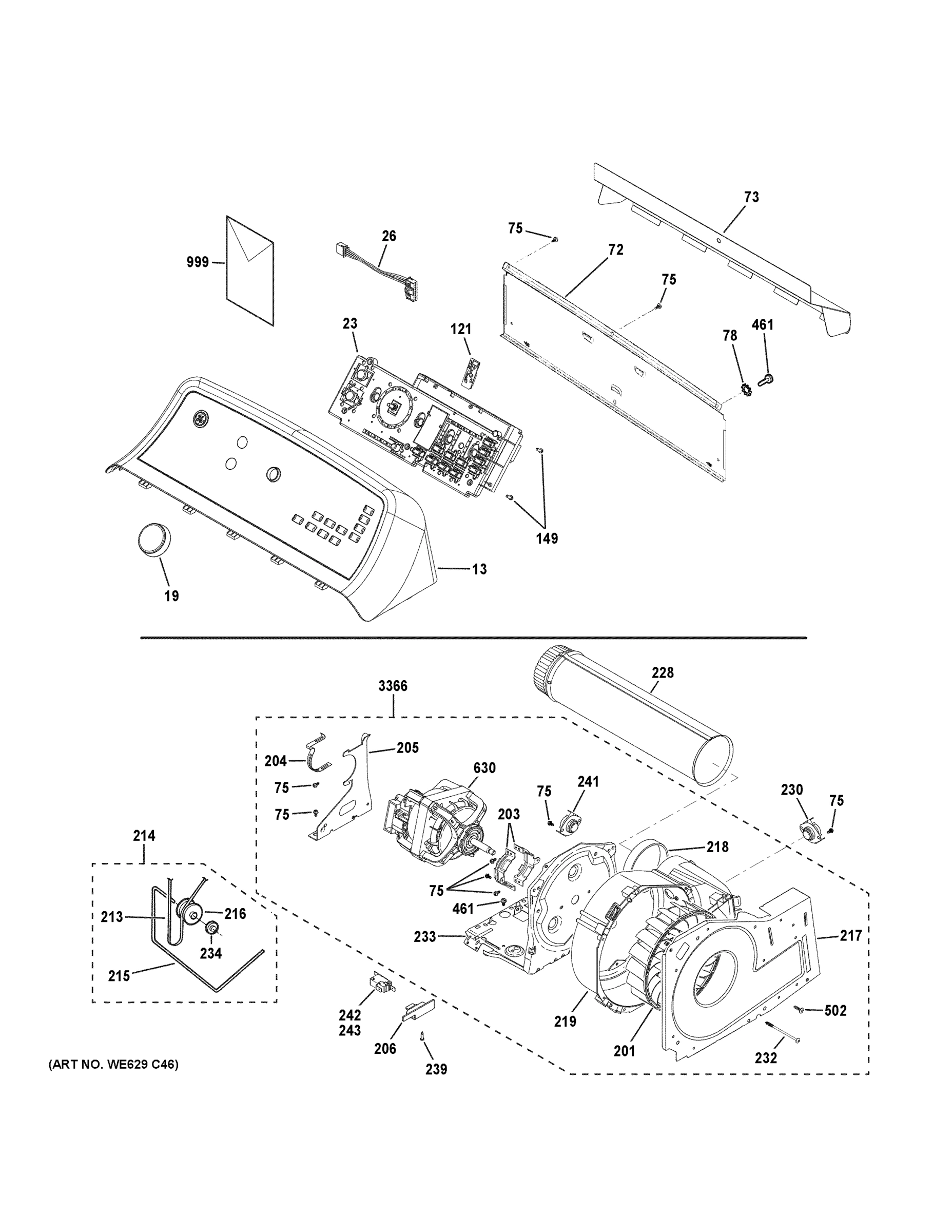

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

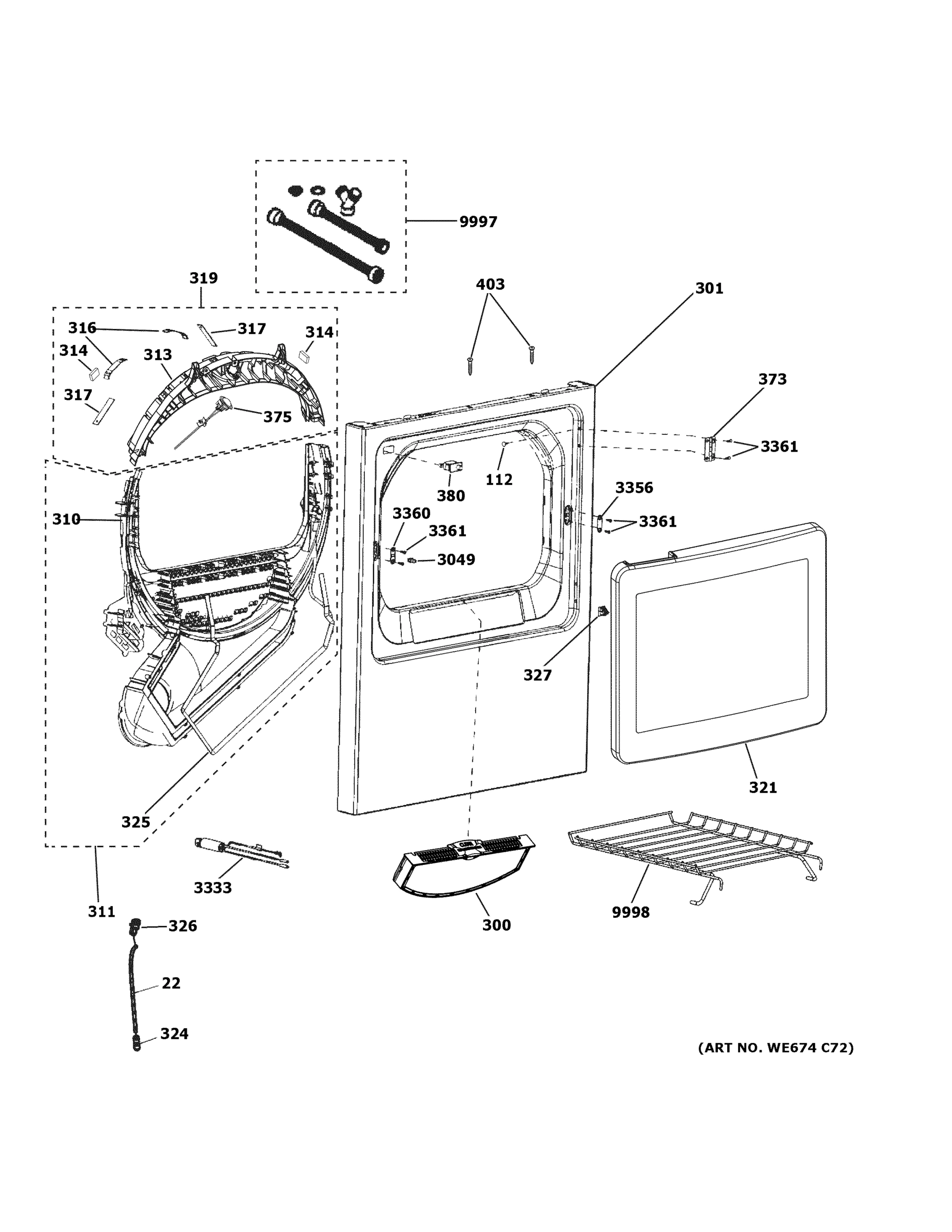

FRONT PANEL & DOOR
TRAP DUCT ASSEMBLY
CABINET & TOP PANEL
DRUM
Common parts from model GE GTD84ECSN0WS Dryer Electric
13
IMD AND BACKSPLASH ASM GEN WE22X29474 Contact Us For Availability
19
SELECTOR KNOB GEN WH01X28943 Contact Us For Availability
22
TUBE GEN WE01X28094 Contact Us For Availability
70
SCR 8-18 AB 13/4 S HXW GEN WR01X10634 Contact Us For Availability
72
PANEL BACK GEN WE20X24556 Contact Us For Availability
75
SCREW GEN WE01X25535 Contact Us For Availability
112
PLUG BUTTON WHITE GEN WE1M934 Contact Us For Availability
149
SCREW 8-18 HI/LO 5/8 GEN WR01X10196 Contact Us For Availability
203
STRAP MOTOR GEN WE13X200 Contact Us For Availability
204
STRAP MOTOR GEN WE1X921 Contact Us For Availability
205
MOTOR SUPPORT GEN WE13M39 Contact Us For Availability
213
BELT DRIVE GEN WE03X29259 Contact Us For Availability
214
IDLER ARM ASM GEN WE03X27417 Contact Us For Availability
215
IDLER ARM GEN WE03X20434 Contact Us For Availability
222
COVER BOTTOM GEN WE03X23884 Contact Us For Availability
228
EXHAUST DUCT GEN WE01X23893 Contact Us For Availability
230
THERMOSTAT GEN WE04X25200 Contact Us For Availability
232
SCREW GEN WE2M202 Contact Us For Availability
234
CAP NUT GEN WE2M96 Contact Us For Availability
241
OUTLET CNTRL THERMISTOR GEN WE4M448 Contact Us For Availability
243
SWITCH INTERLOCK GEN WD21X10261 Contact Us For Availability
311
TRAP DUCT ASM GEN WE16X29472 Contact Us For Availability
312
FELT TRAP DUCT GEN WE09X27634 Contact Us For Availability
313
BEARING TOP SLIDES GEN WE03X23956 Contact Us For Availability
319
BEARING TOP ASM GEN WE03X23875 Contact Us For Availability
321
DOOR ASM GEN WE10X23891 Contact Us For Availability
324
CONNECTOR SERVICE GEN WE01X20560 Contact Us For Availability
325
GASKET (SEAL) 39 INCH GEN WE1M825 Contact Us For Availability
326
ELBOW & NOZZLE ASM GEN WE1M943 Contact Us For Availability
327
LATCH GEN WE01X25316 Contact Us For Availability
373
HINGE ASM GEN WE01X25317 Contact Us For Availability
375
LED GEN WE15X25754 Contact Us For Availability
401
COVER TOP HIGH DEPTH GEN WE03X23889 Contact Us For Availability
403
SCREW GEN WE01X25318 Contact Us For Availability
419
TERM BLK & GRND STRAP GEN WE4M325 Contact Us For Availability
430
COVER FUSE TERMINAL GEN WE1M1007 Contact Us For Availability
431
STRAIN RELIEF BRACKET EL GEN WE01X20423 Contact Us For Availability
476
VALVE WATER GEN WE4M503 Contact Us For Availability
502
SCREW # 10 GEN WE2M174 Contact Us For Availability
503
DRUM ASM GEN WE21X23869 Contact Us For Availability
504
DIFFUSER GEN WE11X29438 Contact Us For Availability
505
THERMOSTAT GEN WE04X25198 Contact Us For Availability
506
INLET CONTROL THERMOSTAT GEN WE4M398 Contact Us For Availability
507
HIGH LIMIT THERMOSTAT GEN WE04X26138 Contact Us For Availability
509
BAFFLE GEN WE14X20683 Contact Us For Availability
511
SENSOR RODS GEN WE1M575 Contact Us For Availability
512
HEATER AND HOUSING ASM GEN WE11X21156 Contact Us For Availability
513
HEATER HOUSING GEN WE11M43 Contact Us For Availability
514
MICA HEATER GEN WE11M10001 Contact Us For Availability
515
GROUND STRAP ASM GEN WE13X29439 Contact Us For Availability
519
SHAFT & BRACKET ASS'Y GEN WE3M33 Contact Us For Availability
534
SCREW #10 GEN WE2M163 Contact Us For Availability
804
HARNESS ELEC ASM GEN WE08X29466 Contact Us For Availability
805
HARNESS HIGH LIMIT ASM GEN WE08X29468 Contact Us For Availability
3049
STRIKE GEN WE01M10007 Contact Us For Availability
3102
BEARING RETAINER GEN WE1M300 Contact Us For Availability
3127
O RING GEN WE1M461 Contact Us For Availability
3333
HARNESS SENSOR ASM GEN WE15X26994 Contact Us For Availability
3356
STRIKE PLATE GEN WE1M569 Contact Us For Availability
3360
STRIKE PLATE W/STRK HOLE GEN WE1M570 Contact Us For Availability
3361
SCREW GEN WE2M302 Contact Us For Availability
9997
STEAM KIT GEN WE25X20060 Contact Us For Availability
9998
KIT DRYING RACK GEN WE01X25160 Contact Us For Availability
× ![]()
