Model Whirlpool GSQ9612KT0 WASHER – Common Parts & Diagrams

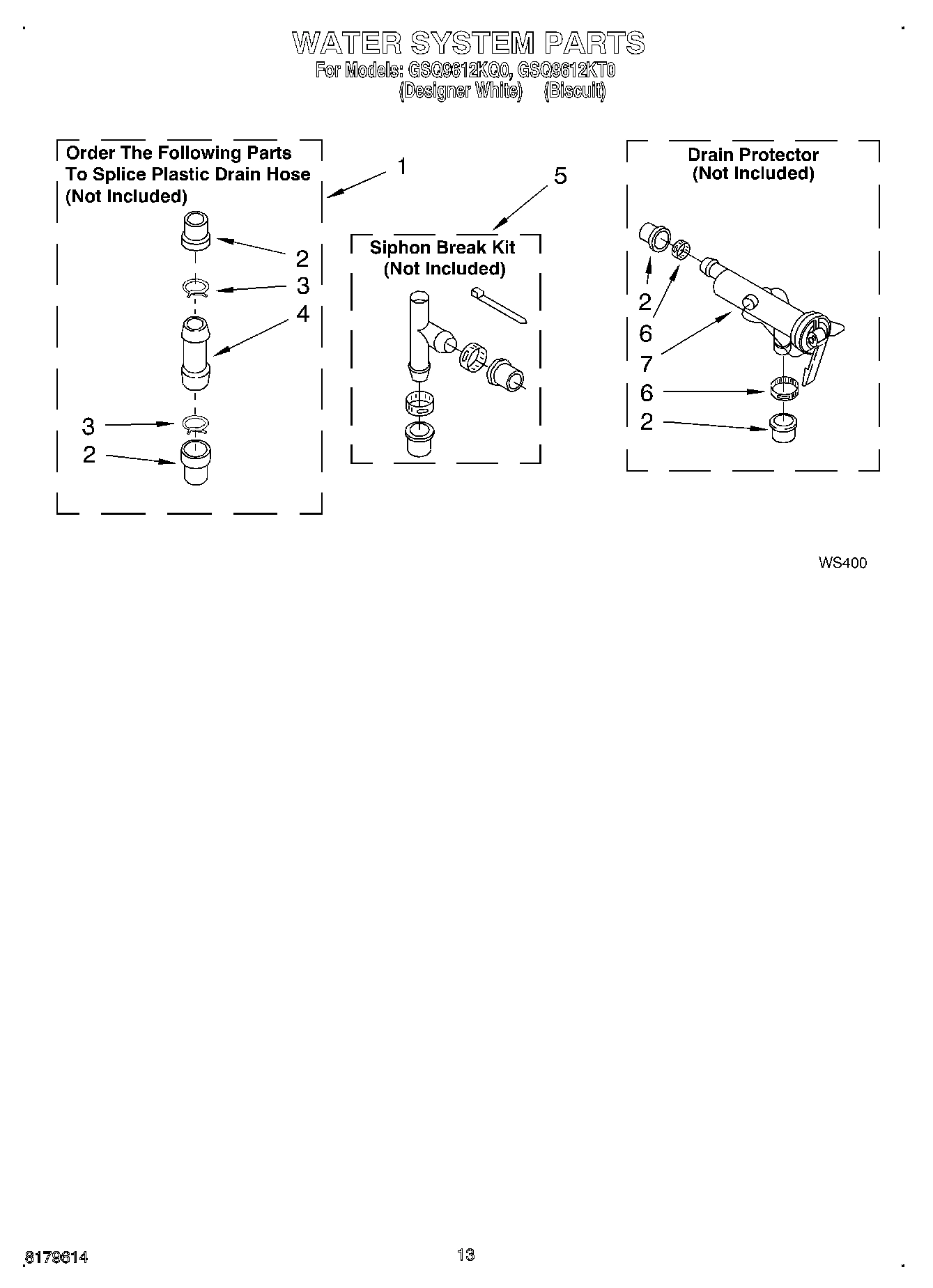

09 - WATER SYSTEM

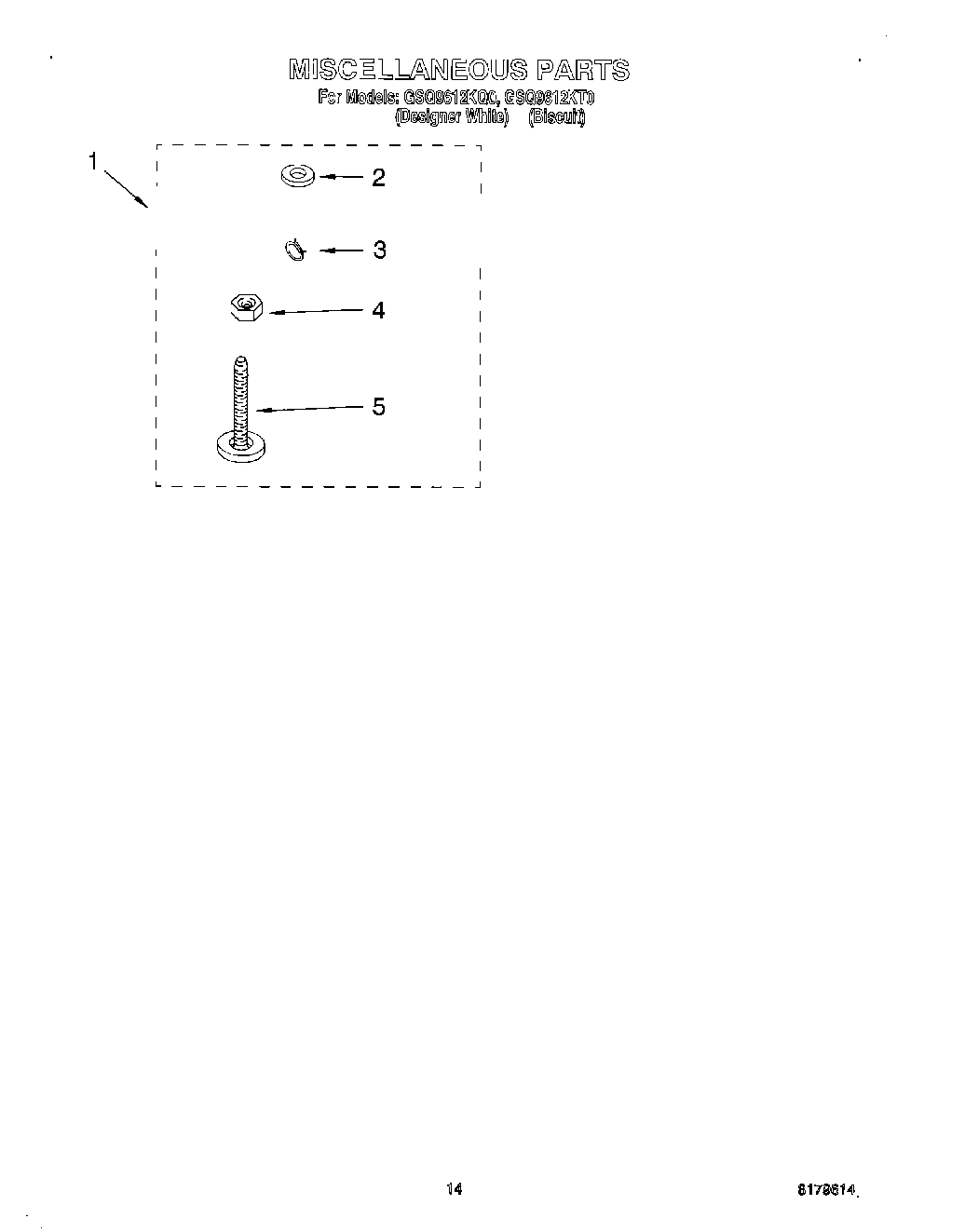

10 - MISCELLANEOUS, OPTIONAL

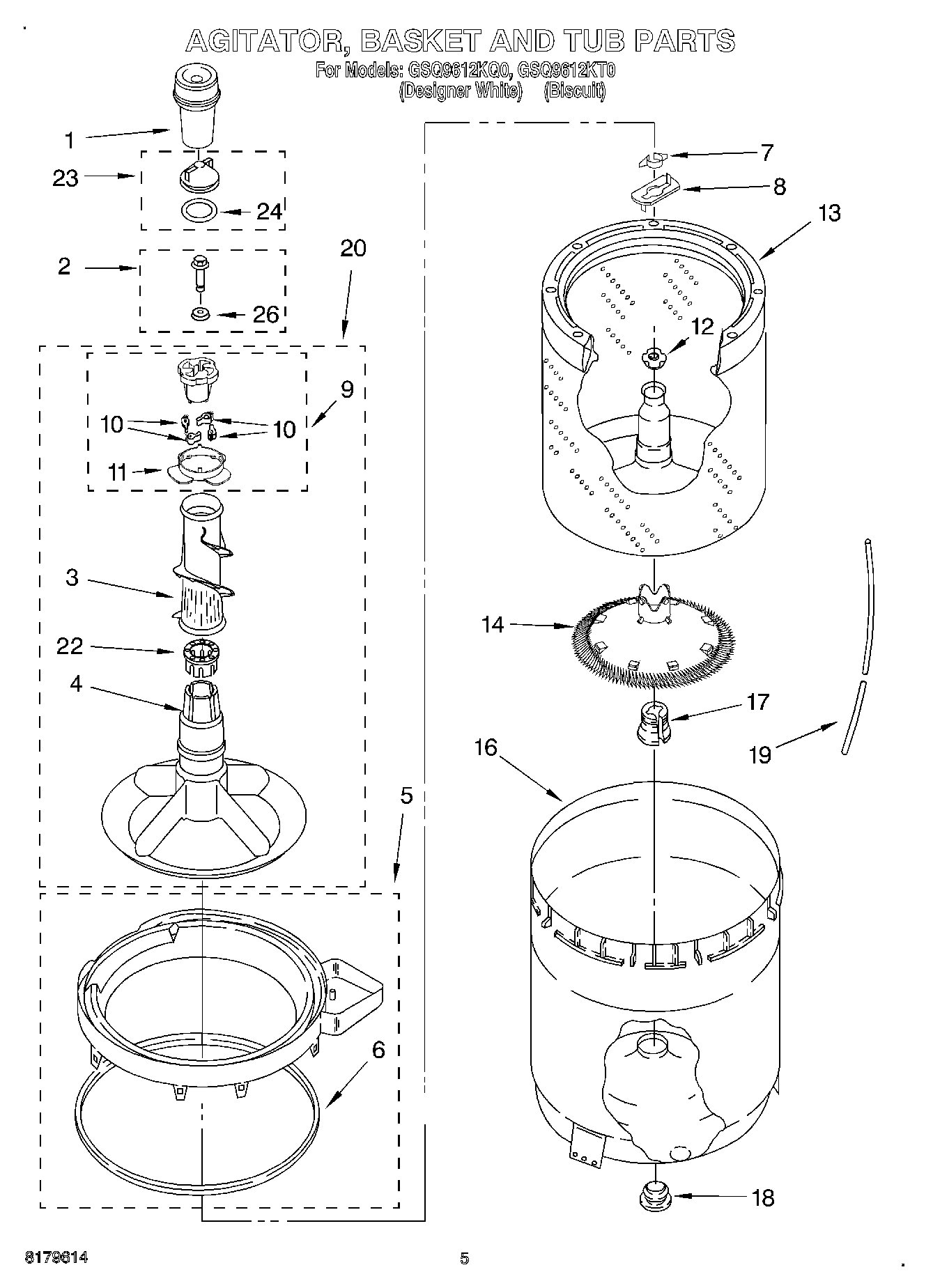

03 - AGITATOR, BASKET AND TUB

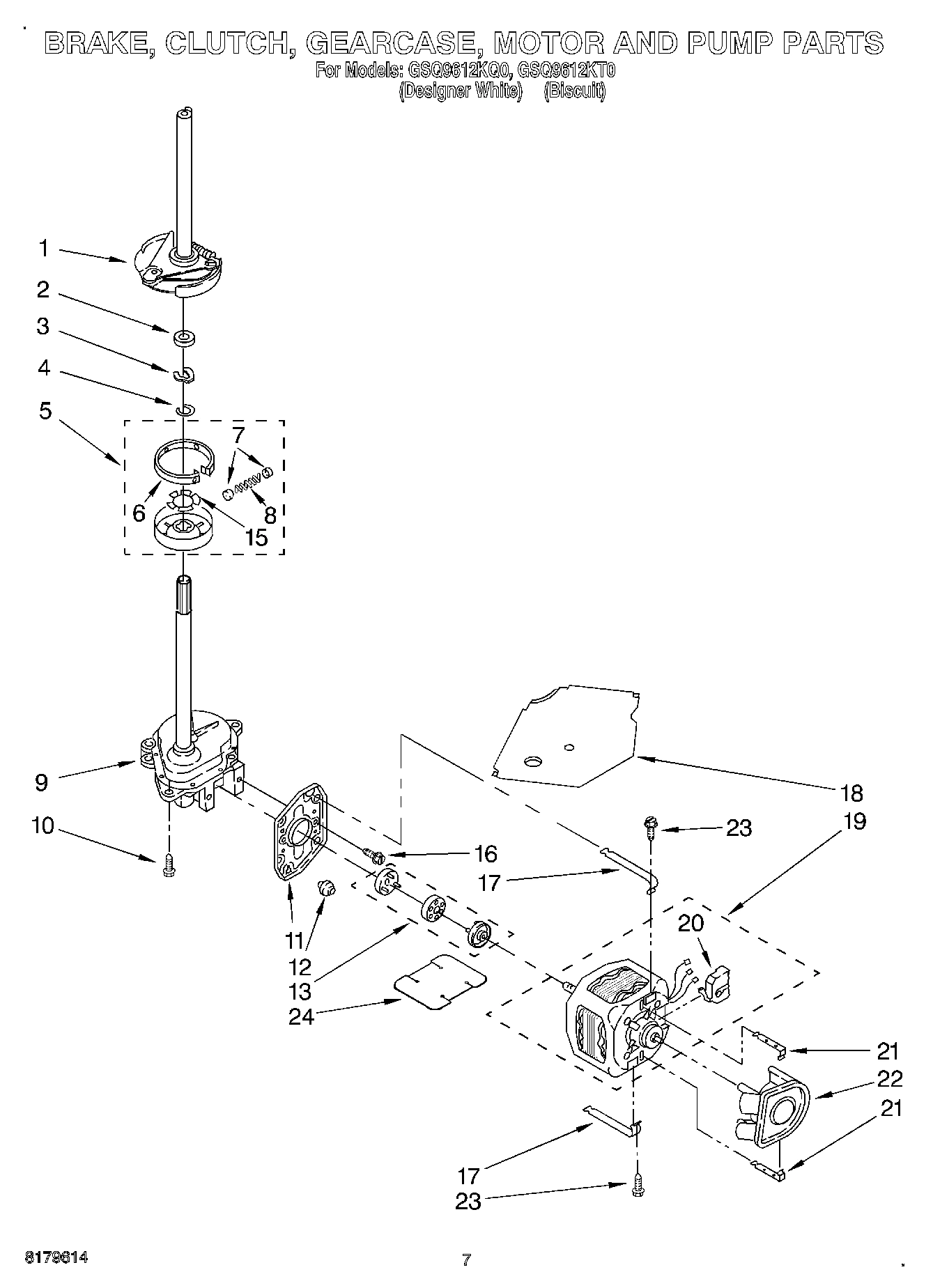

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

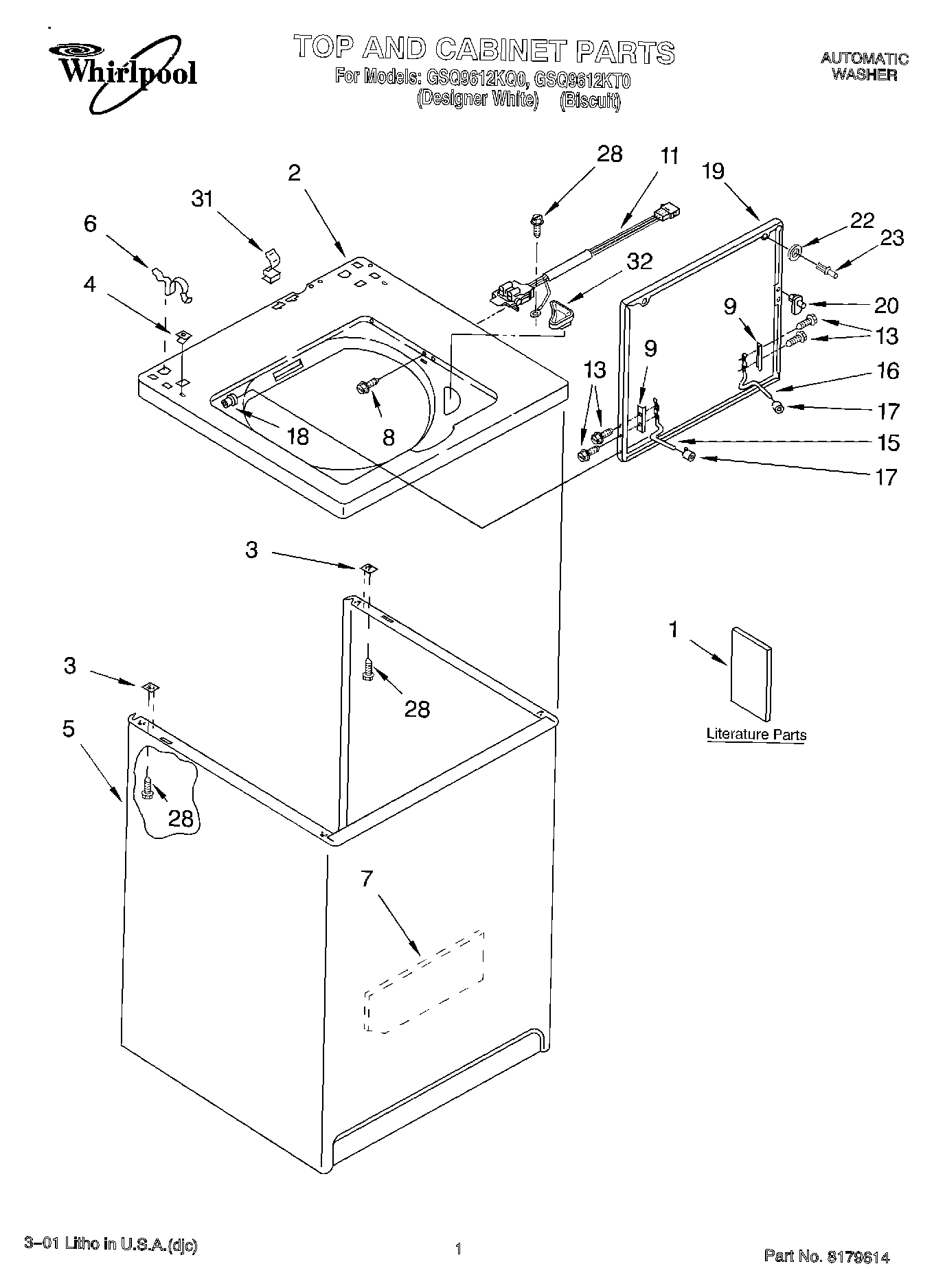

01 - TOP AND CABINET, LITERATURE

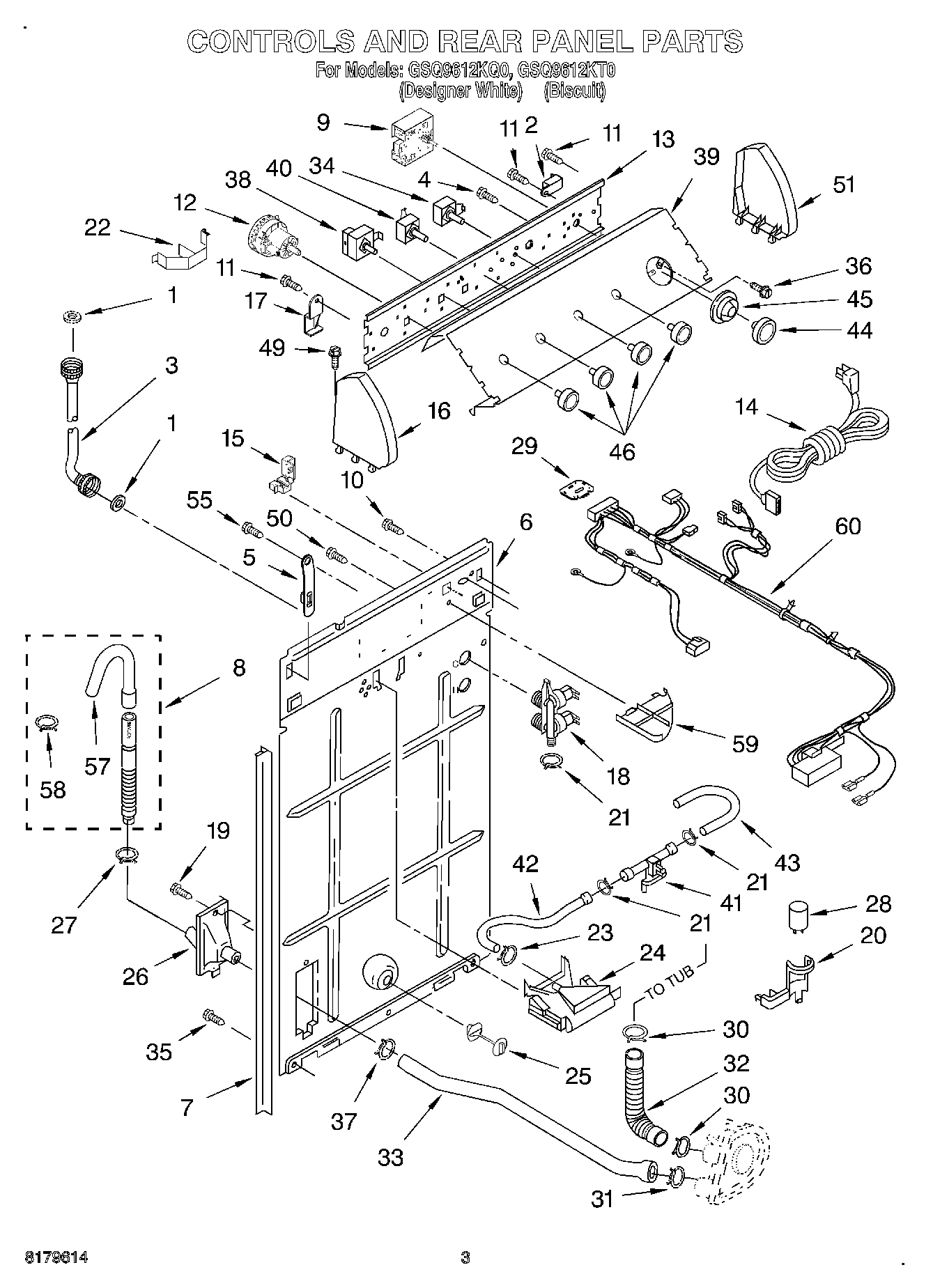

02 - CONTROLS AND REAR PANEL

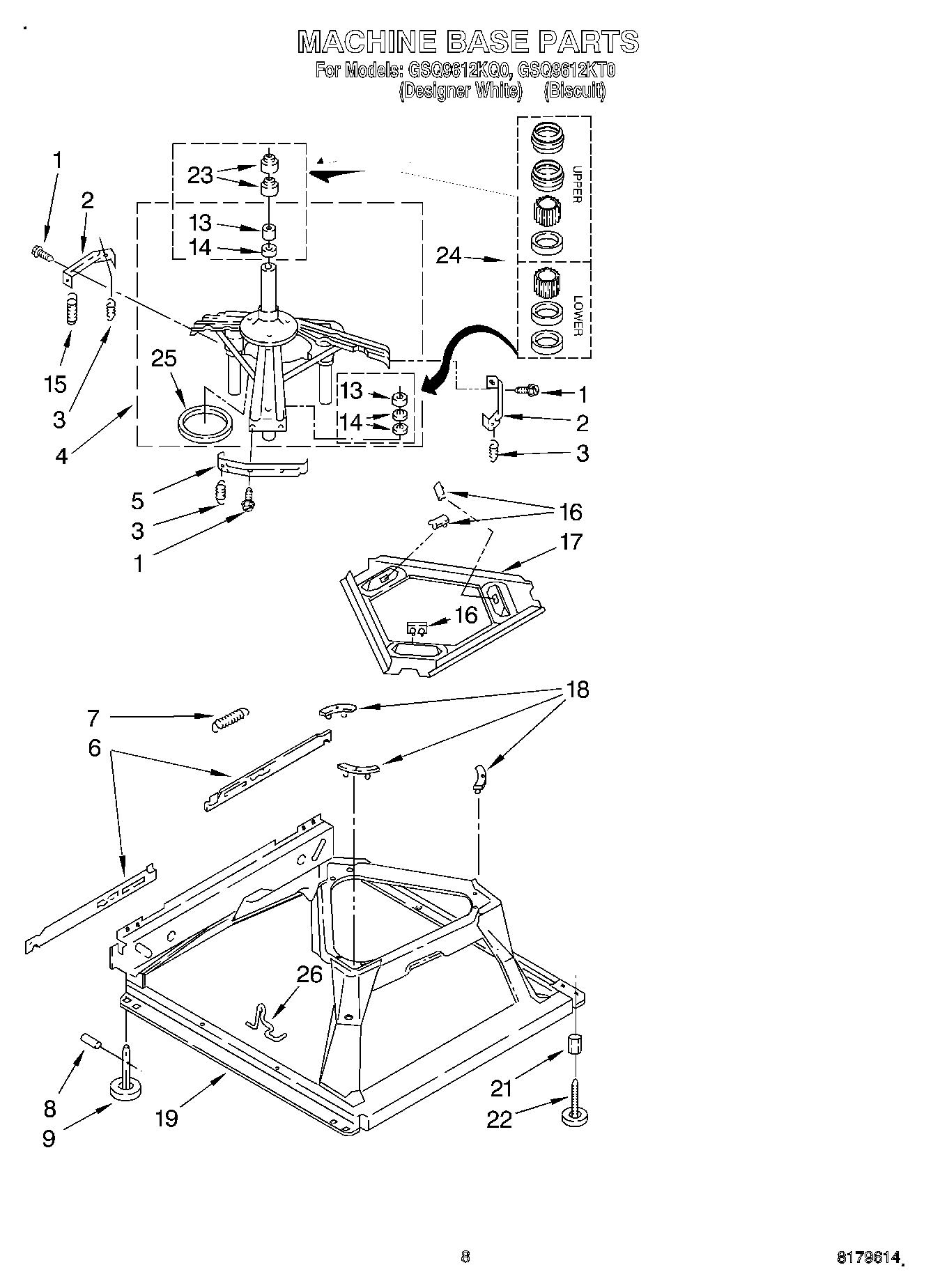

05 - MACHINE BASE
07 - BRAKE AND DRIVE TUBE
06 - WIRING HARNESS

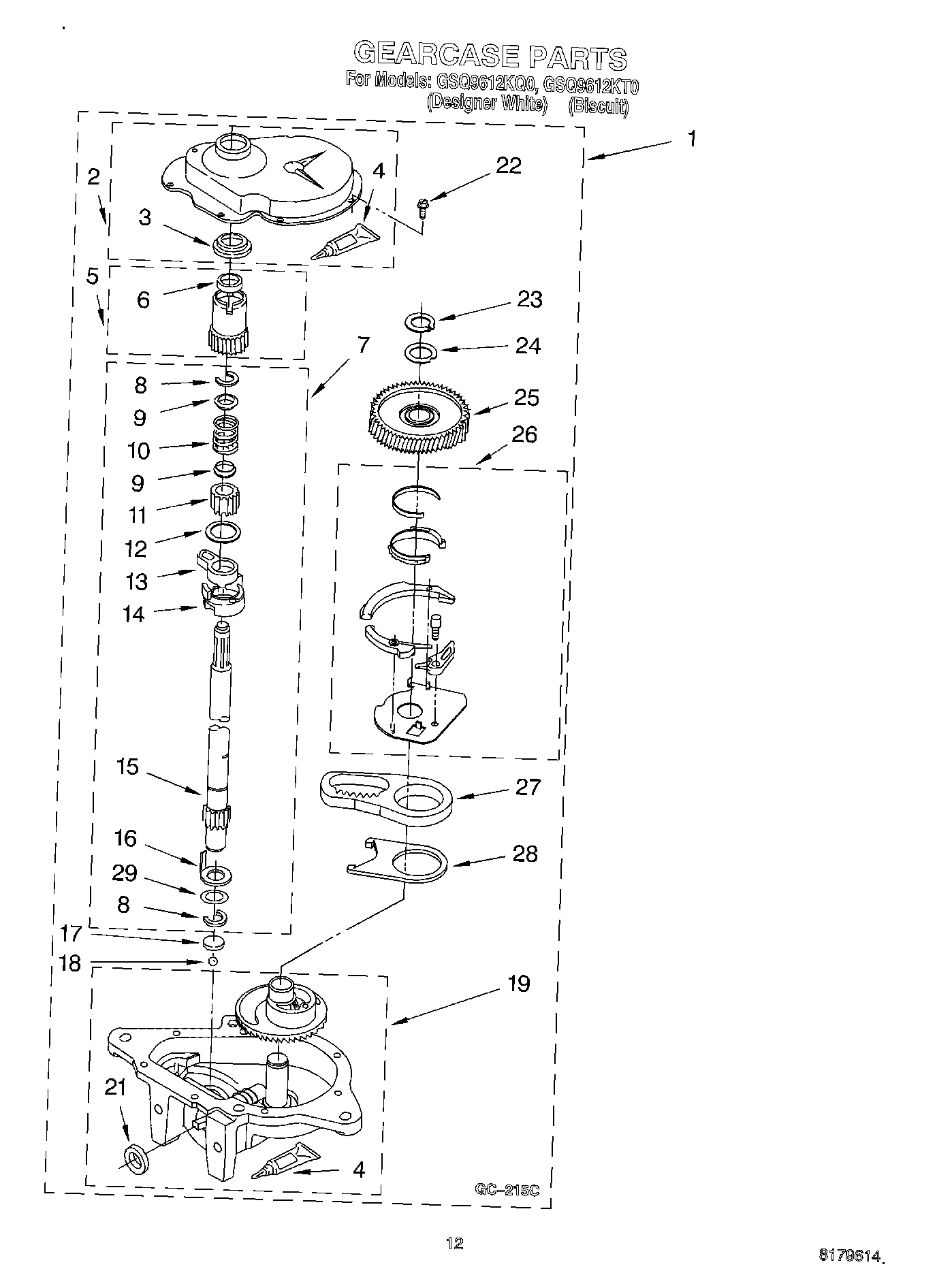

08 - GEARCASE
Common parts from model Whirlpool GSQ9612KT0 WASHER
1
Dispenser WPL 63580 Contact Us For Availability
1
Connector Kit, Plastic Drain Hose WPL 285442 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
2
Cover, Gearcase WPL 285202 Contact Us For Availability
2
Clip, Harness WPL 388498 Contact Us For Availability
4
Support & Brake, Tub WPL 3362087 Contact Us For Availability
5
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
5
Biscuit WPL 4392899 Contact Us For Availability
5
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
5
Siphon Break Kit WPL 285320 Contact Us For Availability
5
OIL WPL 350572 Contact Us For Availability
5
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
5
Cabinet (White) WPL 63424 Contact Us For Availability
5
Spacer, Drive Tube WPL 356937 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
6
Clip, Harness WPL 3390496 Contact Us For Availability
8
Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
9
Retainer, Spring WPL 62677 Contact Us For Availability
10
Spring, Agitator WPL 62676 Contact Us For Availability
11
Plug, Terminal (3-Way) (Power Cord) (Use Term WPL 353424 Contact Us For Availability
11
Spring, Brake WPL 387806 Contact Us For Availability
12
Washer, Agitator Gear WPL 62619 Contact Us For Availability
13
Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability
14
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
15
Strain Relief, Power Cord WPL 3952821 Contact Us For Availability
15
Protector WPL 63523 Contact Us For Availability
16
Tub WPL 63849 Contact Us For Availability
16
Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability
16
Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability
16
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
16
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Retainer, Harness WPL 8283343 Contact Us For Availability
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
18
Clip, Harness WPL 3352944 Contact Us For Availability
19
Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability
19
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
20
Clip, Capacitor WPL 8318201 Contact Us For Availability
20
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
22
Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability
22
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
23
Connector, Etc WPL 3349494 Contact Us For Availability
23
Ring, Retaining WPL 3362552 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability
24
Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
25
Control, ETC WPL 3407125 Contact Us For Availability
28
Block, Connector (Cold Valve) (Use Term. 6932 WPL 3354925 Contact Us For Availability
29
WPL 3354926 WPL 3354926 Contact Us For Availability
30
WPL 3948615 WPL 3948615 Contact Us For Availability
33
Hose, Pump To Drain Connector WPL 3359816 Contact Us For Availability
38
Switch Temperature WPL 3950358 Contact Us For Availability
39
Panel, Console (White) WPL 3955365 Contact Us For Availability
39
Panel, Console (Biscuit) WPL 3955366 Contact Us For Availability
41
Sensor-ETC-Inline WPL 3352282 Contact Us For Availability
44
WPL 8274293 WPL 8274293 Contact Us For Availability
45
WPL 8271370 WPL 8271370 Contact Us For Availability
51
WPL 8271359 WPL 8271359 Contact Us For Availability
51
WPL 8271362 WPL 8271362 Contact Us For Availability
59
WPL 3348424 WPL 3348424 Contact Us For Availability
60
WPL 3955197 WPL 3955197 Contact Us For Availability
× ![]()
