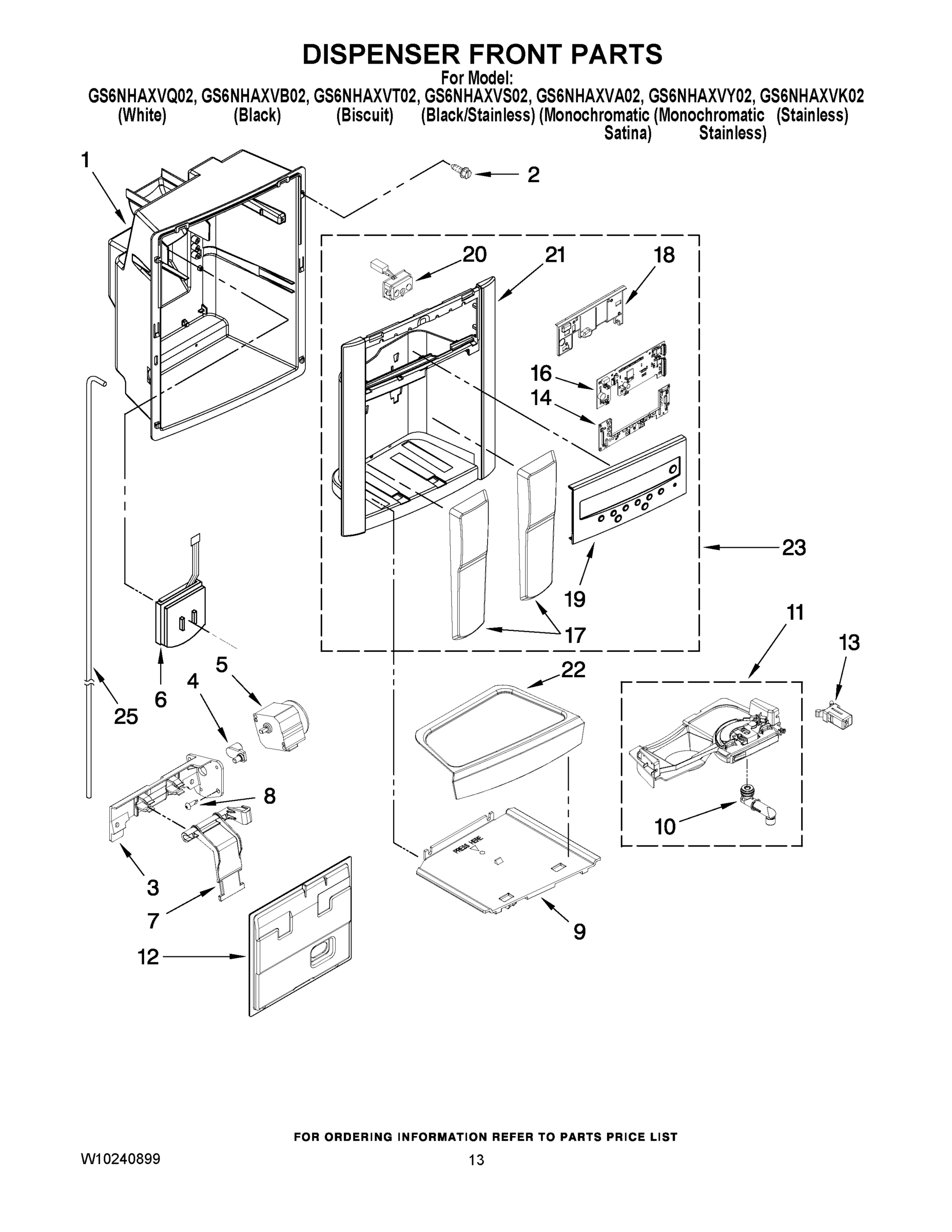

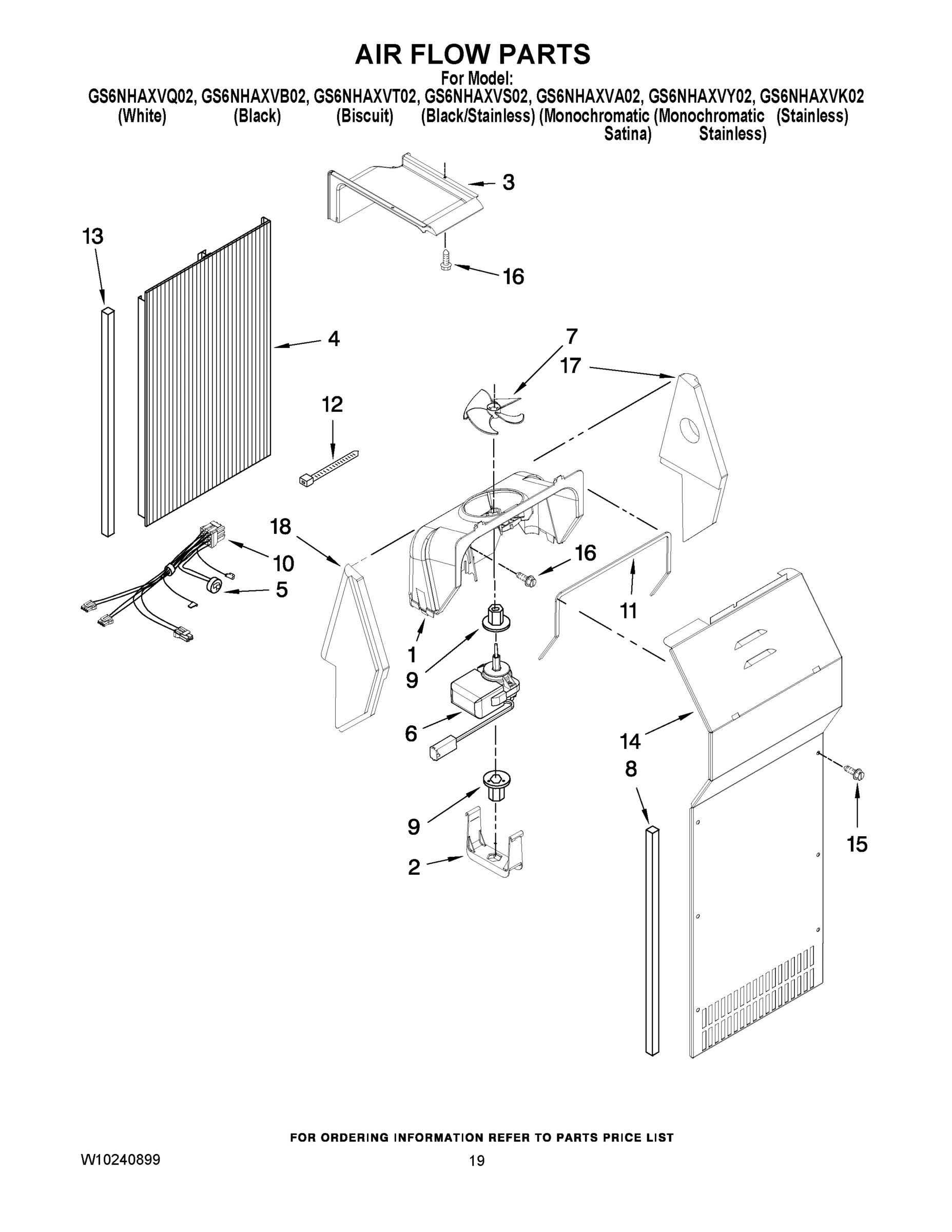

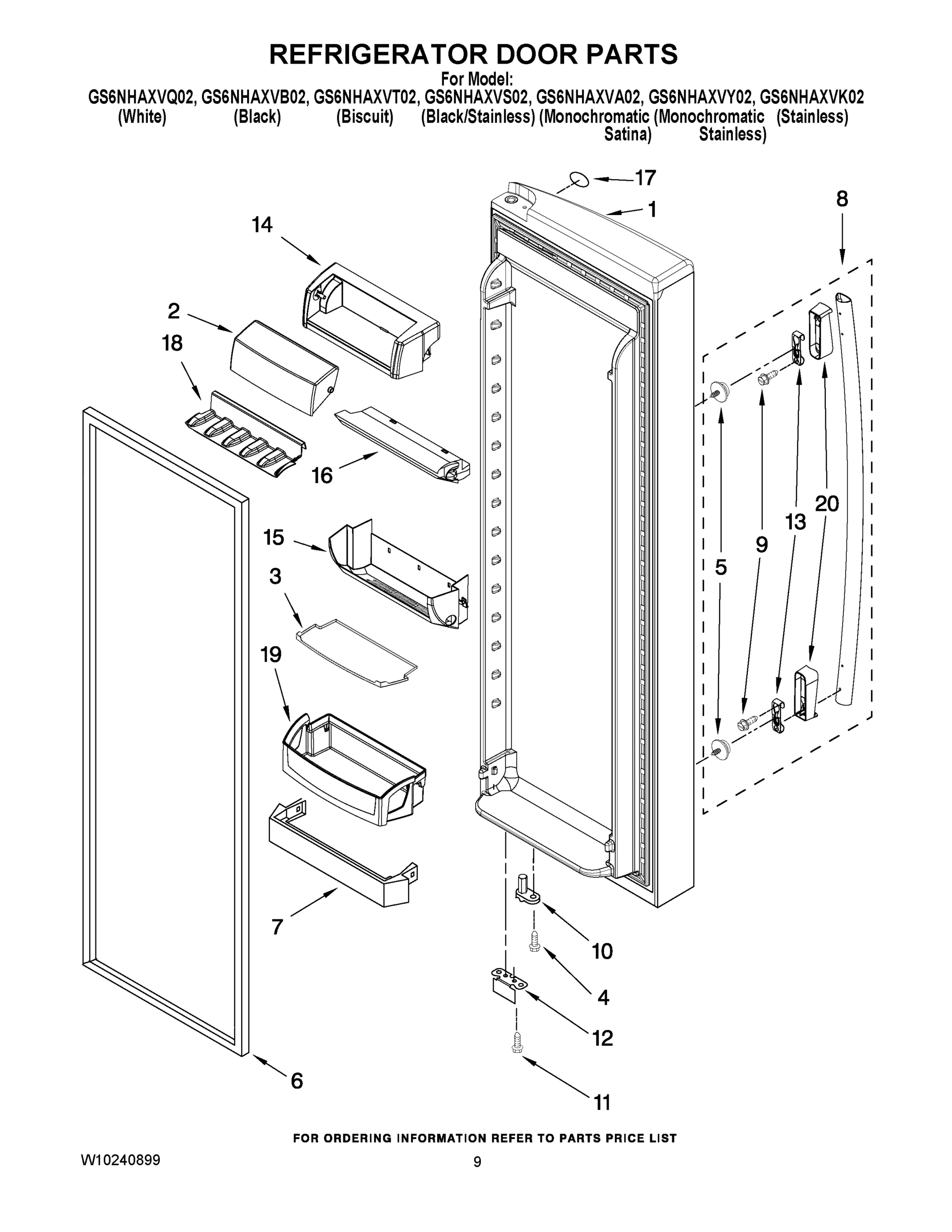

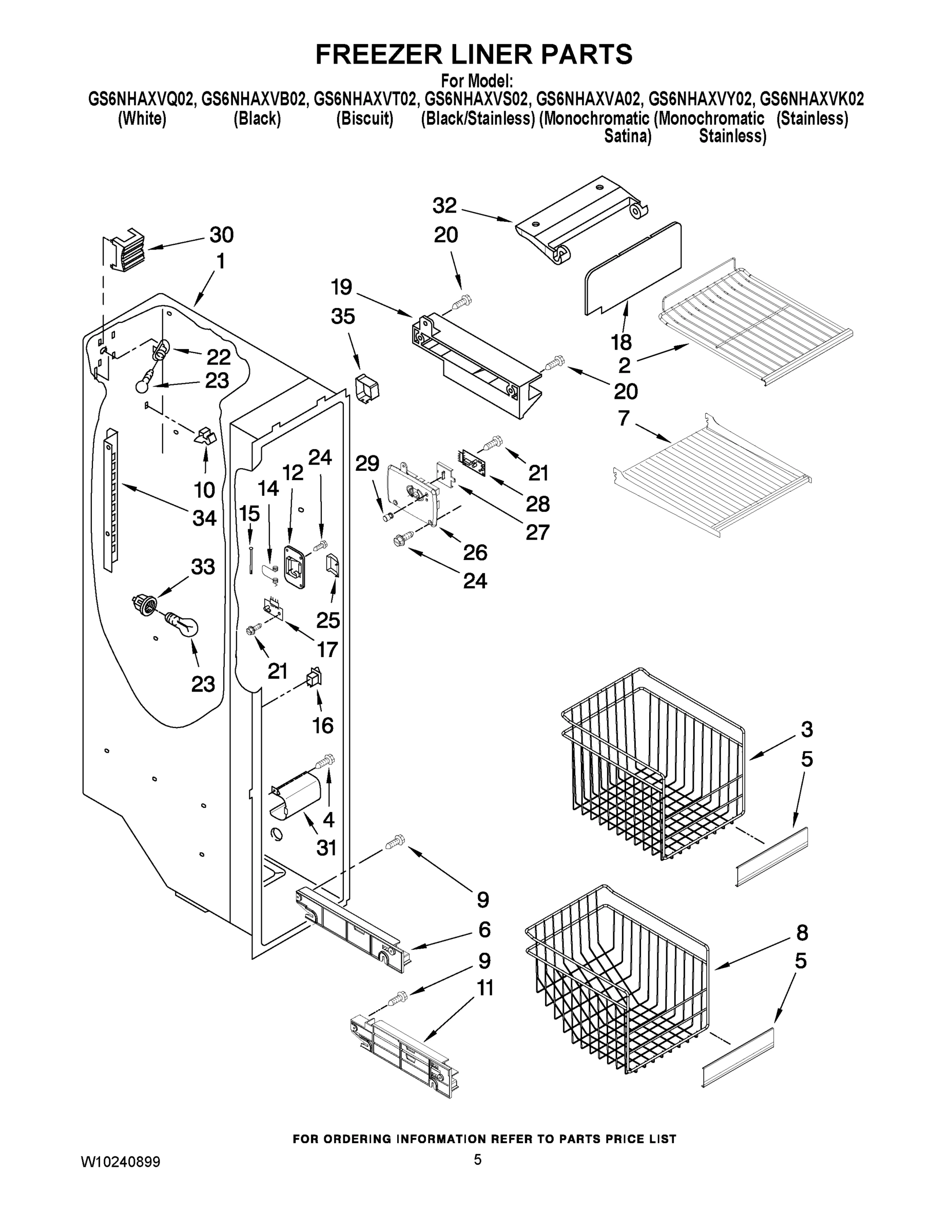

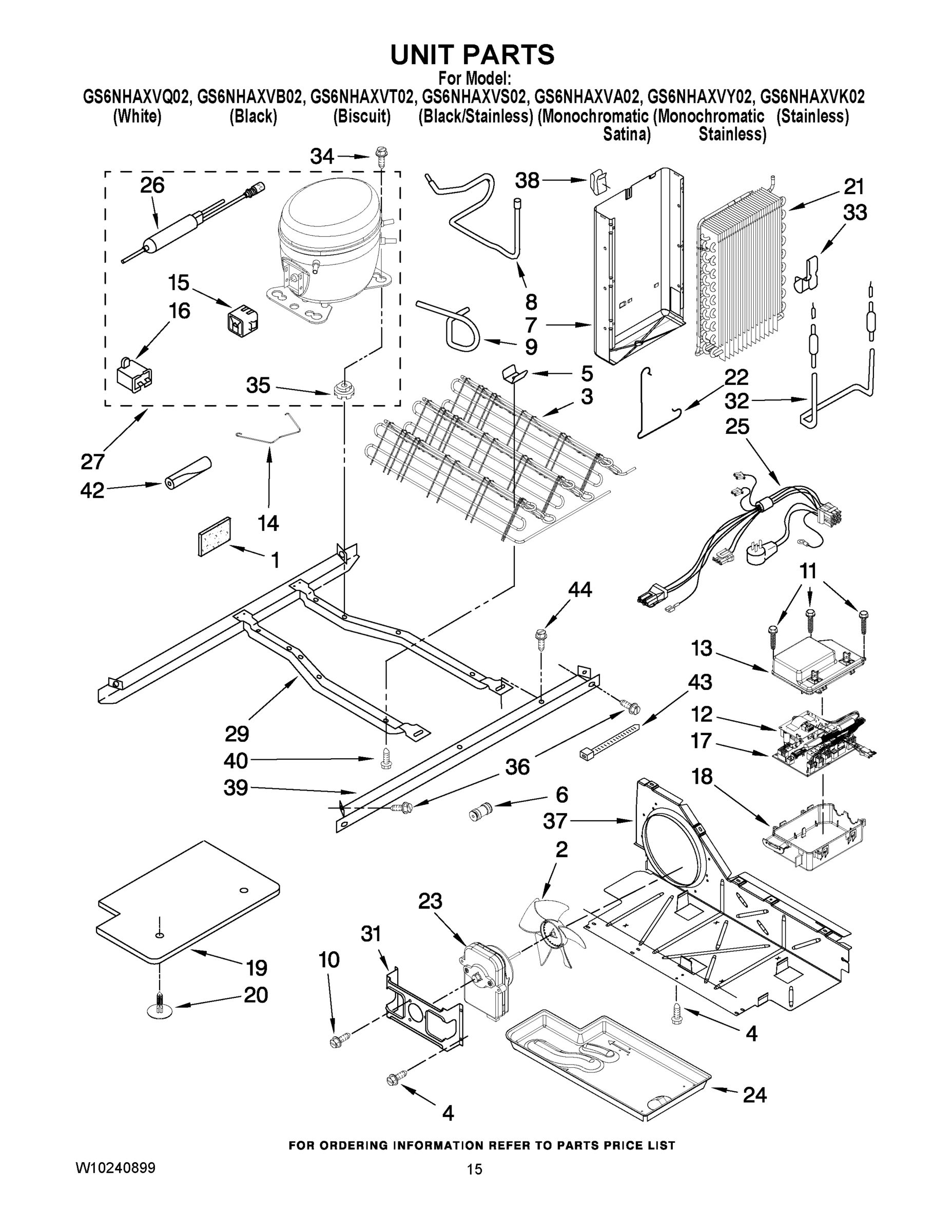

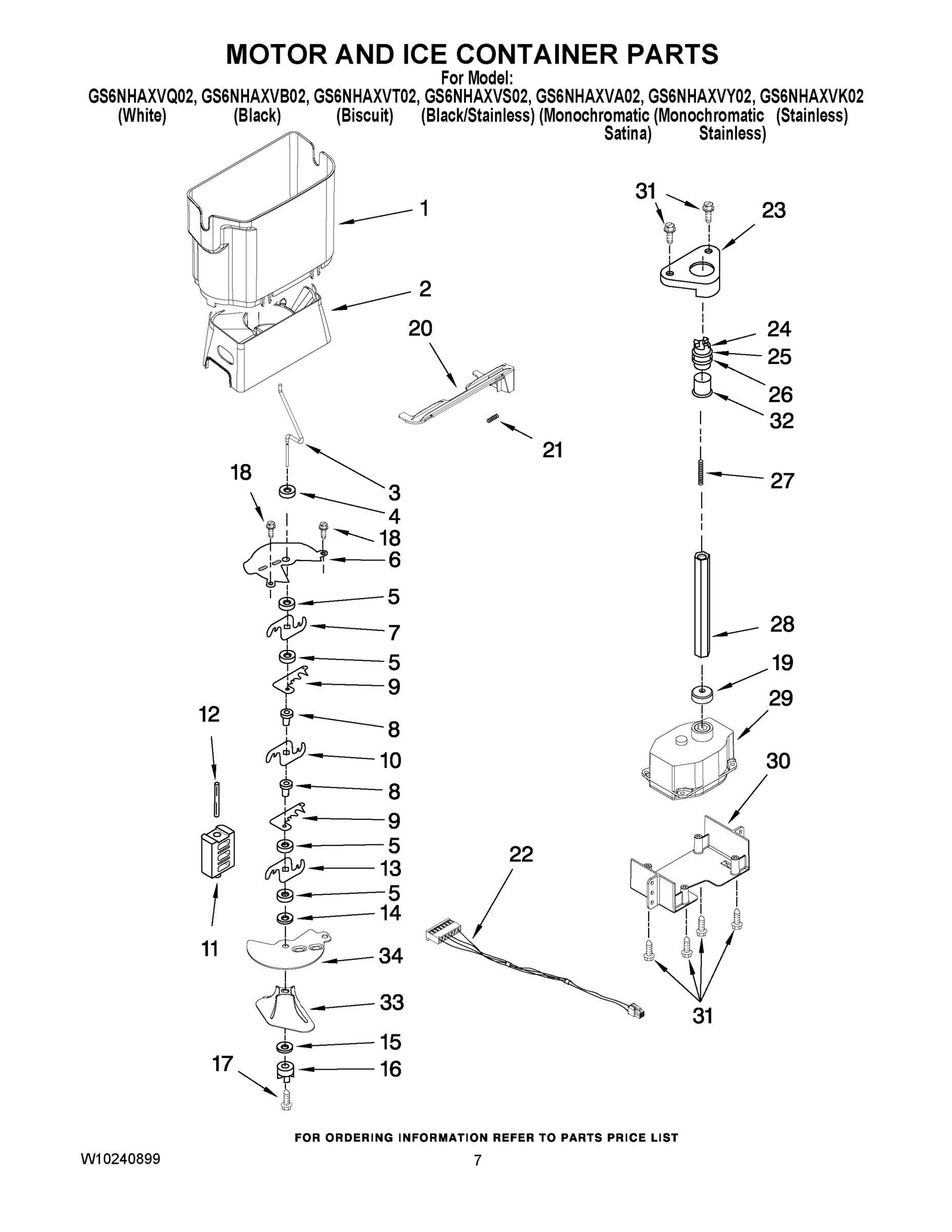

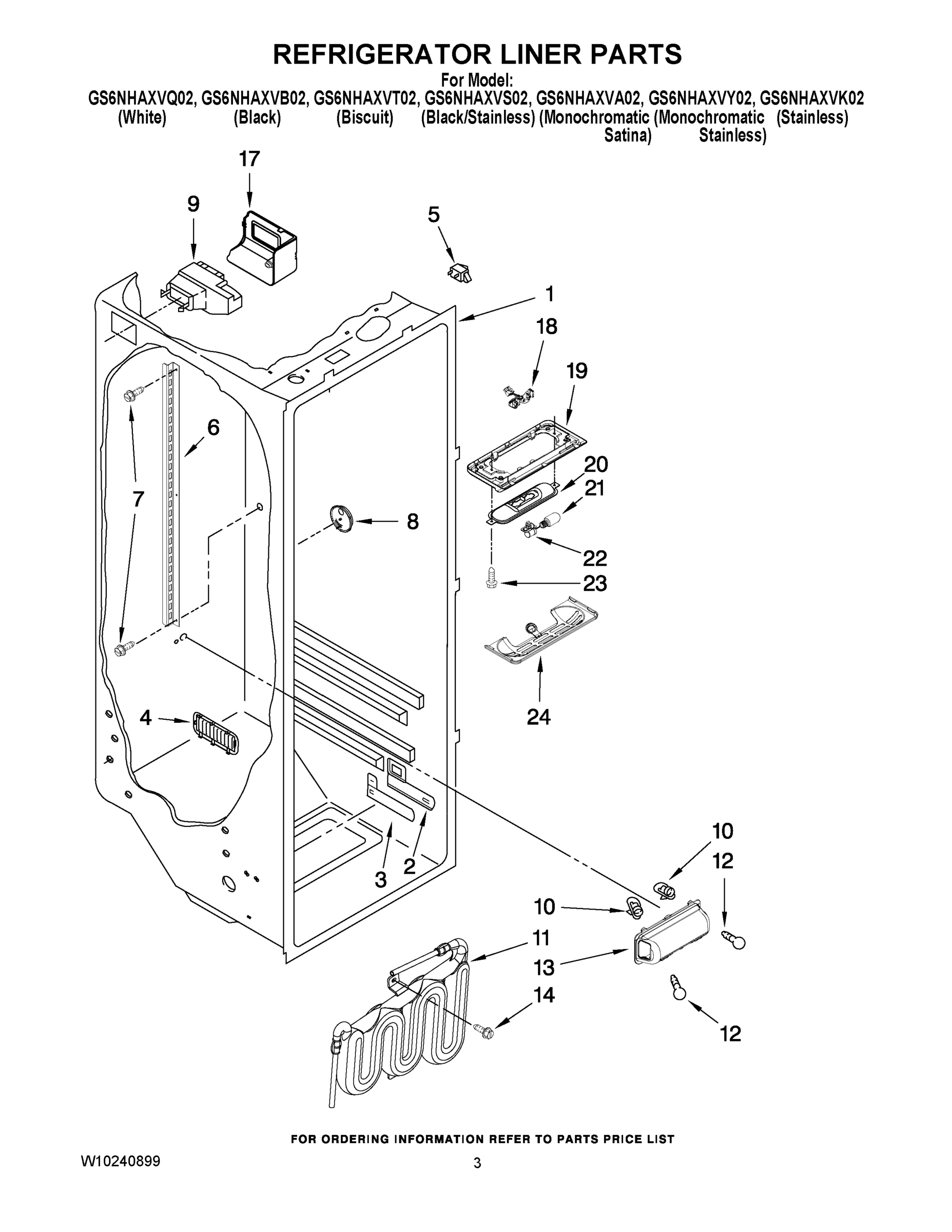

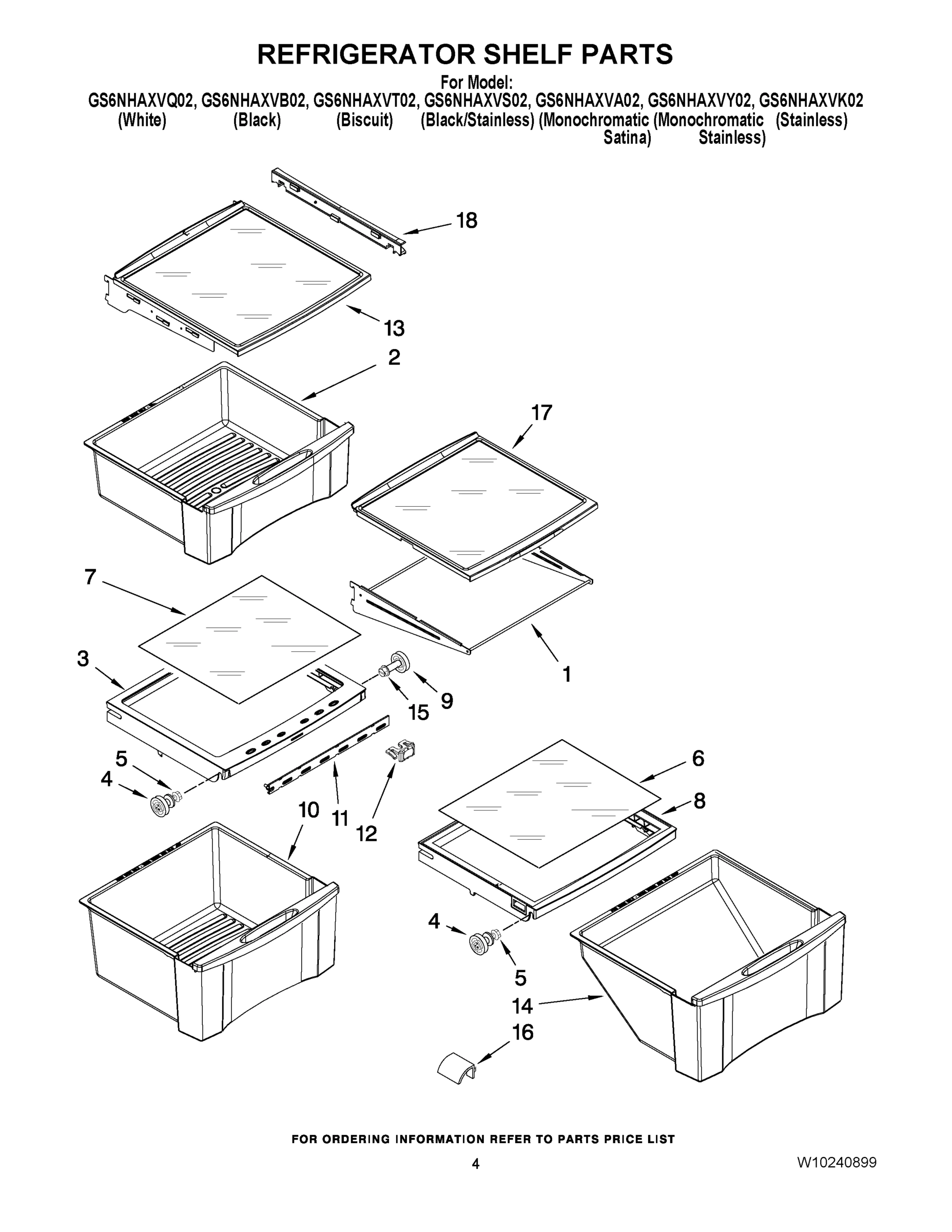

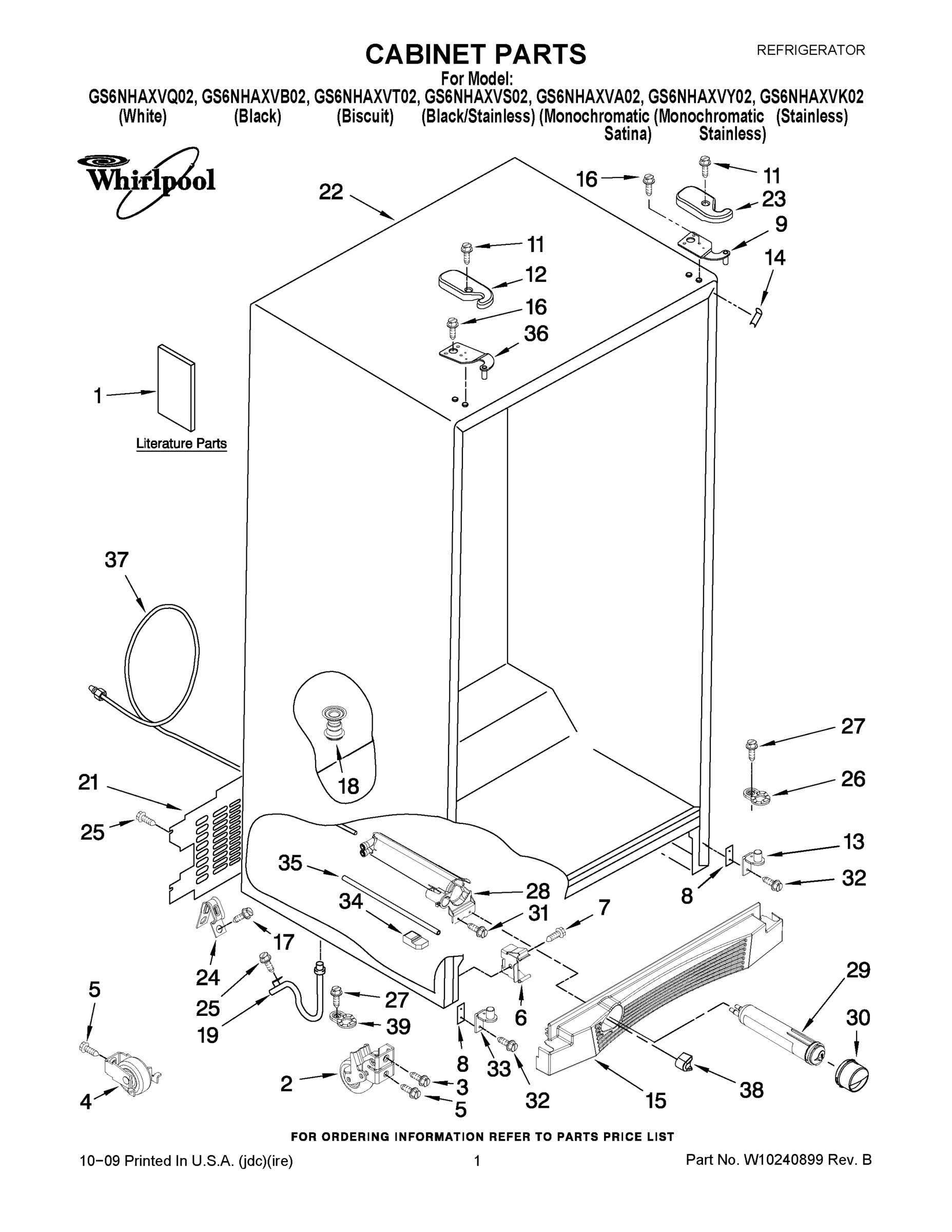

Model Whirlpool GS6NHAXVK02 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

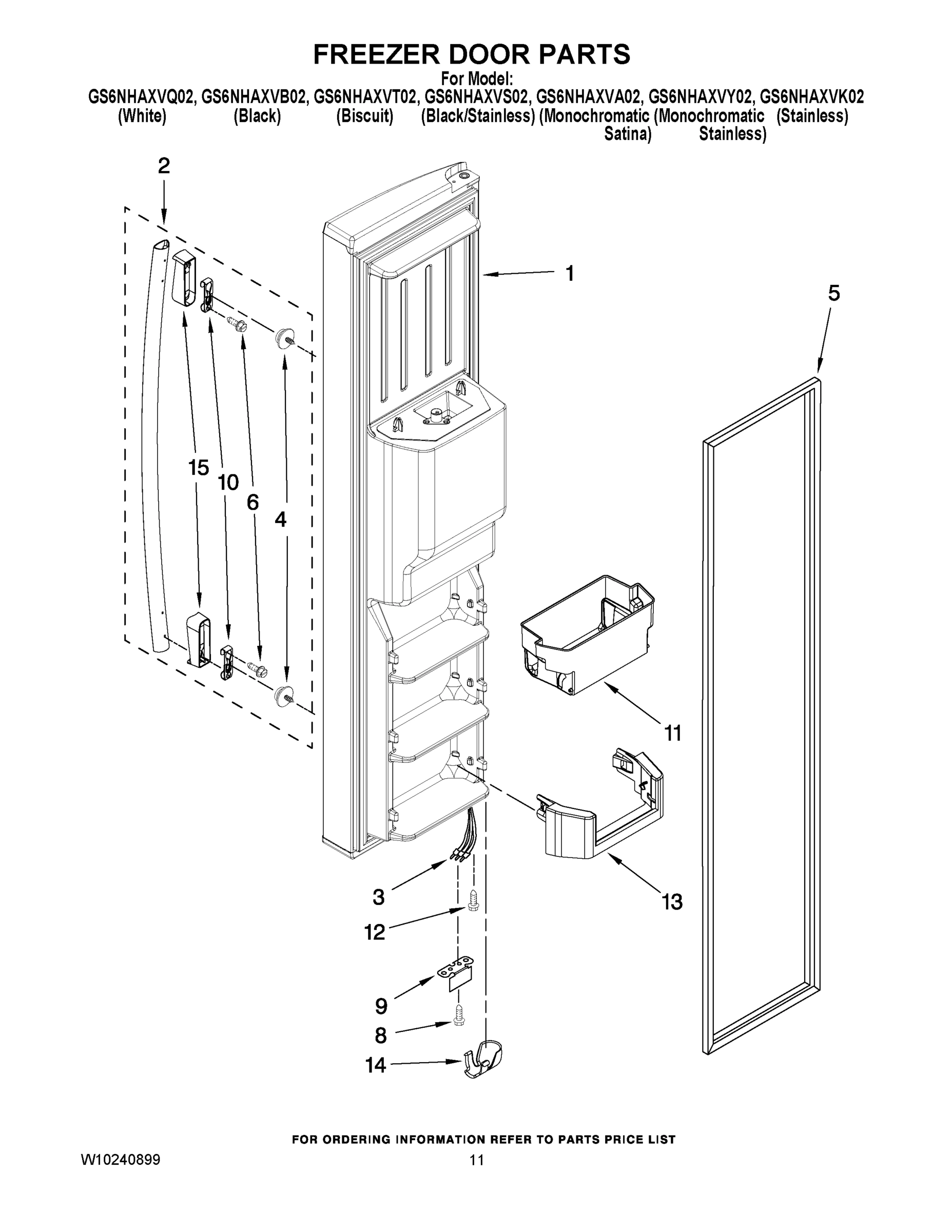

FREEZER DOOR (INCLUDES No.5) (BLACK) WPL W10168054B Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.5) (MONO SATINA) WPL W10168054LG Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.5) (STAINLESS) WPL W10168054SB Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.5) (MONO STAINLESS) WPL W10168054SS Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.5) (BISCUIT) WPL W10168054T Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.5) (WHITE) WPL W10168054W Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $33.18

2

W10210942A Whirlpool Refrigerator Handle Backorder WPL W10210942A $54.35

2

W10210943A Whirlpool Refrigerator Handle Backorder WPL W10210943A $54.35

2

W10210944A Whirlpool Refrigerator Handle M Backorder WPL W10210944A $49.41

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WPW10257120 Whirlpool Refrigerator Handle Backorder WPL WPW10257120 $26.10

2

Dairy Door WPL 2255421 Contact Us For Availability

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10193374 Whirlpool Wire Harness Backorder WPL W10193374 $31.42

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $79.82

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $37.95

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

Cover, Crisper (Includes 11 & 12) WPL 2223307 Contact Us For Availability

4

W10267047 Whirlpool Screw Backorder WPL W10267047 $9.59

4

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $30.40

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer, Auger WPL 2258220 Contact Us For Availability

4

Air Duct Freezer WPL 2198580 Contact Us For Availability

5

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

5

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

5

W10136735 Whirlpool Refrigerator Door Gasket In Stock WPL W10136735 $123.48

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2321753 Whirlpool Refrigerator Inlet Valve Backorder WPL WP2321753 $234.08

5

WPW10205978 Whirlpool Motor Backorder WPL WPW10205978 $35.32

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2305258 Whirlpool Dispenser Door Assembly Backorder WPL WP2305258 $7.69

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $134.84

6

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $13.41

6

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.02

6

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

6

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Shelf Ladder WPL 2319866 Contact Us For Availability

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

7

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $124.94

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $27.69

7

Heat Shield And Drain Pan WPL 2217194 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

8

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

8

Door Control Asm WPL 2261601 Contact Us For Availability

9

2323534 Whirlpool Refrigerator Bracket Backorder WPL 2323534 $56.38

9

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $125.90

9

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $101.79

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

9

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Grille, Slide (Black) WPL 2322626B Contact Us For Availability

9

Bracket, Door Stop (Black) WPL 2323534B Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W11225843 Whirlpool Refrigerator Wire Harness Backorder WPL W11225843 $61.67

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

Spigot WPL W10187441 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

WPW10171469 Whirlpool Refrigerator Screw In Stock WPL WPW10171469 $4.58

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $59.78

Separator Assembly (Black) WPL 2322658B Contact Us For Availability

Separator Assembly (Stainless) WPL 2322658S Contact Us For Availability

Bin, Tilt-Out (2) WPL W10142356 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Bracket, Door Stop (Zinc) WPL W10185570 Contact Us For Availability

2323188 Whirlpool Refrigerator Cover Backorder WPL 2323188 $28.80

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $29.81

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $36.31

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $271.15

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $37.55

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

Trivet, Tilt-Out (2) WPL 2223334 Contact Us For Availability

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $28.42

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.71

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

COVER, EVAPORATOR (INCLUDES No.8) WPL 2206314 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

W10127813 Whirlpool Refrigerator Handle Endca Backorder WPL W10127813 $26.75

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $64.45

Endcap, Handle (Black) WPL W10127814 Contact Us For Availability

Endcap, Handle (Biscuit) WPL W10127815 Contact Us For Availability

Endcap, Handle (Stainless) WPL W10152864 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Electronic Control (User Interface) WPL W10211153 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $66.55

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Nameplate WPL 2220214 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

Ctrl-Elek, Main WPL W10120820 Contact Us For Availability

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $66.34

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $33.96

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

2323357 Whirlpool Refrigerator Washer Backorder WPL 2323357 $9.59

W10284481 Whirlpool Refrigerator Trim Backorder WPL W10284481 $41.82

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

Door Bin WPL W10158506 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

20

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $37.22

20

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.51

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

22

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $5.97

22

Clip WPL 2161324 Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

Holder WPL 2212369 Contact Us For Availability

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $52.72

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

25

W10291104 Whirlpool Refrigerator Wire Harness Backorder WPL W10291104 $106.57

25

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

25

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

26

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

26

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

26

Cover, Receiver WPL W10173569 Contact Us For Availability

27

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

27

W10139462 Whirlpool Refrigerator Compressor In Stock WPL W10139462 $353.02

27

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

28

Drive Shaft WPL 2323355 Contact Us For Availability

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP2323603 Whirlpool Refrigerator Motor In Stock WPL WP2323603 $123.75

30

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $27.21

30

Bracket, Motor WPL 2305208 Contact Us For Availability

31

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

32

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

32

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

32

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

33

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $28.80

33

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

35

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $28.80

35

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

36

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

37

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

38

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

38

Clip, Heat WPL 2155547 Contact Us For Availability

39

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

39

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $7.80

40

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

42

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

44

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

100

Ice Container (Complete) WPL W10188747 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE 5.3 OZ (R-134A) WPL NP Contact Us For Availability
