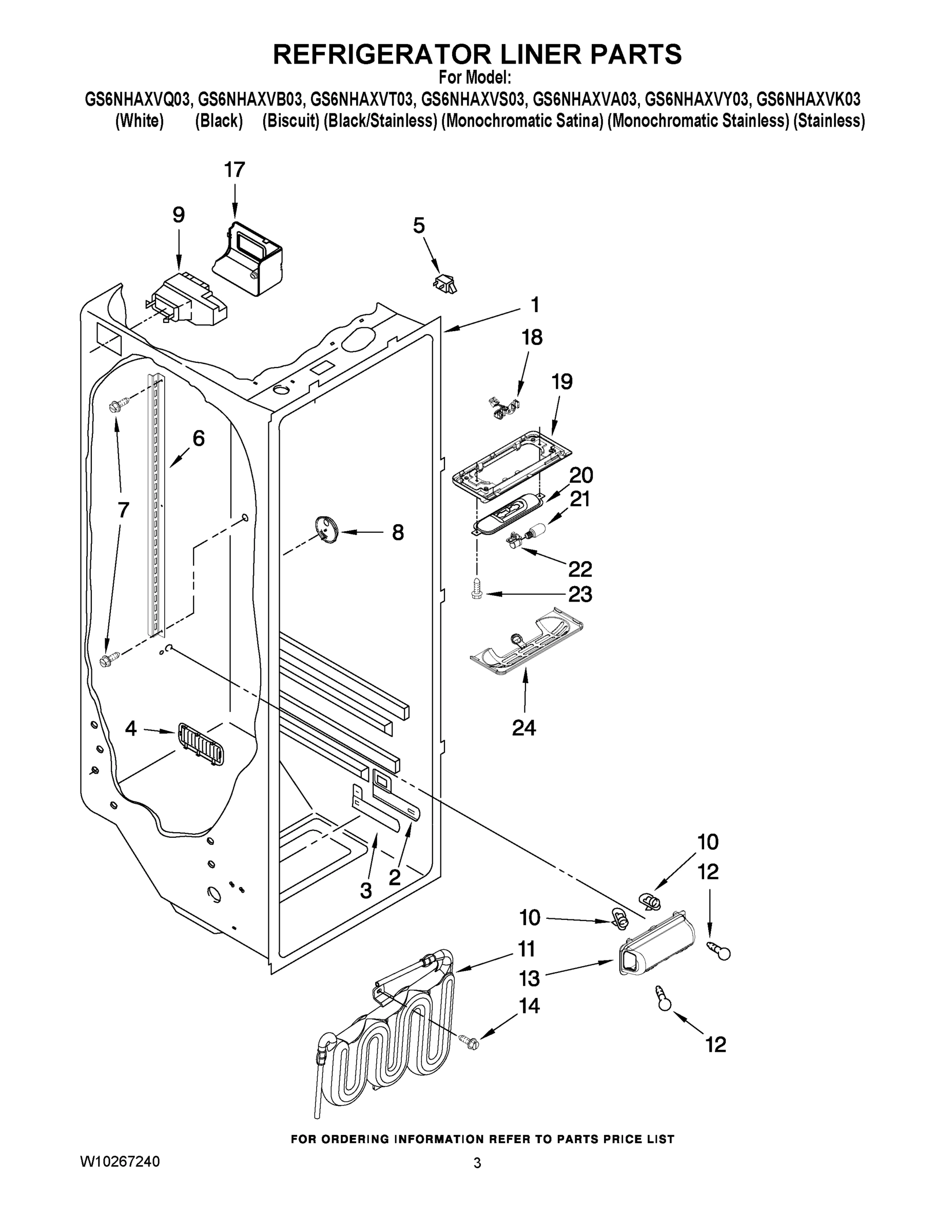

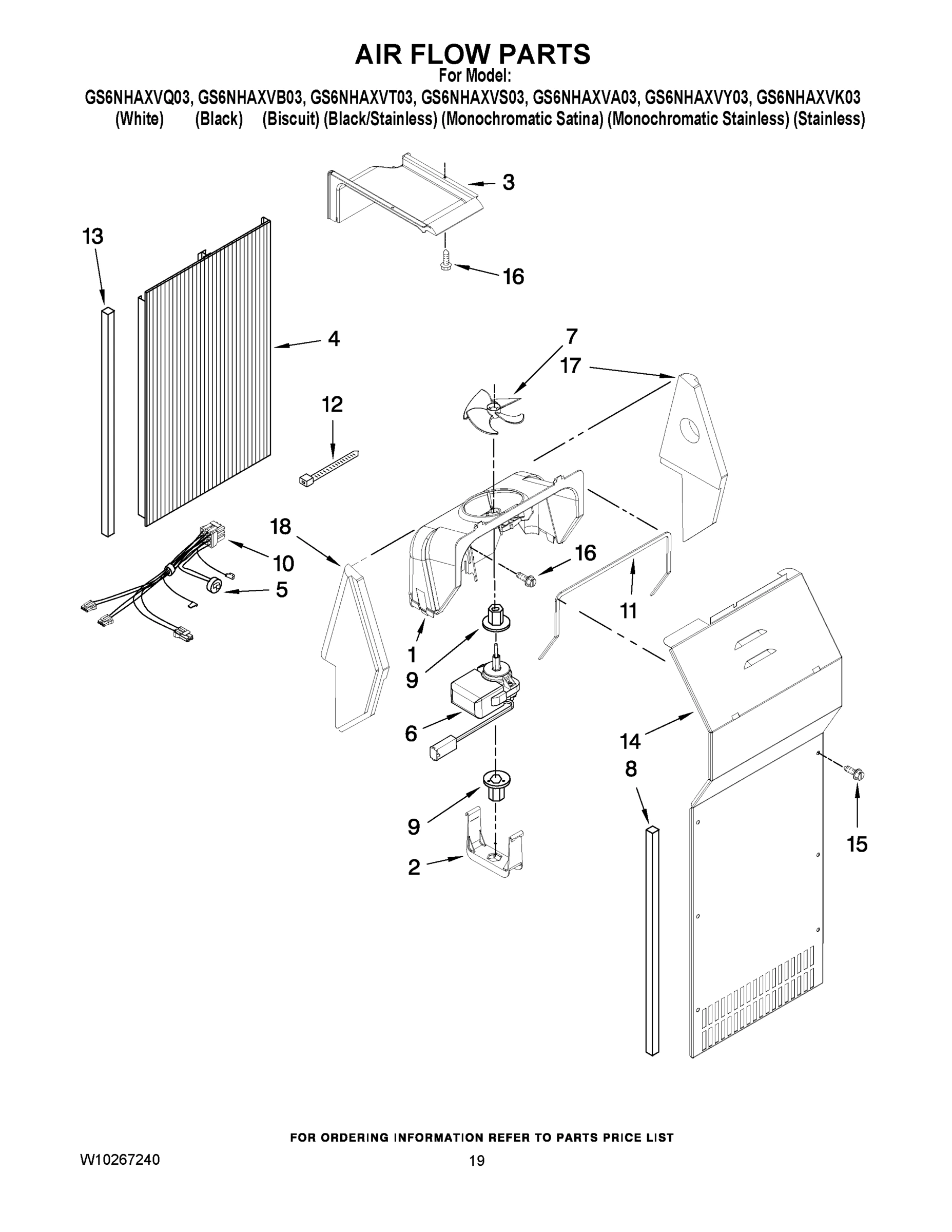

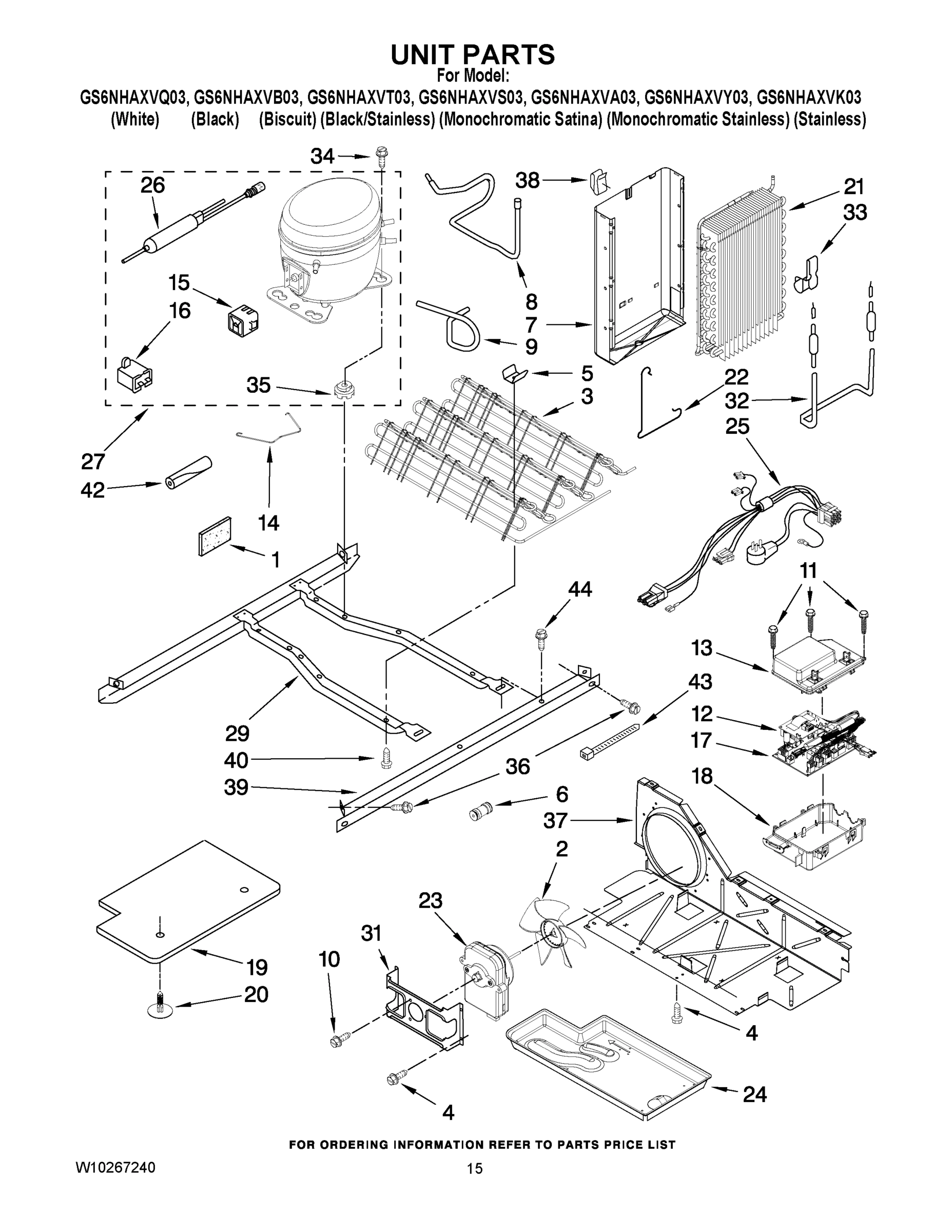

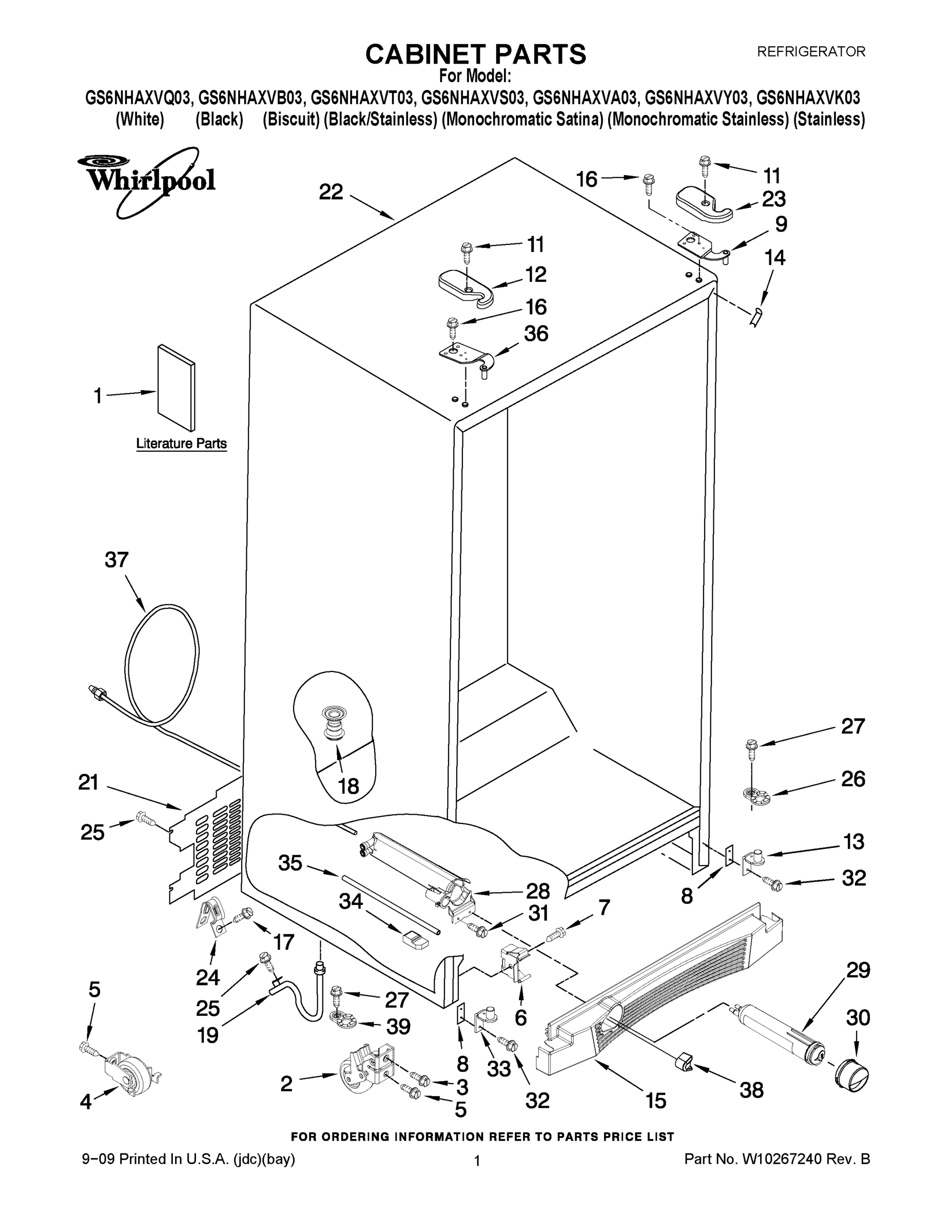

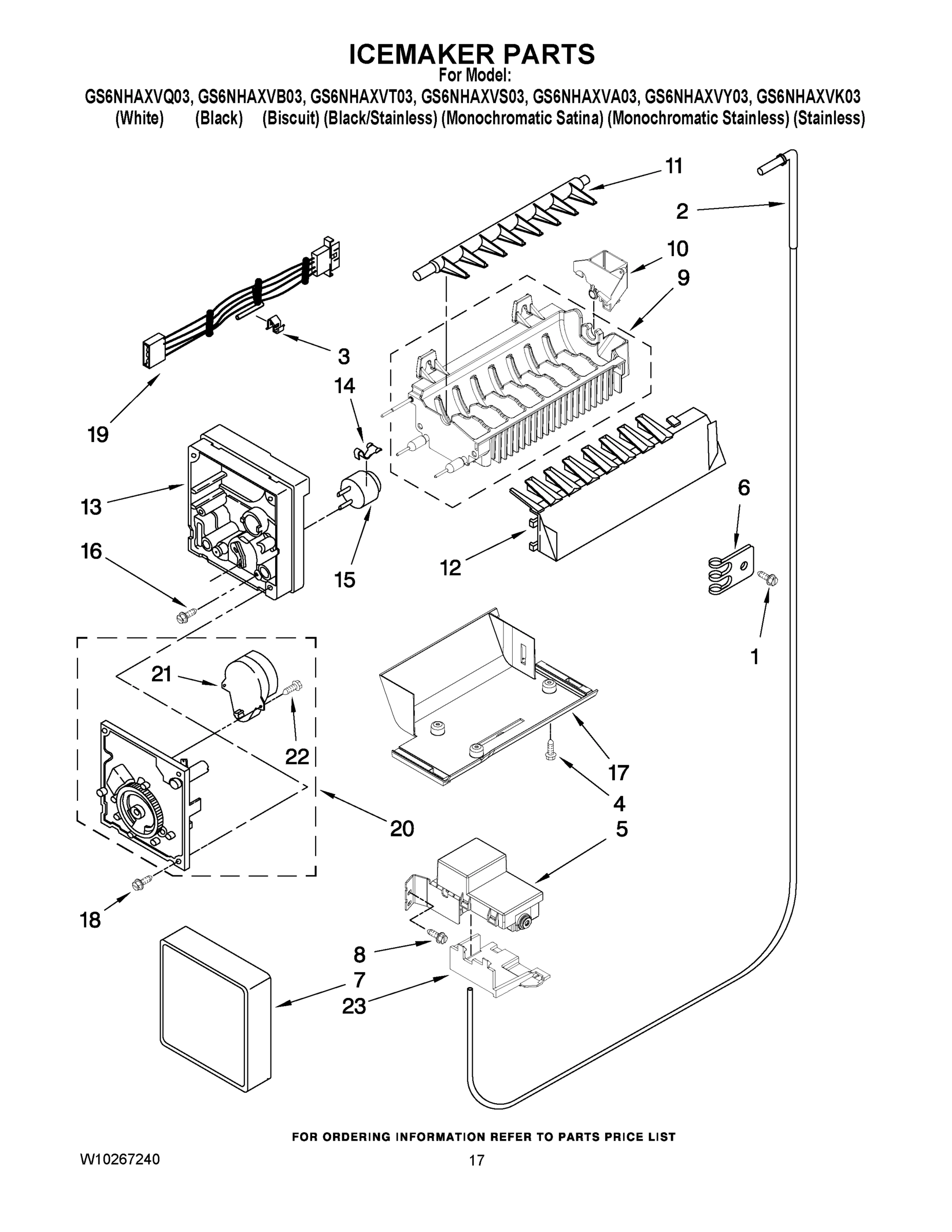

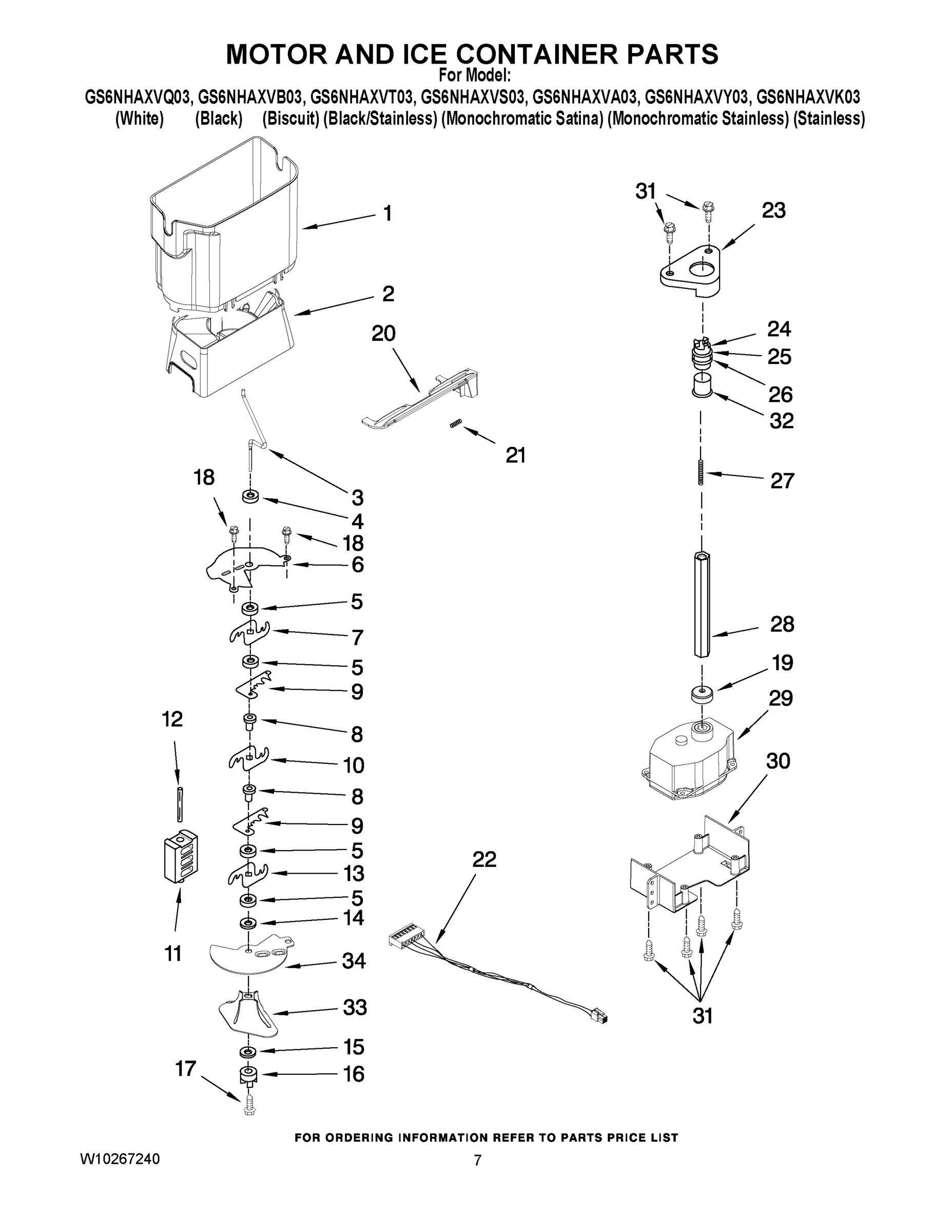

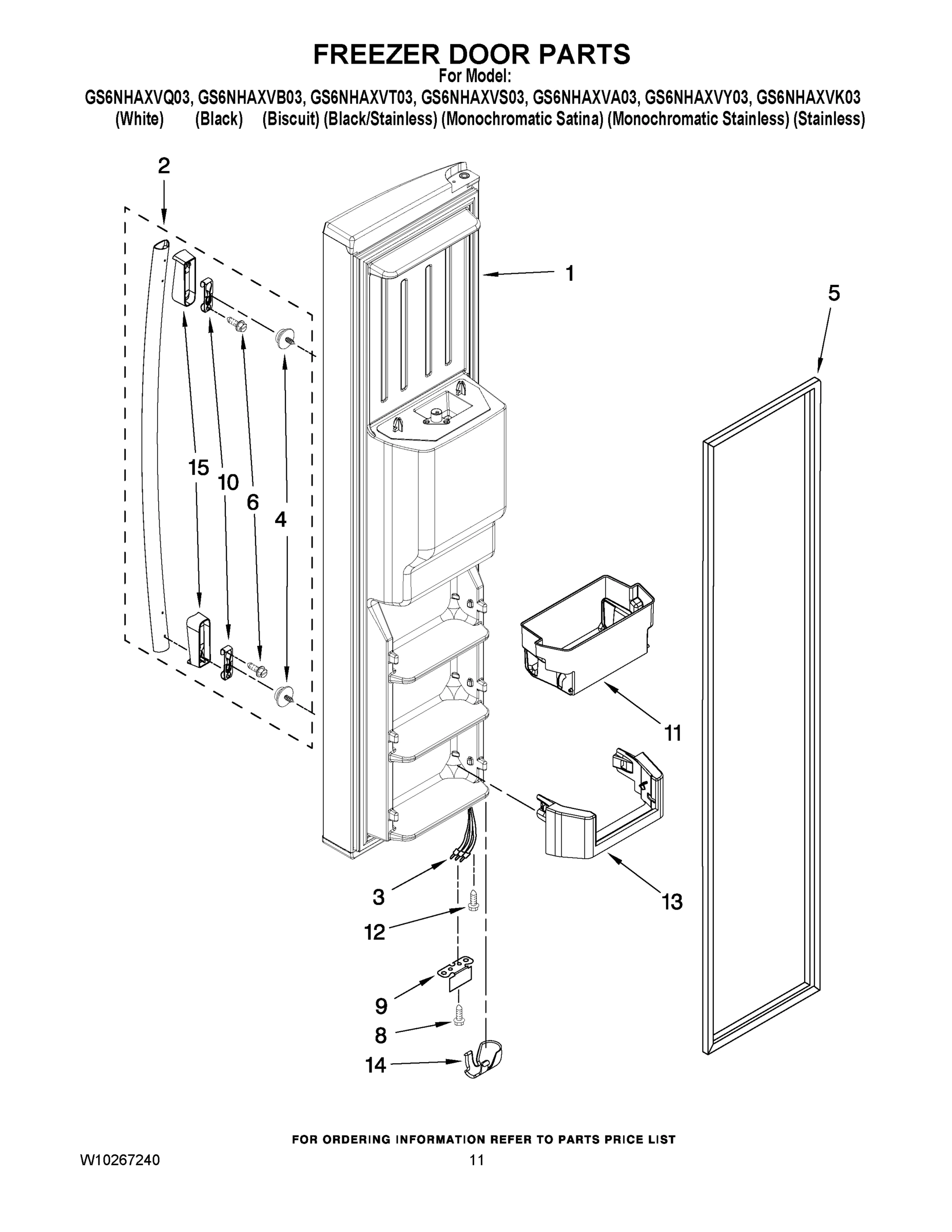

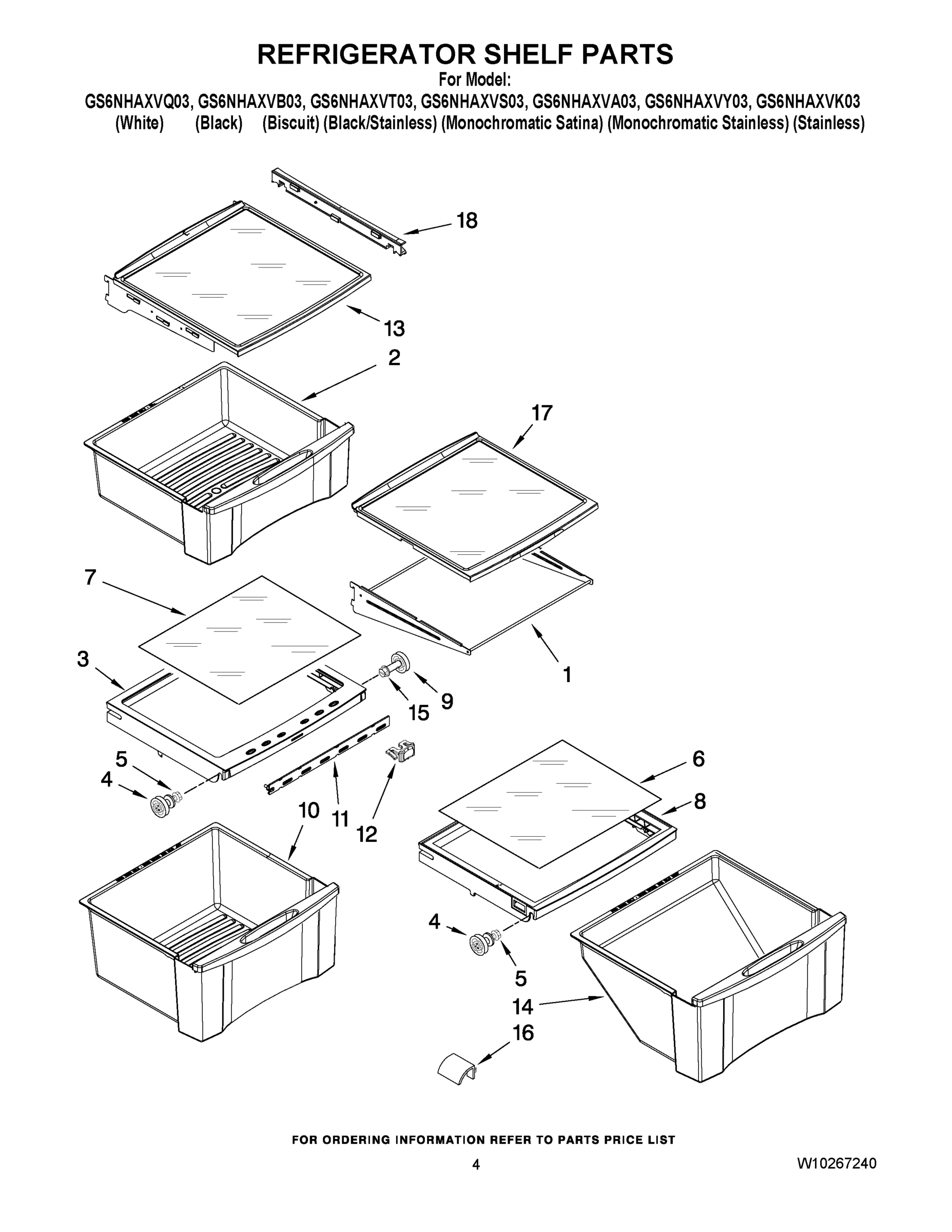

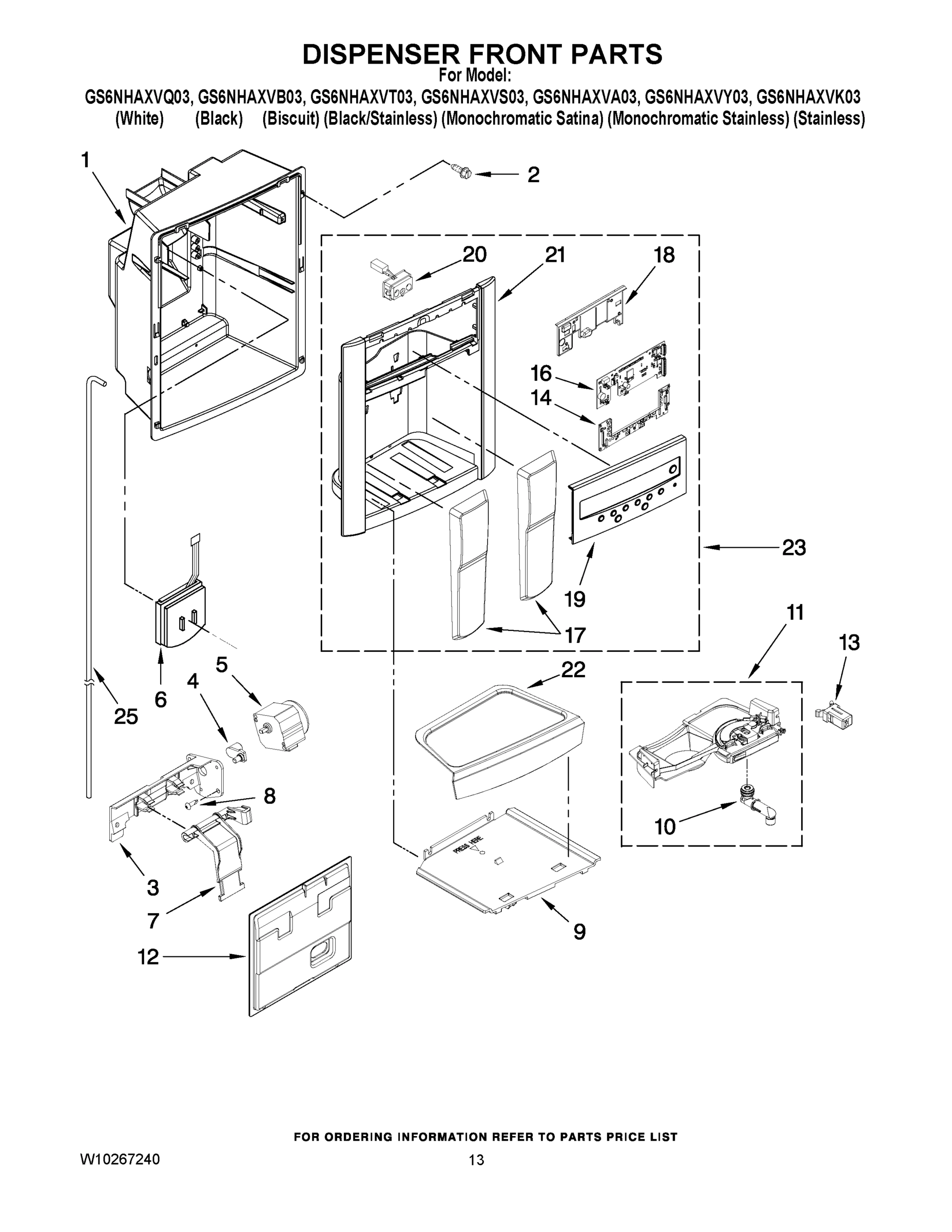

Model Whirlpool GS6NHAXVA03 REFRIGERATOR – Common Parts &amp; Diagrams

1

Screw WPL W10141645 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $50.17

2

Dairy Door WPL 2255421 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $39.86

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Cover, Crisper (Includes 11 & 12) WPL 2223307 Contact Us For Availability

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $32.74

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

4

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer, Auger WPL 2258220 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2321753 Whirlpool Refrigerator Inlet Valve Backorder WPL WP2321753 $223.44

5

WPW10205978 Whirlpool Motor In Stock WPL WPW10205978 $35.32

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.69

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $142.38

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $14.24

6

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

6

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Shelf Ladder WPL 2319866 Contact Us For Availability

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $29.08

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

7

Glass, Cover WPL 2223591 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2217194 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

9

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $133.00

9

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $116.82

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

9

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Grille, Slide (Black) WPL 2322626B Contact Us For Availability

9

Grille, Slide (Apollo Grey) WPL 2322626AP Contact Us For Availability

9

Grille, Slide (Biscuit) WPL 2322626T Contact Us For Availability

9

Grille, Slide (White) WPL 2322626W Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $32.15

Spigot WPL W10187441 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WPW10171469 Whirlpool Refrigerator Screw Backorder WPL WPW10171469 $4.58

Separator Assembly (Black) WPL 2322658B Contact Us For Availability

Separator Assembly (Stainless) WPL 2322658S Contact Us For Availability

SEPARATOR ASSEMBLY (MIDNIGHT GREY) WPL 2322658MG Contact Us For Availability

Separator Assembly (Biscuit) WPL 2322658T Contact Us For Availability

Separator Assembly (White) WPL 2322658W Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $42.77

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WPW10356040-includeCORE Whirlpool WPW10356040 Backorder WPL WPW10356040-includeCORE $197.03

Bracket, Door Stop (Zinc) WPL W10185570 Contact Us For Availability

Cover, Dispenser Motor WPL W10236463 Contact Us For Availability

2323188 Whirlpool Refrigerator Cover Backorder WPL 2323188 $30.25

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $38.12

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $50.71

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $29.85

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.71

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Barrier, Moisture WPL W10127842 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $68.49

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

Electronic Control (User Interface) WPL W10211153 Contact Us For Availability

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $69.88

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

Nameplate WPL 2220214 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

Ctrl-Elek, Main WPL W10120820 Contact Us For Availability

Pad, Ice & Water (Mono Stainless Mono Satina WPL 2322750AP Contact Us For Availability

Pad, Ice & Water (White Model) WPL 2322750CG Contact Us For Availability

Pad, Ice & Water (Black, Stainless Model) WPL 2322750GM Contact Us For Availability

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $69.65

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $35.67

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $13.05

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

Cover, Electronic Control WPL 2322743 Contact Us For Availability

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.85

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

Door Bin WPL W10158506 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Grommet, Drive Shaft WPL 2323357 Contact Us For Availability

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

Facia, Front (Black) WPL 2322770B Contact Us For Availability

Facia, Front (Nickel One) WPL 2322770NO Contact Us For Availability

Facia, Front (Stainless) WPL 2322770S Contact Us For Availability

Facia, Front (Biscuit) WPL 2322770T Contact Us For Availability

Facia, Front (White) WPL 2322770W Contact Us For Availability

20

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $39.09

20

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

20

LED Assembly WPL W10143528 Contact Us For Availability

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

FRONT COVER, HOUSING (NOT AVAILABLE, ORDER No WPL NP Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $8.43

Clip WPL 2161324 Contact Us For Availability

Tray, Housing (Black) WPL 2322645B Contact Us For Availability

Tray, Housing (Nickel One) WPL 2322645NO Contact Us For Availability

Tray, Housing (Biscuit) WPL 2322645T Contact Us For Availability

Tray, Housing (White) WPL 2322645W Contact Us For Availability

Tray, Housing (Stainless Steel) WPL W10139837 Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Holder WPL 2212369 Contact Us For Availability

Front Cover Assembly (Includes Items 14, 16, WPL 2322702B Contact Us For Availability

FRO WPL 2322702NO Contact Us For Availability

WPL 2322702S WPL 2322702S Contact Us For Availability

WPL 2322702T WPL 2322702T Contact Us For Availability

WPL 2322702W WPL 2322702W Contact Us For Availability

Enclosure, Secondary WPL W10151311 Contact Us For Availability

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

W10291104 Whirlpool Refrigerator Wire Harness Backorder WPL W10291104 $110.04

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

WPL 2323606 WPL 2323606 Contact Us For Availability

26

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

26

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

26

Cover, Receiver WPL W10173569 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

W10139462 Whirlpool Refrigerator Compressor In Stock WPL W10139462 $293.57

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

28

Drive Shaft WPL 2323355 Contact Us For Availability

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

WP2323603 Whirlpool Refrigerator Motor In Stock WPL WP2323603 $123.75

30

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

30

Bracket, Motor WPL 2305208 Contact Us For Availability

31

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

32

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

32

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

32

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

33

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

33

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

35

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

35

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

36

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

37

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

38

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

38

Clip, Heat WPL 2155547 Contact Us For Availability

39

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

39

WPL 2223751 WPL 2223751 Contact Us For Availability

40

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

42

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

43

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

44

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51

100

Ice Container (Complete) WPL W10188747 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
