Model GE GDF550PSR0SS Dishwasher – Common Parts & Diagrams

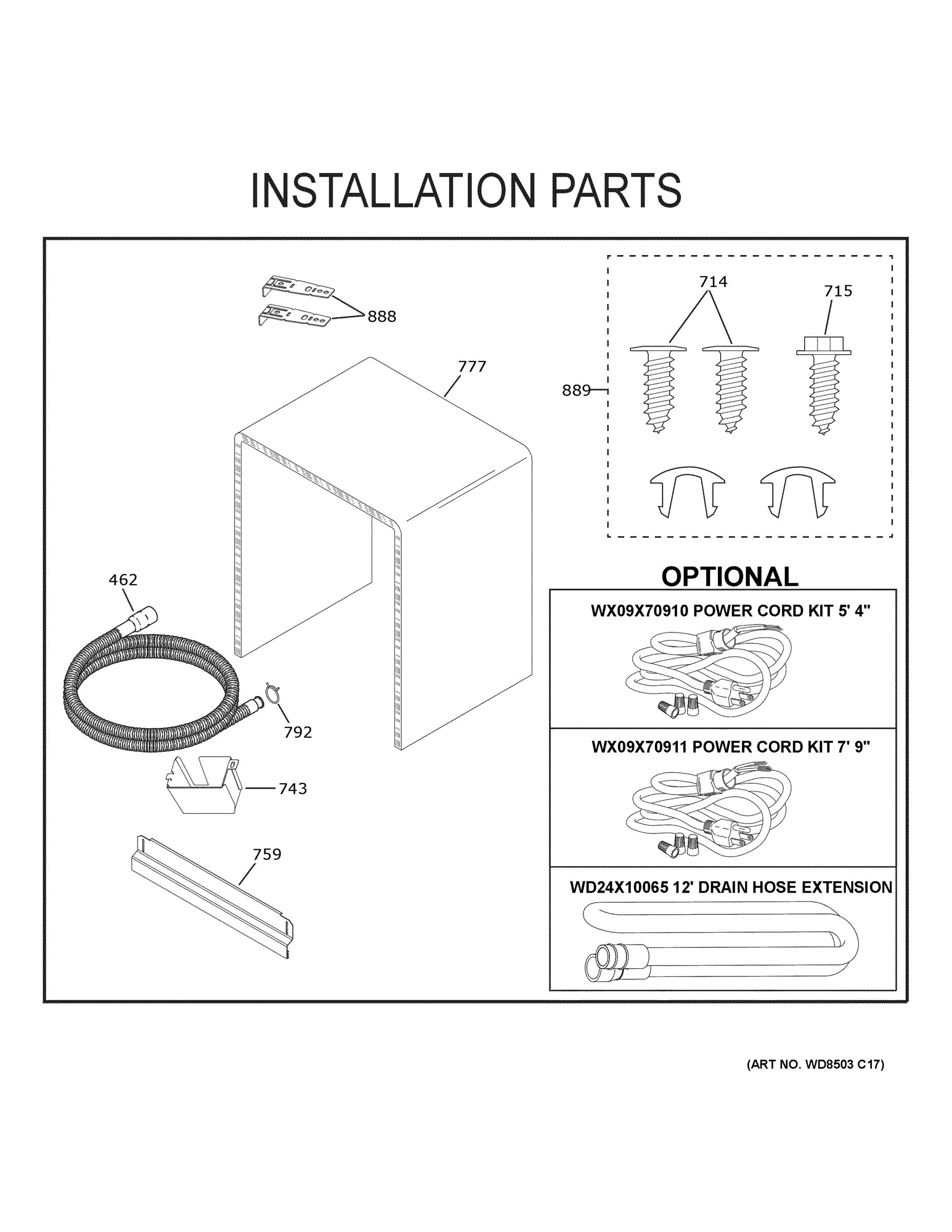

INSTALLATION PARTS

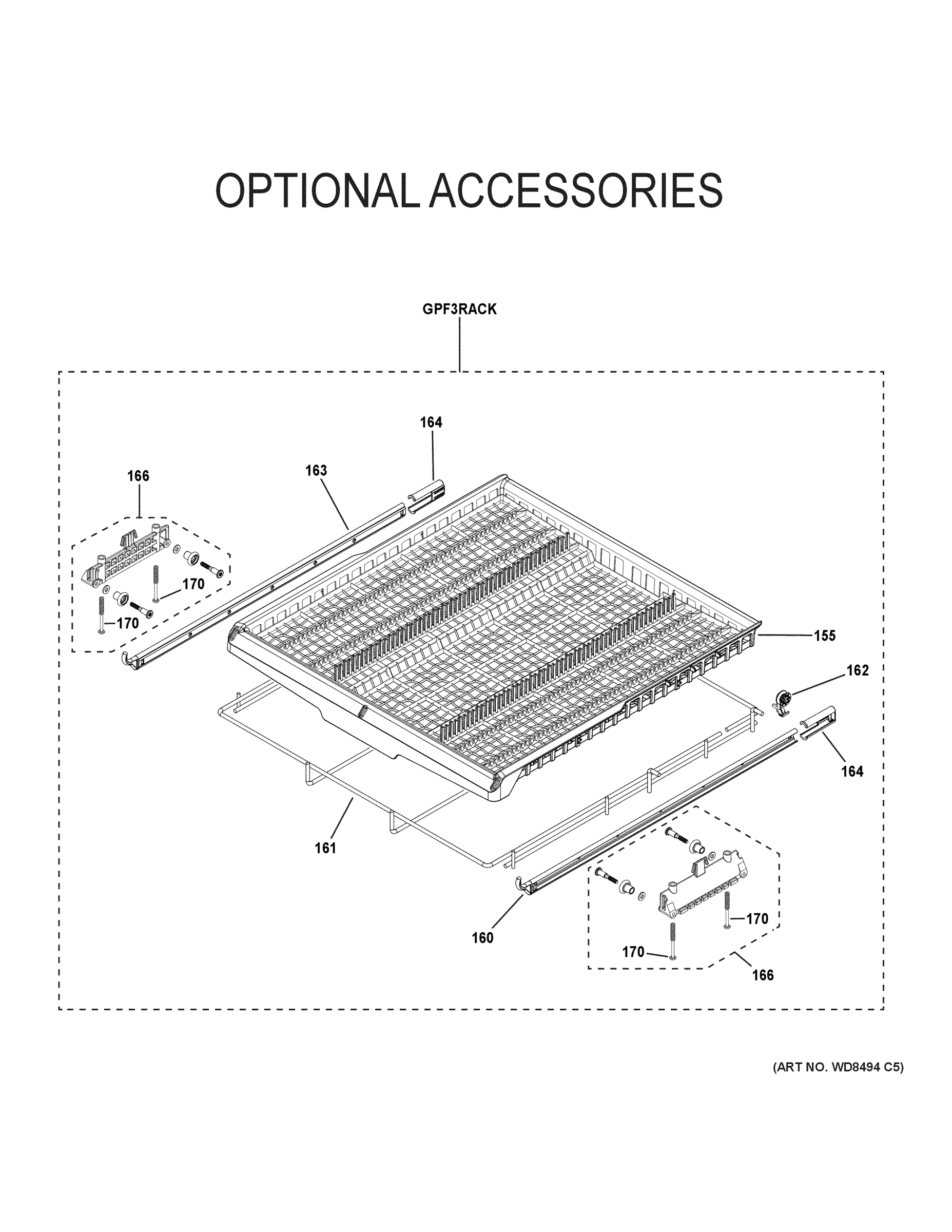

OPTIONAL ACCESSORIES

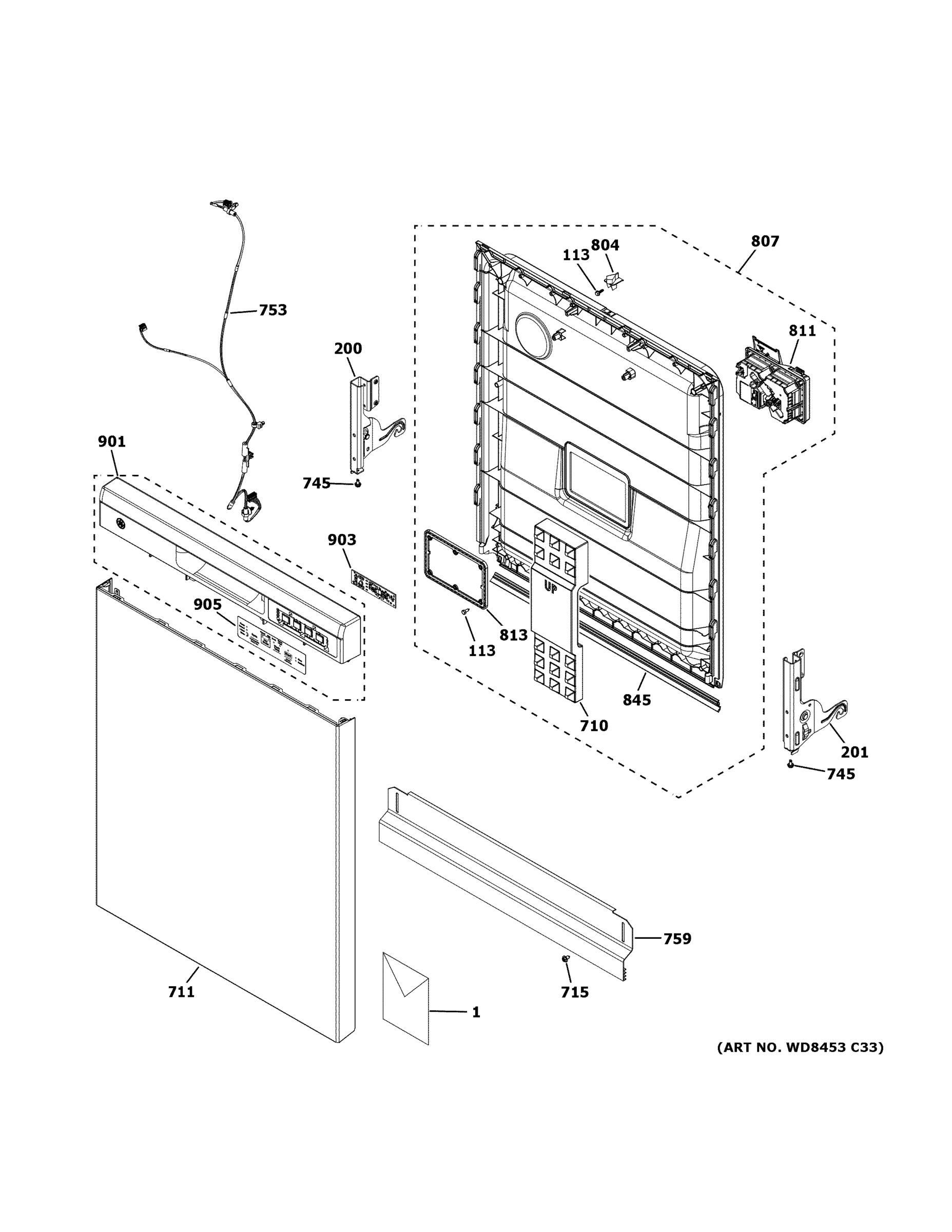

ESCUTCHEON & DOOR ASSEMBLY

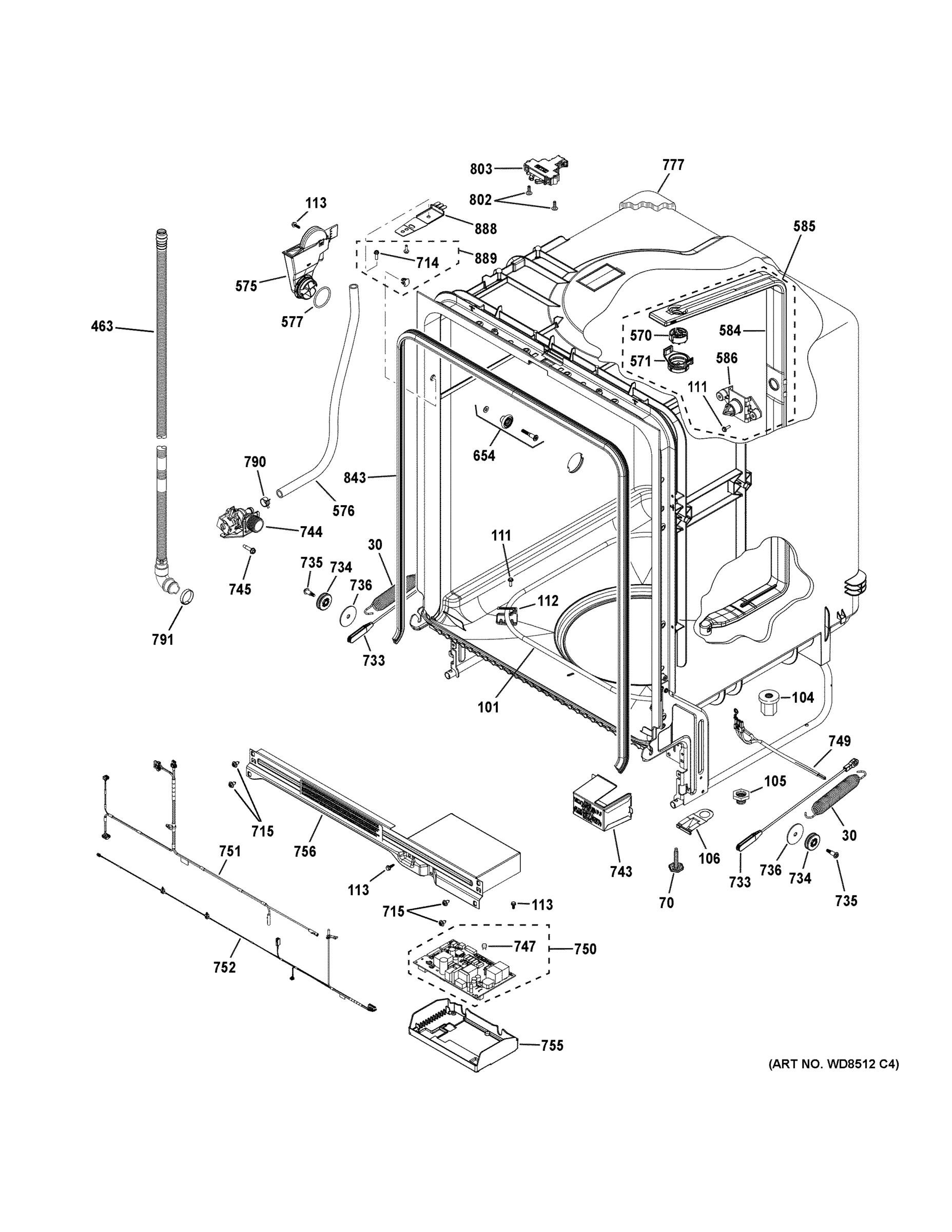

BODY PARTS

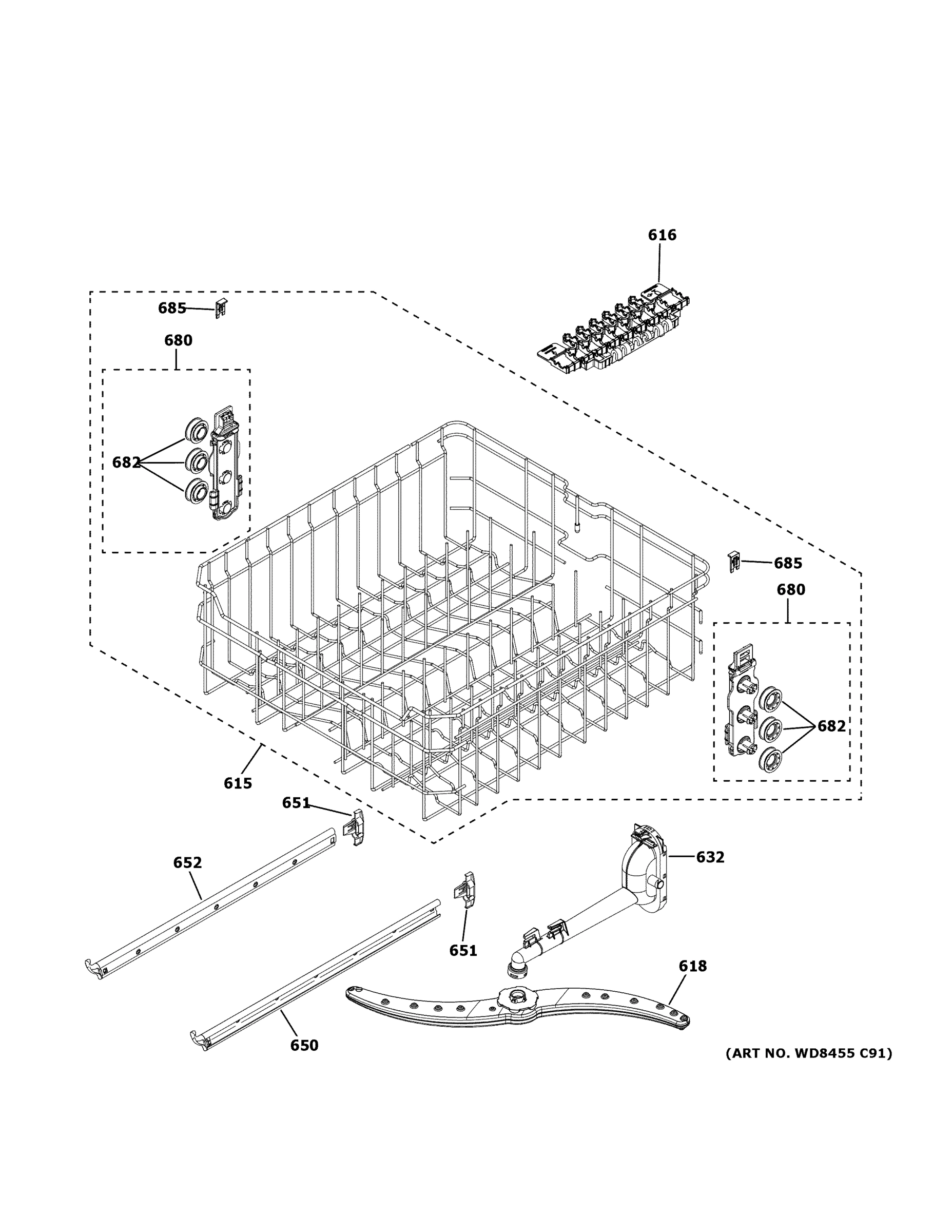

UPPER RACK ASSEMBLY

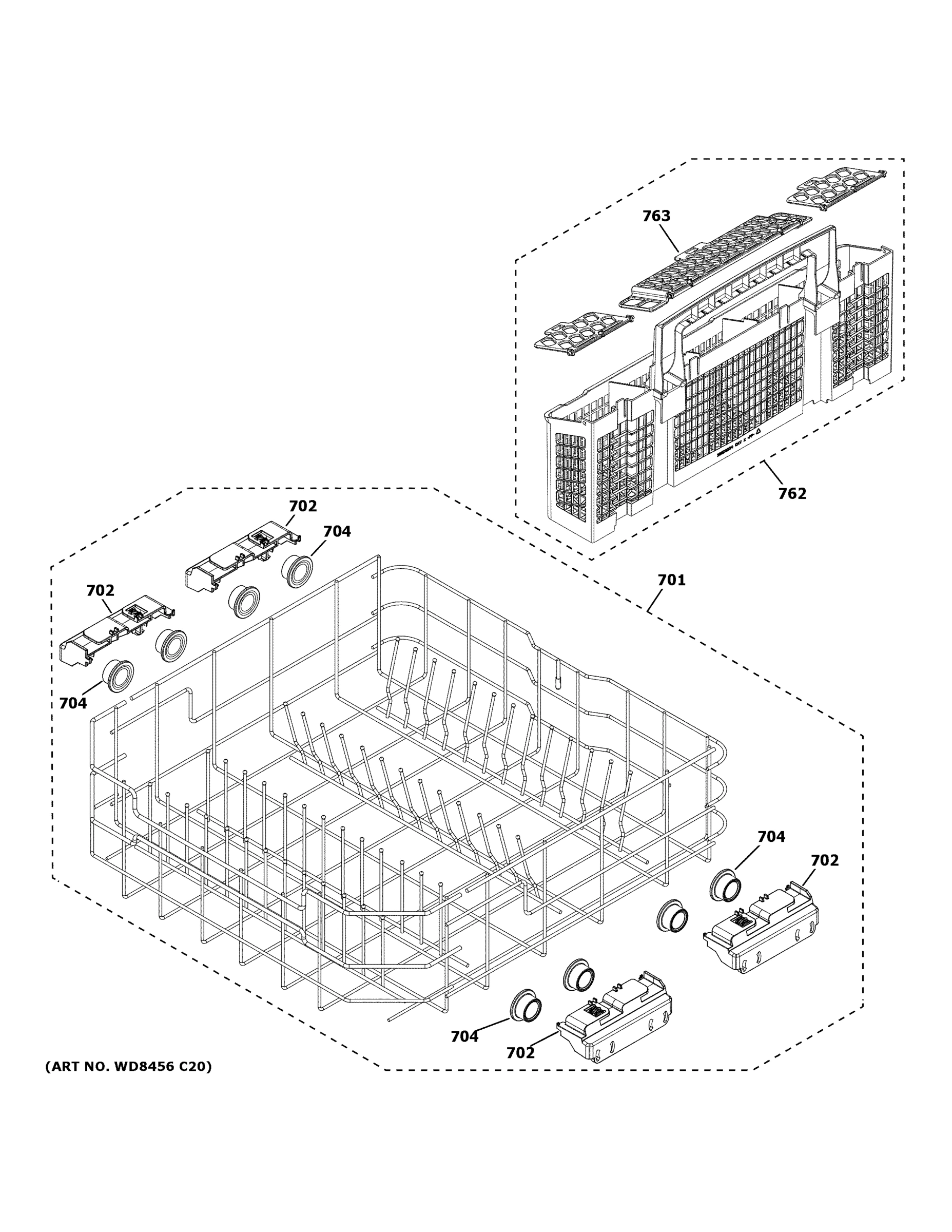

LOWER RACK ASSEMBLY

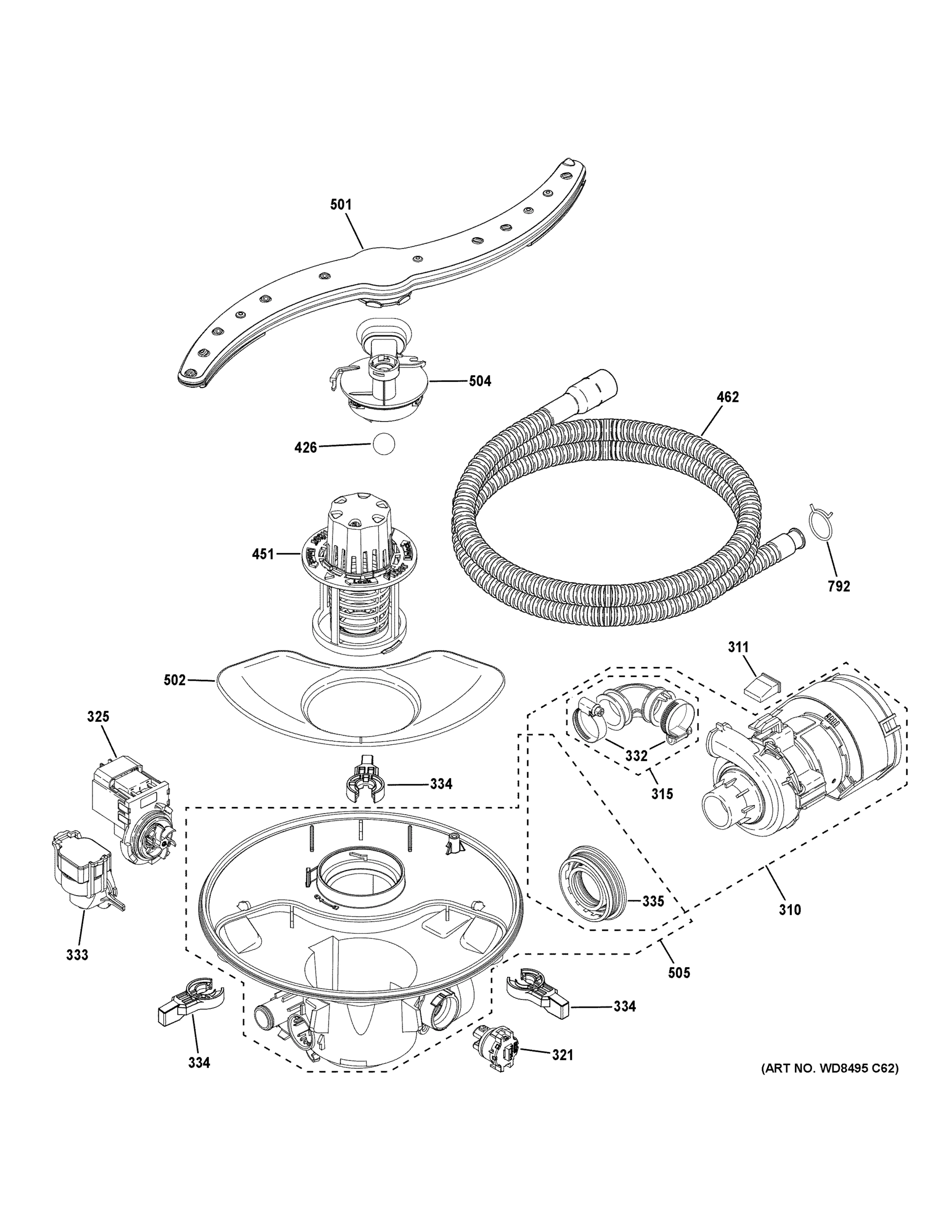

MOTOR, SUMP & FILTER ASSEMBLY
Common parts from model GE GDF550PSR0SS Dishwasher
105
HEATER NUT GEN WD02X28518 Contact Us For Availability
112
CLIP HEATER TWIST LOCK GEN WD01X24381 Contact Us For Availability
155
TRAY THIRD RACK GEN WD28X24462 Contact Us For Availability
161
FRAME WIRE COATED ASM GEN WD30X24457 Contact Us For Availability
162
ROLLER AND BRACKET ASM GEN WD30X22347 Contact Us For Availability
163
RAIL AND END CAP ASM GEN WD27X22351 Contact Us For Availability
164
END CAP THIRD RACK REAR GEN WD02X22342 Contact Us For Availability
166
MOUNT TUB ASM GEN WD30X24460 Contact Us For Availability
200
DOOR HINGE ASSEMBLY LEFT GEN WD01X27721 Contact Us For Availability
201
DOOR HINGE ASSEMBLY RIGHT GEN WD01X27720 Contact Us For Availability
325
DRAIN PUMP ASM GEN WD19X25461 Contact Us For Availability
333
PRESSURE SENSOR ASM GEN WD21X25468 Contact Us For Availability
451
FINE FILTER AND BASKET ASM GEN WD12X25995 Contact Us For Availability
502
PLASTIC COURSE FILTER GEN WD22X25465 Contact Us For Availability
504
DIVERTER ASM GEN WD19X25466 Contact Us For Availability
571
HUB GEN WD22X20688 Contact Us For Availability
577
O-RING GEN WD08X23817 Contact Us For Availability
704
ROLLER GEN WD12X26146 Contact Us For Availability
714
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
735
SCR 10-32 TT CB 1/4 ZN GEN WD01X21837 Contact Us For Availability
736
FRICTION WASHER GEN WD01X20593 Contact Us For Availability
744
WATER VALVE ASM GEN WD15X27703 Contact Us For Availability
745
SCR 10-32 GX IHXW 9/16 S GEN WD01X22514 Contact Us For Availability
747
CONTROL BOARD FUSE 4.1 AMP GEN WD21X25696 Contact Us For Availability
759
BLACK TOE KICK GEN WD27X27752 Contact Us For Availability
762
BASKET ASM SILVERWARE GEN WD28X24469 Contact Us For Availability
790
CLAMP HOSE GEN WD01X22786 Contact Us For Availability
791
CLAMP GEN WD01X24246 Contact Us For Availability
888
COUNTERTOP BRACKET GEN WD01X27759 Contact Us For Availability
× ![]()
