Model Whirlpool GD27DIXHW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

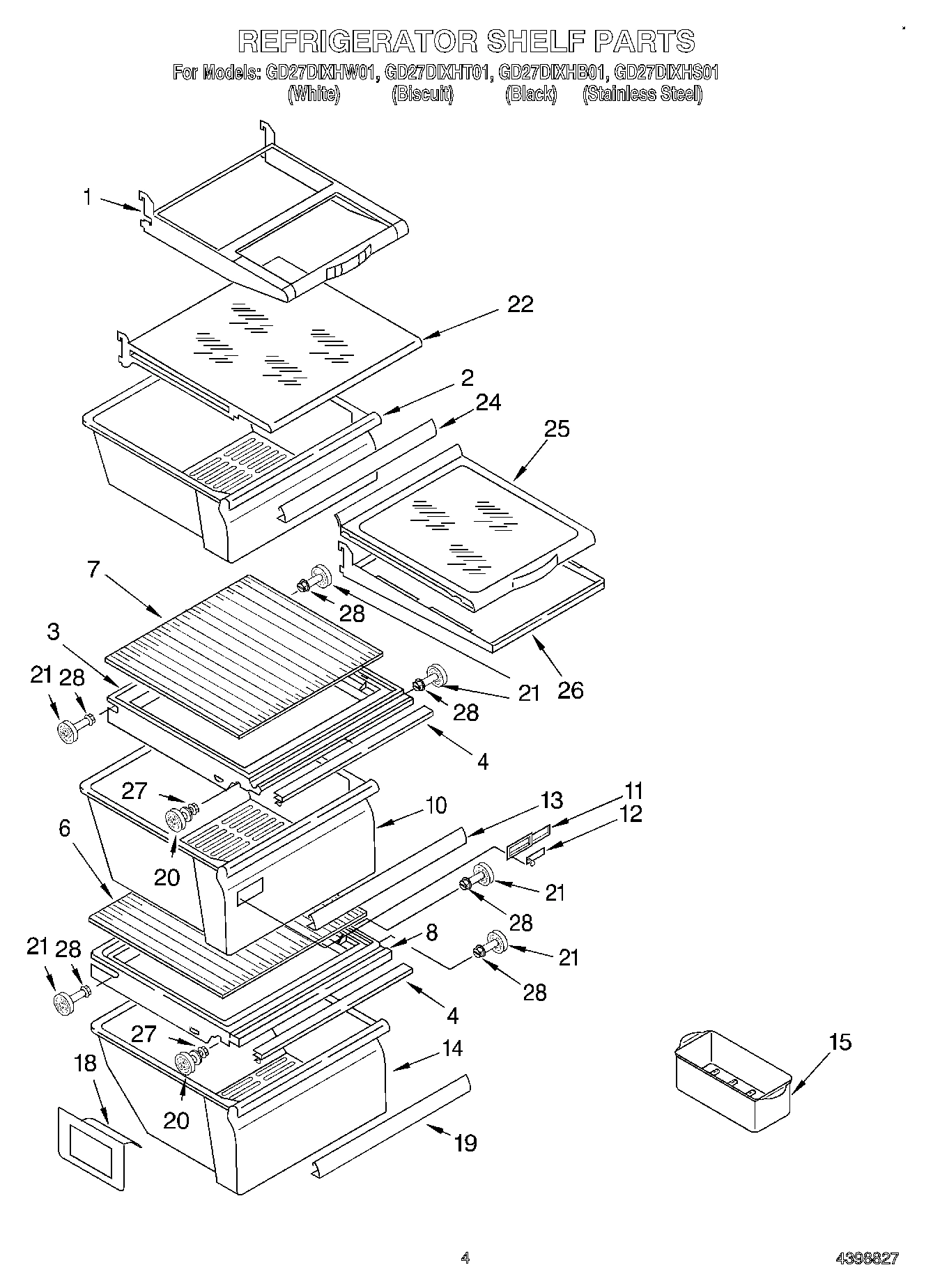

03 - REFRIGERATOR SHELF

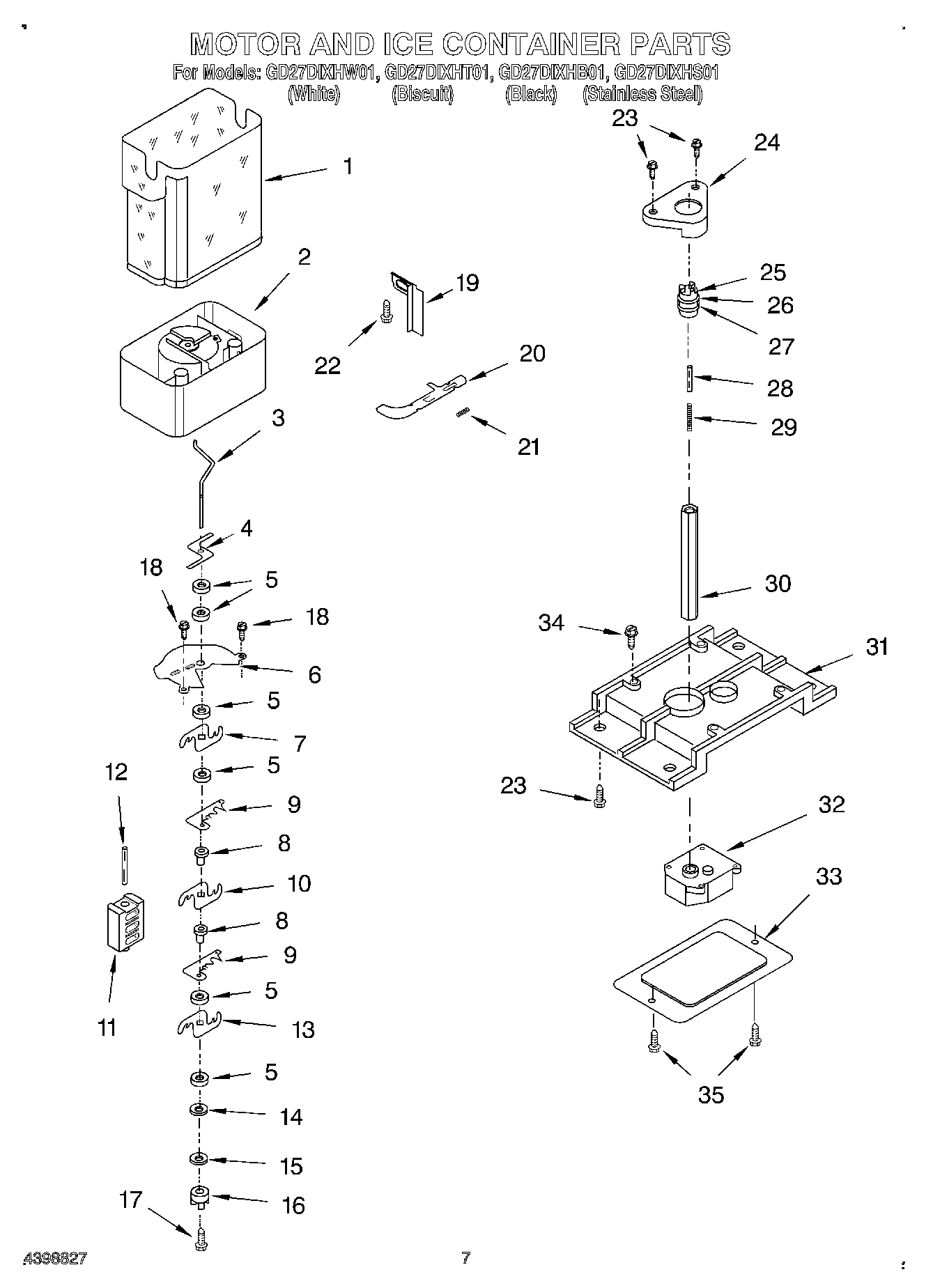

05 - MOTOR AND ICE CONTAINER
12 - ICE MAKER, OPTIONAL
07 - FREEZER DOOR
02 - REFRIGERATOR LINER
09 - AIR FLOW
08 - DISPENSER FRONT
10 - CONTROL
04 - FREEZER LINER
06 - REFRIGERATOR DOOR
11 - UNIT
01 - CABINET, LITERATURE
Common parts from model Whirlpool GD27DIXHW01 SIDE BY SIDE REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI62174A6 Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Black WPL 2207024B Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Stain WPL 2207024S Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (Biscu WPL 2207024T Contact Us For Availability
1
Refrigerator Door (Includes Item No.6) (White WPL 2207024W Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2198693 Contact Us For Availability
1
LITERATURE PARTS (Owner`s Manual) WPL LIT2205958 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2211860 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Shelf Flip-Up WPL 2204486 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Condenser Assembly WPL 2204242B Contact Us For Availability
5
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
5
Basket WPL 2205846 Contact Us For Availability
6
Basket, Tall WPL 2181765 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability
8
Handle (Black) WPL 2207003B Contact Us For Availability
8
Handle (Biscuit) WPL 2207003T Contact Us For Availability
8
Handle (Tempest Gray) WPL 2207003TG Contact Us For Availability
8
Handle (White) WPL 2207003W Contact Us For Availability
9
Grille, Overflow (White) WPL 2207007W Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2203562B Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2203562T Contact Us For Availability
11
Bracket, Insert WPL 2206006 Contact Us For Availability
12
Trim, Basket WPL 2195905 Contact Us For Availability
12
Bracket, Door Stop WPL 2206910 Contact Us For Availability
13
Shelf Track (Left Side) WPL 2181759 Contact Us For Availability
13
Shelf Track (Right Side) WPL 2181760 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Shelf WPL 2205837 Contact Us For Availability
14
Trim, Door-Top (Black) WPL 2207037B Contact Us For Availability
14
Trim, Door-Top (Biscuit) WPL 2207037T Contact Us For Availability
14
Trim, Door-Top (Tempest Gray) WPL 2207037TG Contact Us For Availability
14
Trim, Door-Top (White) WPL 2207037W Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
15
Grille (Tempest Gray) WPL 2198468T Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Basket WPL 2181764 Contact Us For Availability
15
Trim, Door-Bottom (Black) WPL 2207038B Contact Us For Availability
15
Trim, Door-Bottom (Biscuit) WPL 2207038T Contact Us For Availability
15
Trim, Door-Bottom (Tempest Gray) WPL 2207038TG Contact Us For Availability
15
Trim, Door-Bottom (White) WPL 2207038W Contact Us For Availability
16
Jewelry, Handle (Gold) WPL 2207010G Contact Us For Availability
16
Jewelry, Handle (Satin Nickel) WPL 2207010SN Contact Us For Availability
17
Lever, Water Dispenser (Biscuit (Almond Shado WPL 2203561T Contact Us For Availability
17
Divider WPL 2195496 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI62172A5 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
24
WPL 625834 WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2200100 Contact Us For Availability
26
Harness, Unit WPL 2211338 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
30
Retainer, Light Lens WPL 2200097 Contact Us For Availability
31
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
31
Tube, P.C. Board WPL 2198665 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
36
Cover, Receiver WPL 2198588 Contact Us For Availability
37
Screw WPL 489473 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
40
Light Shield WPL 2198589 Contact Us For Availability
41
Light Lens WPL 2211506 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
45
Ladder (Left Side) WPL 2198609 Contact Us For Availability
45
Ladder (Right Side) WPL 2198610 Contact Us For Availability
46
Shield, Wiring WPL 2198639 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
