Model Whirlpool GD25DQXFW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
09 - UNIT
11 - CONTROL

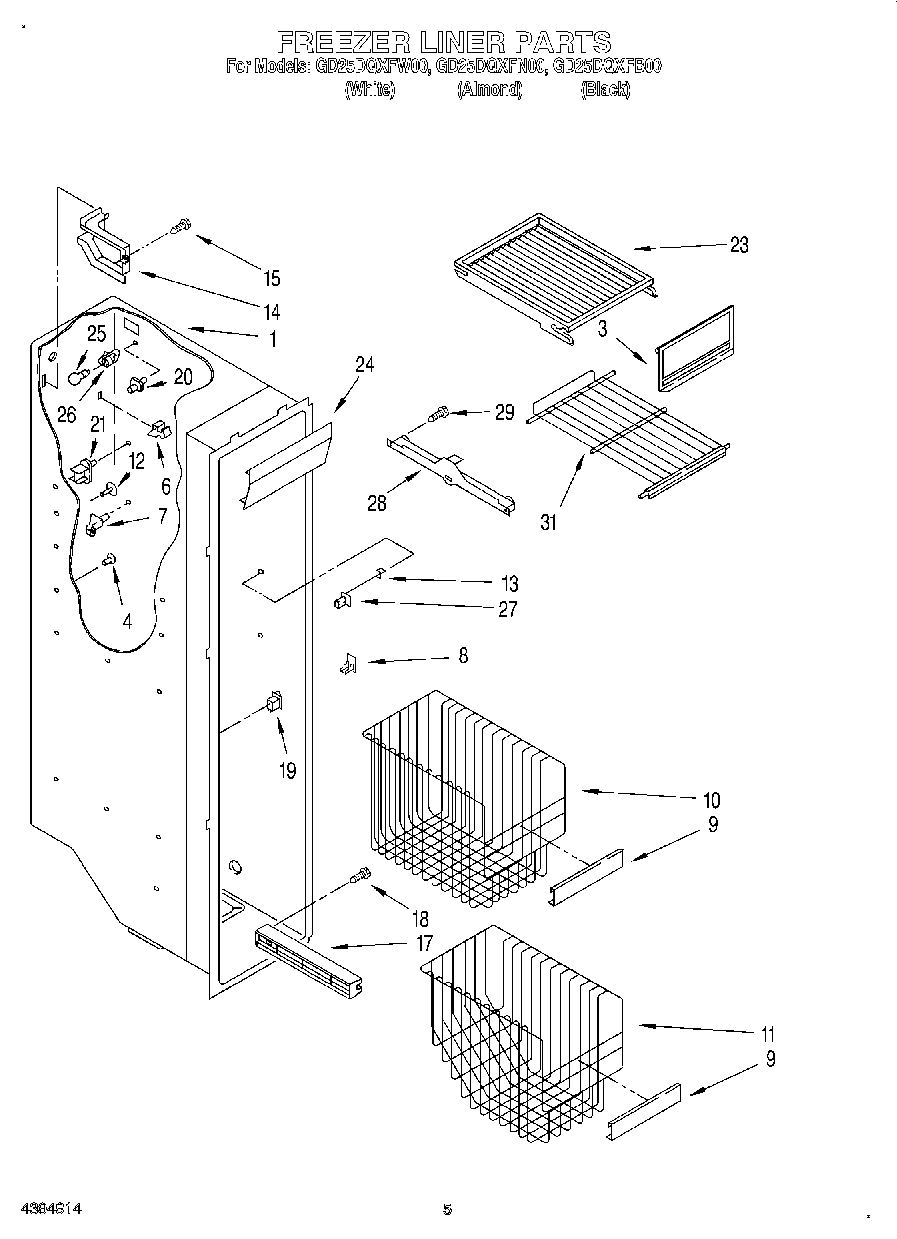

04 - FREEZER LINER

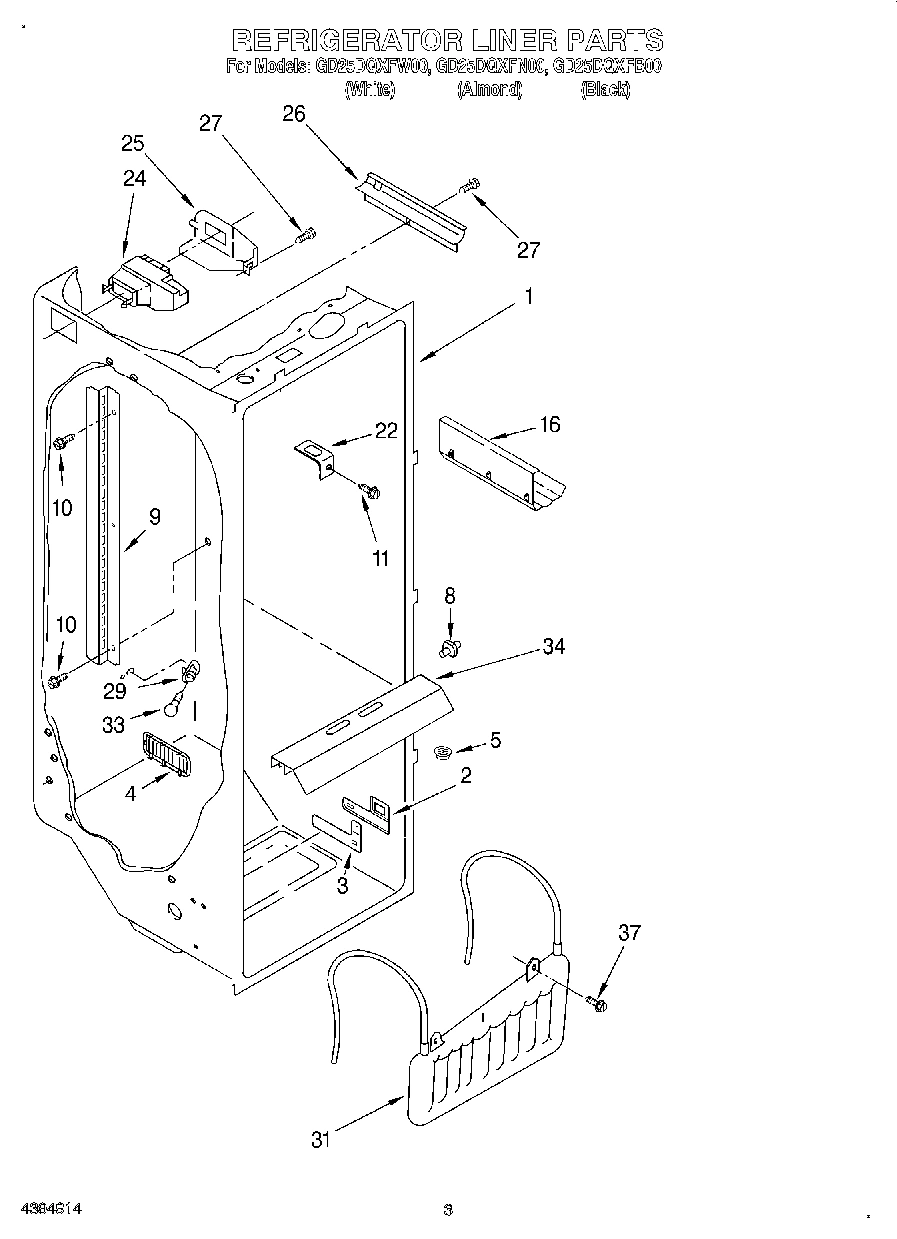

02 - REFRIGERATOR LINER

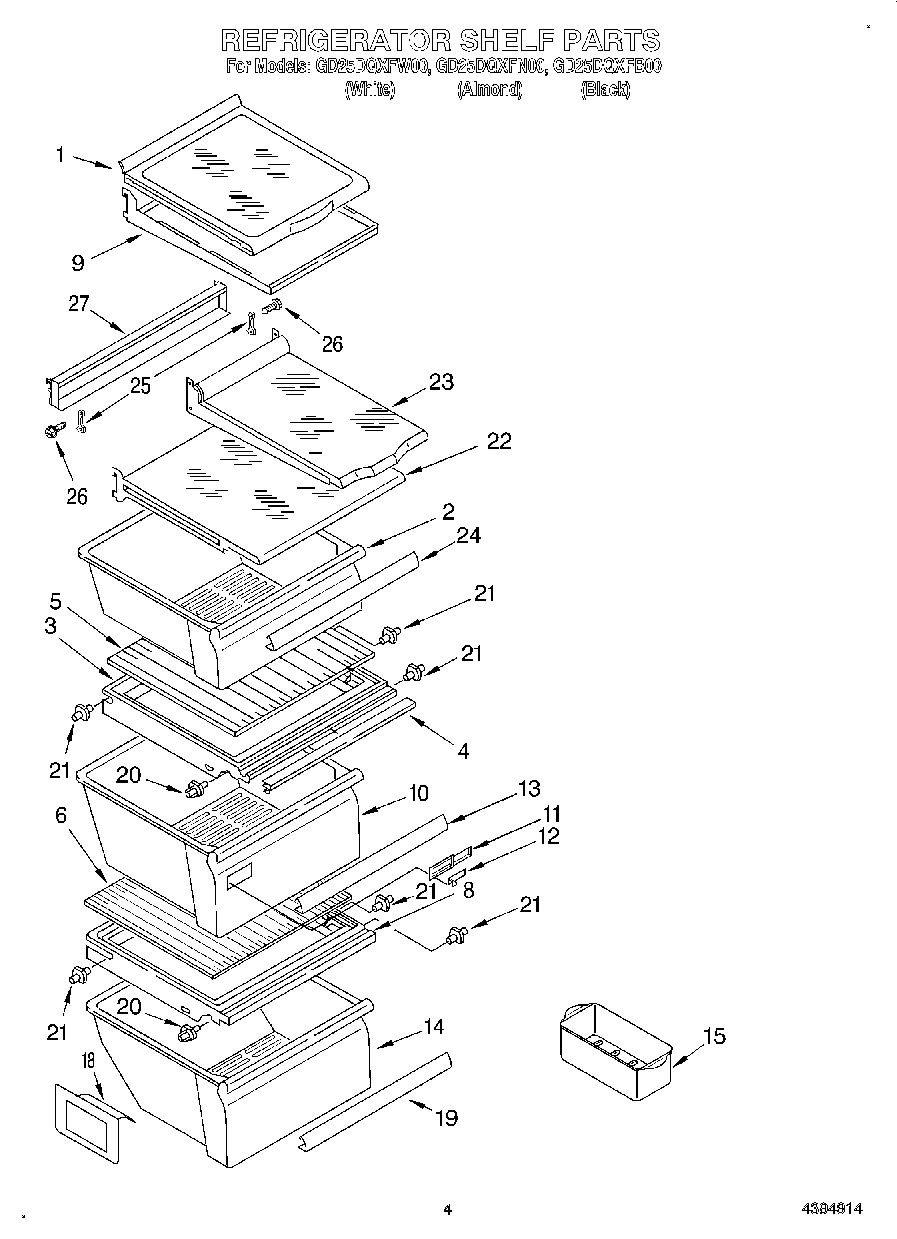

03 - REFRIGERATOR SHELF

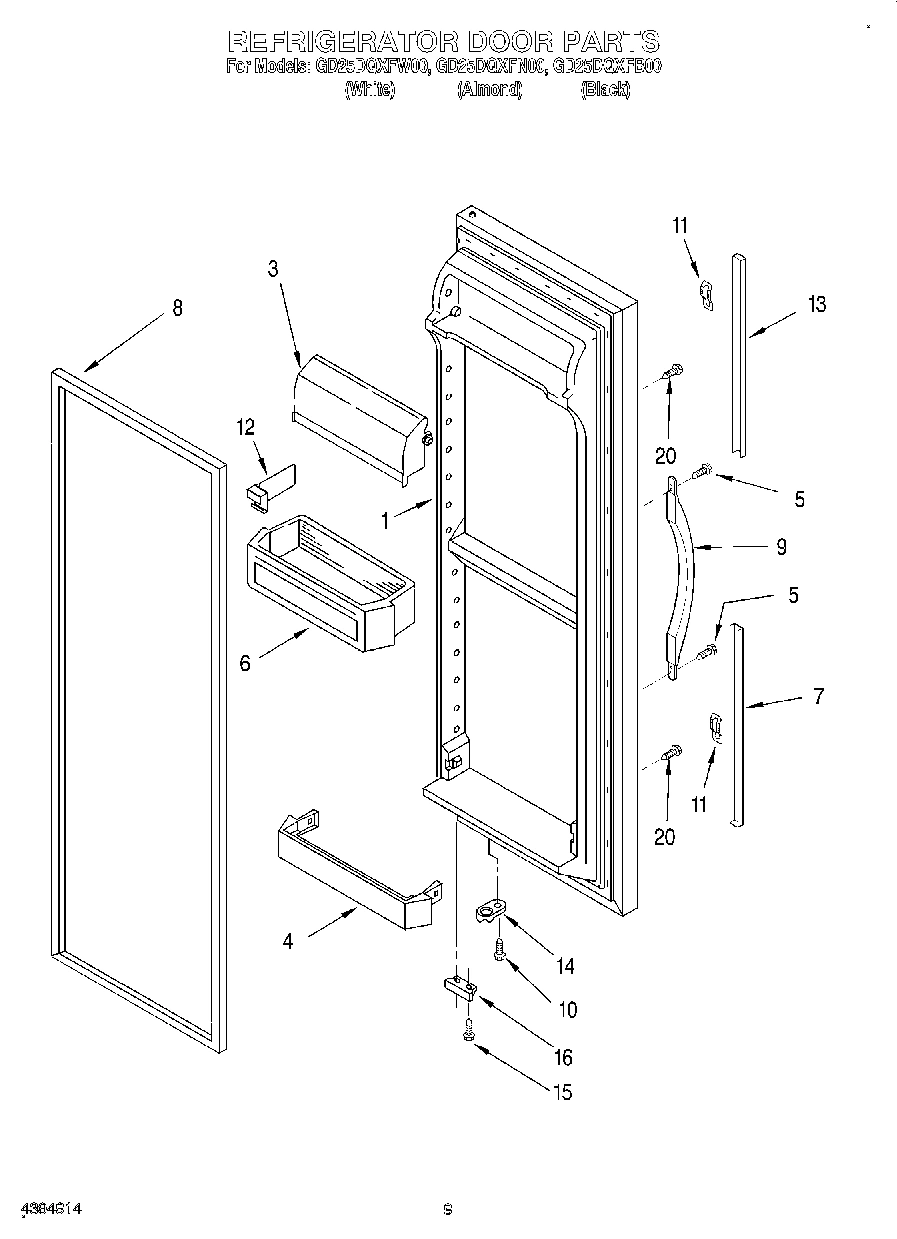

06 - REFRIGERATOR DOOR

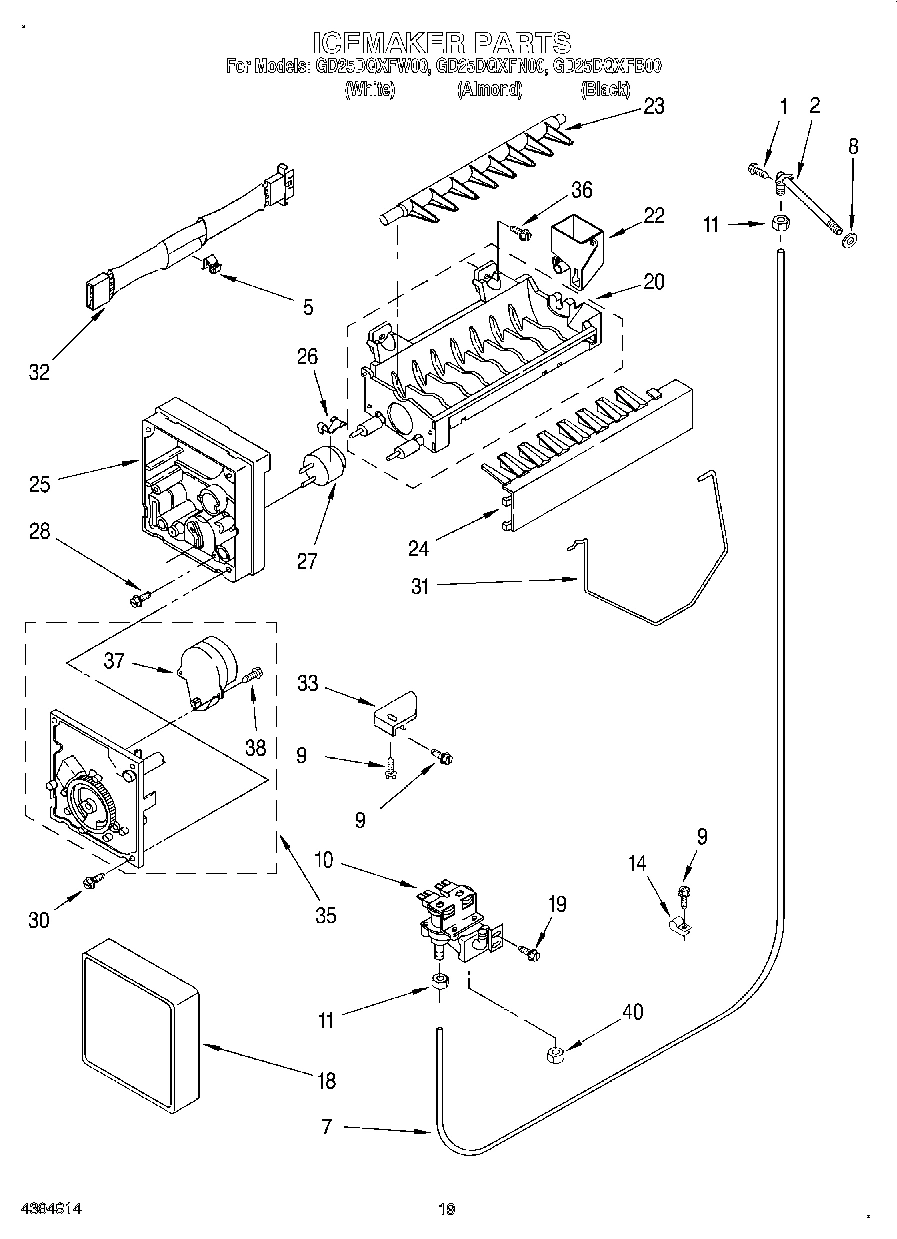

12 - ICEMAKER
08 - DISPENSER FRONT
10 - AIR FLOW

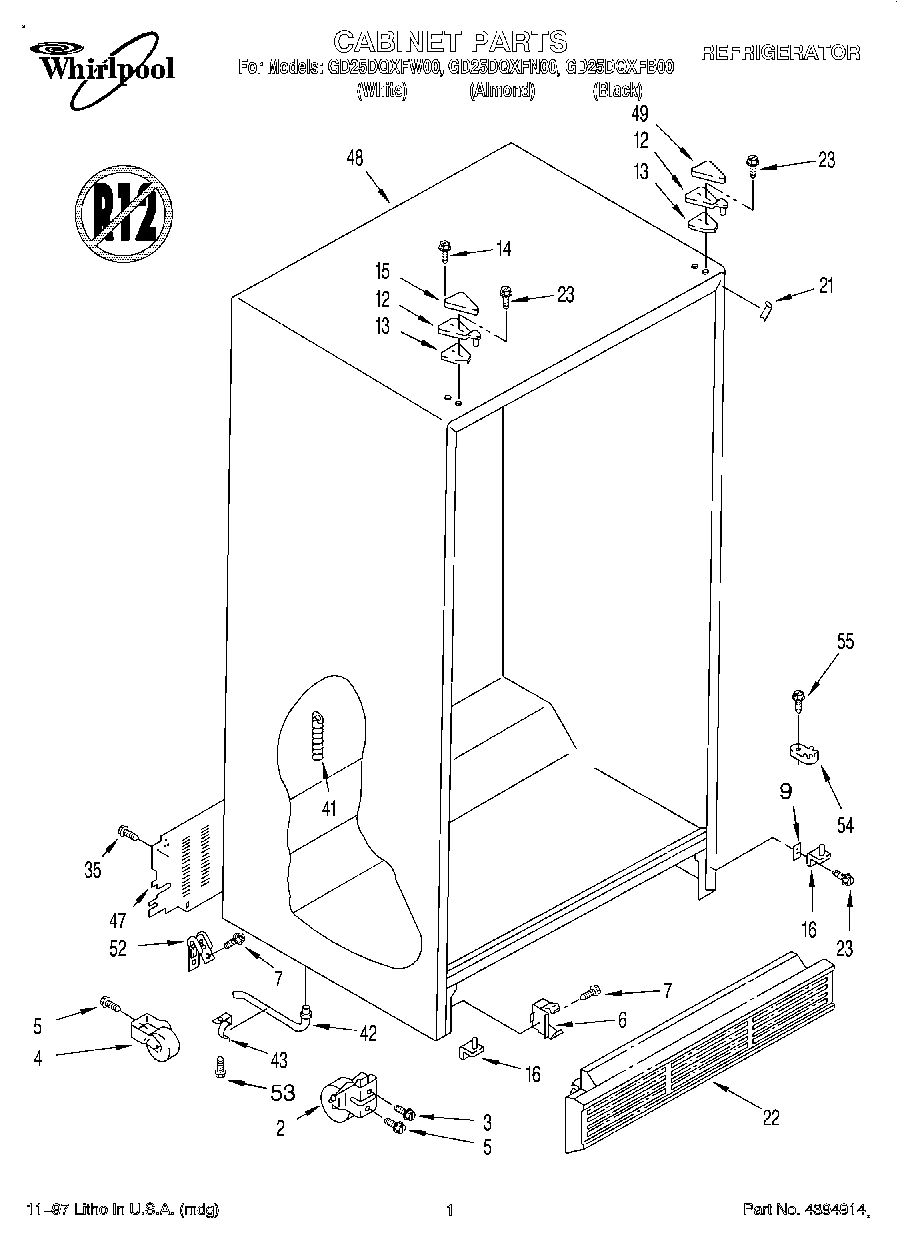

01 - CABINET
05 - MOTOR AND ICE CONTAINER

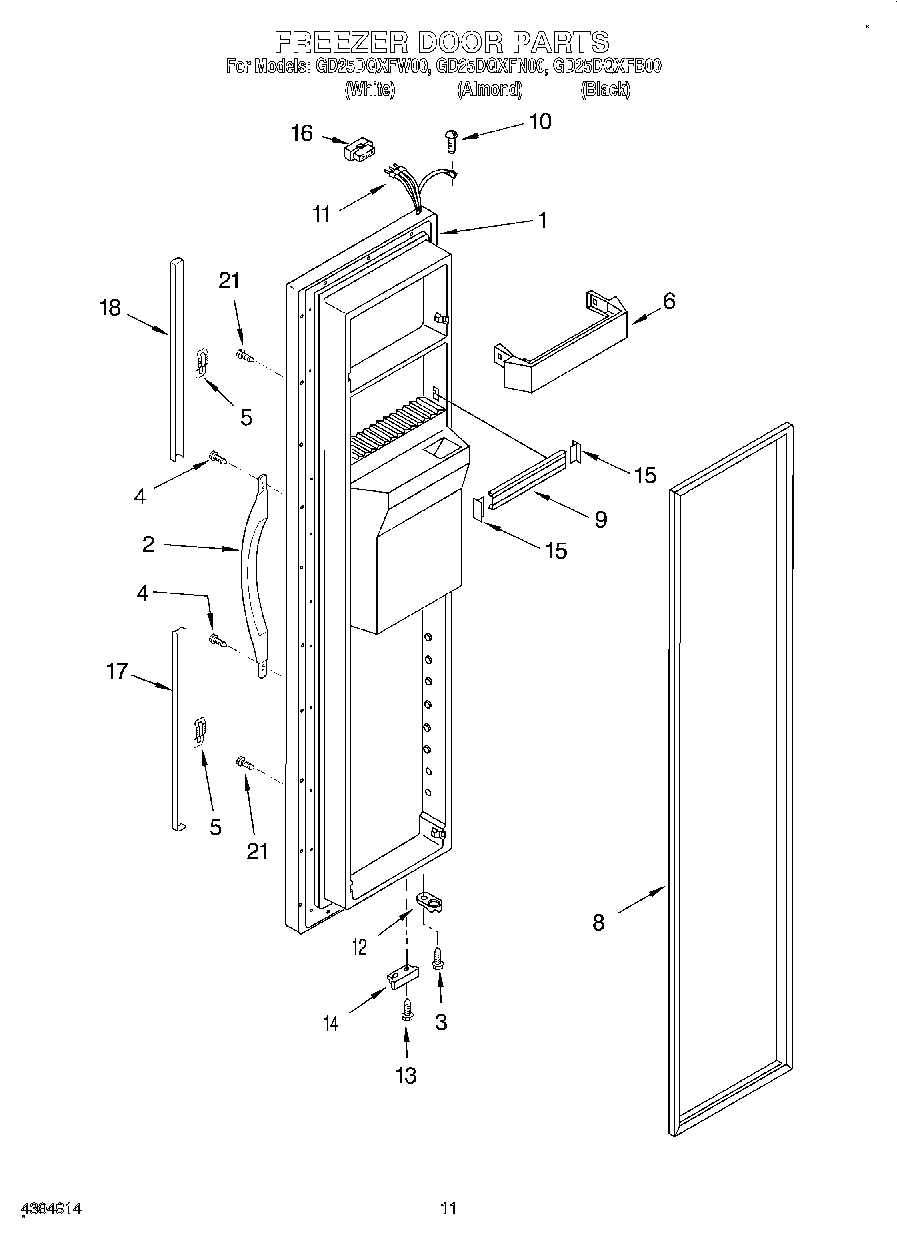

07 - FREEZER DOOR
Common parts from model Whirlpool GD25DQXFW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI61943A9 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194506B Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194506N Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194506W Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle, Center (Almond) WPL 2193345N Contact Us For Availability
2
Handle, Center (White) WPL 2193345W Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180242 Contact Us For Availability
9
Grille, Overflow (Black) WPL 2180243 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180256 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2180257 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2180258 Contact Us For Availability
11
Wiring Harness WPL 2183713 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180266 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2194970N Contact Us For Availability
17
Extension, Bottom (White) WPL 2194970W Contact Us For Availability
18
Extension, Top (Black) WPL 2194974B Contact Us For Availability
18
Extension, Top (Almond) WPL 2194974N Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2180237 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2180238 Contact Us For Availability
19
Plaque, Front Cover (Black) WPL 2180239 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI61944A6 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180381 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180382 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180383 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI61940A7 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
KIT WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
