Model Whirlpool GD25DQXFN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

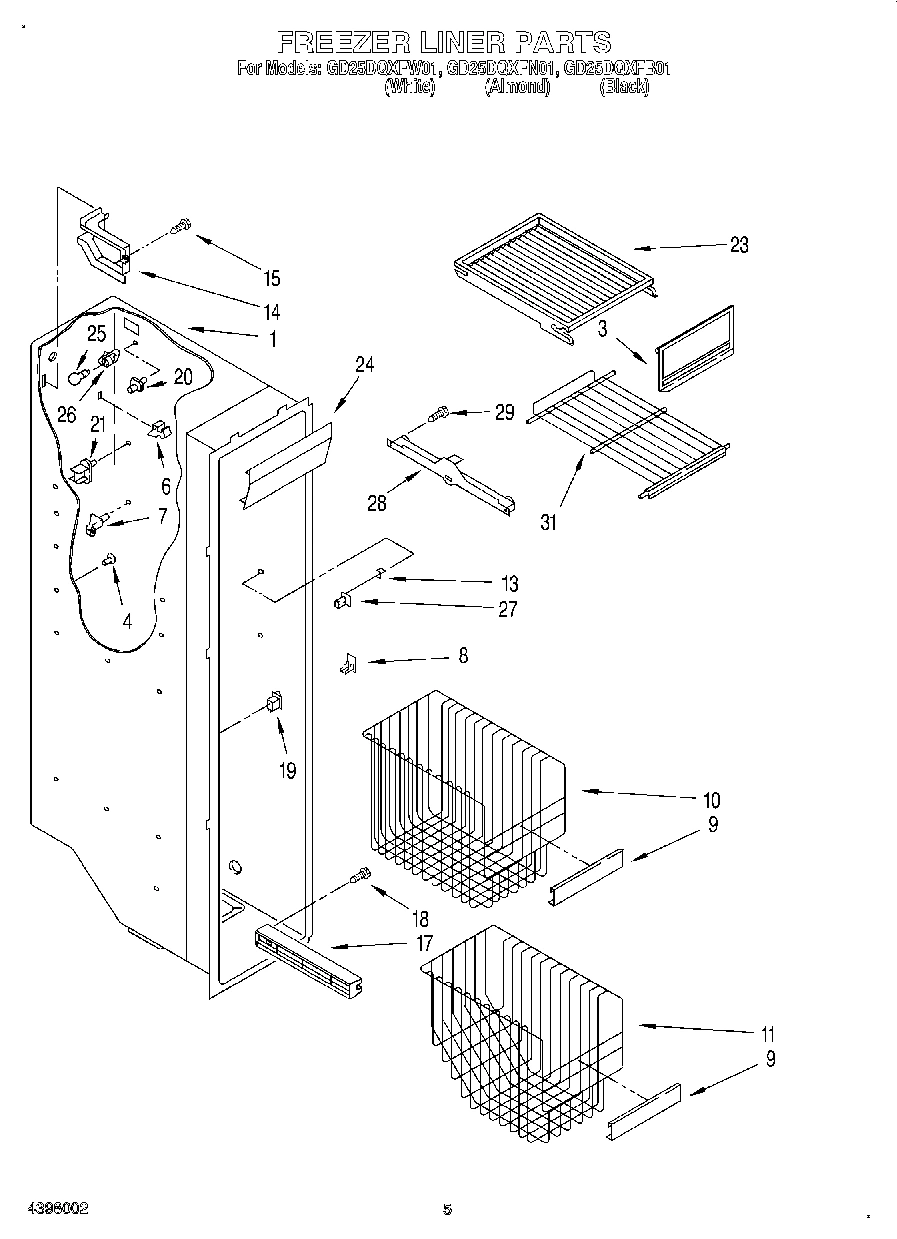

04 - FREEZER LINER

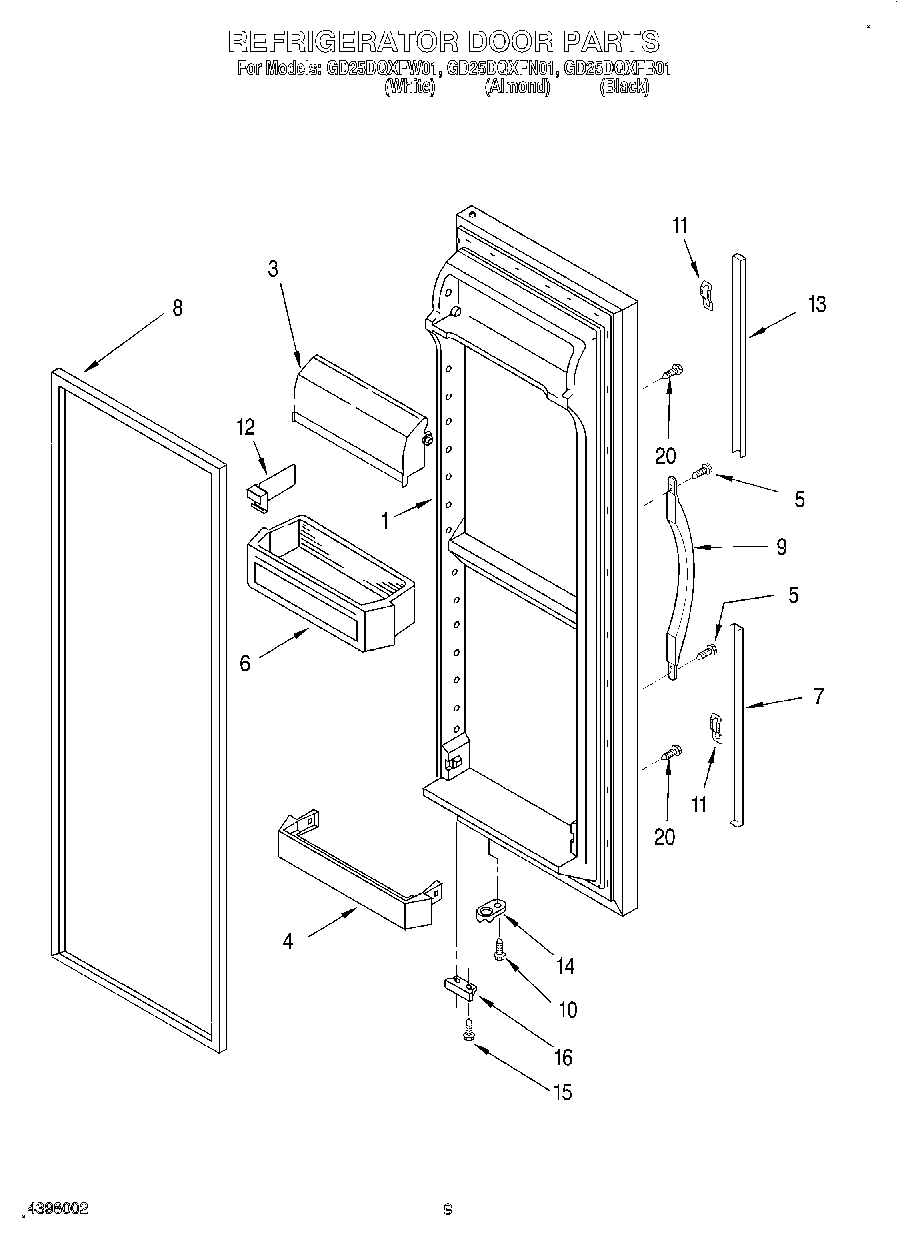

06 - REFRIGERATOR DOOR

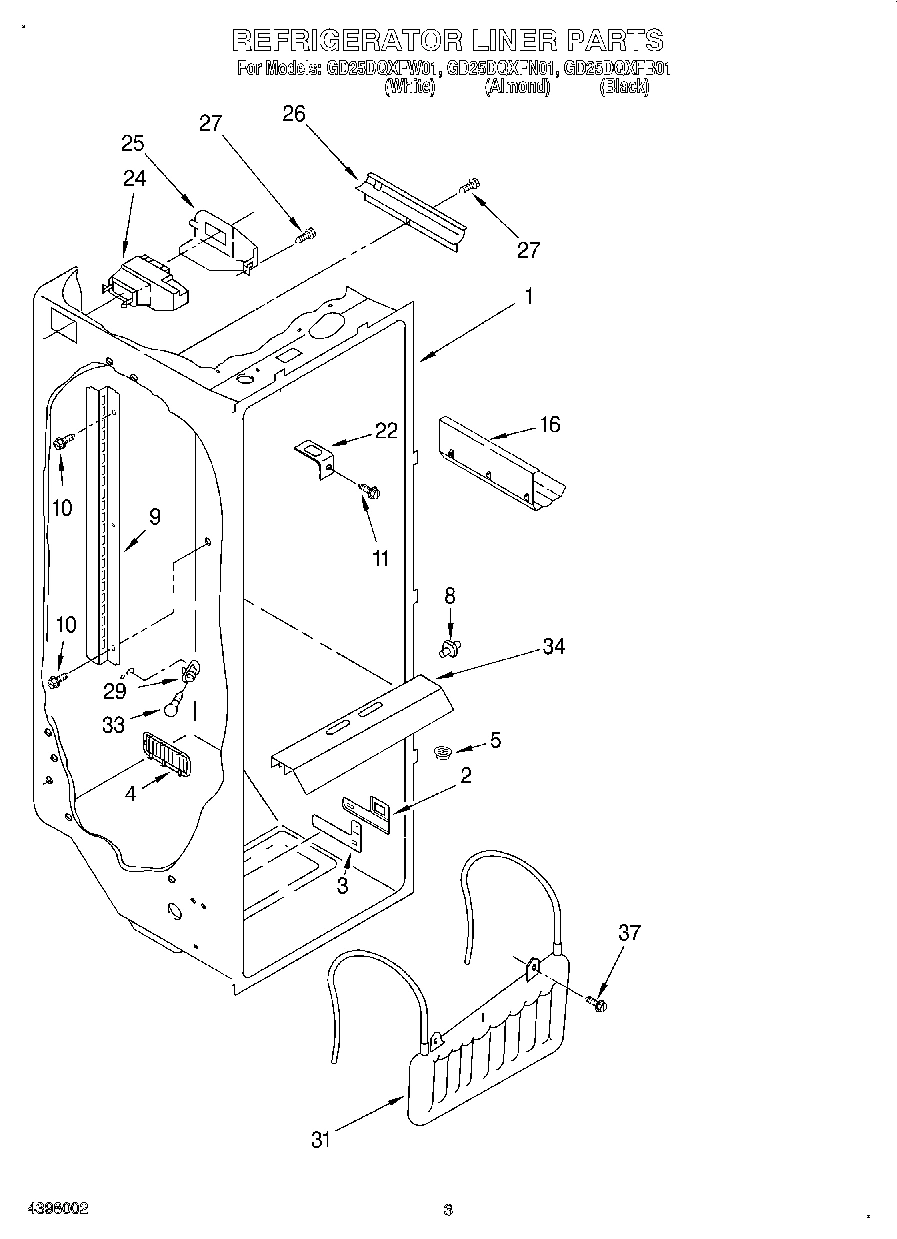

02 - REFRIGERATOR LINER

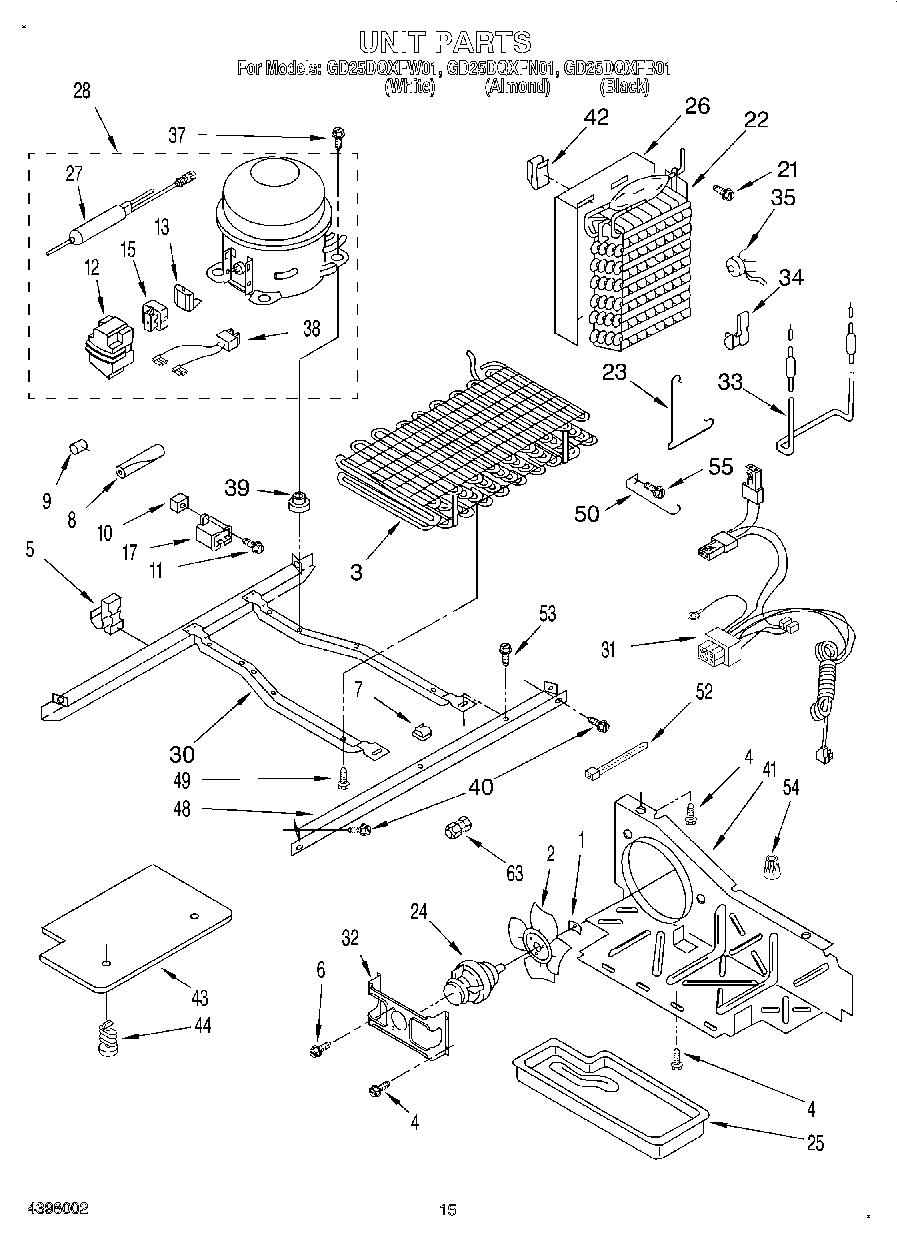

09 - UNIT

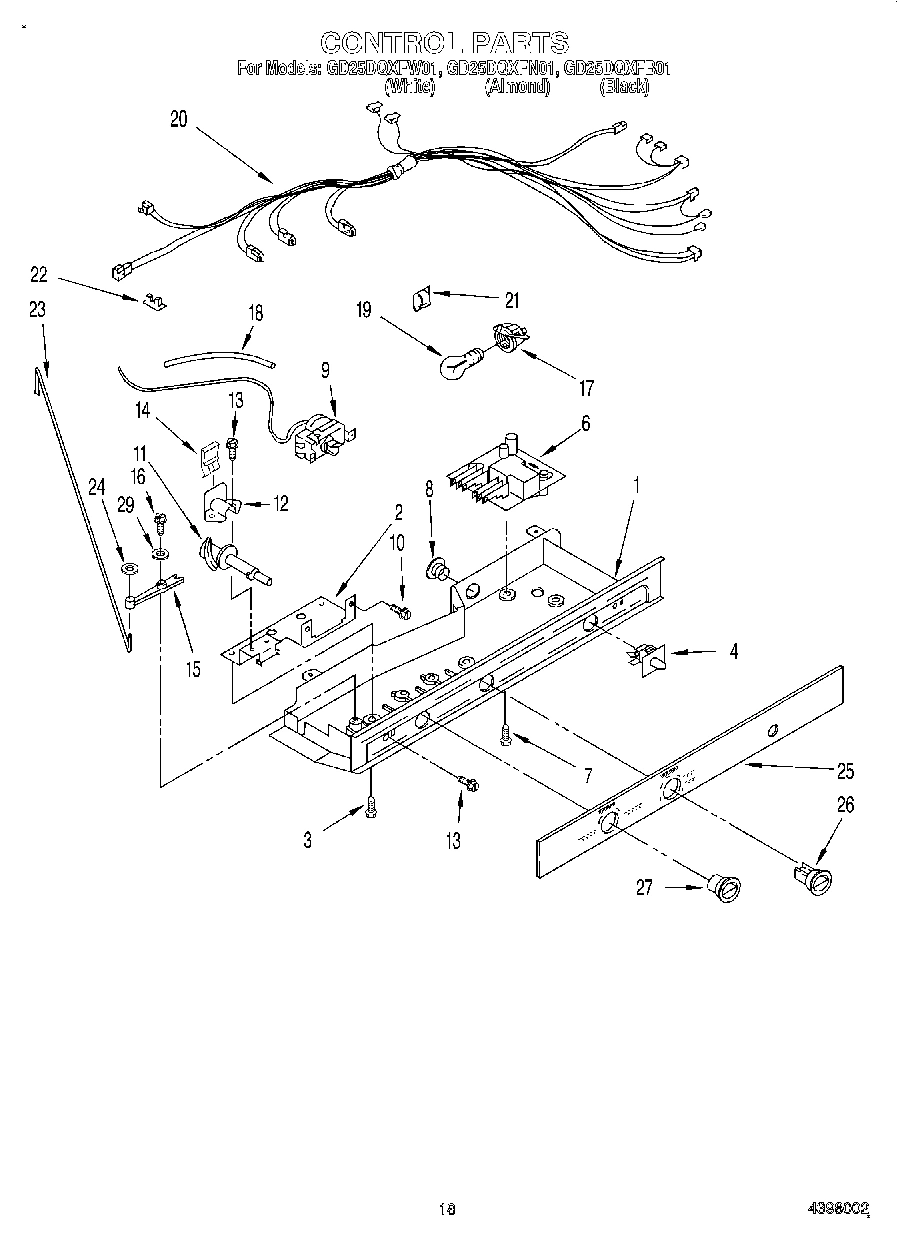

11 - CONTROL

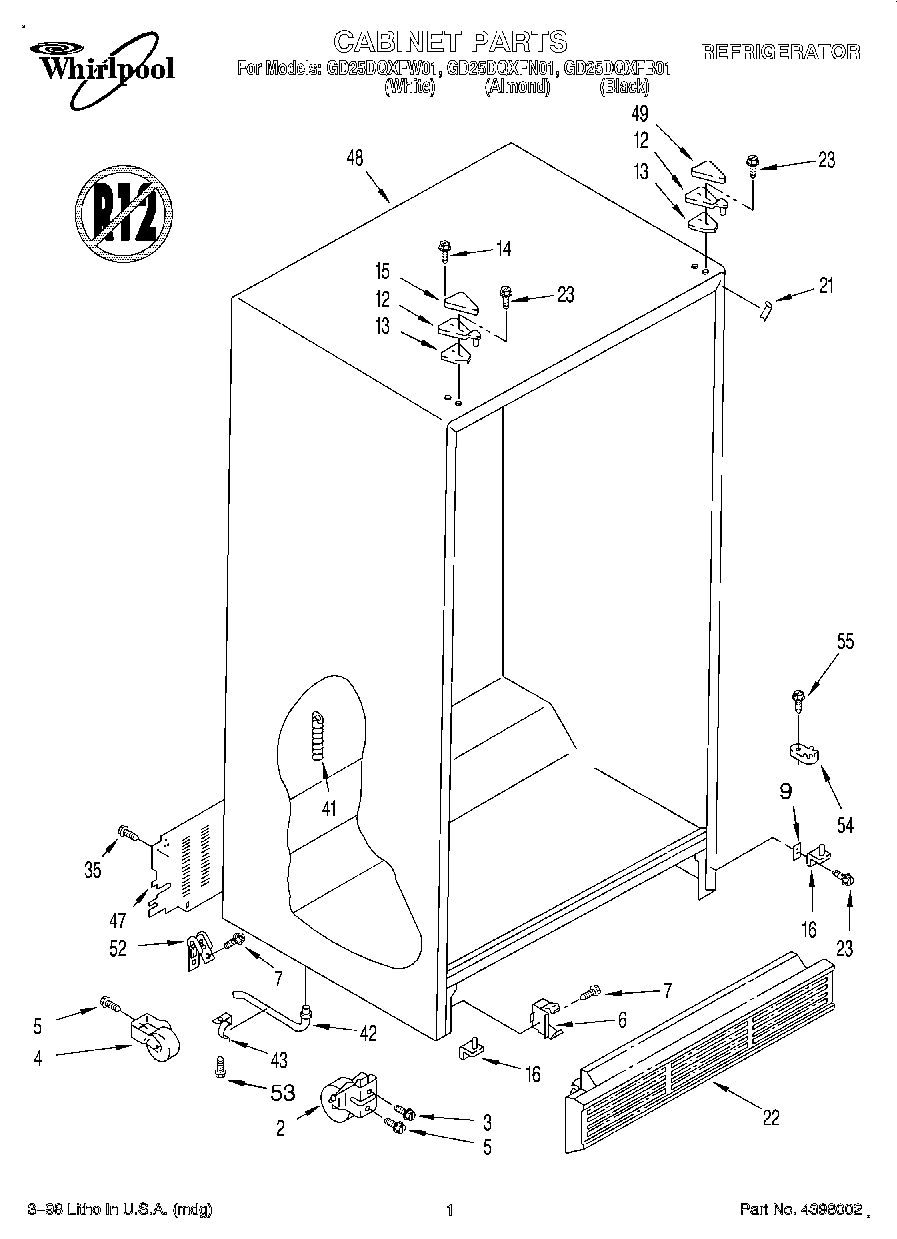

01 - CABINET

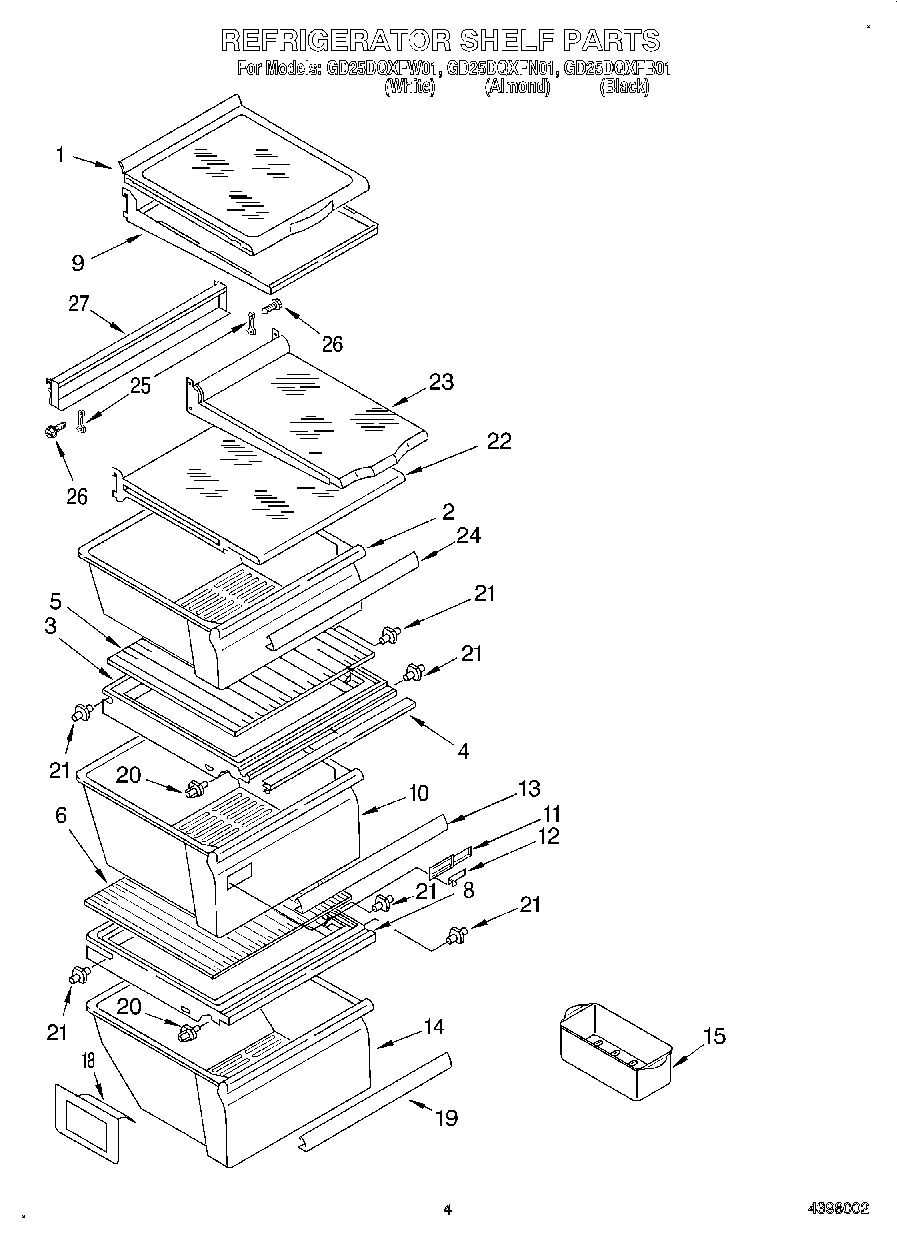

03 - REFRIGERATOR SHELF

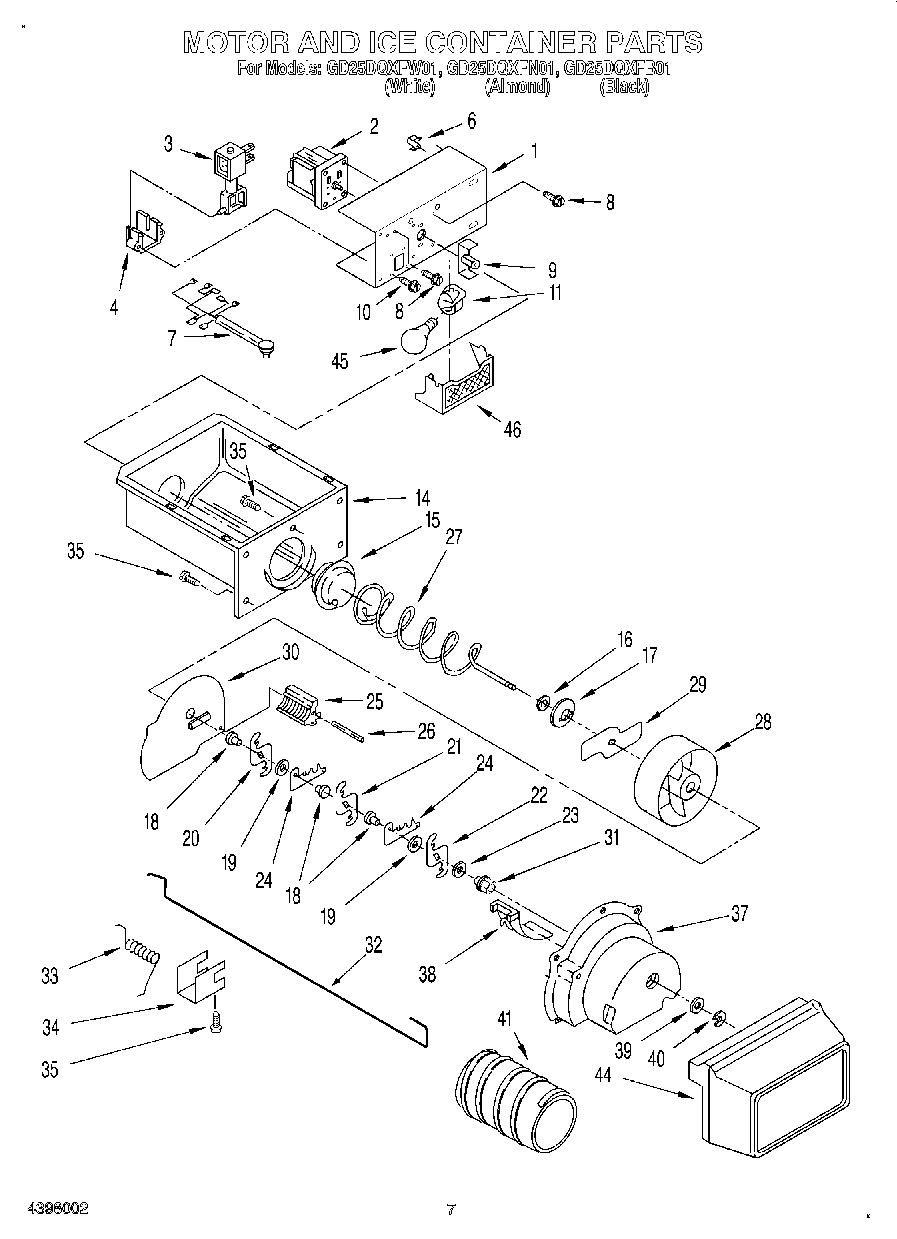

05 - MOTOR AND ICE CONTAINER

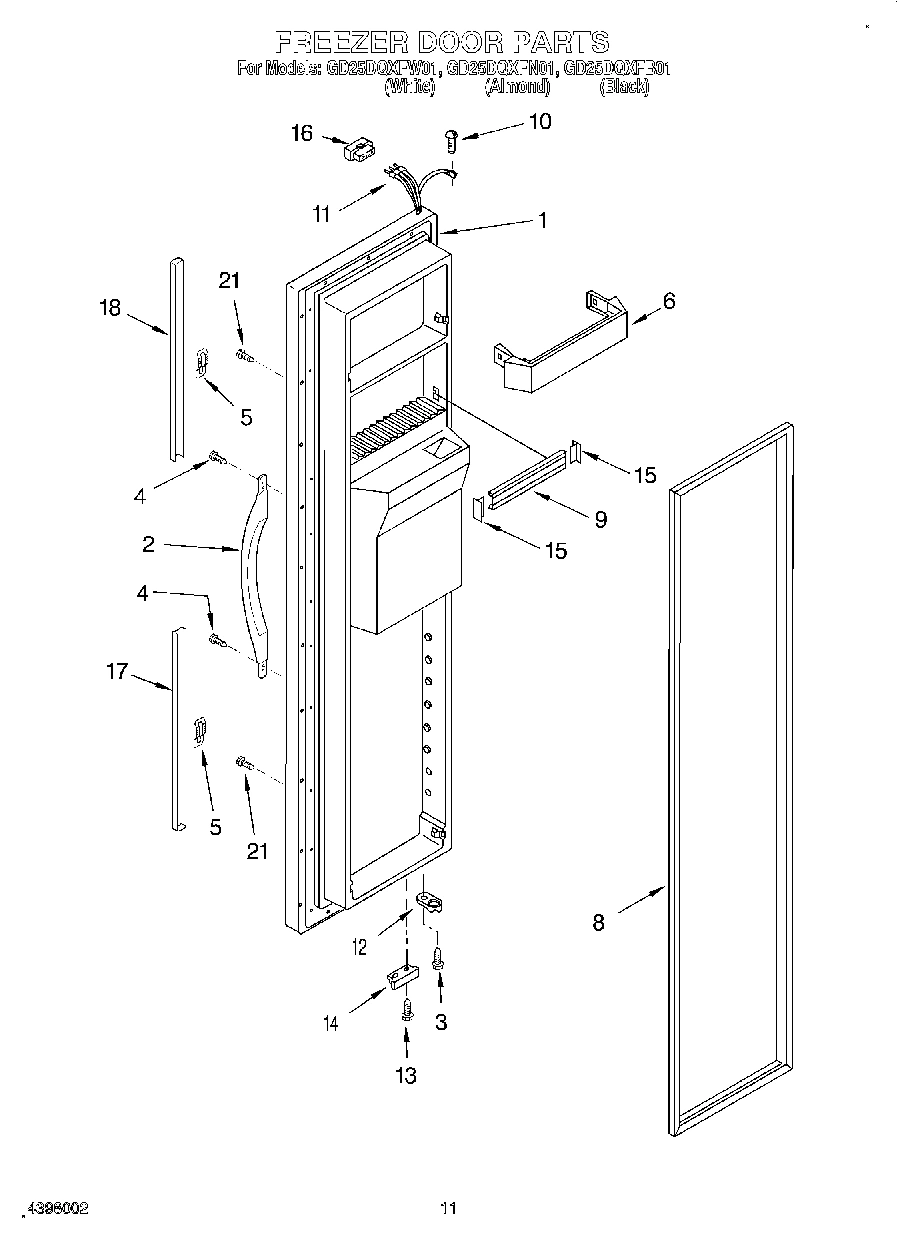

07 - FREEZER DOOR

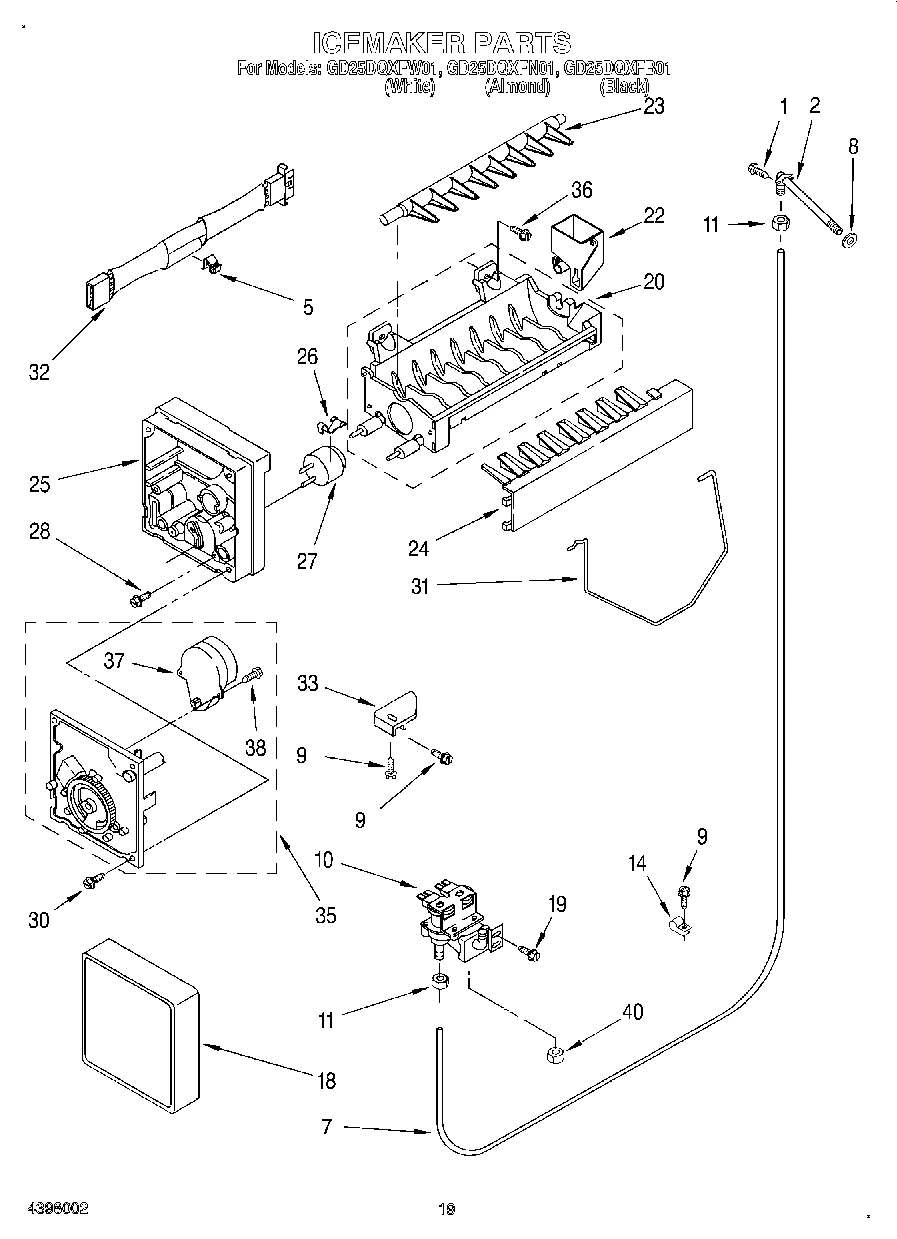

12 - ICEMAKER

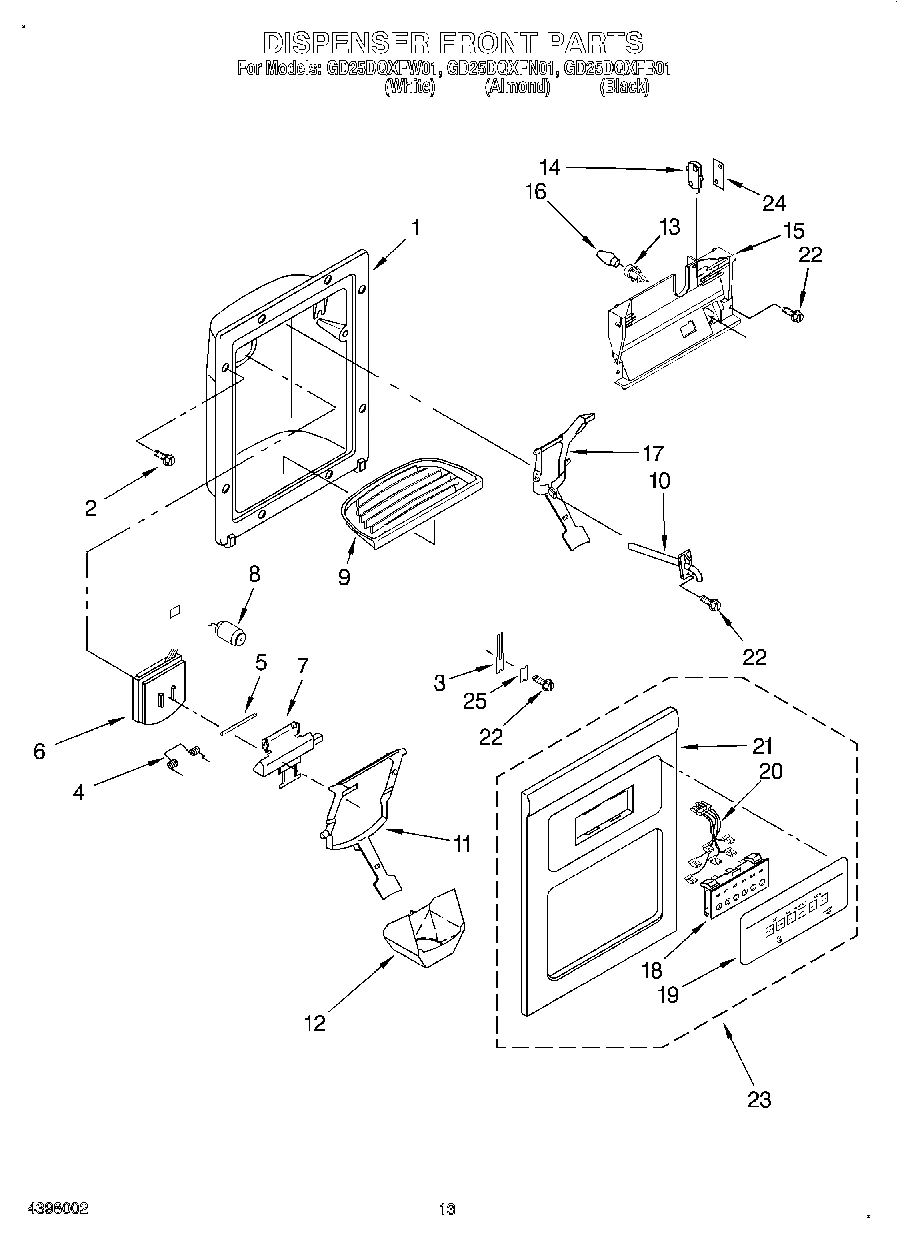

08 - DISPENSER FRONT
10 - AIR FLOW
Common parts from model Whirlpool GD25DQXFN01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186435 WPL LIT2186435 Contact Us For Availability
WPL LIT2186924 WPL LIT2186924 Contact Us For Availability
WPL LIT2194921 WPL LIT2194921 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194506B Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194506N Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194506W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI61938A1 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Handle, Center (White) WPL 2186649W Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180242 Contact Us For Availability
9
Grille, Overflow (Black) WPL 2180243 Contact Us For Availability
11
Wiring Harness WPL 2183713 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180256 Contact Us For Availability
11
Lever, Ice Dispenser (Almond (Almond Shadow P WPL 2180257 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180258 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
17
Lever, Water Dispenser (Almond (Almond Shadow WPL 2180266 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Extension, Top (Black) WPL 2194973B Contact Us For Availability
18
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2180237 Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2180238 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2180239 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI61939A1 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180381 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180382 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180383 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
KIT WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
