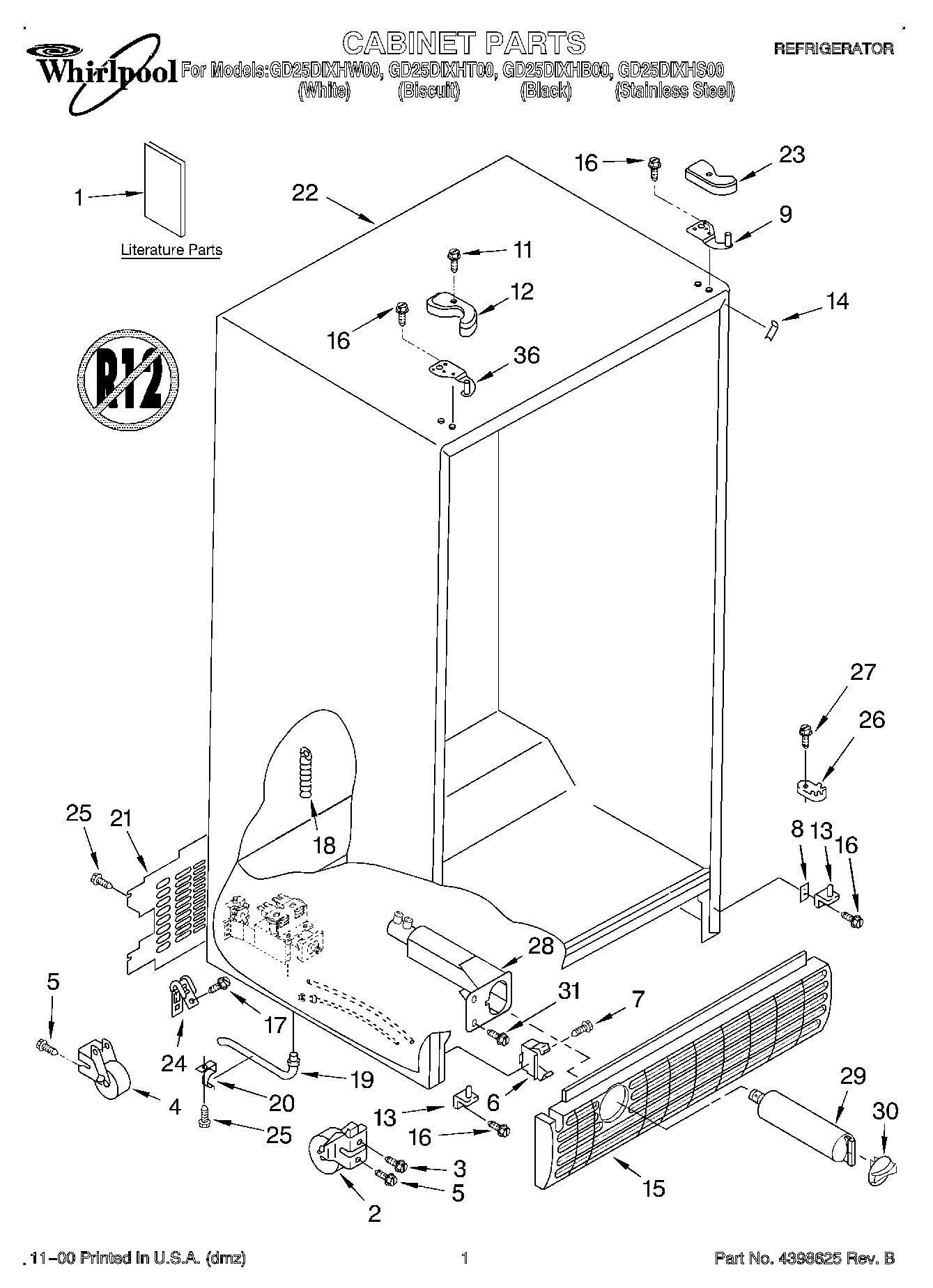

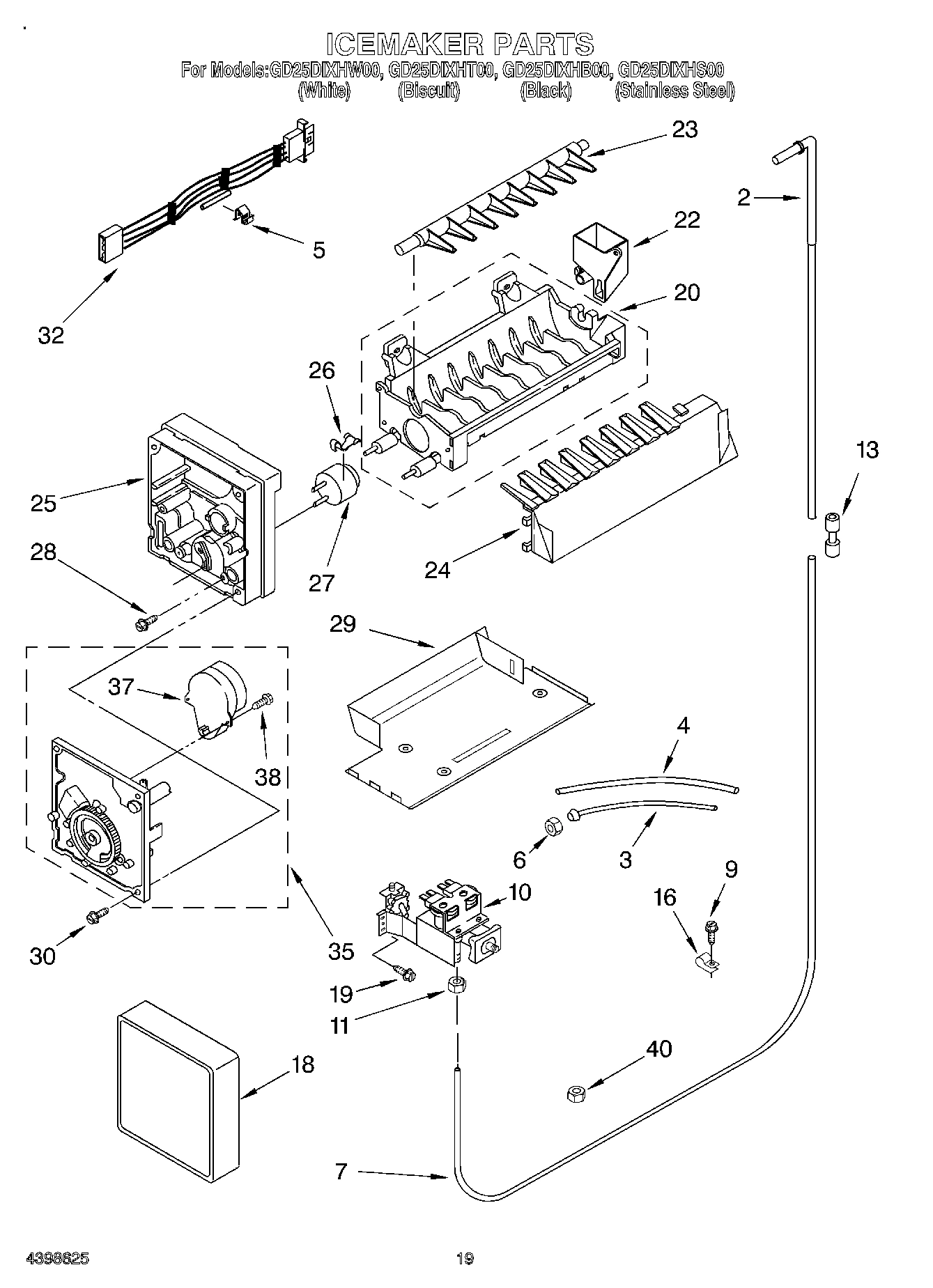

Model Whirlpool GD25DIXHW00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI61911A2 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI61909A2 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI61910A1 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Shelf Flip-Up WPL 2204486 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Air Scoop WPL 2198595 Contact Us For Availability

3

Condenser Assembly WPL 2204242B Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

4

Air Duct, Upper WPL 2198581 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $53.09

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Basket WPL 2205846 Contact Us For Availability

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

6

Basket, Tall WPL 2181765 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

8

Delay Mechanism WPL 2180223 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $35.96

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

9

Grille, Overflow (Tempest Gray) WPL 2207007TG Contact Us For Availability

9

Shelf Ladder WPL 2181796 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $83.91

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2203562W Whirlpool Refrigerator Dispenser A Backorder WPL WP2203562W $38.10

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2203562B Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2203562T Contact Us For Availability

Lever, Ice Dispenser (Tempest Gray (Storm Gre WPL 2203562TG Contact Us For Availability

Bracket, Insert WPL 2206006 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Trim, Basket WPL 2195905 Contact Us For Availability

Harness, Fan, Evaporator, And Heater WPL 2186800 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

Shelf Track (Left Side) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side) WPL 2181760 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Shelf WPL 2205837 Contact Us For Availability

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $42.25

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Basket WPL 2181764 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

8201799 Whirlpool Refrigerator Compressor Sta Backorder WPL 8201799 $64.96

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2203561B Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561B $39.49

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $34.13

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Lever, Water Dispenser (Biscuit (Almond Shado WPL 2203561T Contact Us For Availability

Cover, Evaporator WPL 2206314 Contact Us For Availability

18

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

18

2198621 Whirlpool Refrigerator Switch Backorder WPL 2198621 $88.60

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Black) WPL 2198623B Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2198623T Contact Us For Availability

Overlay, Front Cover (Tempest Gray) WPL 2198623TG Contact Us For Availability

Overlay, Front Cover (White) WPL 2198623W Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

20

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $41.71

20

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

20

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Light Lens WPL 2203266 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI61912A7 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Screw WPL 488280 Contact Us For Availability

Backorder WPL 2179404 $8.47

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items WPL 2198631B Contact Us For Availability

WPL 2198631T WPL 2198631T Contact Us For Availability

WPL 2198631TG WPL 2198631TG Contact Us For Availability

WPL 2198631W WPL 2198631W Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $61.57

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WPL 625834 WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

Tray, Evaporator WPL 1110674 Contact Us For Availability

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Harness, Unit WPL 2206007 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Knob, Air Control WPL 2197871 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $298.57

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

Pin WPL 2198666 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2198640 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

Bracket, Motor WPL 2198655 Contact Us For Availability

31

Tube, P.C. Board WPL 2198665 Contact Us For Availability

32

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

Dispenser, Motor WPL 2198594 Contact Us For Availability

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

33

Cover WPL 2198626 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Screw WPL 8281162 Contact Us For Availability

34

Clip, Heater WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

36

Cover, Receiver WPL 2198588 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

37

Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $219.63

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Light Shield WPL 2198589 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

41

Light Lens WPL 2211506 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

44

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

Shield, Wiring WPL 2198639 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 2186495 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
