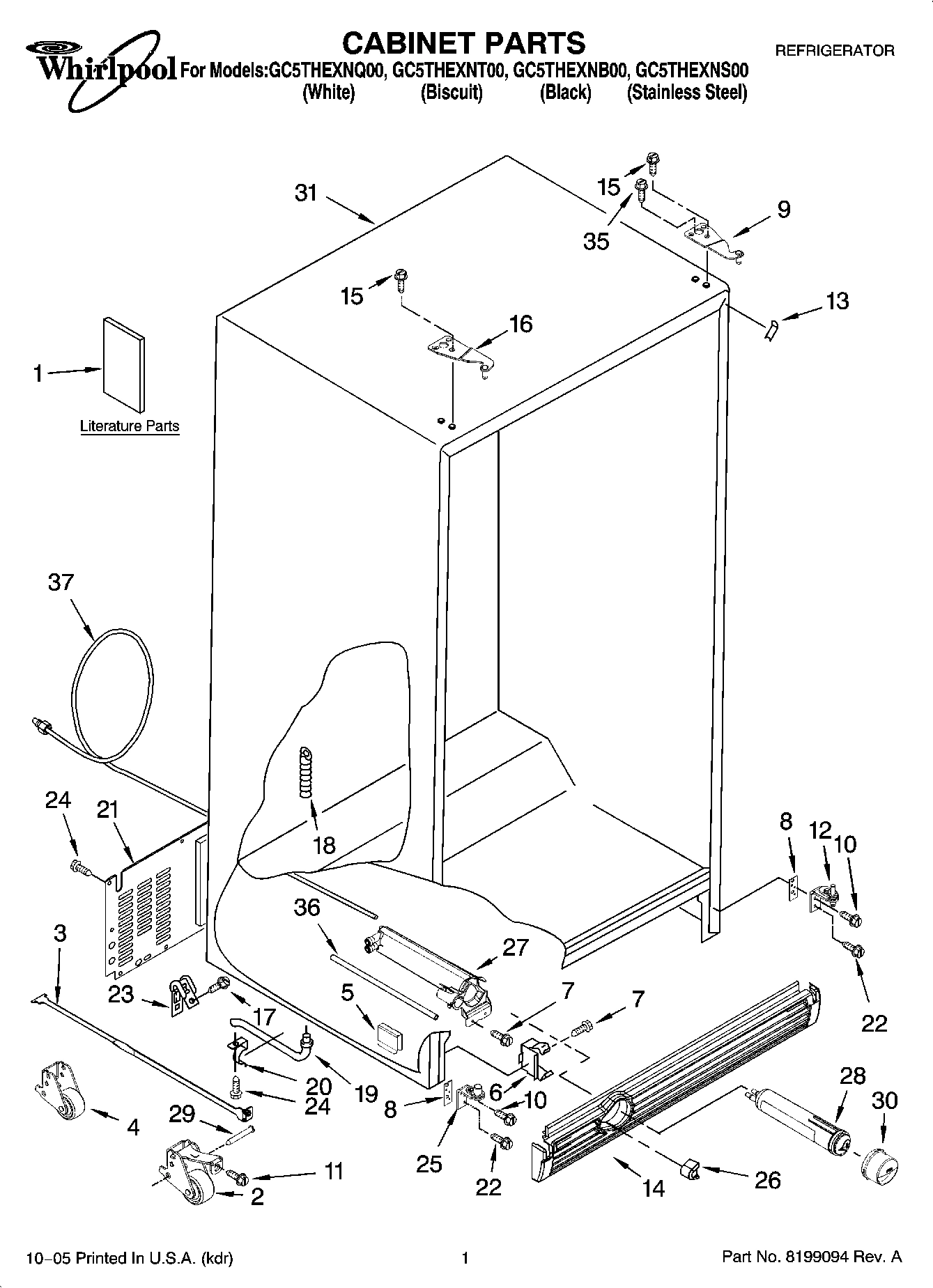

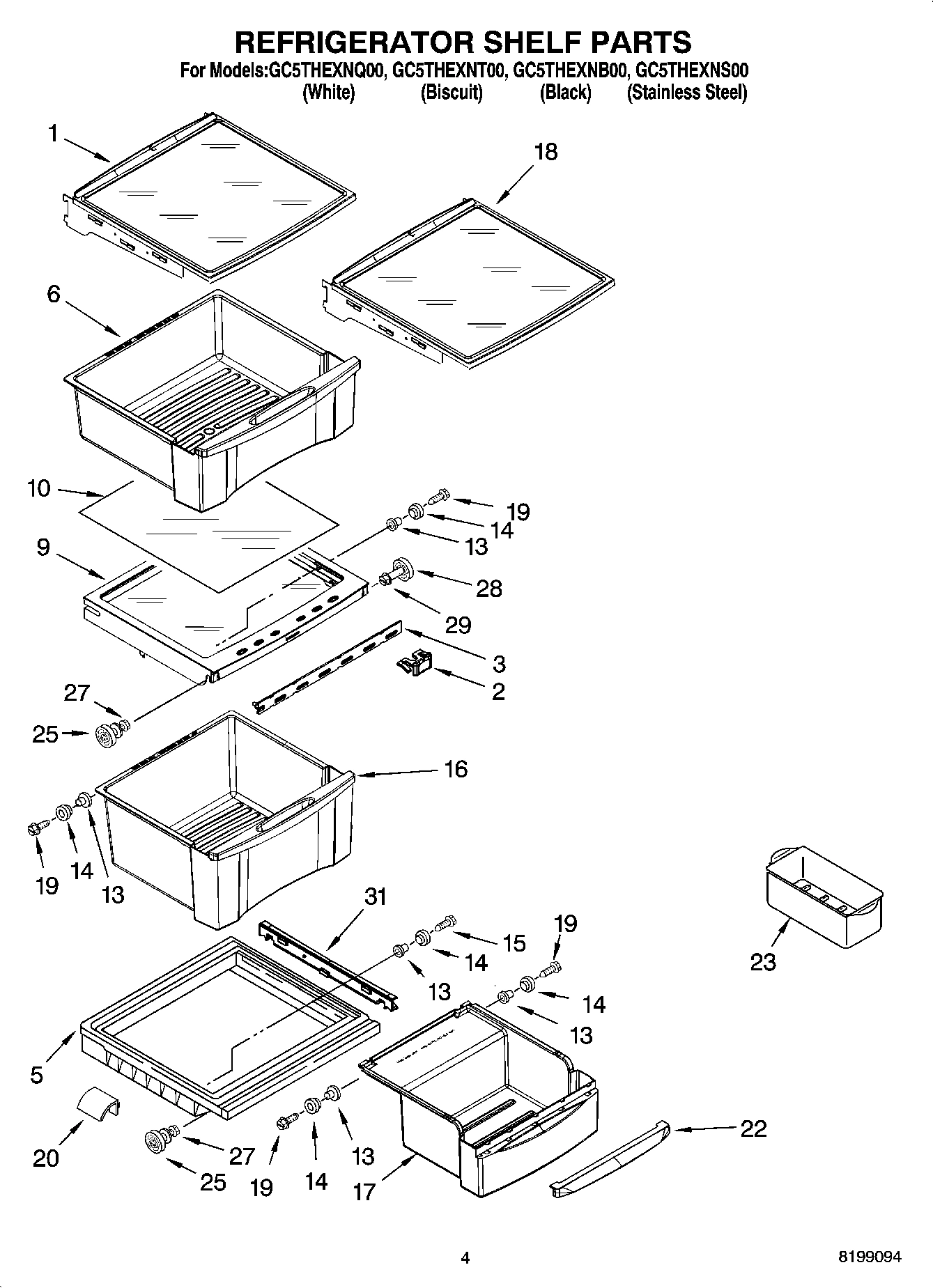

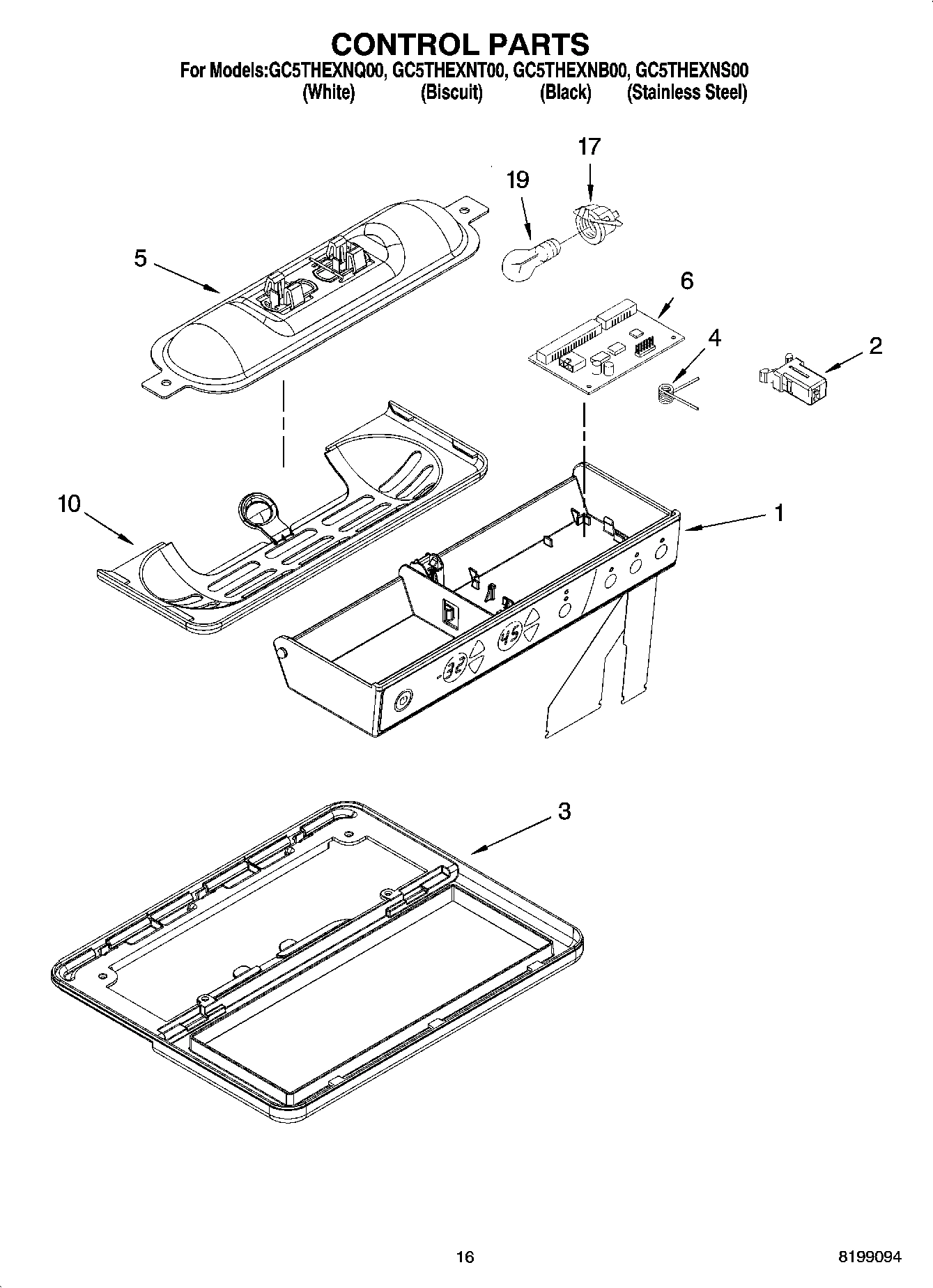

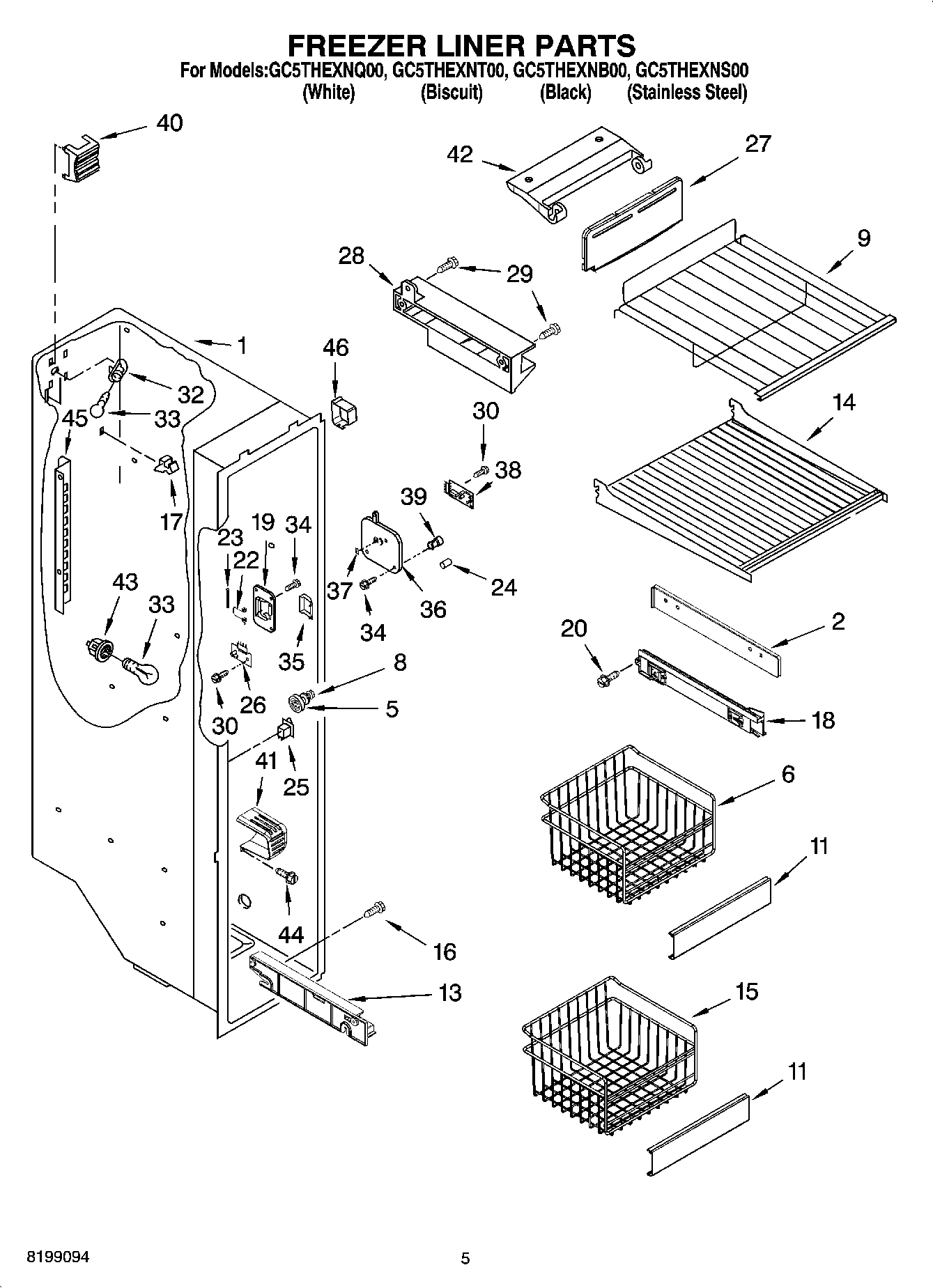

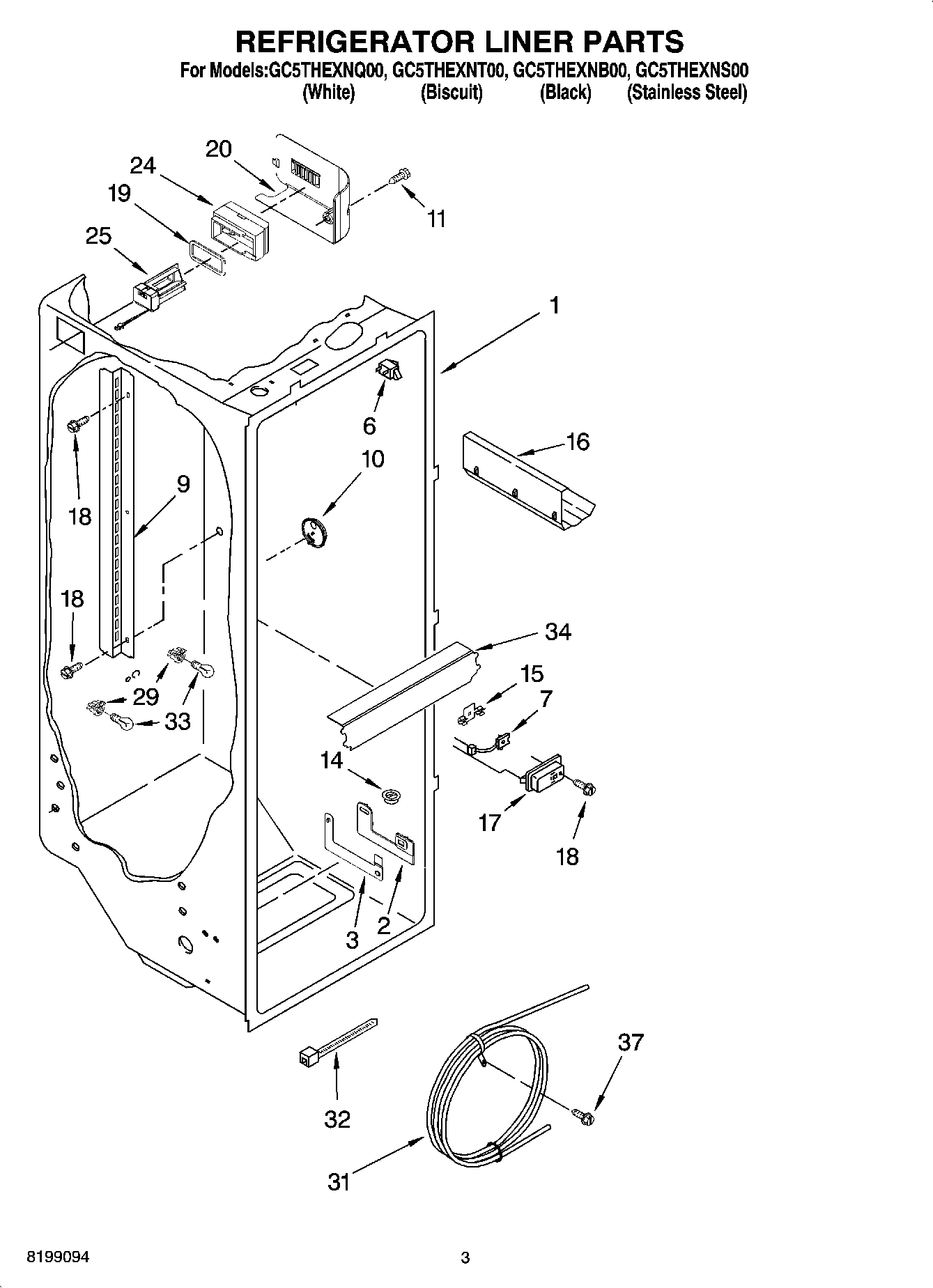

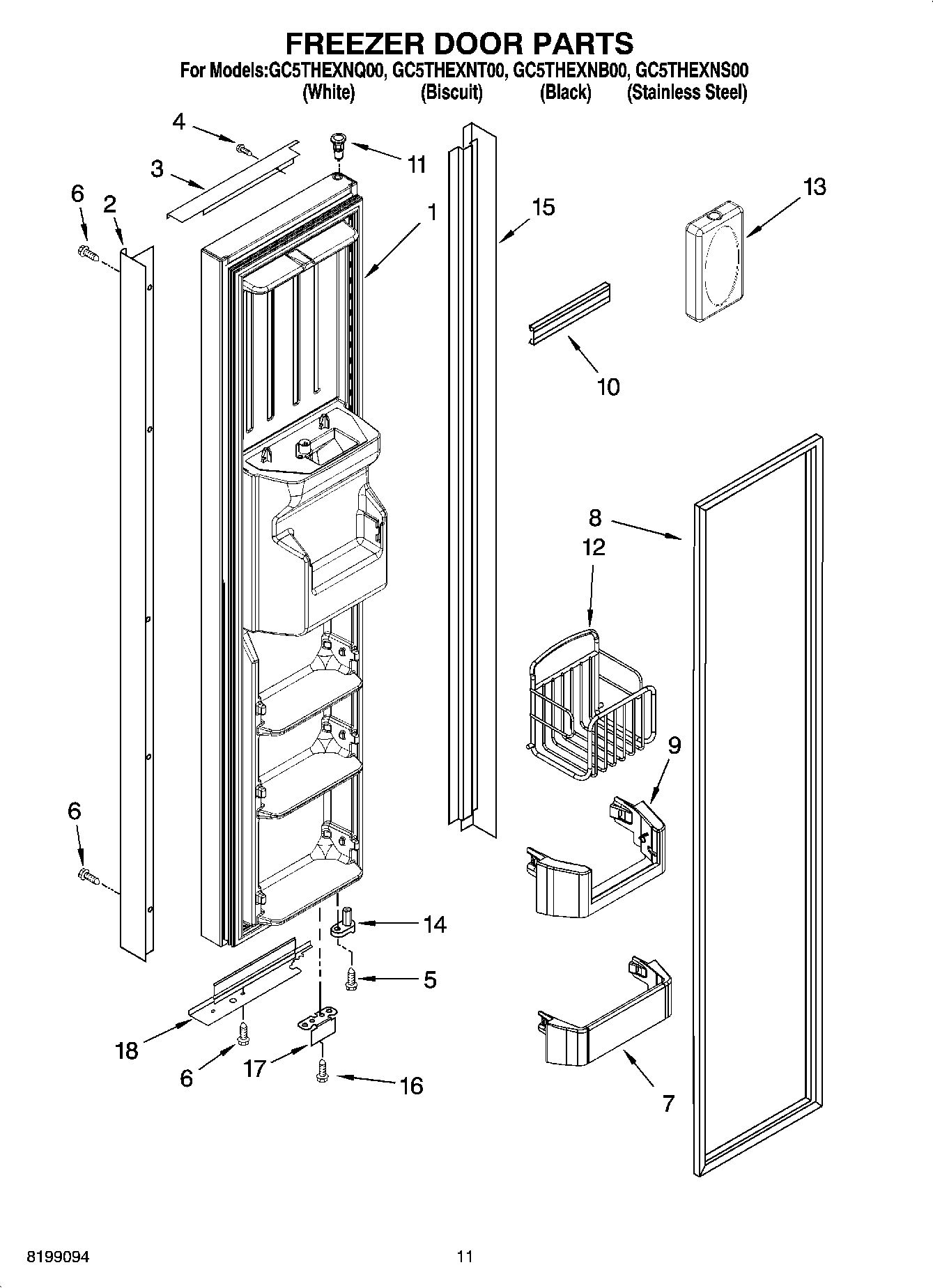

Model Whirlpool GC5THEXNB00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

1

Ice Bin WPL 2223317 Contact Us For Availability

1

Refrigerator Door (Includes 7) (Black) WPL 2223825B Contact Us For Availability

1

Refrigerator Door (Includes 7) (Biscuit) WPL 2223825T Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL 2223825W Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2223829B Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2223829T Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2223829W Contact Us For Availability

2

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $50.71

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

Trim, Shelf WPL 2203087K Contact Us For Availability

2

Handle (Black) WPL 2223817B Contact Us For Availability

2

Handle (Stainless Steel) WPL 2223817S Contact Us For Availability

2

Handle (Biscuit) WPL 2223817T Contact Us For Availability

2

Handle (White) WPL 2223817W Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

3

Trim, Top (Black) WPL 2224095B Contact Us For Availability

3

Trim, Top (Stainless Steel) WPL 2224095S Contact Us For Availability

3

Trim, Top (Biscuit) WPL 2224095T Contact Us For Availability

3

Trim, Top (White) WPL 2224095W Contact Us For Availability

4

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

4

Washer WPL 2258220 Contact Us For Availability

4

Trim, Top (Black) WPL 2224096B Contact Us For Availability

4

Trim, Top (Stainless Steel) WPL 2224096S Contact Us For Availability

4

Trim, Top (Biscuit) WPL 2224096T Contact Us For Availability

4

Trim, Top (White) WPL 2224096W Contact Us For Availability

4

Screw WPL 3196180 Contact Us For Availability

5

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $7.80

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2223297 Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

6

Control Board Asm WPL 2307037 Contact Us For Availability

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Housing, Control Board WPL 2223703 Contact Us For Availability

6

Trim, Bottom (Black) WPL 2223823B Contact Us For Availability

6

Trim, Bottom (Stainless Steel) WPL 2223823S Contact Us For Availability

6

Trim, Bottom (Biscuit) WPL 2223823T Contact Us For Availability

6

Trim, Bottom (White) WPL 2223823W Contact Us For Availability

7

2306996 Whirlpool Refrigerator Door Gasket In Stock WPL 2306996 $172.05

7

W10528579 Whirlpool Refrigerator Tube Backorder WPL W10528579 $179.64

7

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $33.53

7

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $19.53

7

Door Gasket, Magnetic (Mist Beige) WPL 2223326 Contact Us For Availability

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $33.31

8

2306995 Whirlpool Refrigerator Door Gasket In Stock WPL 2306995 $132.31

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

Handle (Black) WPL 2223821B Contact Us For Availability

8

Handle (Stainless Steel) WPL 2223821S Contact Us For Availability

8

Handle (Biscuit) WPL 2223821T Contact Us For Availability

8

Handle (White) WPL 2223821W Contact Us For Availability

8

Door Gasket, Magnetic (Mist Beige) WPL 2223325 Contact Us For Availability

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $16.76

9

2307008T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008T $46.59

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $38.10

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Trivet, Tilt-Out (2) WPL 2223334 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Water Fitting Assembly (Includes Water Tube) WPL 2221562 Contact Us For Availability

Dairy Compartment WPL 2223879 Contact Us For Availability

Plate, Mounting WPL 2301979 Contact Us For Availability

Glass, Cover WPL 2223591 Contact Us For Availability

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.98

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.52

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

Basket, Tilt-Out (2) WPL 2304309 Contact Us For Availability

13

Eyelet, Roller WPL 2174478 Contact Us For Availability

13

Bottle, Ice Pack WPL 2255459K Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $11.58

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

Clip, Thermistor WPL 2209204 Contact Us For Availability

Trim, Hinge Side (Black) WPL 2223820B Contact Us For Availability

Trim, Hinge Side (Stainless Steel) WPL 2223820S Contact Us For Availability

Trim, Hinge Side (Biscuit) WPL 2223820T Contact Us For Availability

Trim, Hinge Side (White) WPL 2223820W Contact Us For Availability

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $46.59

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

Door Bin (2) WPL 2223239K Contact Us For Availability

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $34.44

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $13.10

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $37.70

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

WP2224173 Whirlpool Refrigerator Cantilever B Backorder WPL WP2224173 $47.93

Glide Assembly, Basket (2) (Right Side) WPL 2301544 Contact Us For Availability

Glide Assembly, Basket (2) (Left Side) WPL 2301545 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2223353 Contact Us For Availability

Trim, Bottom (Black) WPL 2223819B Contact Us For Availability

Trim, Bottom (Stainless Steel) WPL 2223819S Contact Us For Availability

Trim, Bottom (Biscuit) WPL 2223819T Contact Us For Availability

Trim, Bottom (White) WPL 2223819W Contact Us For Availability

19

W10219463-includeCORE Whirlpool W10219463 Con Backorder WPL W10219463-includeCORE $254.73

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

19

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

20

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.92

20

Baseplate WPL 2306932 Contact Us For Availability

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

Cover, Unit WPL 2223409 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

Handle WPL 2203029 Contact Us For Availability

Door Bin WPL 2223463K Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clamp WPL 2161324 Contact Us For Availability

Mat (3) WPL 2223464K Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $83.11

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Trim, Hinge Side (Black) WPL 2223824B Contact Us For Availability

Trim, Hinge Side (Stainless Steel) WPL 2223824S Contact Us For Availability

Trim, Hinge Side (Biscuit) WPL 2223824T Contact Us For Availability

Trim, Hinge Side (White) WPL 2223824W Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $179.78

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

Tray, Evaporator WPL 2223398 Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Heat Shield WPL 2224022 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

8201675 Whirlpool Refrigerator Compressor In Stock WPL 8201675 $330.79

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

29

2223800 Whirlpool Refrigerator Spacer Backorder WPL 2223800 $6.30

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

29

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $17.09

Cap, Water Filter (Biscuit) WPL 2260518T Contact Us For Availability

31

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $13.05

31

Harness, Main Control WPL 2187849 Contact Us For Availability

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

32

Dispenser, Motor WPL 2188860 Contact Us For Availability

32

Fan, Motor Bracket WPL 2224024 Contact Us For Availability

33

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $66.57

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $55.72

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

34

Light Lens WPL 2223663 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $238.39

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Tube, Discharge WPL 2223352 Contact Us For Availability

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

41

2223394 Whirlpool Extension Backorder WPL 2223394 $34.40

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

45

2187737 Whirlpool Refrigerator Wire Harness Backorder WPL 2187737 $57.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $24.61

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI61094A8 Contact Us For Availability

REFRIGERANT CHARGE 6.00 oz. (R-134A) WPL ARI61095A7 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51
