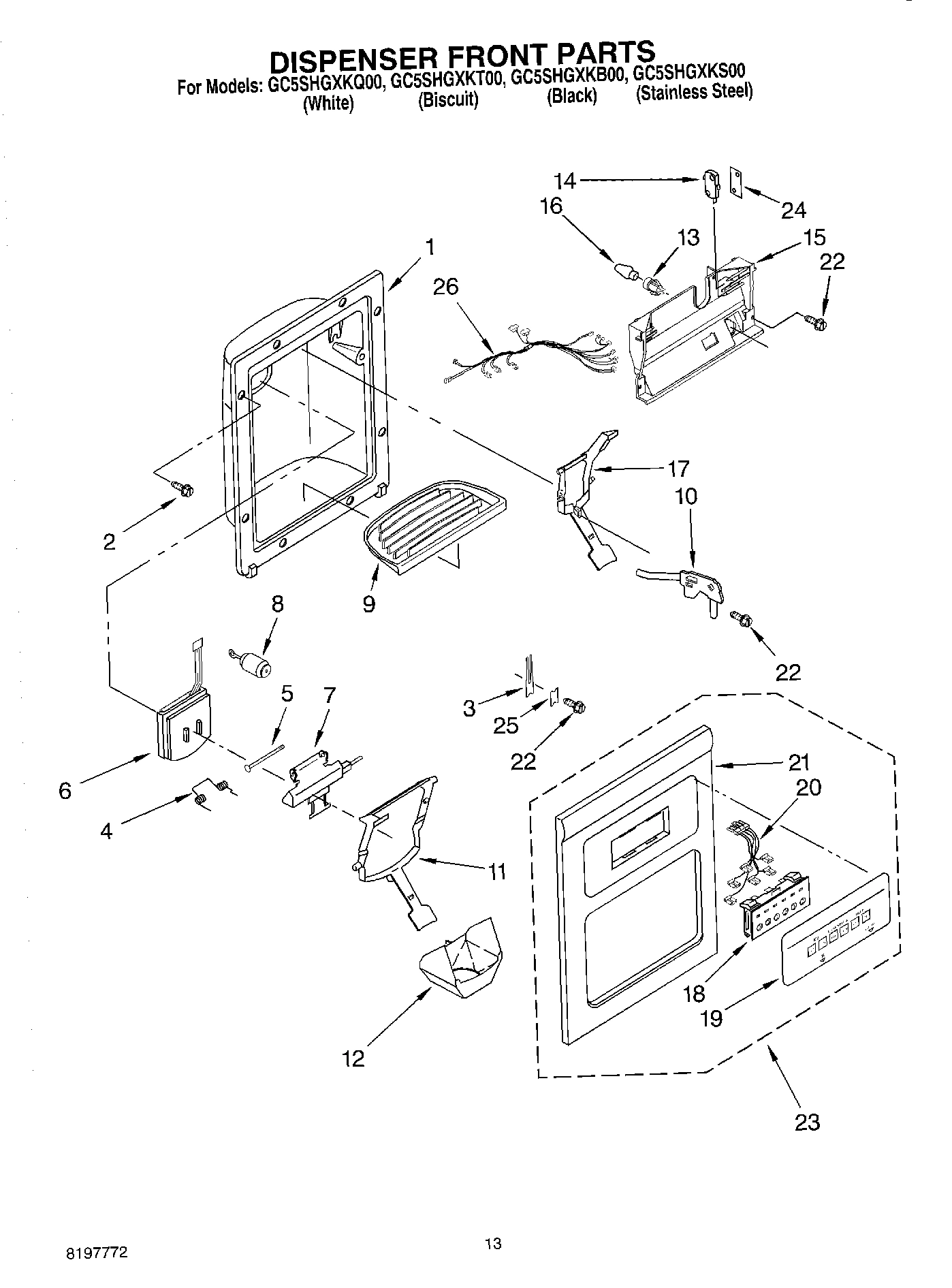

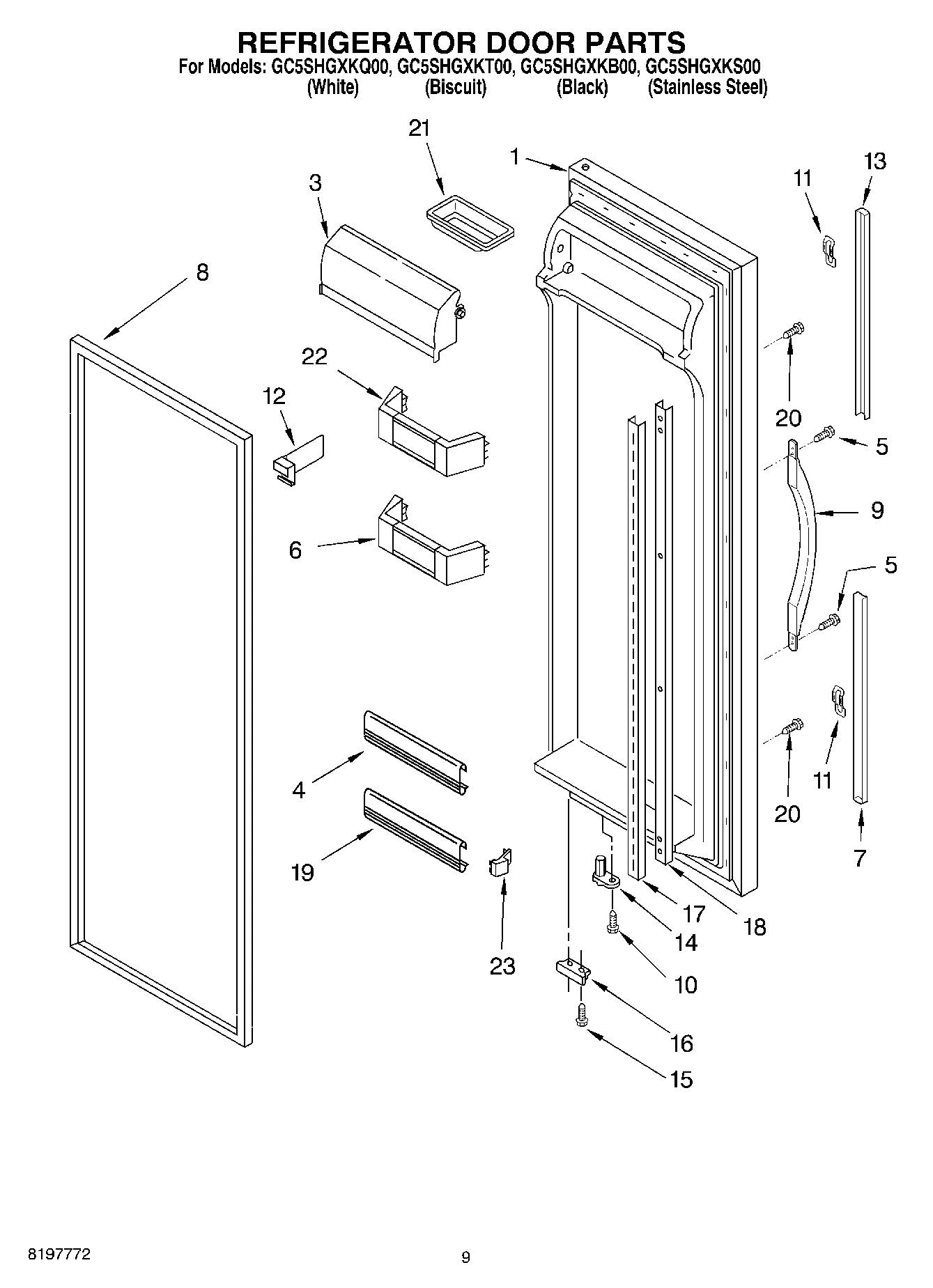

Model Whirlpool GC5SHGXKB00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Crusher Mechanism Assembly WPL 2160606 Contact Us For Availability

Ice Contianer Assembly WPL 2199894 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI60914A2 WPL ARI60914A2 Contact Us For Availability

WPL ARI60915A3 WPL ARI60915A3 Contact Us For Availability

WPL ARI60916A3 WPL ARI60916A3 Contact Us For Availability

WPL ARI60917A2 WPL ARI60917A2 Contact Us For Availability

WPL ARI60918A5 WPL ARI60918A5 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI60905A9 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2210779B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2210779T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2210779W Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2214464S Contact Us For Availability

2

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $12.61

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Condenser Assembly WPL 2205983 Contact Us For Availability

3

Air Scoop WPL 2210746 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Block, Fan Scroll WPL 2208184 Contact Us For Availability

4

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Baffle WPL 2220782 Contact Us For Availability

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

5

Air Duct Freezer WPL 2199931 Contact Us For Availability

6

Clip, Grille WPL 2209558 Contact Us For Availability

6

Trim, Door Shelf WPL 2199990 Contact Us For Availability

6

Tube, Condenser to Heat Loop WPL 2214366 Contact Us For Availability

7

8201589 Whirlpool Refrigerator Evaporator Mot In Stock WPL 8201589 $146.85

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

7

Wiring Assembly, Ice Dispenser WPL 2206503 Contact Us For Availability

8

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Door Gasket, Magnetic (Service) (Mist Beige) WPL 2209560 Contact Us For Availability

8

Door Gasket, Magnetic (Service) (Black) WPL 2209562 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Grille, Overflow (White) WPL 2180241 Contact Us For Availability

9

Ladder, Shelf WPL 2181796 Contact Us For Availability

9

Trim, Door Shelf WPL 2199991 Contact Us For Availability

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $49.98

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Bracket, Insert WPL 2210750 Contact Us For Availability

Valve, Solenoid WPL 2199838 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Wiring Harness, Freezer Door WPL 2187667 Contact Us For Availability

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2214359 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Tube, Water Inlet WPL 2203024 Contact Us For Availability

Wire Assembly WPL 2187427 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Ice Container WPL 2199895 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2210774 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2214451 Contact Us For Availability

Tube Suction WPL 2214365 Contact Us For Availability

15

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

15

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

Backorder WPL 2179404 $8.47

Hinge & Cam Assy. WPL 2208137 Contact Us For Availability

Extension, Air Baffle WPL 2203020 Contact Us For Availability

Gasket WPL 2210780 Contact Us For Availability

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $226.28

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Extension, Bottom (Black) WPL 2203086B Contact Us For Availability

Extension, Bottom (Biscuit) WPL 2203086T Contact Us For Availability

Extension, Bottom (White) WPL 2203086W Contact Us For Availability

Cover, Evaporator WPL 2203122 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Extension, Top (Black) WPL 2203085B Contact Us For Availability

Extension, Top (Biscuit) WPL 2203085T Contact Us For Availability

Extension, Top (White) WPL 2203085W Contact Us For Availability

Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $27.12

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Trim, Door Shelf WPL 2203087 Contact Us For Availability

Ladder, Shelf Assembly (2) WPL 2208147 Contact Us For Availability

Block, Evaporator WPL 2208183 Contact Us For Availability

Evaporator, Cover Rail (Right) WPL 2199922 Contact Us For Availability

Evaporator, Cover Rail (Left) WPL 2199923 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Housing, Control Board WPL 2199929 Contact Us For Availability

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

21

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

21

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Black) WPL 2199904B Contact Us For Availability

Stop, Roller WPL 1113169 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

Bin, Door (2) WPL 2199992 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $165.56

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2195917K Whirlpool Refrigerator Endcap Backorder WPL WP2195917K $6.79

WP2199840 Whirlpool Refrigerator Housing In Stock WPL WP2199840 $108.46

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Handle, Beverage WPL 2203031 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

Air Diffuser Assembly WPL 2214367 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Eyelet, Roller WPL 2174478 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Conveyor WPL 2160602 Contact Us For Availability

28

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $319.55

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

29

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Unit Mounting Plate WPL 2210728 Contact Us For Availability

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

Unit, Harness WPL 2187390 Contact Us For Availability

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

32

Control Arm WPL 2002728 Contact Us For Availability

32

Fan, Motor Bracket WPL 2208157 Contact Us For Availability

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $63.40

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

36

Board, Control WPL 2221536 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

Washer WPL 680975 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

40

Screw WPL 3400515 Contact Us For Availability

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

42

Tube, Heat Loop WPL 2199806 Contact Us For Availability

43

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

44

Front Cover, Ice Container WPL 2199913 Contact Us For Availability

45

Screw WPL 3400514 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

46

Insulation, Mounting Plate WPL 2214509 Contact Us For Availability

47

Side Support WPL 2203160 Contact Us For Availability

54

Wire Connector WPL 227991 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI60911A3 Contact Us For Availability

and Optional Parts Not Included WPL ARI60912A4 Contact Us For Availability

REFRIGERANT CHARGE 6.25 oz. (R-134A) WPL ARI60913A5 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
