Model Alliance FTZ91A*N1102 Washer – Common Parts & Diagrams
Cabinet Top, Control Panel and Controls
Graphic Panel, Control Support Panel and Controls

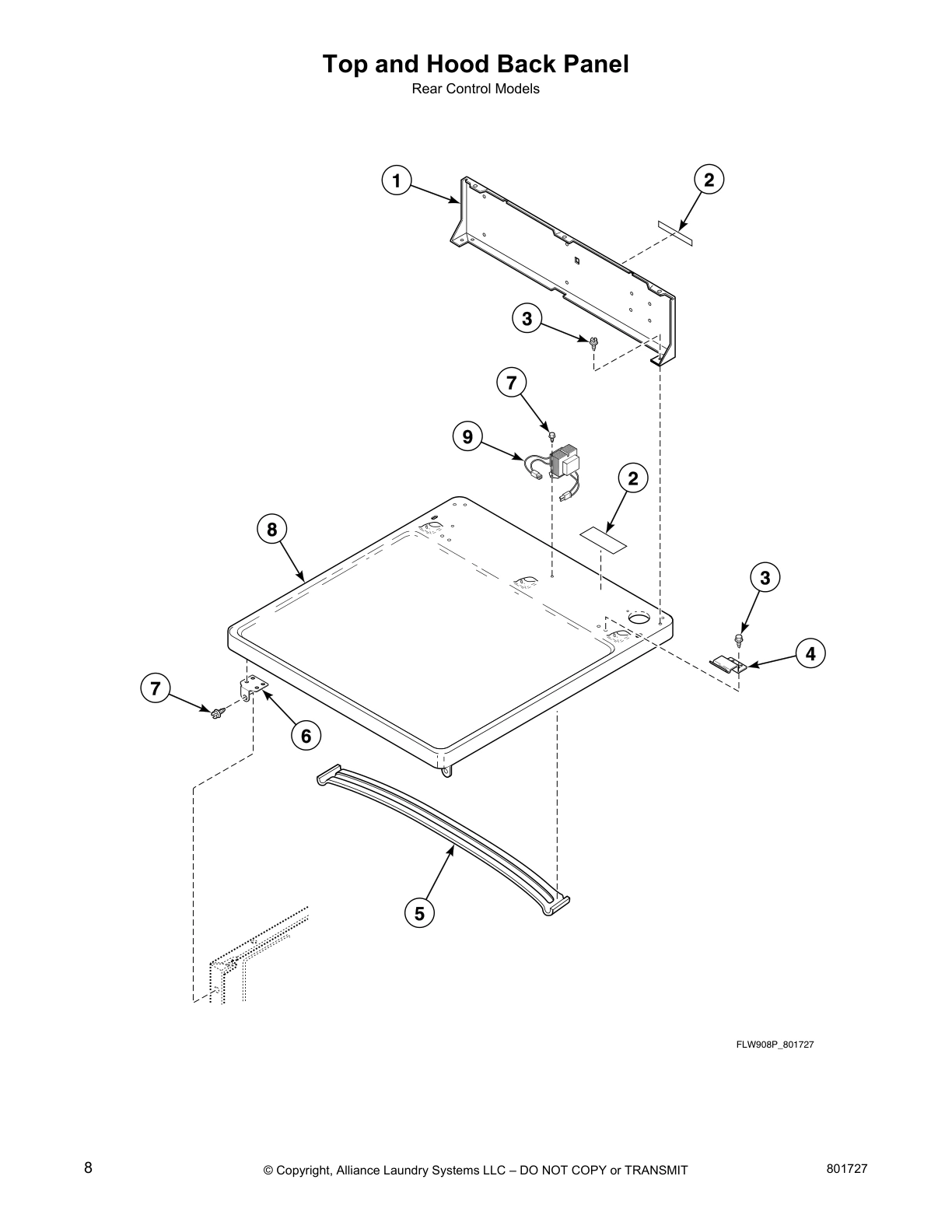

Top and Hood Back Panel
Front Panel, Door Assembly and Door Seal -
Models Through Serial No. 0411000565
Front Panel, Door Assembly and Door Seal -
Models Starting Serial No. 0411000566
Dispenser Assembly and Supply Injection Hoses
Dispenser Assembly

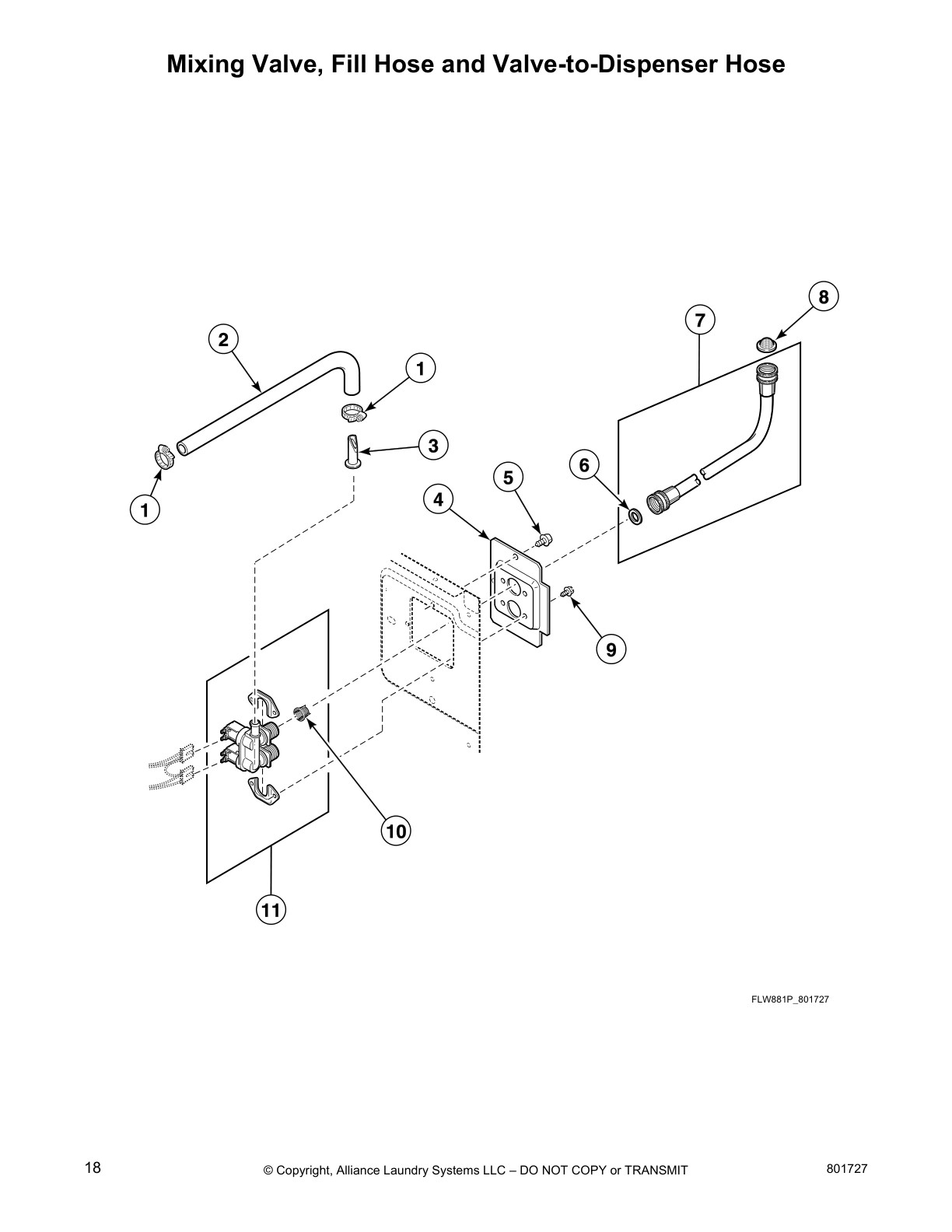

Mixing Valve, Fill Hose and Valve-to-Dispenser Hose

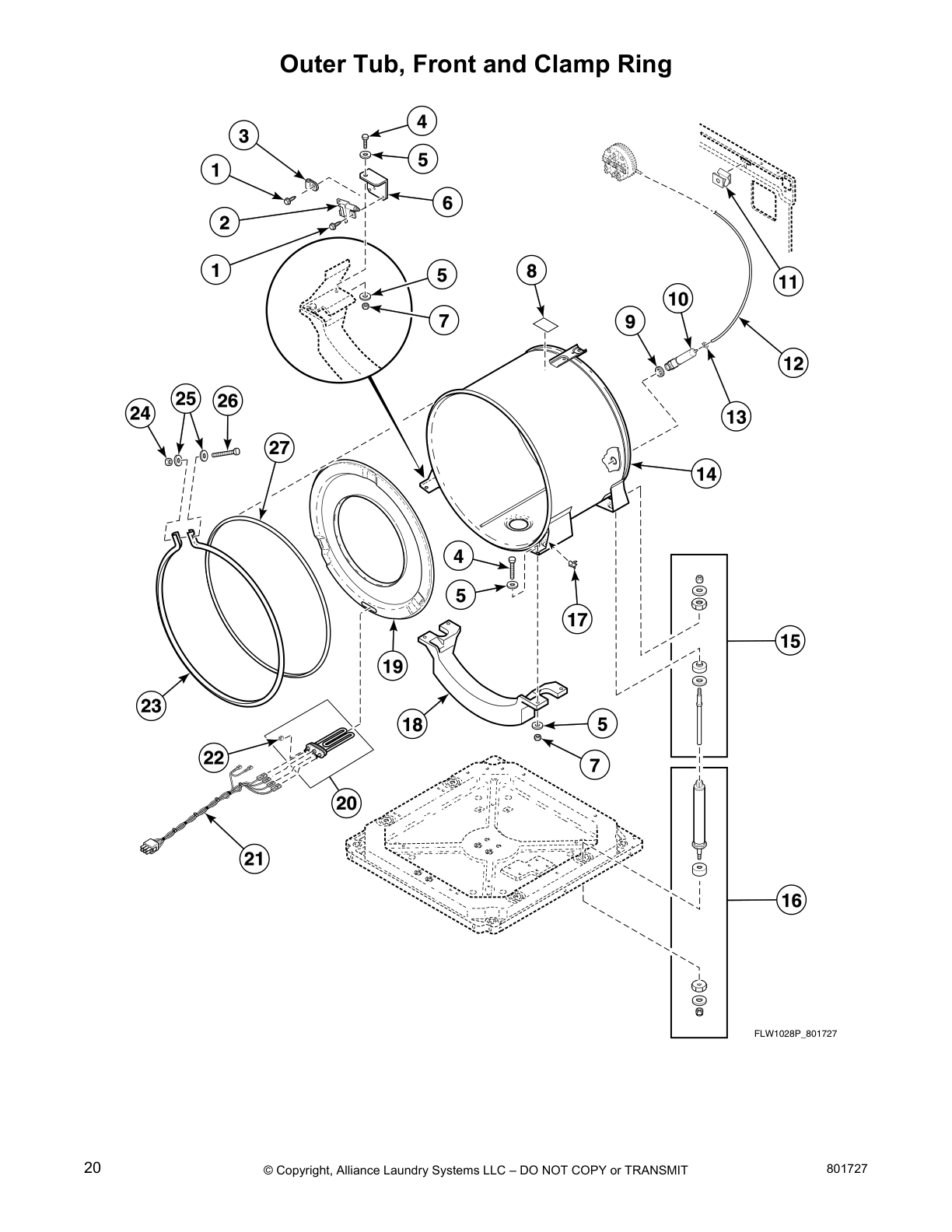

Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

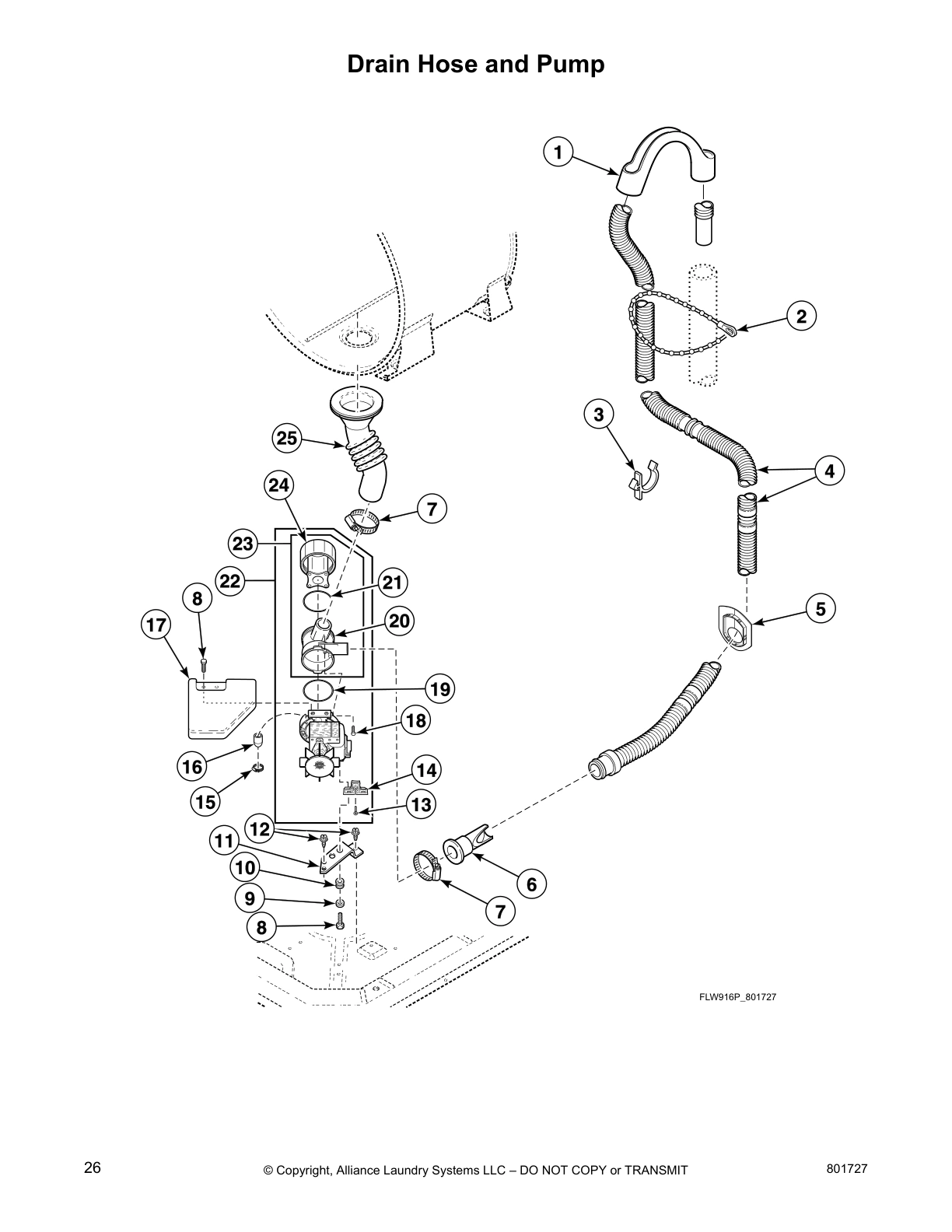

Drain Hose and Pump
Base, Side Panels and Rear Panel

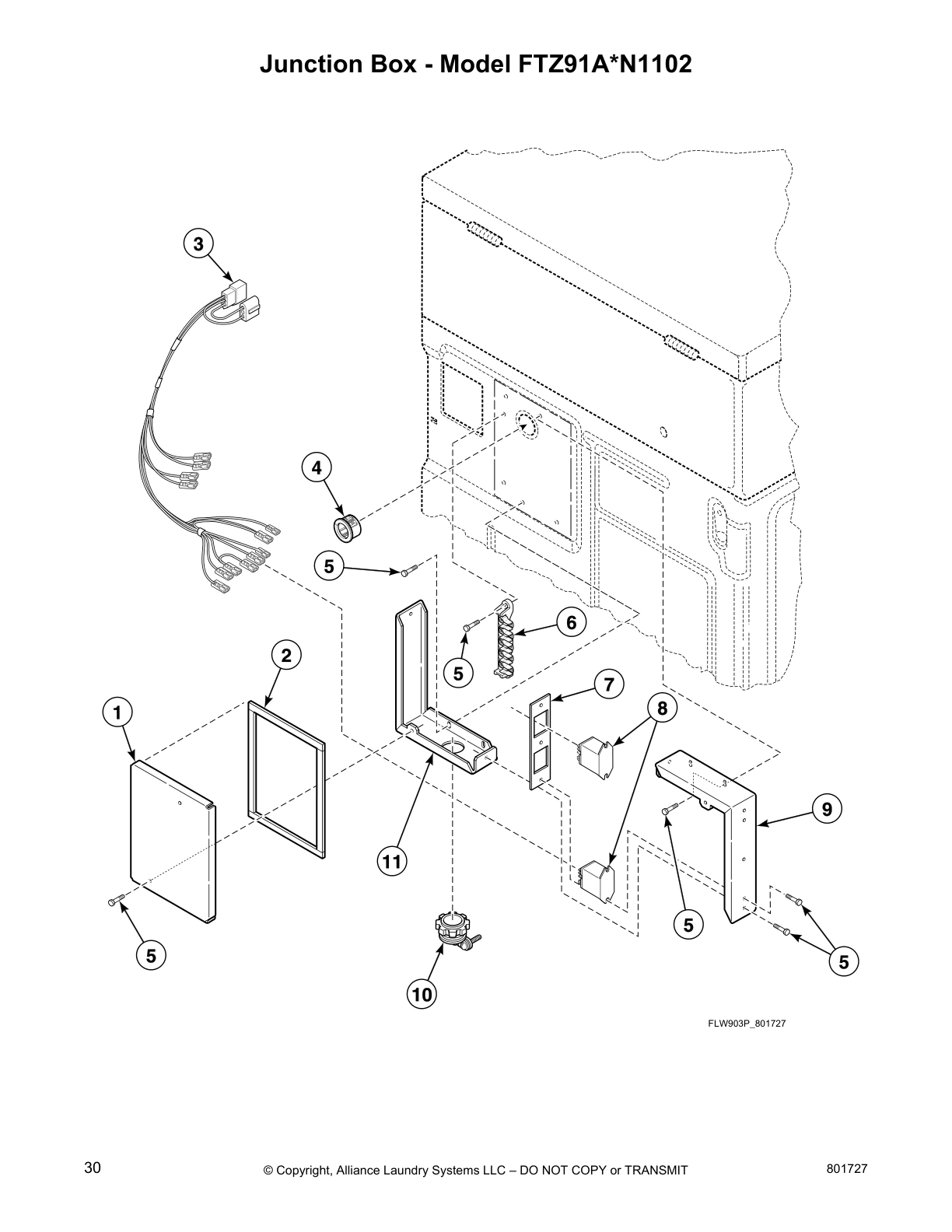

Junction Box - Model FTZ91A*N1102
Junction Box

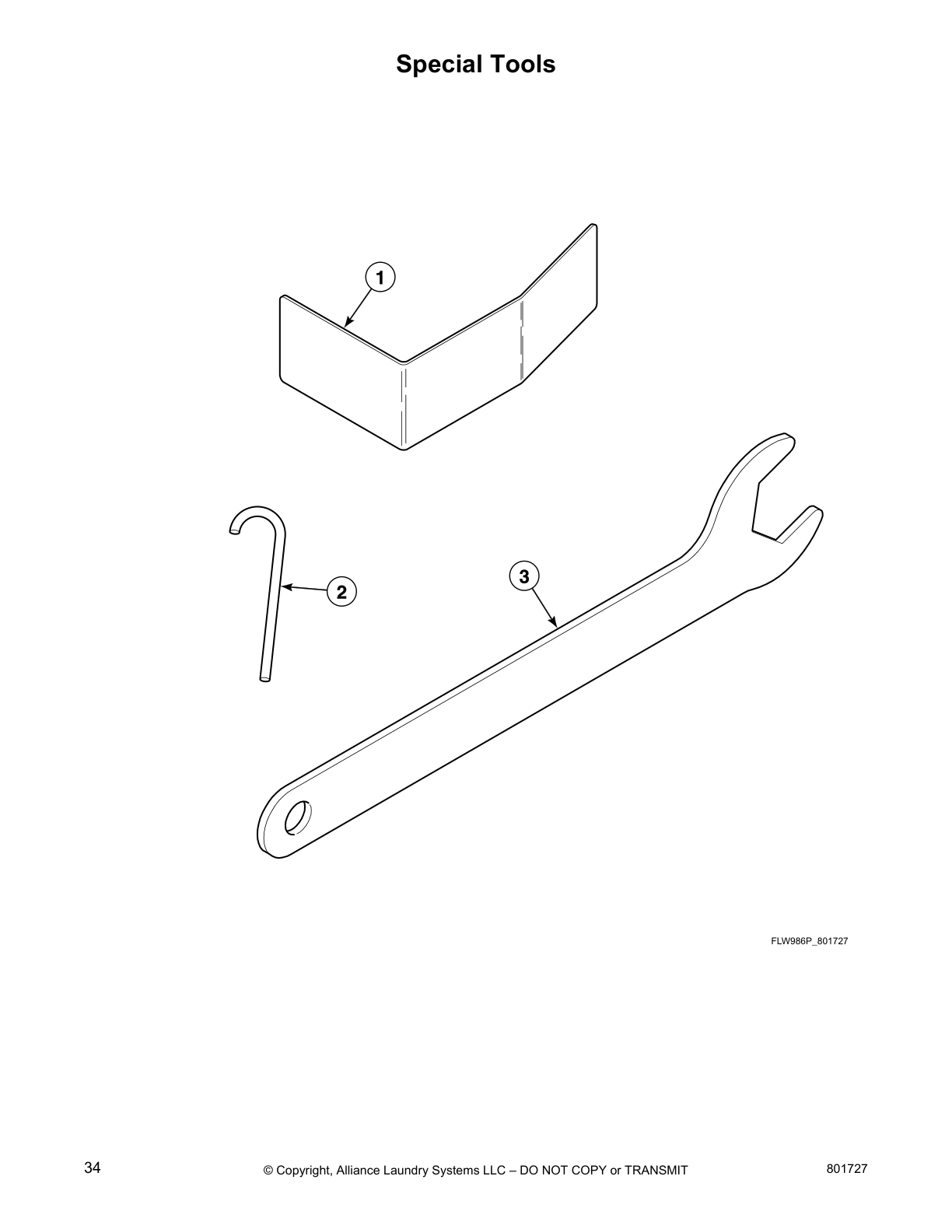

Special Tools

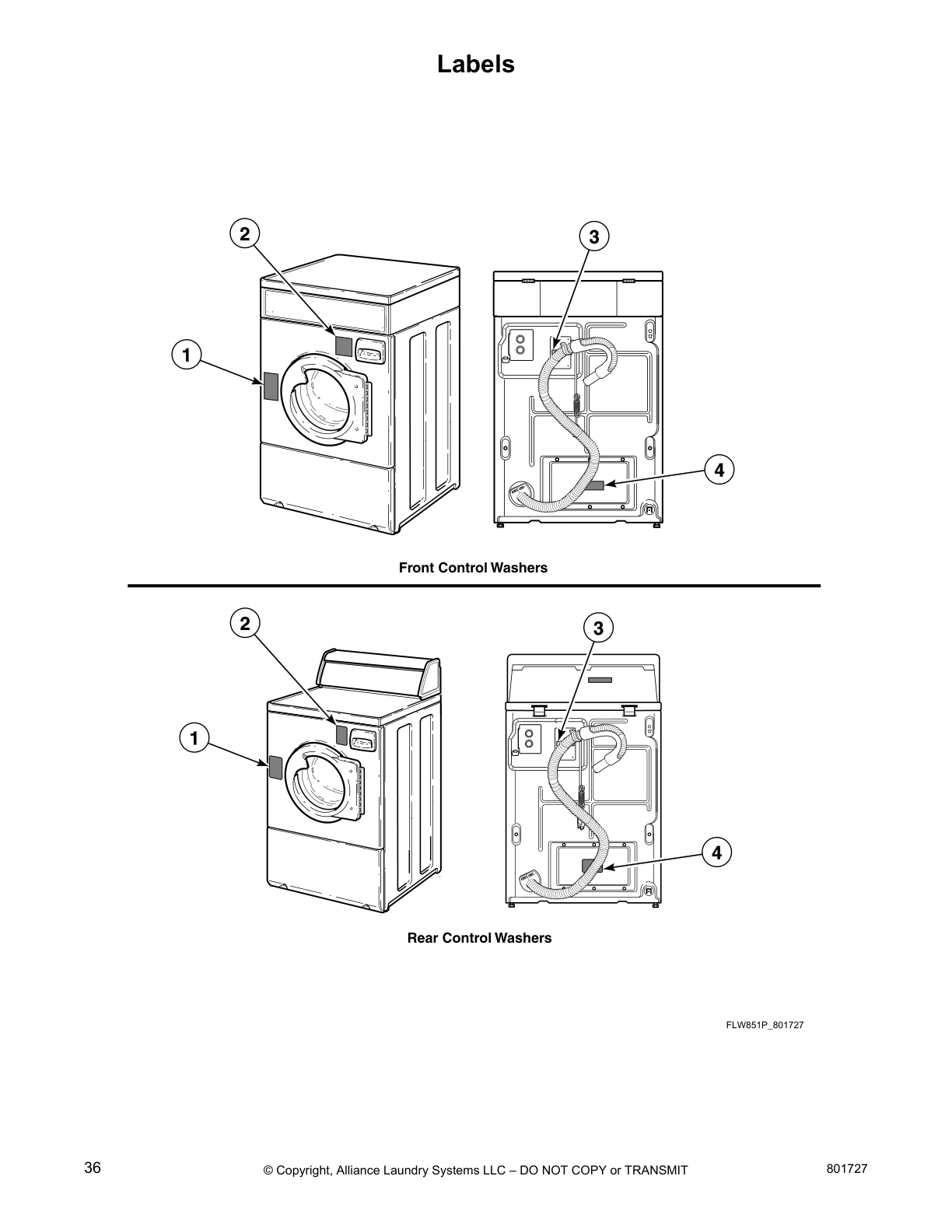

Labels

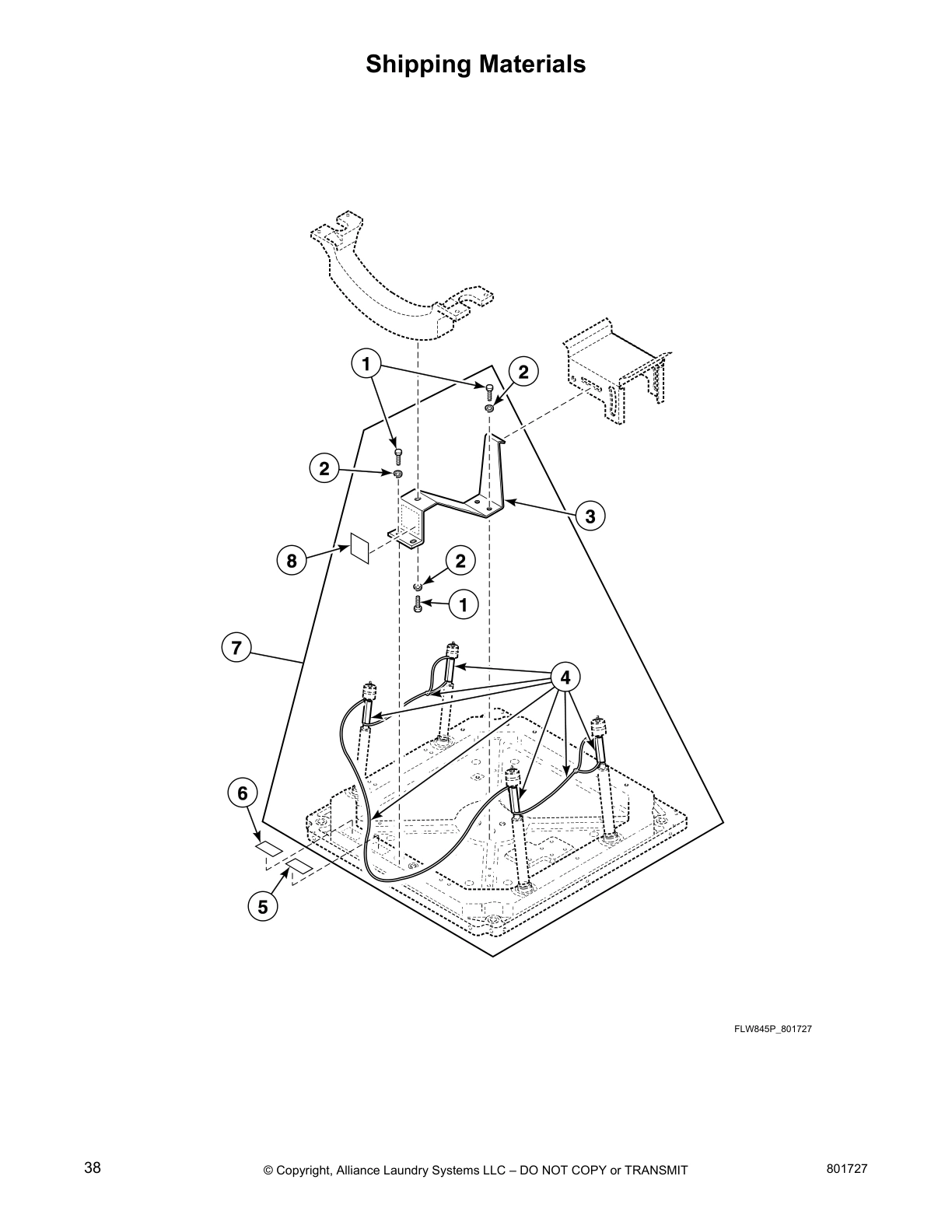

Shipping Materials

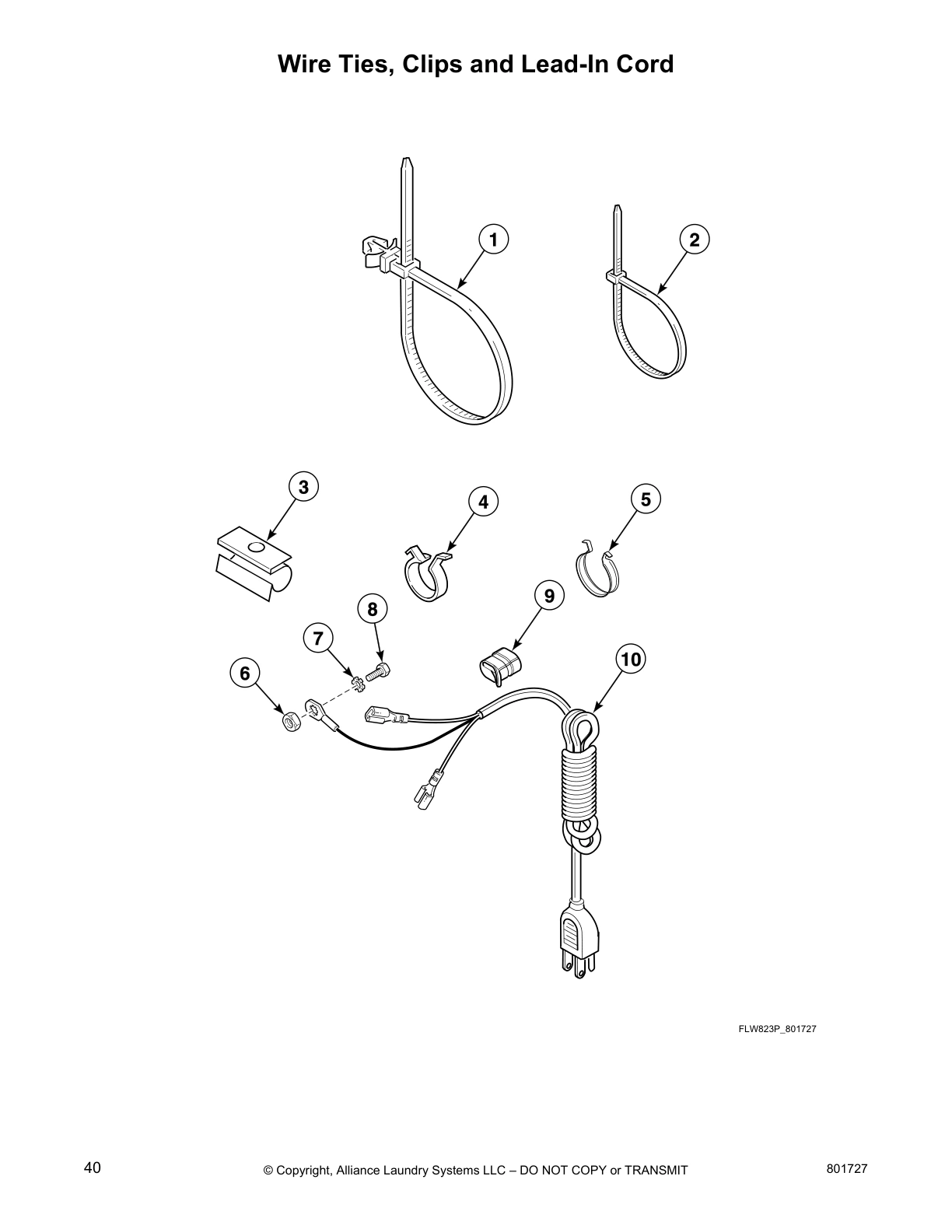

Wire Ties, Clips and Lead-In Cord

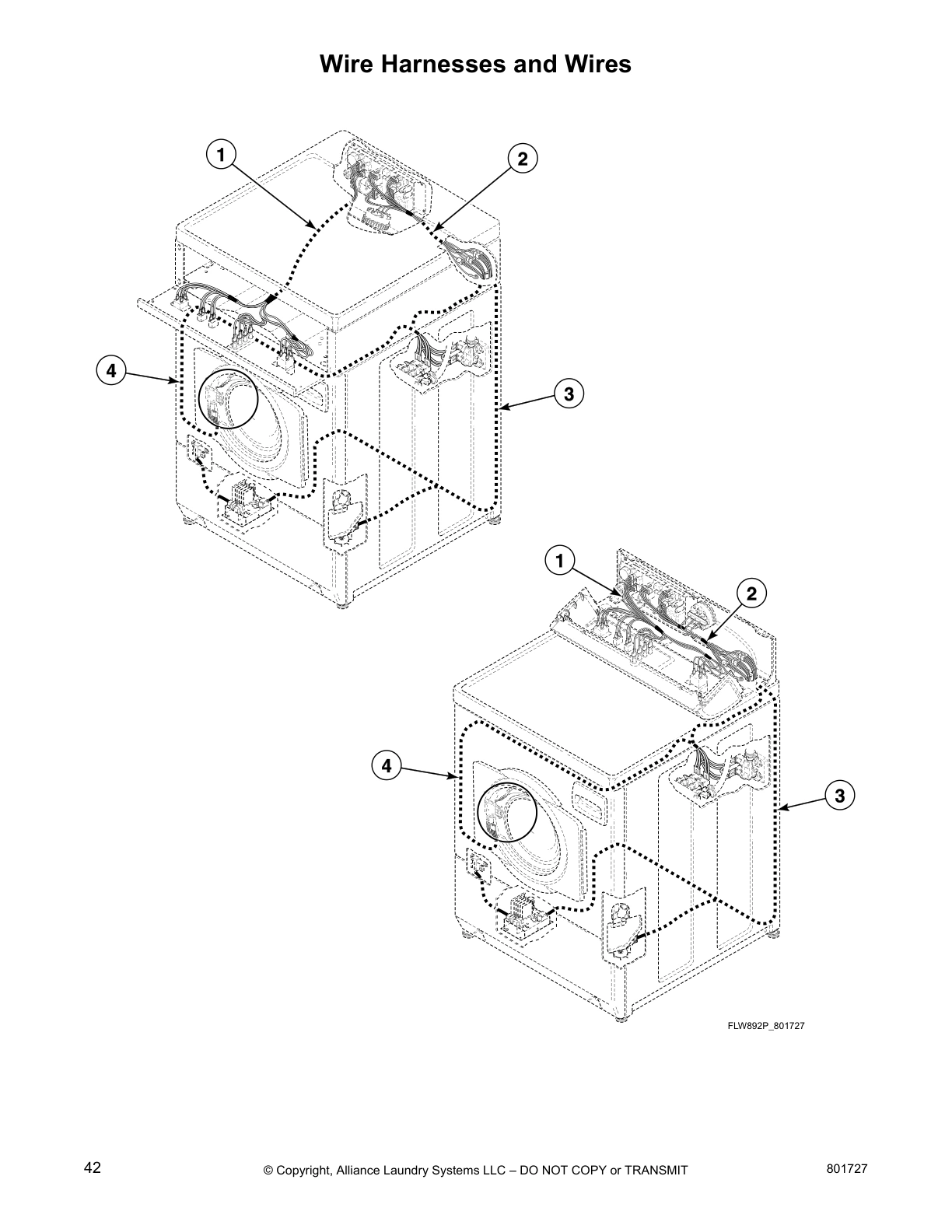

Wire Harnesses and Wires
Common parts from model Alliance FTZ91A*N1102 Washer
1
Door Seal and Hose Assembly Kit SPQ 800232P Contact Us For Availability
3
SPQ 800211 SPQ 800211 Contact Us For Availability
4
Sealant SPQ 802434P Contact Us For Availability
4
SPQ 801928WP SPQ 801928WP Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
18
Wire Clip SPQ 801476P Contact Us For Availability
× ![]()
