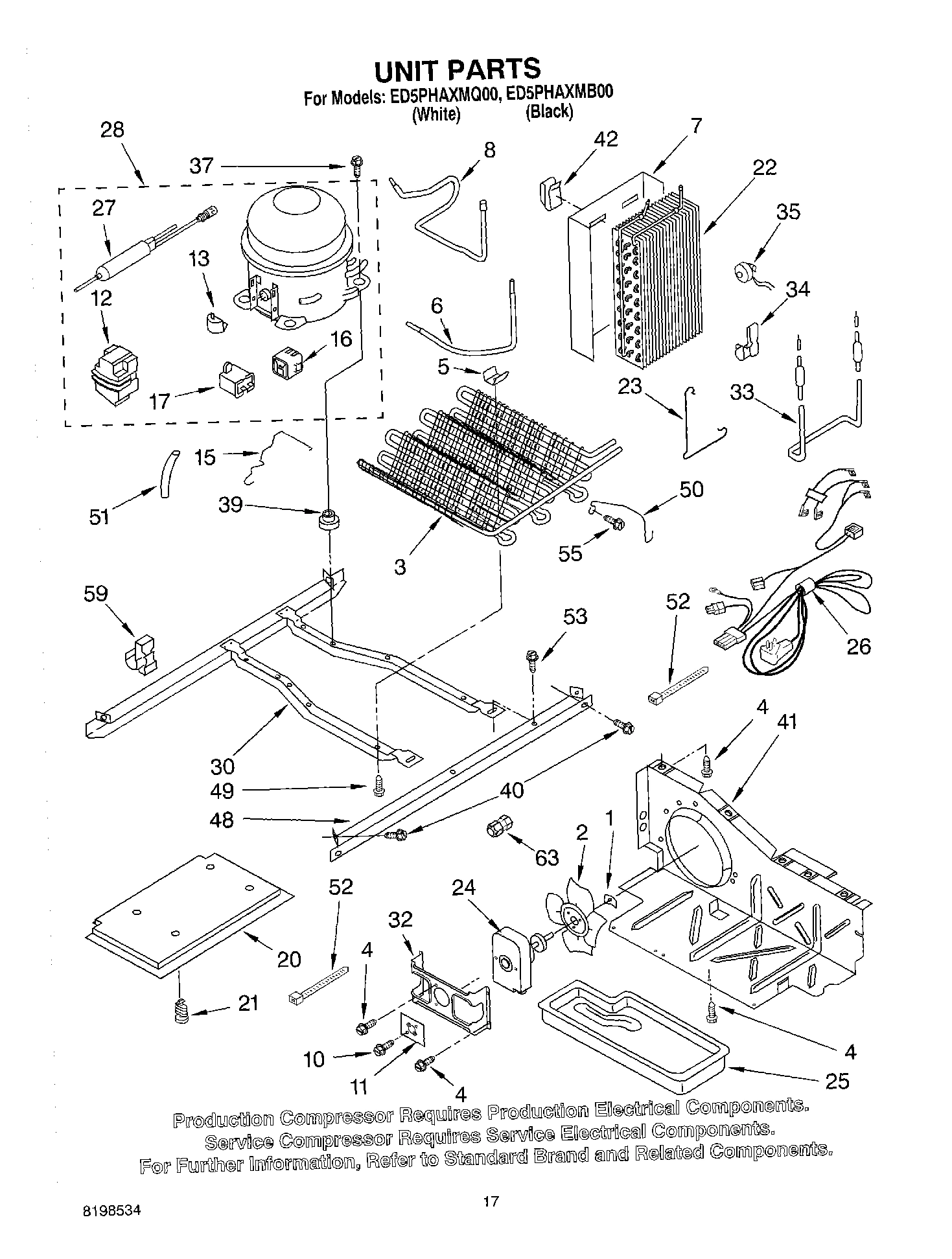

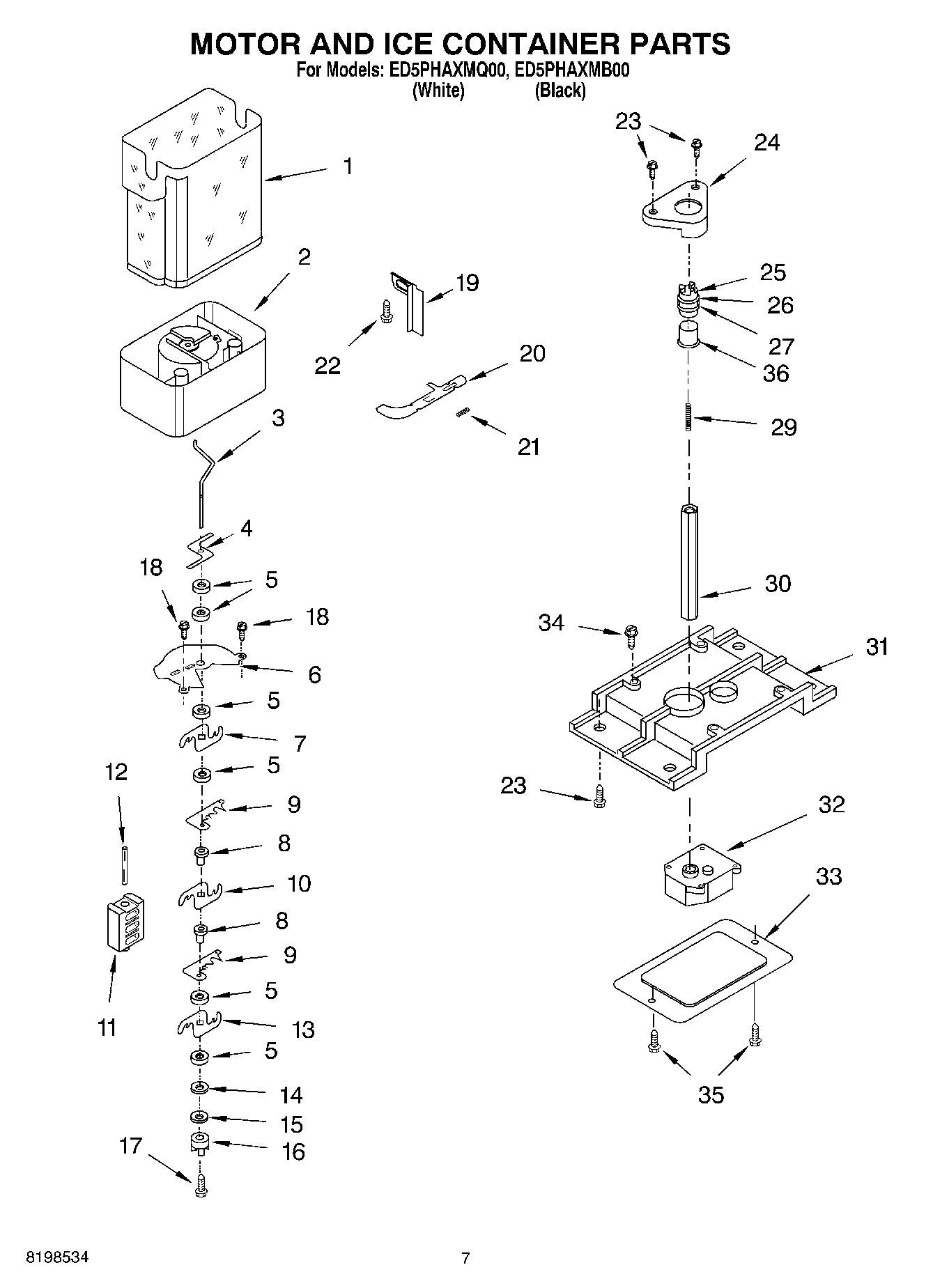

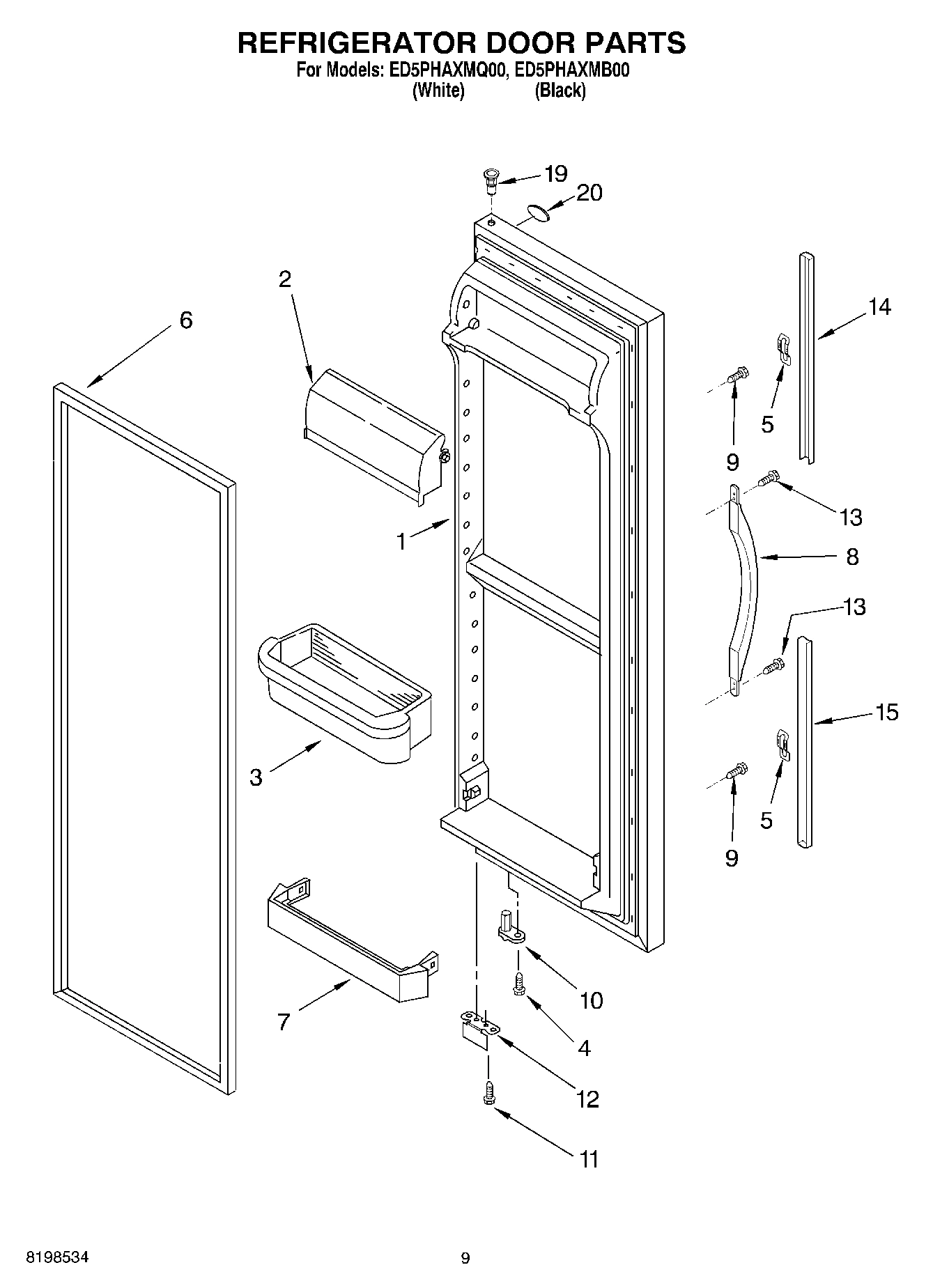

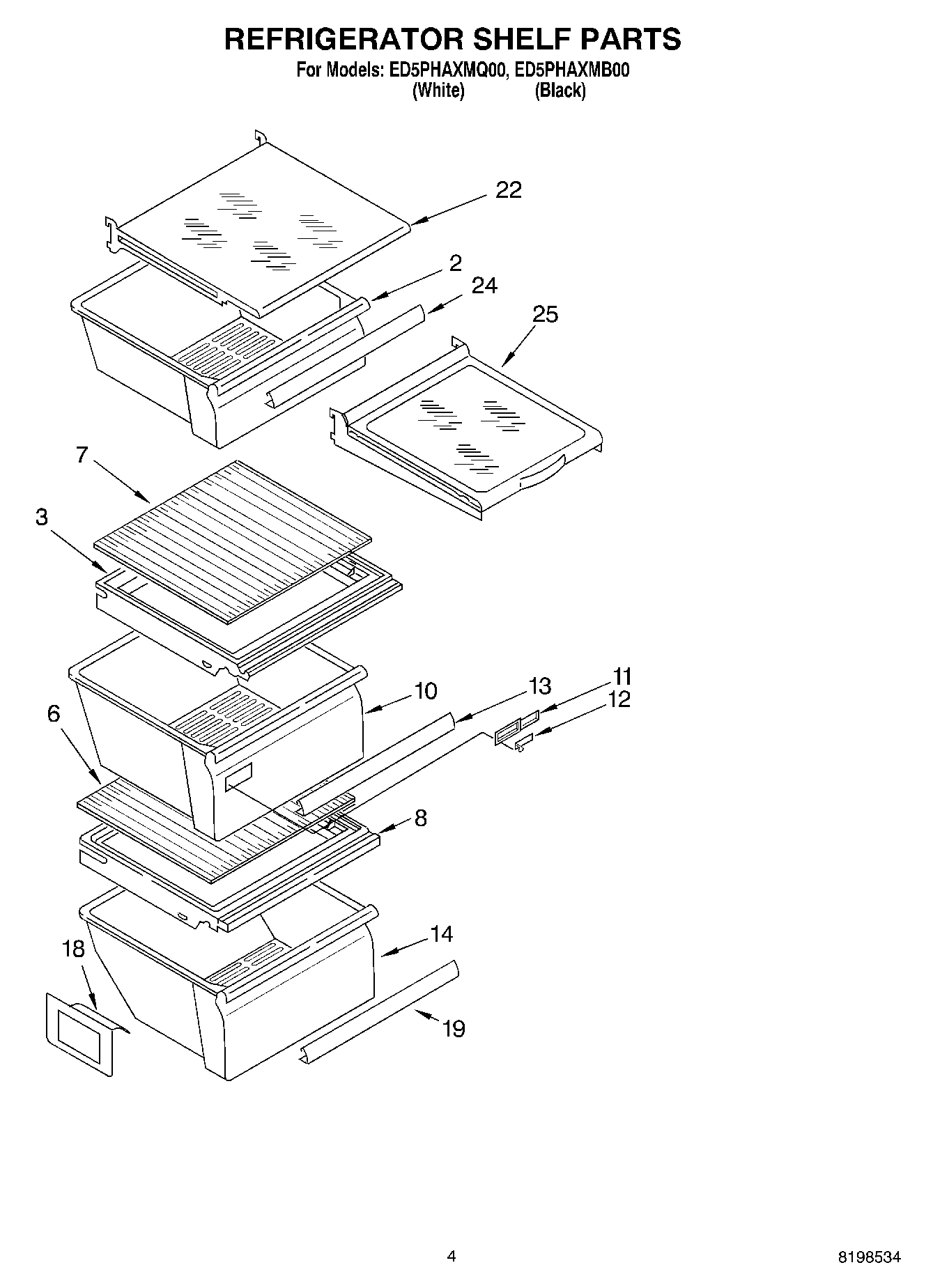

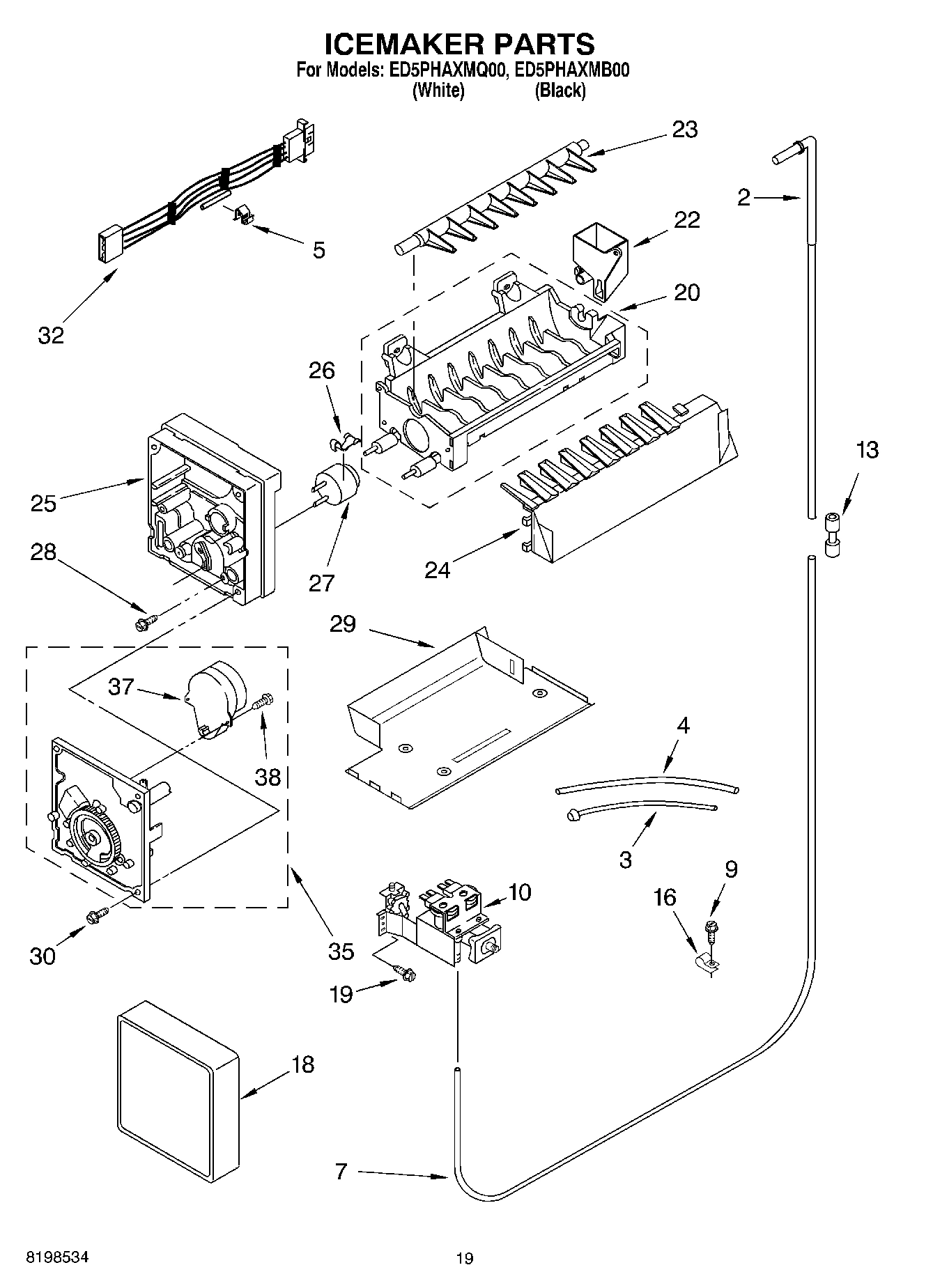

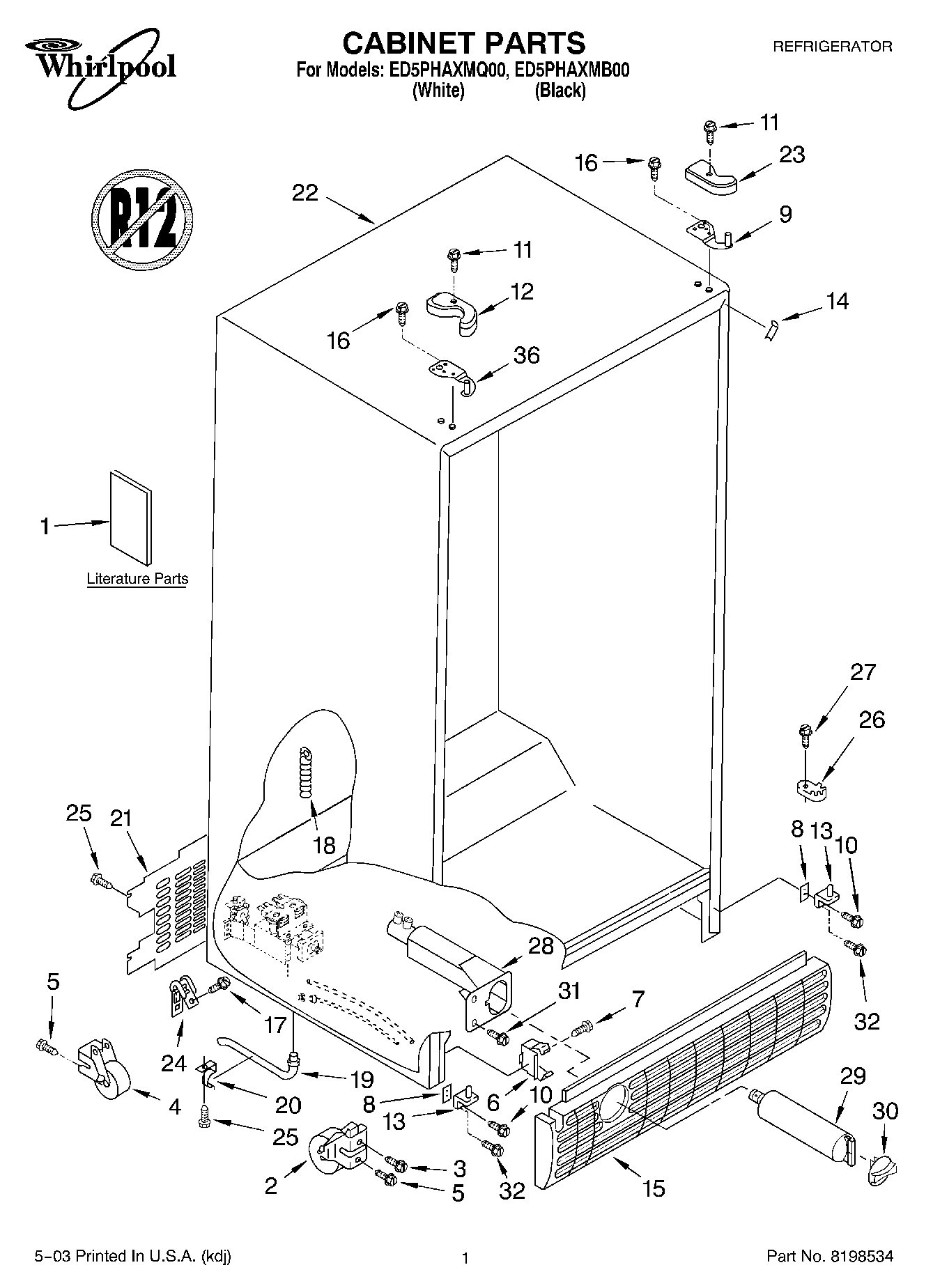

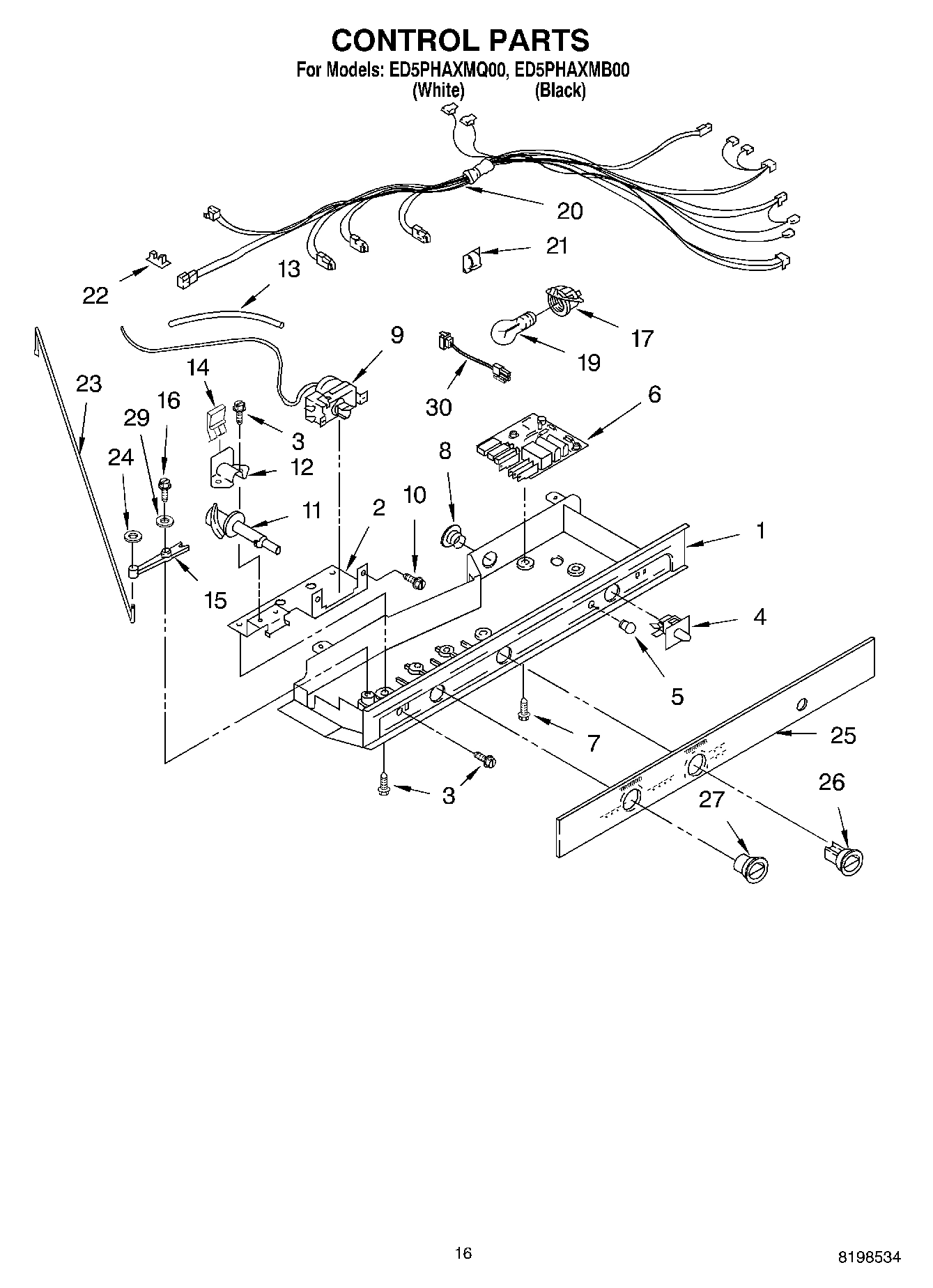

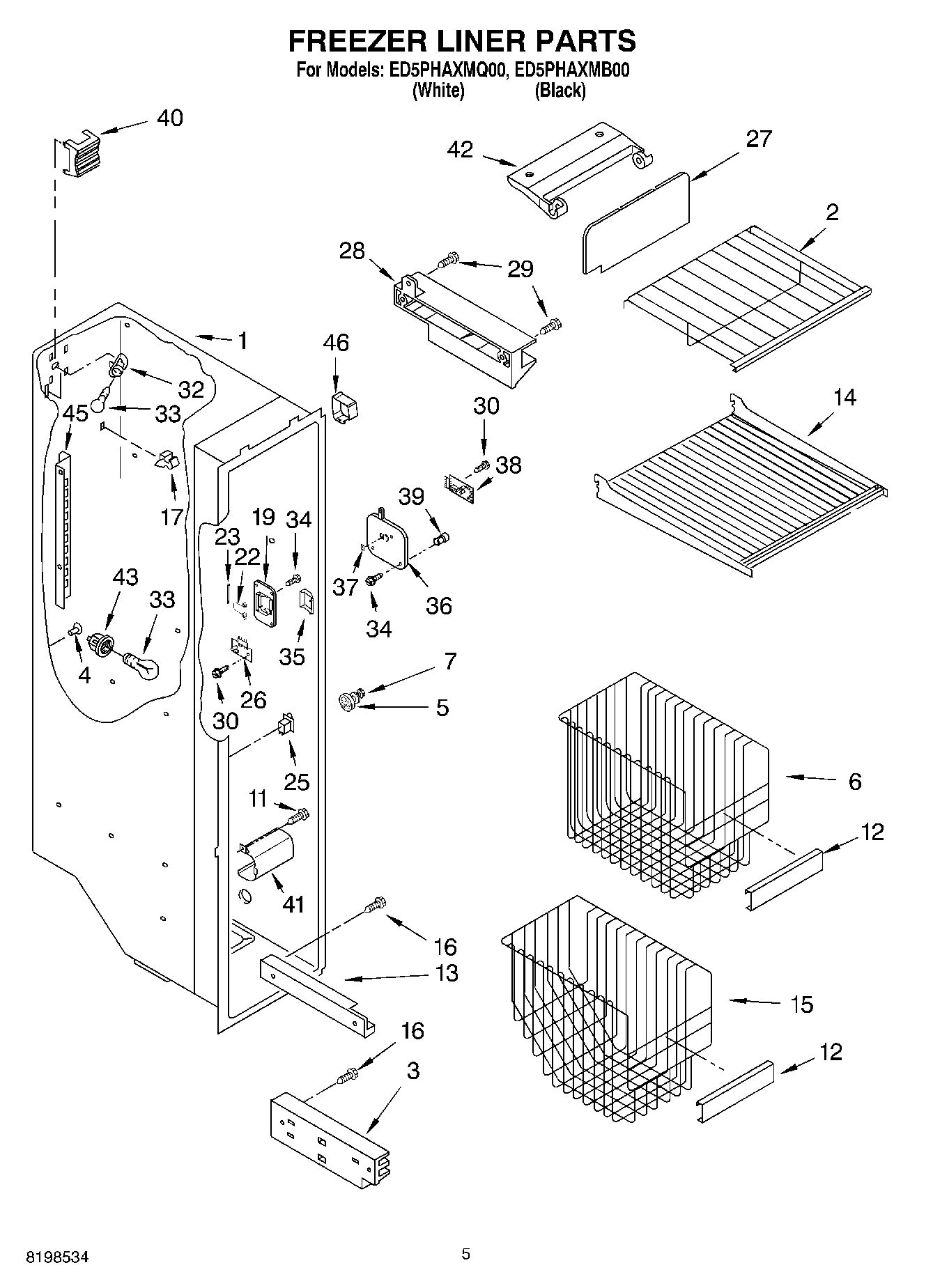

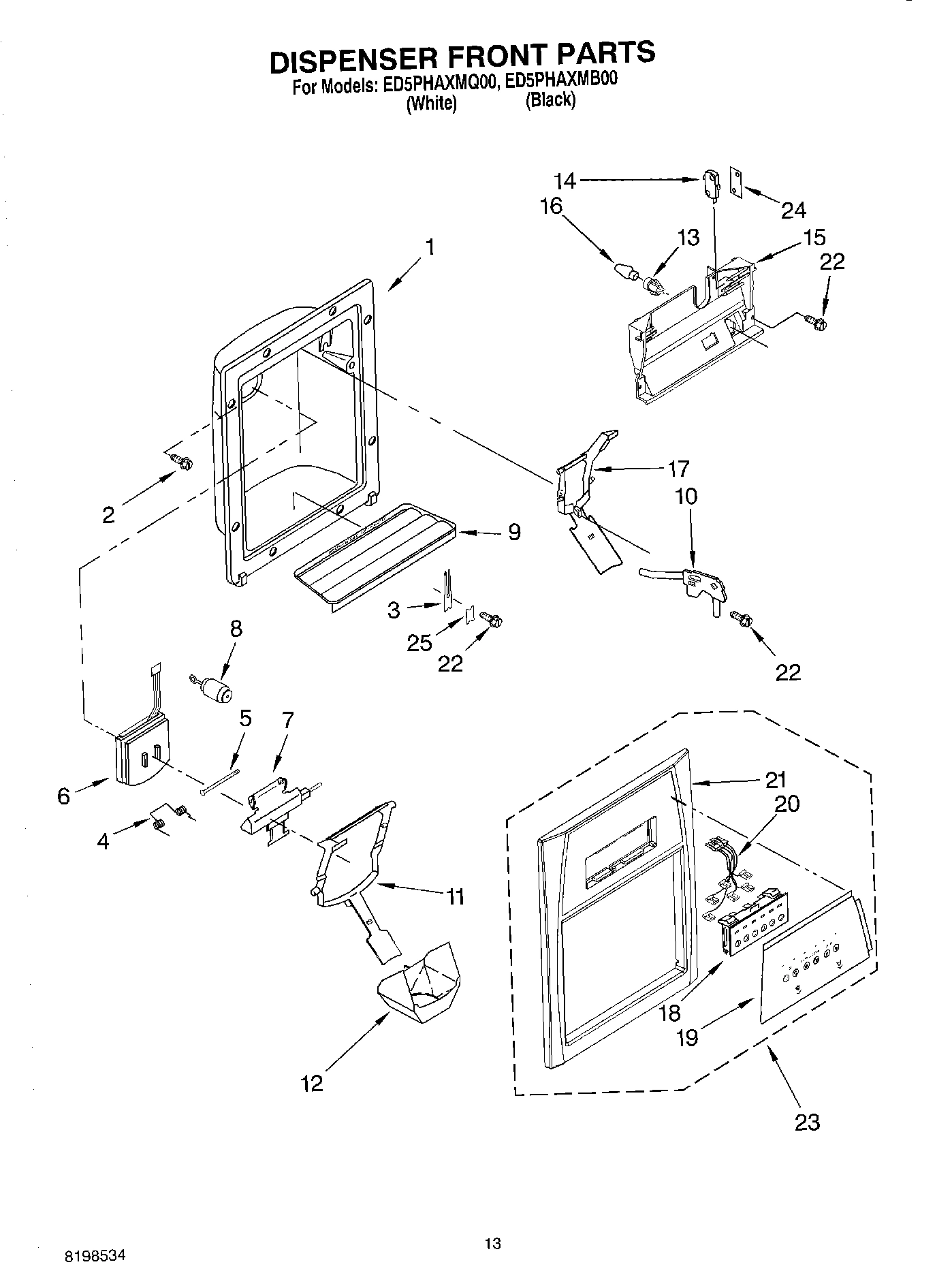

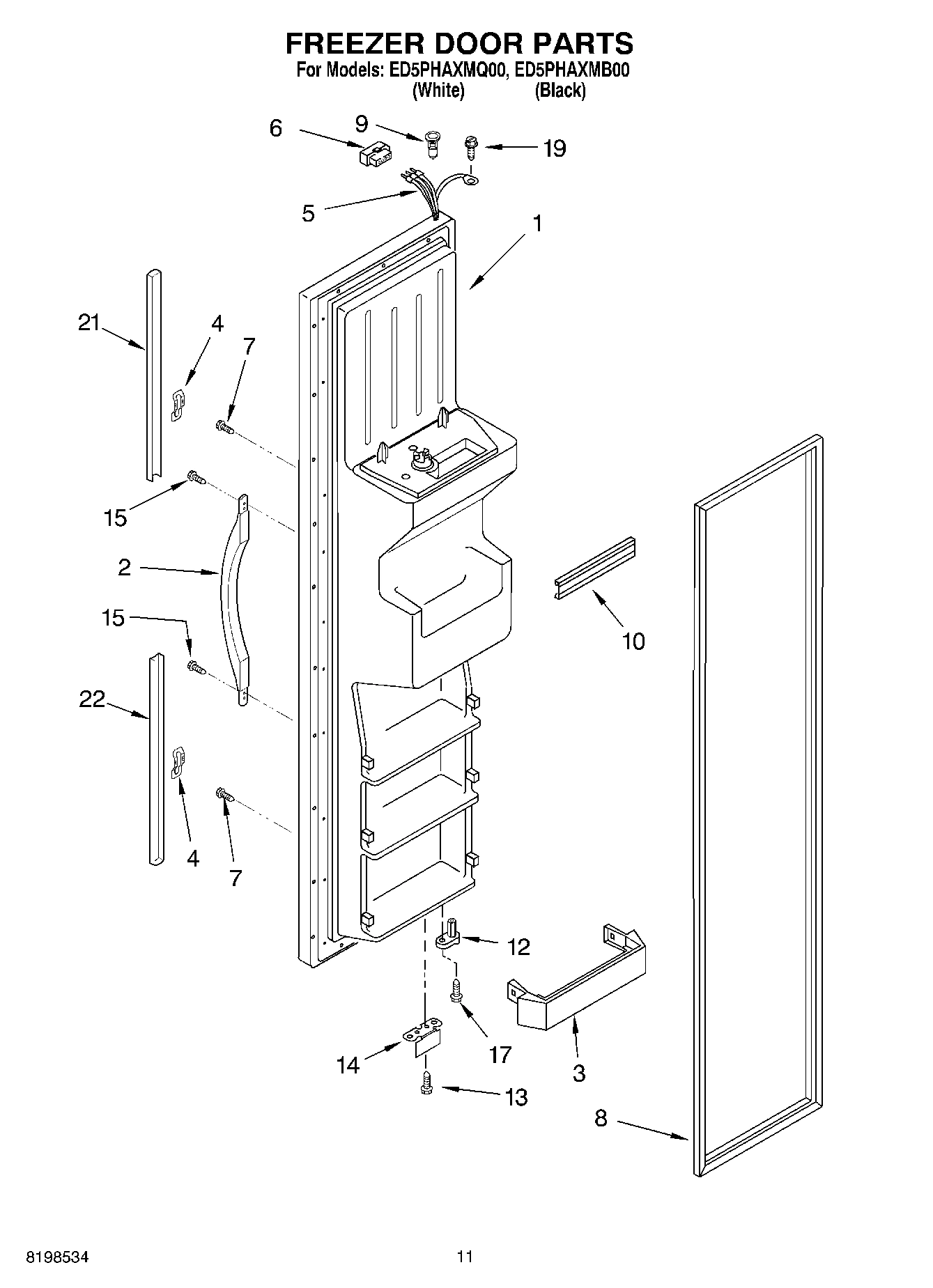

Model Whirlpool ED5PHAXMB00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $15.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP2258243 Whirlpool Refrigerator Ice Containe Backorder WPL WP2258243 $237.28

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

WPL ARI37249A8 WPL ARI37249A8 Contact Us For Availability

WPL ARI37250A1 WPL ARI37250A1 Contact Us For Availability

WPL ARI37251A2 WPL ARI37251A2 Contact Us For Availability

WPL ARI37252A3 WPL ARI37252A3 Contact Us For Availability

WPL ARI37253A9 WPL ARI37253A9 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $138.23

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Control Box WPL 2216013 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Handle (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle (White) WPL 2186649W Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

3

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $42.73

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.52

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $55.13

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $228.95

6

Cover, Crusher WPL 2255460 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.43

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $148.70

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

9

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $46.16

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.98

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $11.80

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $64.16

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

15

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

15

Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $87.84

20

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.62

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Trim, Door-Top (Black) WPL 2194973B Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $55.82

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

Trim, Door-Bottom (White) WPL 2194969W Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $42.77

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastner, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

Escutcheon, Control Box WPL 2261173 Contact Us For Availability

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

28

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $55.72

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $55.08

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51
