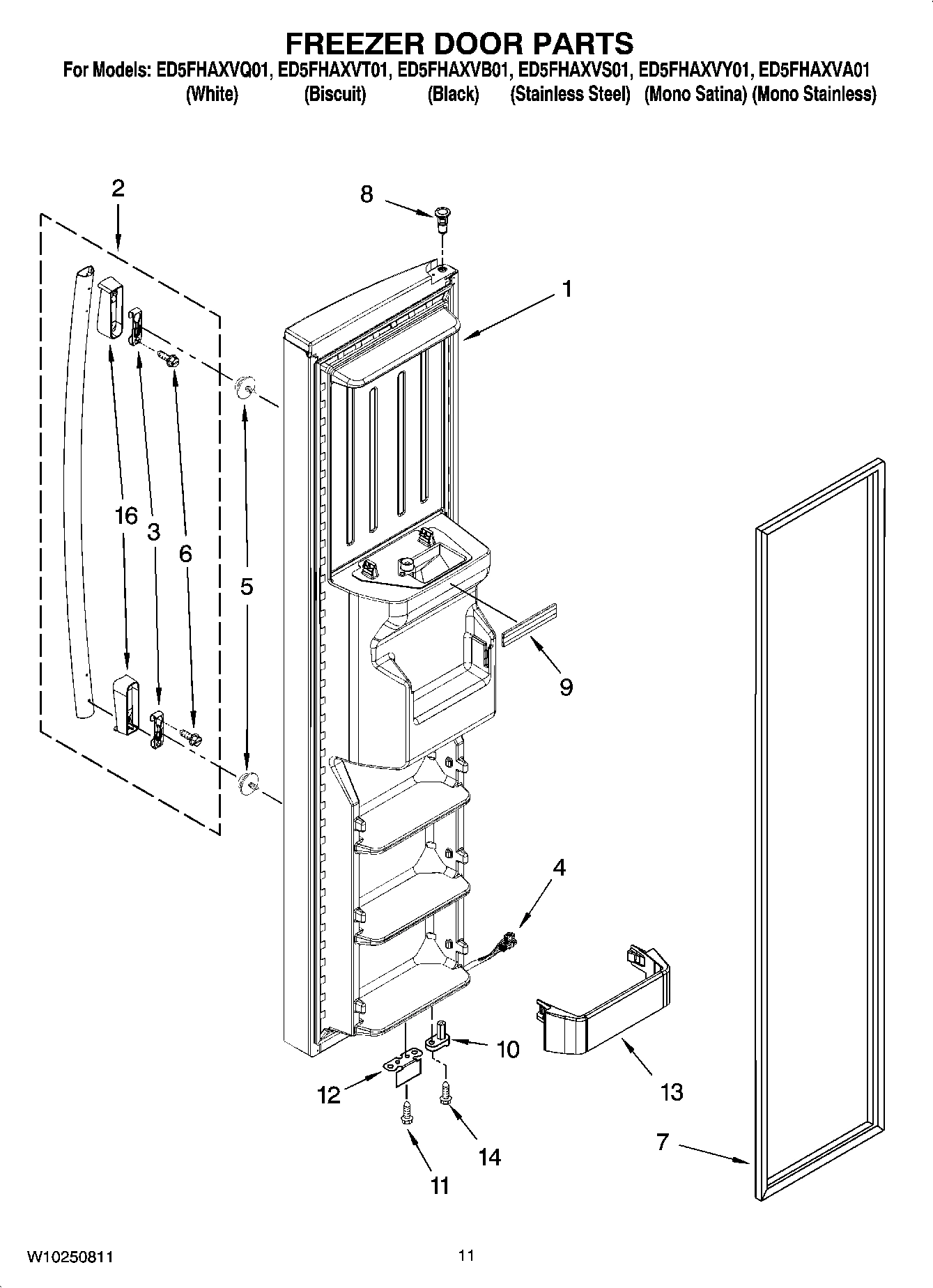

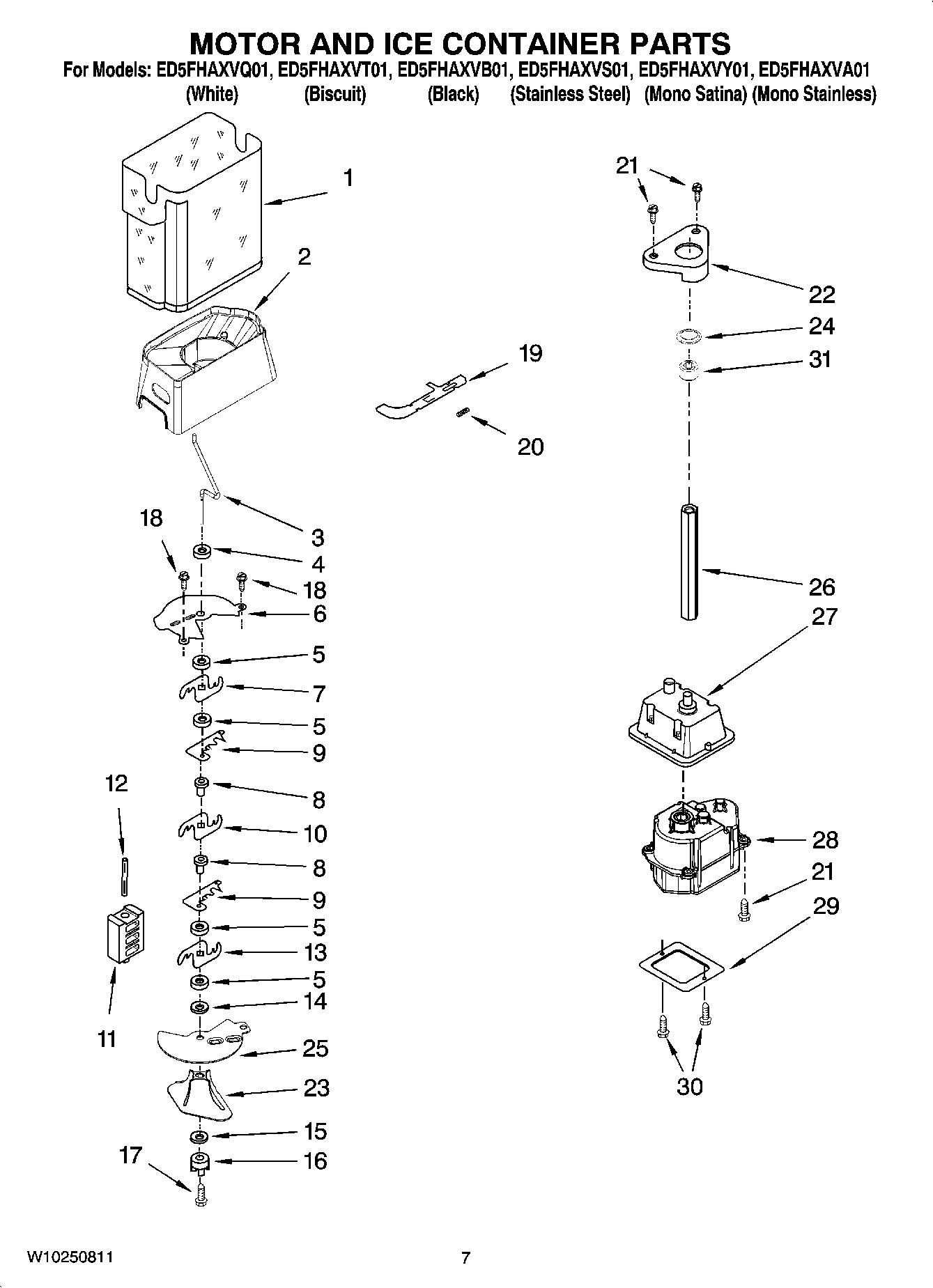

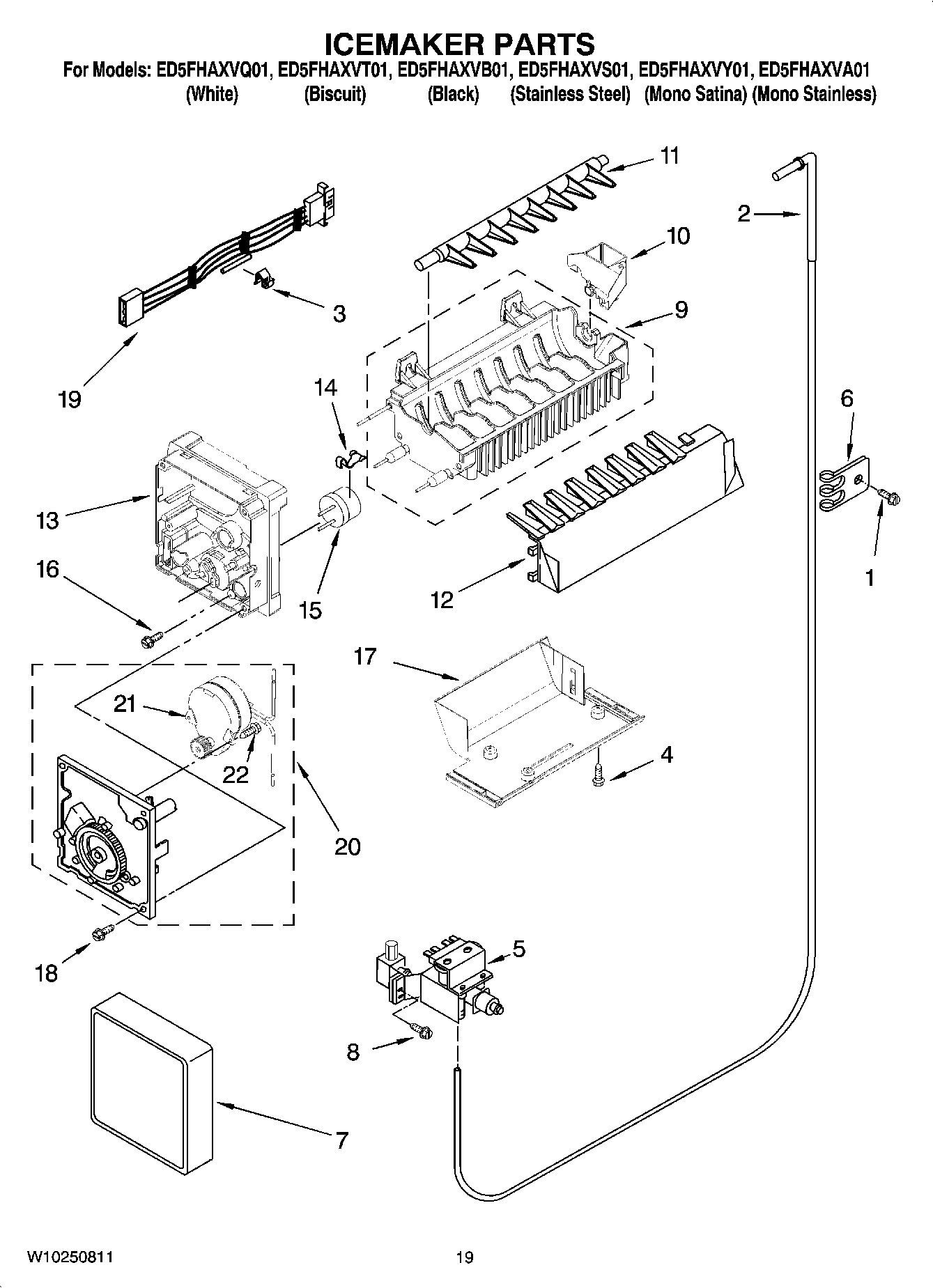

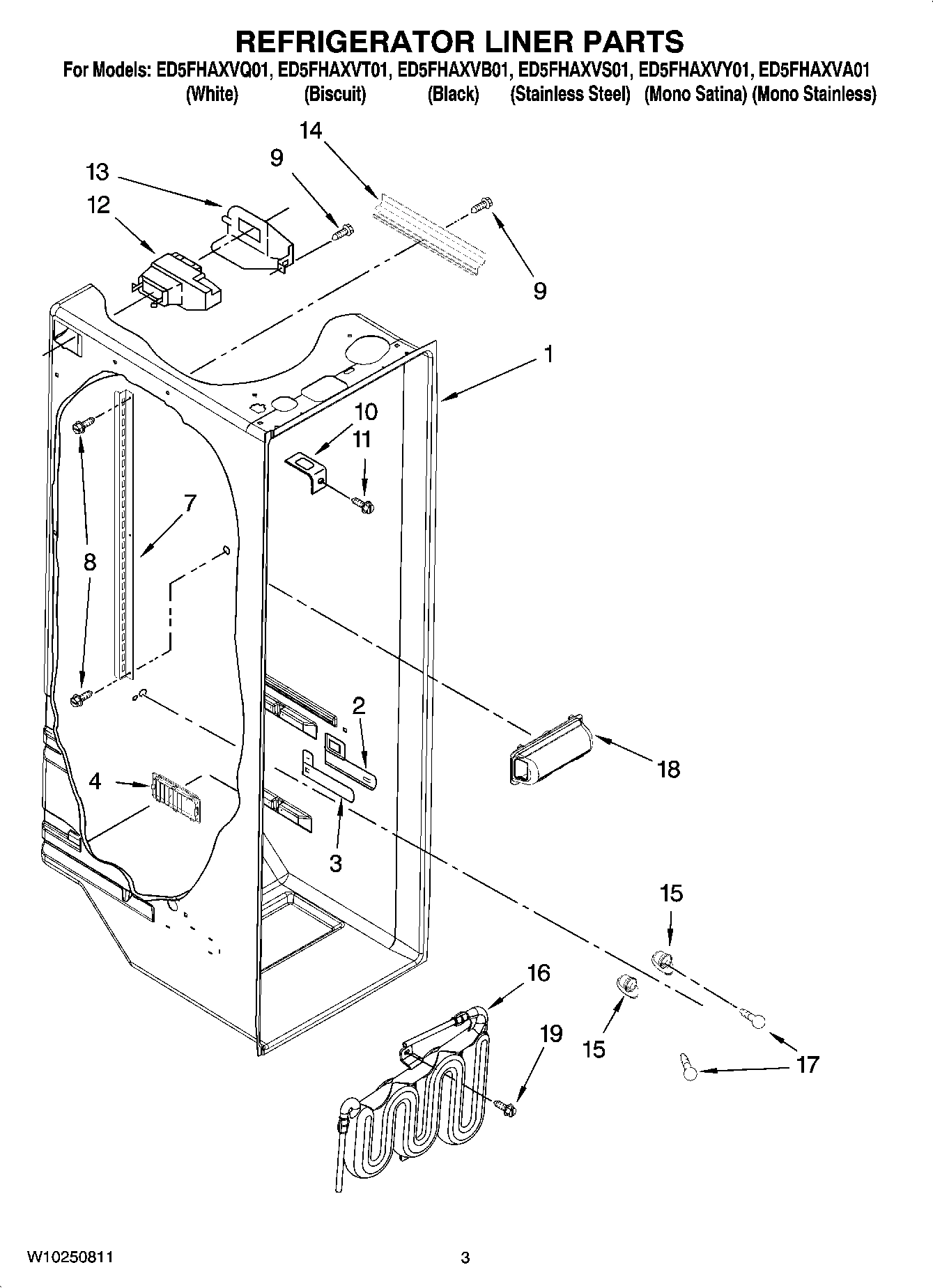

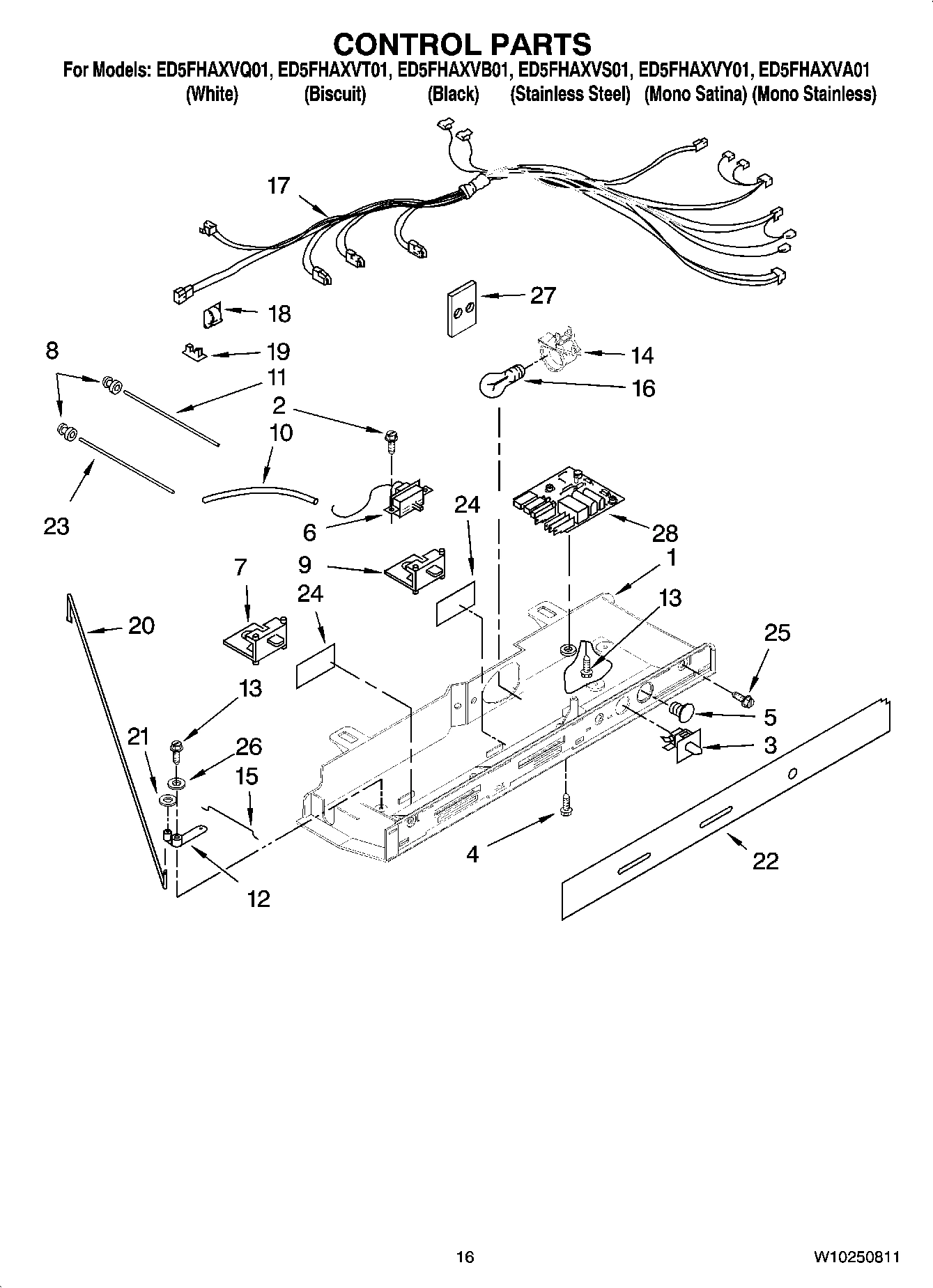

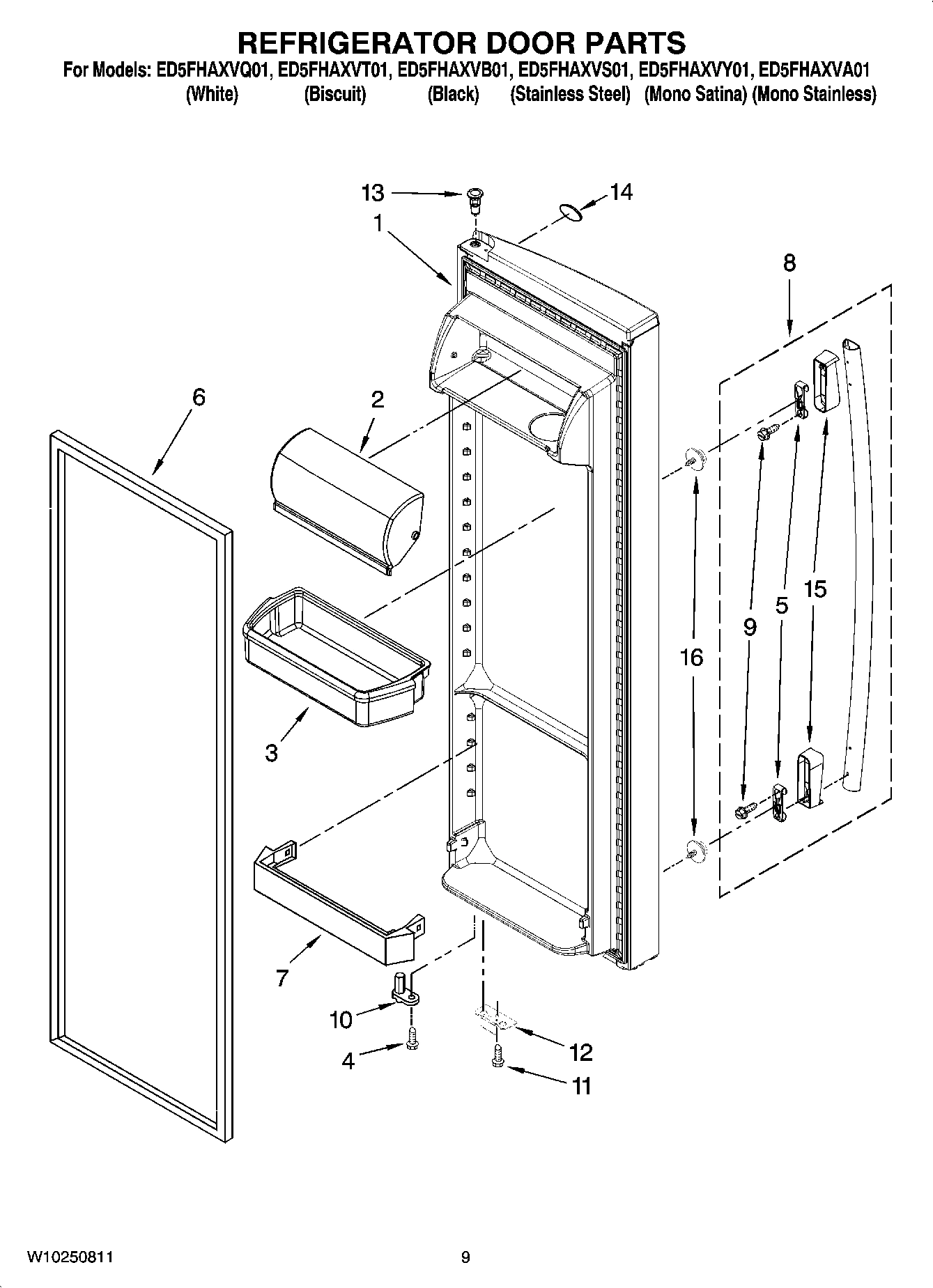

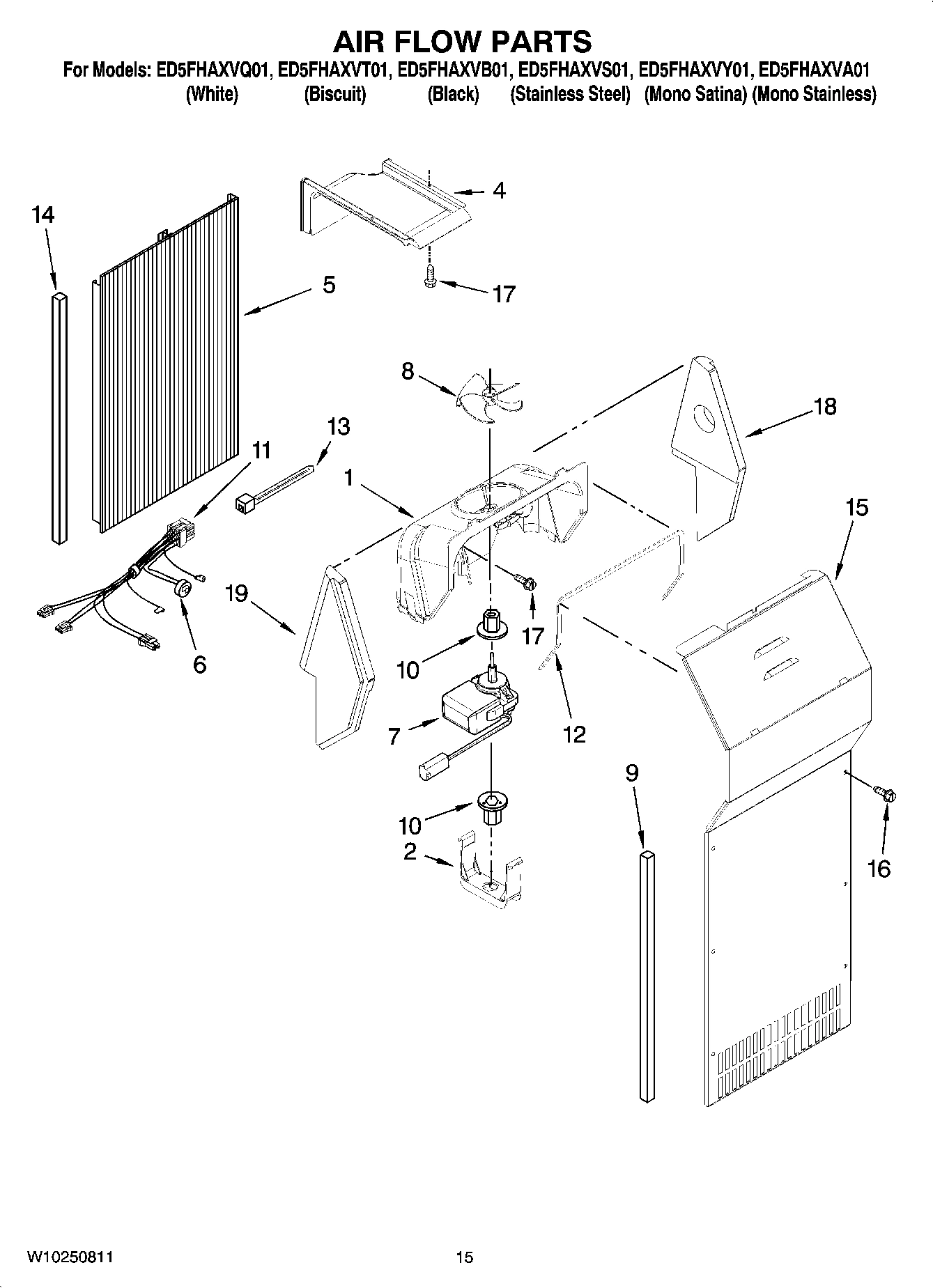

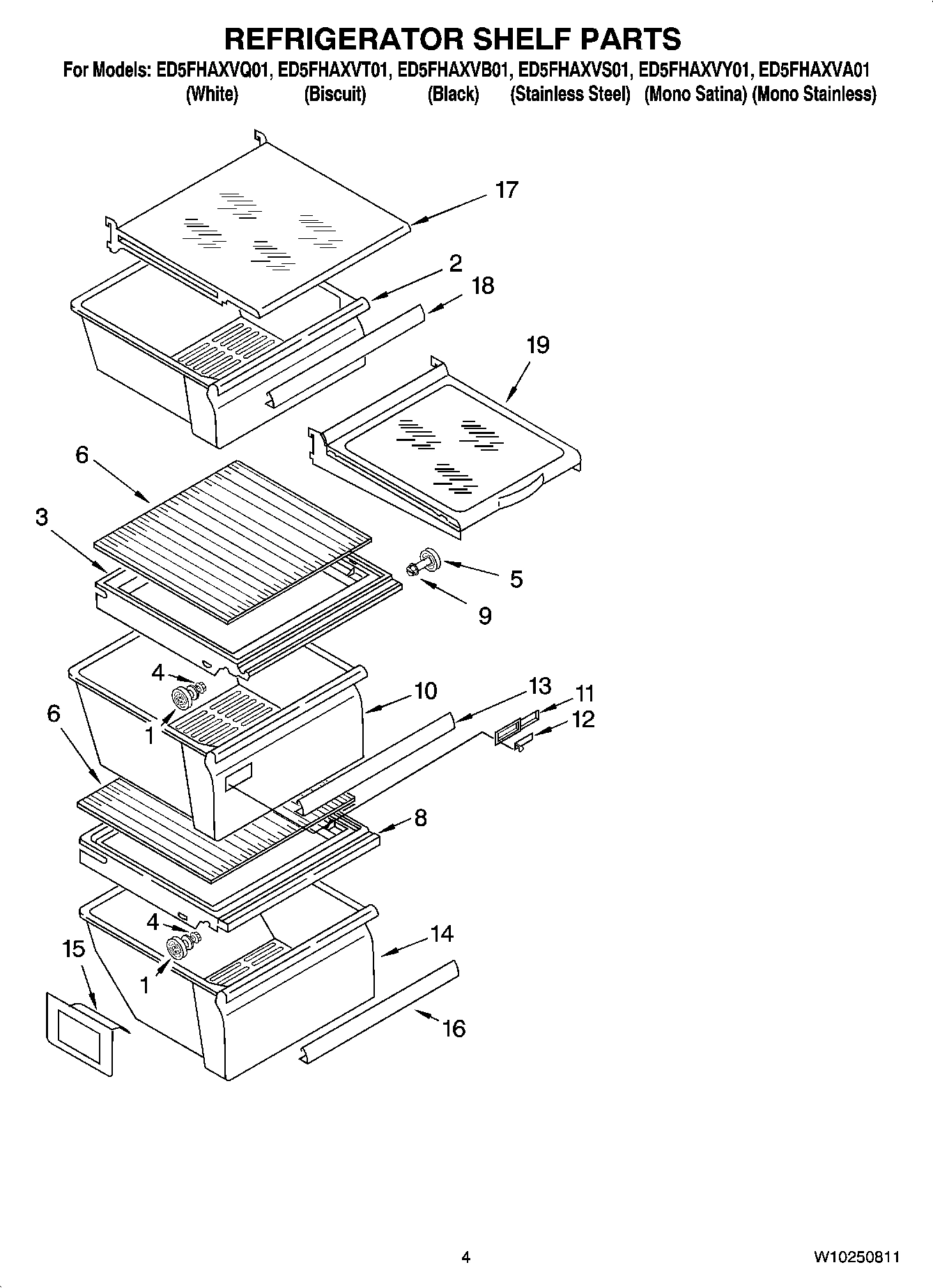

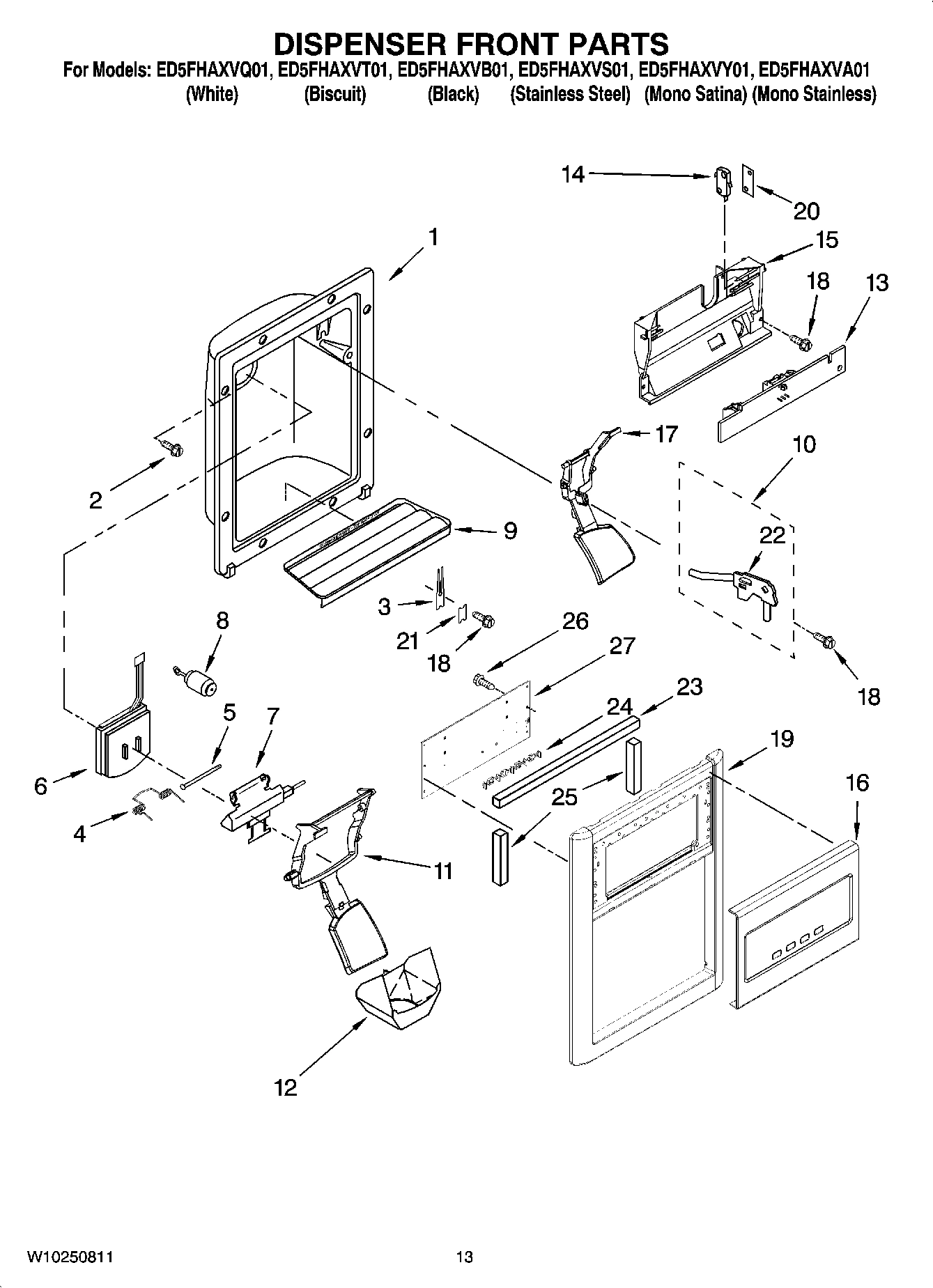

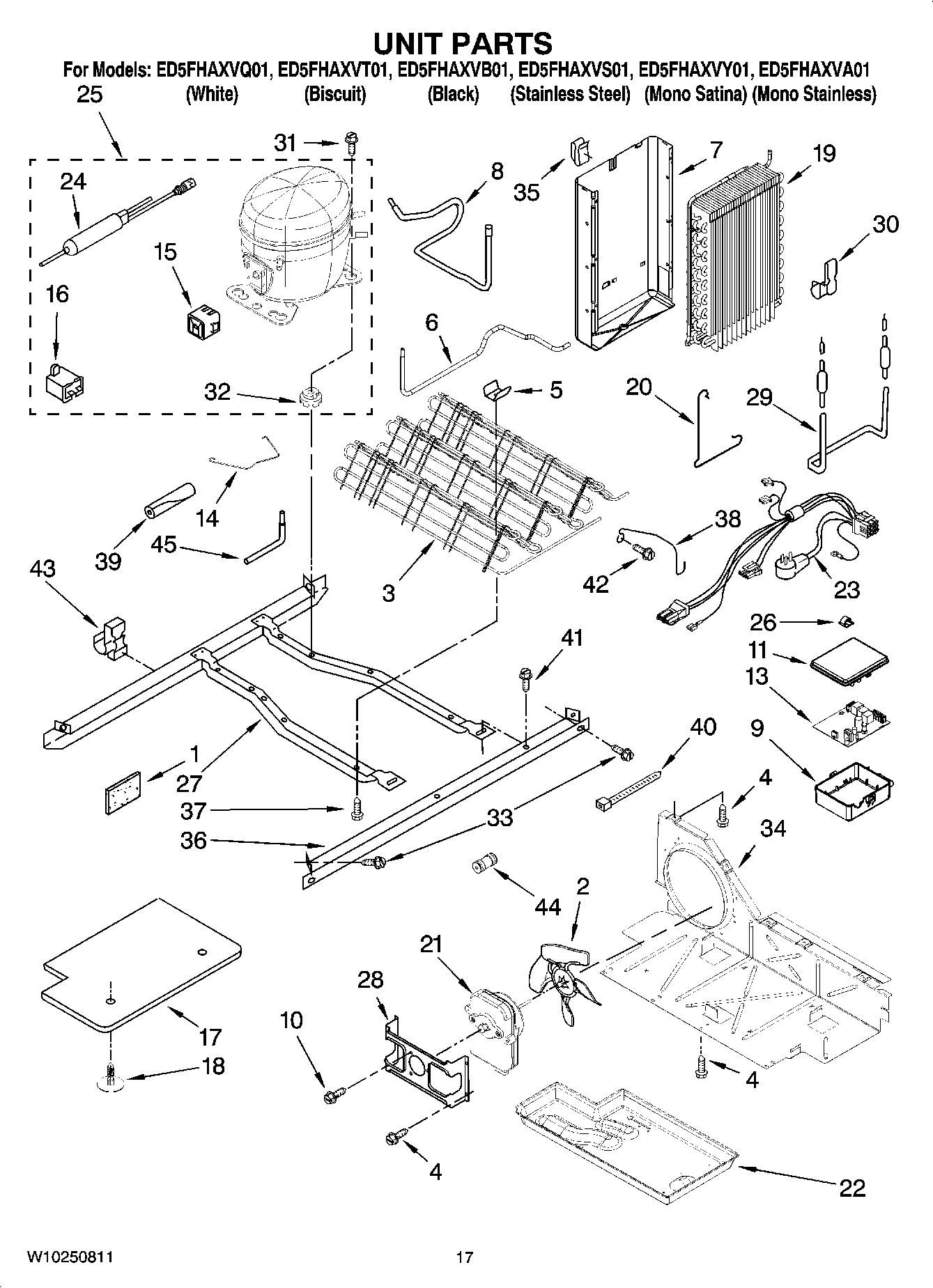

Model Whirlpool ED5FHAXVY01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

WPL ARI33342A7 WPL ARI33342A7 Contact Us For Availability

WPL ARI33343A1 WPL ARI33343A1 Contact Us For Availability

WPL ARI33344A8 WPL ARI33344A8 Contact Us For Availability

1

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $137.43

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Refrigerator Door (Includes Item 6) (Black) WPL W10169198 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL W10169199 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL W10169200 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Mono Sat WPL W10169201 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Mono Sta WPL W10169203 Contact Us For Availability

1

Control Box WPL 2181738 Contact Us For Availability

2

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $61.42

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $26.50

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

5

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

5

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WPW10136734 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10136734 $121.32

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $141.58

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

7

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

7

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

7

Shelf Ladder WPL 2319866 Contact Us For Availability

8

W10210942A Whirlpool Refrigerator Handle Backorder WPL W10210942A $54.35

8

W10210943A Whirlpool Refrigerator Handle Backorder WPL W10210943A $54.35

8

W10210944A Whirlpool Refrigerator Handle M Backorder WPL W10210944A $49.41

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

8

WPW10257120 Whirlpool Refrigerator Handle Backorder WPL WPW10257120 $26.10

8

Thimble-Top (For White, Black, Biscuit and St WPL 2301049 Contact Us For Availability

8

Grommet, Light Bar (4) WPL 2172906 Contact Us For Availability

9

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

9

W10267047 Whirlpool Screw Backorder WPL W10267047 $9.59

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $38.10

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

9

Blade, Fixed WPL 2257020 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $32.15

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

W10152855 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152855 $35.56

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $59.15

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $35.83

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

2323534 Whirlpool Refrigerator Bracket Backorder WPL 2323534 $59.21

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $41.94

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Bracket, Door Stop (Black) WPL 2323534B Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $34.93

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $29.85

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W10127813 Whirlpool Refrigerator Handle Endca Backorder WPL W10127813 $28.09

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $67.68

Handle, Endcap (Black) WPL W10127814 Contact Us For Availability

Handle, Endcap (Biscuit) WPL W10127815 Contact Us For Availability

Handle, Endcap (Stainless, All) WPL W10152864 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.02

W10152860 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152860 $34.31

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Lever, Water Dispenser (Apollo Grey) WPL W10155162 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Control Box Harness WPL 2187868 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $38.12

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $75.95

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

Latch, Bin WPL 2317277 Contact Us For Availability

Bezel, Disp (Mono Stain (NO)) WPL W10139842 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $47.56

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Fastner, Push-On WPL 489391 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

Escutcheon, Control Box WPL W10176424 Contact Us For Availability

23

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

23

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

23

Light Bar (FC) WPL 2179921 Contact Us For Availability

24

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

24

Cover, Receiver WPL W10173569 Contact Us For Availability

24

Window WPL 2175513 Contact Us For Availability

25

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

25

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

26

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

26

DOOR CLOSER, (FC) WPL 2223751 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

Ctrl-Elek, Puma WPL 2321748 Contact Us For Availability

Enclosure, Motor WPL 2322488 Contact Us For Availability

28

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

28

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

28

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

29

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

30

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

30

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

31

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

33

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

33

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

33

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

37

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

38

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

41

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

42

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51

100

WP2317251 Whirlpool Refrigerator Ice Containe In Stock WPL WP2317251 $196.63
