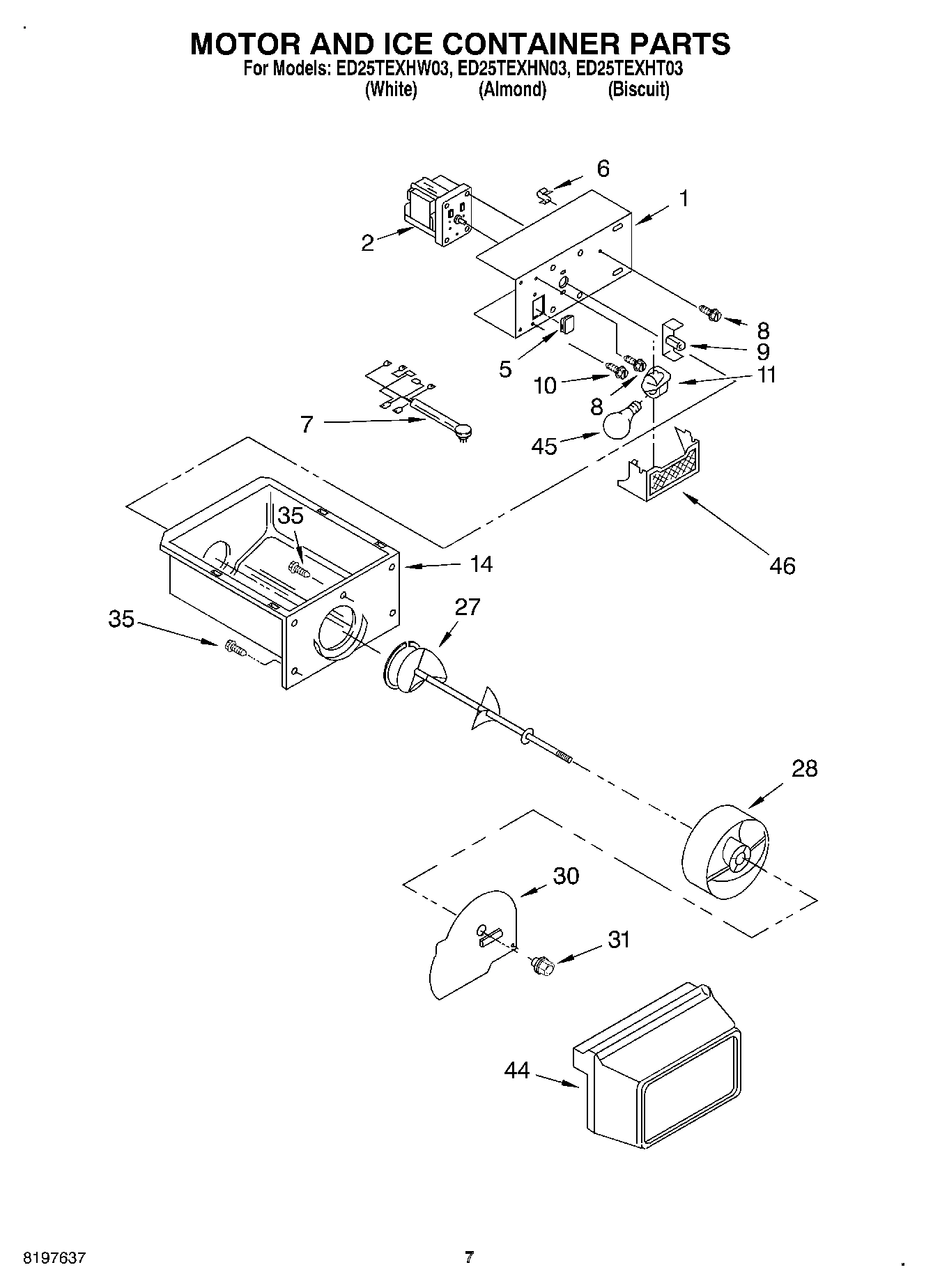

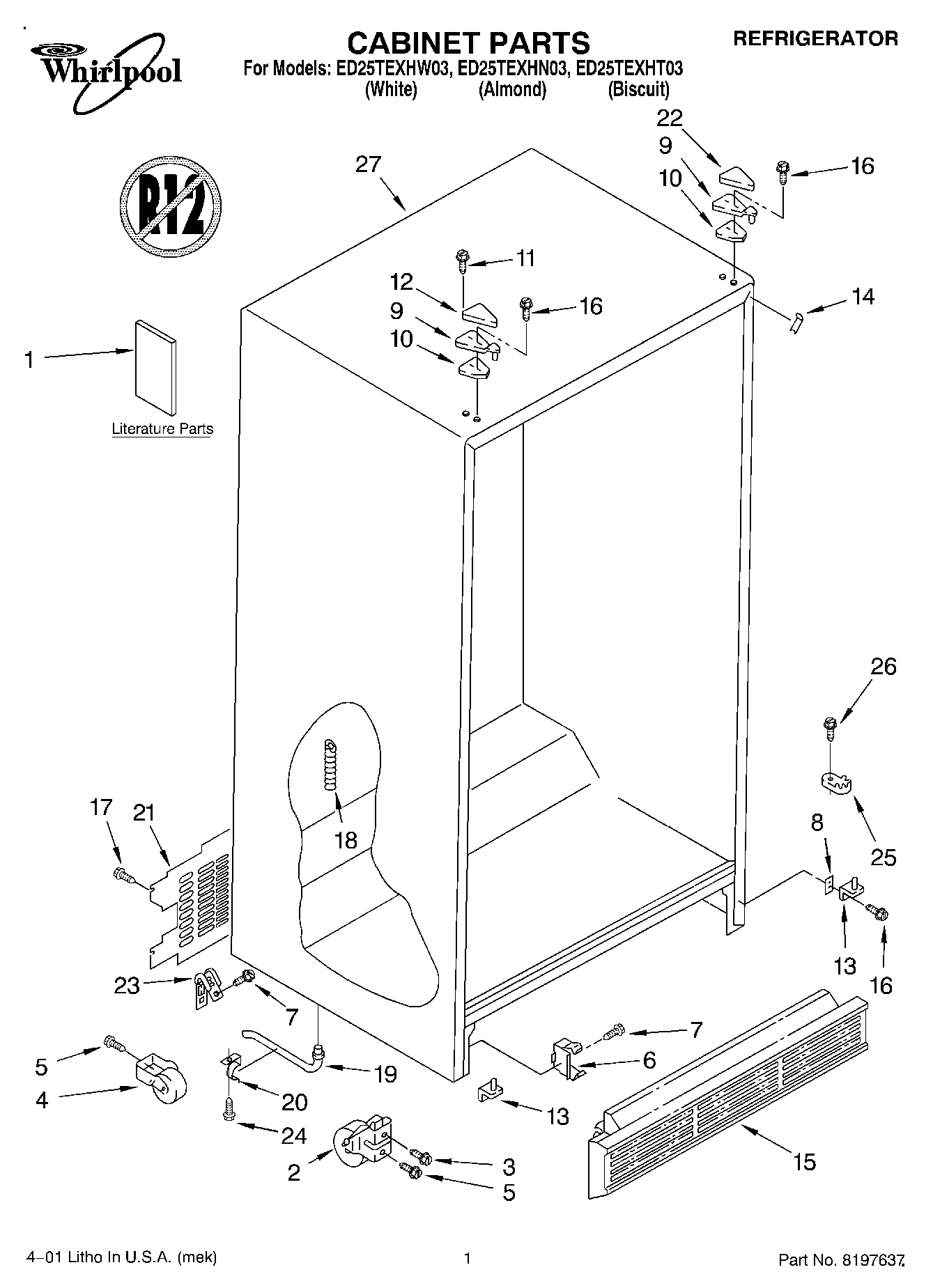

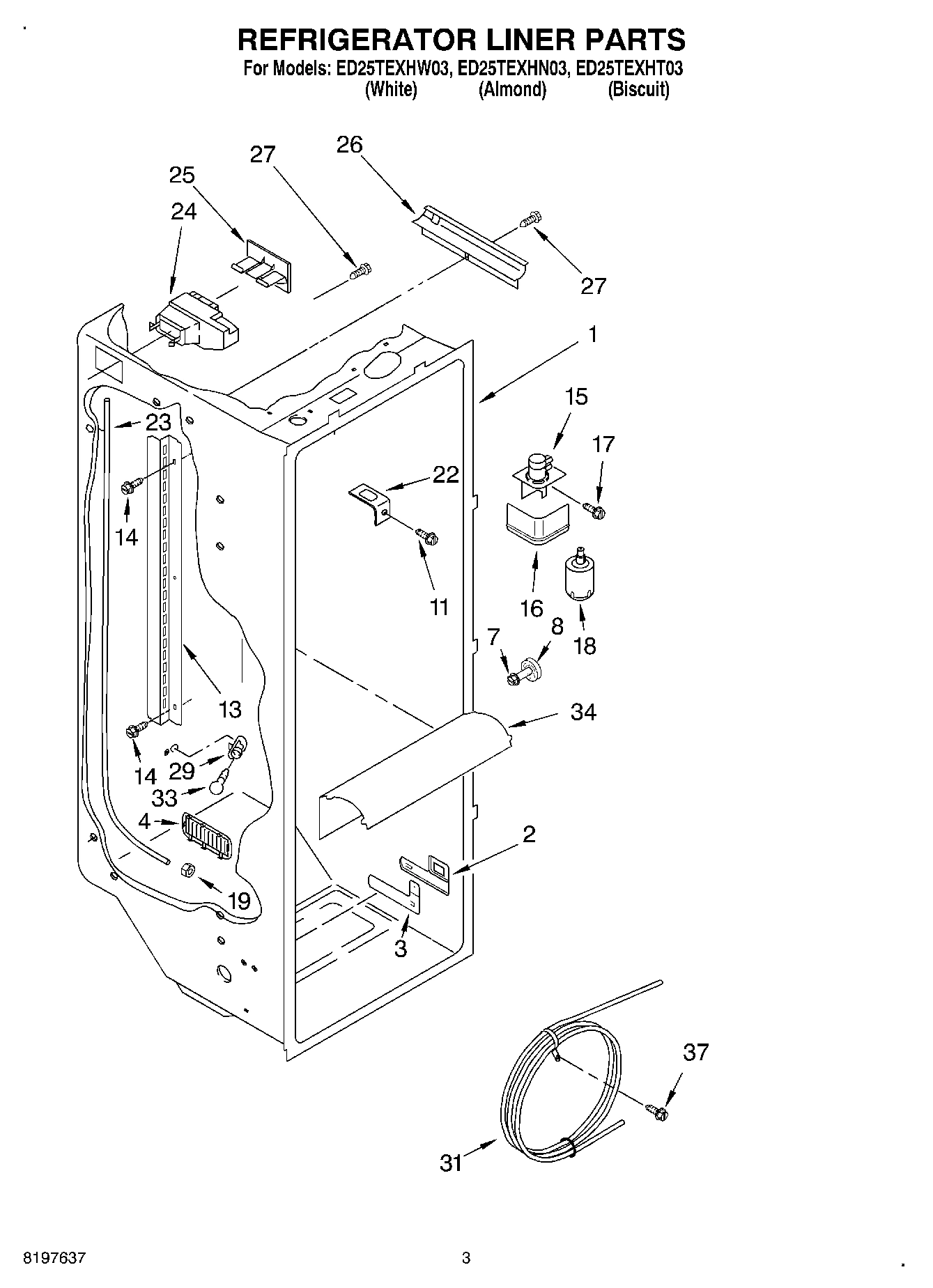

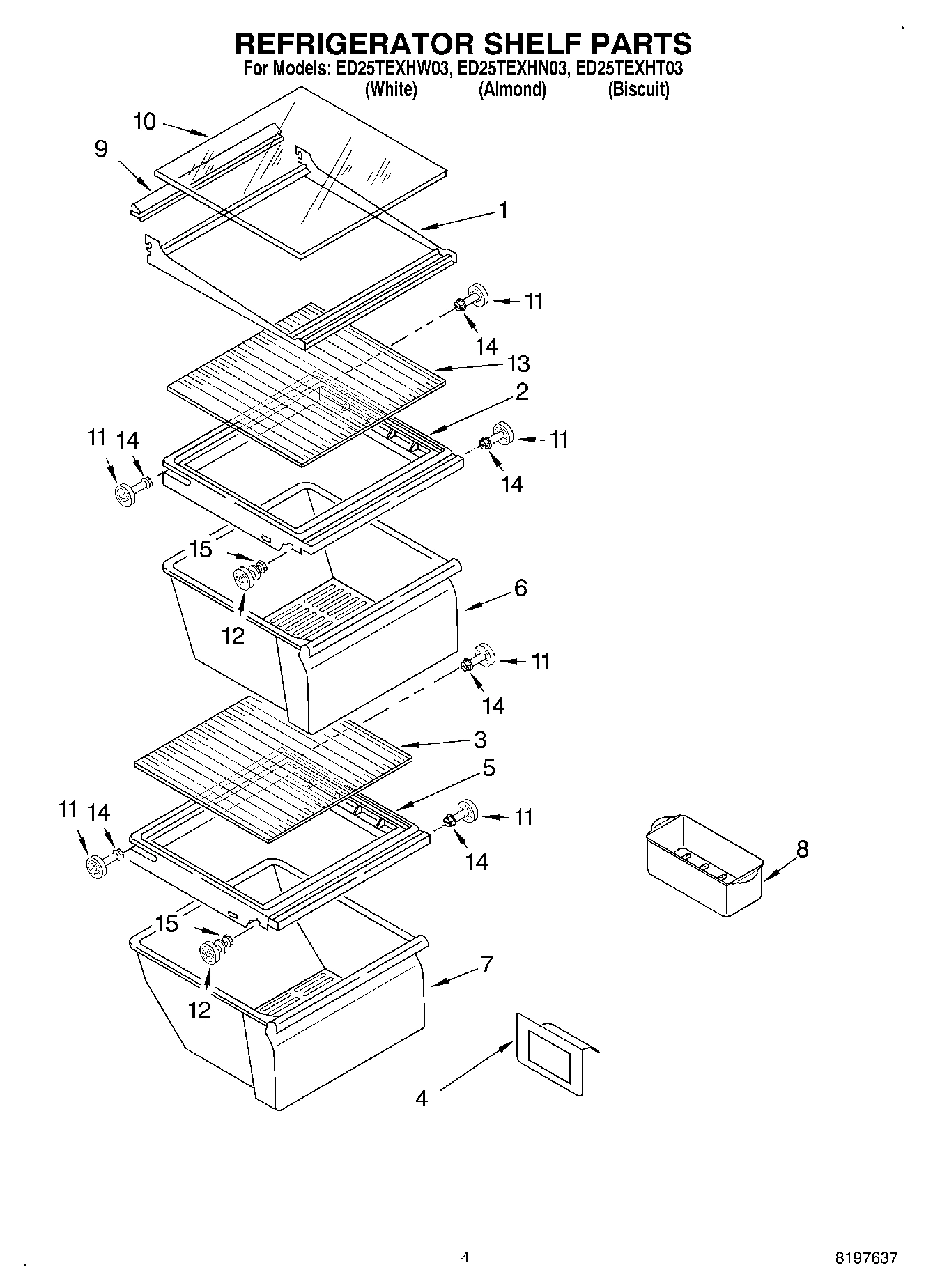

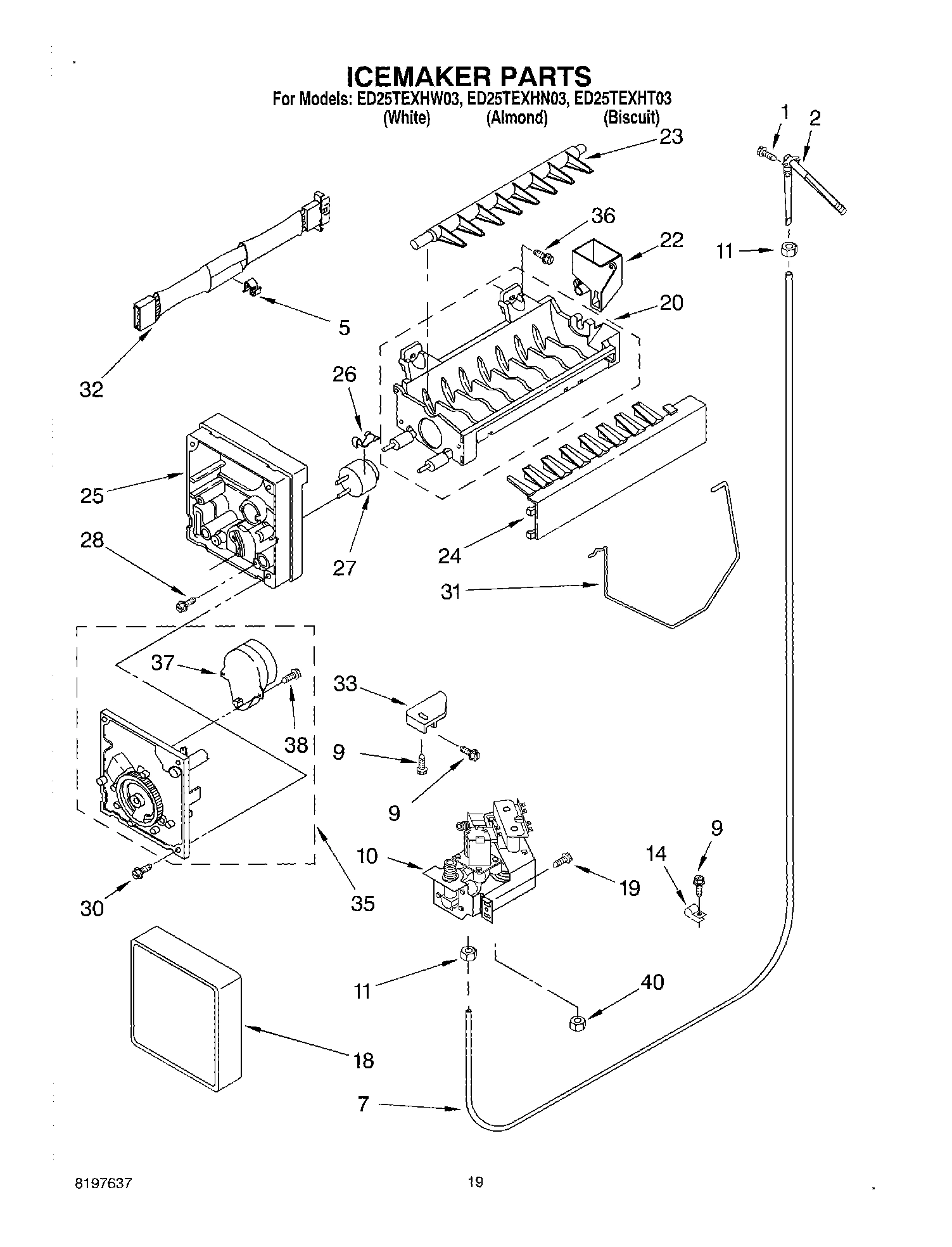

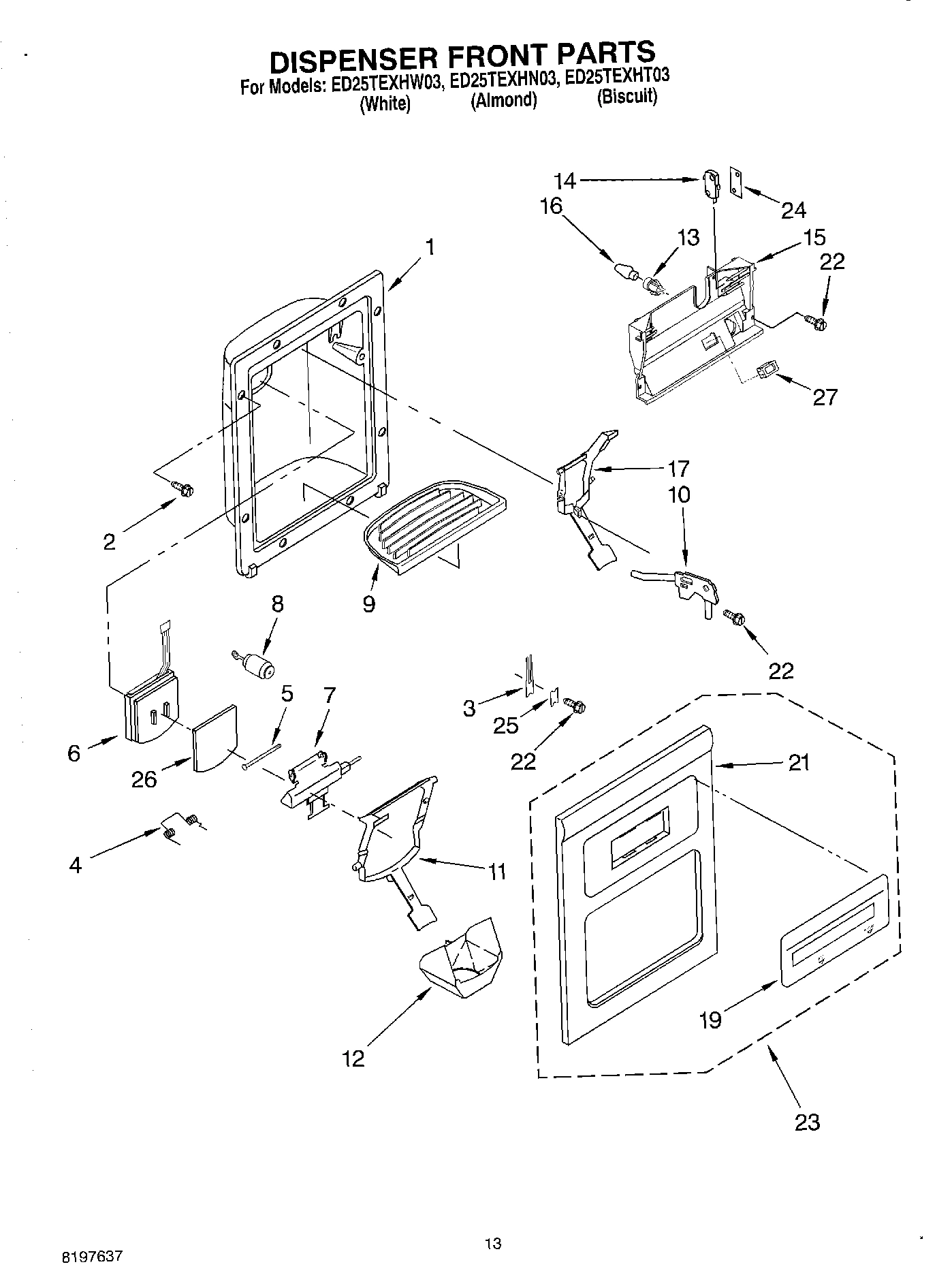

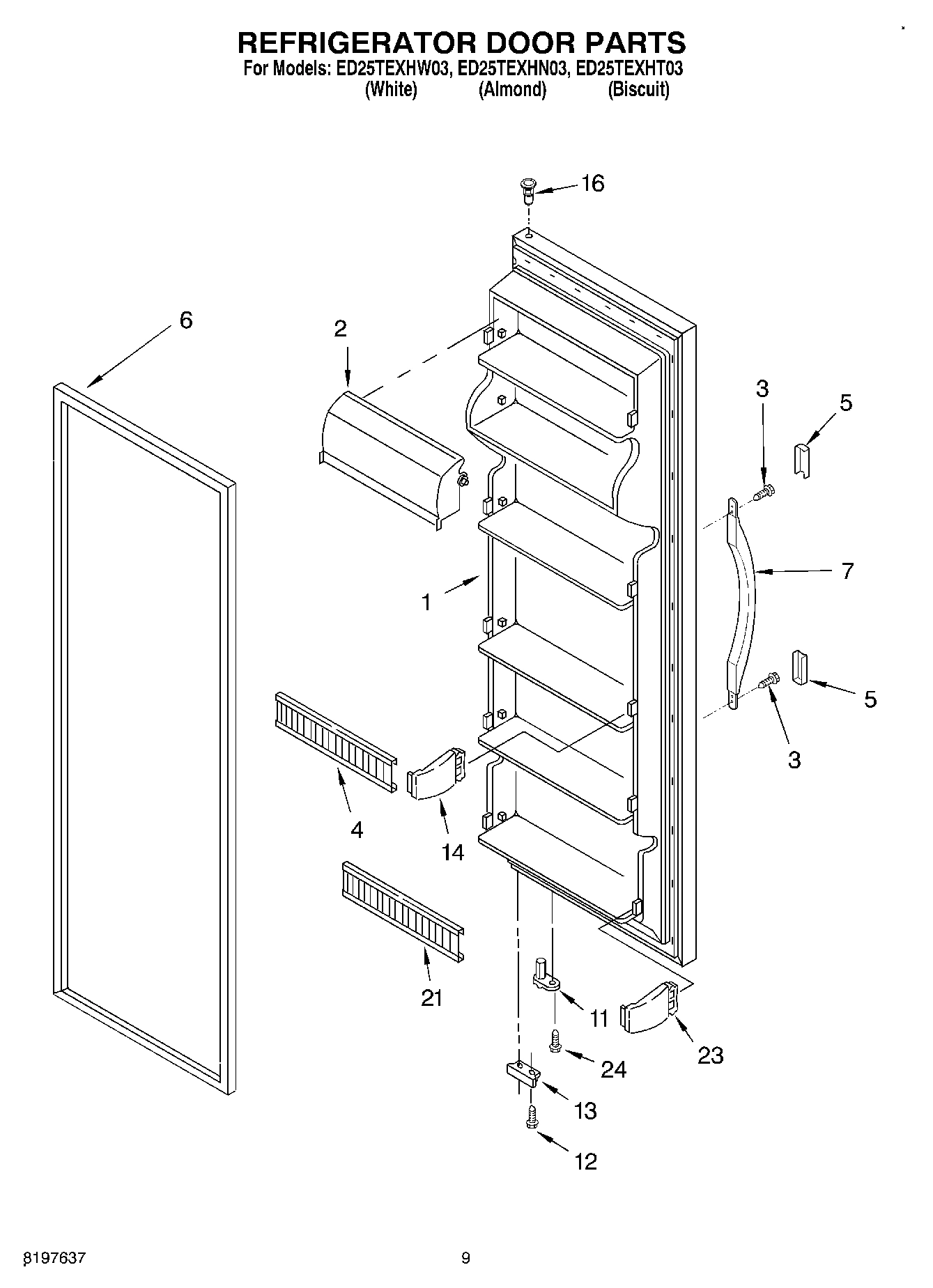

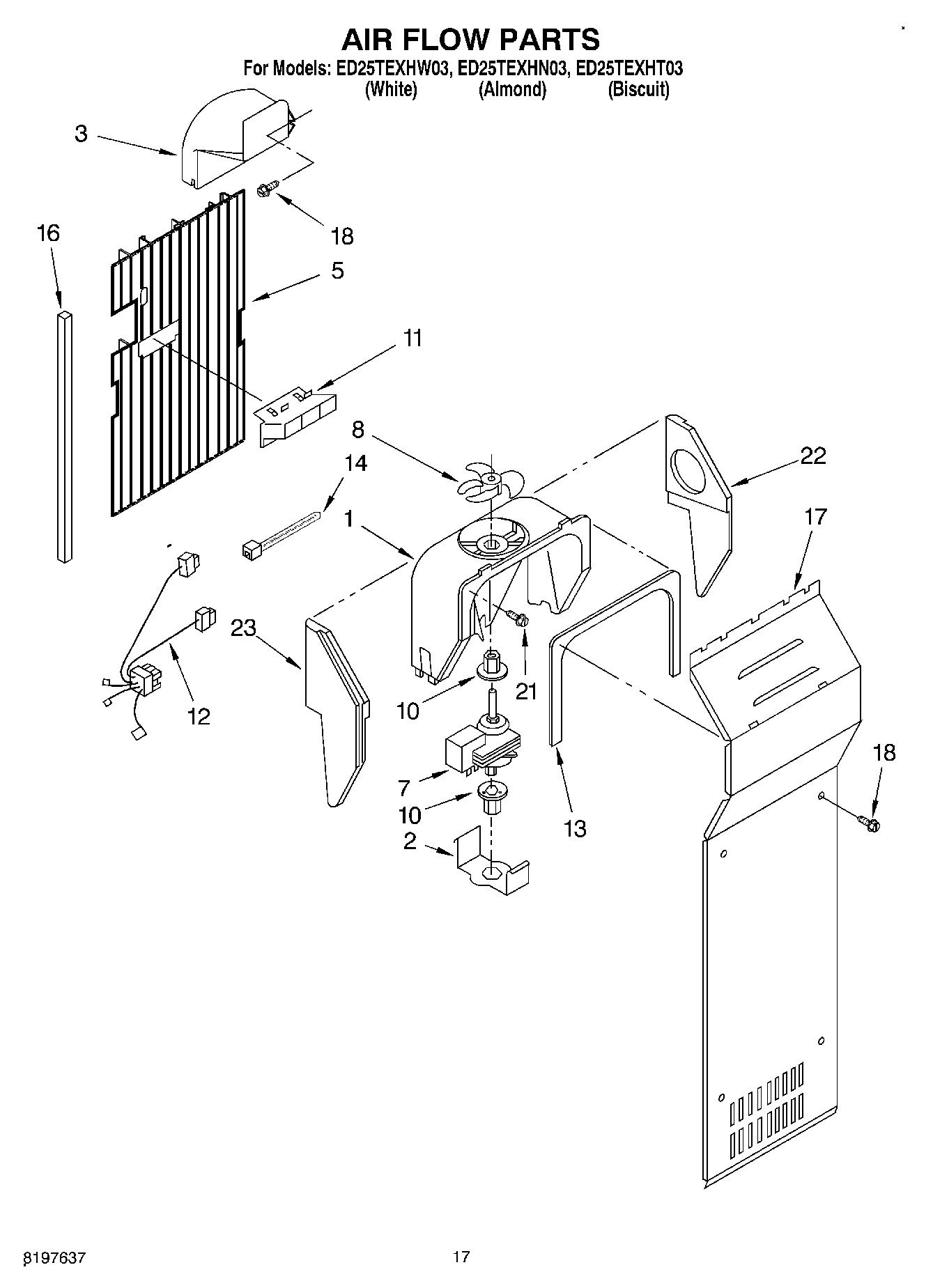

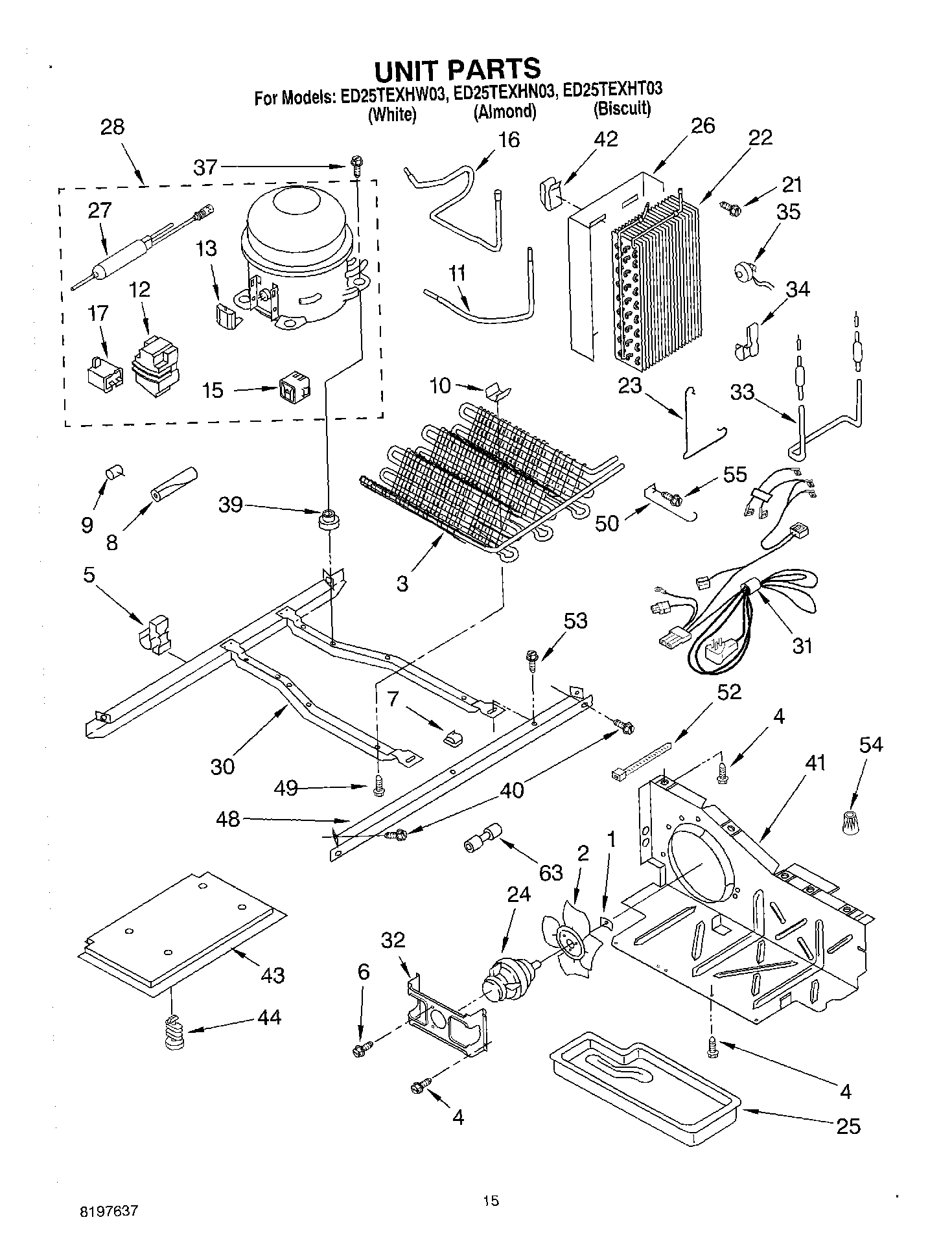

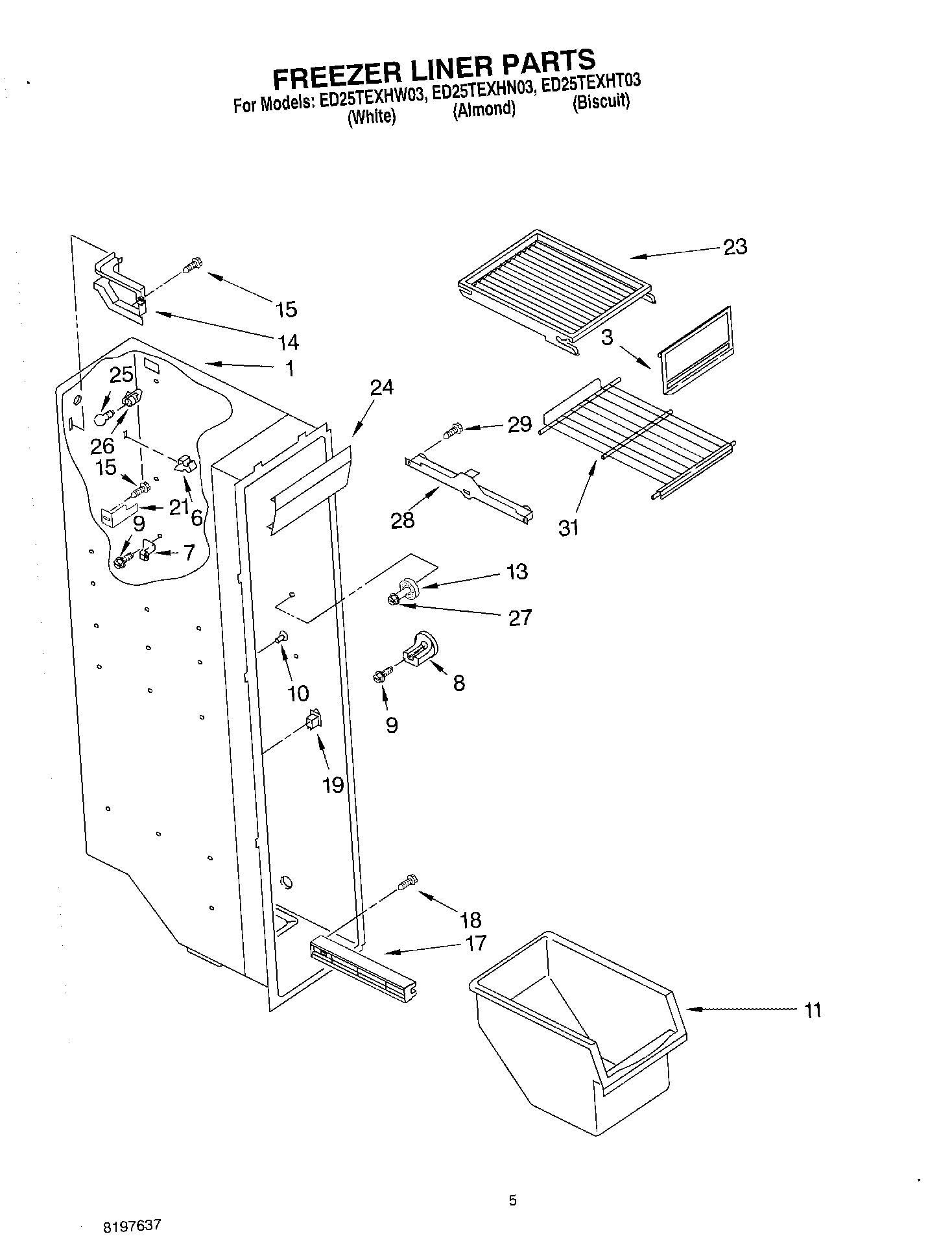

Model Whirlpool ED25TEXHW03 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Bracket, Motor WPL 2183726 Contact Us For Availability

1

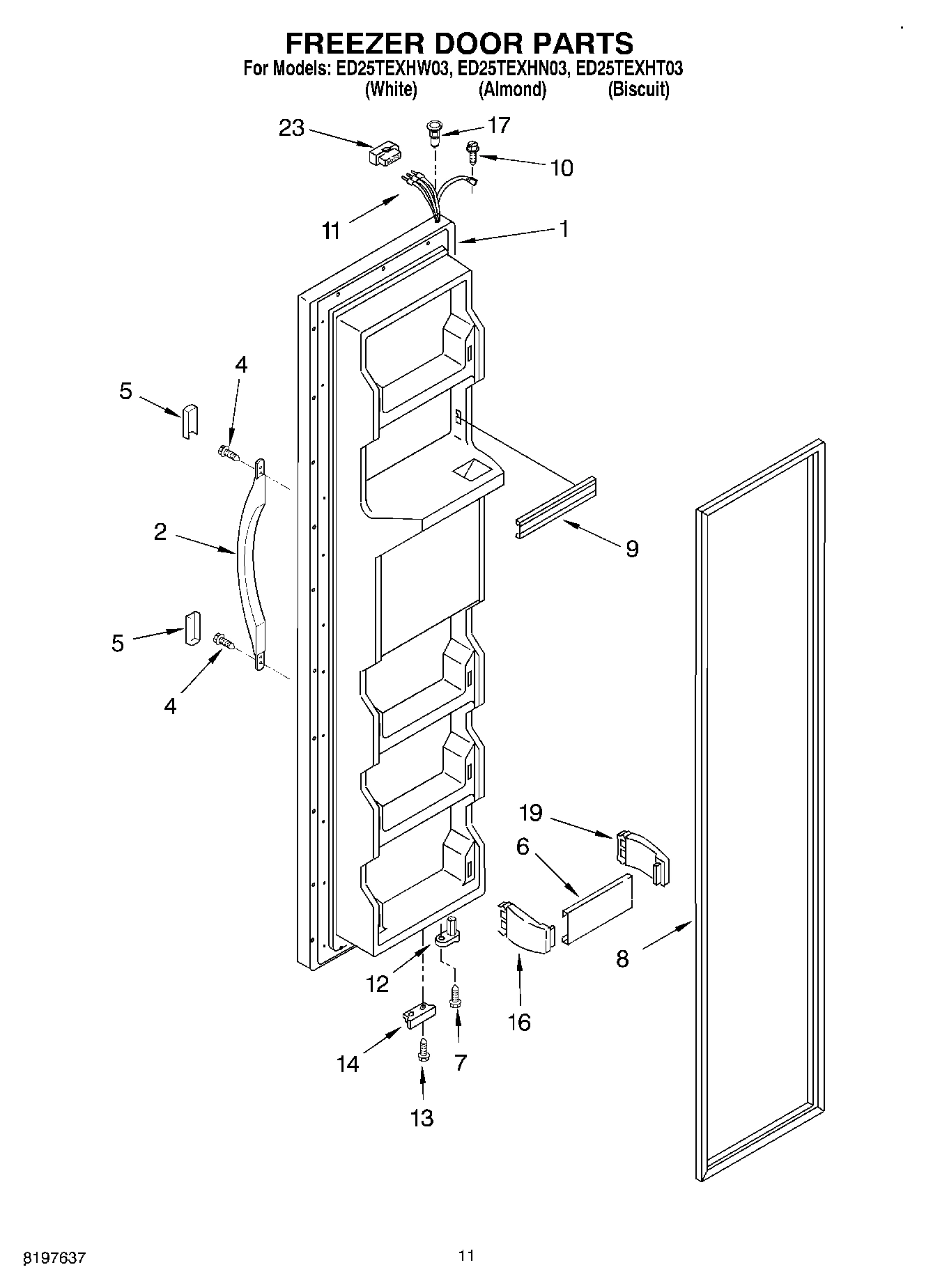

Freezer Door (Includes Item 8 And Dispenser F WPL 2205697N Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2205697T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2205697W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Motor, Dispenser WPL 2188384 Contact Us For Availability

2

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

5

Plug, Bracket WPL 2195013 Contact Us For Availability

5

Endcap, Handle (2) (Almond) WPL 2193353N Contact Us For Availability

5

Endcap, Handle (2) (Biscuit) WPL 2193353T Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Trim, Door (4) WPL 2198485 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Handle, Center (White) WPL 2186649W Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2206500 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Stud, Rear WPL 2196207 Contact Us For Availability

9

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Valve, Solenoid WPL 2206123 Contact Us For Availability

Grommet WPL 2176134 Contact Us For Availability

Glass (3) WPL 2177986 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Wire Harness WPL 2180332 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Hinge Cover (White) WPL 1129262 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $63.35

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Bracket, Door Stop WPL 2195950 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $80.36

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

15

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

15

Pivot Arm WPL 1110559 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

TUBE, SUCTION WPL 2205765 Contact Us For Availability

Endcap (Left) WPL 2195917 Contact Us For Availability

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

19

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

19

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

22

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.24

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Shield, Ice Door WPL 987121 Contact Us For Availability

Heat Shield WPL 2149294 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Knob, Air Control WPL 2197871 Contact Us For Availability

Auger WPL 2196293 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $312.36

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Floating Baffle WPL 2181722 Contact Us For Availability

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

Shelf (2) WPL 2174268 Contact Us For Availability

Unit, Harness WPL 2216409 Contact Us For Availability

Nut, Bearing WPL 946195 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

Clip WPL 2161330 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2174352 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

GUARD-FAN Backorder WPL 1110663 $25.31

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Container Assembly WPL 2209777 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
