Model Whirlpool ED25TEXHN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

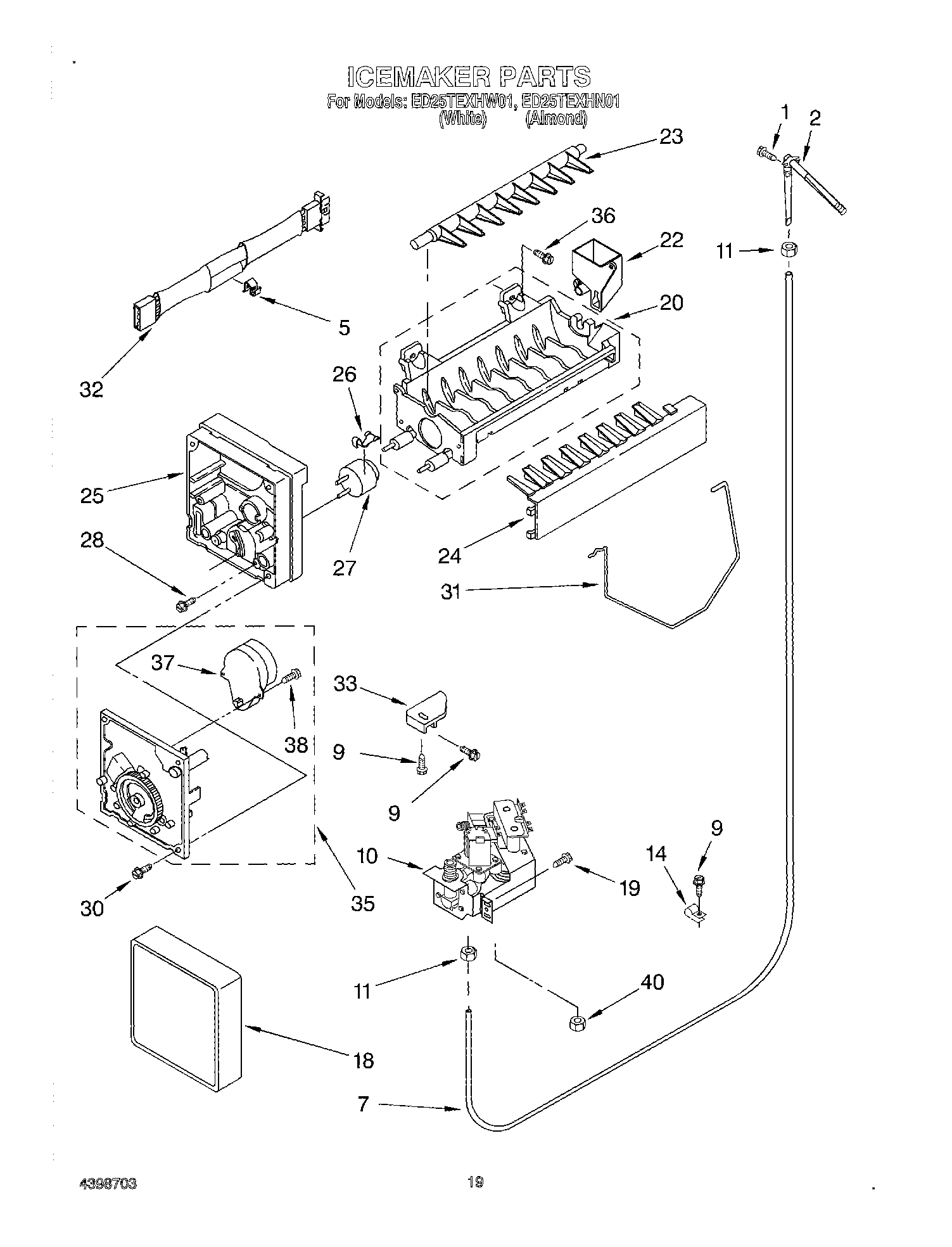

12 - ICE MAKER, OPTIONAL

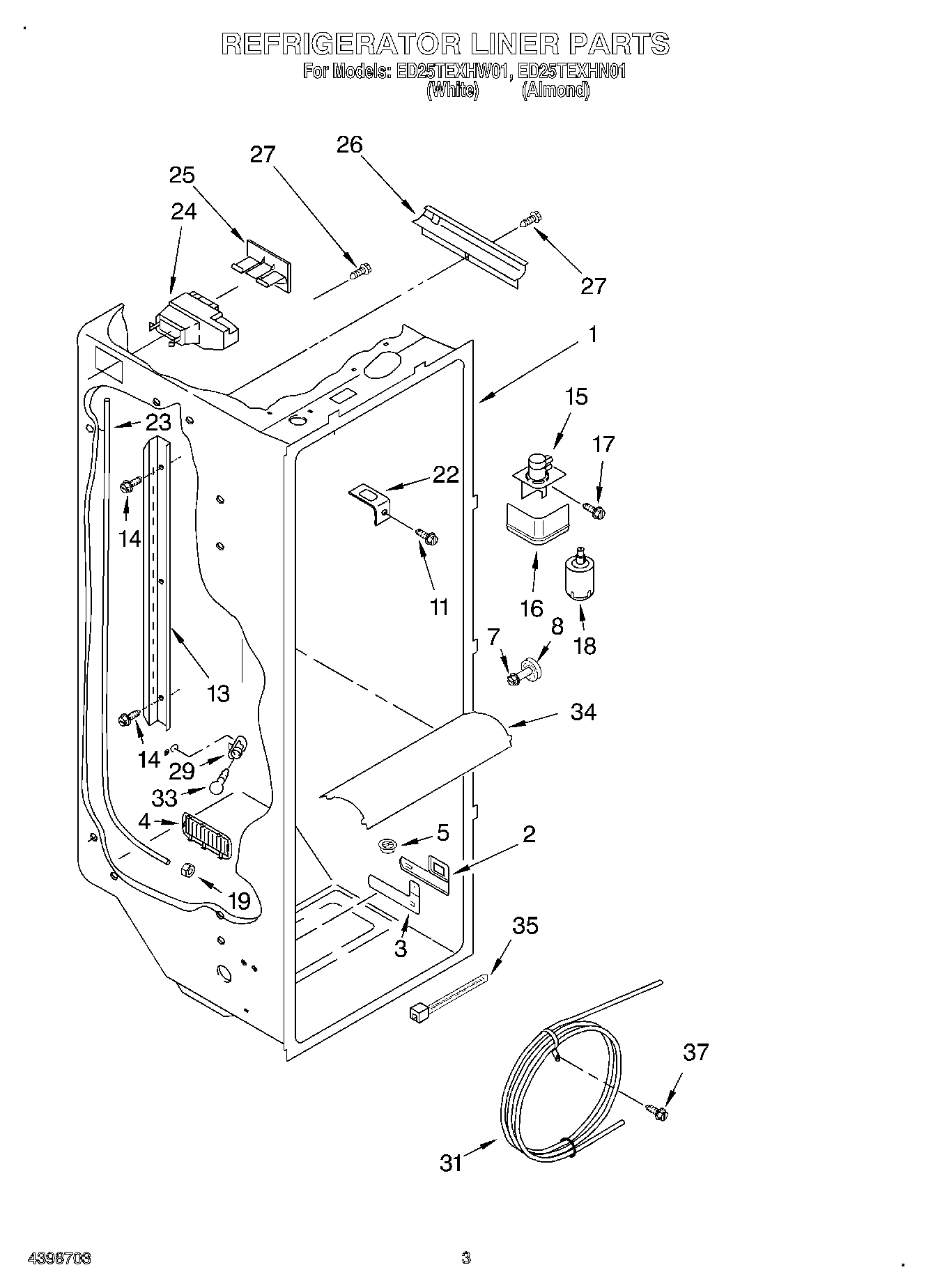

02 - REFRIGERATOR LINER

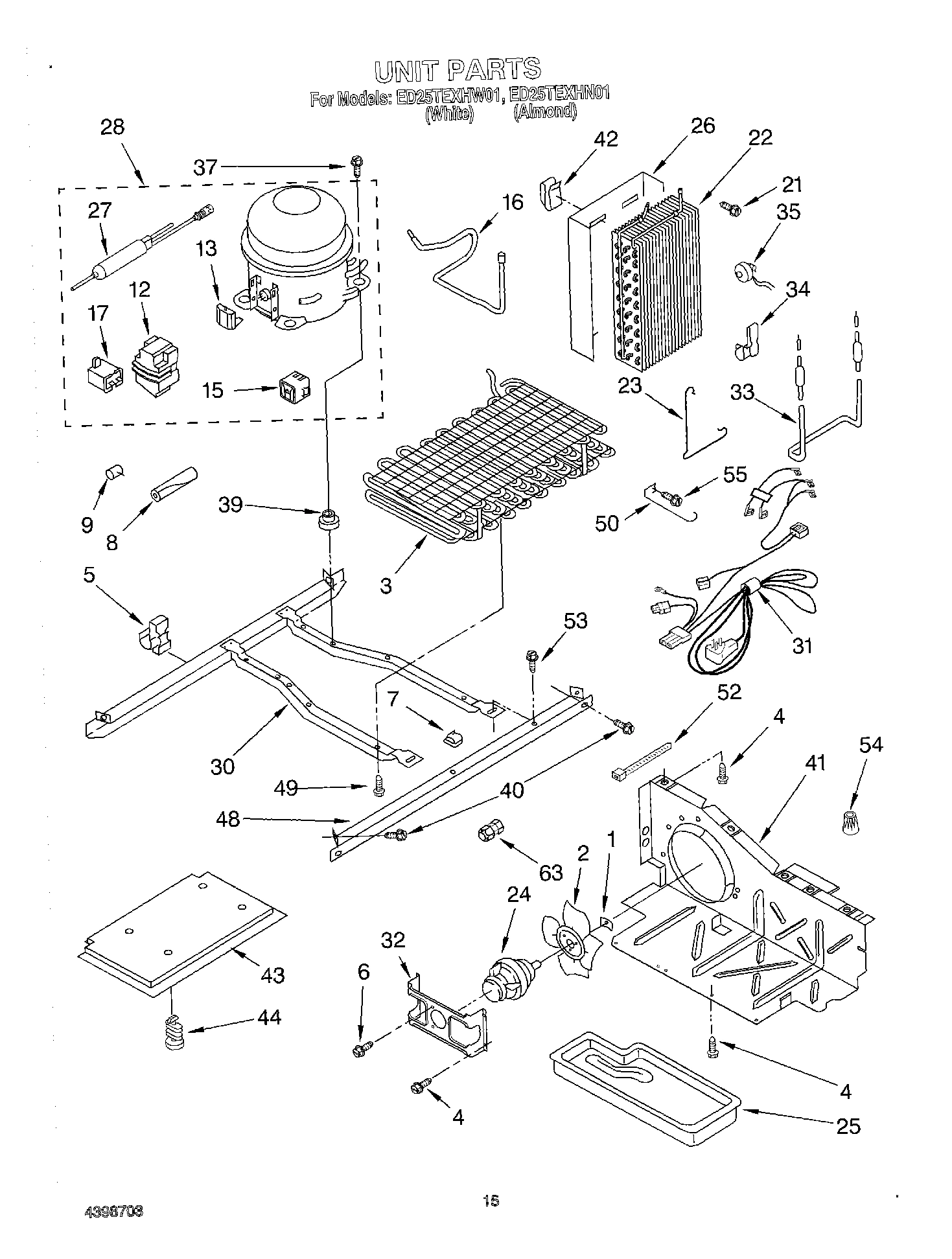

09 - UNIT

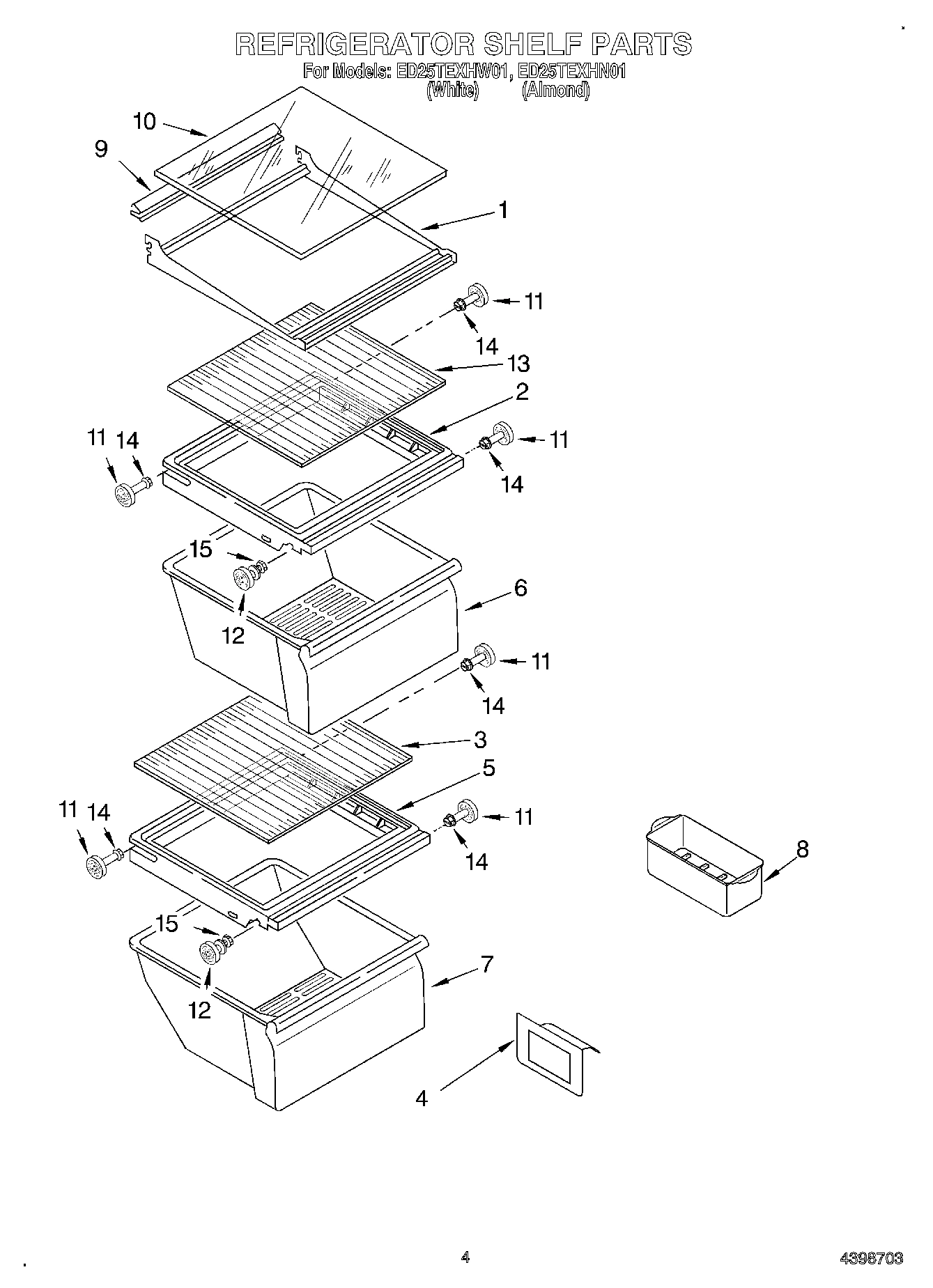

03 - REFRIGERATOR SHELF

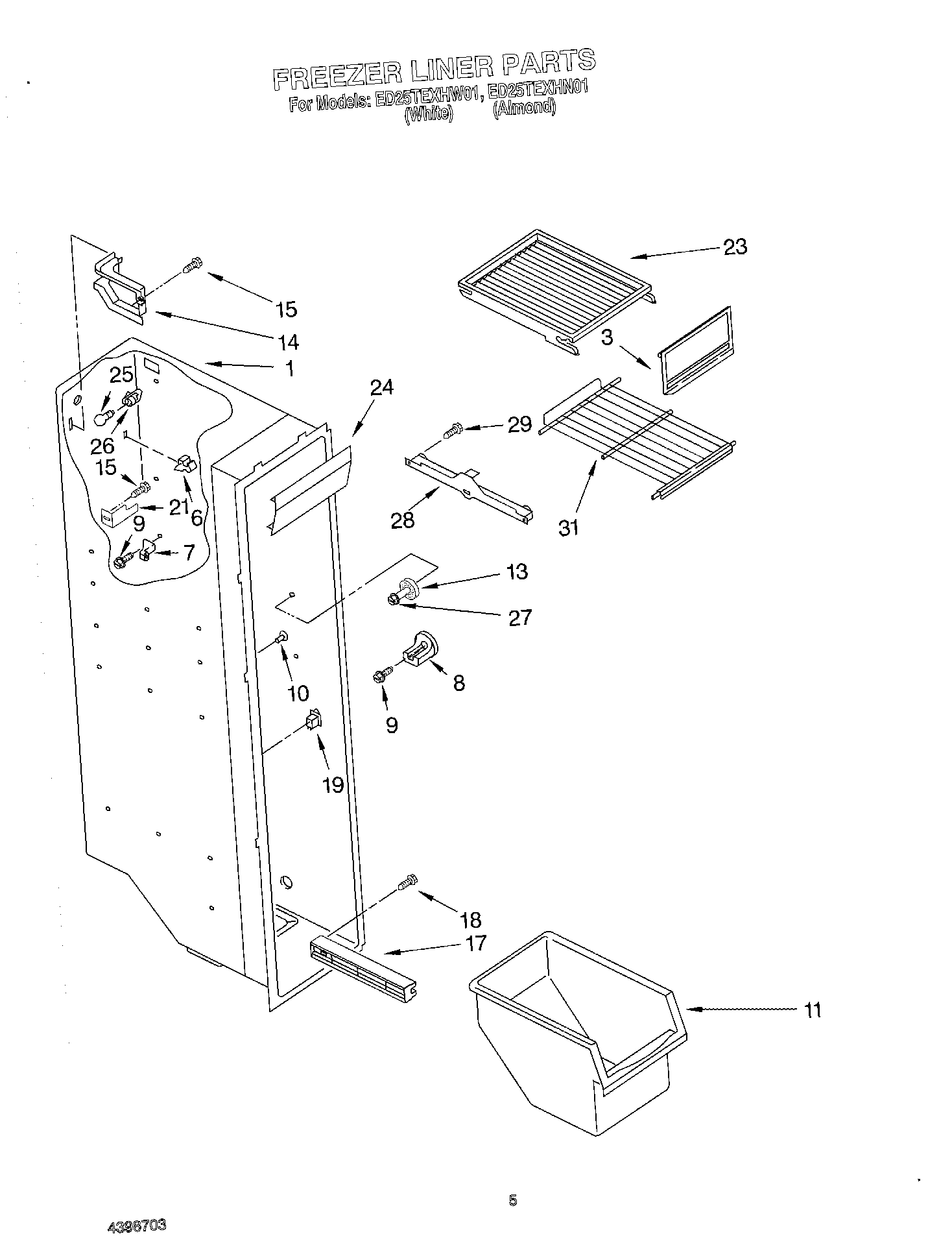

04 - FREEZER LINER

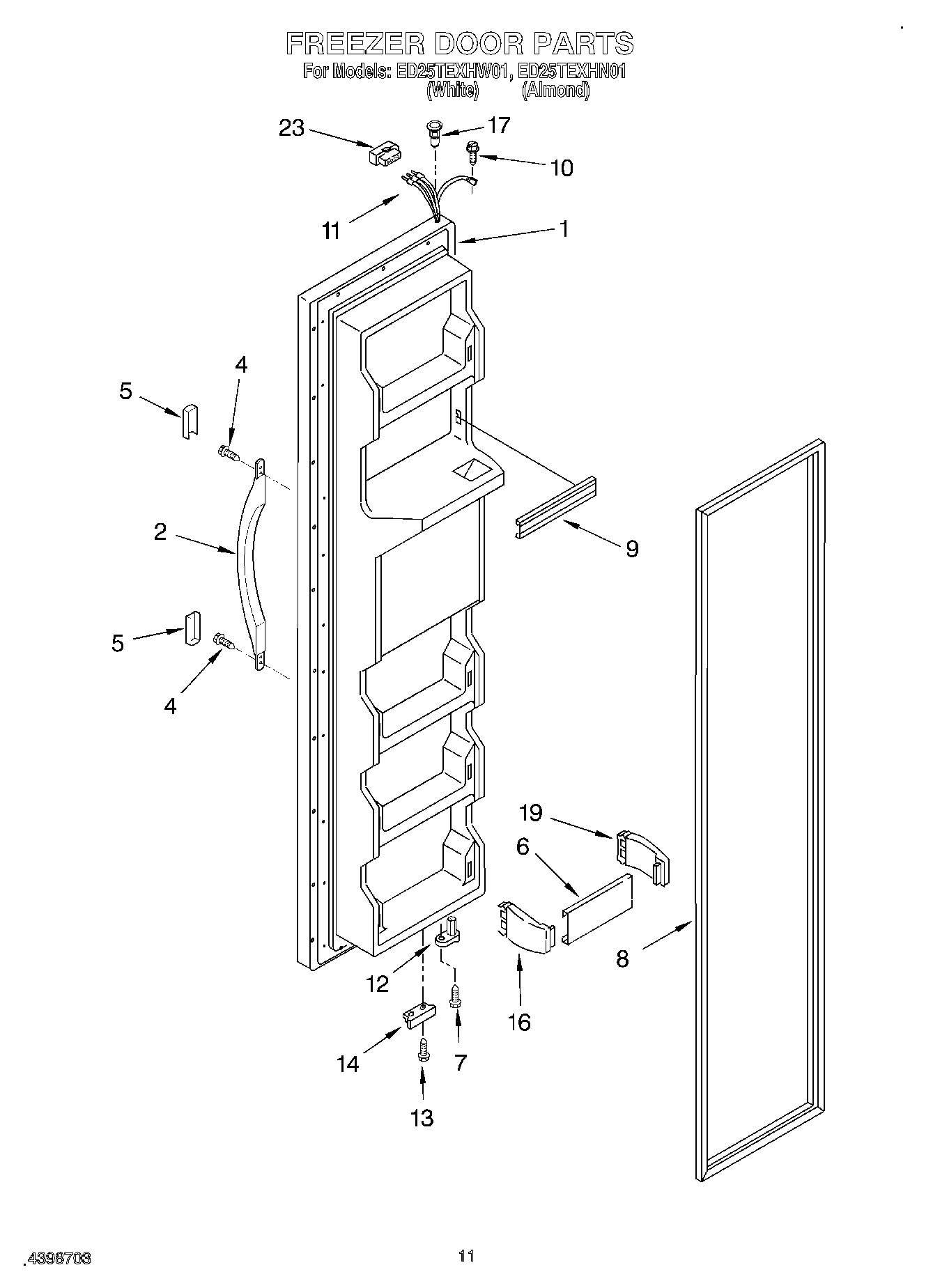

07 - FREEZER DOOR
11 - CONTROL

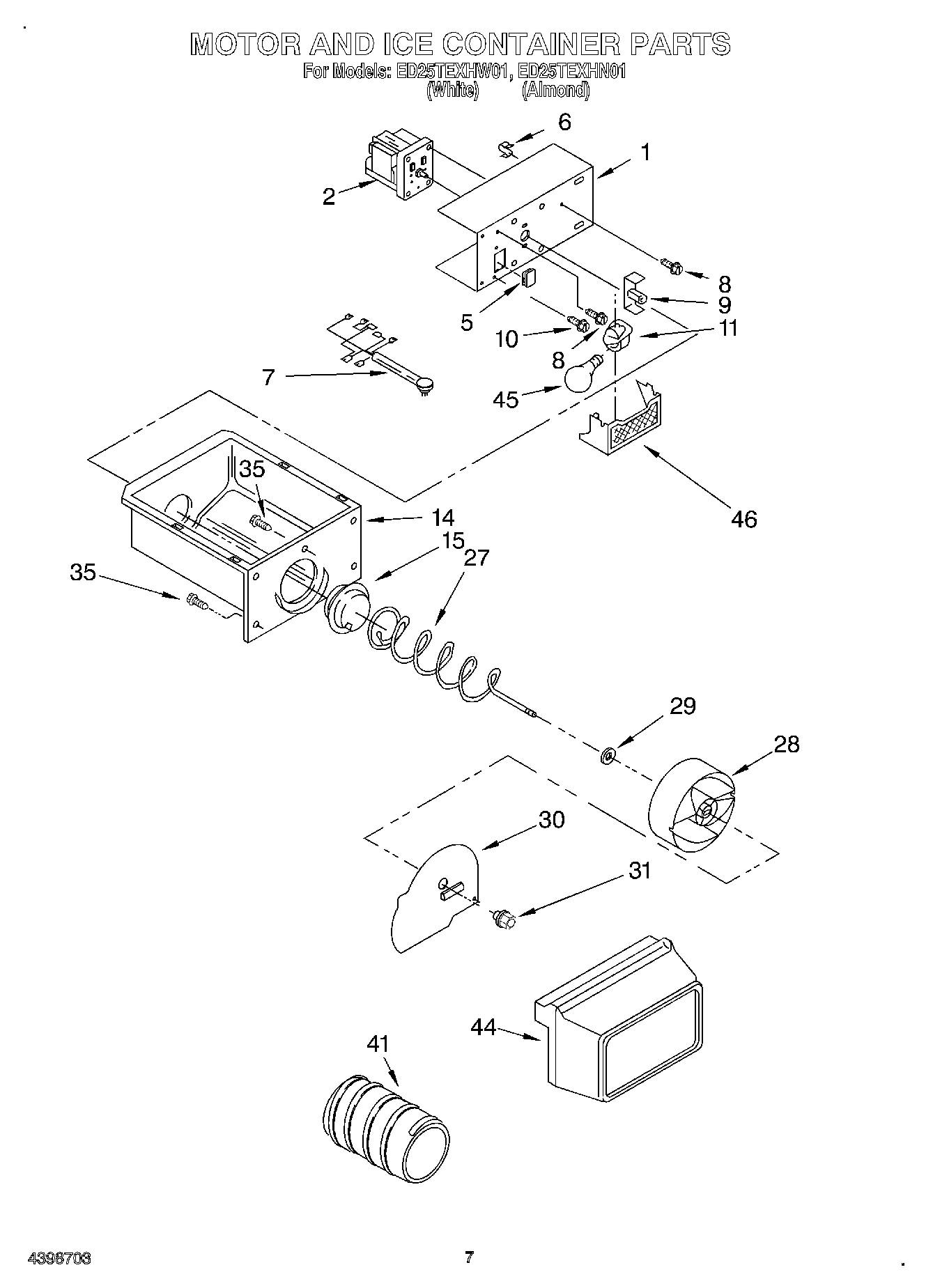

05 - MOTOR AND ICE CONTAINER

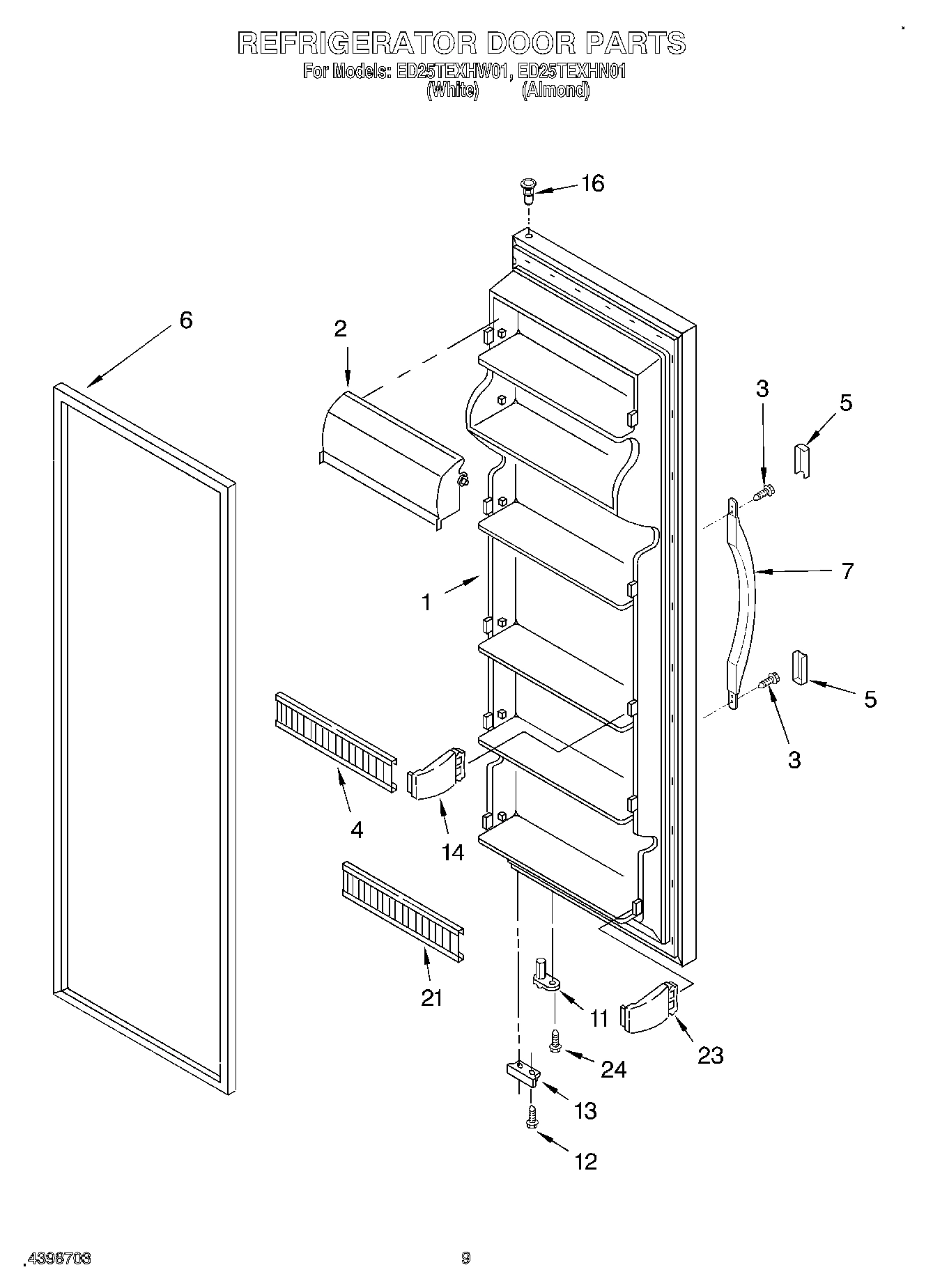

06 - REFRIGERATOR DOOR
01 - CABINET, LITERATURE

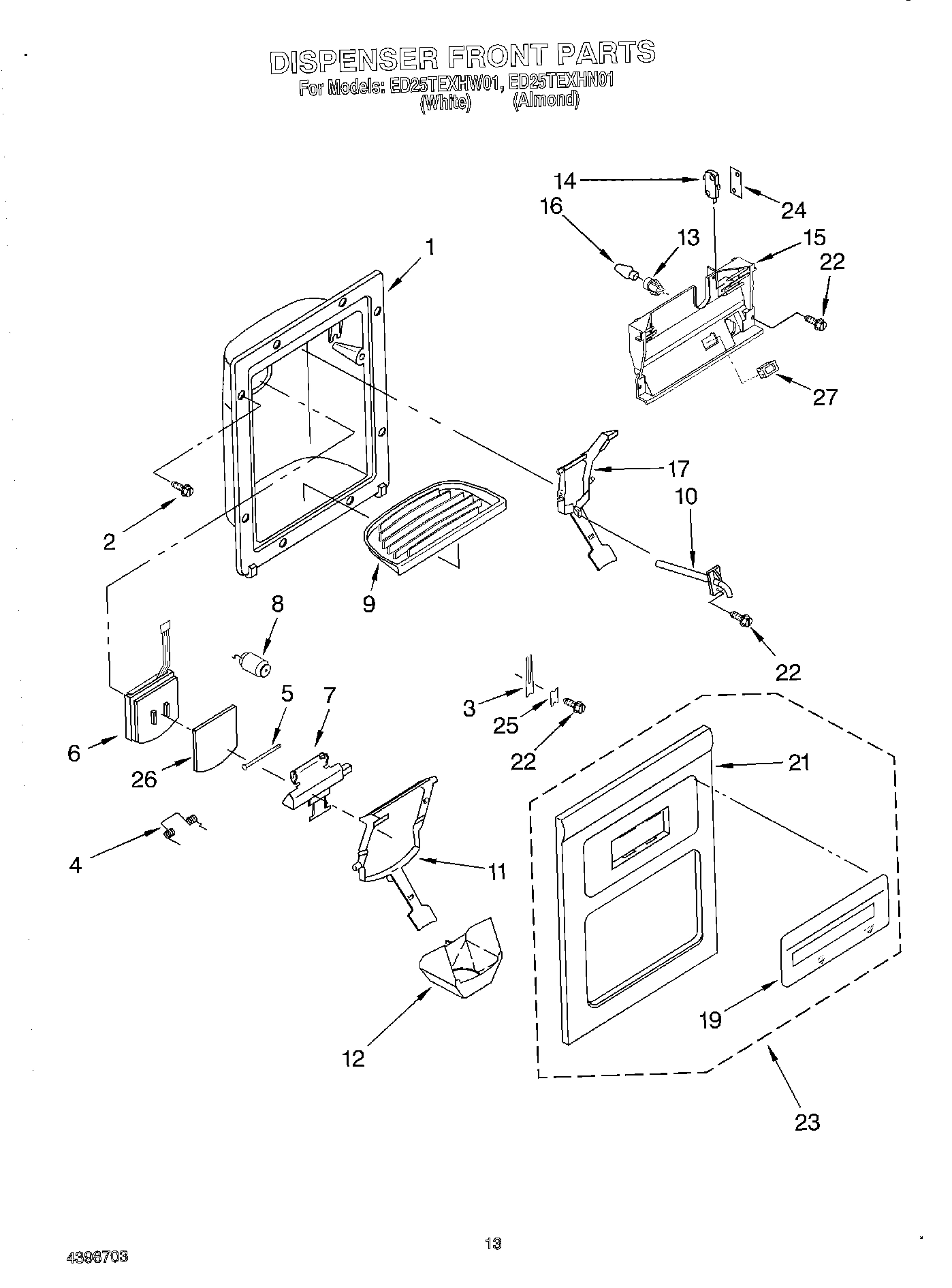

08 - DISPENSER FRONT

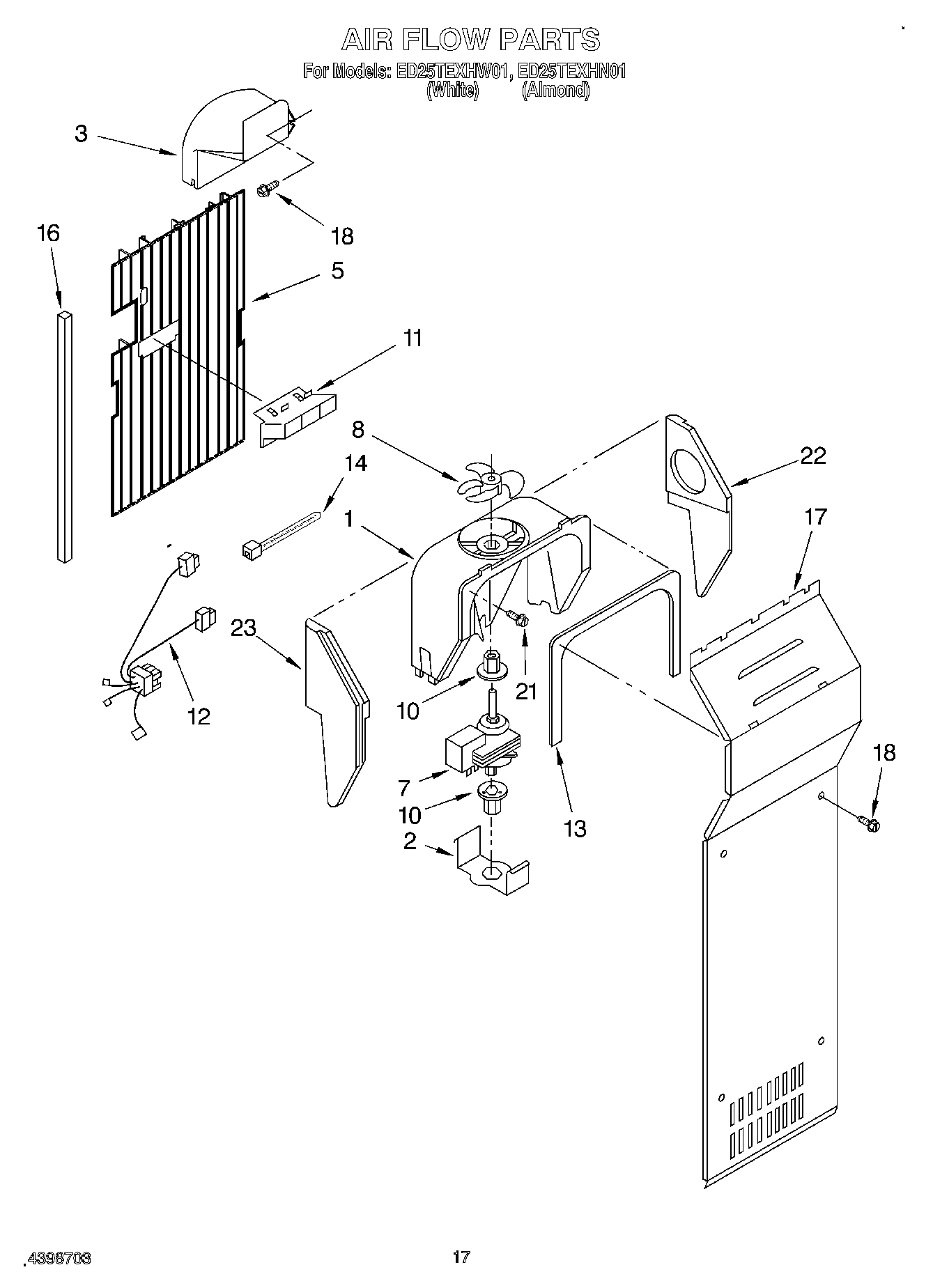

10 - AIR FLOW
Common parts from model Whirlpool ED25TEXHN01 SIDE BY SIDE REFRIGERATOR
LITERATURE PARTS WPL ARI28029A2 Contact Us For Availability
Service & Wiring Sheet WPL LIT2205747 Contact Us For Availability
Energy Label WPL LIT2206407 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2198499N Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2198499W Contact Us For Availability
1
Use & Care Guide WPL LIT2205958 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI28033A6 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
2
Motor, Dispenser WPL 2188384 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Trim, Door (4) WPL 2198488 Contact Us For Availability
5
Plug, Bracket WPL 2195013 Contact Us For Availability
5
Endcap, Handle (2) (Almond) WPL 2193353N Contact Us For Availability
5
Air Duct Freezer WPL 2203593 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2186816 Contact Us For Availability
7
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Stud, Rear WPL 2196207 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability
10
Valve, Solenoid WPL 2206123 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Glass (3) WPL 2177986 Contact Us For Availability
10
Shim, Hinge Top WPL 2196048 Contact Us For Availability
11
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
12
Hinge Cover (White) WPL 1129262 Contact Us For Availability
12
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186800 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
TUBE, SUCTION WPL 2205765 Contact Us For Availability
17
Cover, Evaporator WPL 2203841 Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2205691N Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2205691W Contact Us For Availability
21
Trim, Door (1) WPL 2198486 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI28034A3 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2205695N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2205695W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
26
Shield, Ice Door WPL 987121 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Conveyor WPL 2181953 Contact Us For Availability
27
Cabinet (Not A Serviceable Part) WPL ARI28030A2 Contact Us For Availability
27
Switch WPL 2180254 Contact Us For Availability
30
Floating Baffle WPL 2181722 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
31
Nut, Bearing WPL 946195 Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
44
Front Cover, Ice Container WPL 2174352 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
