Model Whirlpool ED25CQXFW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

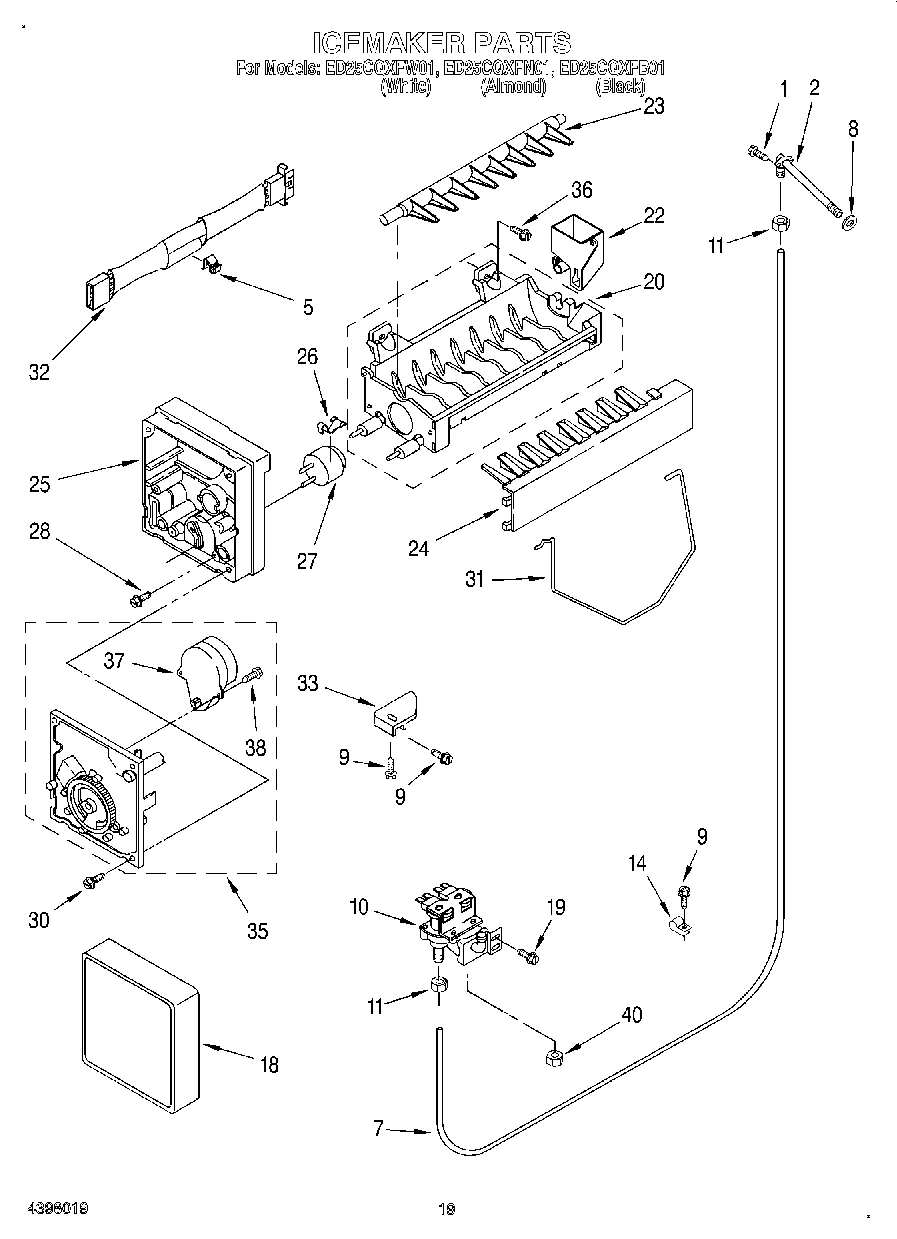

12 - ICEMAKER, LIT/OPTIONAL

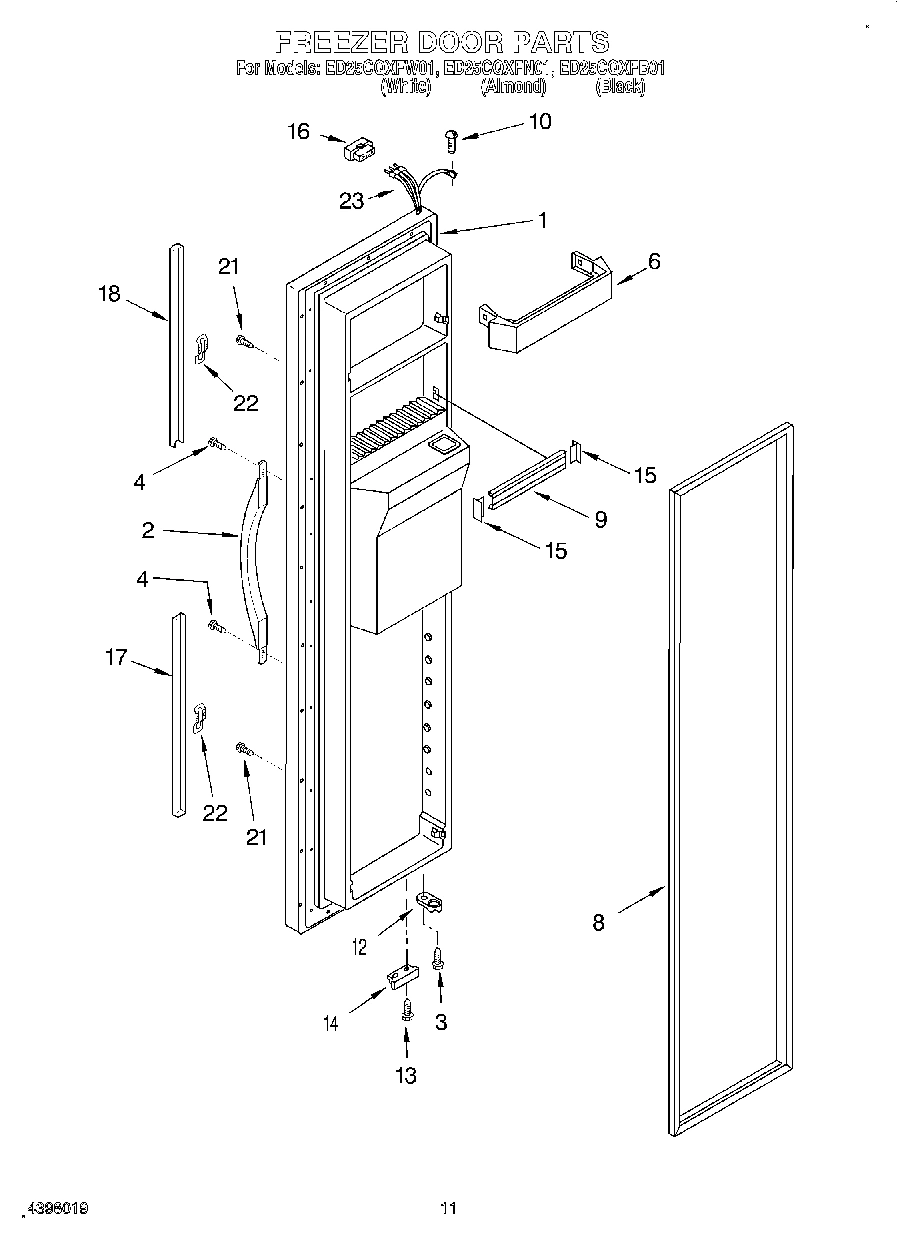

07 - FREEZER DOOR
03 - REFRIGERATOR SHELF
04 - FREEZER LINER
11 - CONTROL
02 - REFRIGERATOR LINER
09 - UNIT
05 - MOTOR AND ICE CONTAINER
06 - REFRIGERATOR DOOR
01 - CABINET
08 - DISPENSER FRONT
10 - AIR FLOW
Common parts from model Whirlpool ED25CQXFW01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194509B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194509N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194509W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI27293A5 Contact Us For Availability
2
Handle, Center (Black) WPL 2186649B Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Grille, Overflow (Black) WPL 2183787B Contact Us For Availability
9
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2195089B Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Extension, Top (Black) WPL 2194973B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
16
Glass WPL 2177986 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
17
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2180355 Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2180356 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2180357 Contact Us For Availability
20
Wire Assembly WPL 2180331 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI27294A5 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Shelf, Cantilever (Snack Bin) WPL 2179443 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194608B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194608N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194608W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
31
Shelf, Large (2) WPL 2174268 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI27290A5 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
× ![]()
