Model Whirlpool ED25CQXFW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
07 - FREEZER DOOR
09 - UNIT

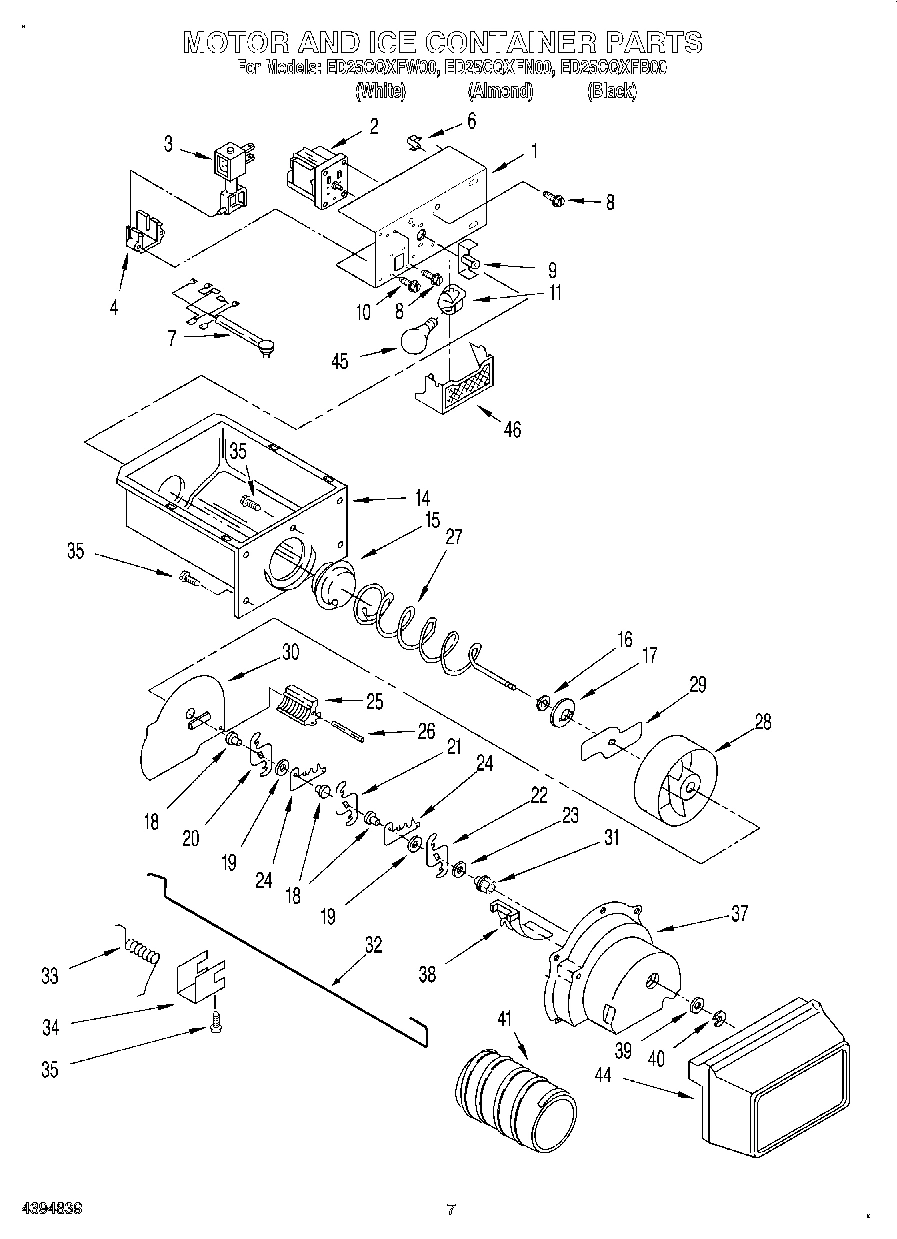

05 - MOTOR AND ICE CONTAINER

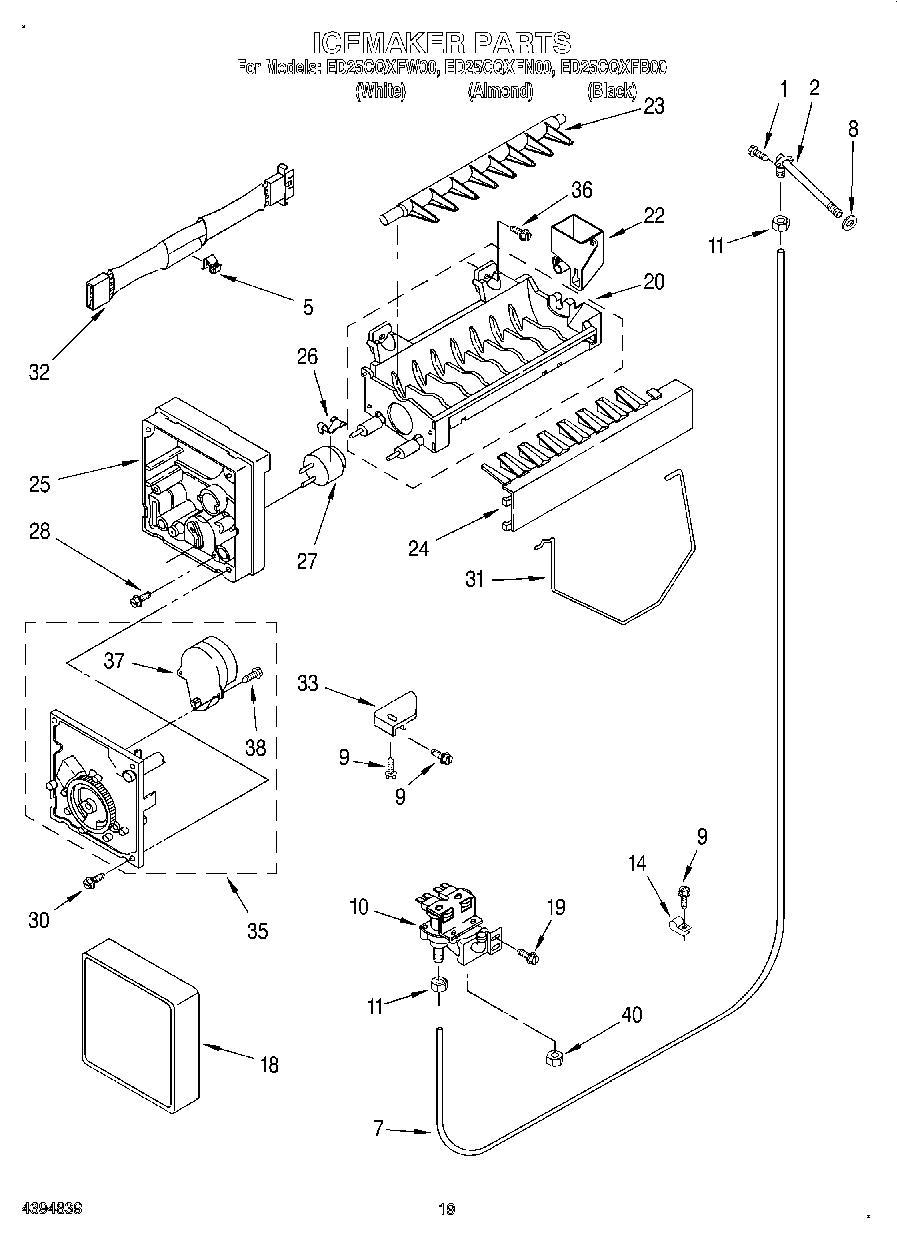

12 - ICEMAKER, LIT/OPTIONAL

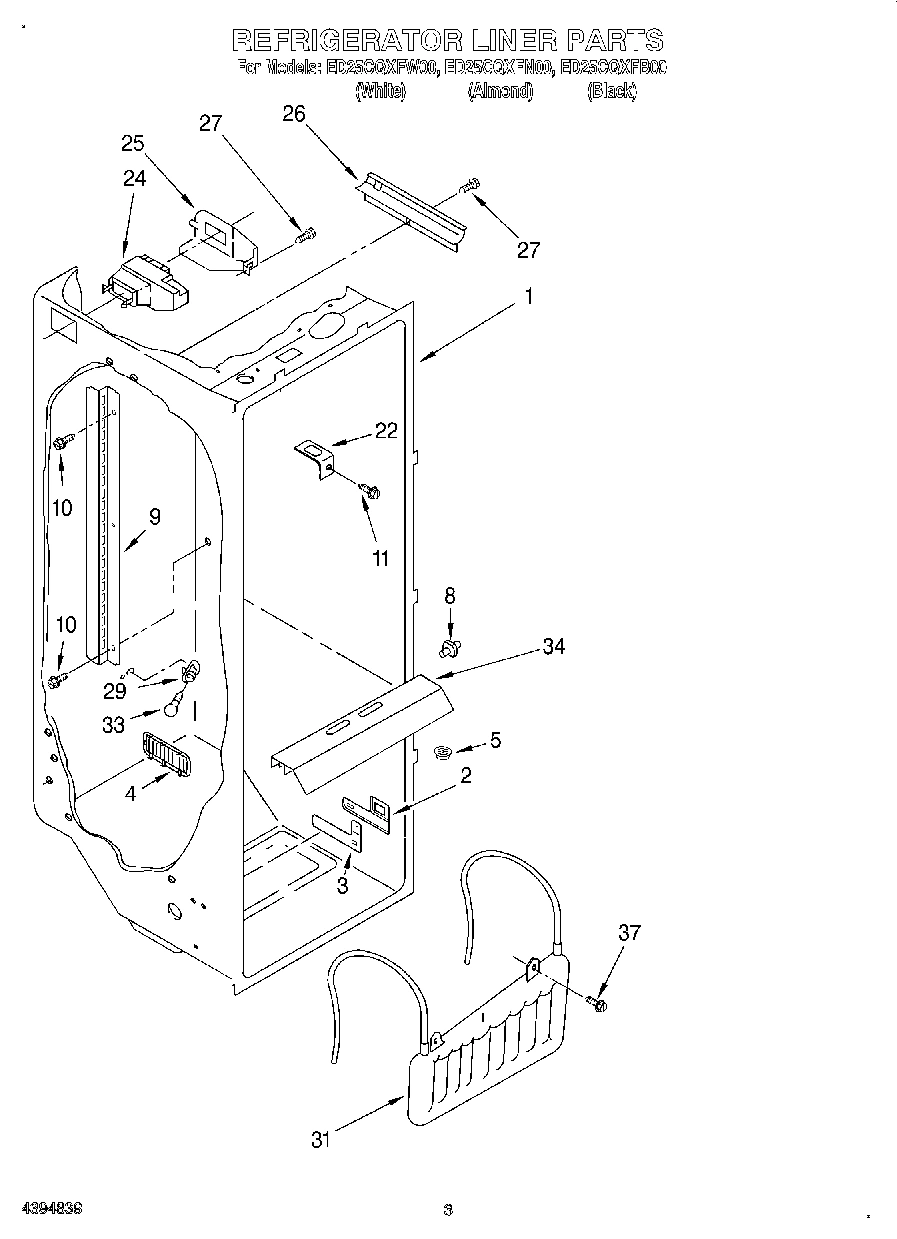

02 - REFRIGERATOR LINER

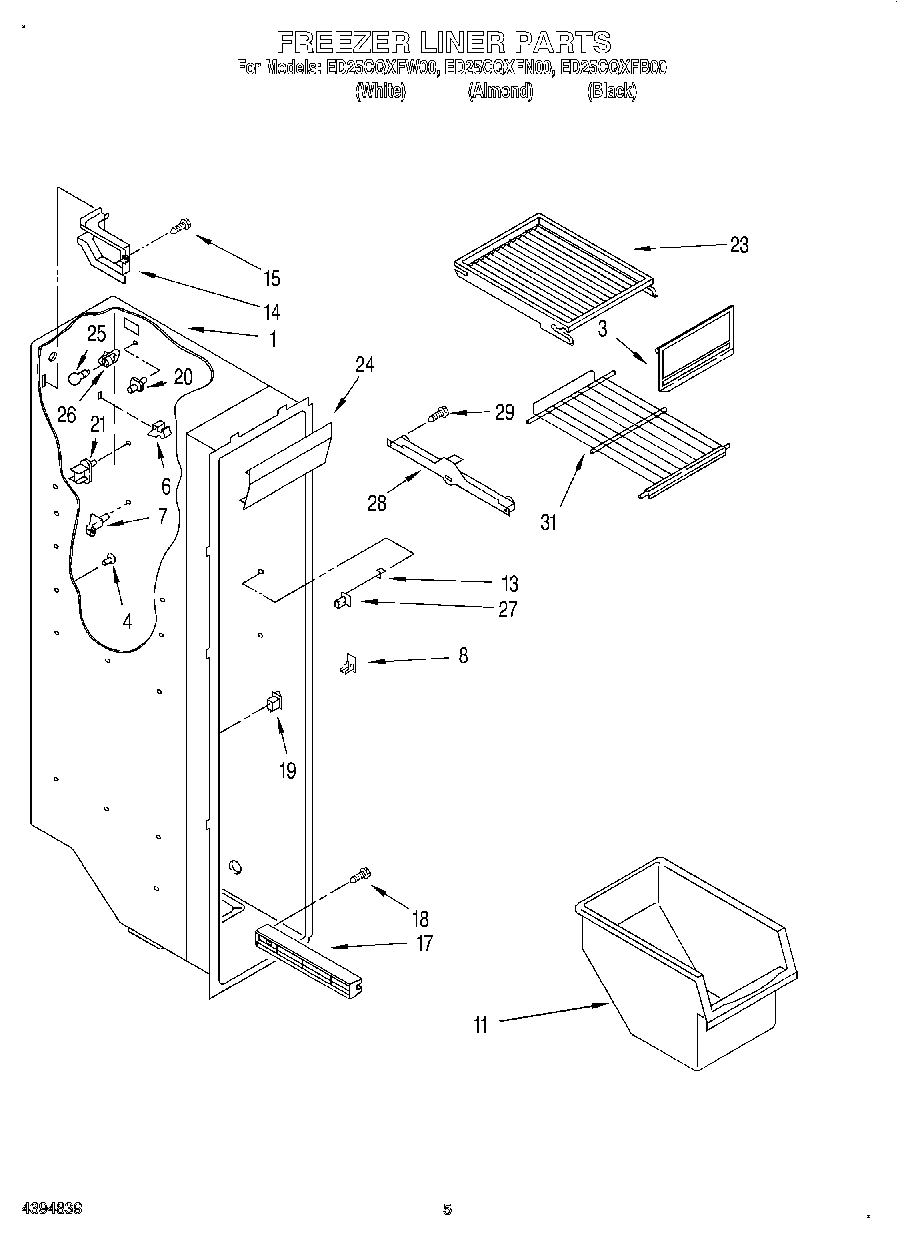

04 - FREEZER LINER

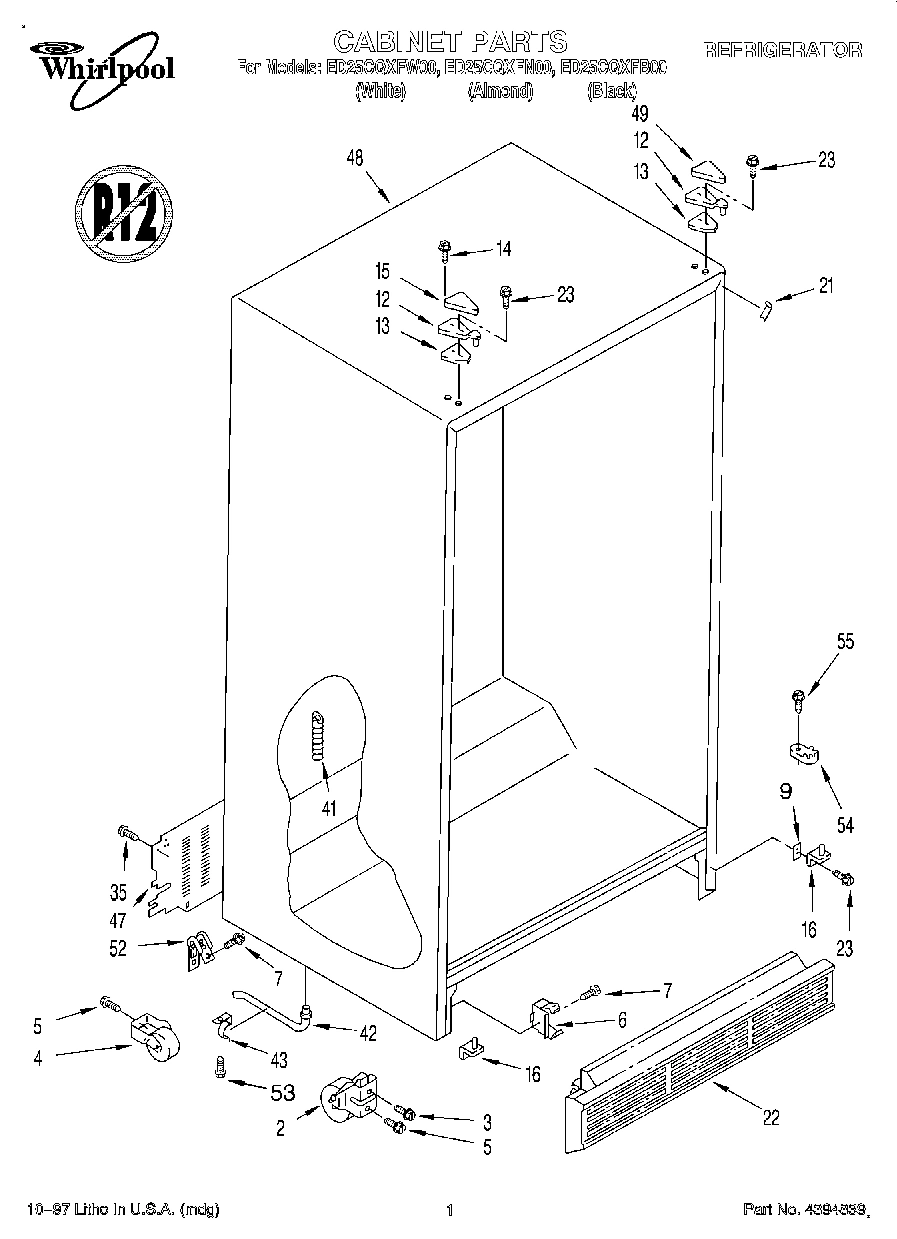

01 - CABINET

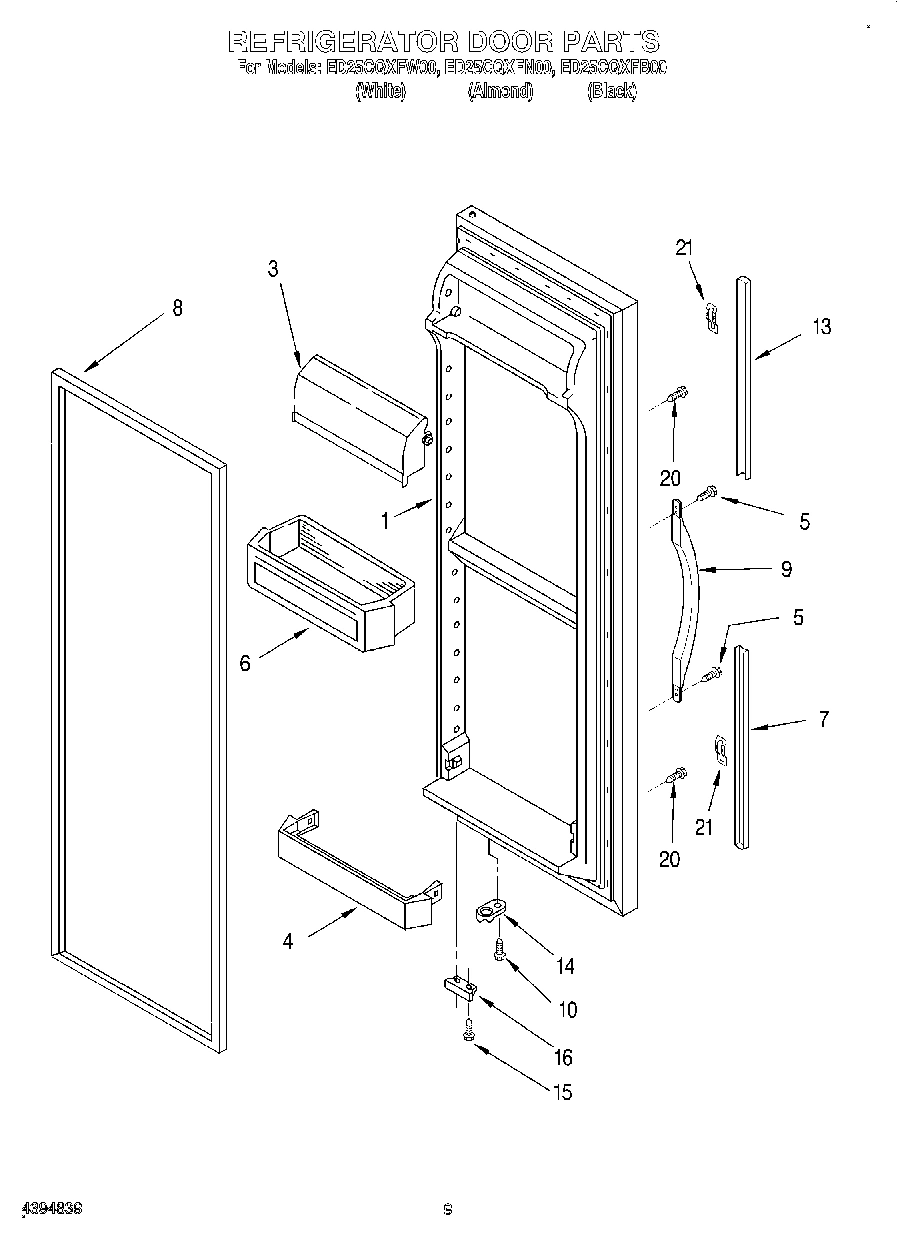

06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT
10 - AIR FLOW

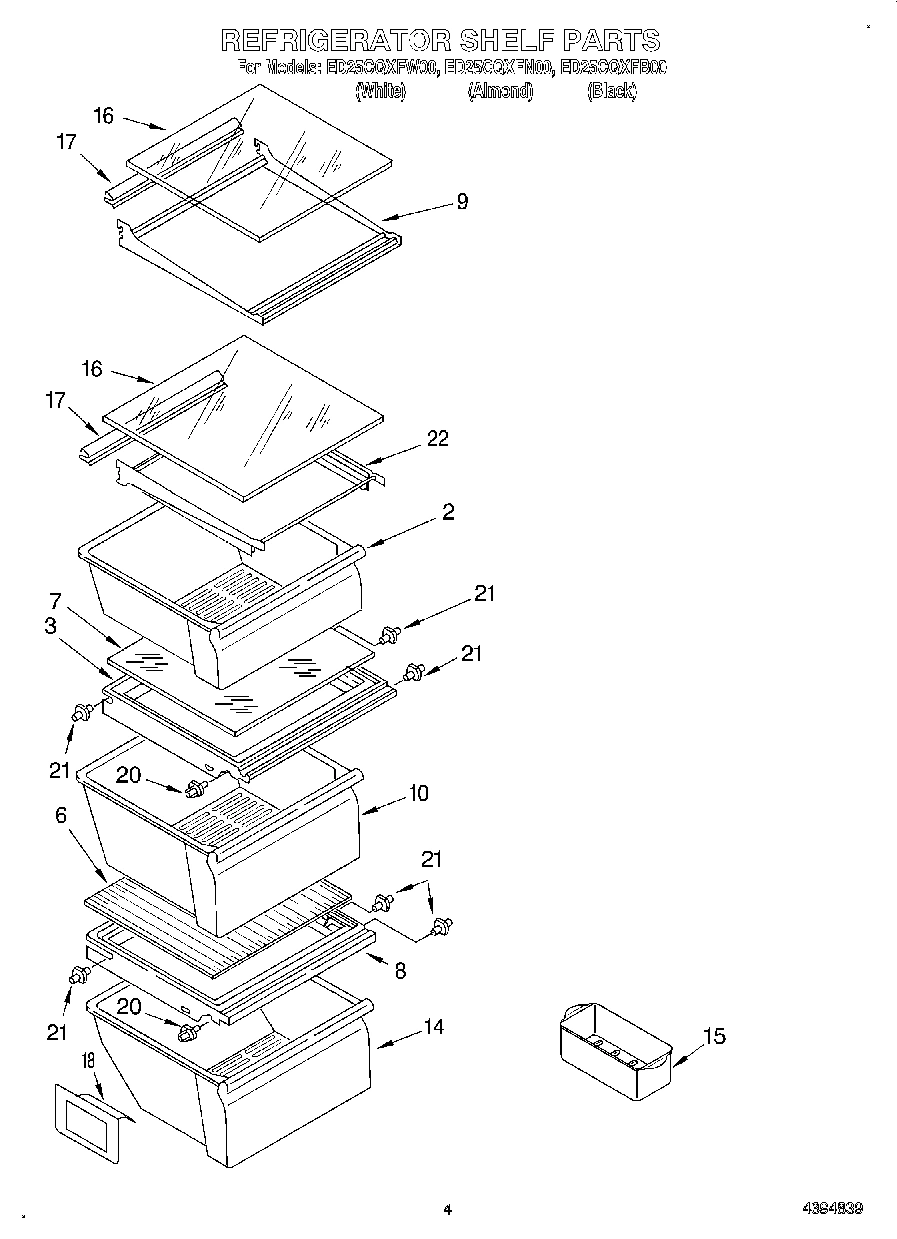

03 - REFRIGERATOR SHELF

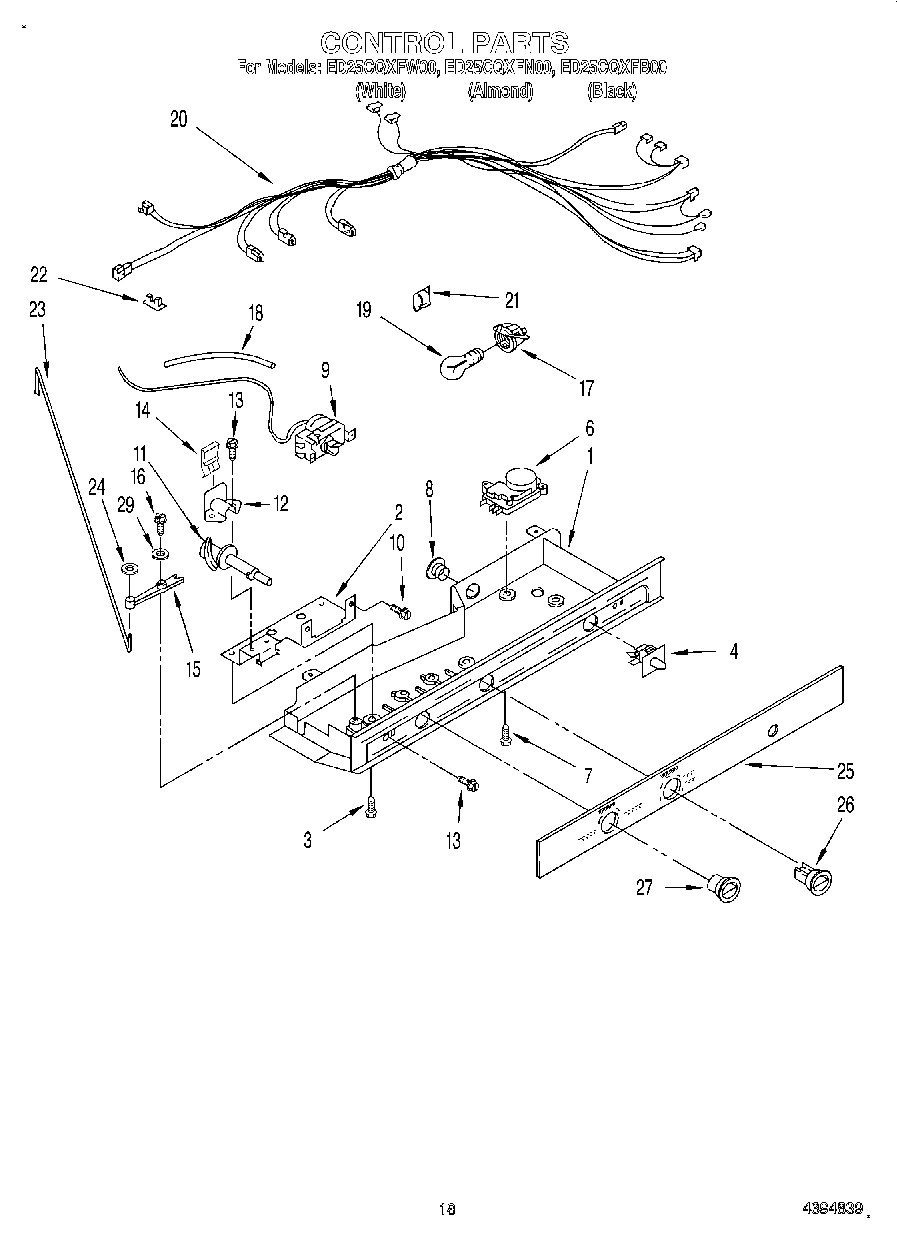

11 - CONTROL
Common parts from model Whirlpool ED25CQXFW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194509B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194509N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194509W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI27287A3 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
6
Defrost Timer WPL 2176648 Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194970N Contact Us For Availability
7
Extension, Bottom (White) WPL 2194970W Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Grille, Overflow (Black) WPL 2183787B Contact Us For Availability
9
Handle, Center (Almond) WPL 2193345N Contact Us For Availability
9
Handle, Center (White) WPL 2193345W Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability
9
Shelf Assembly, Cantilever WPL 2163572 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2195089B Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
13
Extension, Top (Black) WPL 2194974B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194974N Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Meat Pan WPL 2174118 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
16
Glass WPL 2177986 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Retainer, Glass WPL 1125594 Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2180355 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2180356 Contact Us For Availability
19
Plaque, Front Cover (Black) WPL 2180357 Contact Us For Availability
20
Wire Assembly WPL 2180331 Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI27288A3 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Shelf, Cantilever (Snack Bin) WPL 2179443 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194608B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194608N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194608W Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
31
Shelf, Large (2) WPL 2174268 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI27284A5 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
